Planetary Gearset
The transaxle has two planetary gearsets to provide operation in reverse and four forward speeds.

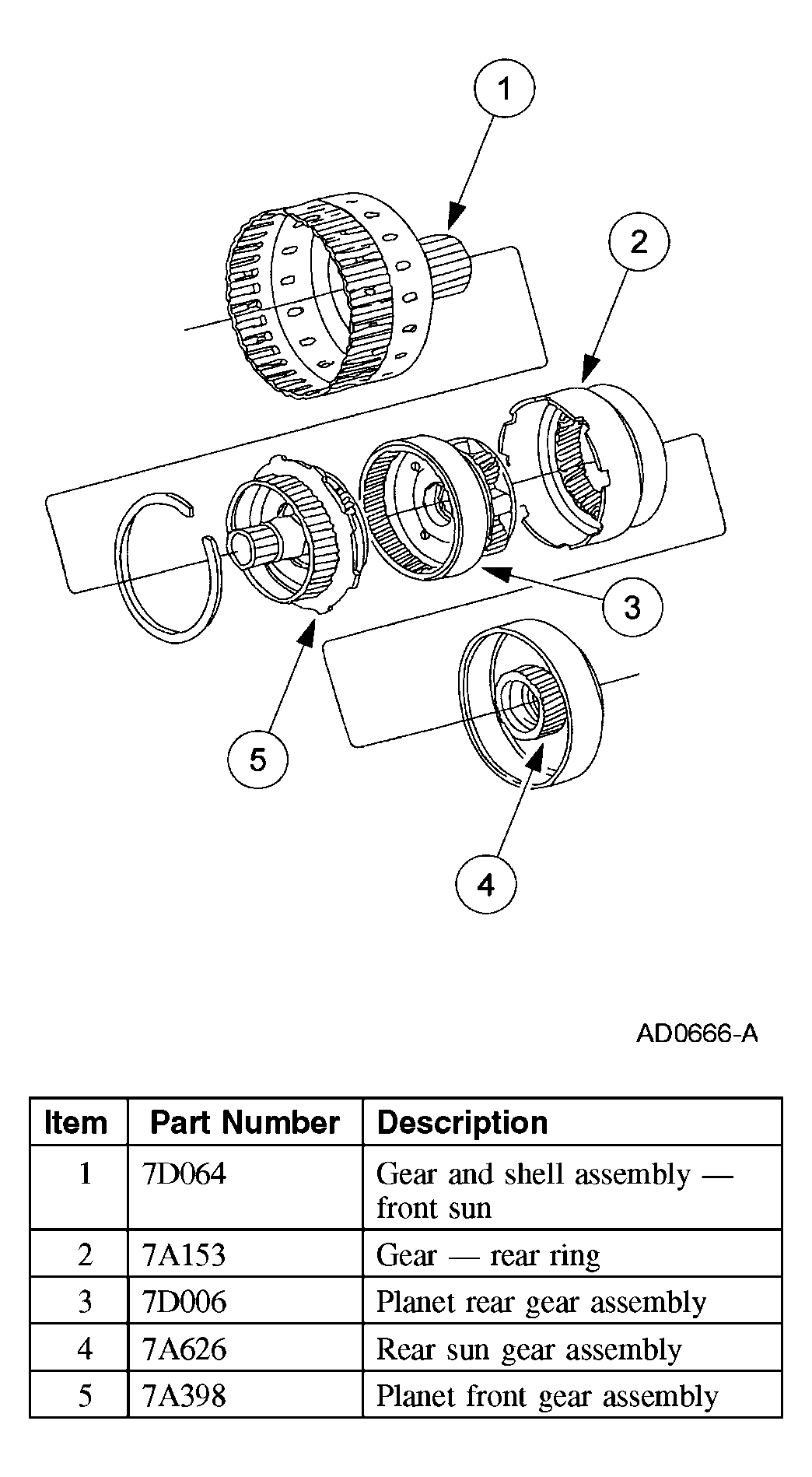

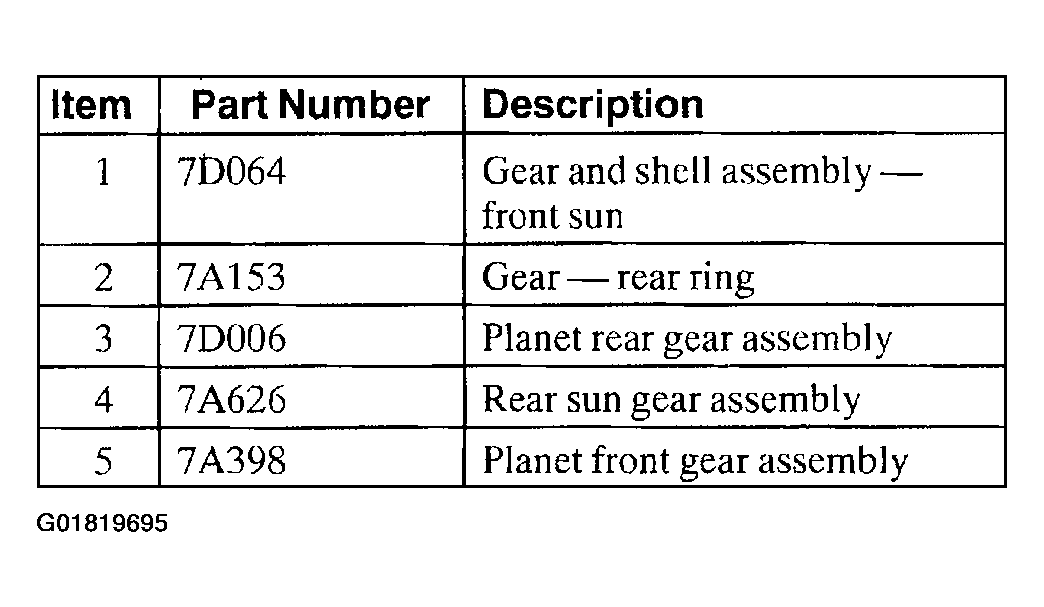

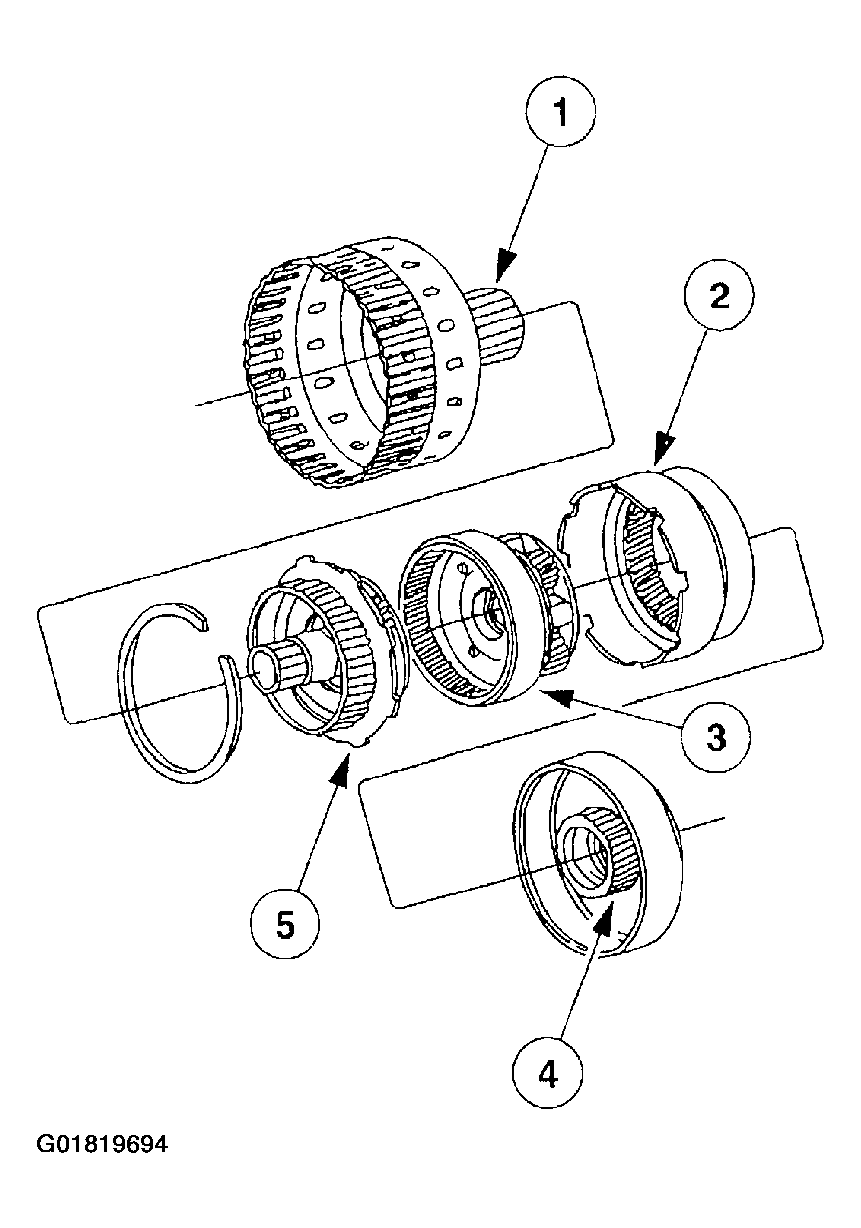

The gearsets are comprised of the following components:
- front sun gear (part of the front sun gear and shell assembly)
- front carrier
- rear ring gear
- front ring gear and rear carrier
- rear sun gear
