Transaxle Connector Layouts

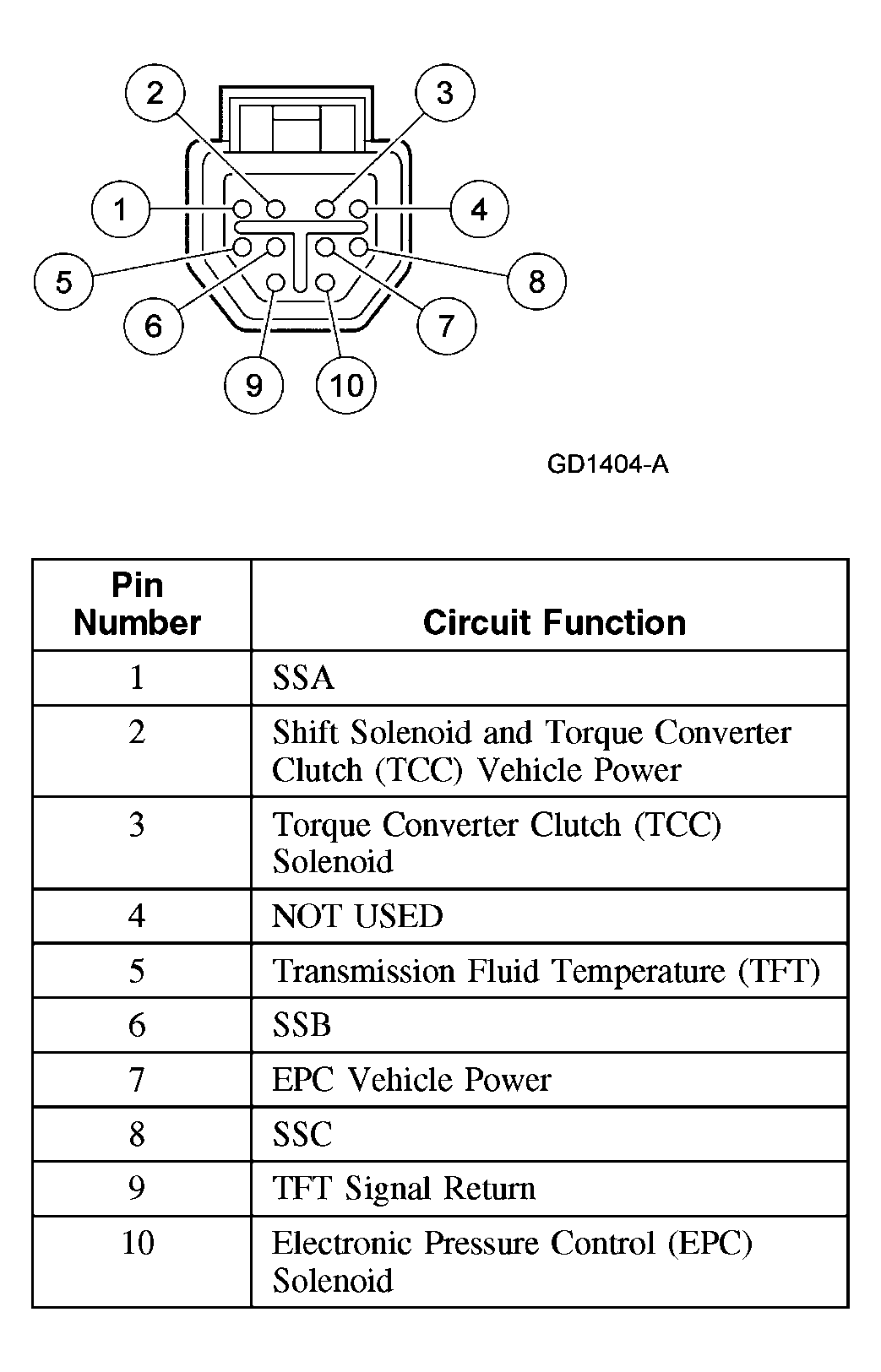

Fig 1: Identifying Transaxle Harness Connector

Courtesy of FORD MOTOR CO.

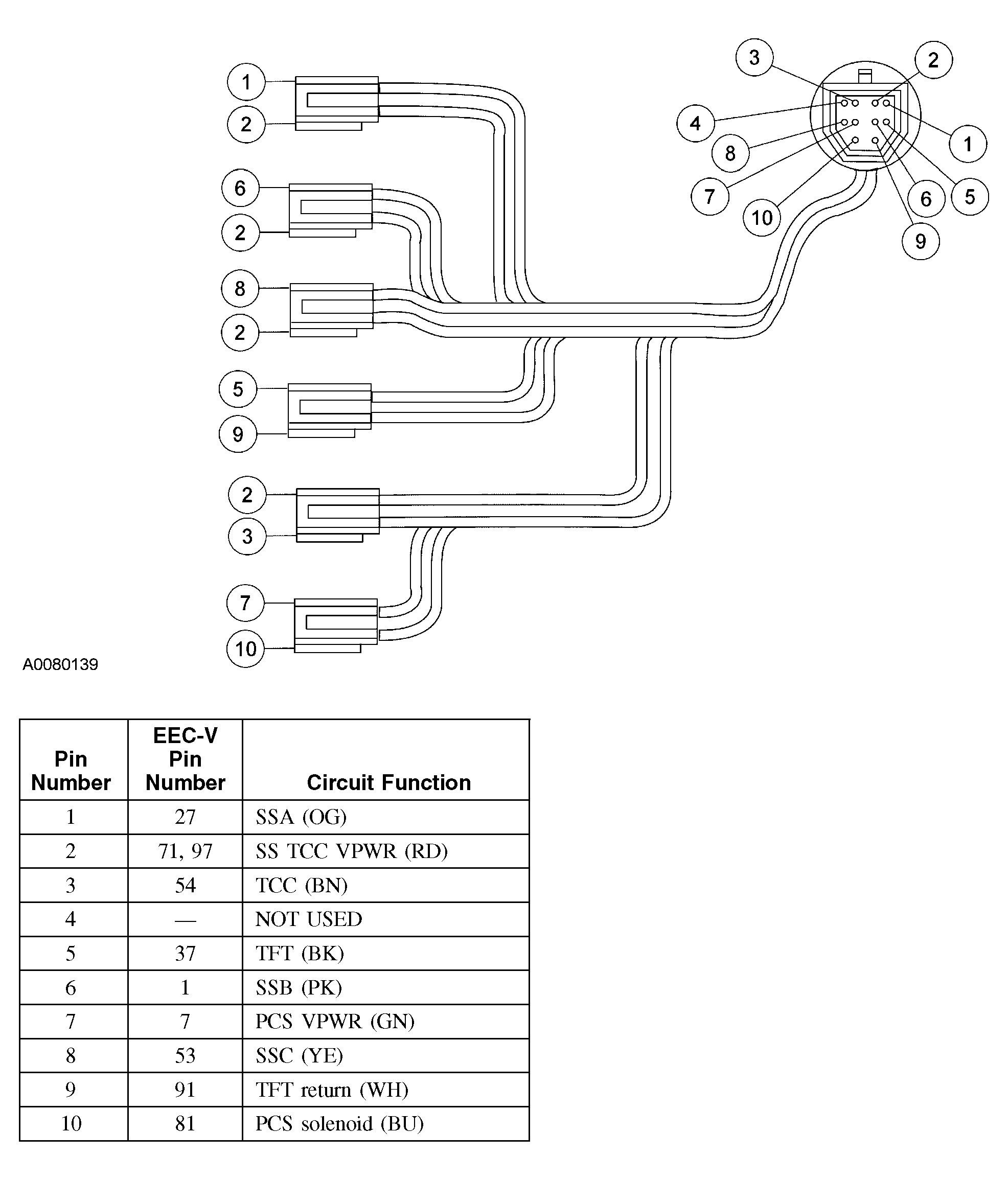

Fig 2: Transaxle Internal Harness Diagram

Courtesy of FORD MOTOR CO.

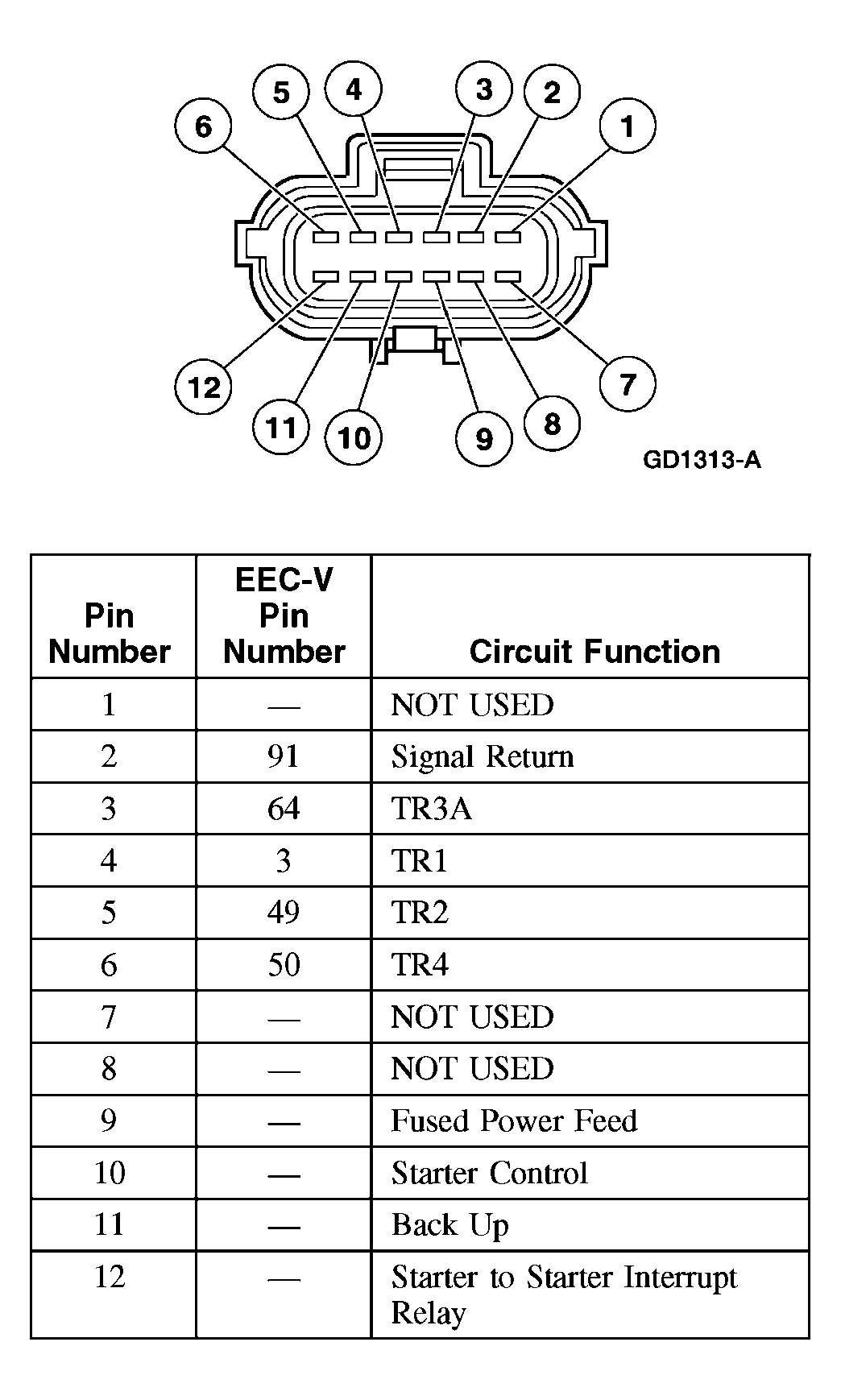

Fig 3: Digital Transmission Range (TR) Sensor Connector

Courtesy of FORD MOTOR CO.

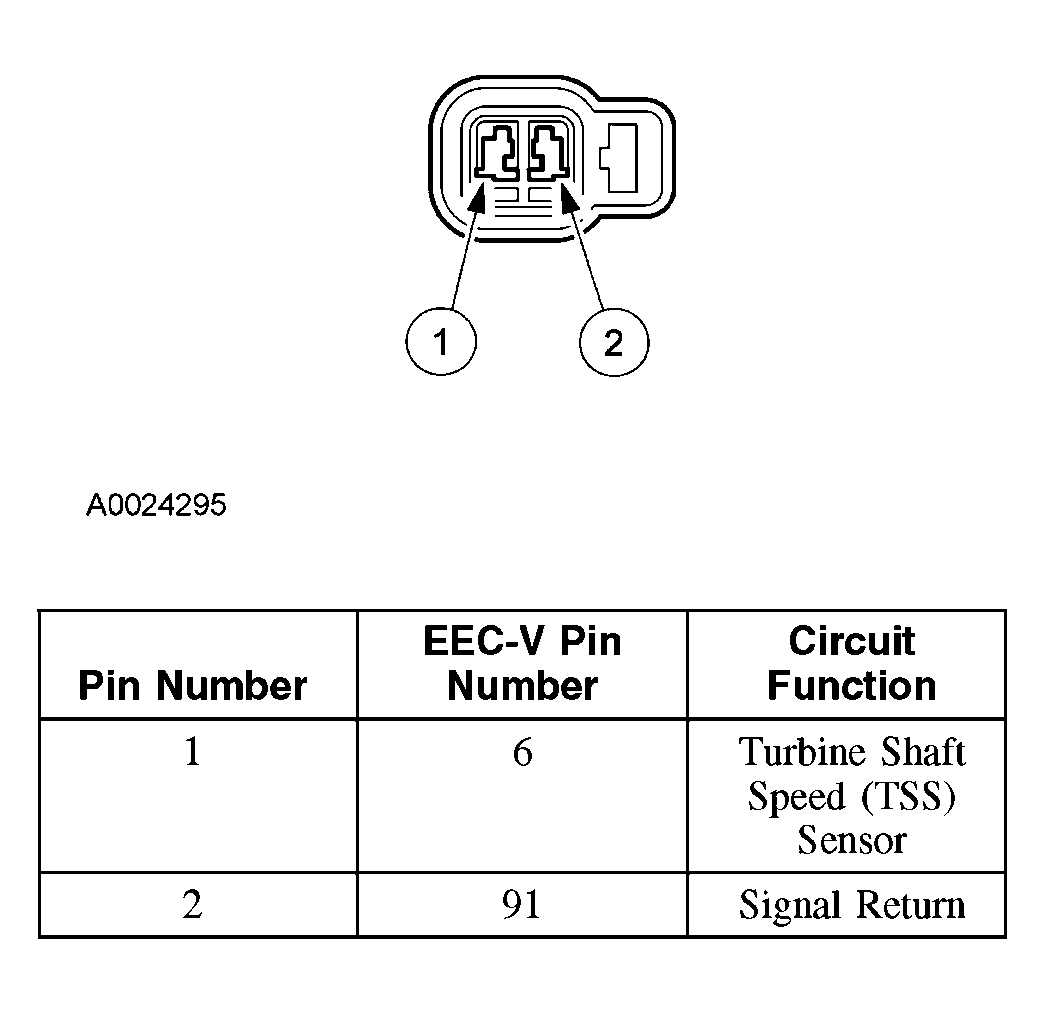

Fig 4: Turbine Shaft Speed (TSS) Sensor Connector

Courtesy of FORD MOTOR CO.

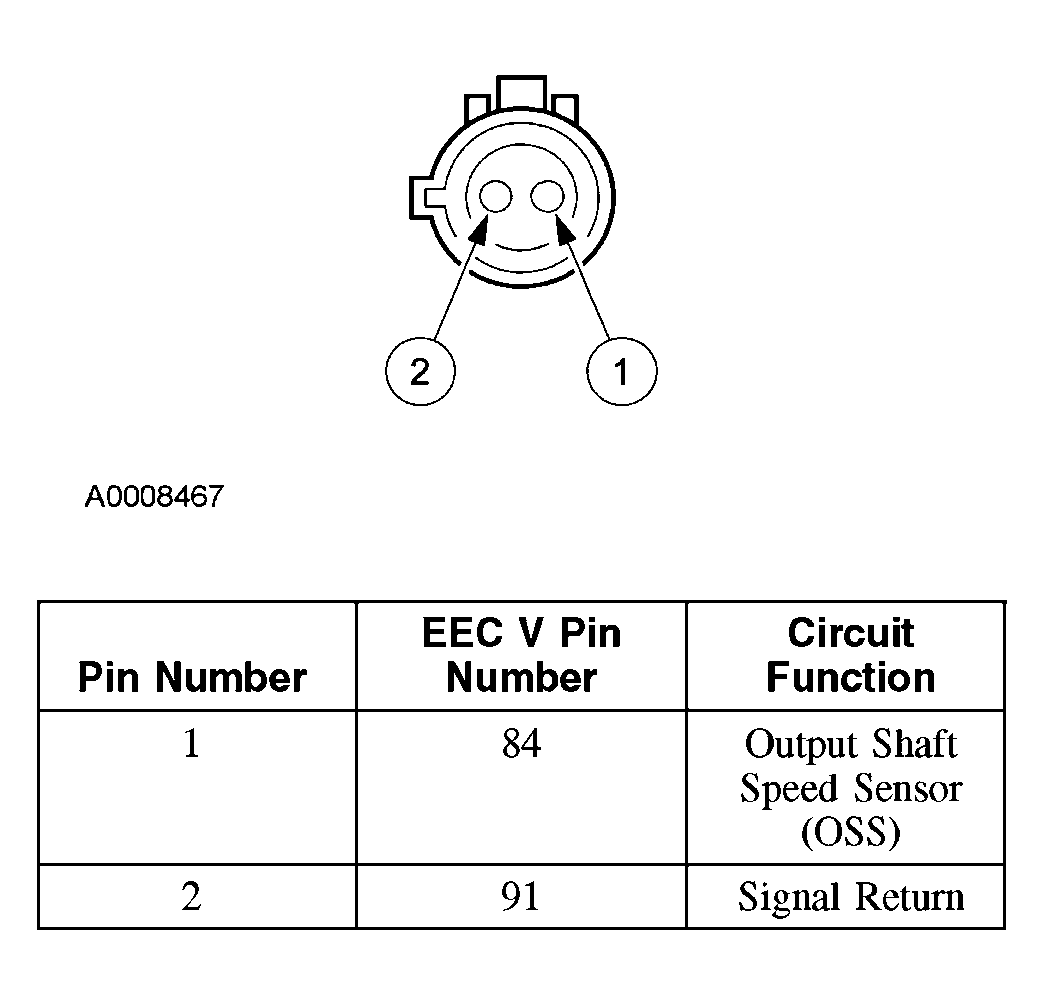

Fig 5: Output Shaft Speed (OSS) Sensor Connector

Courtesy of FORD MOTOR CO.
