Final Drive: Notes

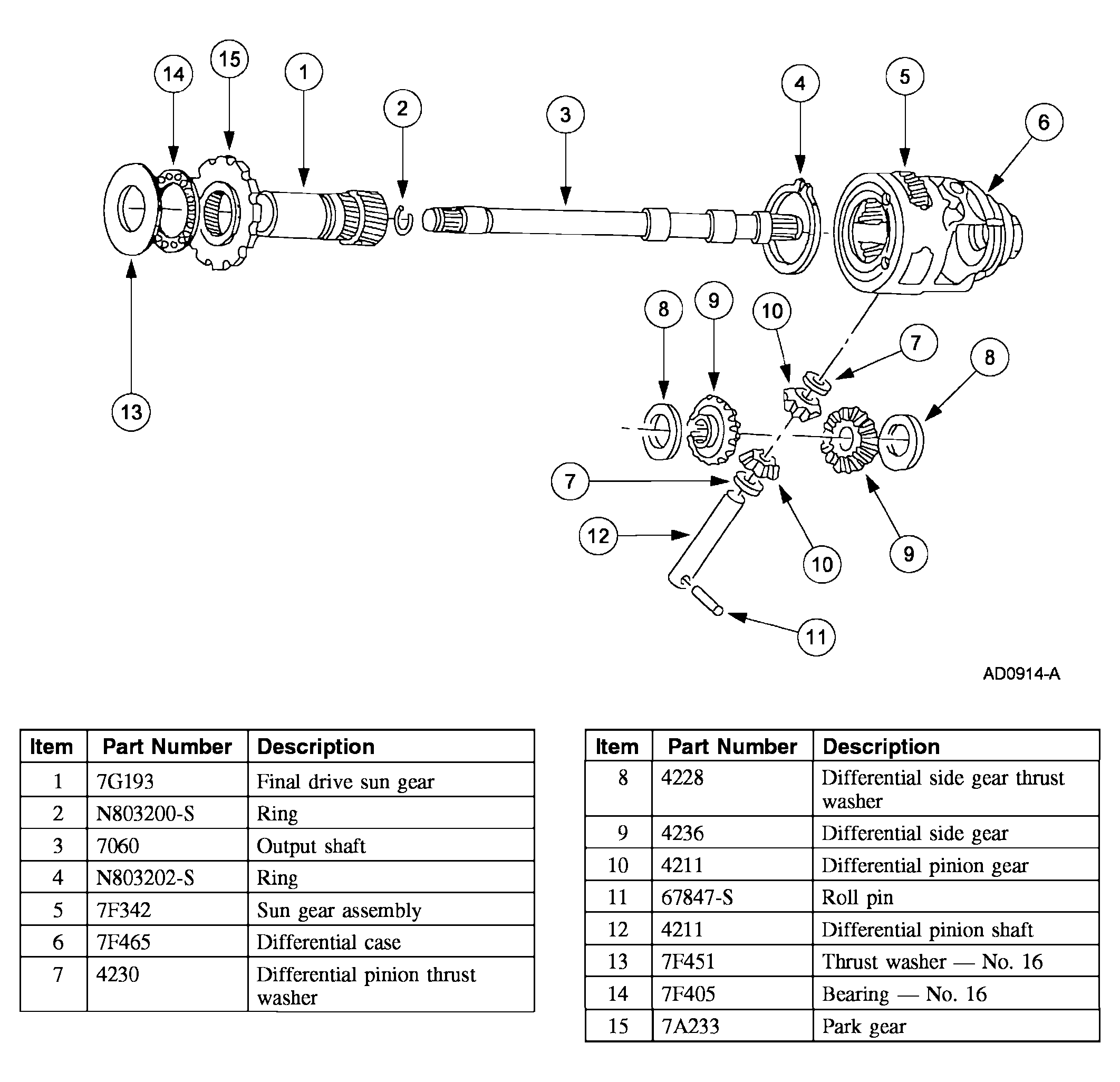

Fig 1: Exploded View Of Final Drive Components
G04005138Courtesy of FORD MOTOR CO.
