Sun and Shell Assembly - Disassembly: Notes

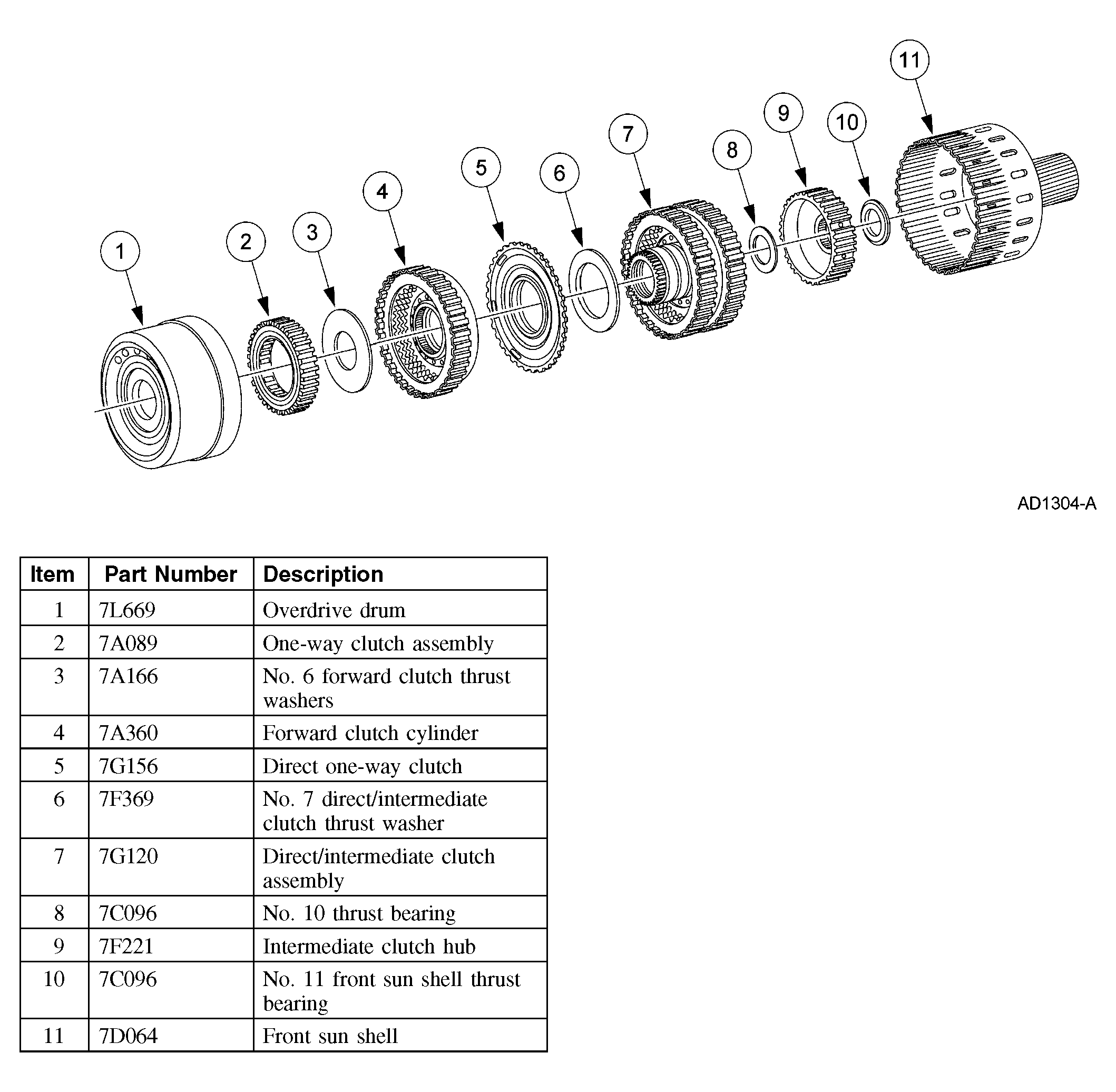

Fig 1: Identifying Front Sun Shell & Overdrive Drum Components
G04005009Courtesy of FORD MOTOR CO.
