Glass, Frames and Mechanisms - Exploded View

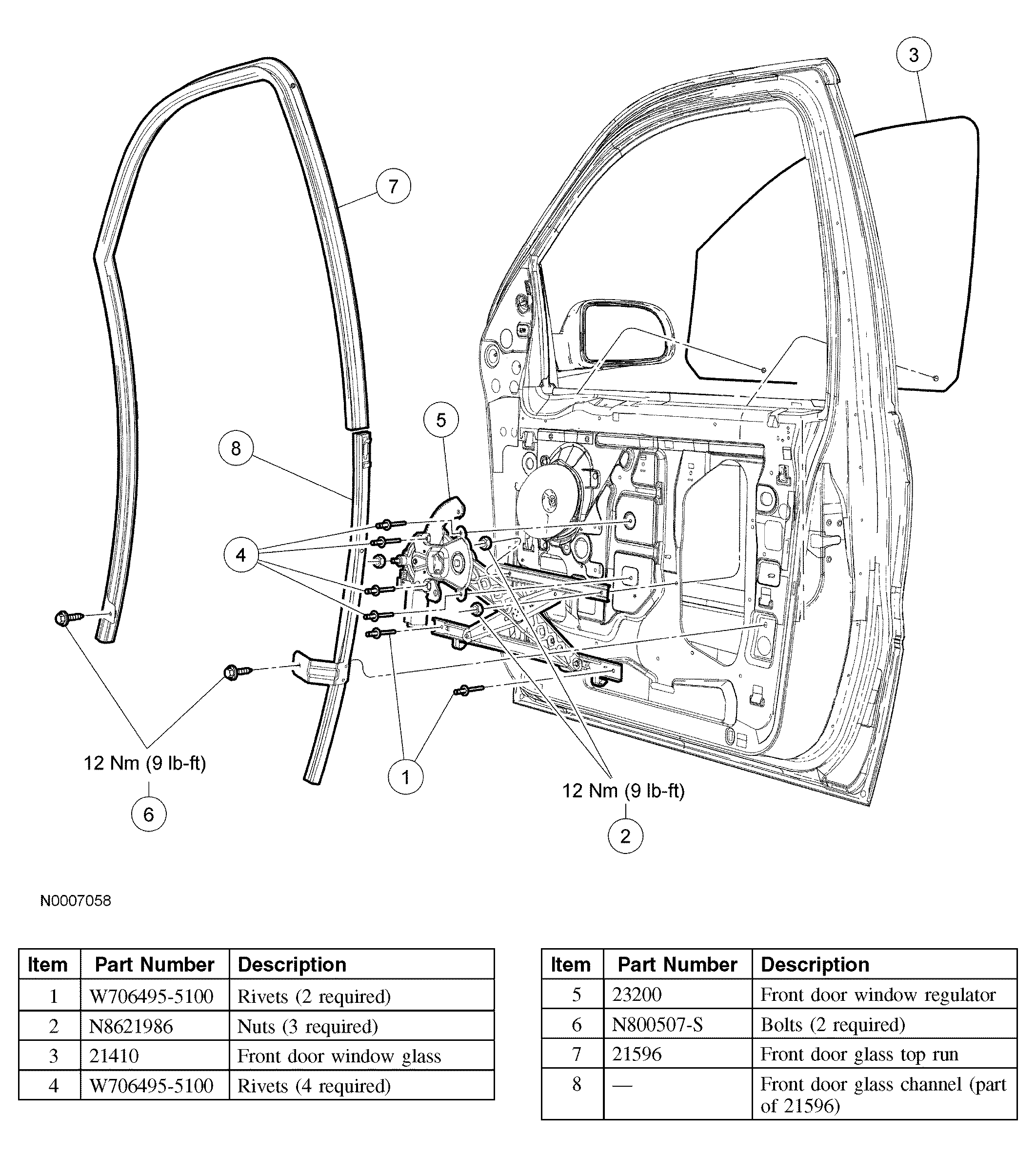

Fig 1: Exploded View Of Glass, Frames And Mechanisms

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the appropriate component procedures.
