Coast Band Servo

    NOTE: Inspect the seals on the coast servo piston, rod and the cover for damage. If the seals are damaged a new piston, rod and the coast servo cover are installed as an assembly.

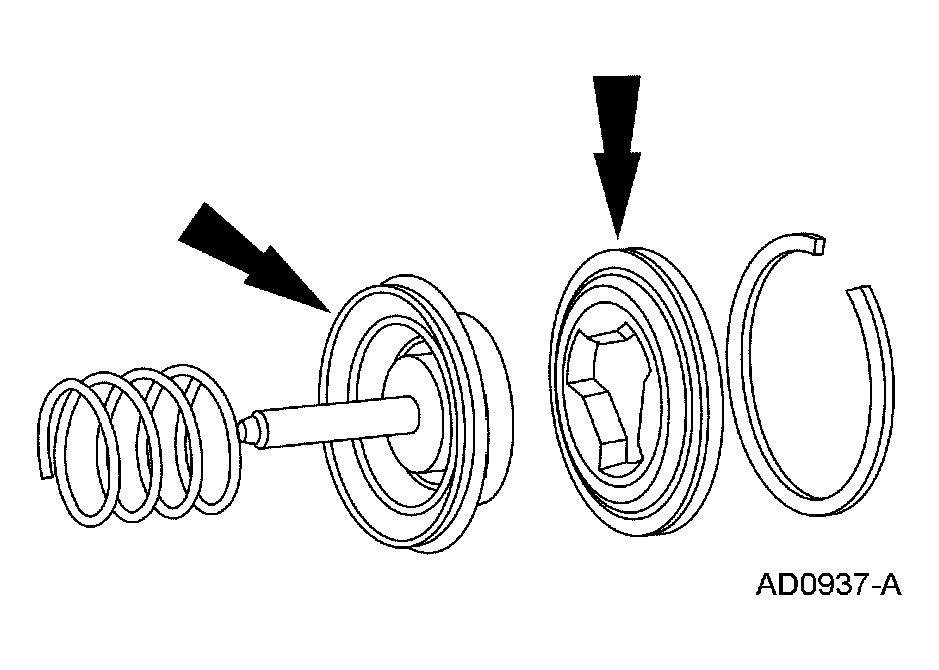

    Fig 1: Inspecting Coast Band Servo Seals
    G03957280Courtesy of FORD MOTOR CO.
  1. Inspect the seals.
