Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View

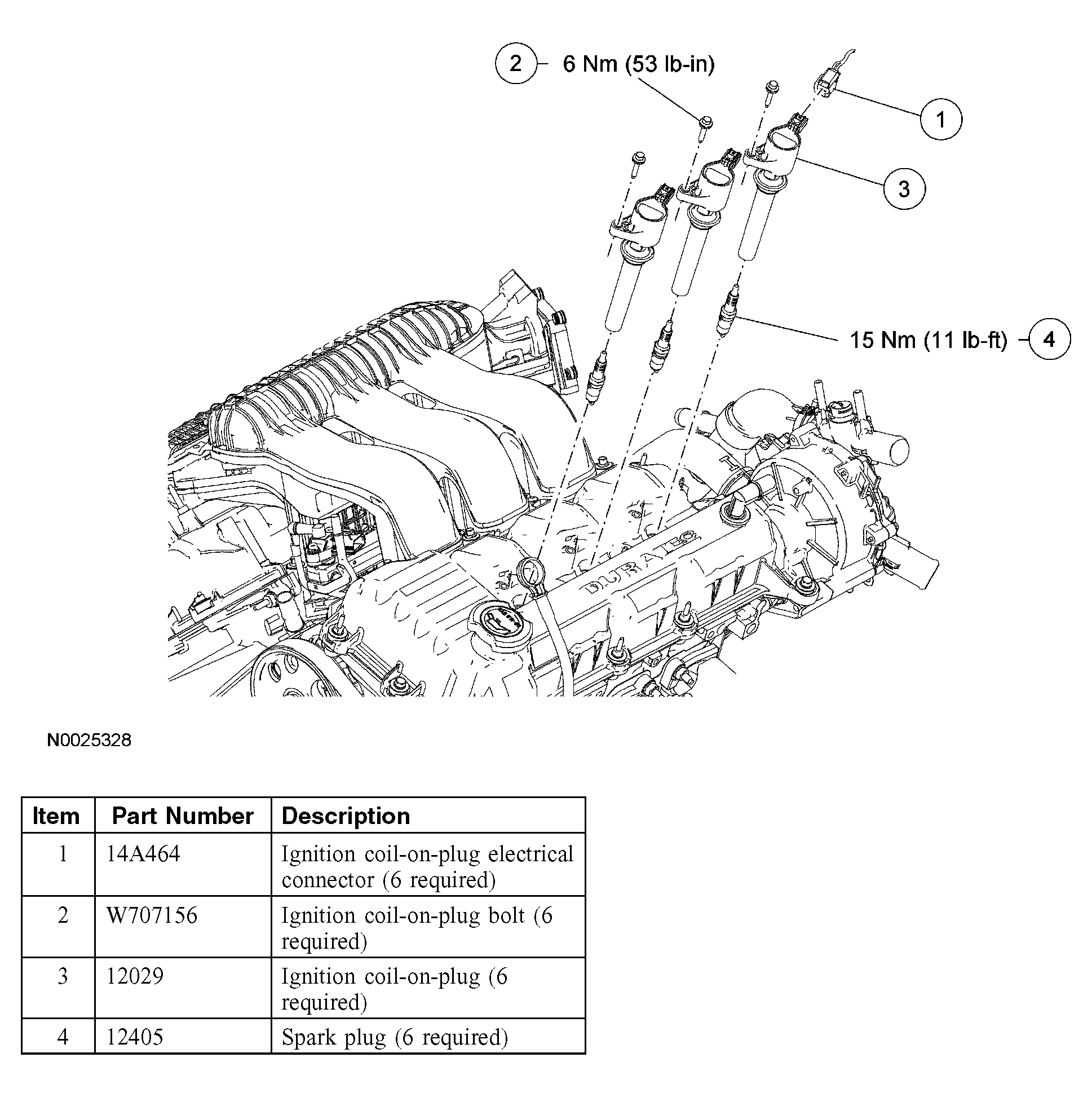

Fig 1: Removing/Installing Engine Ignition Components
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures below.
Courtesy of FORD MOTOR CO.
