Wheel Speed Sensor - Rear: Notes

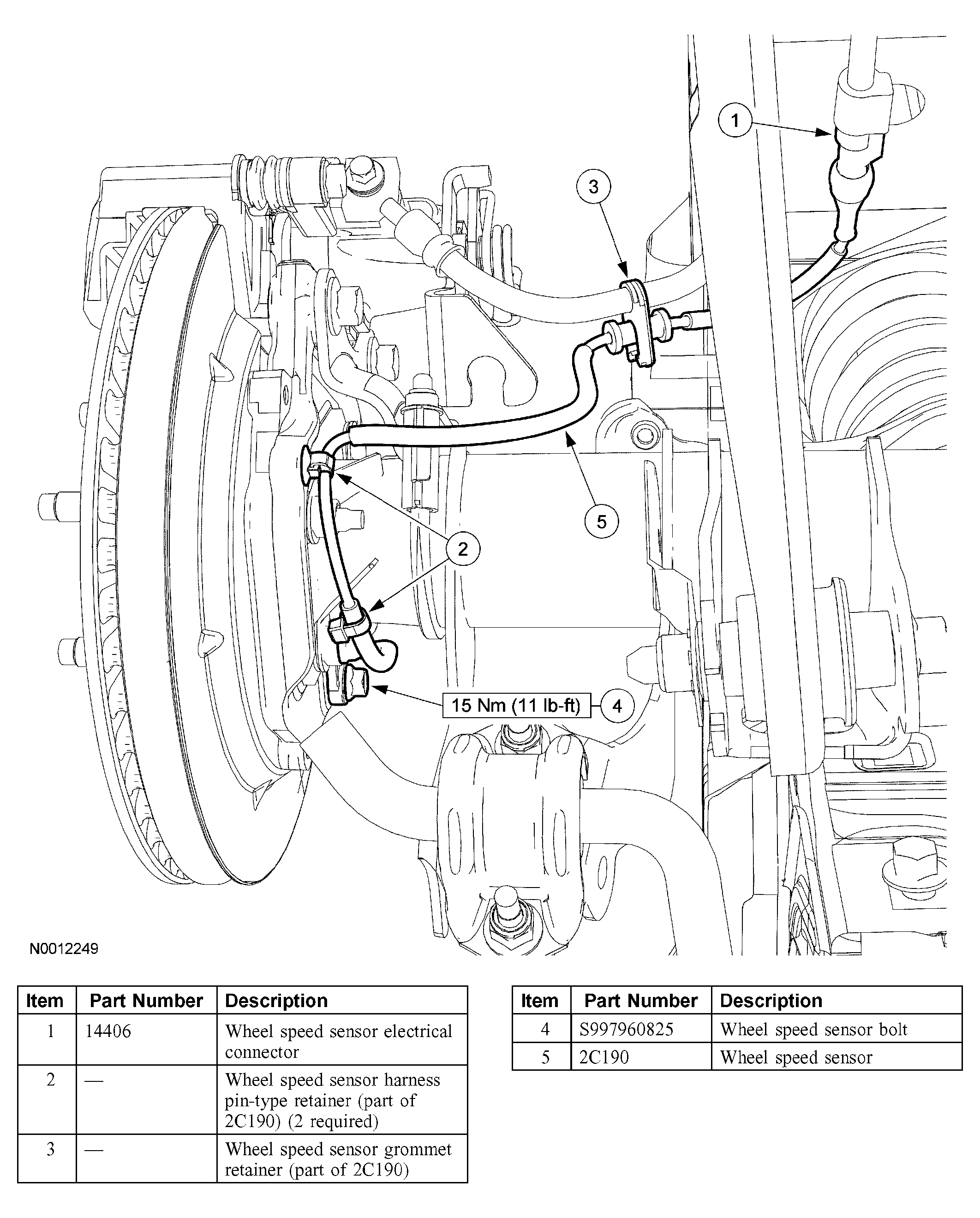

Fig 1: Identifying Rear Wheel Speed Sensor
G03983487Courtesy of FORD MOTOR CO.
