Powertrain Control Module (PCM) C175e

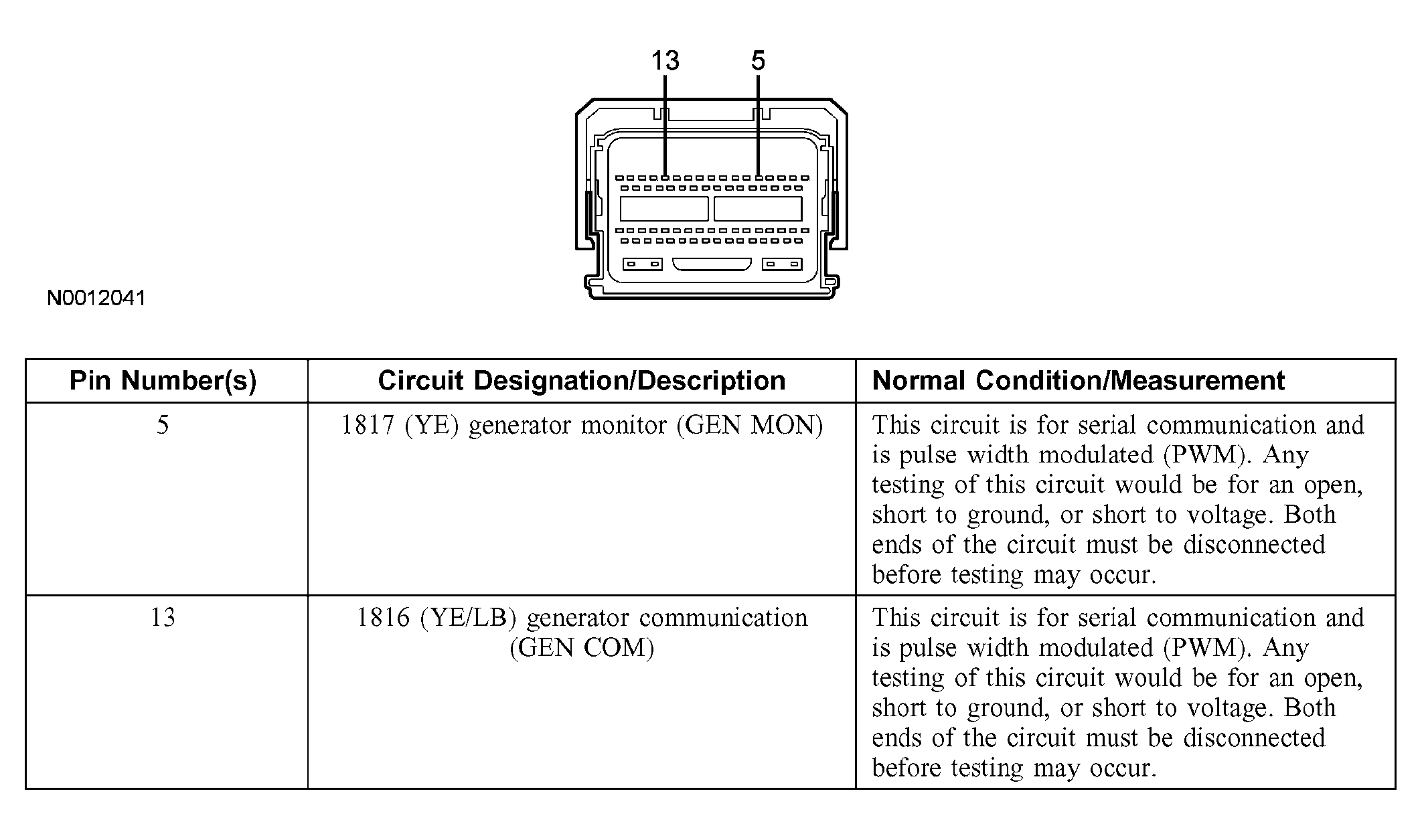

Fig 1: Identifying Powertrain Control Module (PCM) C175E Connector
G03986528Courtesy of FORD MOTOR CO.
