Instrument Panel: Notes

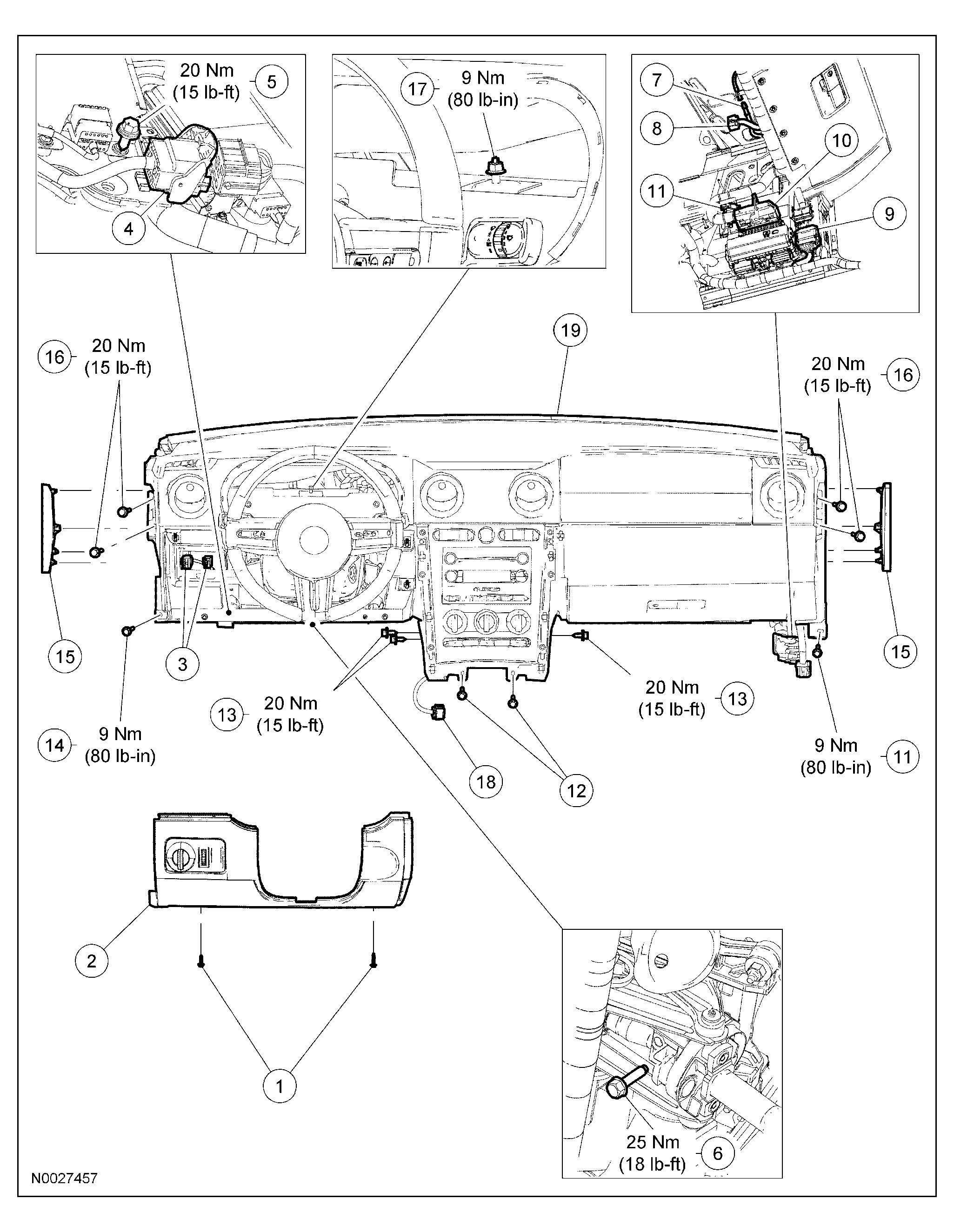

Fig 1: Exploded View Of Instrument Panel (1 Of 2)
G03987099Courtesy of FORD MOTOR CO.

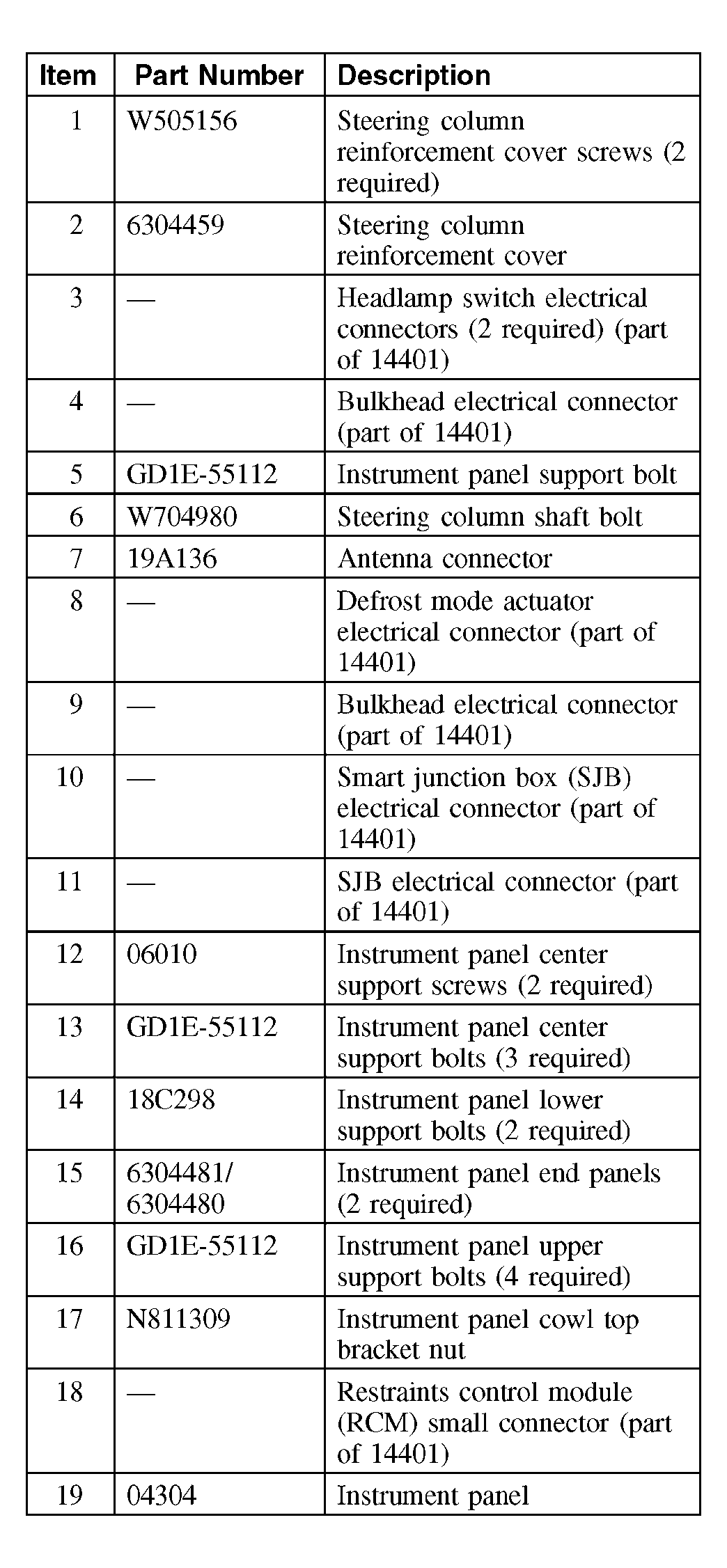

Fig 2: Exploded View Of Instrument Panel (2 Of 2)
G03987100Courtesy of FORD MOTOR CO.
