Safety Belt Retractor - Rear, Convertible: Notes

NOTE: RH side shown, LH side similar.

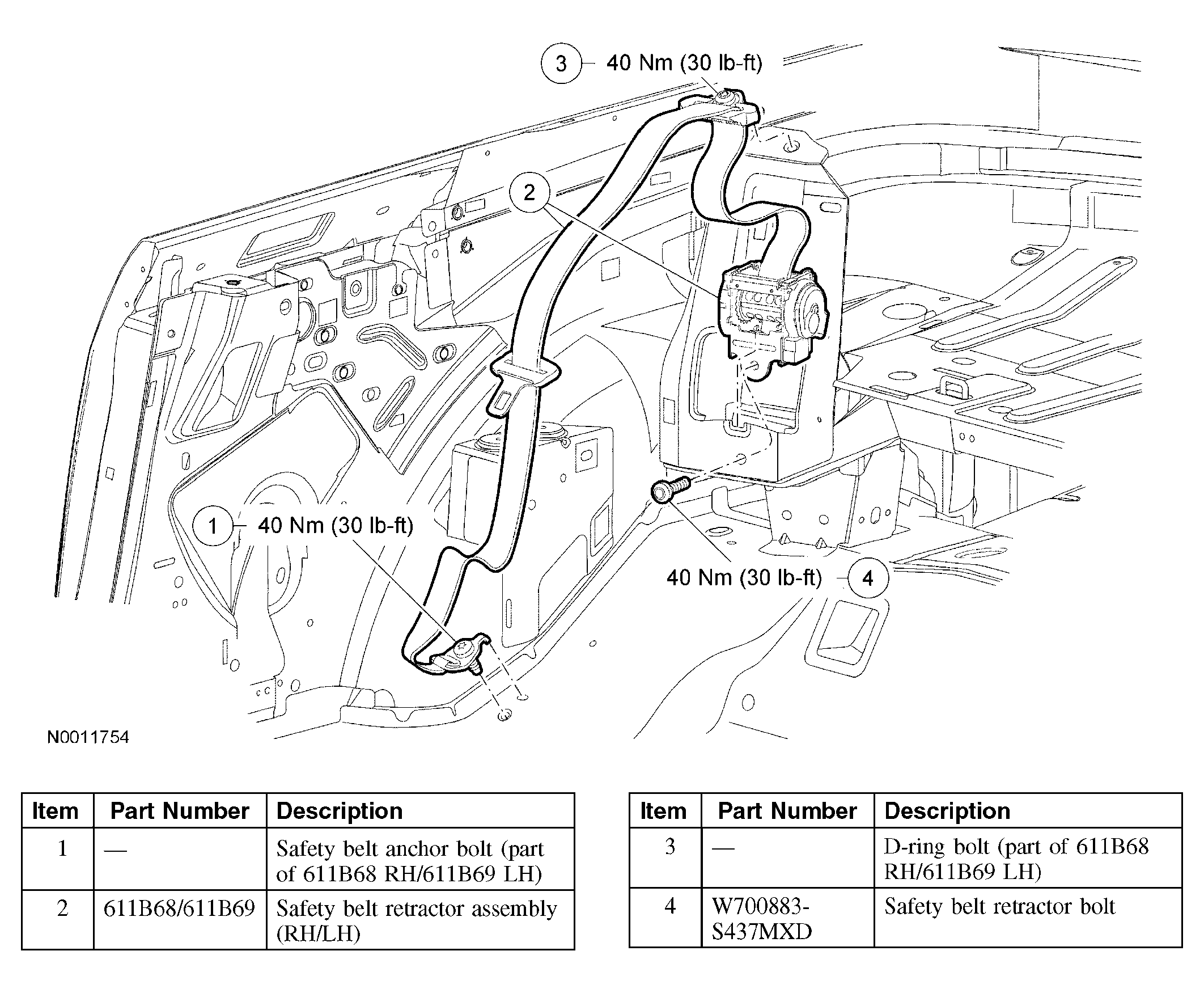

Fig 1: Identifying Safety Belt Retractor - Rear (Convertible)
G03987232Courtesy of FORD MOTOR CO.
