Anti-Lock Brake System (ABS) C135

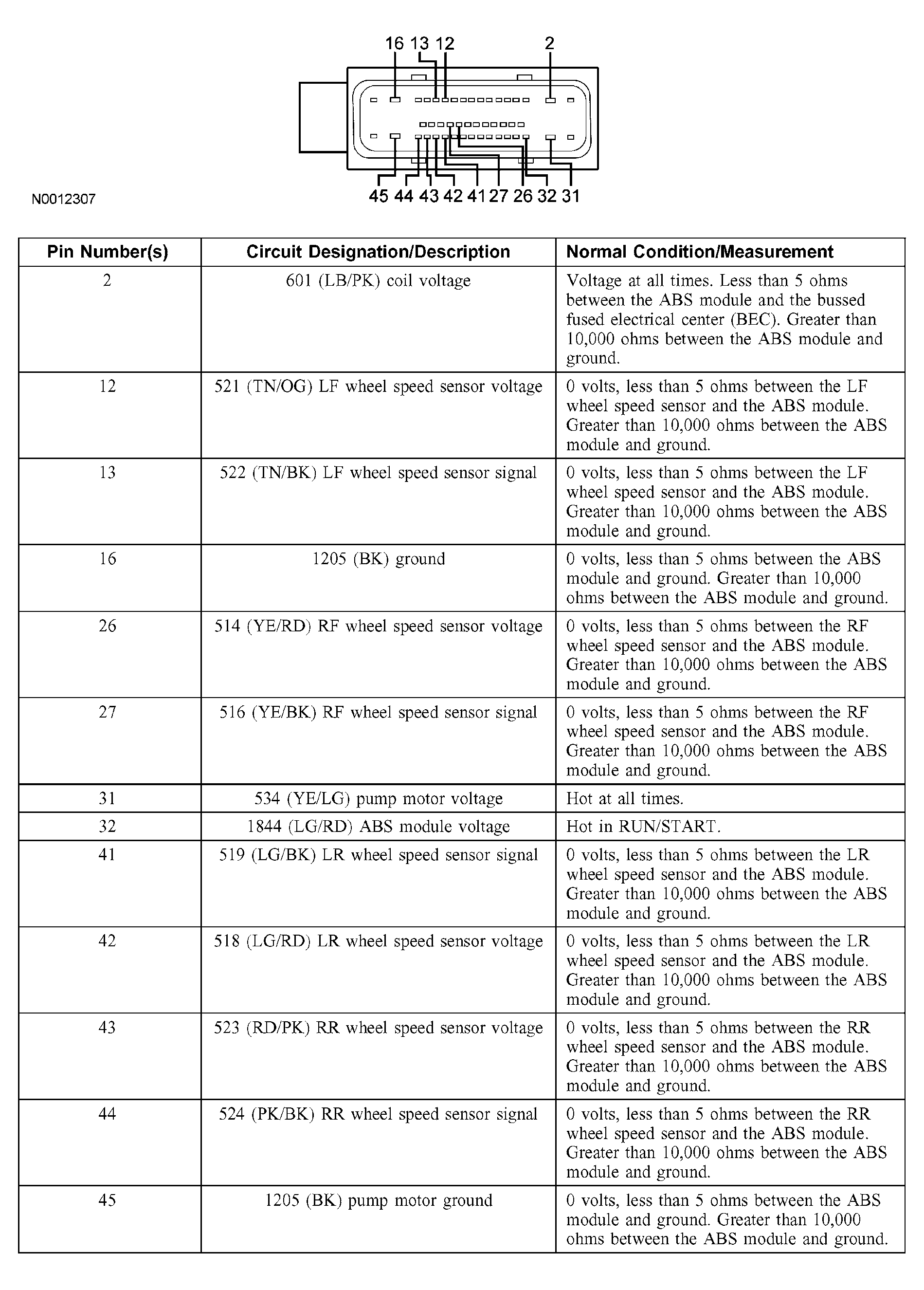

Fig 1: Identifying Connector Terminals Anti-Lock Brake System C135
G03983456Courtesy of FORD MOTOR CO.
