Wheel Speed Sensor Ring - Front: Removal

  1. Remove the front hub and bearing assembly. For additional information, refer to WHEEL BEARING AND WHEEL HUB .
  2. Using the special tools, remove the front wheel speed sensor ring from the front hub.

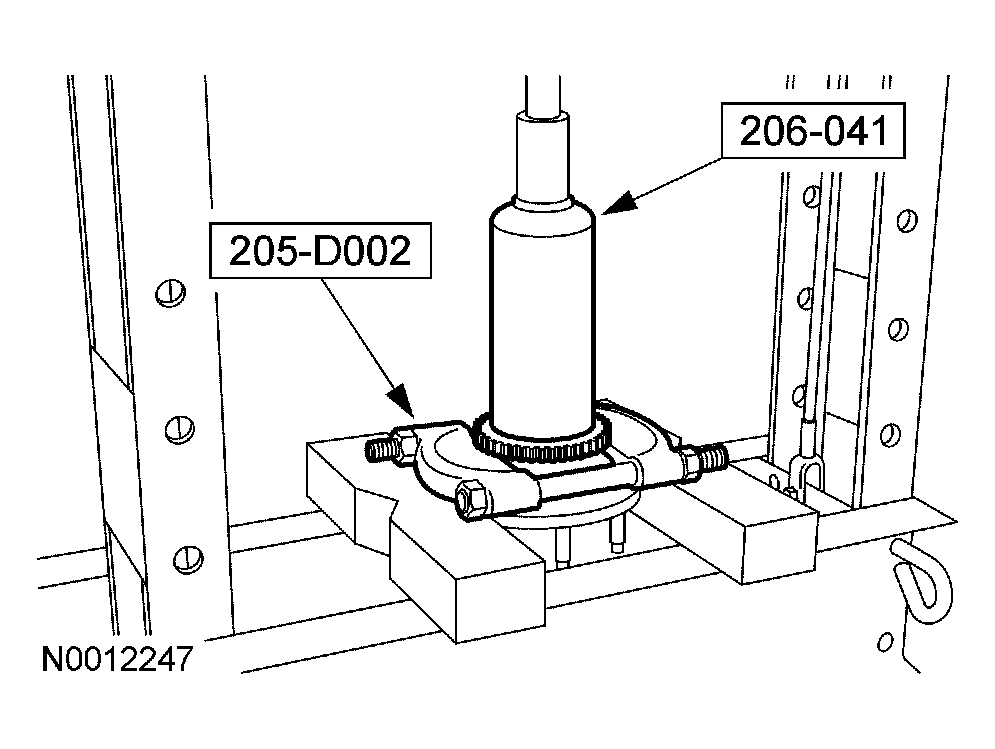

    Fig 1: Removing Front Wheel Speed Sensor Ring
    G03983485Courtesy of FORD MOTOR CO.
