Restraint Control Module (RCM) C2041a

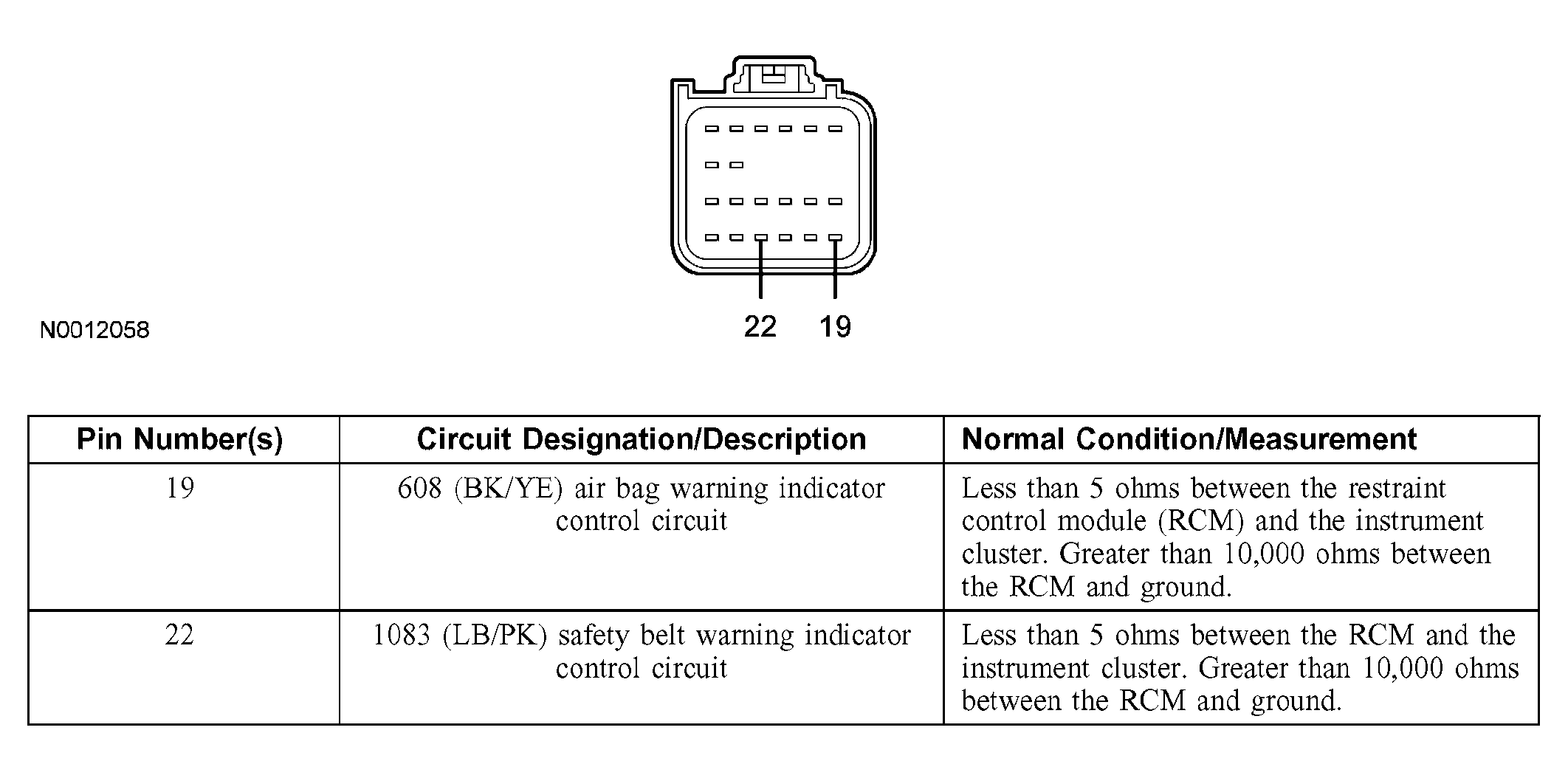

Fig 1: Identifying Restraint Control Module (RCM) C2041A Connector
G03986454Courtesy of FORD MOTOR CO.
