Fuel Pump Module: Notes

SPECIAL TOOL(S)

G03997908
 Fuel Sender Wrench 310-069
G04002750
 Fuel Drain Hose 310-102
G03957659
 Fuel Storage Tanker 164-R3202 or equivalent

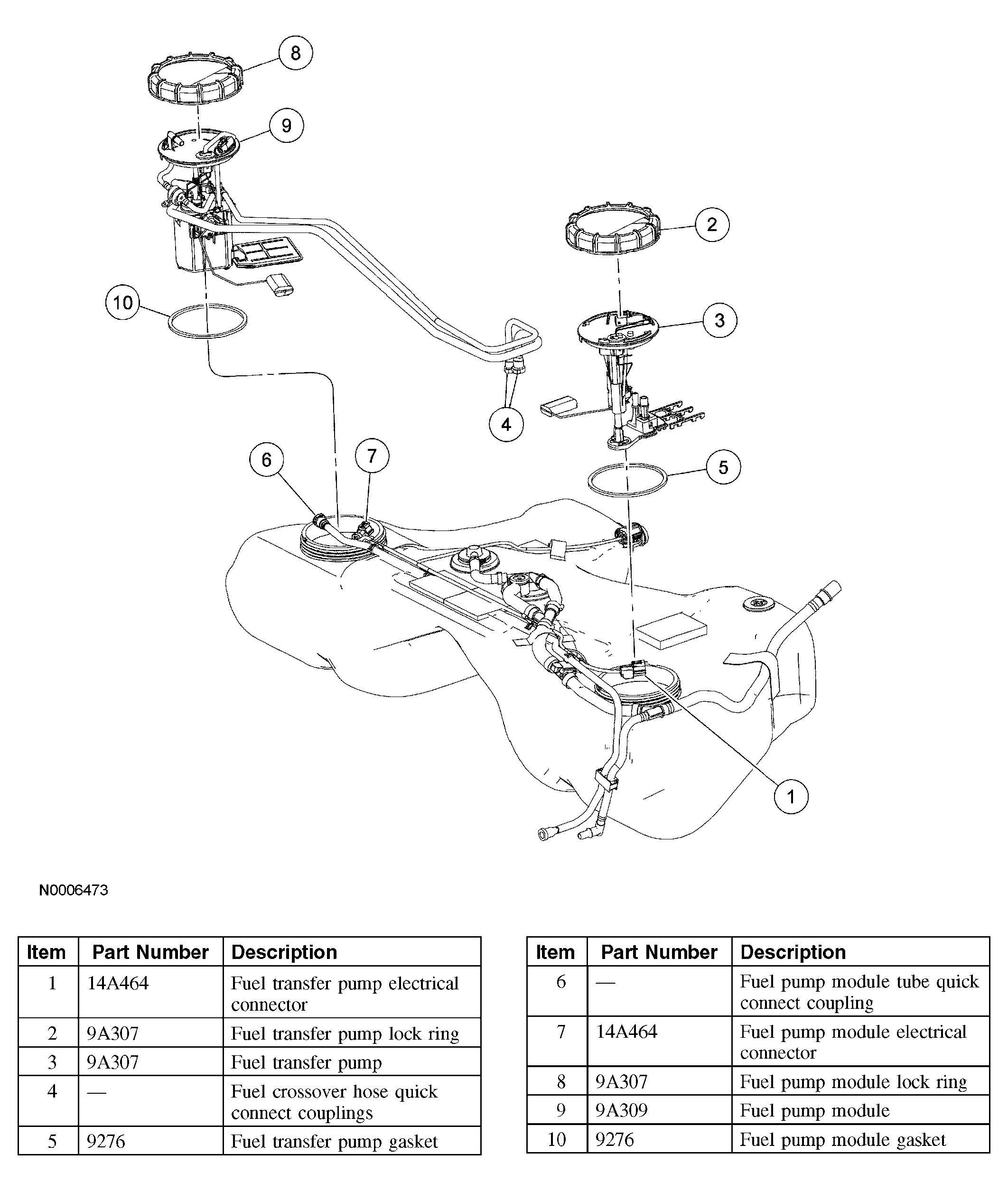

Fig 1: Identifying Components Of Fuel Pump Module
G04008818Courtesy of FORD MOTOR CO.
