Connector Circuit Reference: Notes

PCM C175b

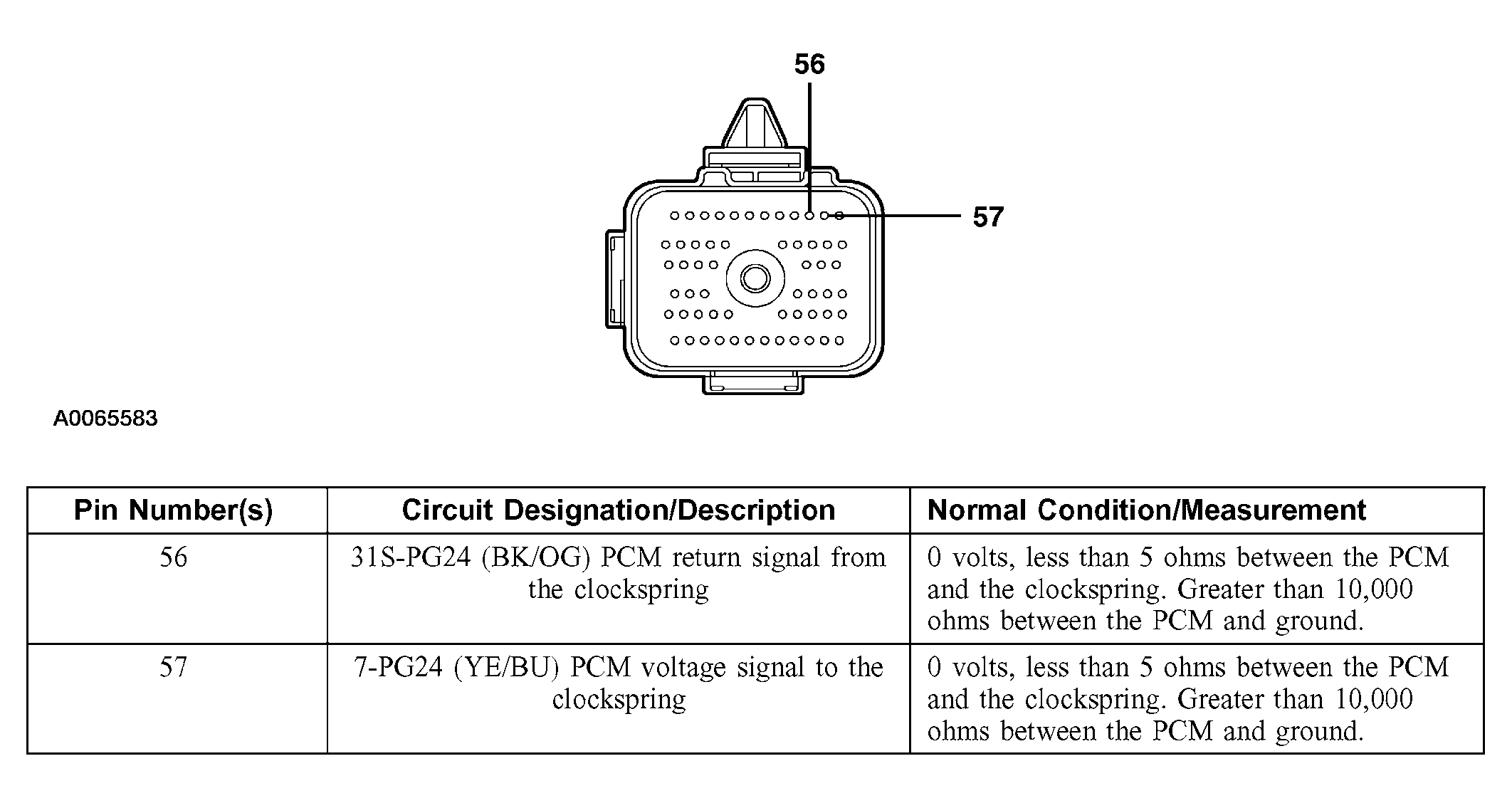

Fig 1: Identifying PCM C175b
G04008849Courtesy of FORD MOTOR CO.

Clockspring C218a

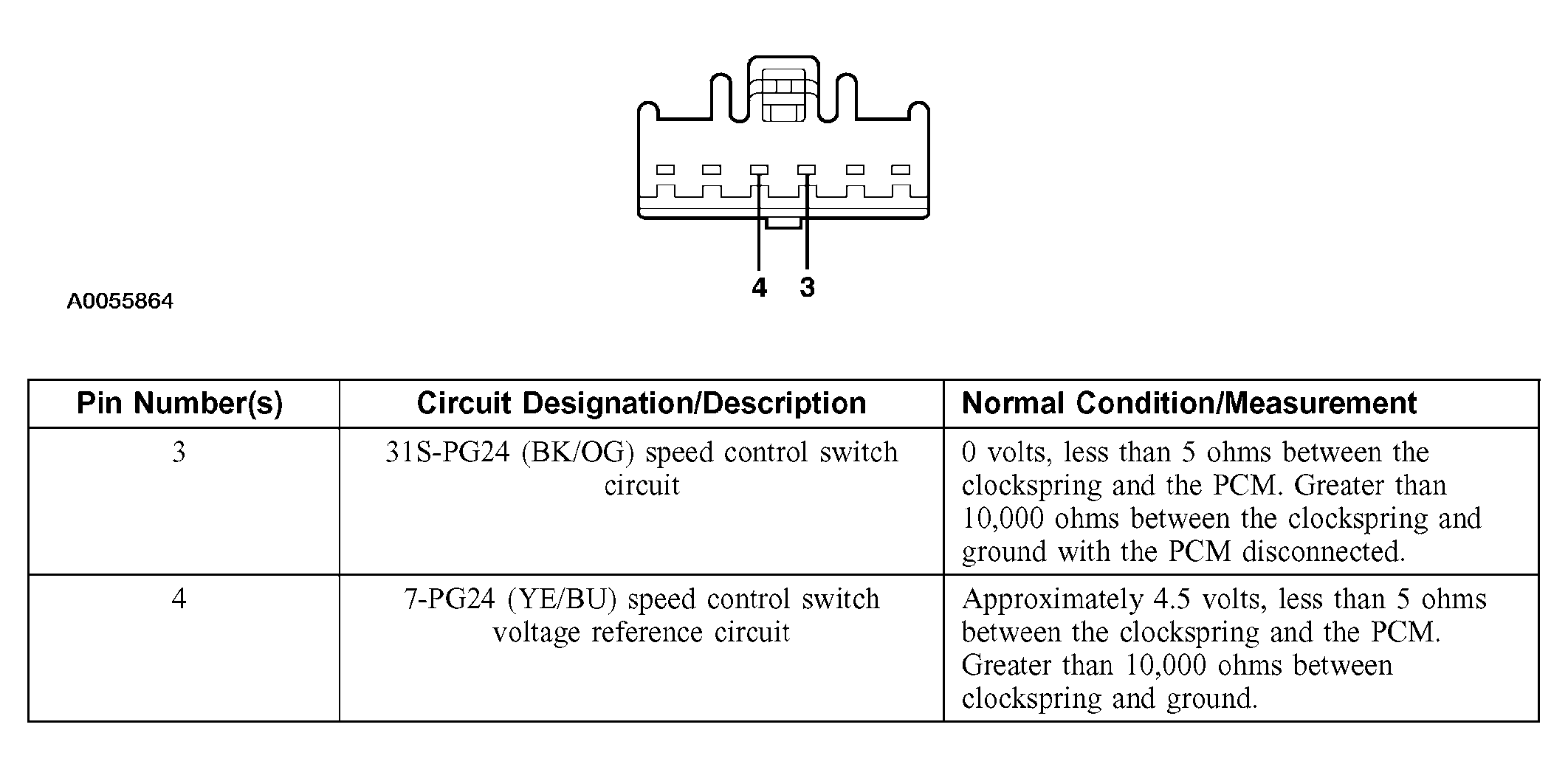

Fig 2: Identifying Clockspring C218a
G04008850Courtesy of FORD MOTOR CO.

Upper Clockspring Connector

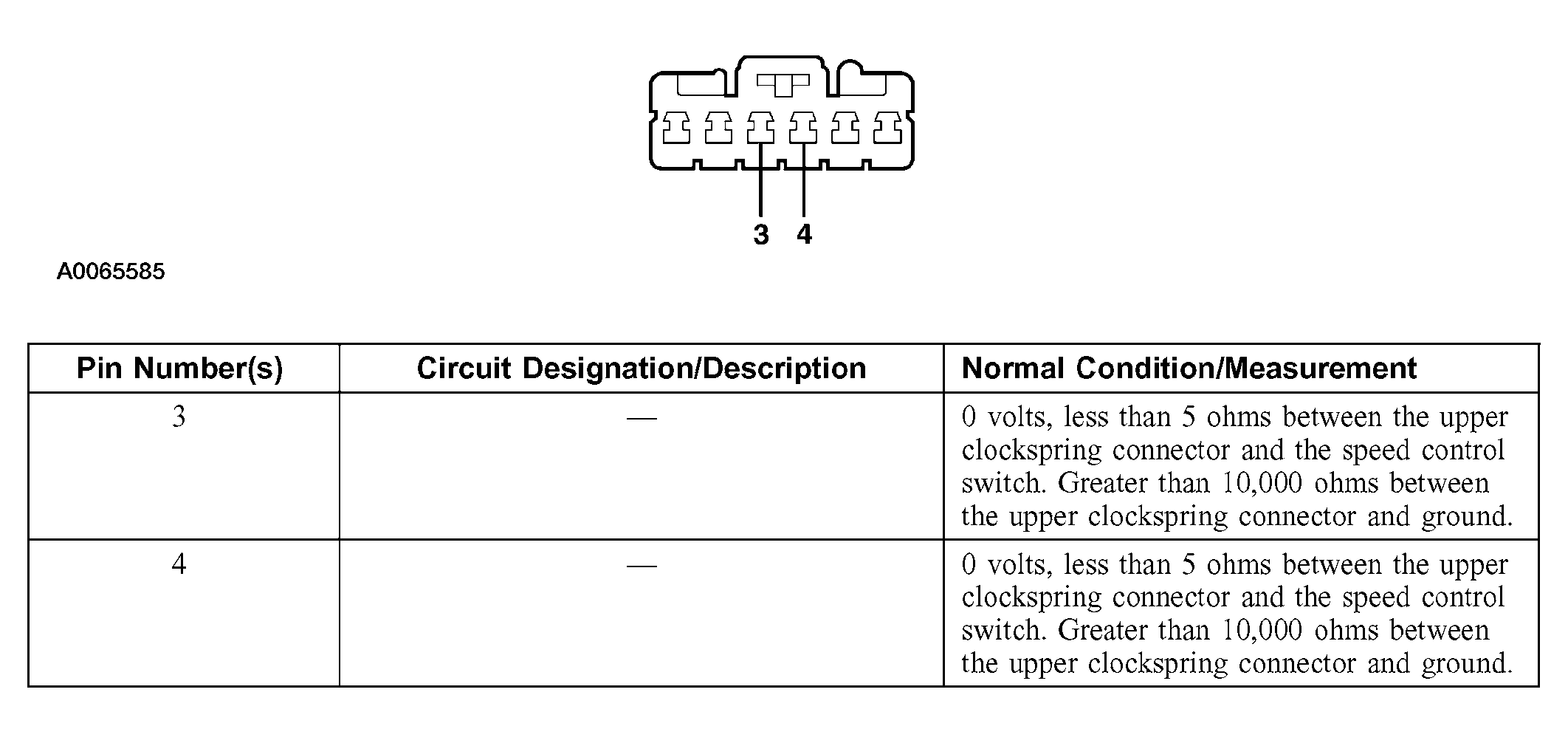

Fig 3: Identifying Upper Clockspring Connector
G04008851Courtesy of FORD MOTOR CO.
