Front Seat: Notes

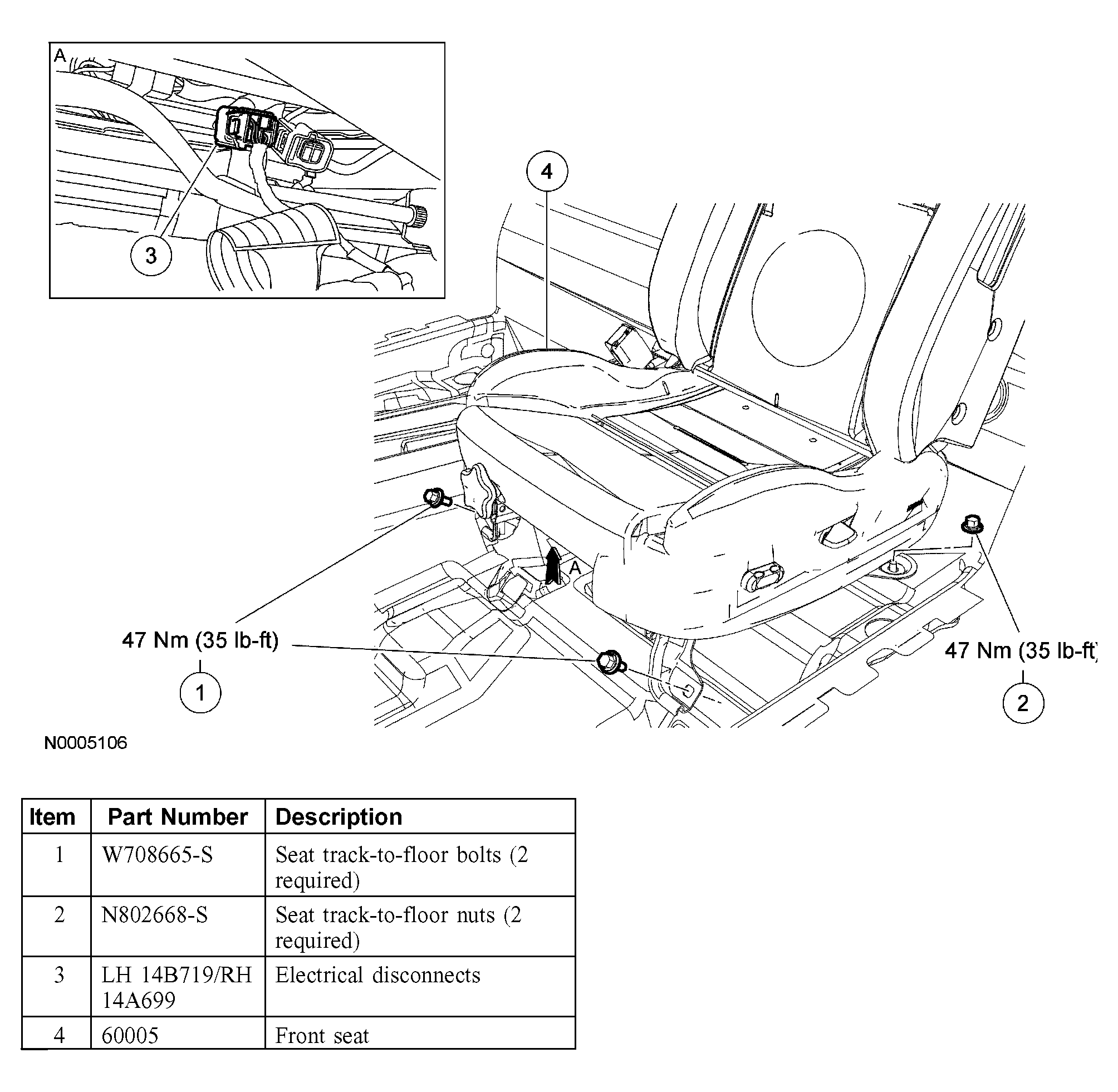

Fig 1: Exploded View Of Front Seat With Torque Specifications
G04009718Courtesy of FORD MOTOR CO.
