Seats - Exploded View

Fig 1: Exploded View Of Front Seat Cushion With Torque Specifications

G04009720

Courtesy of FORD MOTOR CO.

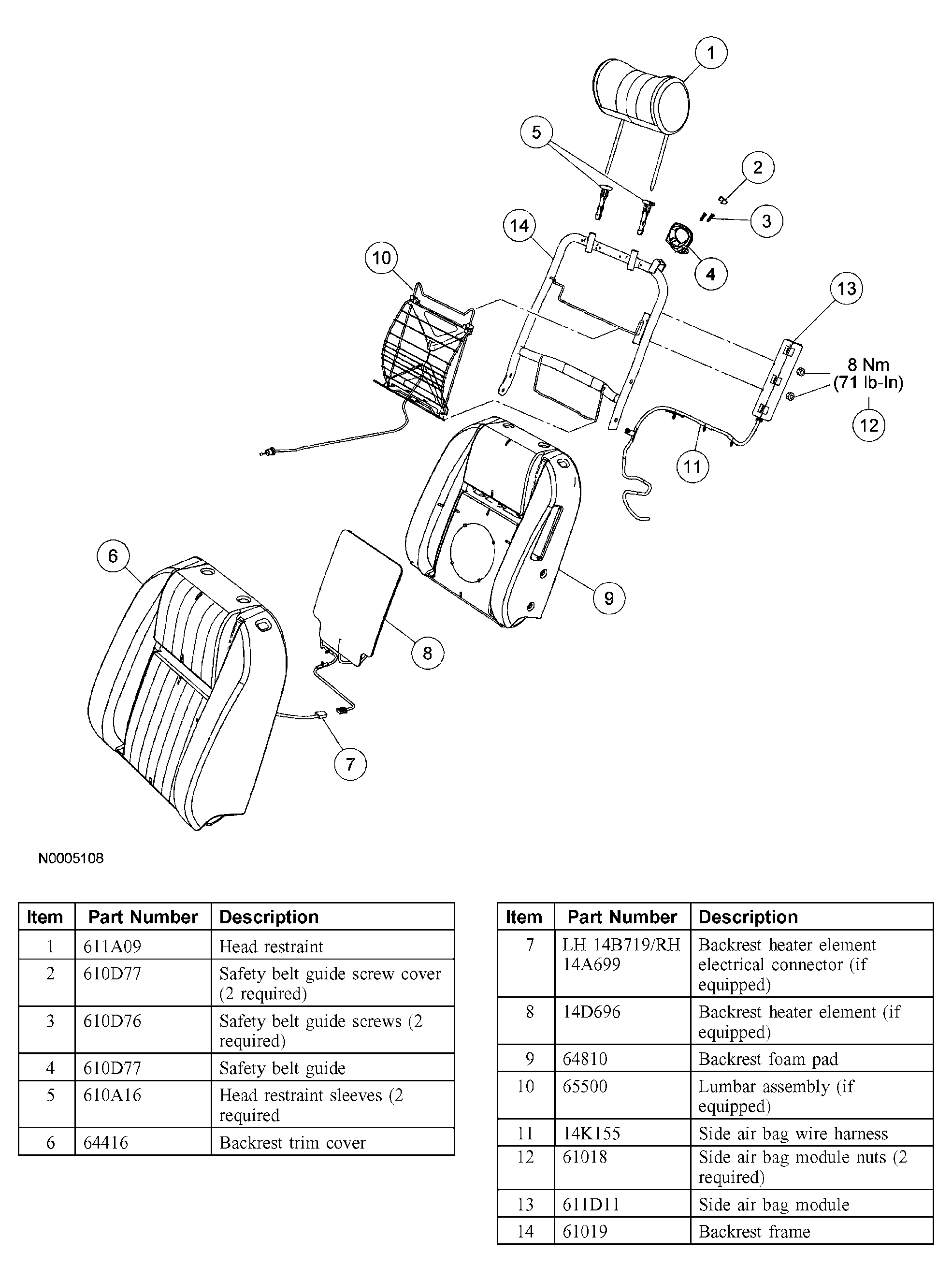

Fig 2: Exploded View Of Front Seat Backrest With Torque Specification

G04009721

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
