Battery Cables: Notes

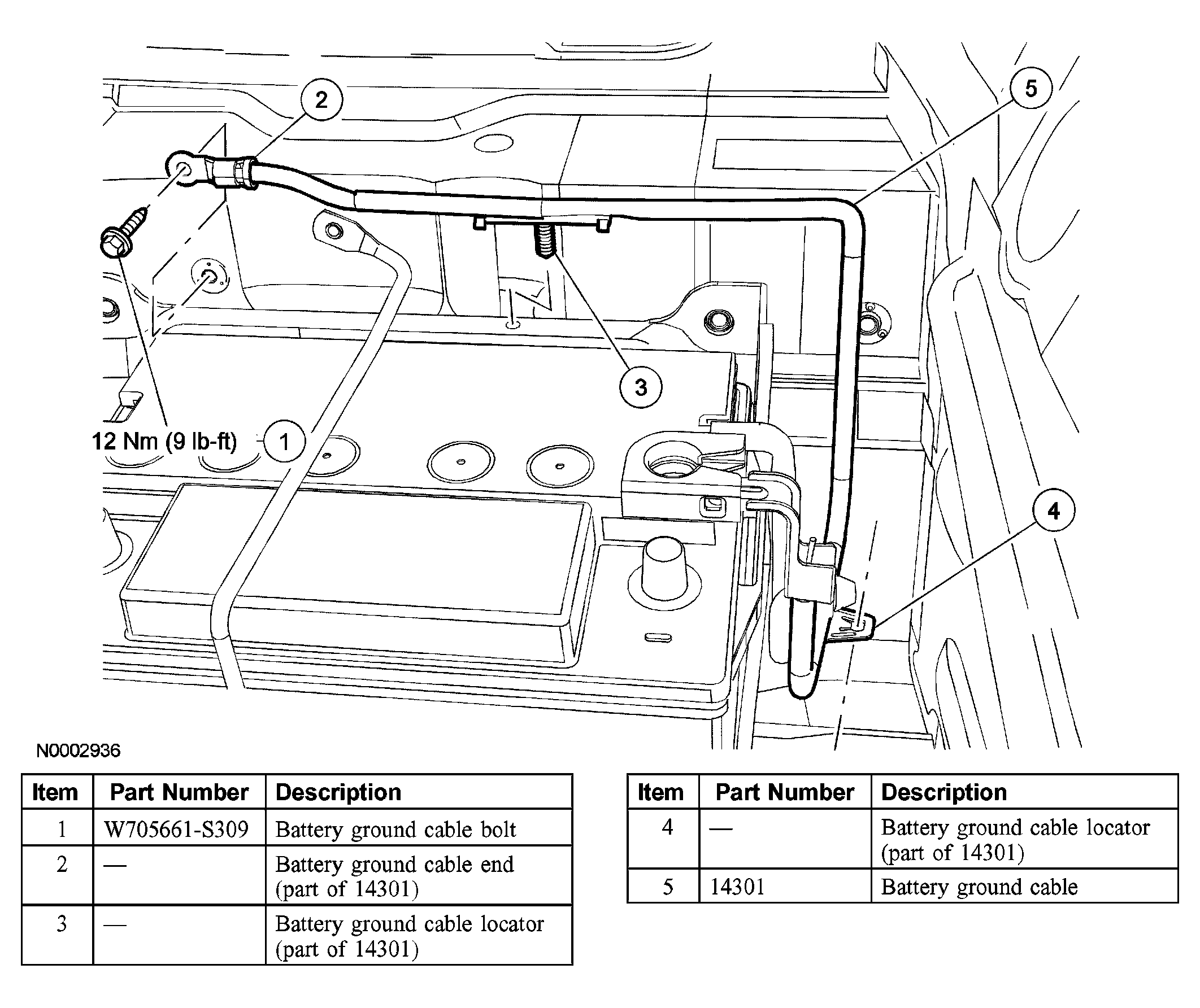

Fig 1: Battery Ground Cable With Torque Specification
G04009274Courtesy of FORD MOTOR CO.

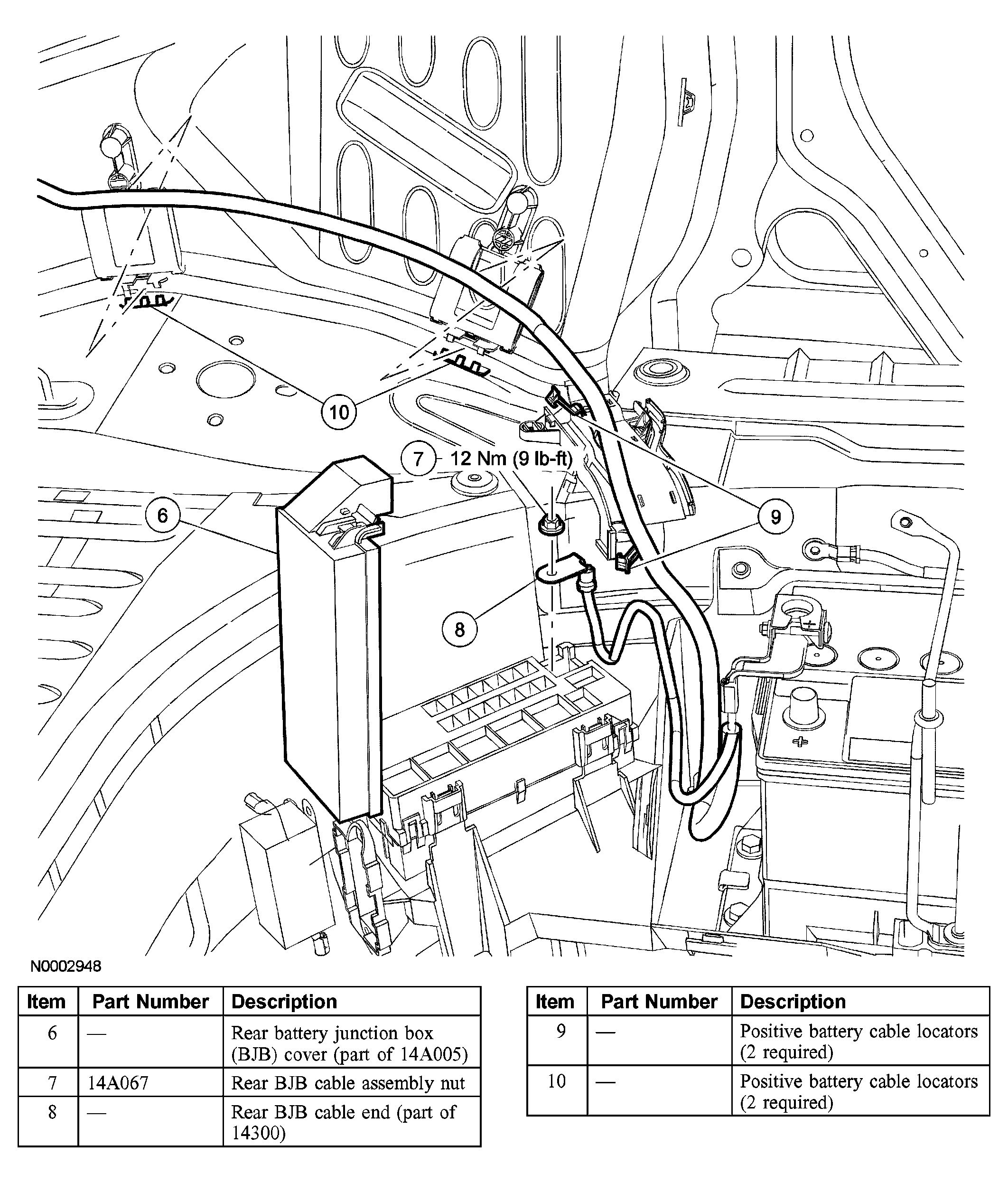

Fig 2: Positive Battery Cable Luggage Compartment Replacement Components With Torque Specifications
G04009275Courtesy of FORD MOTOR CO.

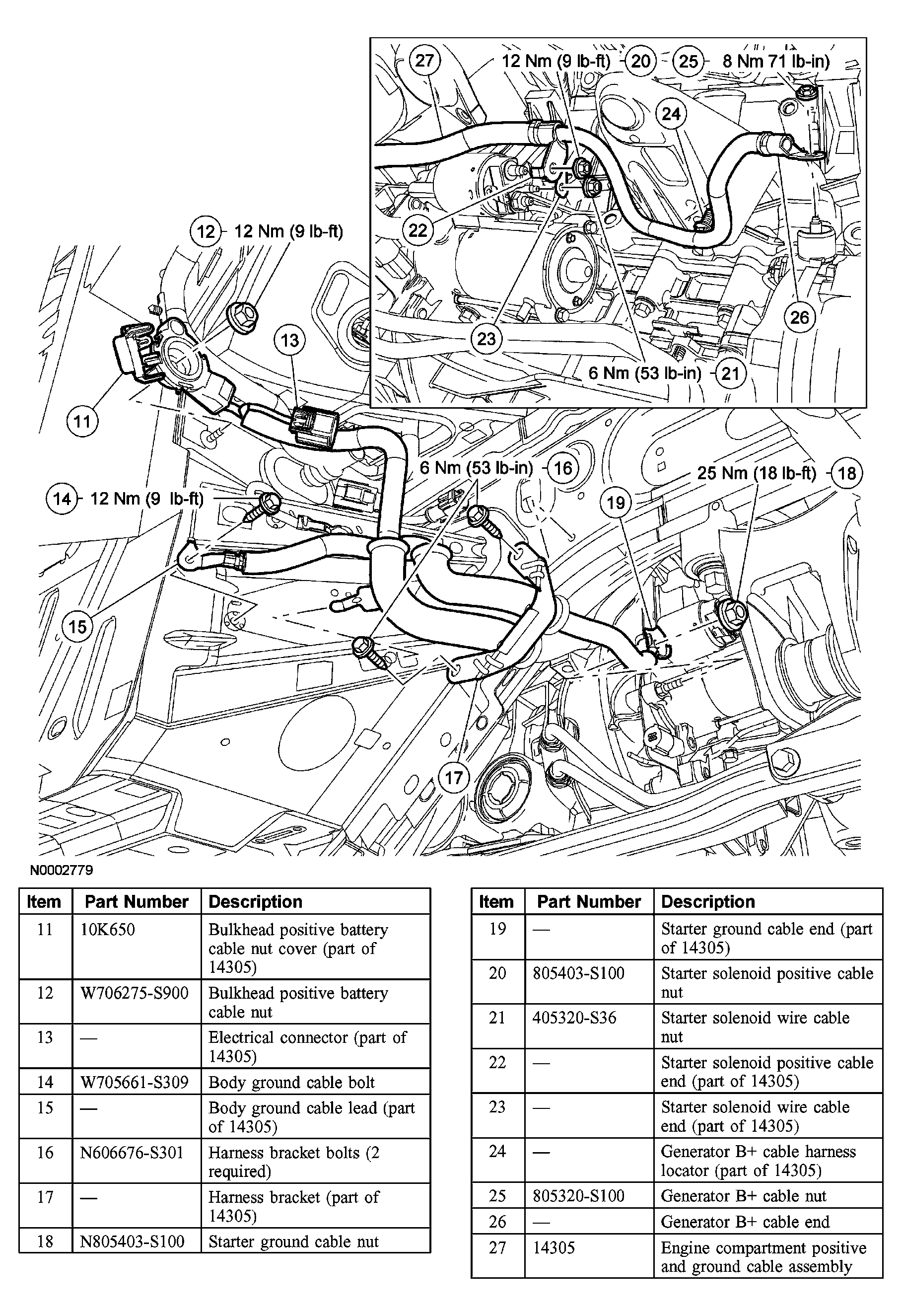

Fig 3: Battery Cable Engine Compartment Replacement Components With Torque Specifications
G04009276Courtesy of FORD MOTOR CO.
