Instrument Panel - Exploded View

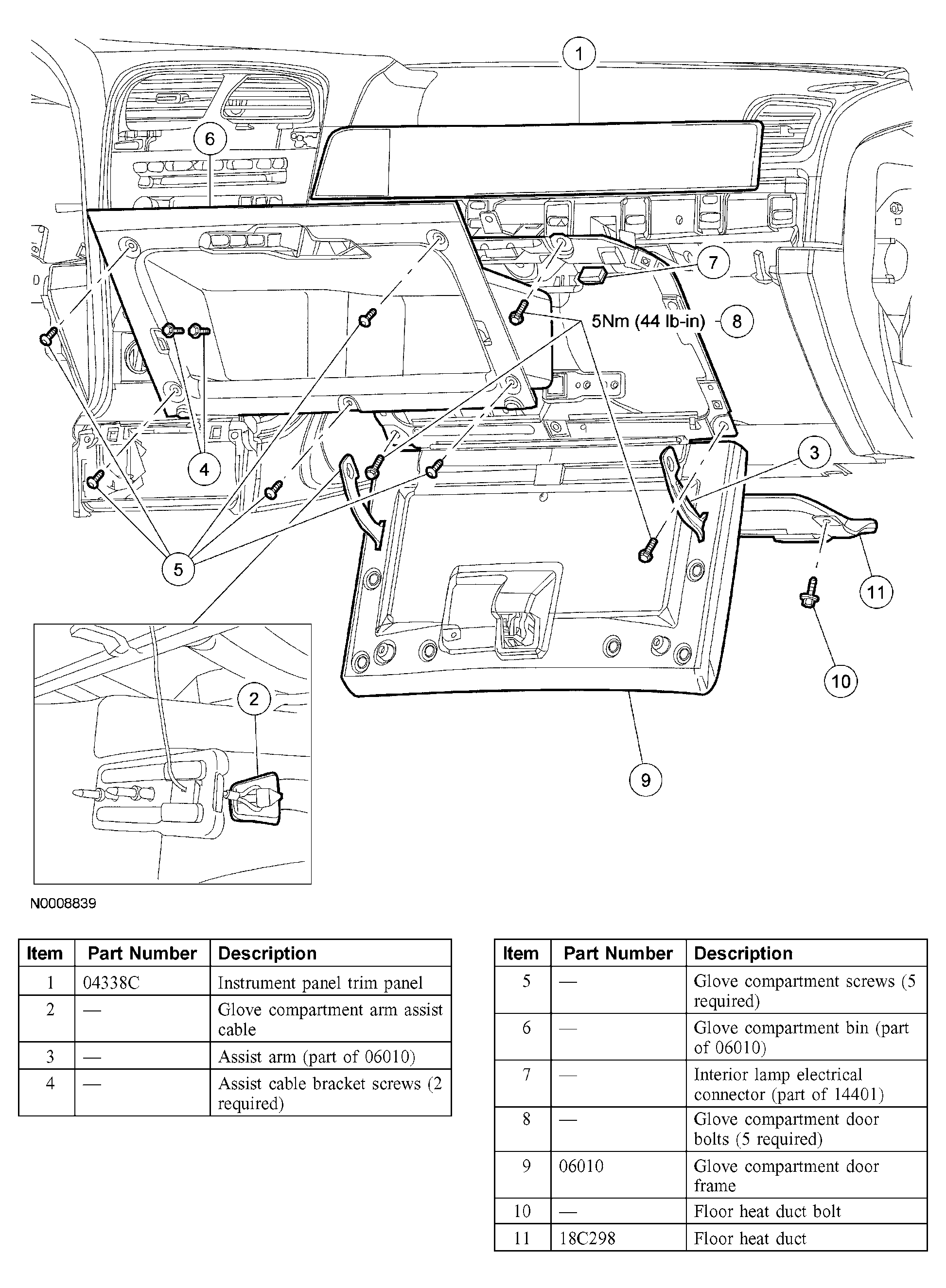

Fig 1: Exploded View Of Instrument Panel With Torque Specification (1 Of 3)

Courtesy of FORD MOTOR CO.

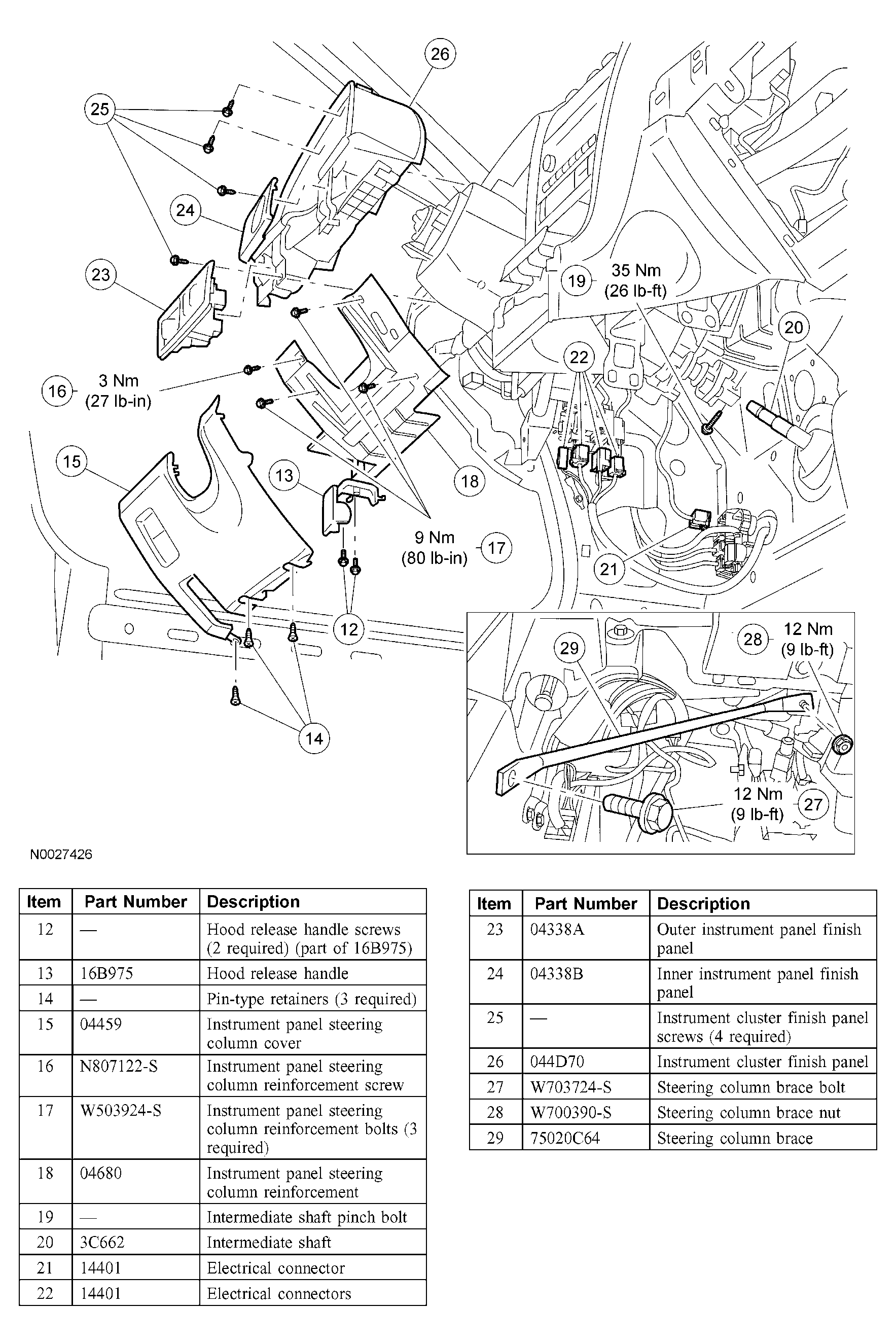

Fig 2: Exploded View Of Instrument Panel With Torque Specifications (2 Of 3)

Courtesy of FORD MOTOR CO.

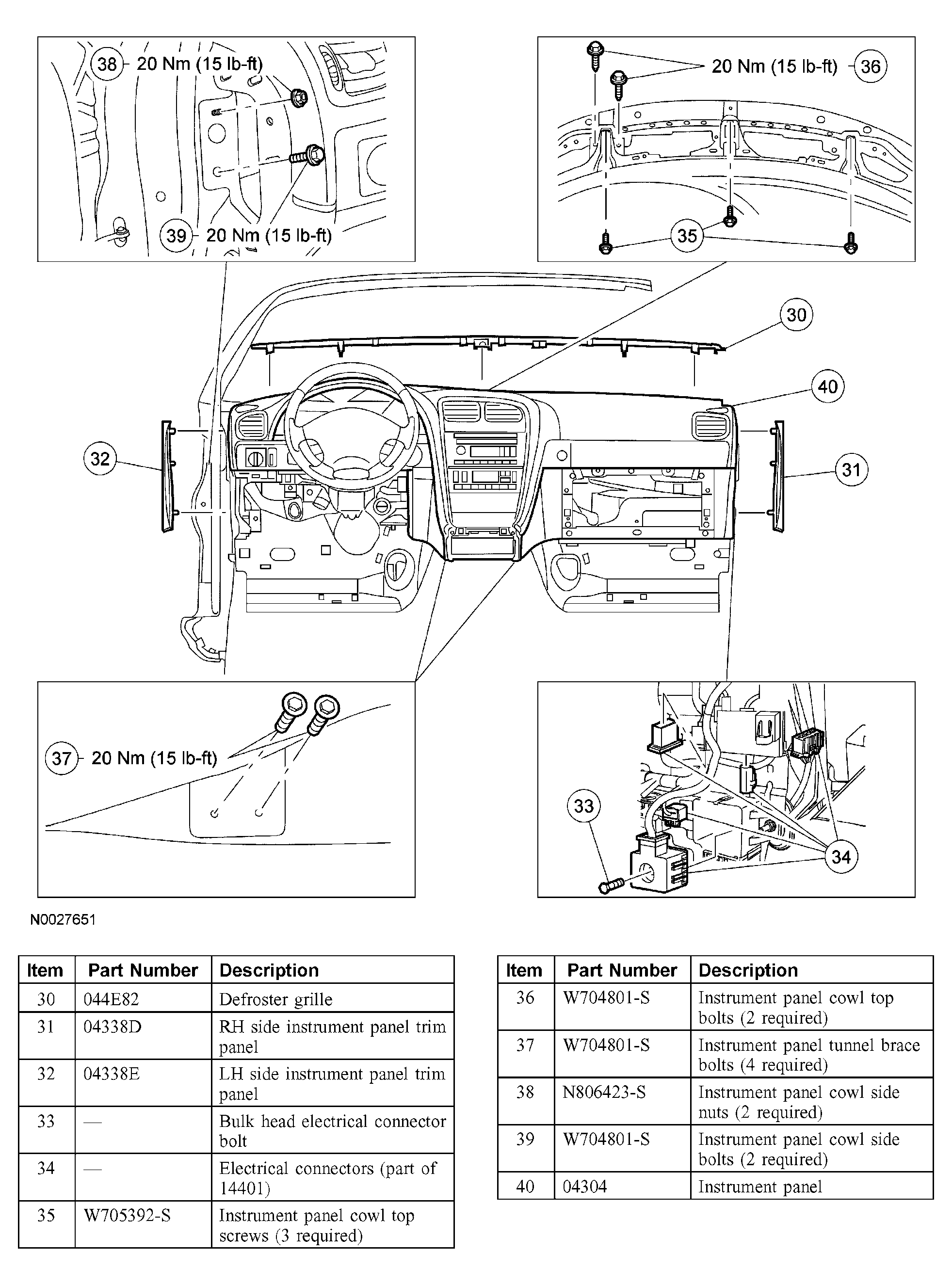

Fig 3: Exploded View Of Instrument Panel With Torque Specification (3 Of 3)

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
