Exhaust System - Exploded View

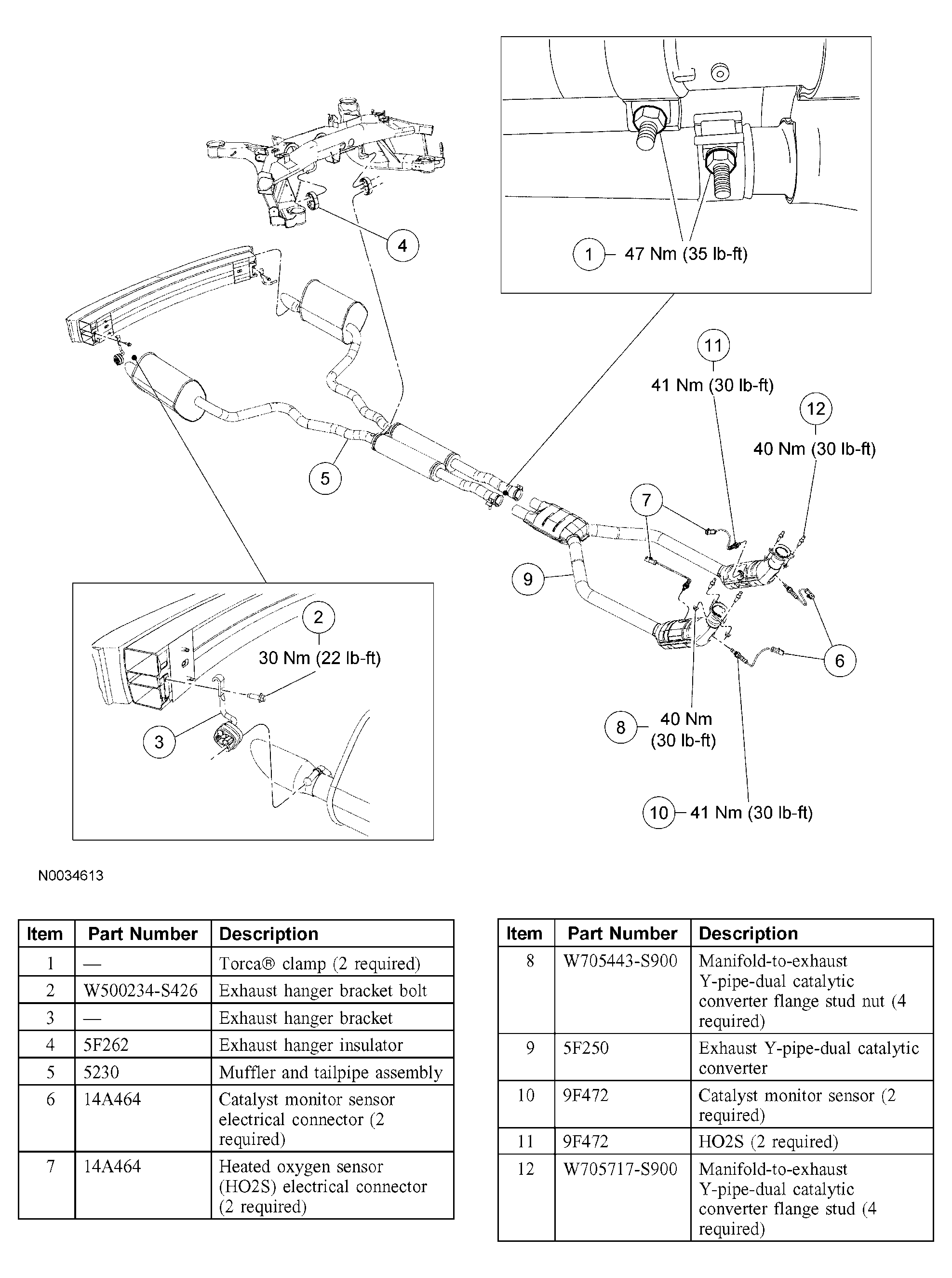

Fig 1: Exhaust System - Exploded View With Torque Specifications

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the appropriate PROCEDURES in this article.
