Cylinder Head: Assembly

  1. Install a new CHT sensor.
    • Tighten to 22 Nm (16 lb-ft).
  2. Install the CMP sensor and bolt.
    • Tighten to 10 Nm (89 lb-in).
    3. NOTE: Lubricate the valve stem seal with clean engine oil prior to installation.

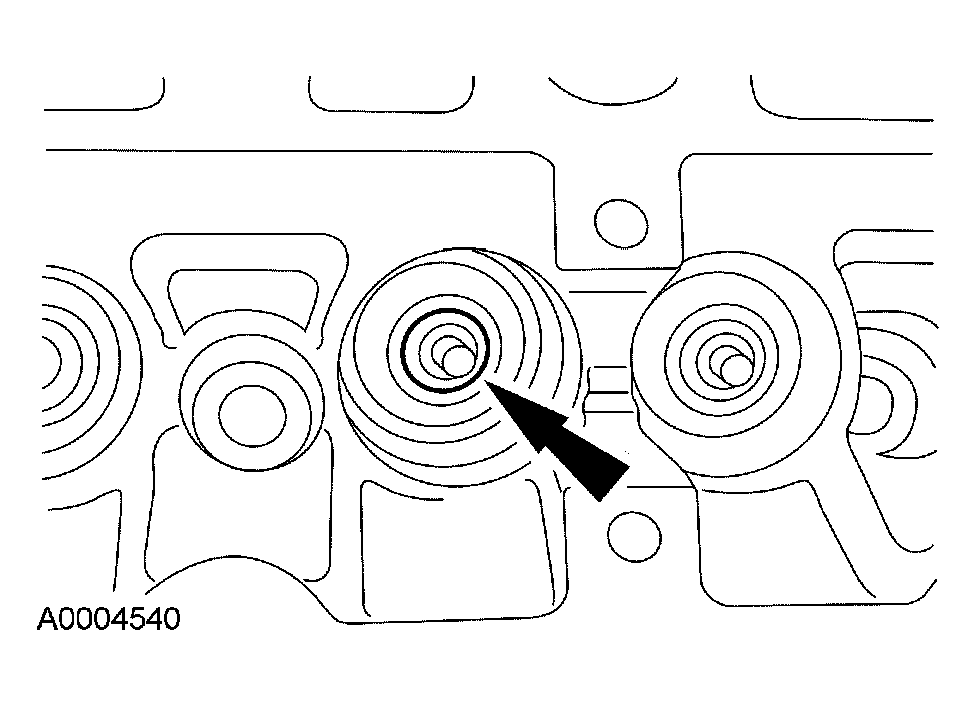

    Fig 1: Identifying Valve Stem Seal
    G03995837Courtesy of FORD MOTOR CO.
  3. Install the valve stem seal.
    4. NOTE: Lubricate the valve stem with clean engine oil prior to installation.

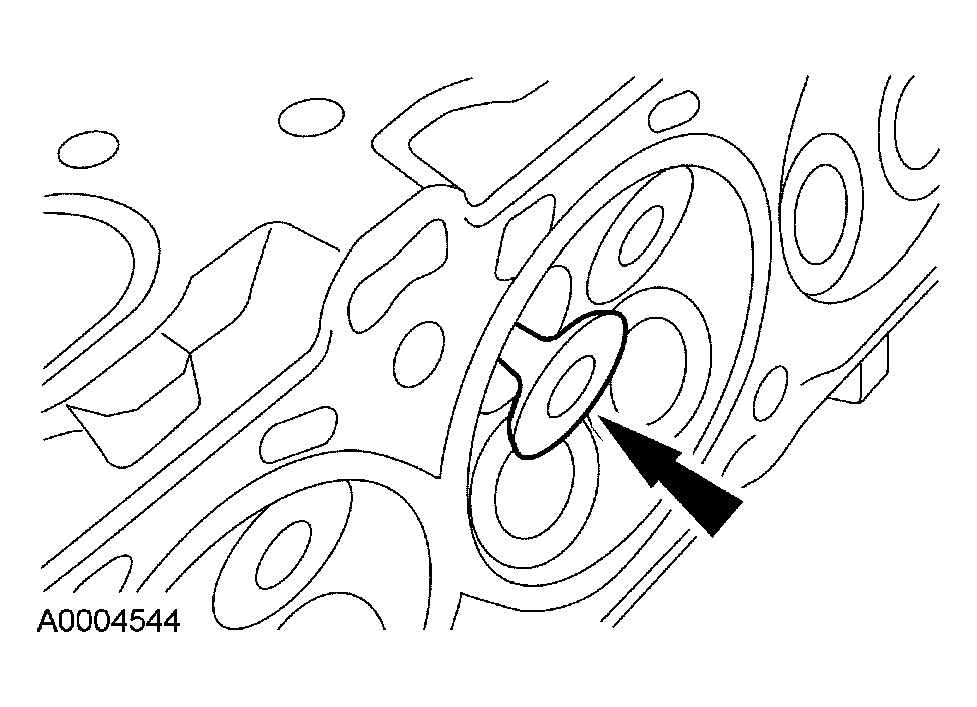

    Fig 2: Identifying Valve
    G03996691Courtesy of FORD MOTOR CO.
  4. Install the valve.
  5. Using the special tool, install the valve spring, retainer and retainer keys.

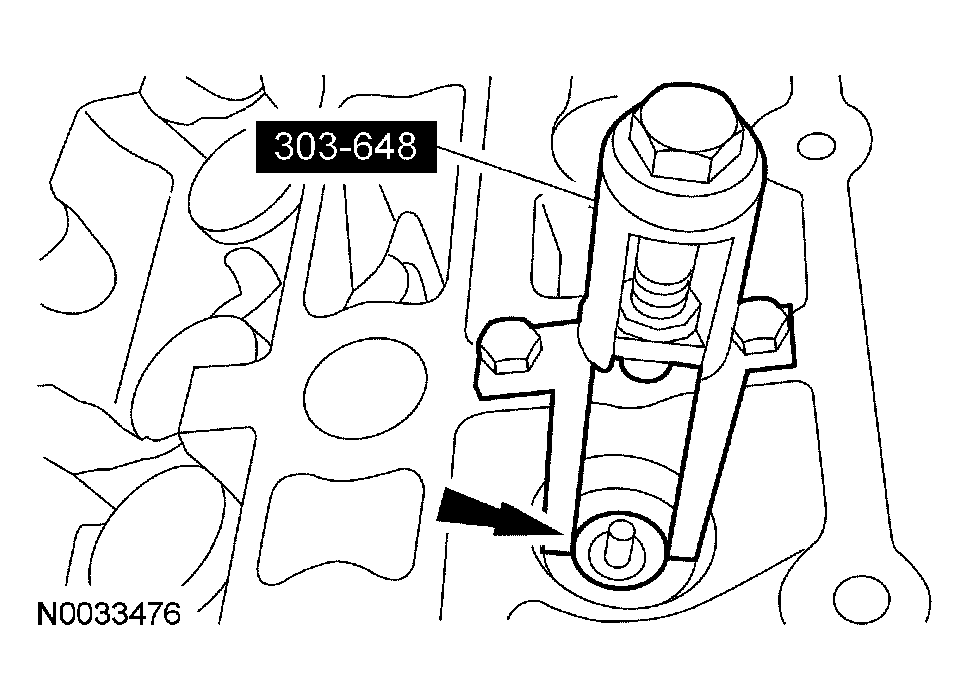

    Fig 3: Installing Valve Spring, Retainer And Retainer Keys
    G03996400Courtesy of FORD MOTOR CO.
  6. Repeat the procedure until all of the valves are installed into the cylinder head.
