Cylinder Head: Disassembly

Using the special tool, remove the valve spring retainer keys.

Fig 1: Removing Valve Spring Retainer Keys Using Special Tool
Courtesy of FORD MOTOR CO.
Remove the valve spring assembly.
1. Remove the valve spring retainer.
2. Remove the valve spring.

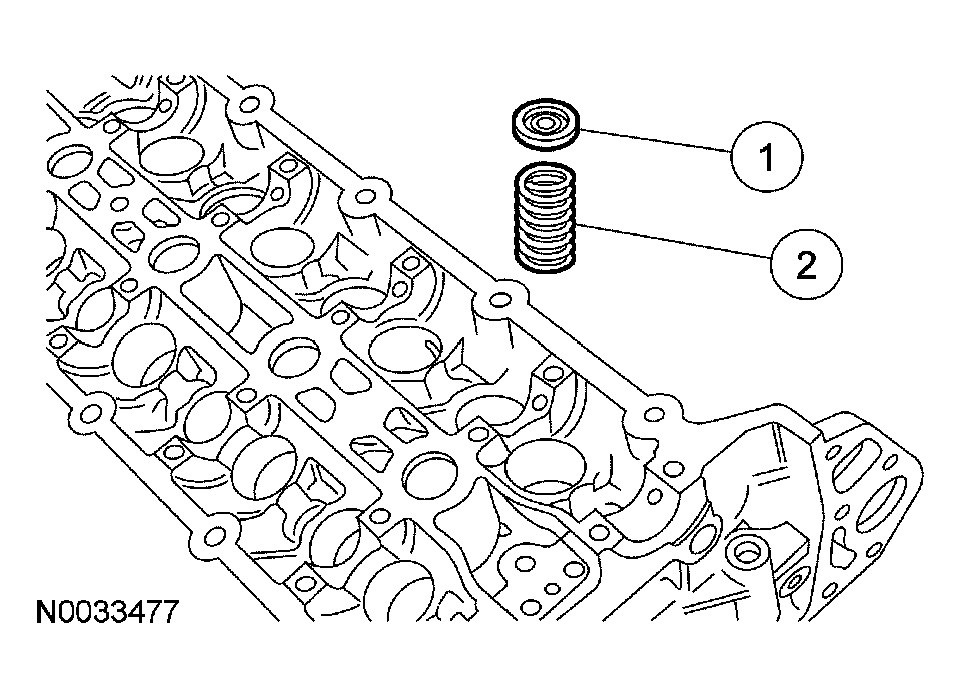

  Fig 2: Removing Valve Spring
  Courtesy of FORD MOTOR CO.
Remove the valve.
- For component tests for the valve, refer to ENGINE SYSTEM-GENERAL INFORMATION .
- For component tests for the cylinder head, refer to ENGINE SYSTEM-GENERAL INFORMATION .

  Fig 3: Identifying Valve
  Courtesy of FORD MOTOR CO.
Remove and discard the valve stem seal.

Fig 4: Identifying Valve Stem Seal
Courtesy of FORD MOTOR CO.
Repeat the procedure until all of the valves are removed from the cylinder head.
Remove the bolt and the camshaft position (CMP) sensor.
Remove and discard the cylinder head temperature (CHT) sensor.
