Repair and Diagnosis
›
Engine Mechanical
›
Starter
›
Starting System
›
Diagnosis And Testing
›
Starting System
›
Connector Circuit Reference
›
Starter Motor Relay
Starter Motor Relay

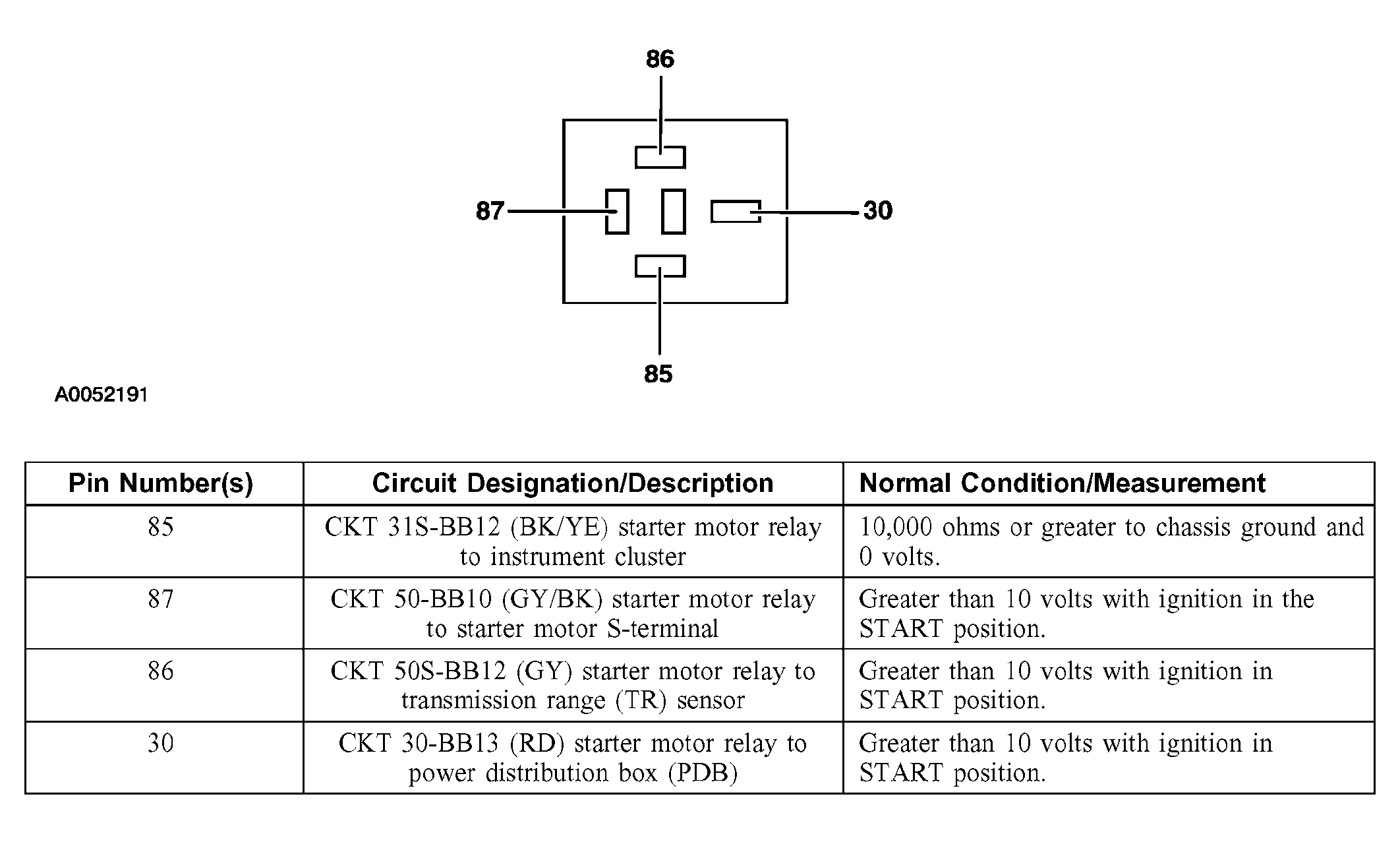

Fig 1: Identifying Starter Motor Relay Connector Pins
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
