Powertrain Control Module (PCM): Notes

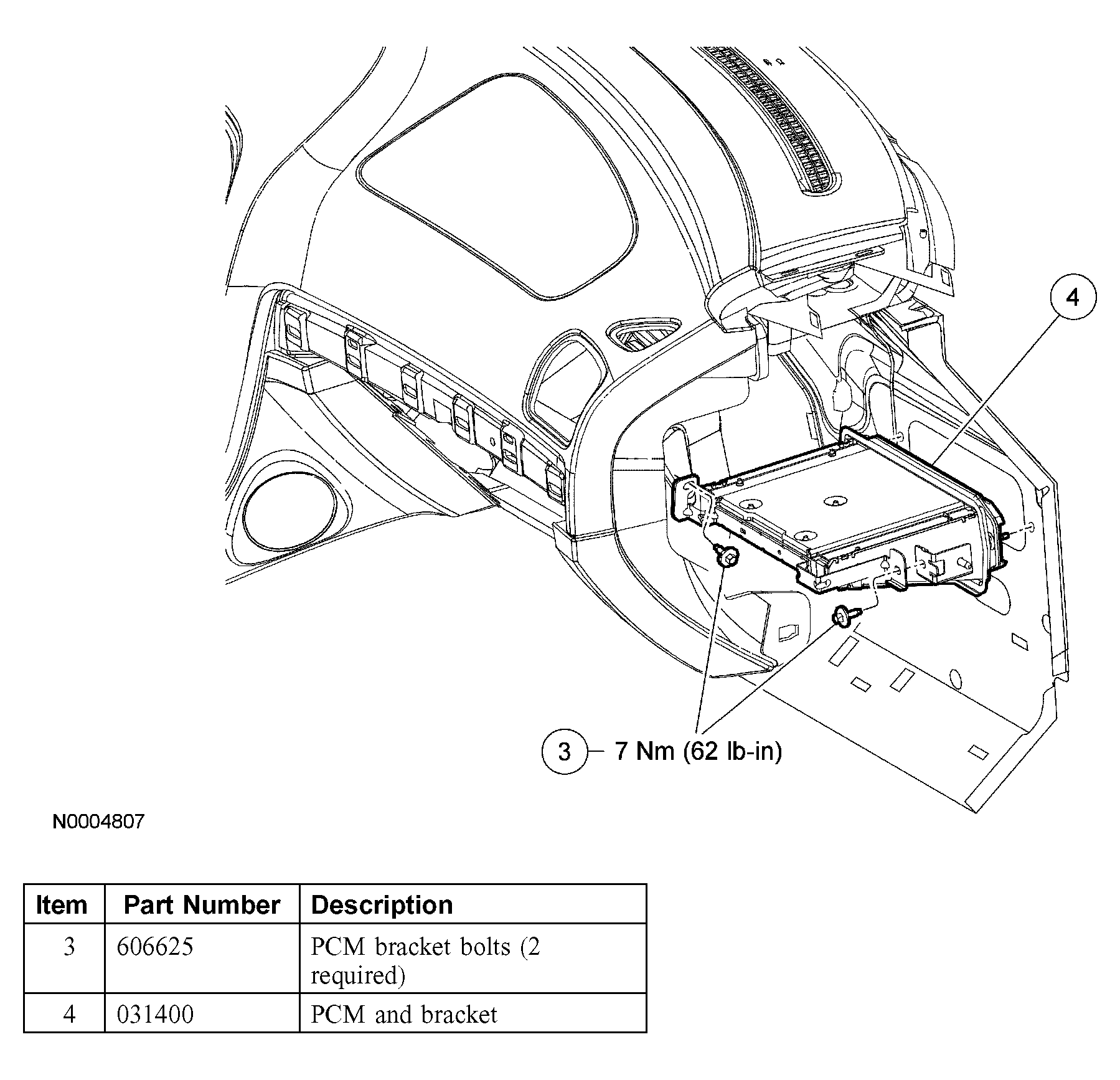

Fig 1: Removing Powertrain Control Module With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

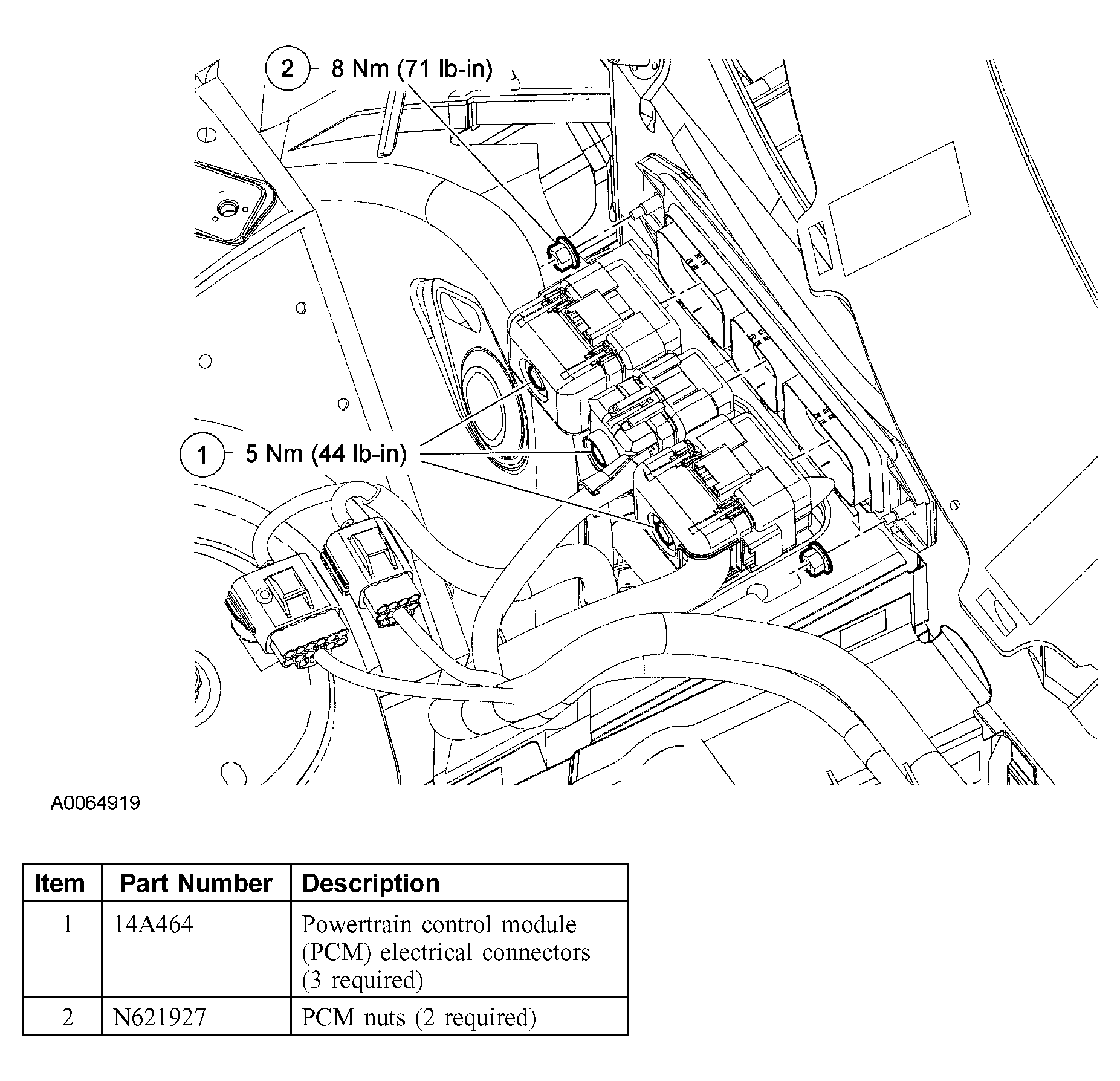

Fig 2: Removing Powertrain Control Module With Torque Specification (2 Of 2)

Courtesy of FORD MOTOR CO.
