Home › Ford › 2005 › Thunderbird › Repair and Diagnosis › Heating, Ventilation & A/C (HVAC) › HVAC Control Systems › HVAC System - Control Components › Removal And Installation › Climate Control Assembly › Notes

Climate Control Assembly: Notes

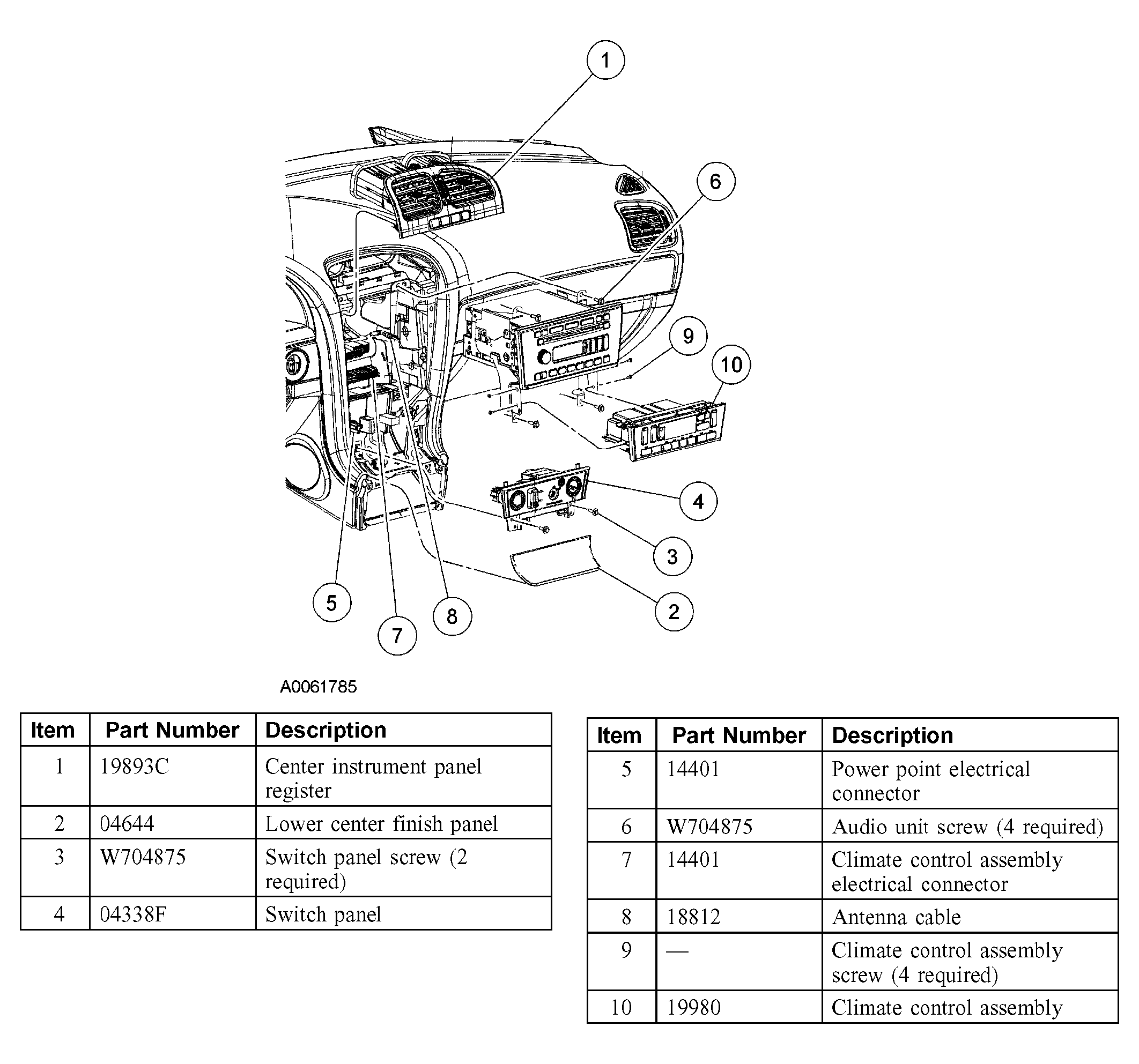

Fig 1: Identifying Components Of Climate Control Assembly
G04009124Courtesy of FORD MOTOR CO.
