Front Toe Adjustment

Start the engine and center the steering wheel.
Turn the engine off, and hold the steering wheel in the "straight forward" position using a suitable holding device.
Loosen the tie-rod jam nuts and remove the steering gear bellows clamps.

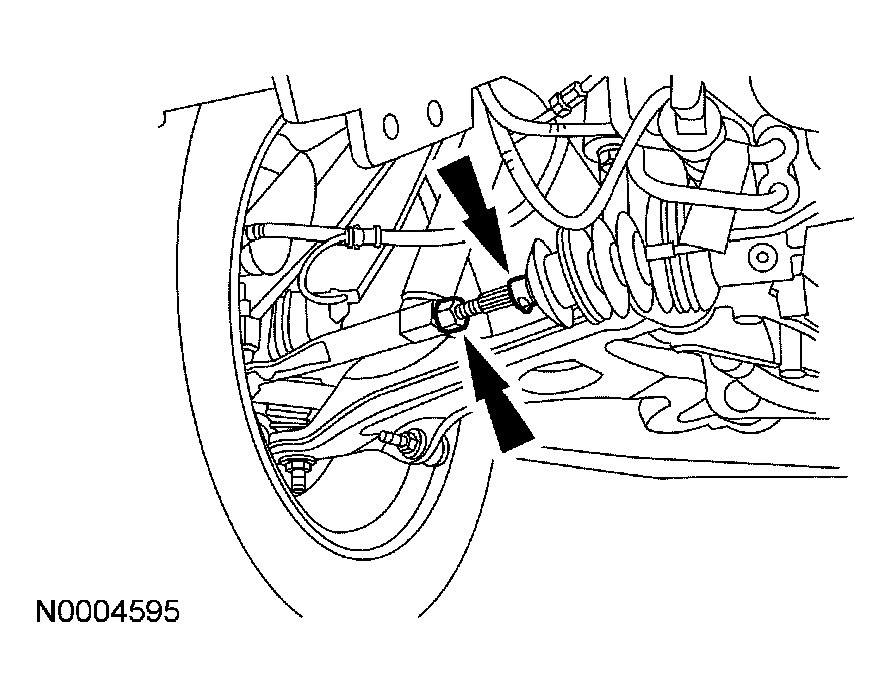

Fig 1: Locating Tie-Rod Jam Nuts & Boot Clamp
Courtesy of FORD MOTOR CO.

NOTE: Do not allow the steering gear bellows to twist when the front wheel spindle inner tie-rod is rotated.

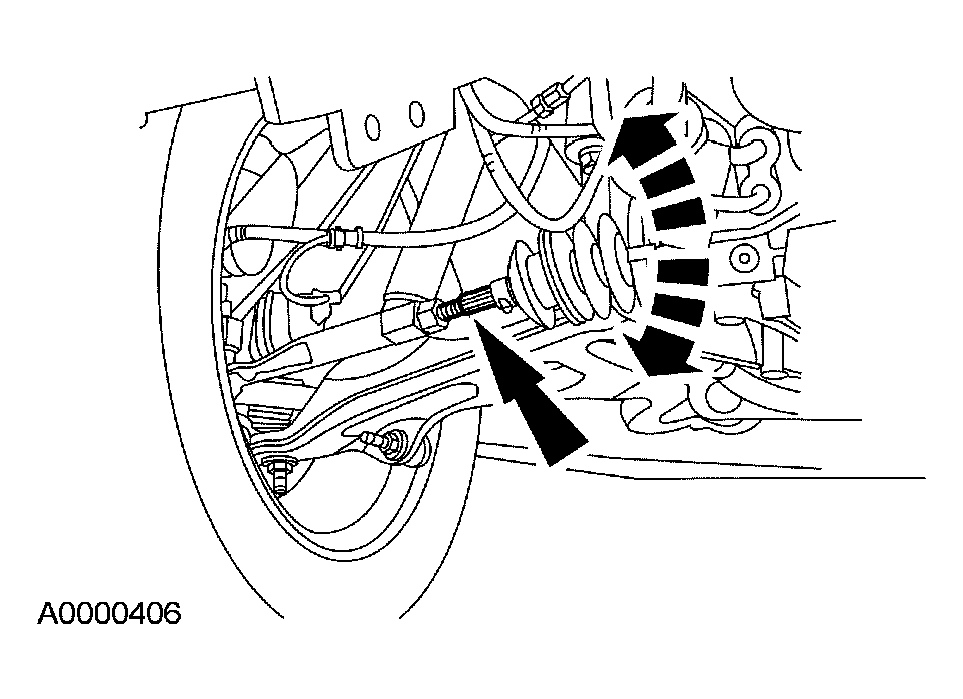

Fig 2: Rotating Front Wheel Spindle Inner Tie-Rods

G03995024

Courtesy of FORD MOTOR CO.

Rotate the front wheel spindle inner tie-rods.
Tighten the tie-rod jam nuts. Install the steering gear bellows clamps.
- Tighten to 55 Nm (41 lb-ft).

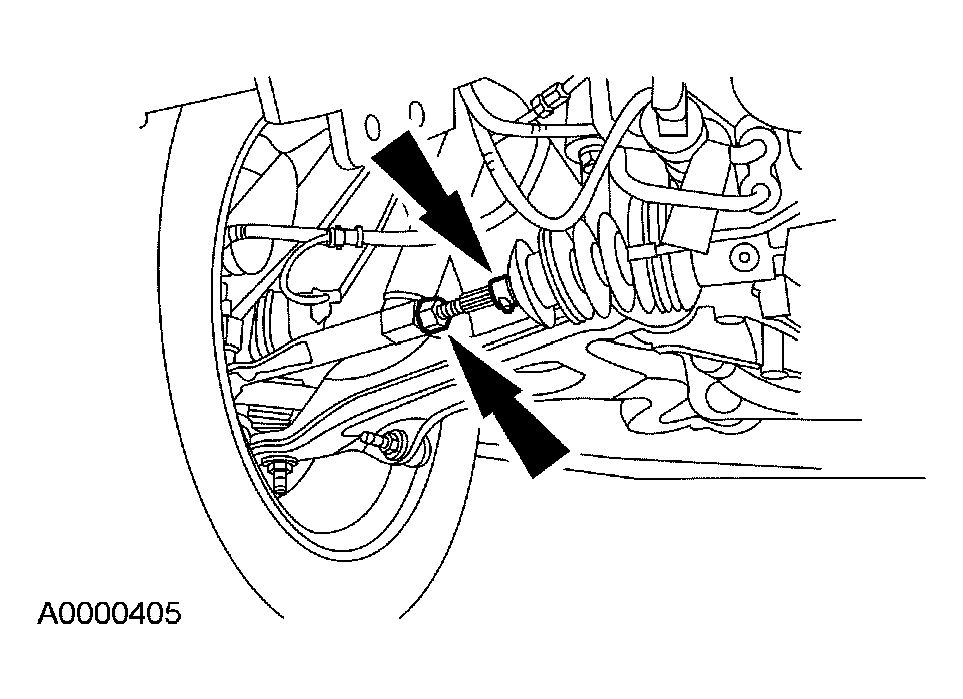

  Fig 3: Tightening Tie-Rod Jam Nuts
  Courtesy of FORD MOTOR CO.
Start the engine and recenter the steering wheel.
- Recheck the toe settings and adjust if necessary.
