Forward Clutch: Notes

SPECIAL TOOLS

	Compressor, Clutch Spring 307-015 (T65L-77515-A)
	Protector, Piston Seal 307-051 (T74P-77548-A)
	Bonded Piston Seal Sizer 307-434

MATERIAL SPECIFICATION

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V

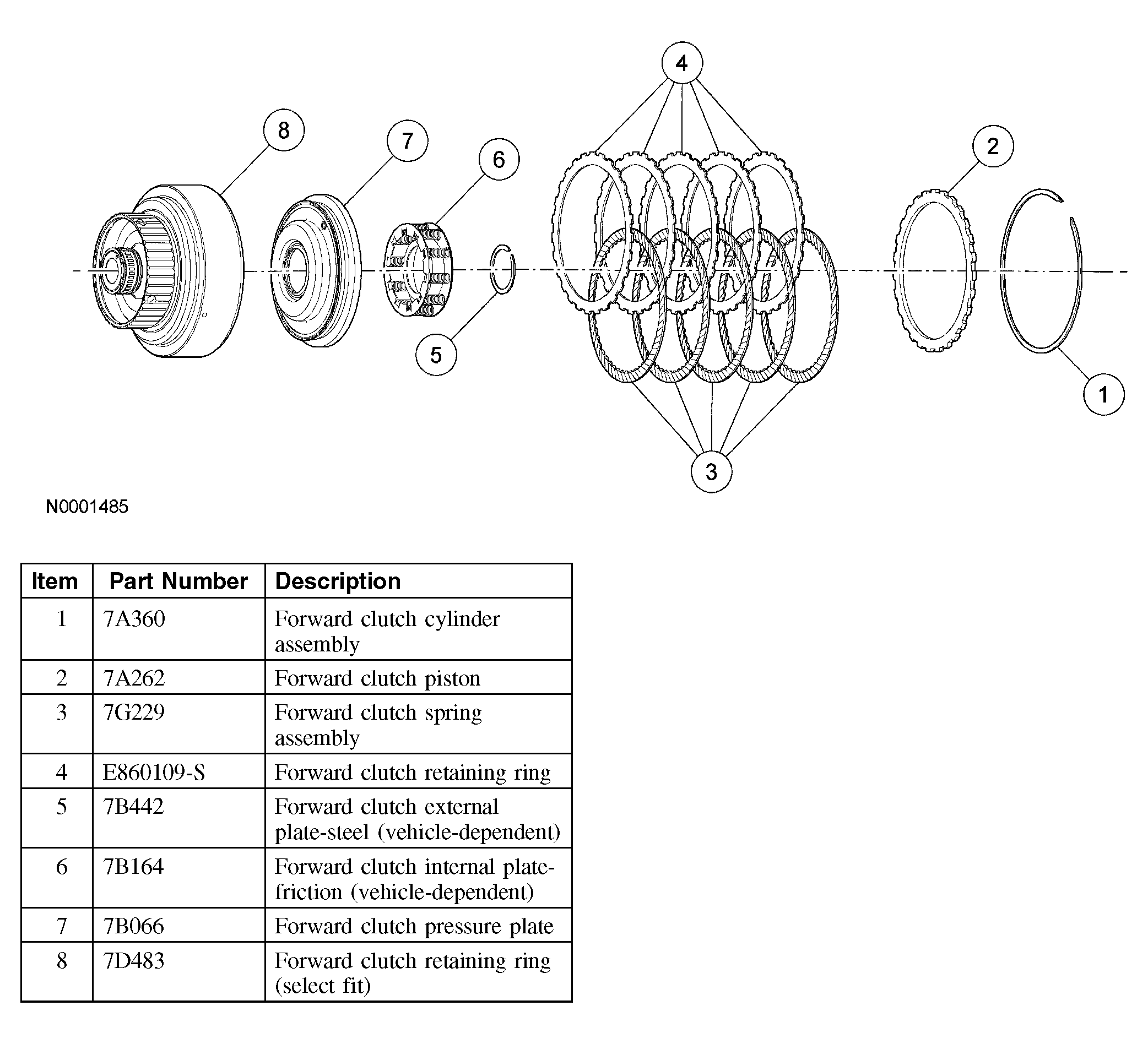

Fig 1: Identifying Components Forward Clutch Assembly

Courtesy of FORD MOTOR CO.
