Main Control Valve Body: Notes

SPECIAL TOOLS

Aligner, Valve Body (2 required) 307-334 (T95L-70010-C)

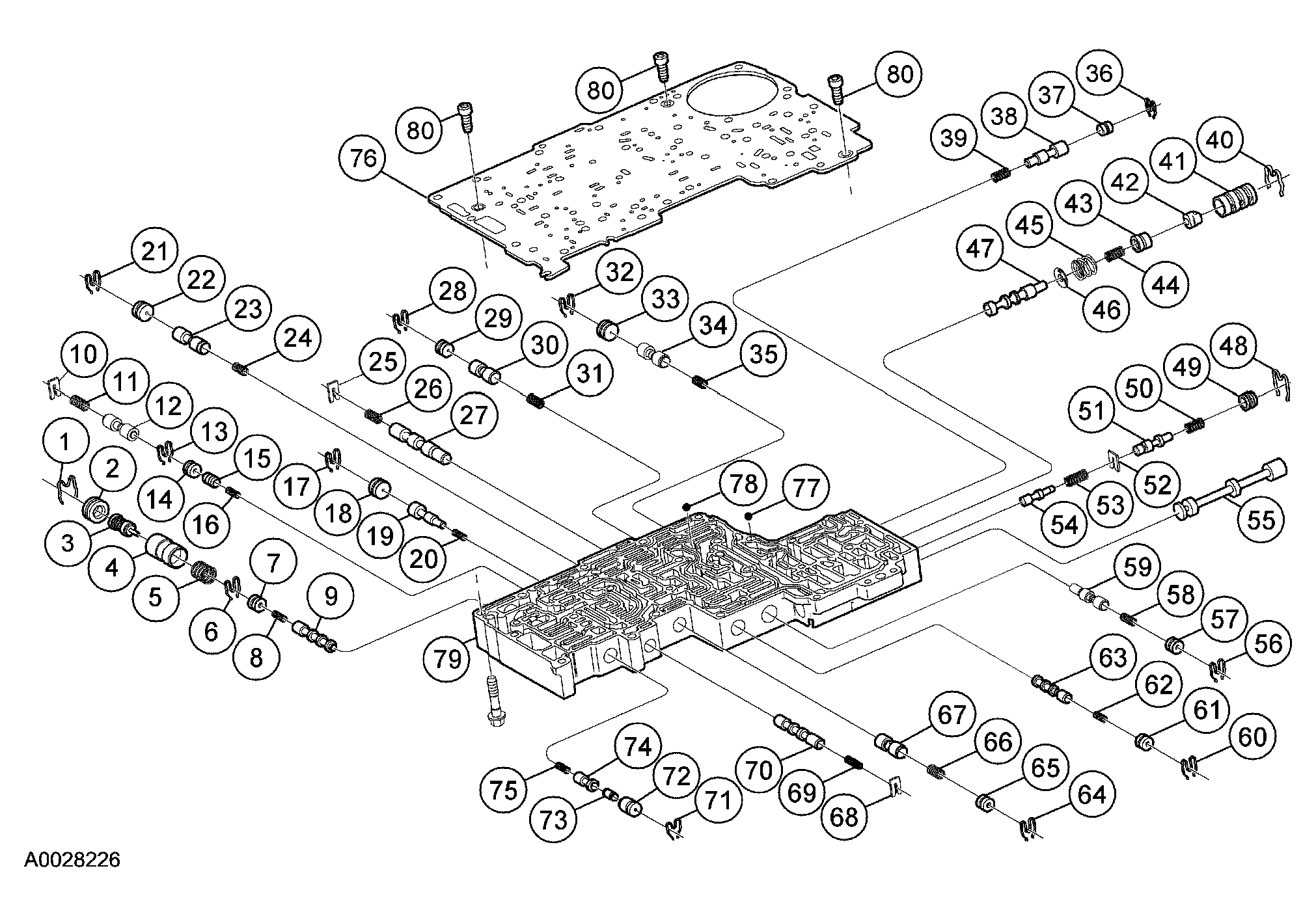

Fig 1: Identifying Main Control Valve Body Components (1 Of 2)

Courtesy of FORD MOTOR CO.

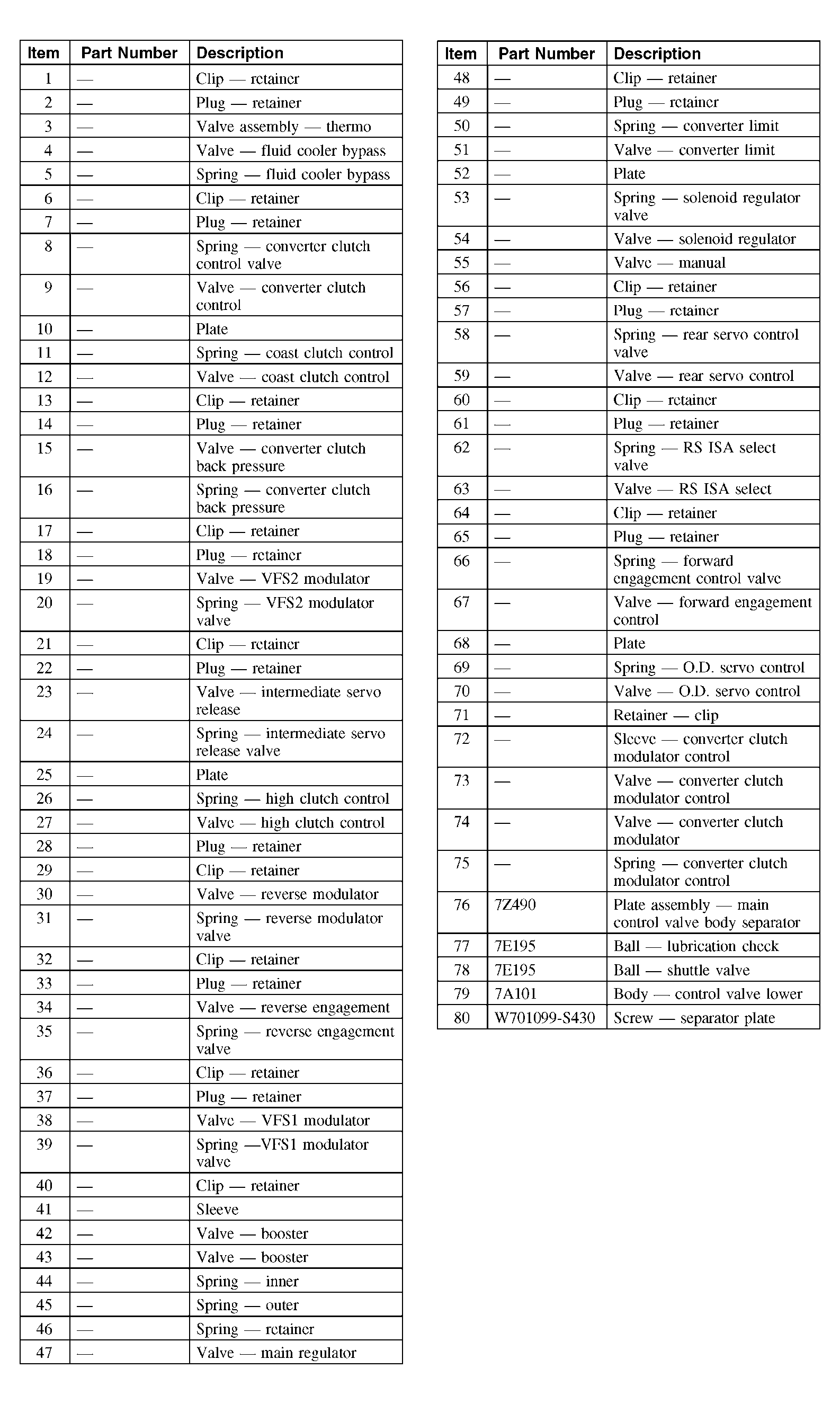

Fig 2: Identifying Main Control Valve Body Components (2 Of 2)

Courtesy of FORD MOTOR CO.
