Extension Housing Seal: Notes

SPECIAL TOOLS

	Slide Hammer 100-001 (T50T-100-A)
	Remover, Torque Converter Fluid Seal 307-309 (T94P-77001-BH)
	Installer, Drive Pinion Oil Seal 205-115
	Installer, Drive Pinion Flange 205-479
	Installer, Output Shaft Flange 307-404
	Remover, Output Shaft Flange 307-523

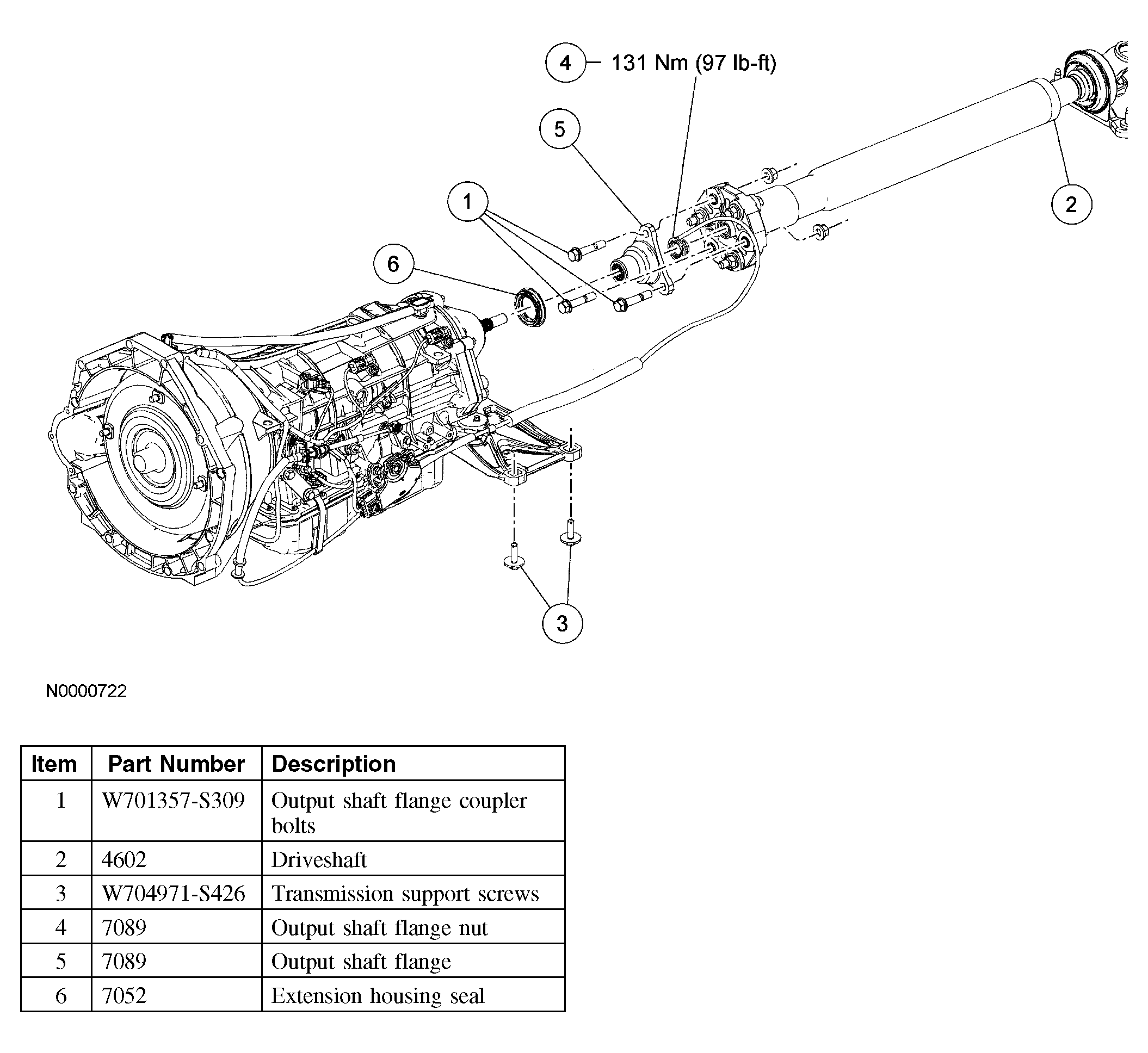

Fig 1: Replacement Components Extension Housing Seal With Torque Specification

Courtesy of FORD MOTOR CO.
