Seat Adjust Switch: Terminals

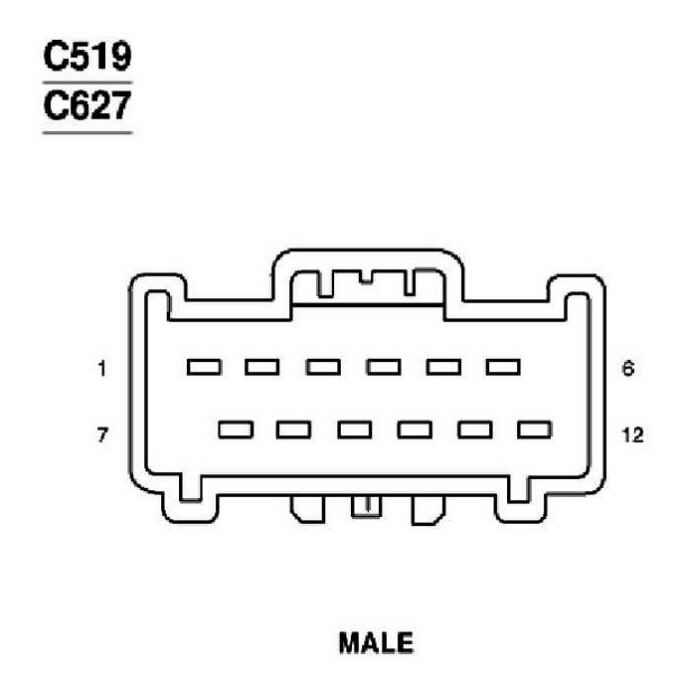

Fig 1: Identifying C519 And C627 Connector Terminals
G04595415Courtesy of FORD MOTOR CO.
