Connector Views

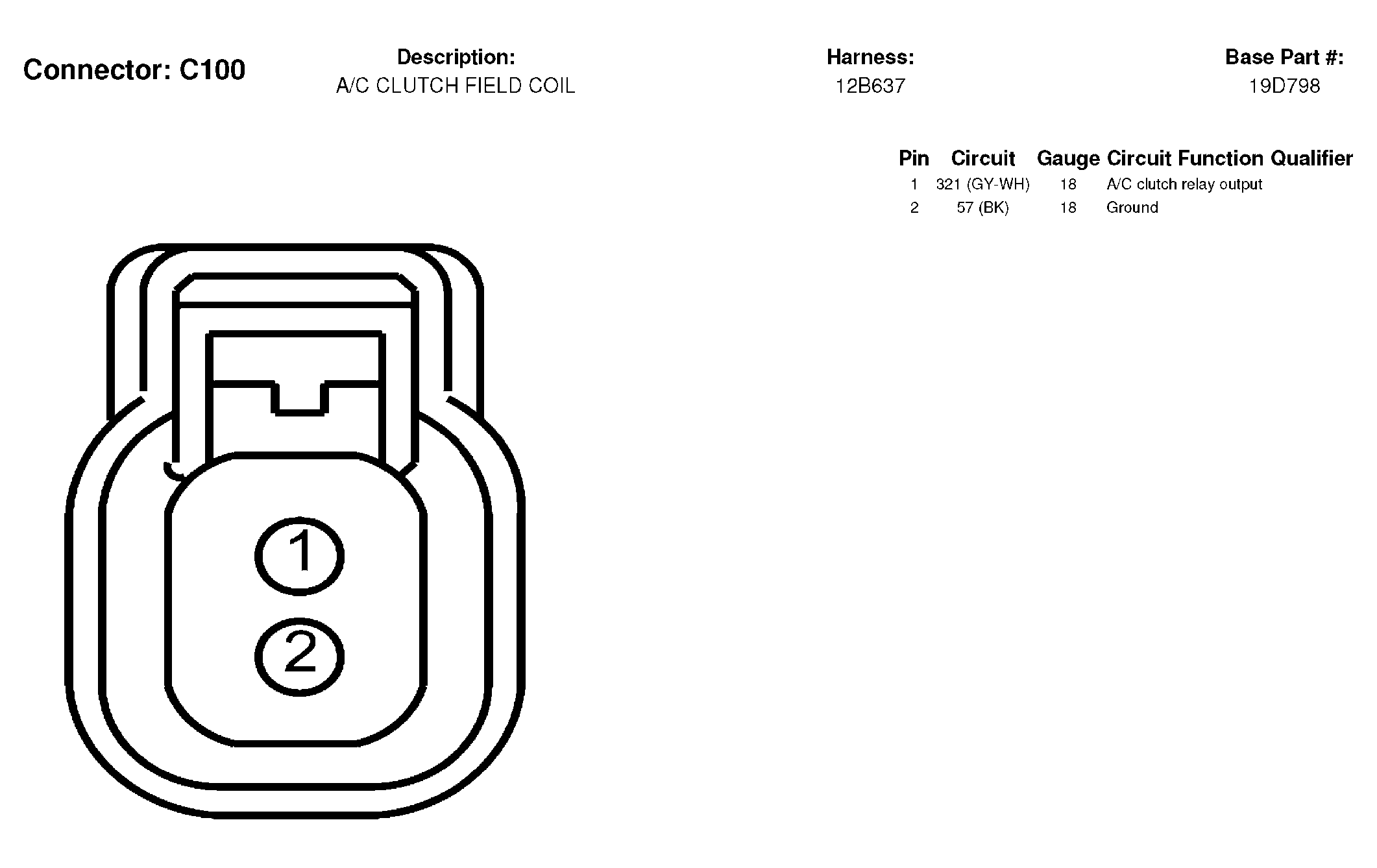

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G04595420

Courtesy of FORD MOTOR CO.

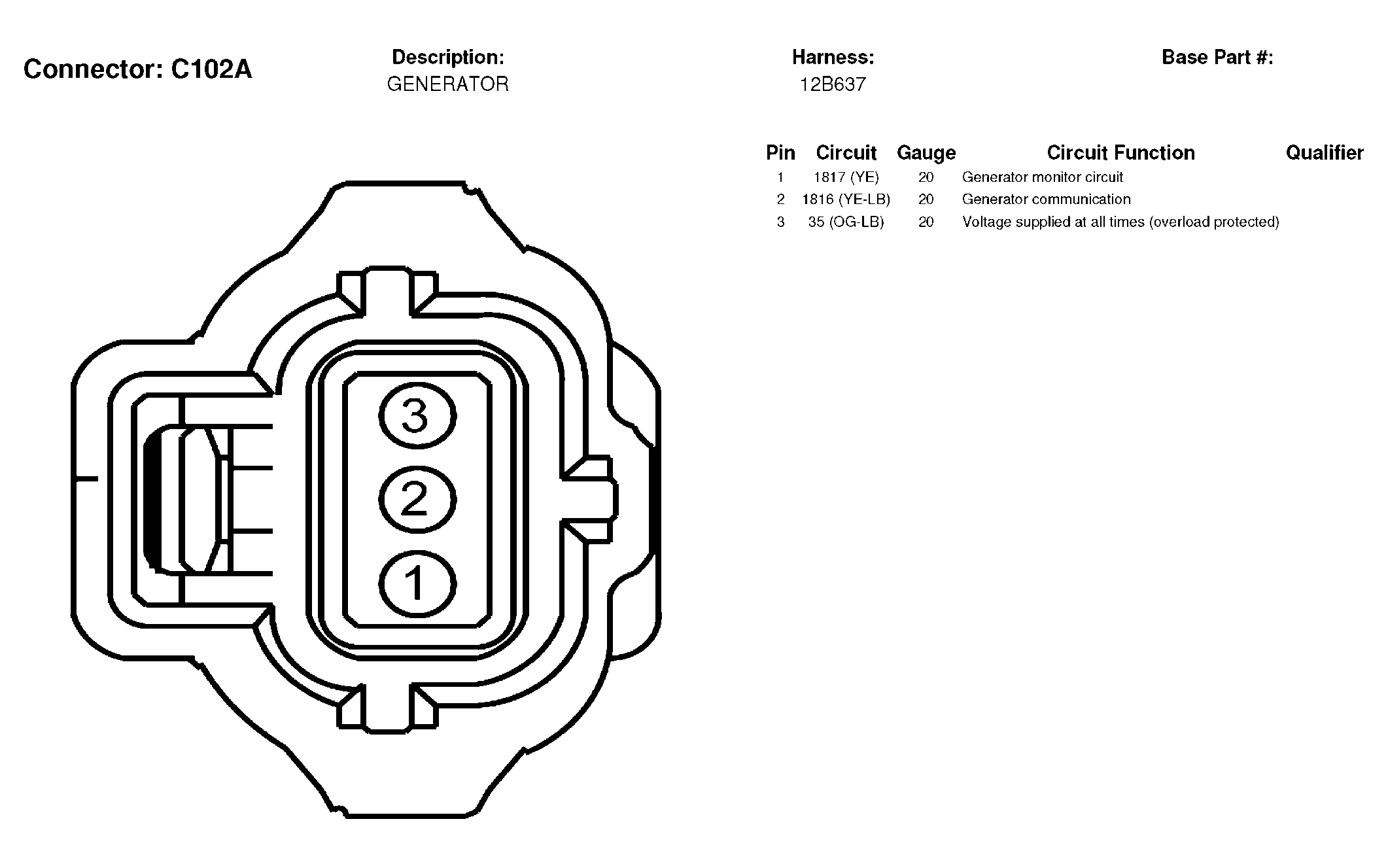

Fig 2: Generator Connector End View (C102A)

G04595421

Courtesy of FORD MOTOR CO.

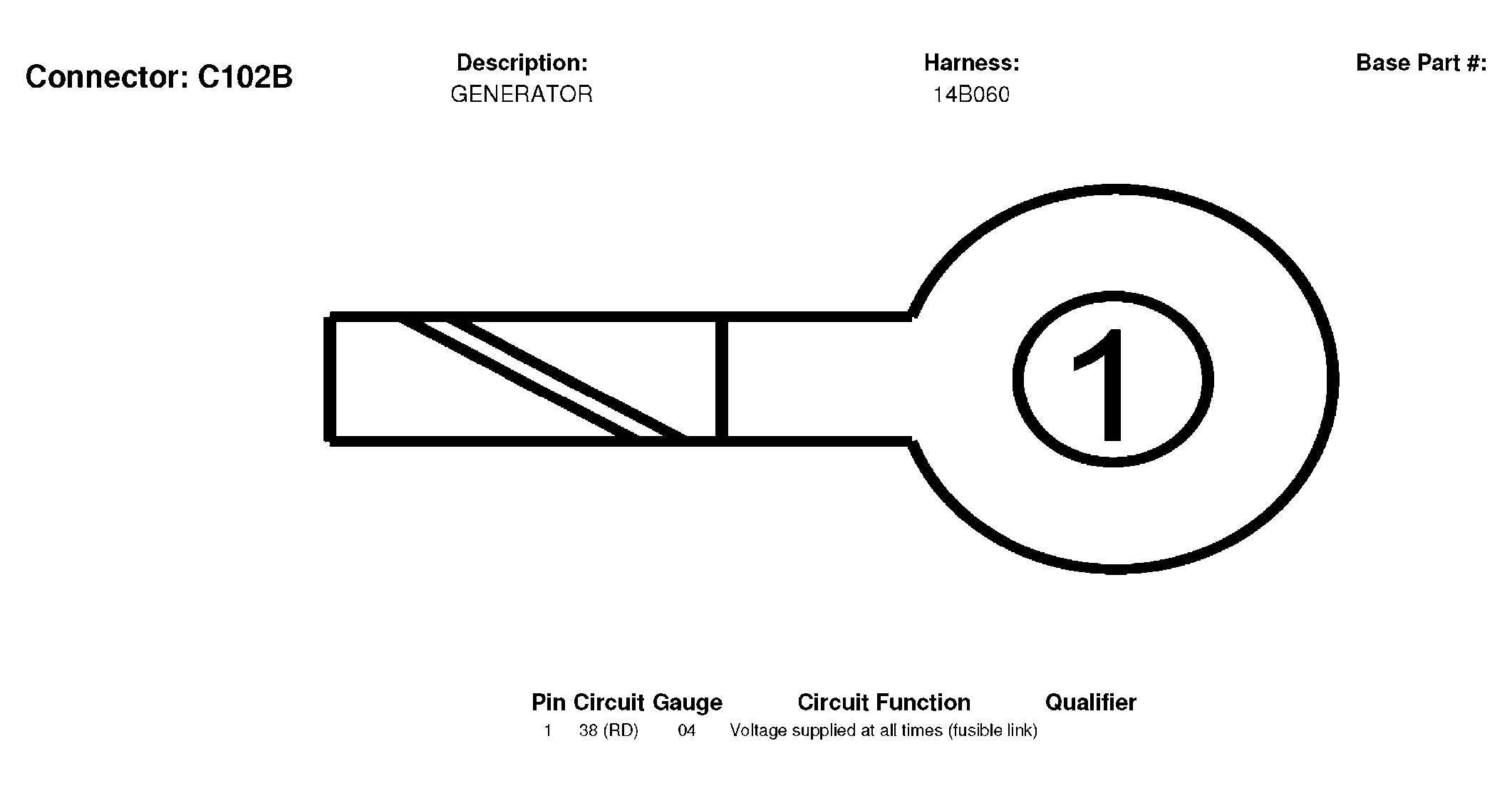

Fig 3: Generator Connector End View (C102B)

G04595422

Courtesy of FORD MOTOR CO.

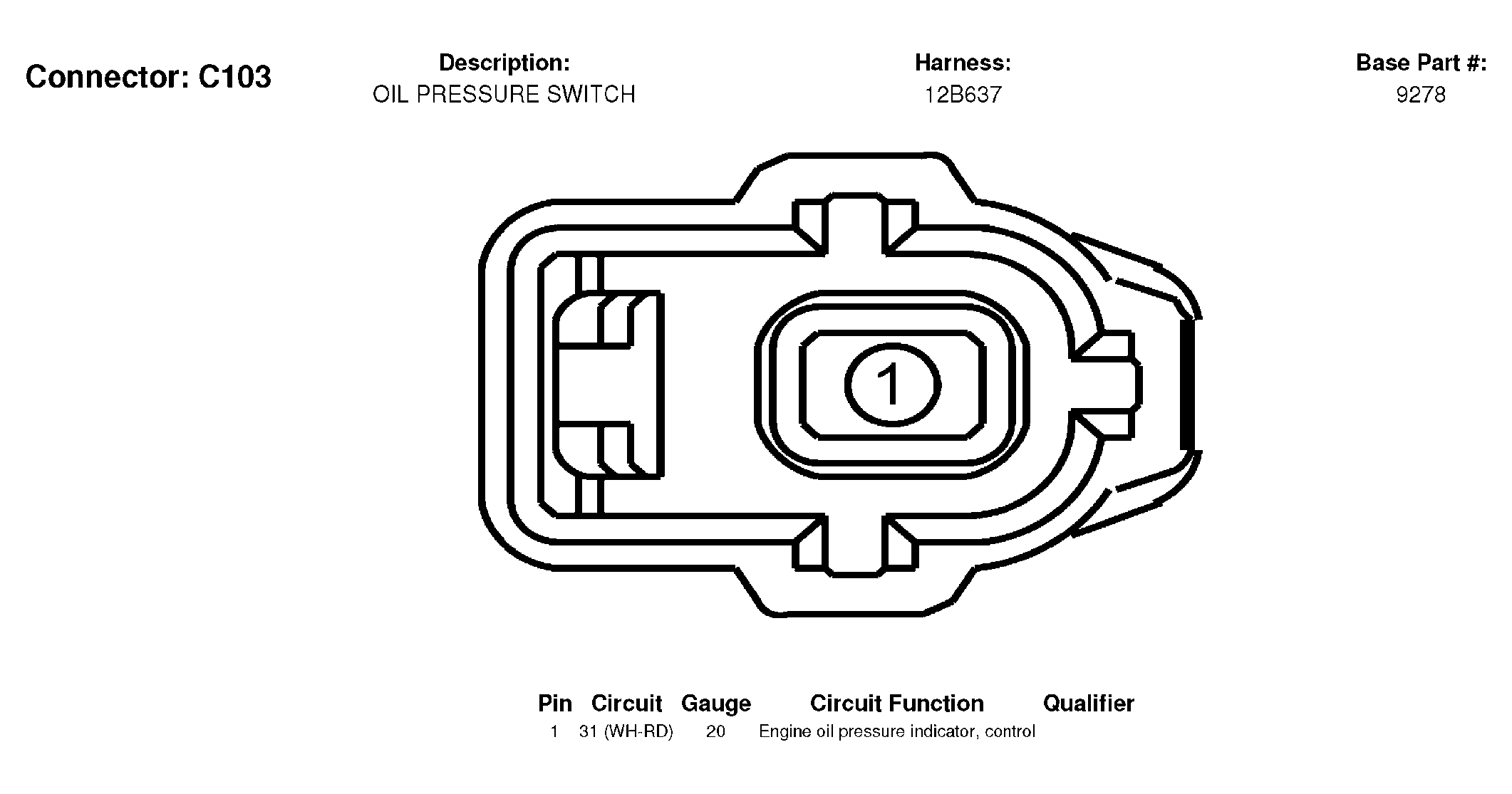

Fig 4: Oil Pressure Switch Connector End View (C103)

G04595423

Courtesy of FORD MOTOR CO.

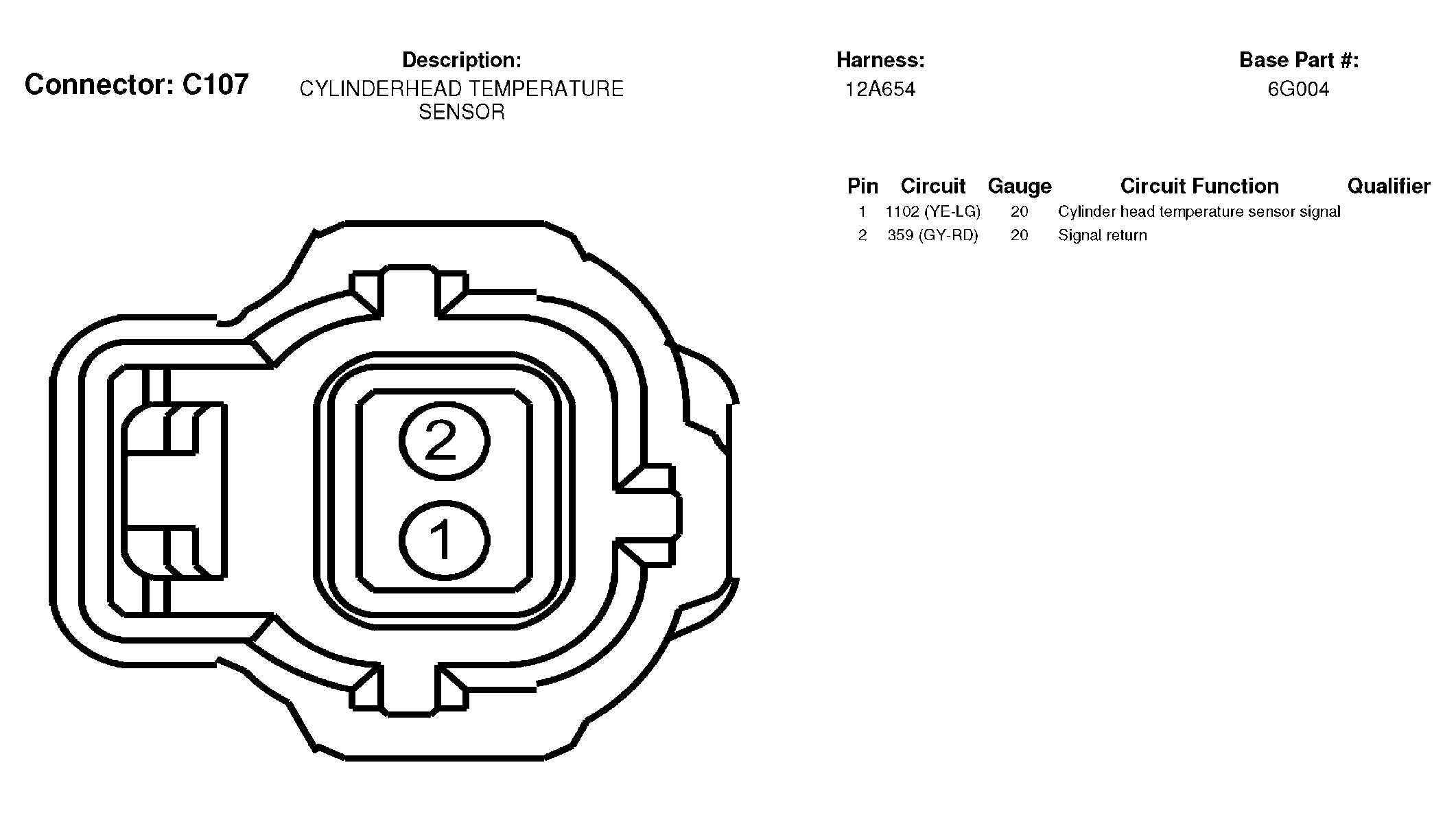

Fig 5: Cylinder Head Temperature Sensor Connector End View (C107)

G04595424

Courtesy of FORD MOTOR CO.

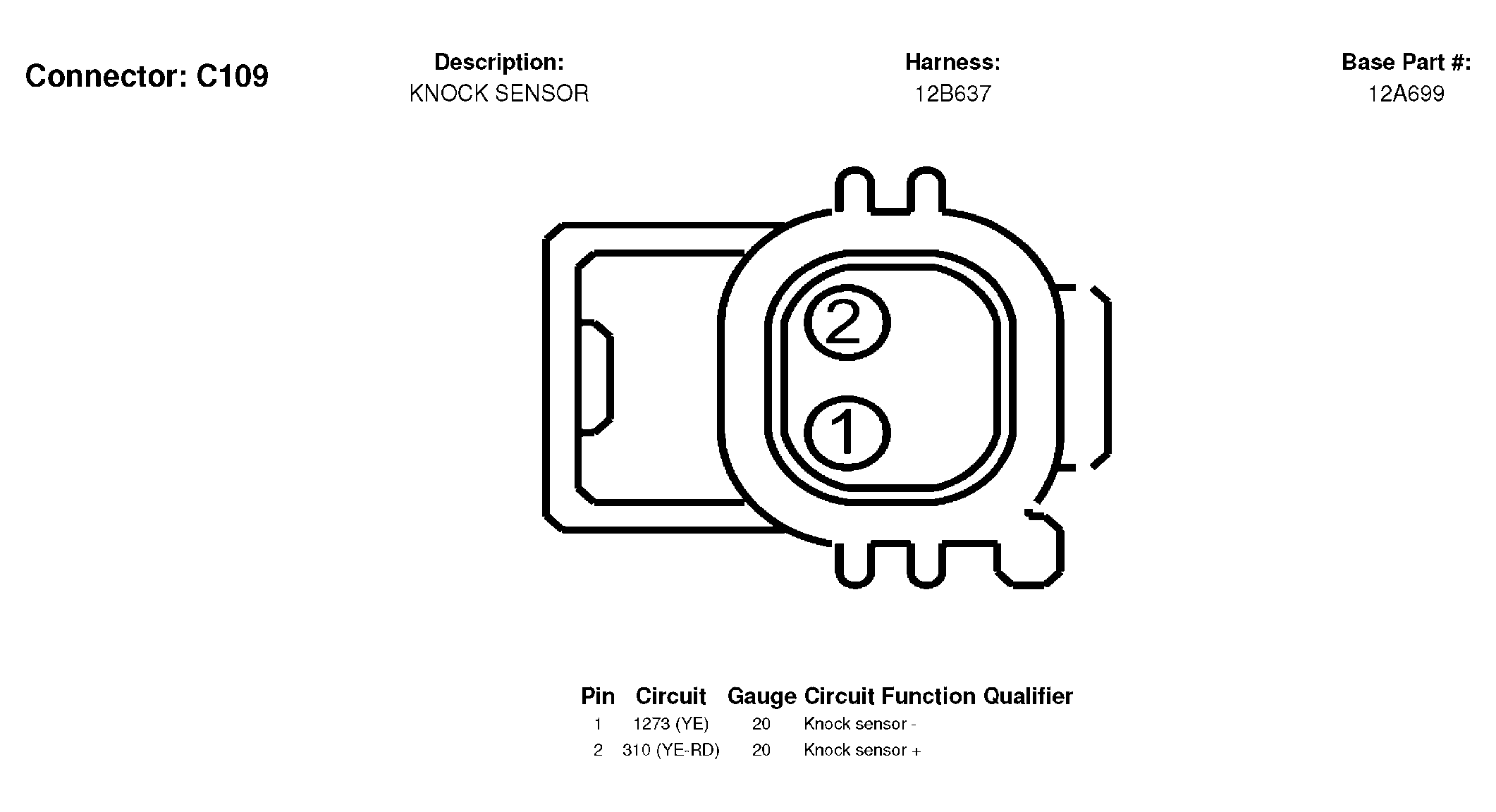

Fig 6: Knock Sensor Connector End View (C109)

G04595425

Courtesy of FORD MOTOR CO.

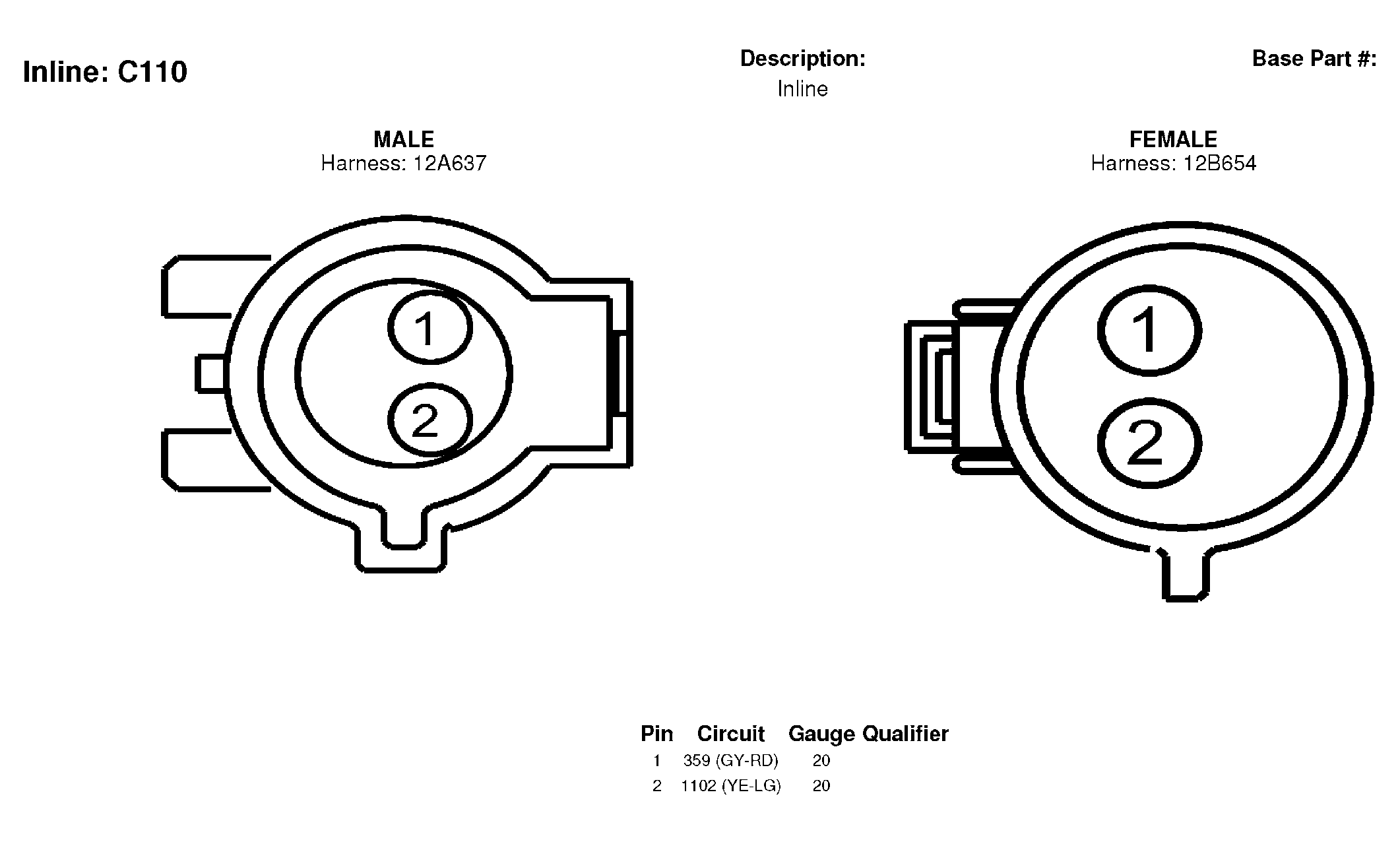

Fig 7: Inline Connector End View (C110)

G04595426

Courtesy of FORD MOTOR CO.

Fig 8: Coil On Plug (COP) 1 Connector End View (C111)

G04595427

Courtesy of FORD MOTOR CO.

Fig 9: Coil On Plug (COP) 2 Connector End View (C112)

G04595428

Courtesy of FORD MOTOR CO.

Fig 10: Coil On Plug (COP) 3 Connector End View (C113)

G04595429

Courtesy of FORD MOTOR CO.

Fig 11: Coil On Plug (COP) 4 Connector End View (C114)

G04595430

Courtesy of FORD MOTOR CO.

Fig 12: Coil On Plug (COP) 5 Connector End View (C115)

G04595431

Courtesy of FORD MOTOR CO.

Fig 13: Coil On Plug (COP) 6 Connector End View (C116)

G04595432

Courtesy of FORD MOTOR CO.

Fig 14: Coil On Plug (COP) 7 Connector End View (C117)

G04595433

Courtesy of FORD MOTOR CO.

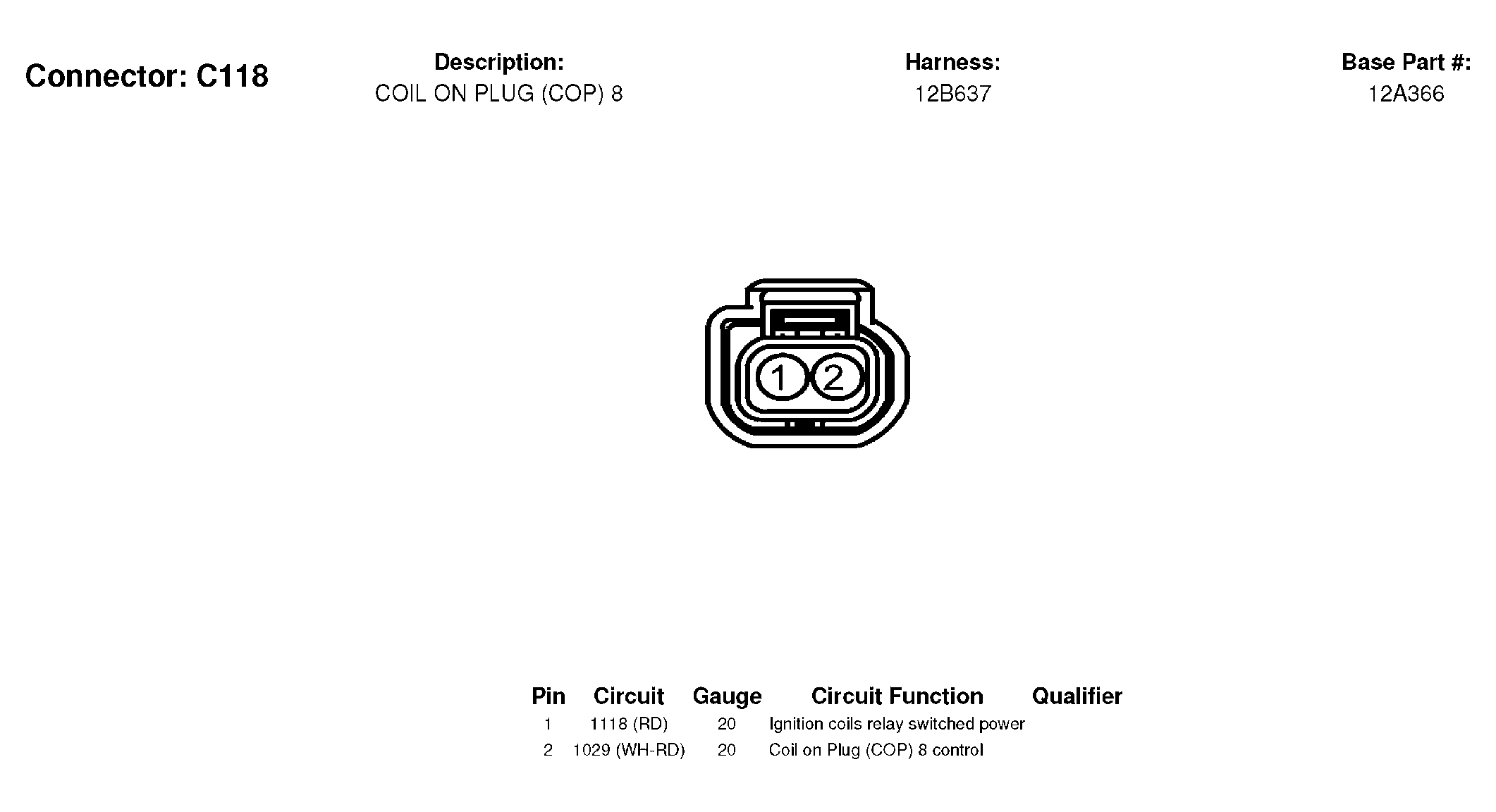

Fig 15: Coil On Plug (COP) 8 Connector End View (C118)

G04595434

Courtesy of FORD MOTOR CO.

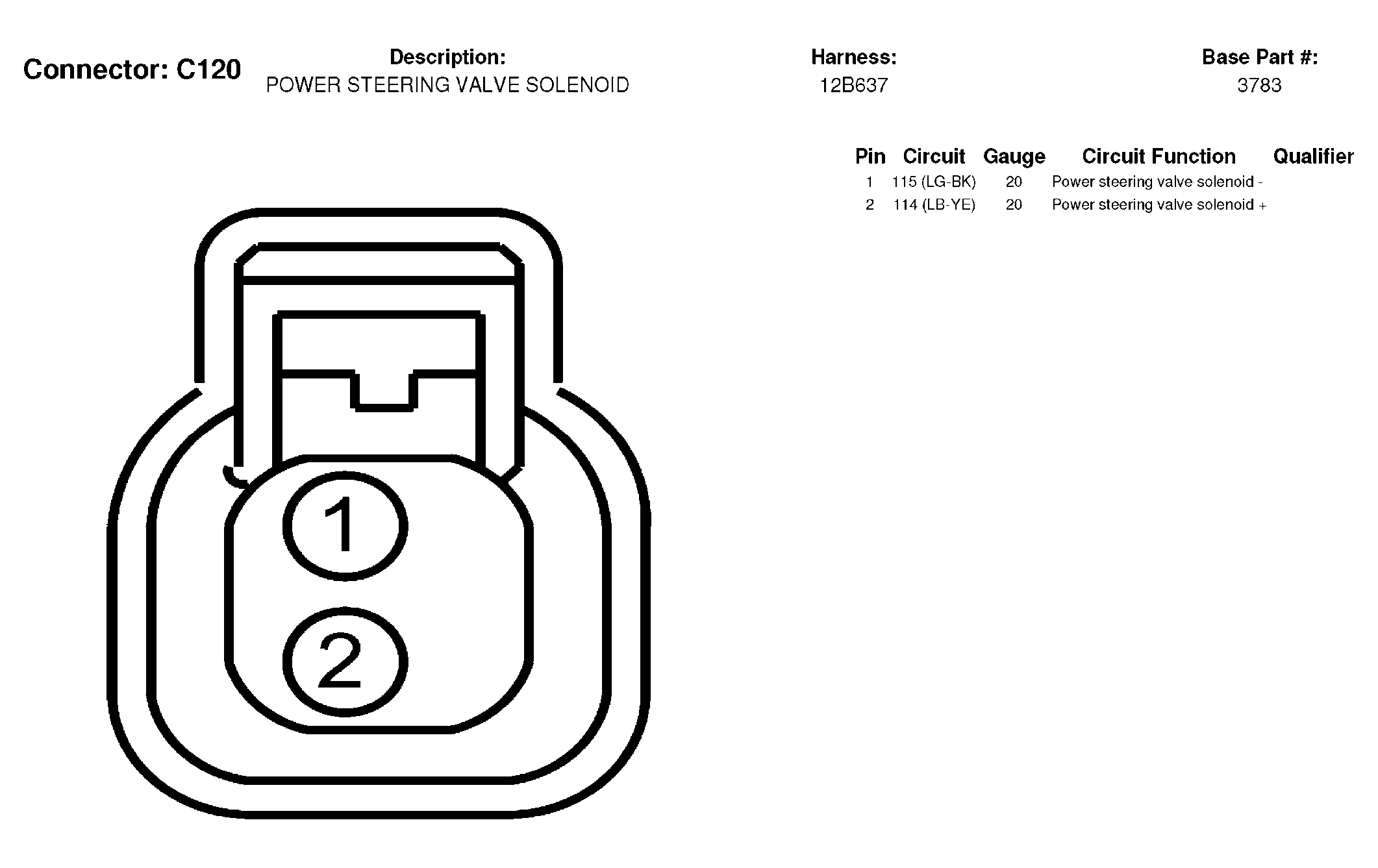

Fig 16: Power Steering Valve Solenoid Connector End View (C120)

G04595435

Courtesy of FORD MOTOR CO.

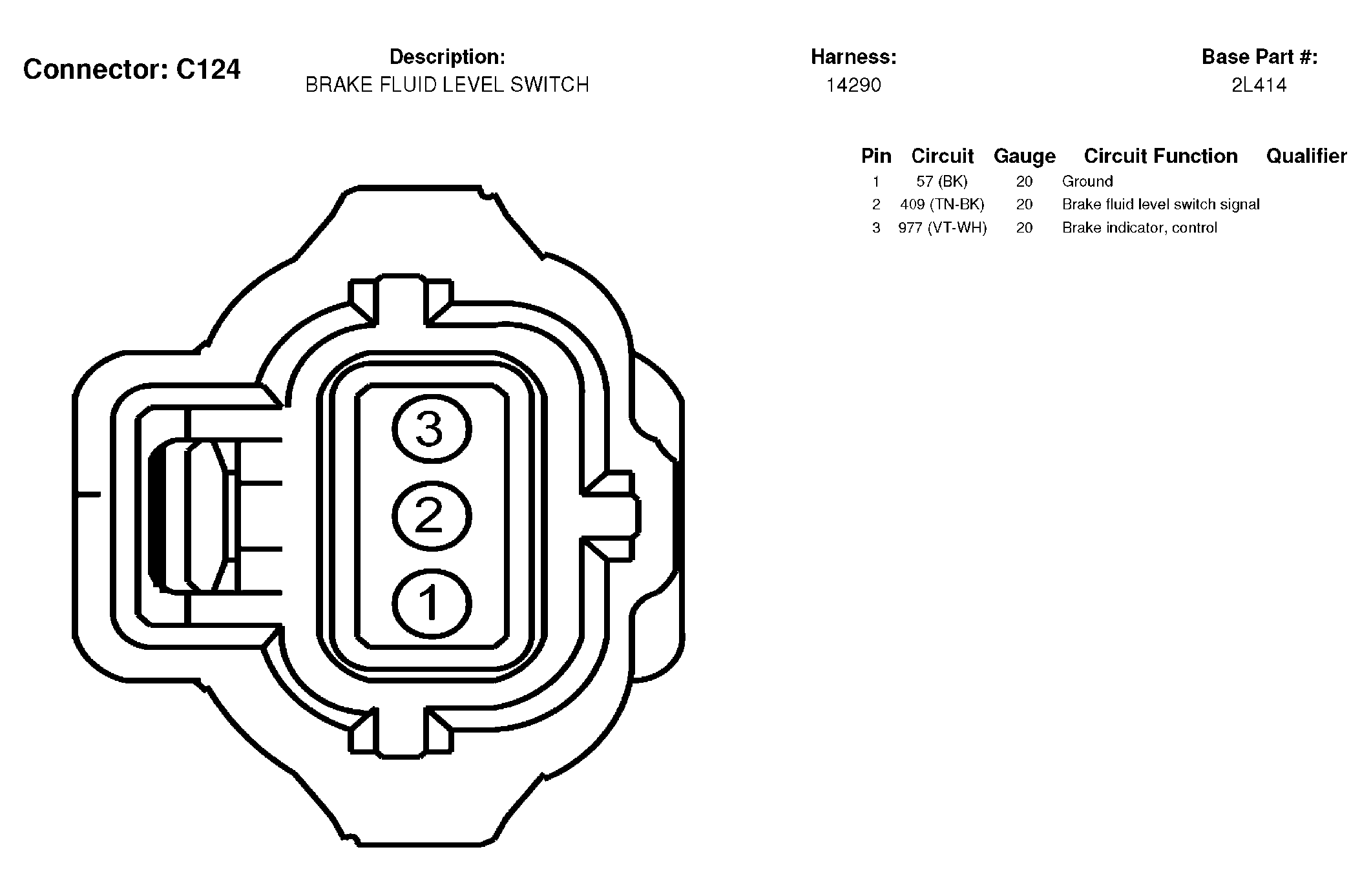

Fig 17: Brake Fluid Level Switch Connector End View (C124)

G04595436

Courtesy of FORD MOTOR CO.

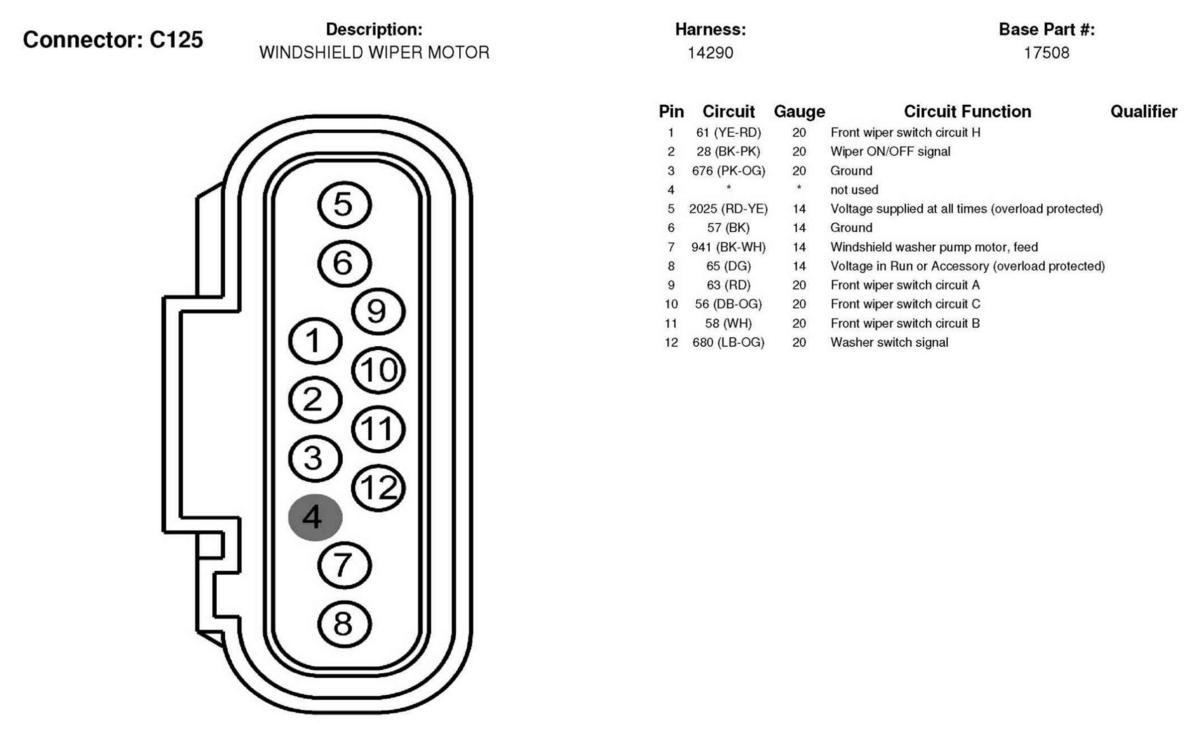

Fig 18: Windshield Wiper Motor Connector End View (C125)

G04595437

Courtesy of FORD MOTOR CO.

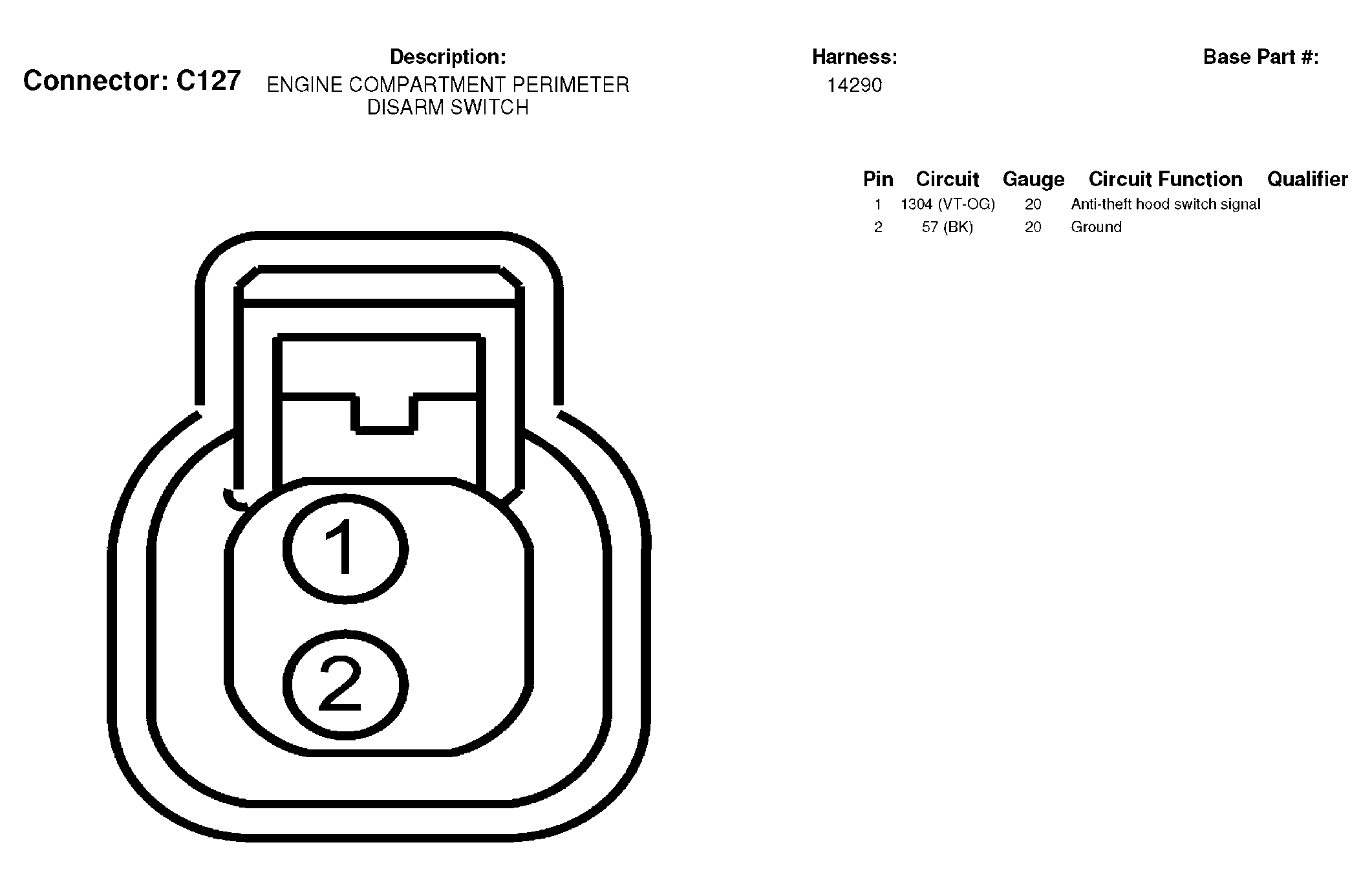

Fig 19: Engine Compartment Perimeter Disarm Switch Connector End View (C127)

G04595438

Courtesy of FORD MOTOR CO.

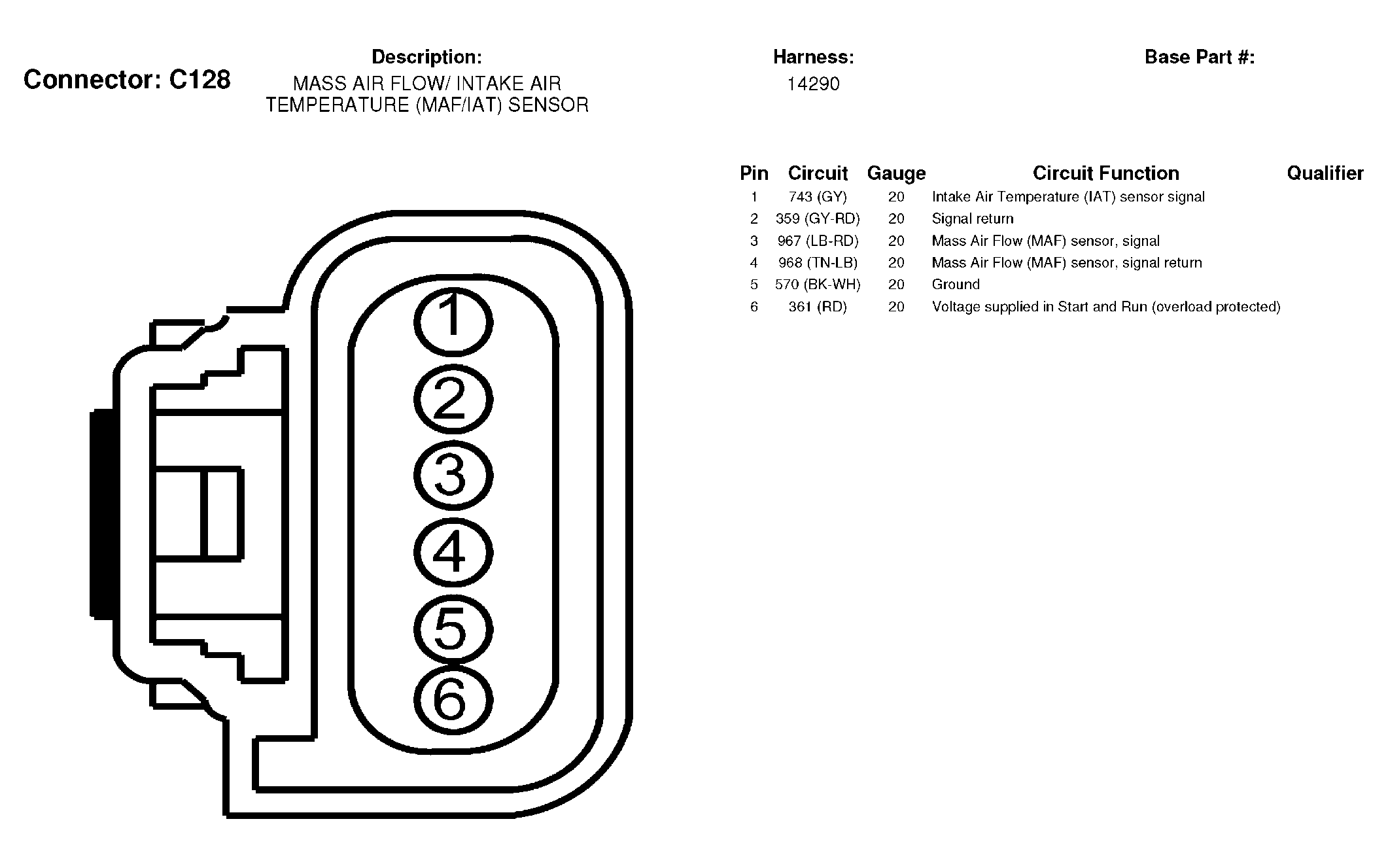

Fig 20: Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Connector End View (C128)

G04595439

Courtesy of FORD MOTOR CO.

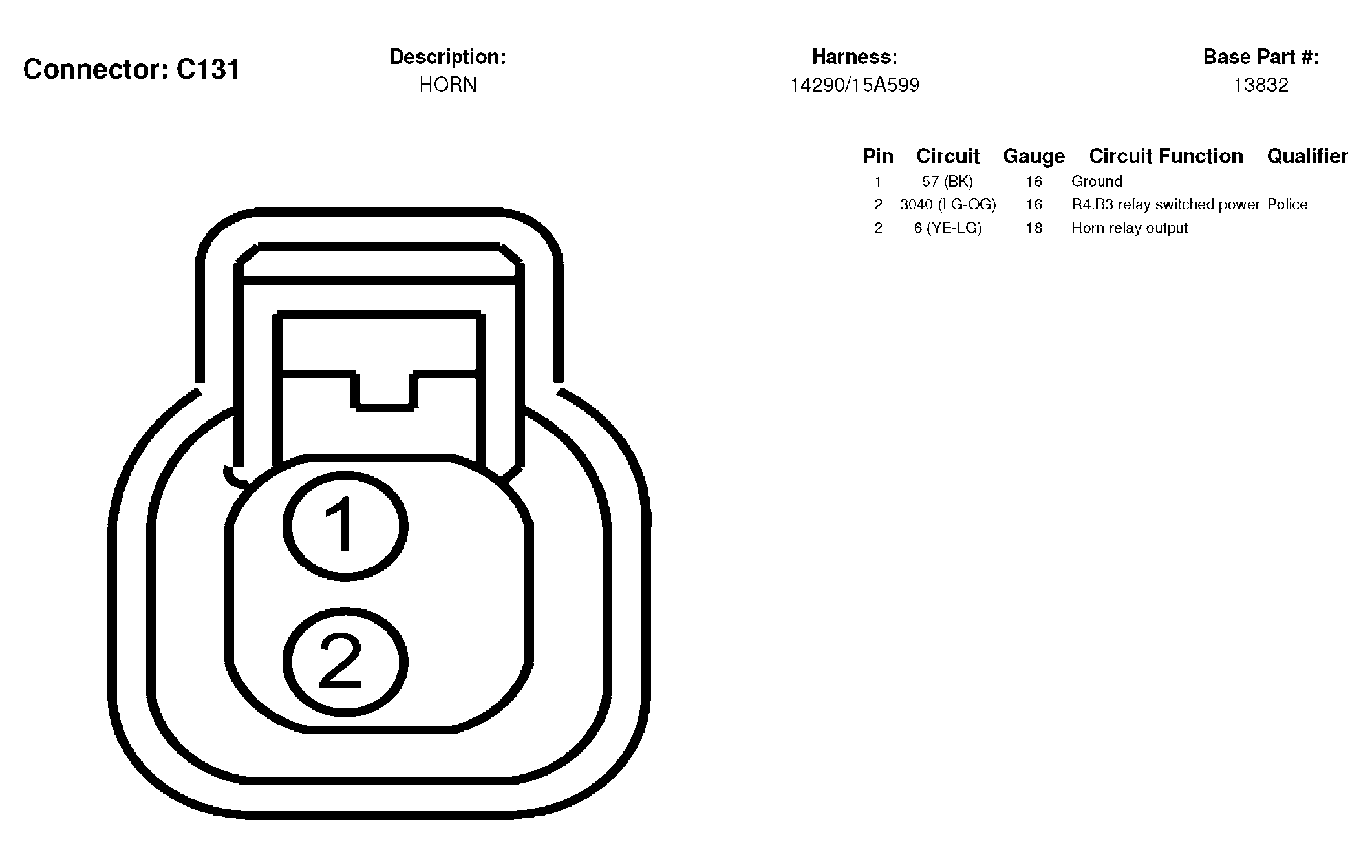

Fig 21: Horn Connector End View (C131)

G04595440

Courtesy of FORD MOTOR CO.

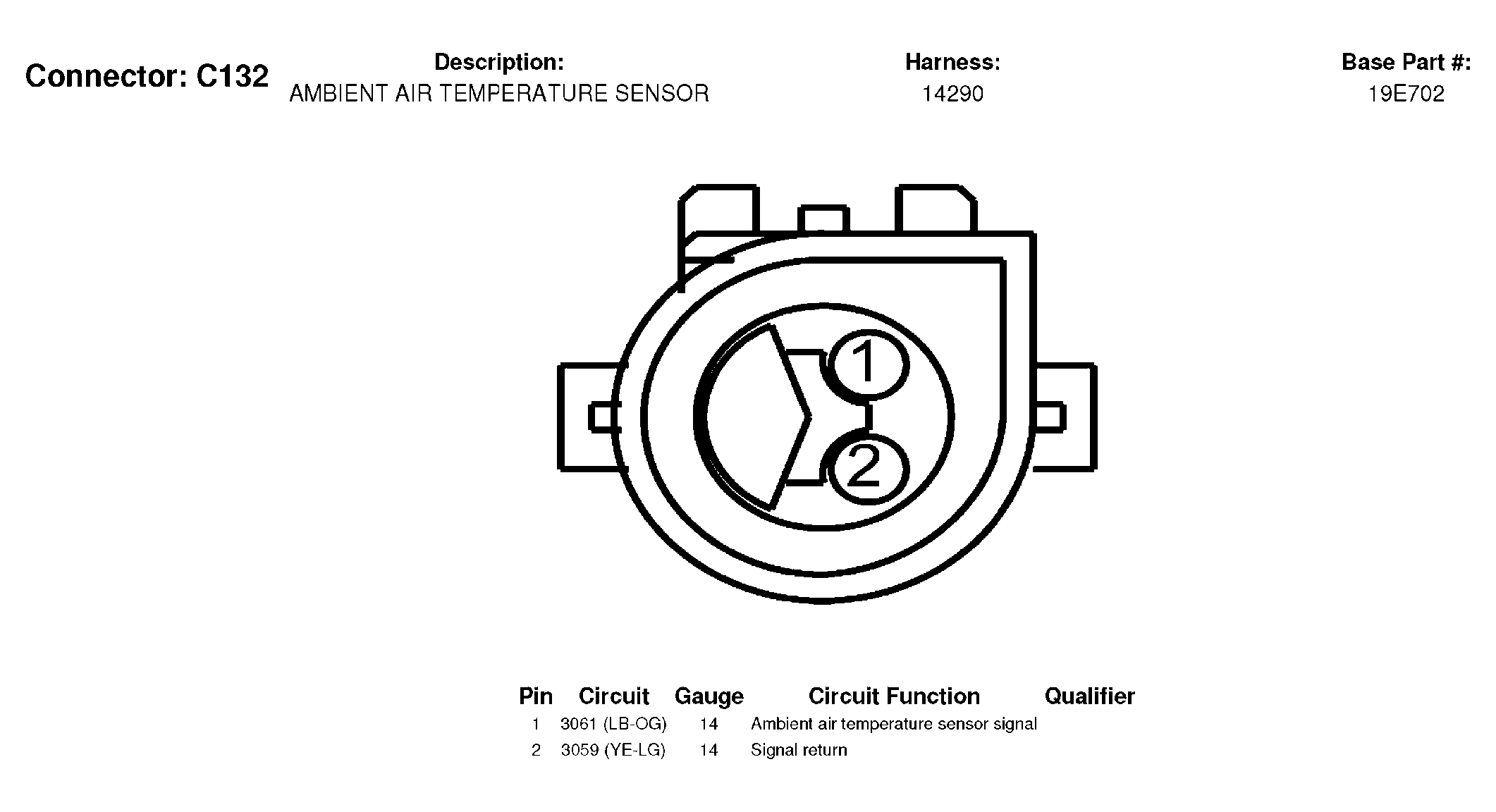

Fig 22: Ambient Air Temperature Sensor Connector End View (C132)

G04595441

Courtesy of FORD MOTOR CO.

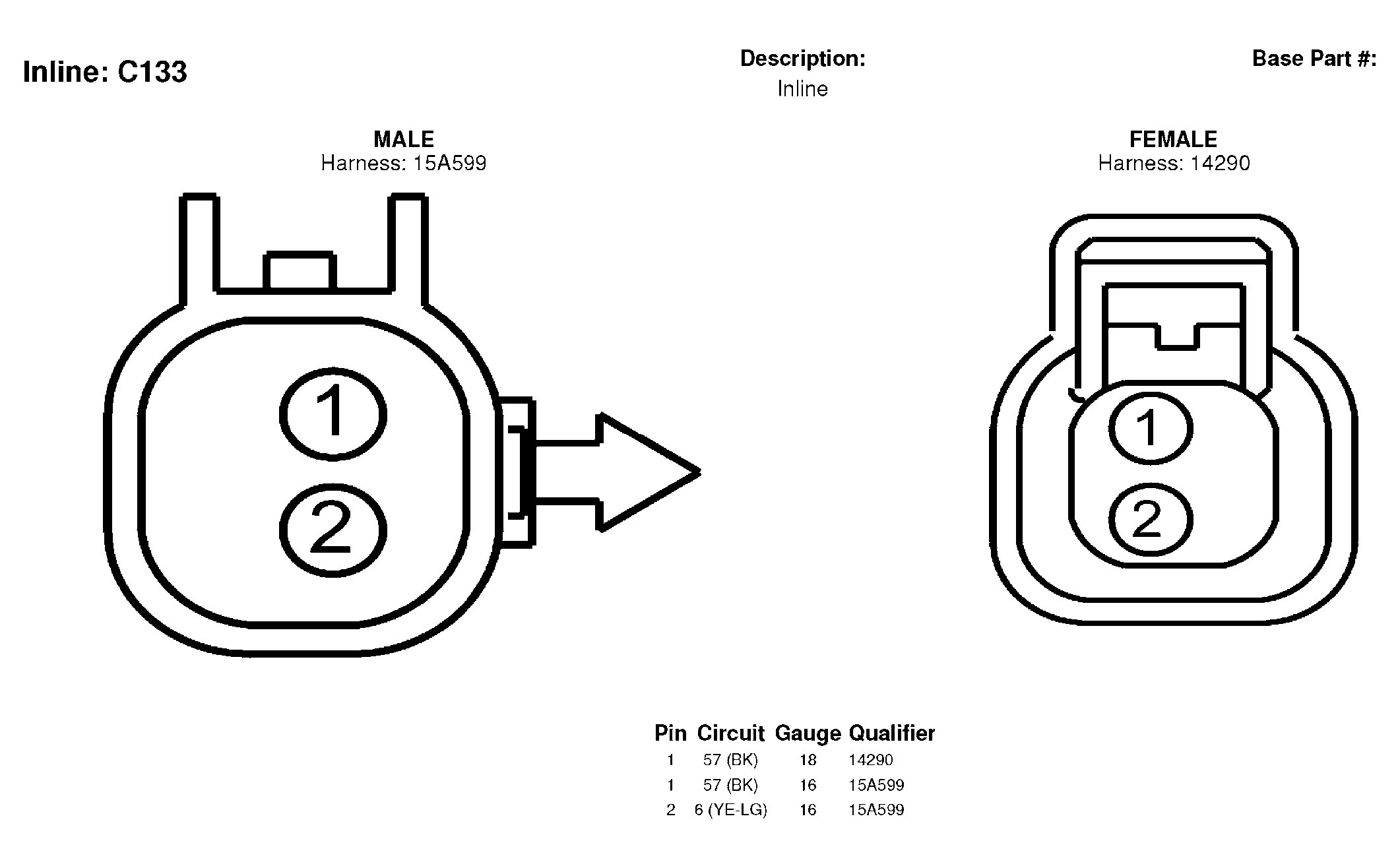

Fig 23: Inline Connector End View (C133)

G04595442

Courtesy of FORD MOTOR CO.

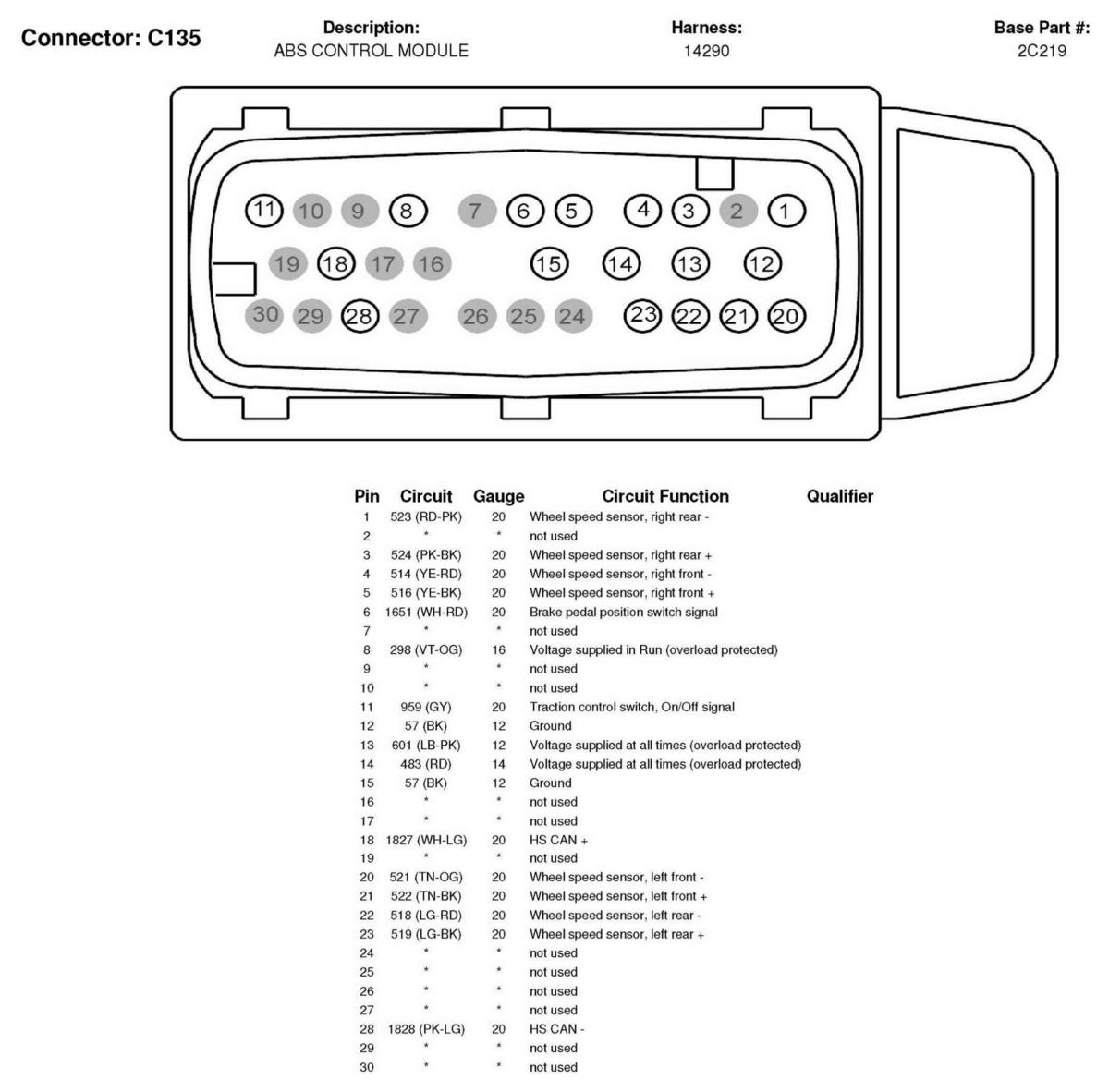

Fig 24: ABS Control Module Connector End View (C135)

G04595443

Courtesy of FORD MOTOR CO.

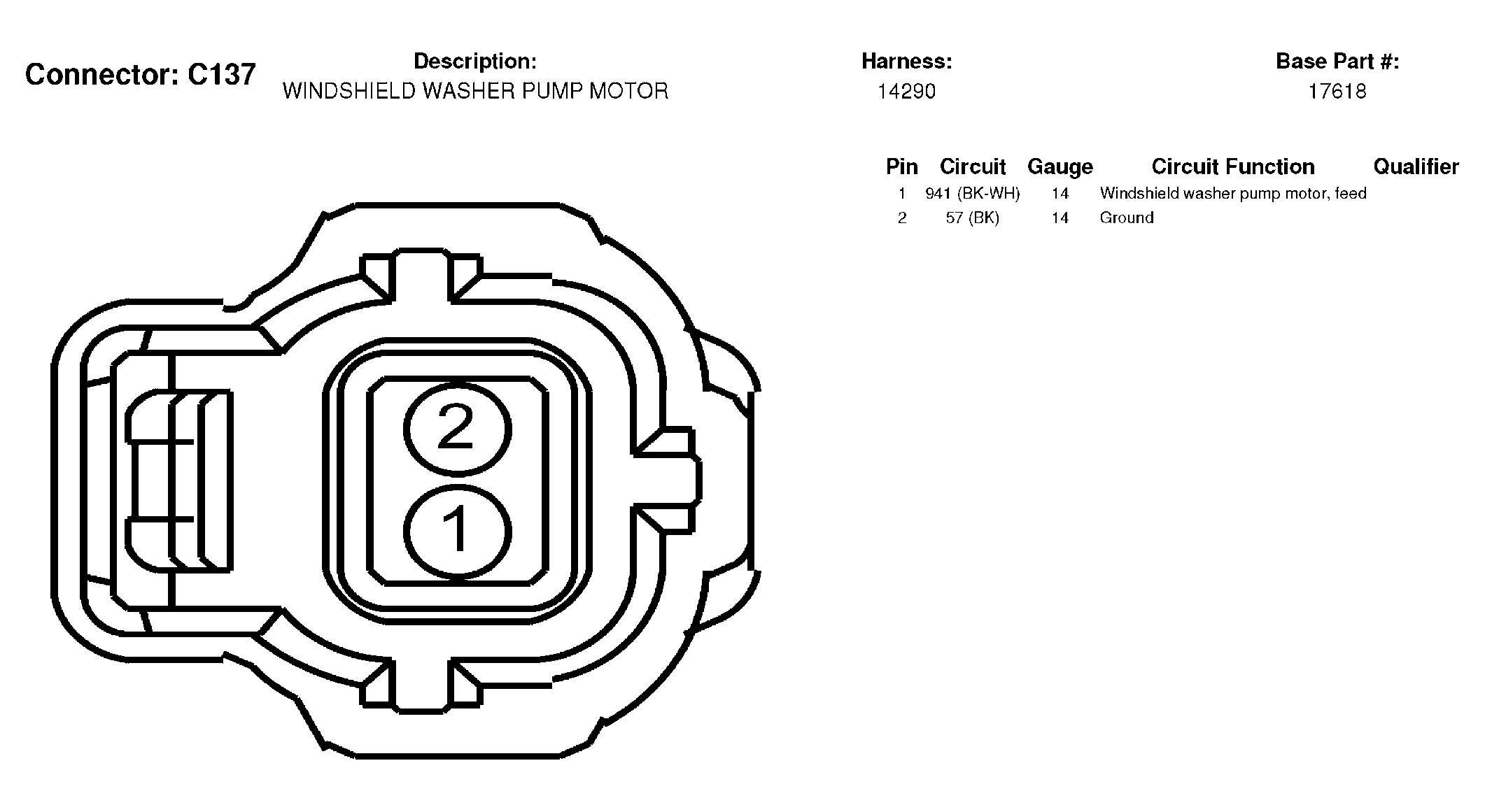

Fig 25: Windshield Washer Pump Motor Connector End View (C137)

G04595444

Courtesy of FORD MOTOR CO.

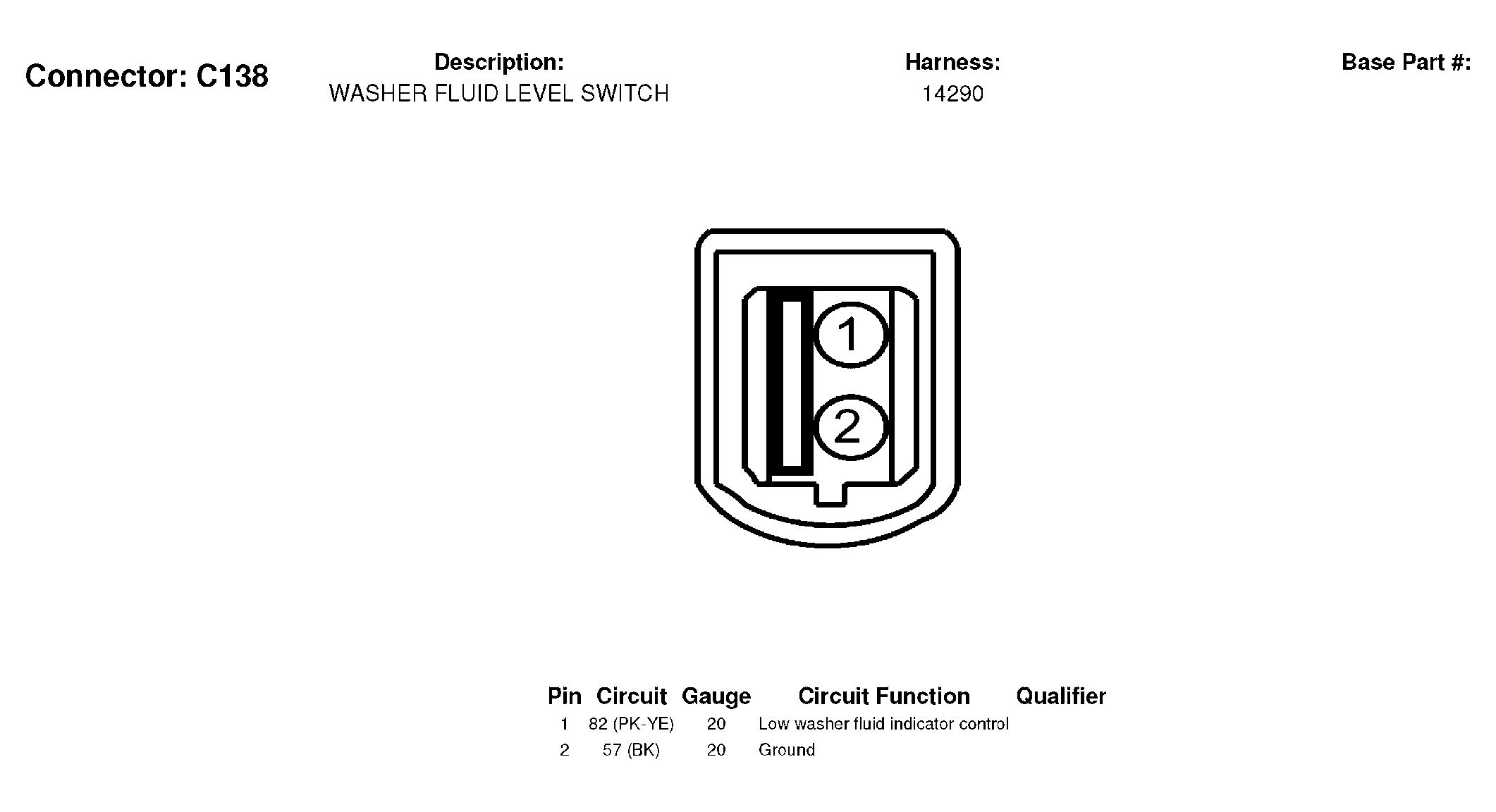

Fig 26: Washer Fluid Level Switch Connector End View (C138)

G04595445

Courtesy of FORD MOTOR CO.

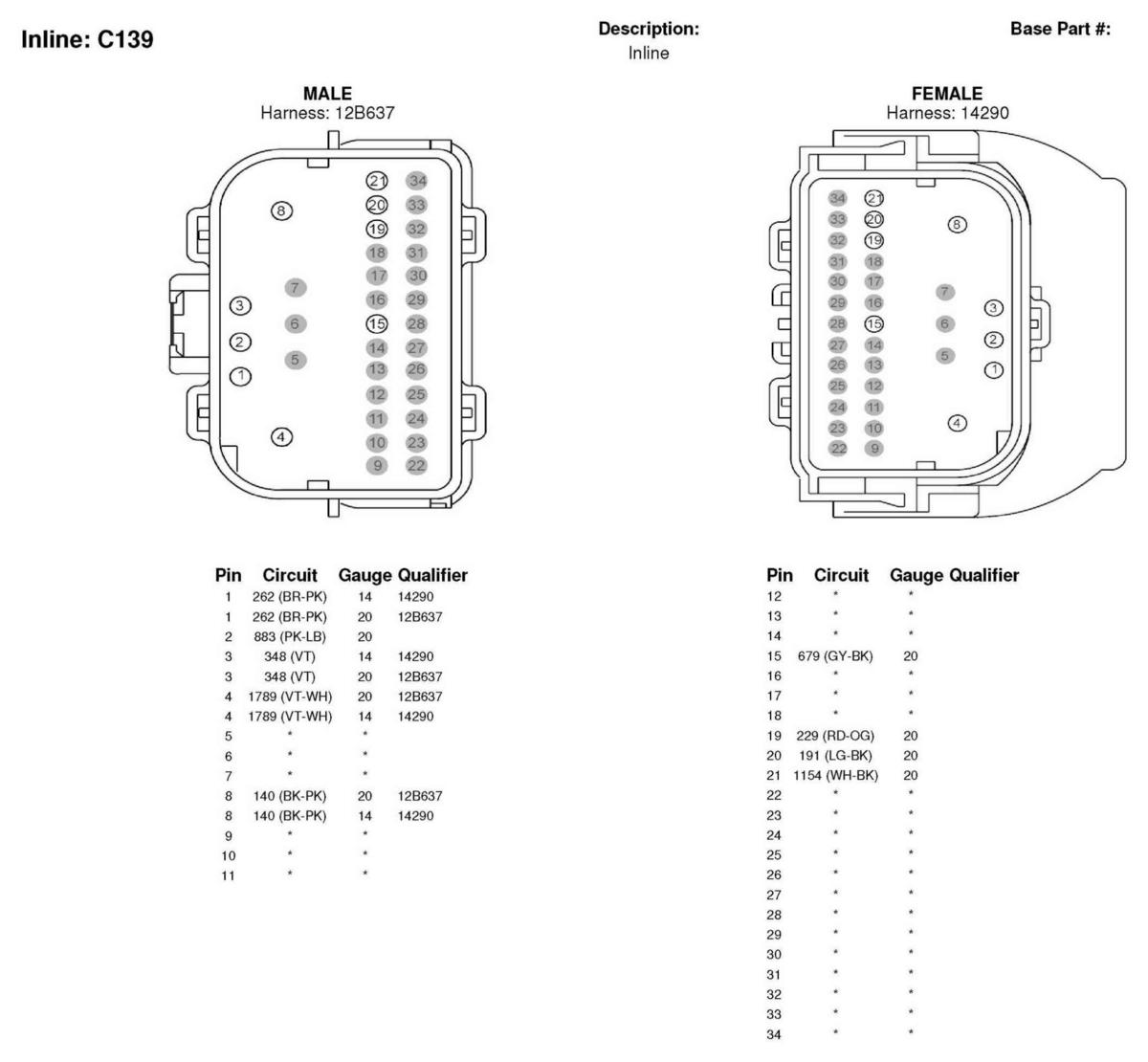

Fig 27: Inline Connector End View (C139)

G04595446

Courtesy of FORD MOTOR CO.

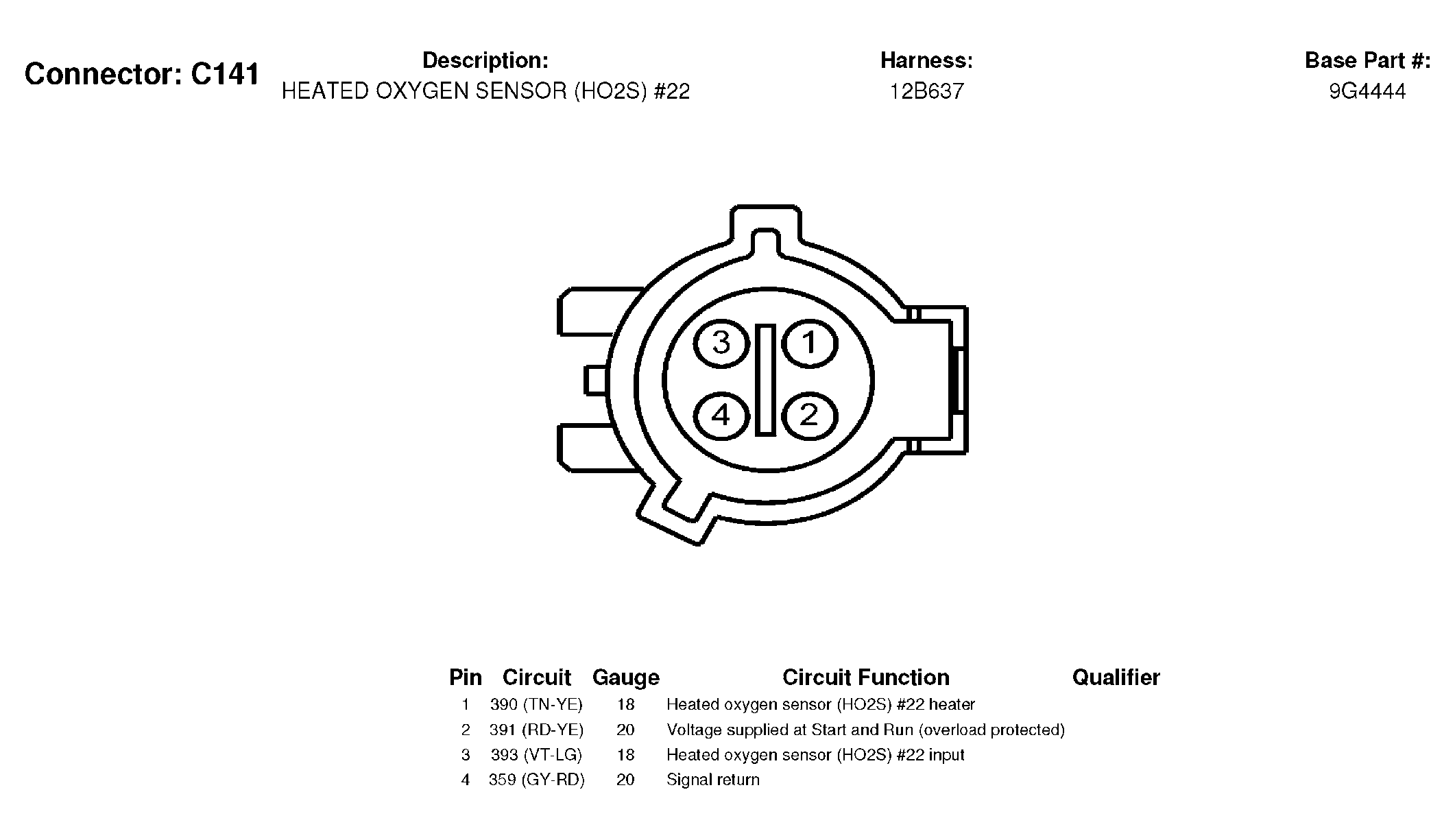

Fig 28: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G04595447

Courtesy of FORD MOTOR CO.

Fig 29: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G04595448

Courtesy of FORD MOTOR CO.

Fig 30: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)

G04595449

Courtesy of FORD MOTOR CO.

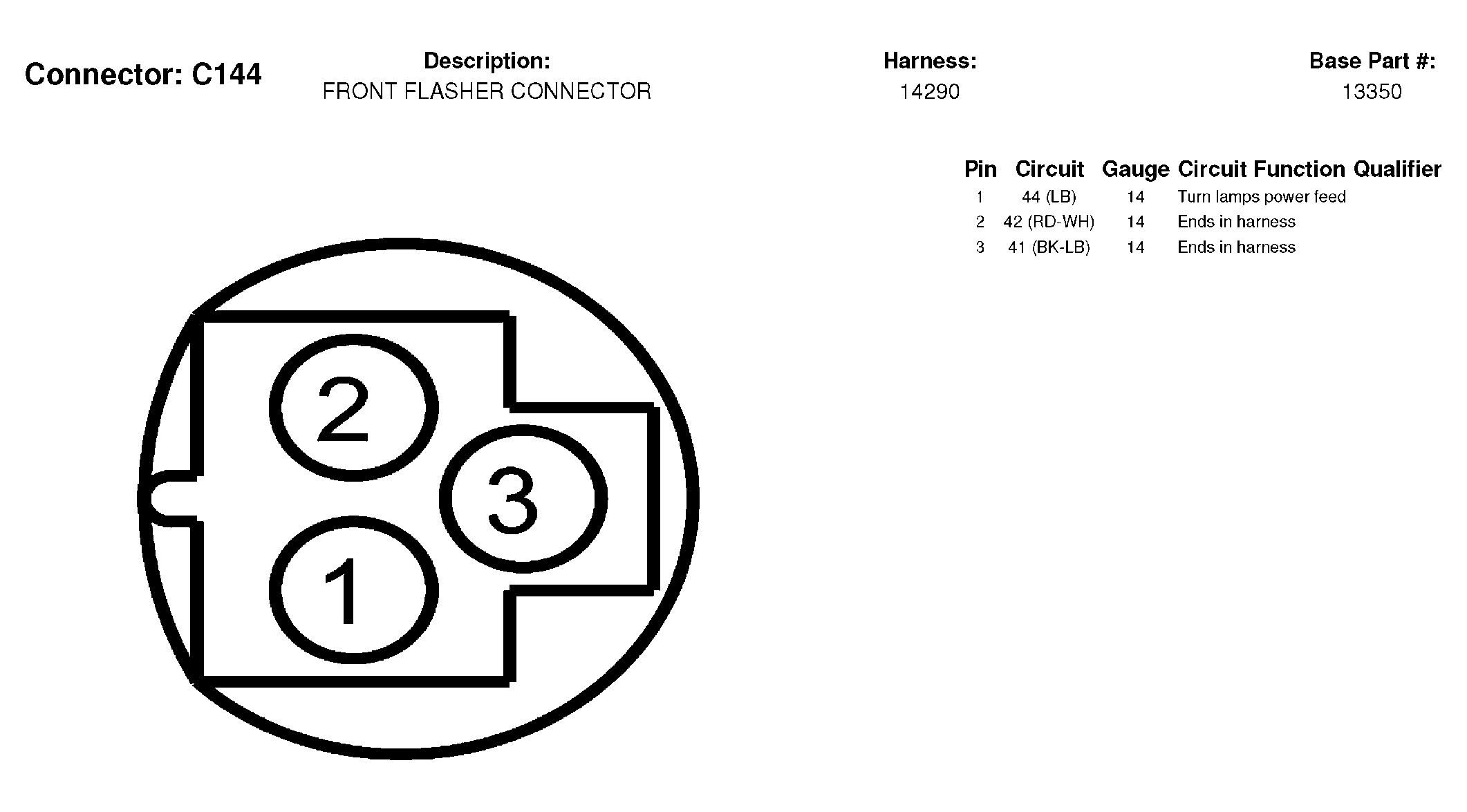

Fig 31: Front Flasher Connector, Connector End View (C144)

G04595450

Courtesy of FORD MOTOR CO.

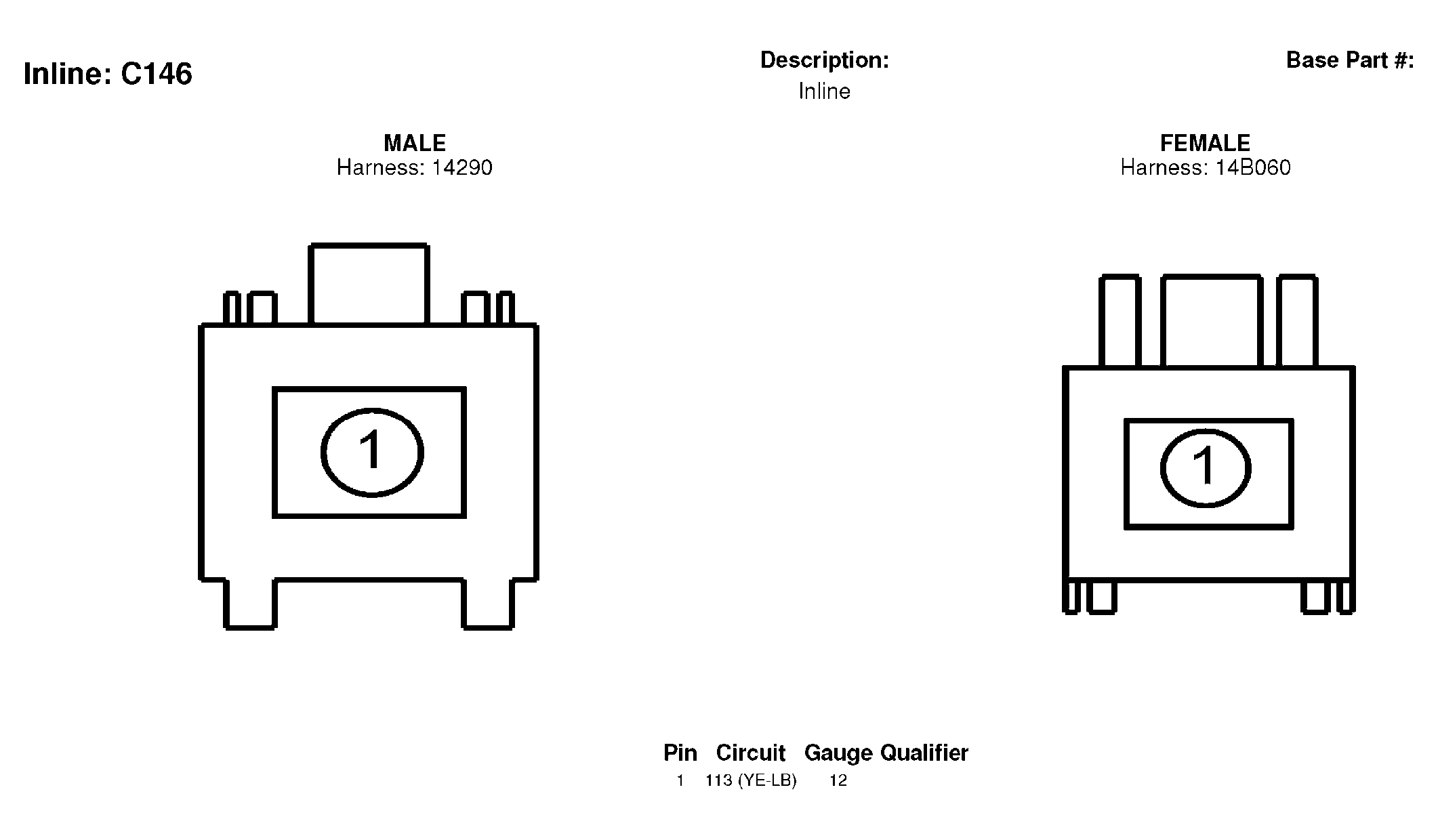

Fig 32: Inline Connector End View (C146)

G04595451

Courtesy of FORD MOTOR CO.

Fig 33: Wheel Speed Sensor, Left Front Connector End View (C150)

G04595452

Courtesy of FORD MOTOR CO.

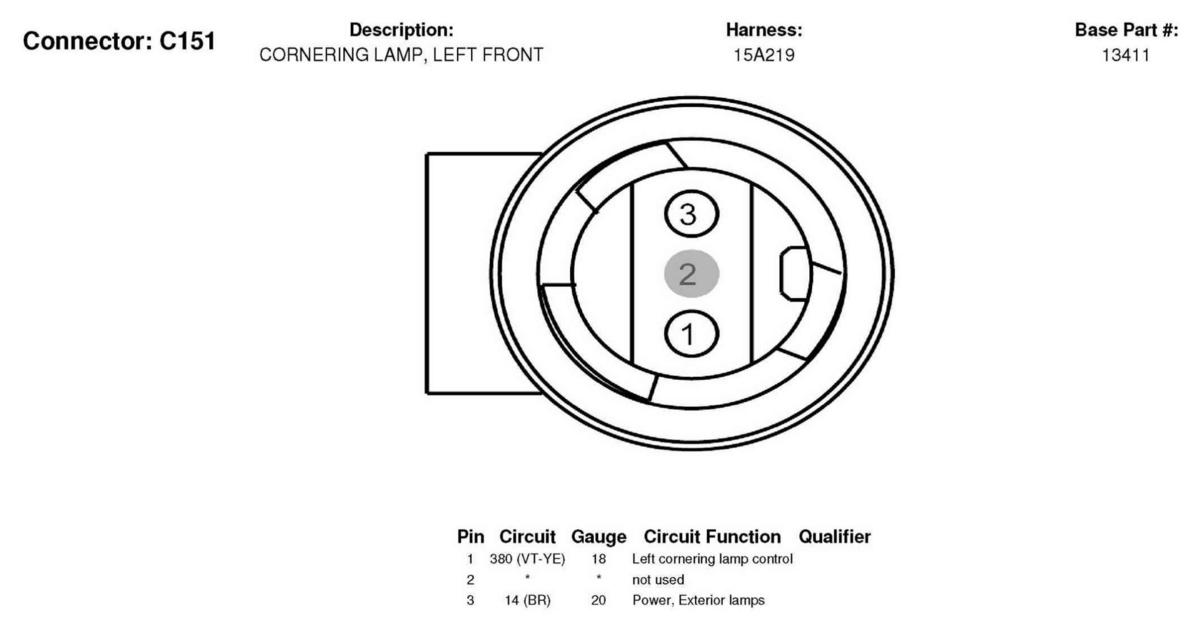

Fig 34: Cornering Lamp, Left Front Connector End View (C151)

G04595453

Courtesy of FORD MOTOR CO.

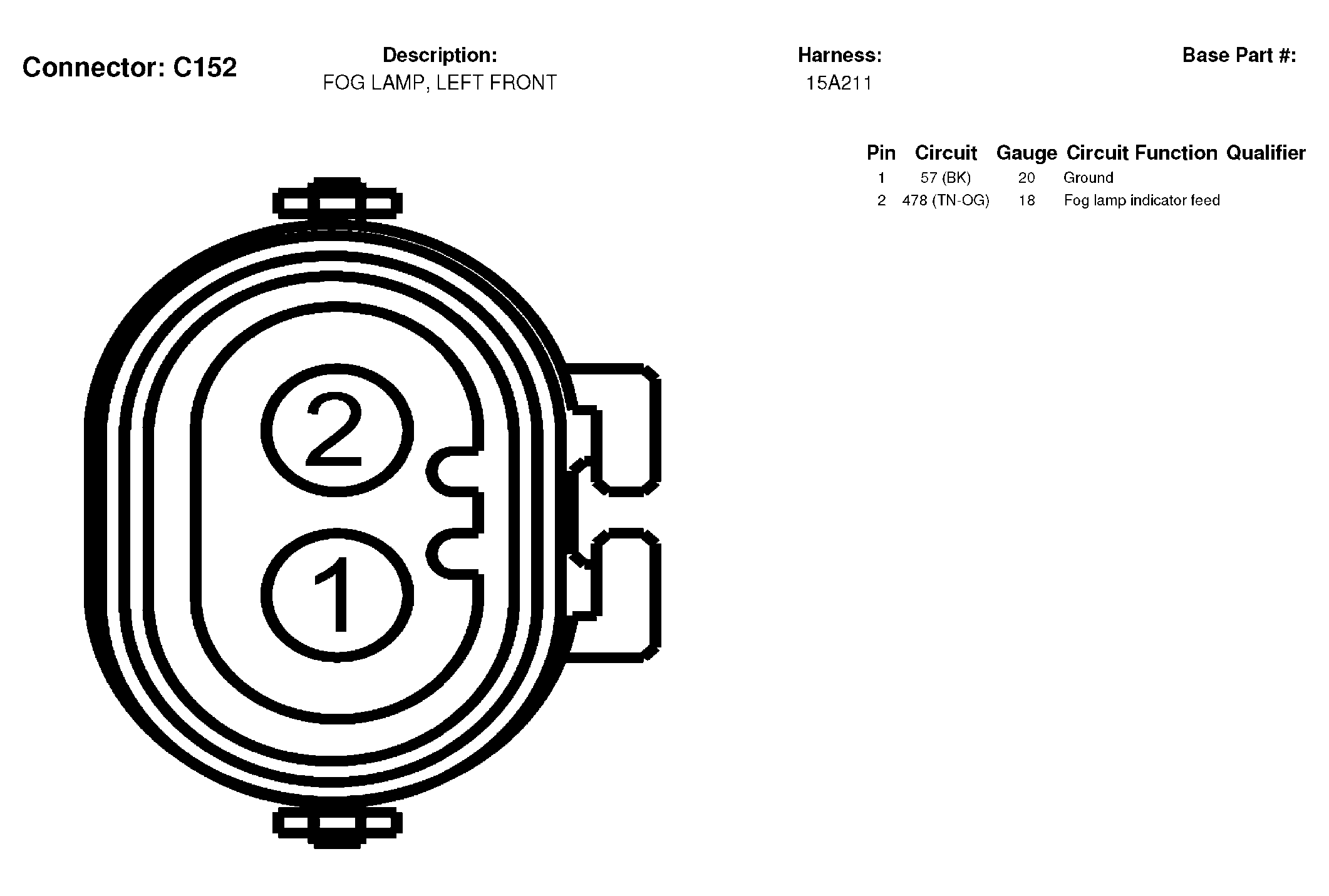

Fig 35: Fog Lamp, Left Front Connector End View (C152)

G04595454

Courtesy of FORD MOTOR CO.

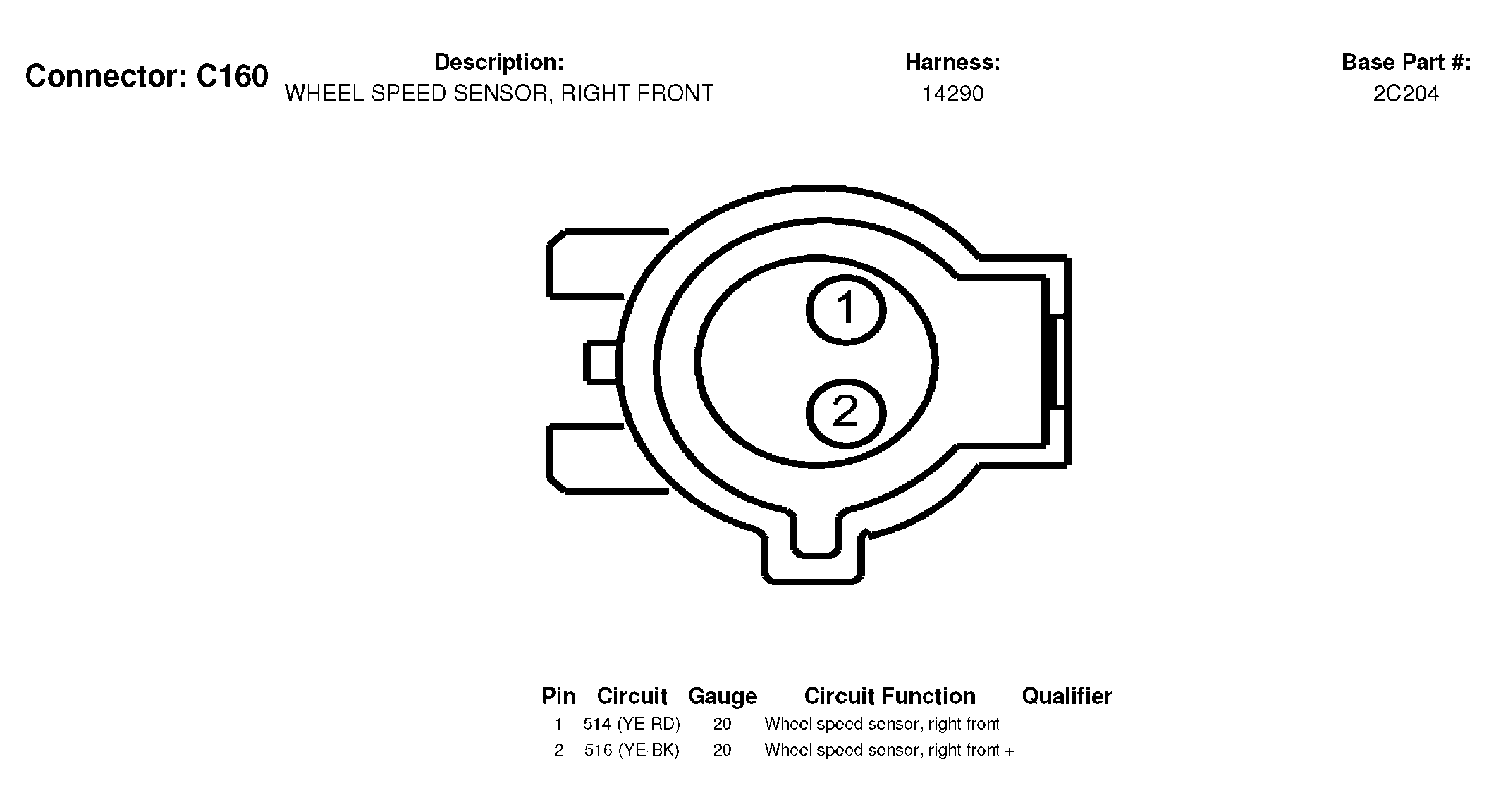

Fig 36: Wheel Speed Sensor, Right Front Connector End View (C160)

G04595455

Courtesy of FORD MOTOR CO.

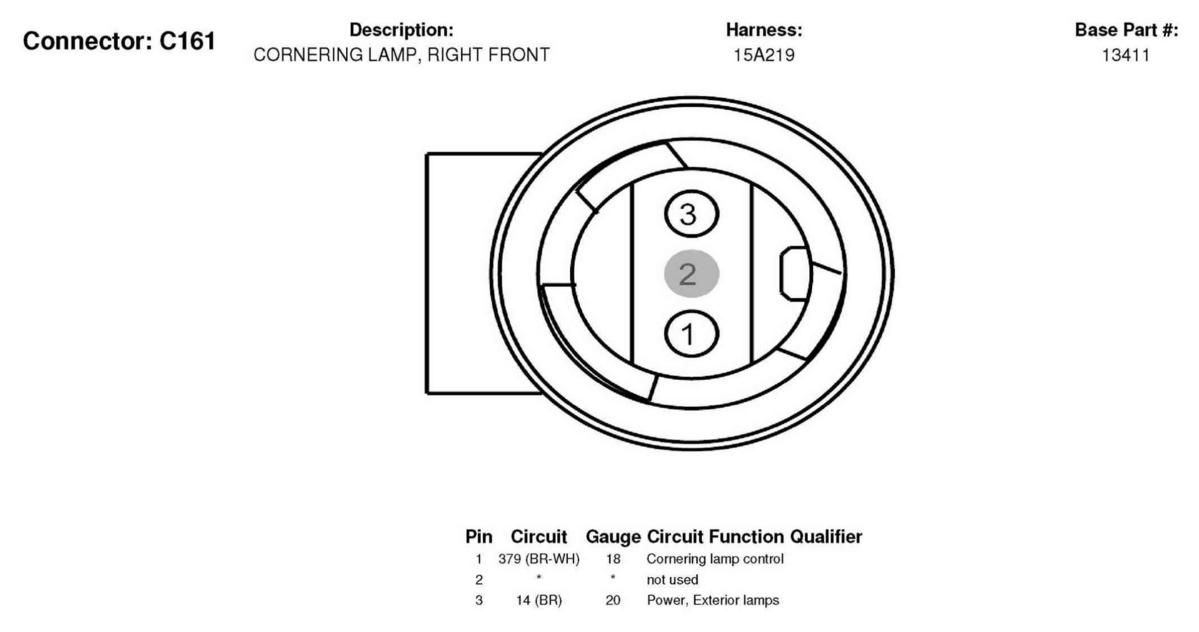

Fig 37: Cornering Lamp, Right Front Connector End View (C161)

G04595456

Courtesy of FORD MOTOR CO.

Fig 38: Fog Lamp, Right Front Connector End View (C162)

G04595457

Courtesy of FORD MOTOR CO.

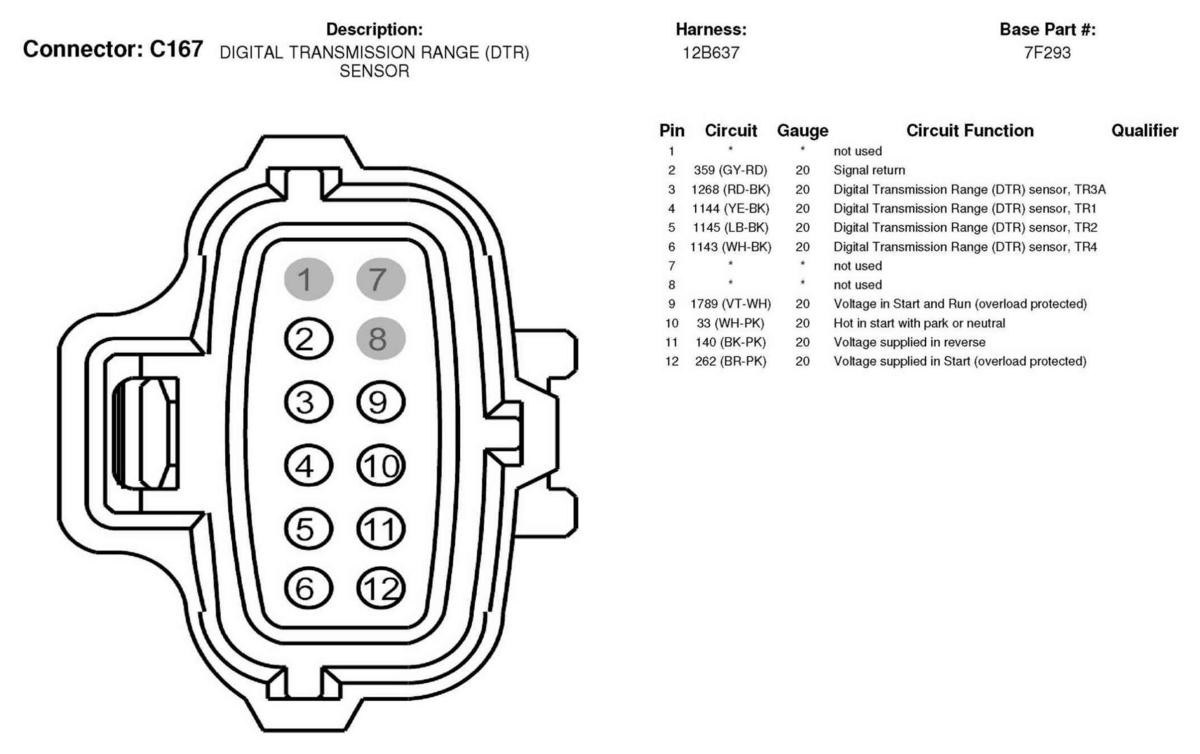

Fig 39: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G04595458

Courtesy of FORD MOTOR CO.

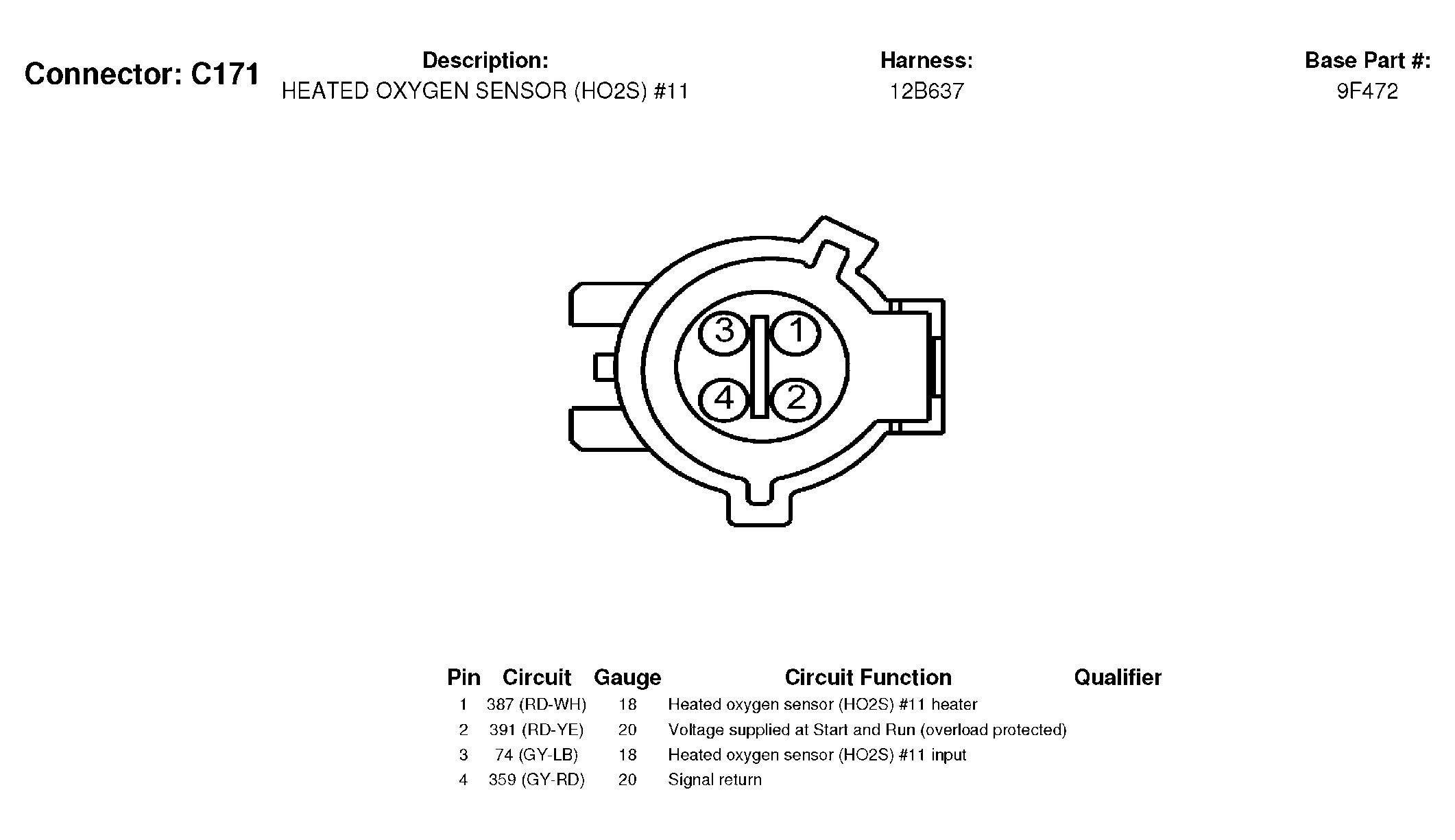

Fig 40: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G04595459

Courtesy of FORD MOTOR CO.

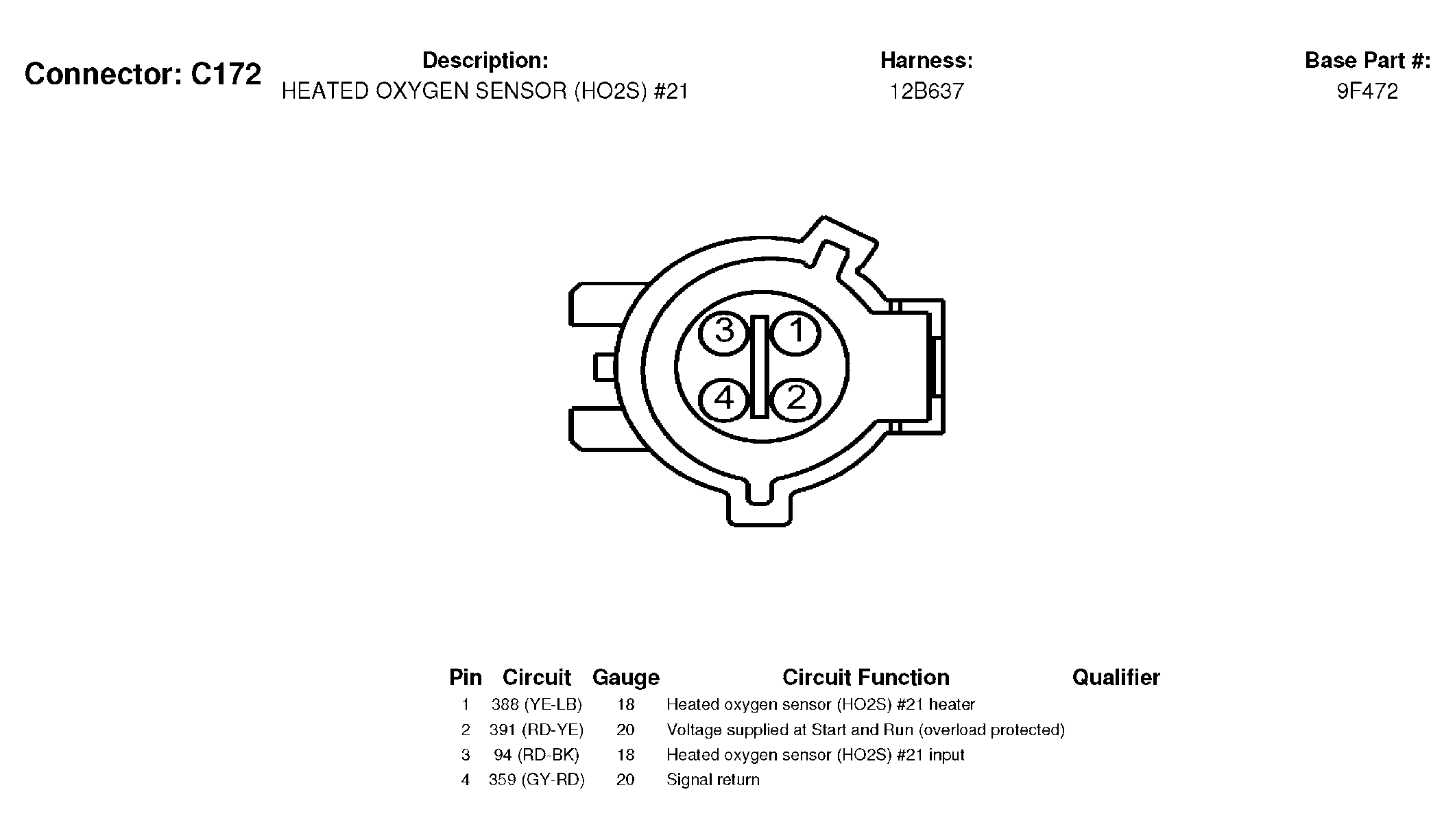

Fig 41: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G04595460

Courtesy of FORD MOTOR CO.

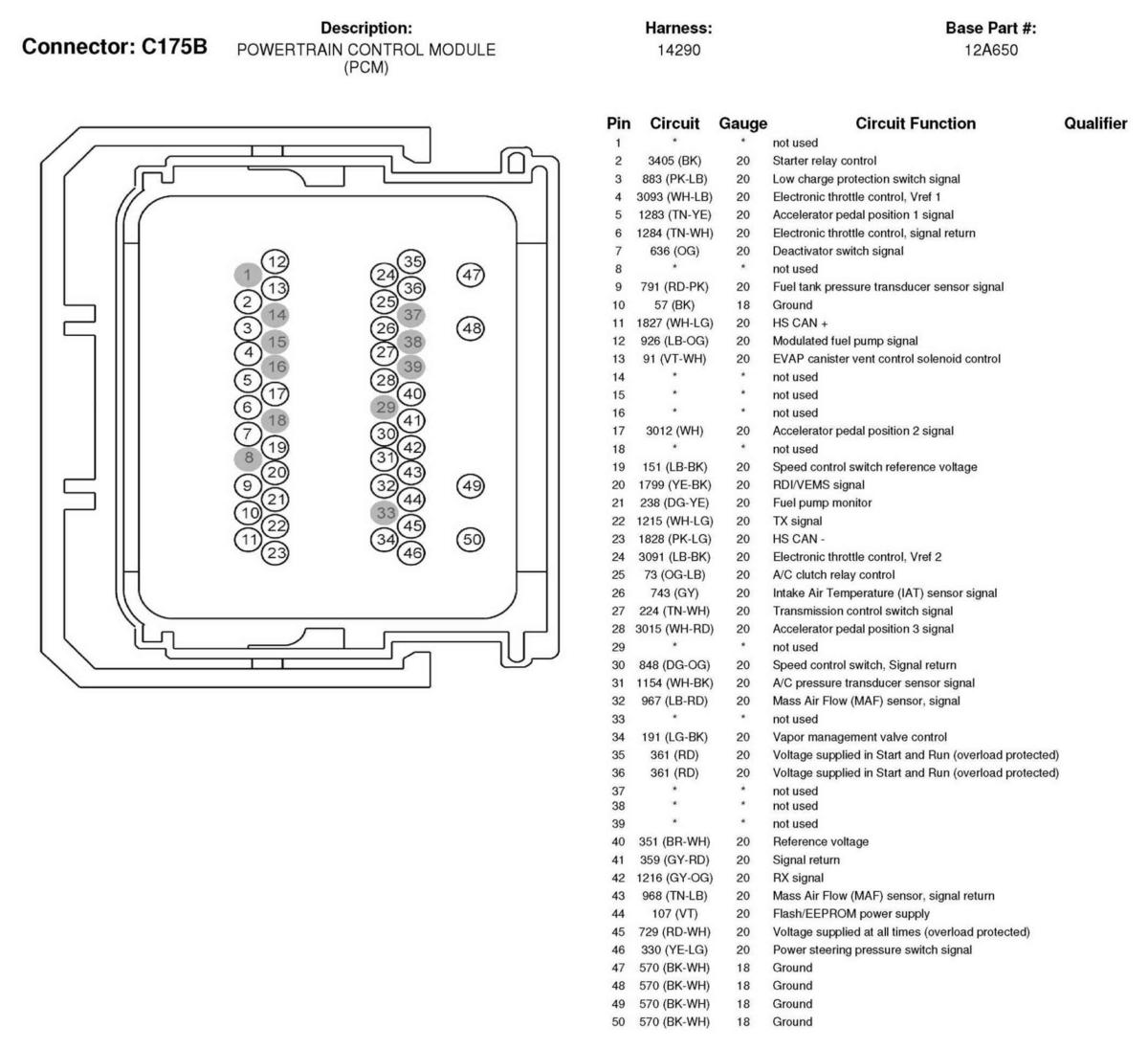

Fig 42: Powertrain Control Module (PCM) Connector End View (C175B)

G04595461

Courtesy of FORD MOTOR CO.

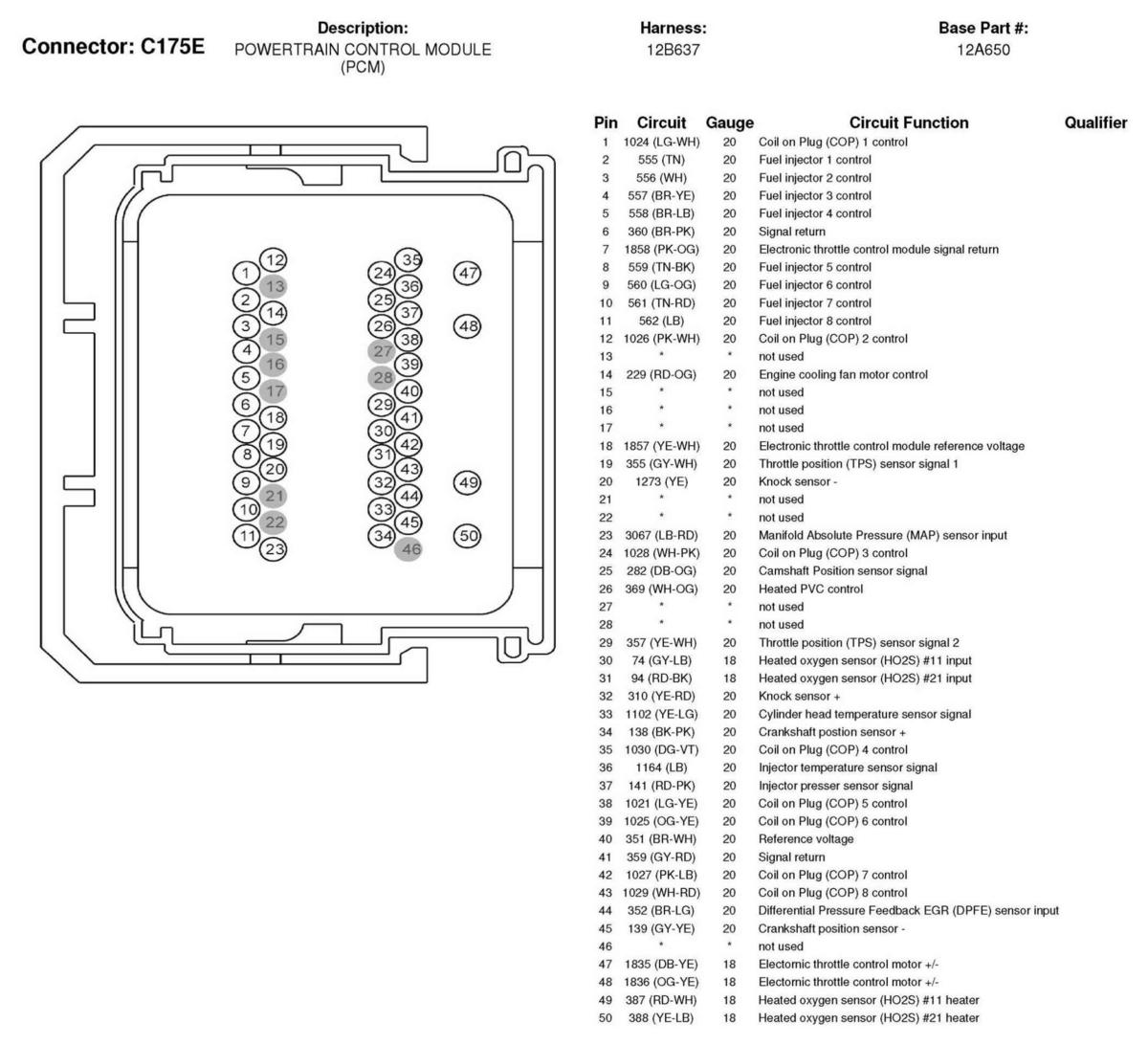

Fig 43: Powertrain Control Module (PCM) Connector End View (C175E)

G04595462

Courtesy of FORD MOTOR CO.

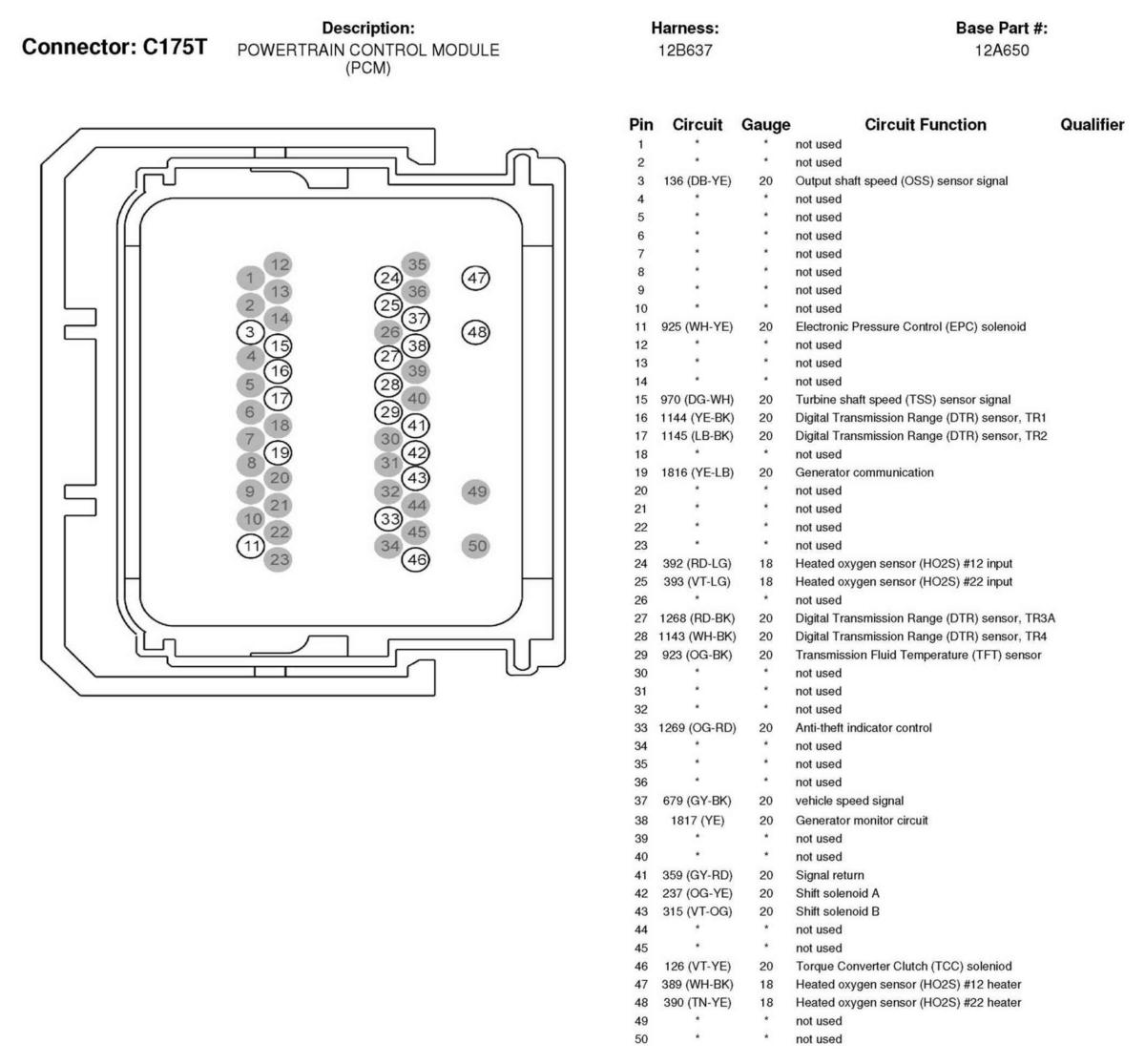

Fig 44: Powertrain Control Module (PCM) Connector End View (C175T)

G04595463

Courtesy of FORD MOTOR CO.

Fig 45: Camshaft Position Sensor Connector End View (C180)

G04595464

Courtesy of FORD MOTOR CO.

Fig 46: Fuel Injector 1 Connector End View (C181)

G04595465

Courtesy of FORD MOTOR CO.

Fig 47: Fuel Injector 2 Connector End View (C182)

G04595466

Courtesy of FORD MOTOR CO.

Fig 48: Fuel Injector 3 Connector End View (C183)

G04595467

Courtesy of FORD MOTOR CO.

Fig 49: Fuel Injector 4 Connector End View (C184)

G04595468

Courtesy of FORD MOTOR CO.

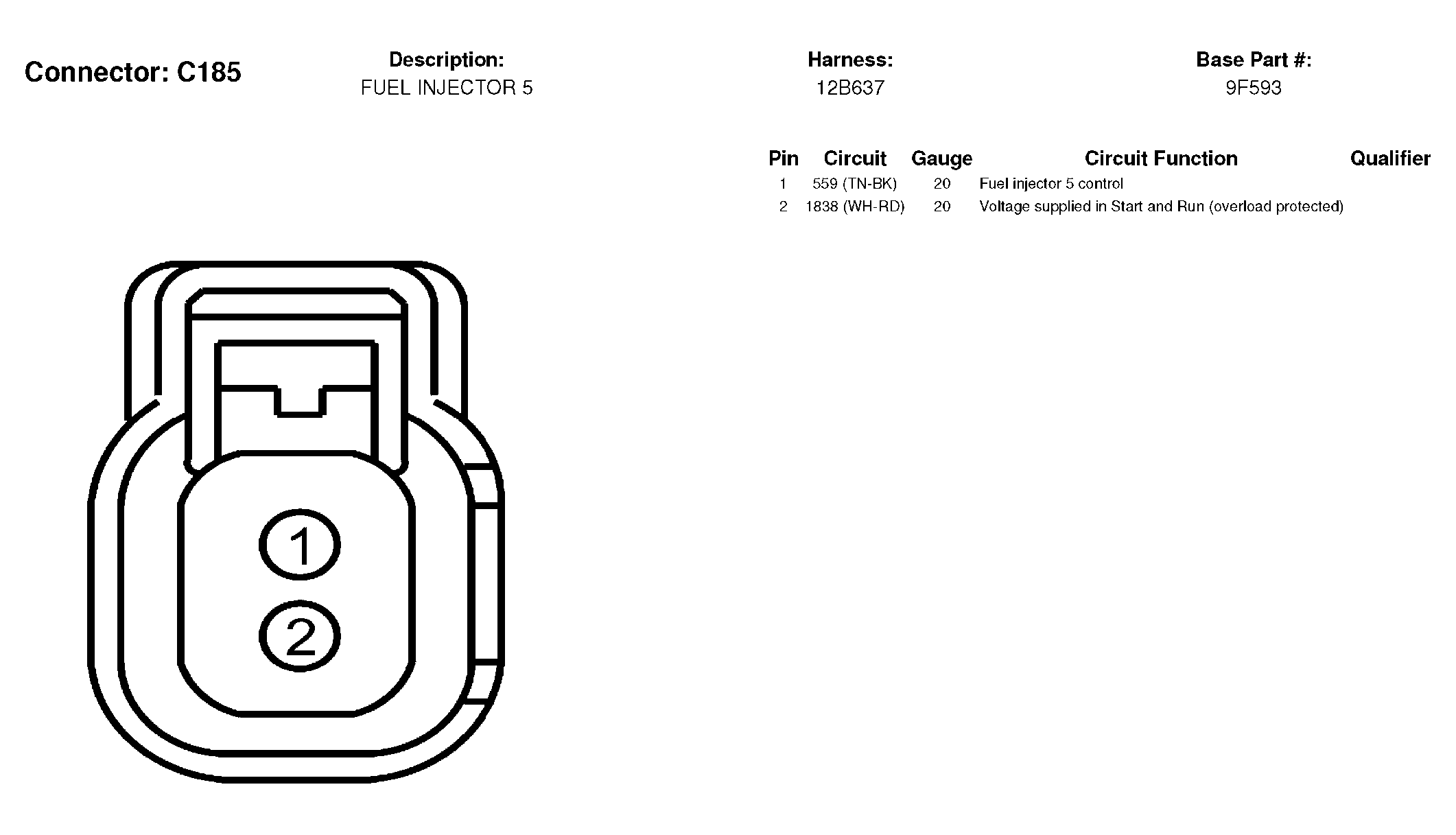

Fig 50: Fuel Injector 5 Connector End View (C185)

G04595469

Courtesy of FORD MOTOR CO.

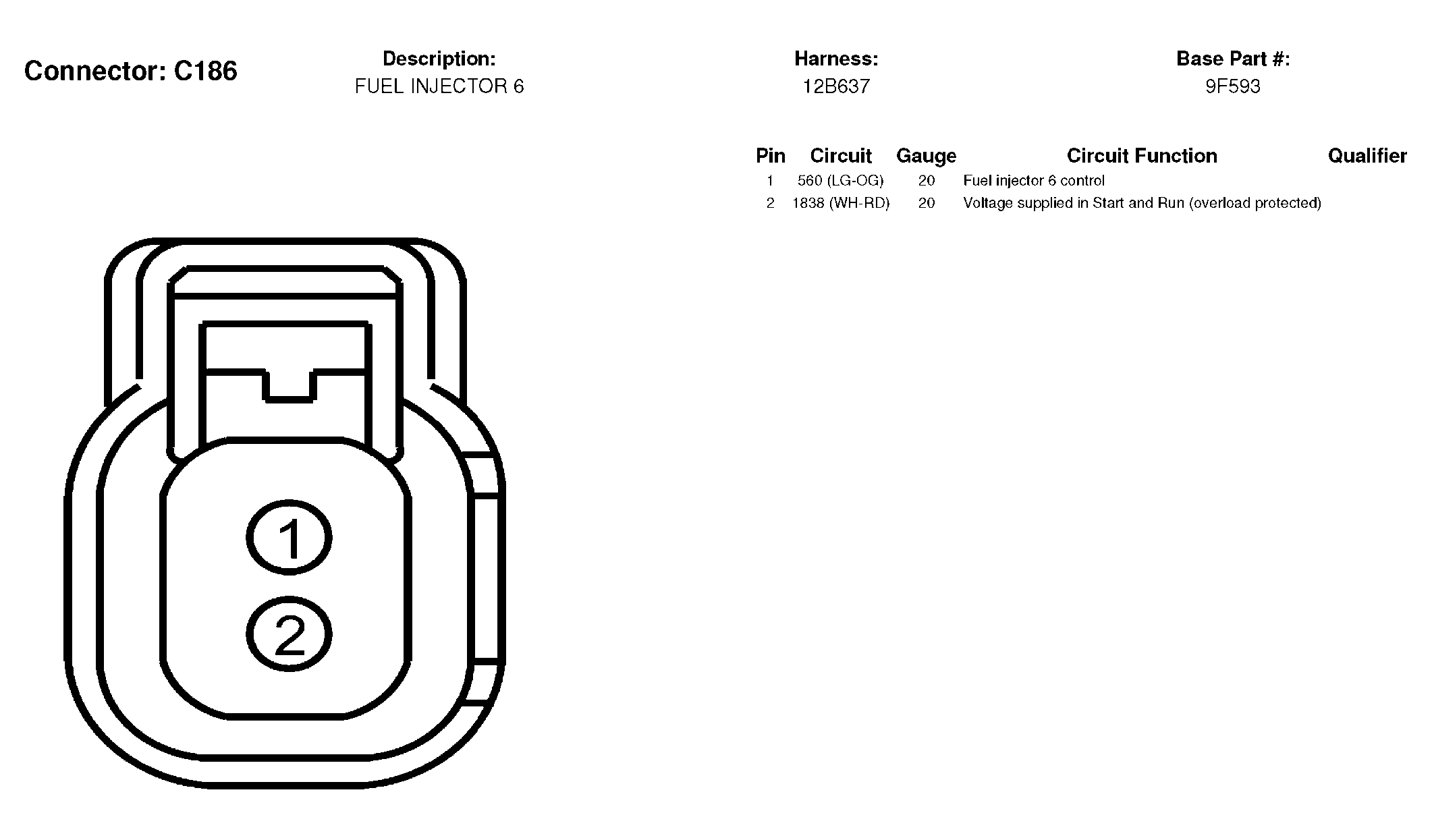

Fig 51: Fuel Injector 6 Connector End View (C186)

G04595470

Courtesy of FORD MOTOR CO.

Fig 52: Fuel Injector 7 Connector End View (C187)

G04595471

Courtesy of FORD MOTOR CO.

Fig 53: Fuel Injector 8 Connector End View (C188)

G04595472

Courtesy of FORD MOTOR CO.

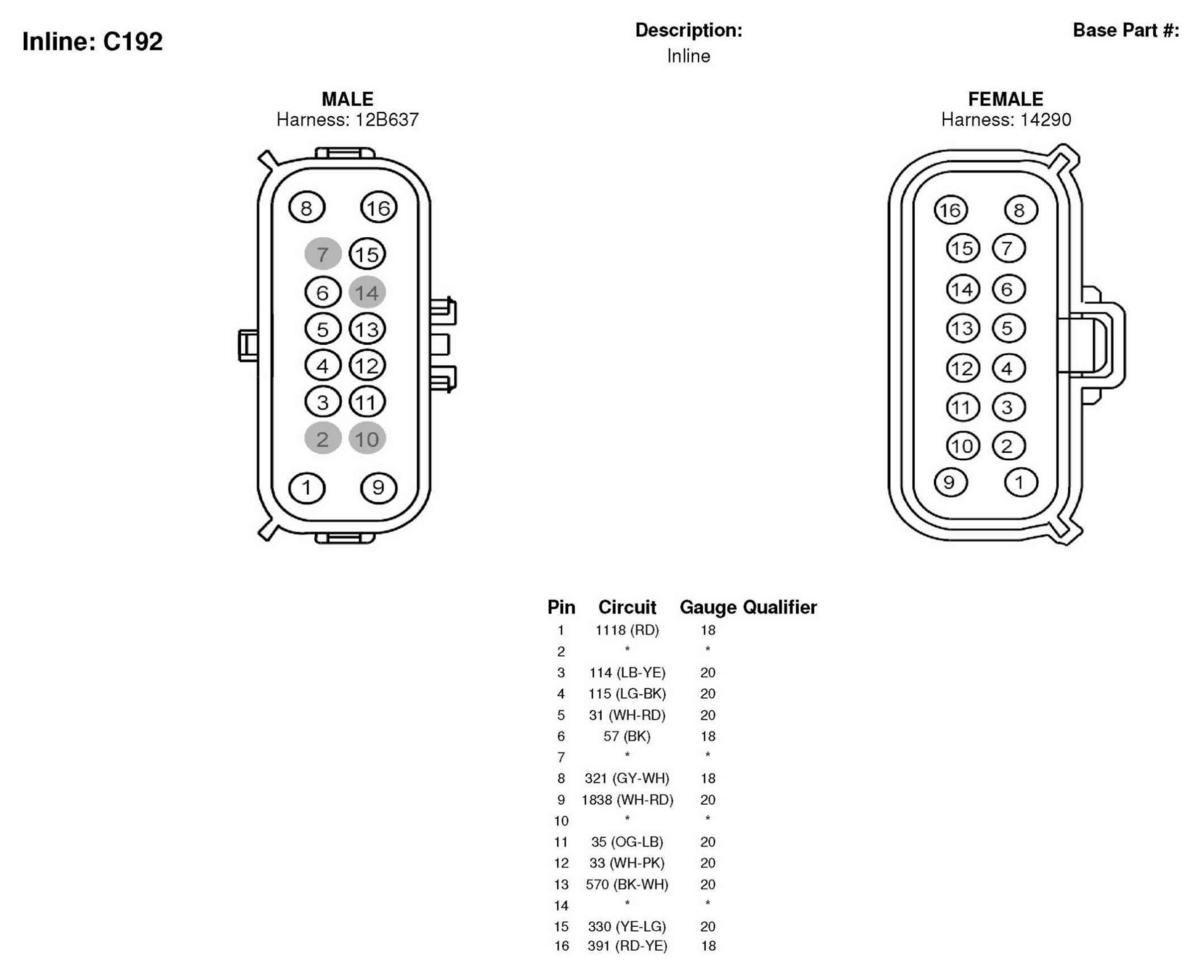

Fig 54: Inline Connector End View (C192)

G04595473

Courtesy of FORD MOTOR CO.

Fig 55: Starter Motor Connector End View (C197A)

G04595474

Courtesy of FORD MOTOR CO.

Fig 56: Starter Motor Connector End View (C197B)

G04595475

Courtesy of FORD MOTOR CO.

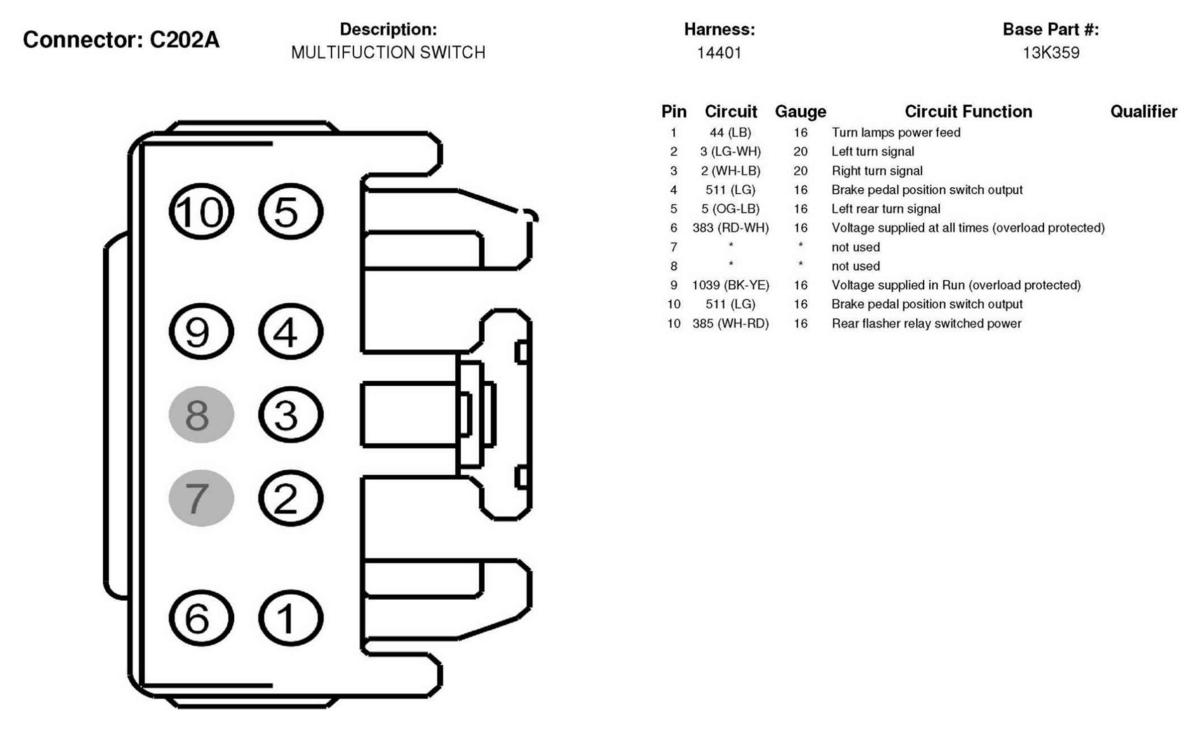

Fig 57: Multifunction Switch Connector End View (C202A)

G04595476

Courtesy of FORD MOTOR CO.

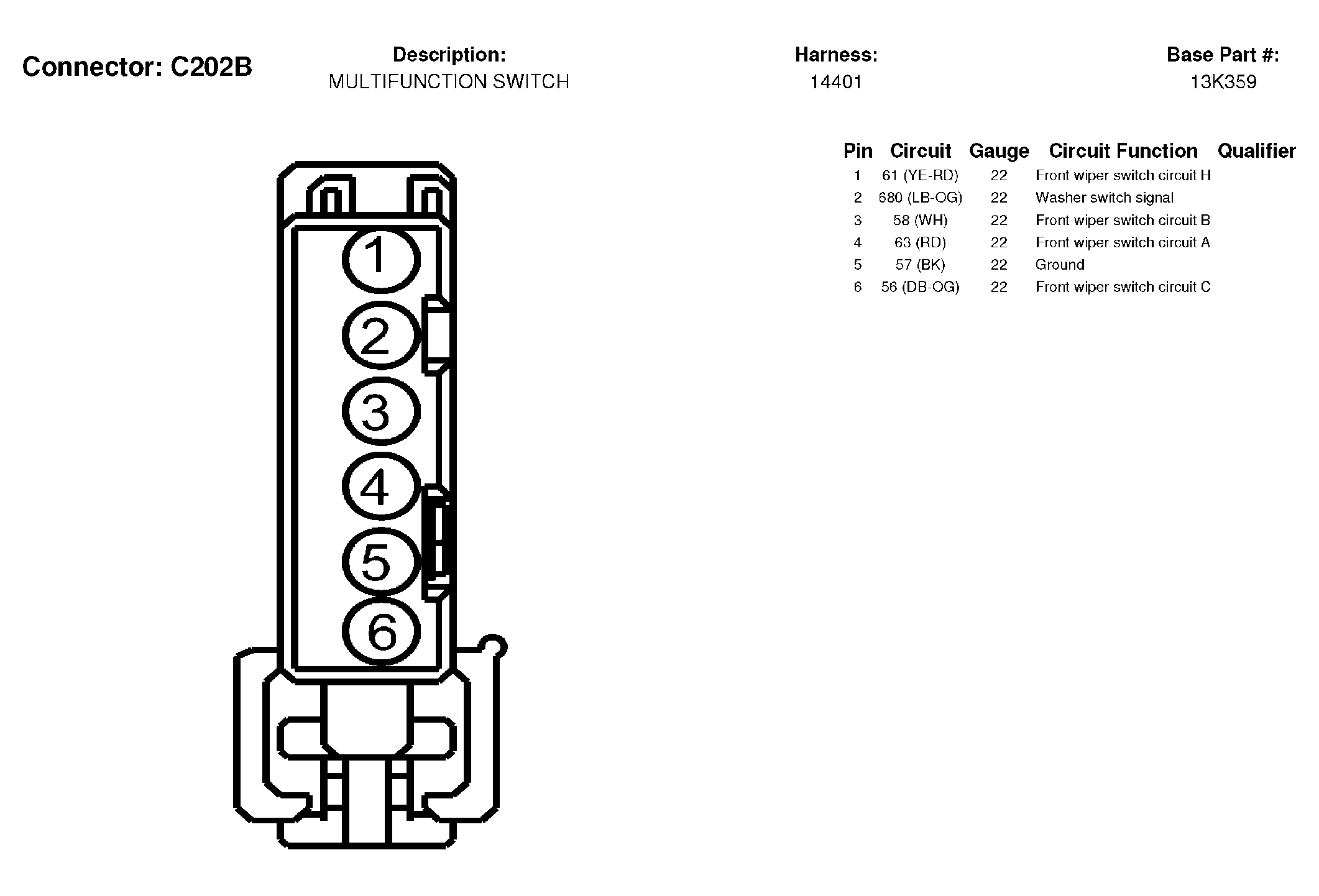

Fig 58: Multifunction Switch Connector End View (C202B)

G04595477

Courtesy of FORD MOTOR CO.

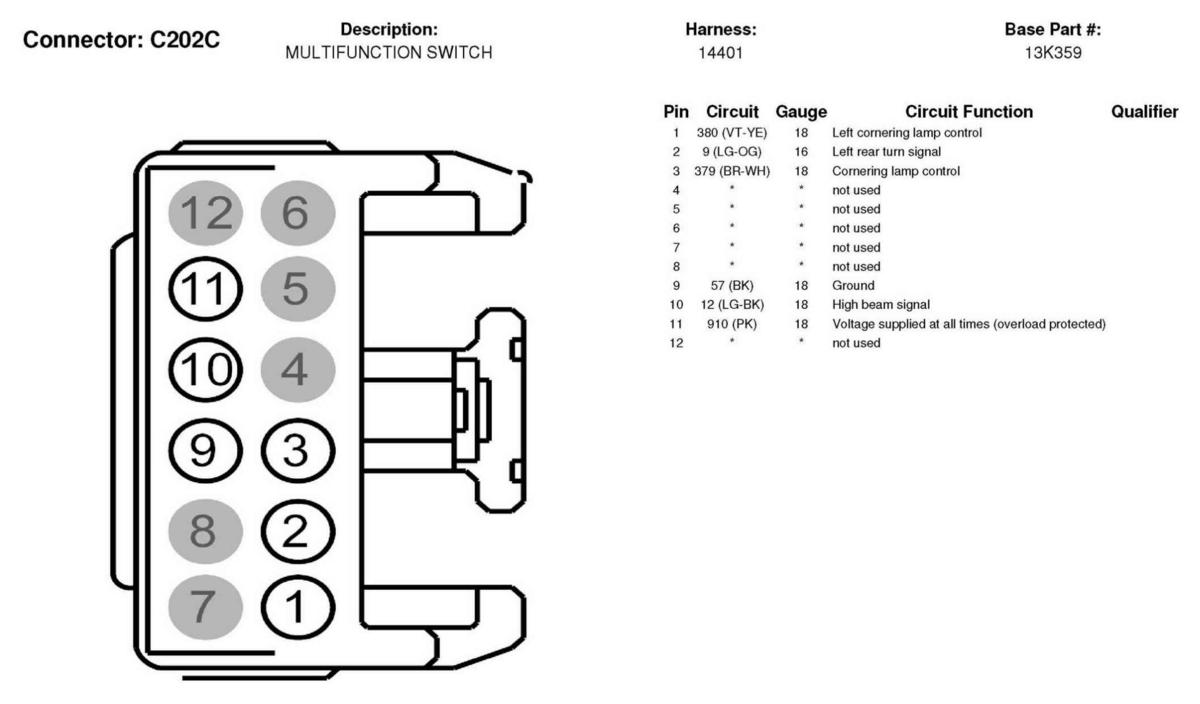

Fig 59: Multifunction Switch Connector End View (C202C)

G04595478

Courtesy of FORD MOTOR CO.

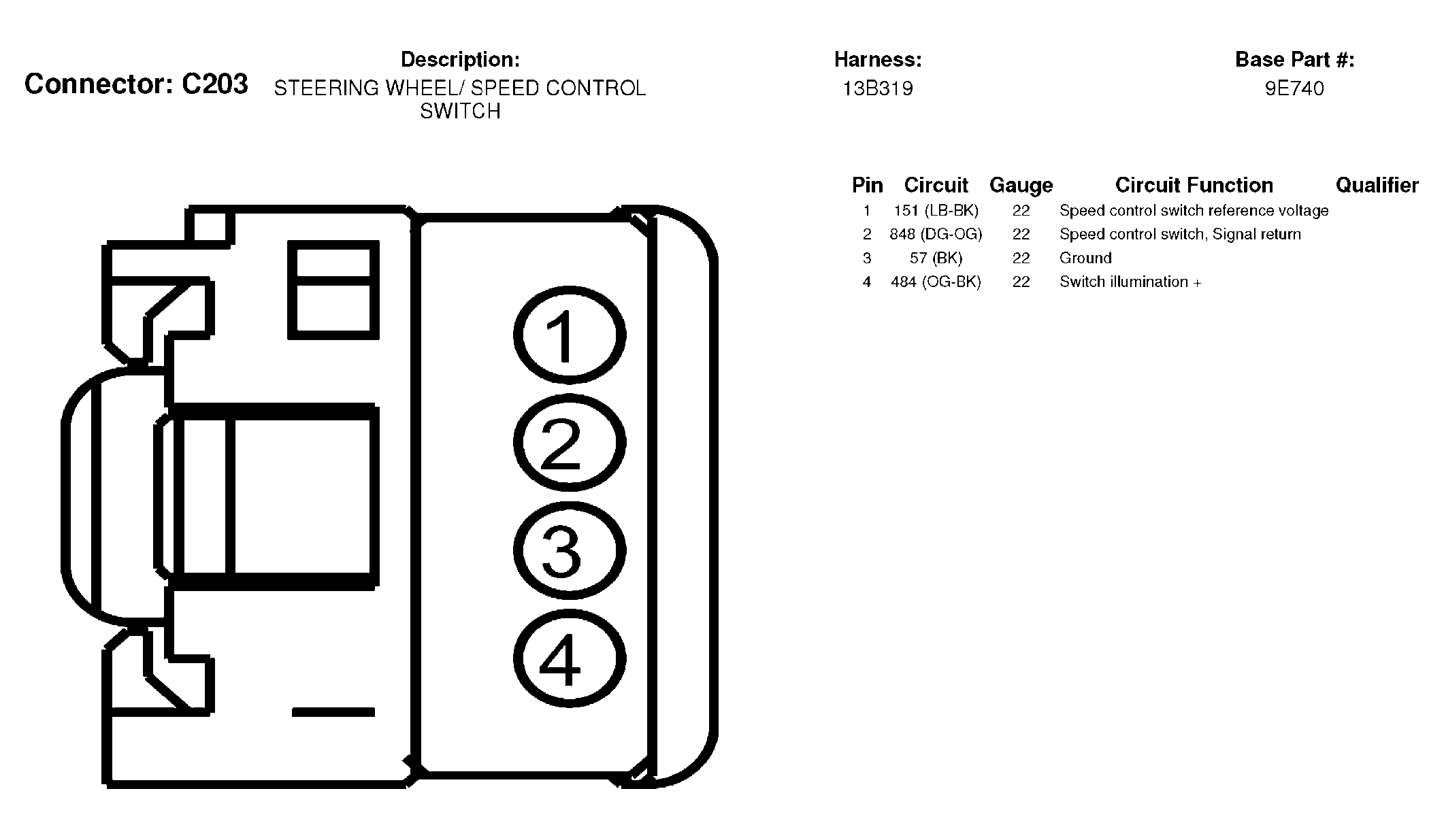

Fig 60: Steering Wheel/Speed Control Switch Connector End View (C203)

G04595479

Courtesy of FORD MOTOR CO.

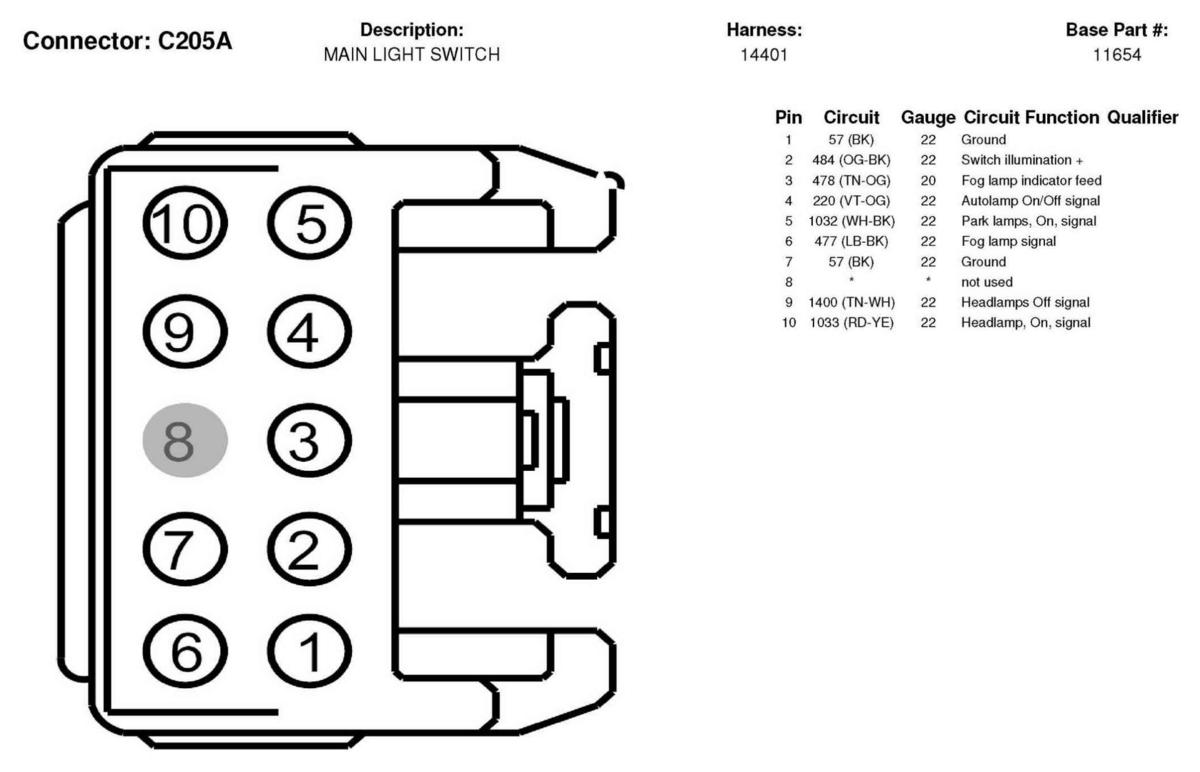

Fig 61: Main Light Switch Connector End View (C205A)

G04595480

Courtesy of FORD MOTOR CO.

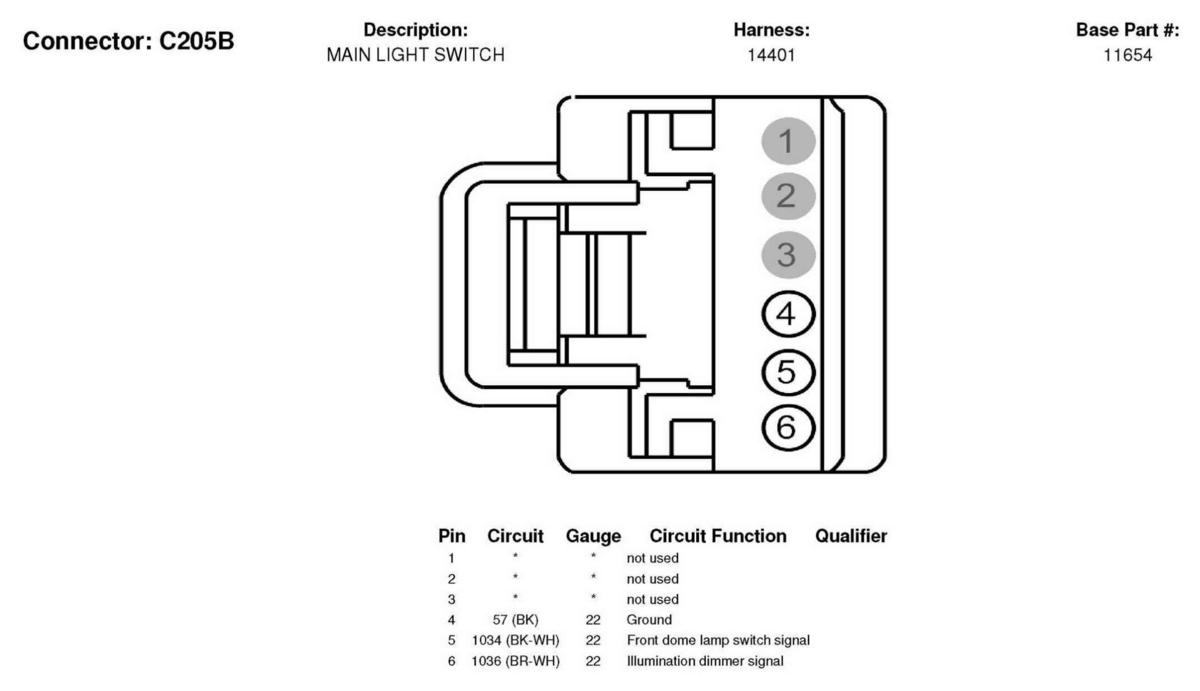

Fig 62: Main Light Switch Connector End View (C205B)

G04595481

Courtesy of FORD MOTOR CO.

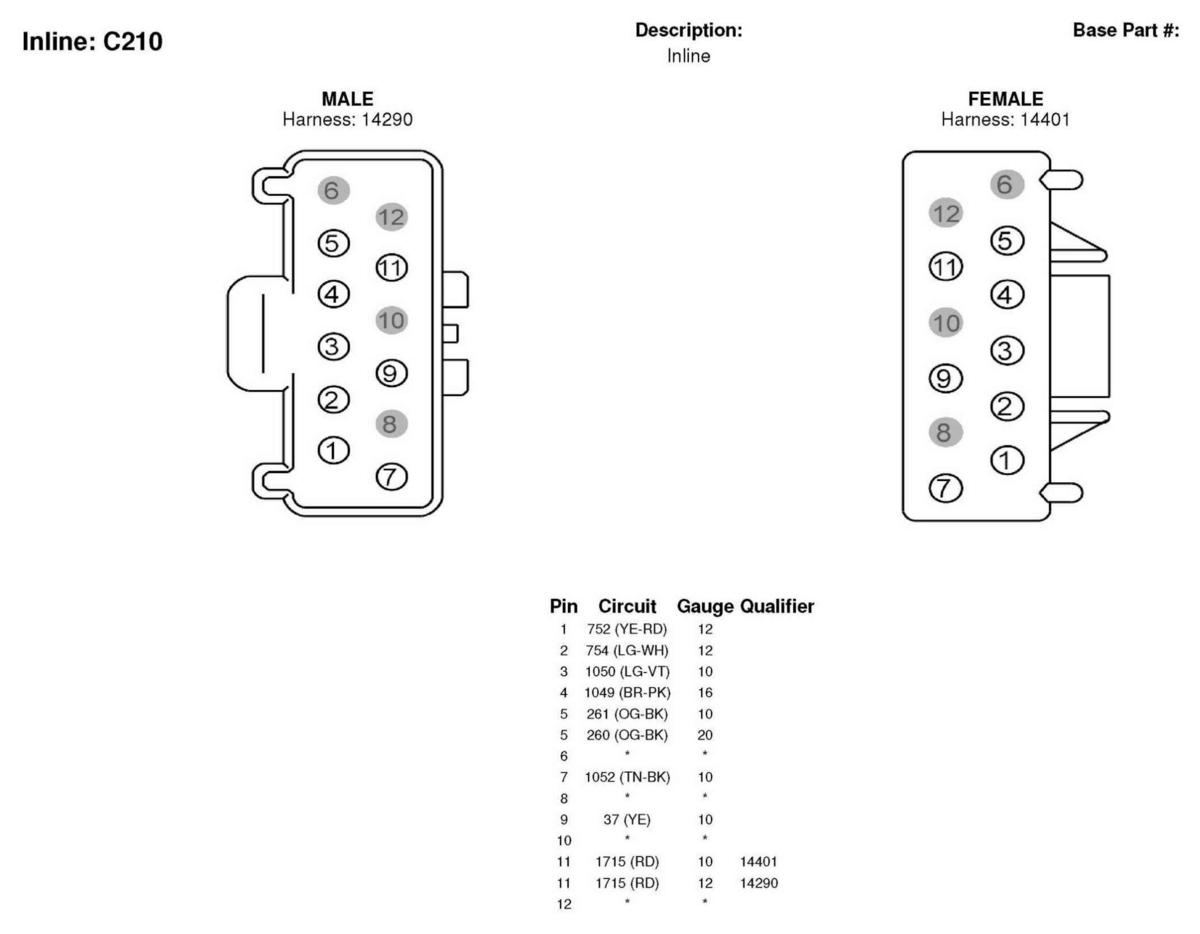

Fig 63: Inline Connector End View (C210)

G04595482

Courtesy of FORD MOTOR CO.

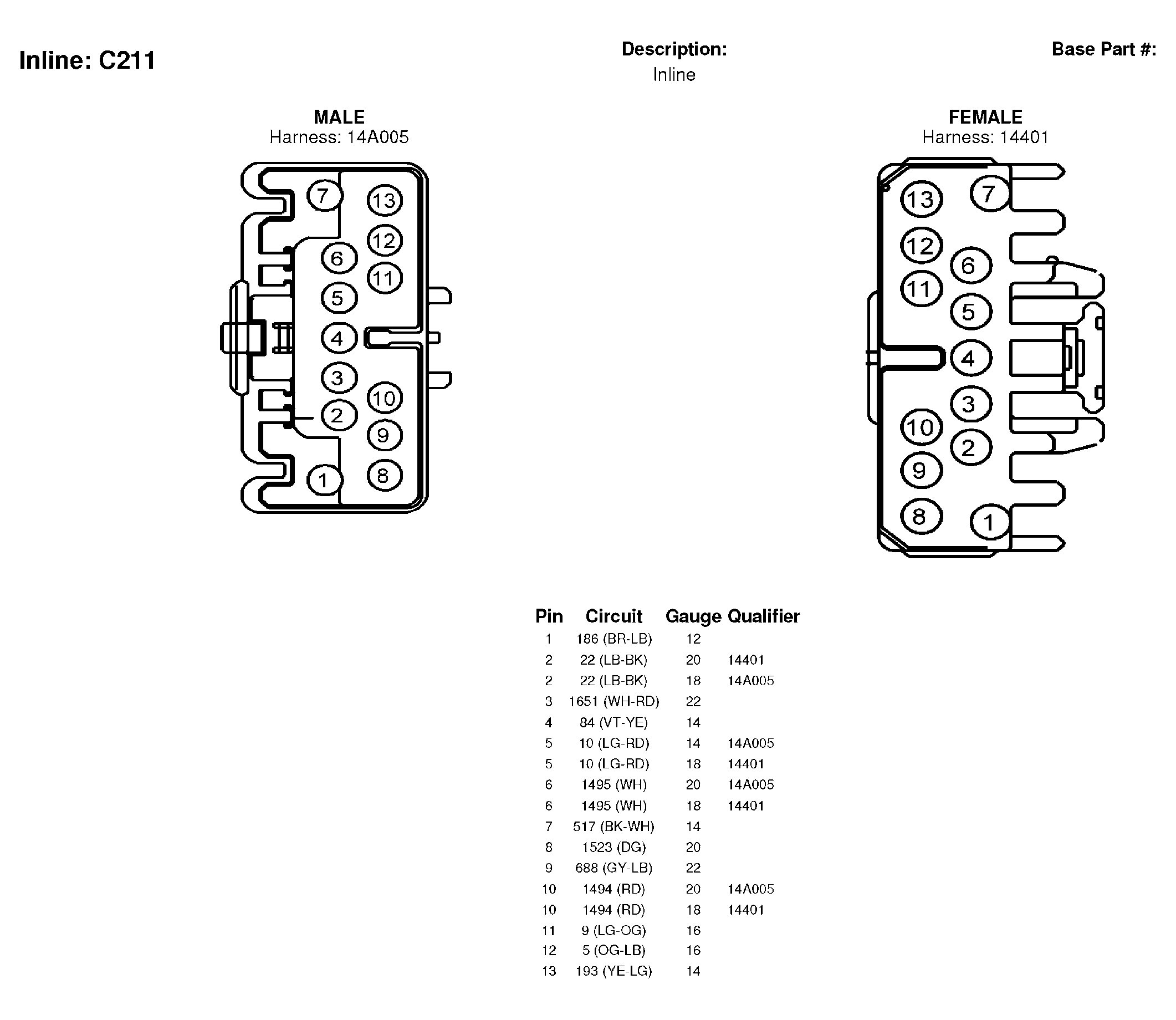

Fig 64: Inline Connector End View (C211)

G04595483

Courtesy of FORD MOTOR CO.

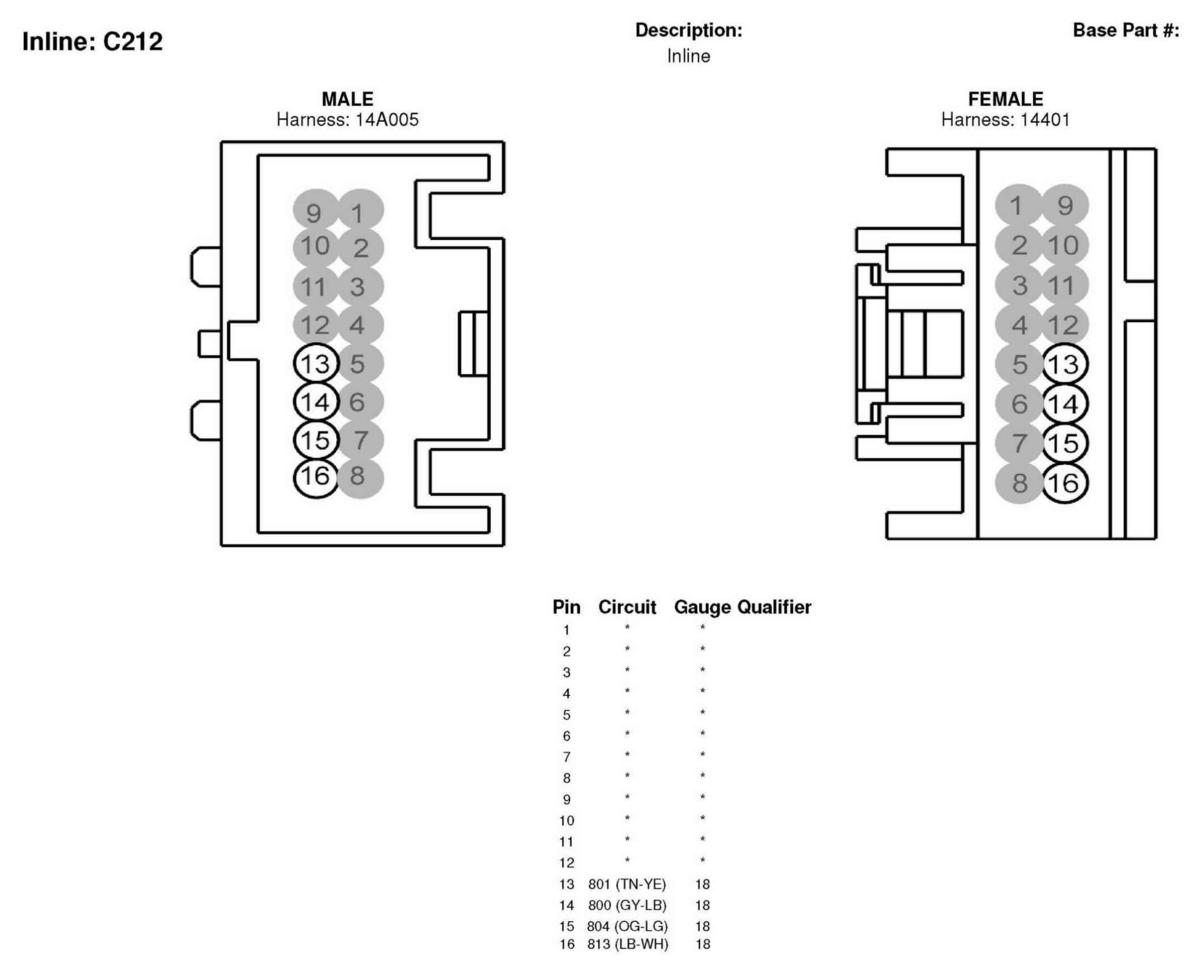

Fig 65: Inline Connector End View (C212)

G04595484

Courtesy of FORD MOTOR CO.

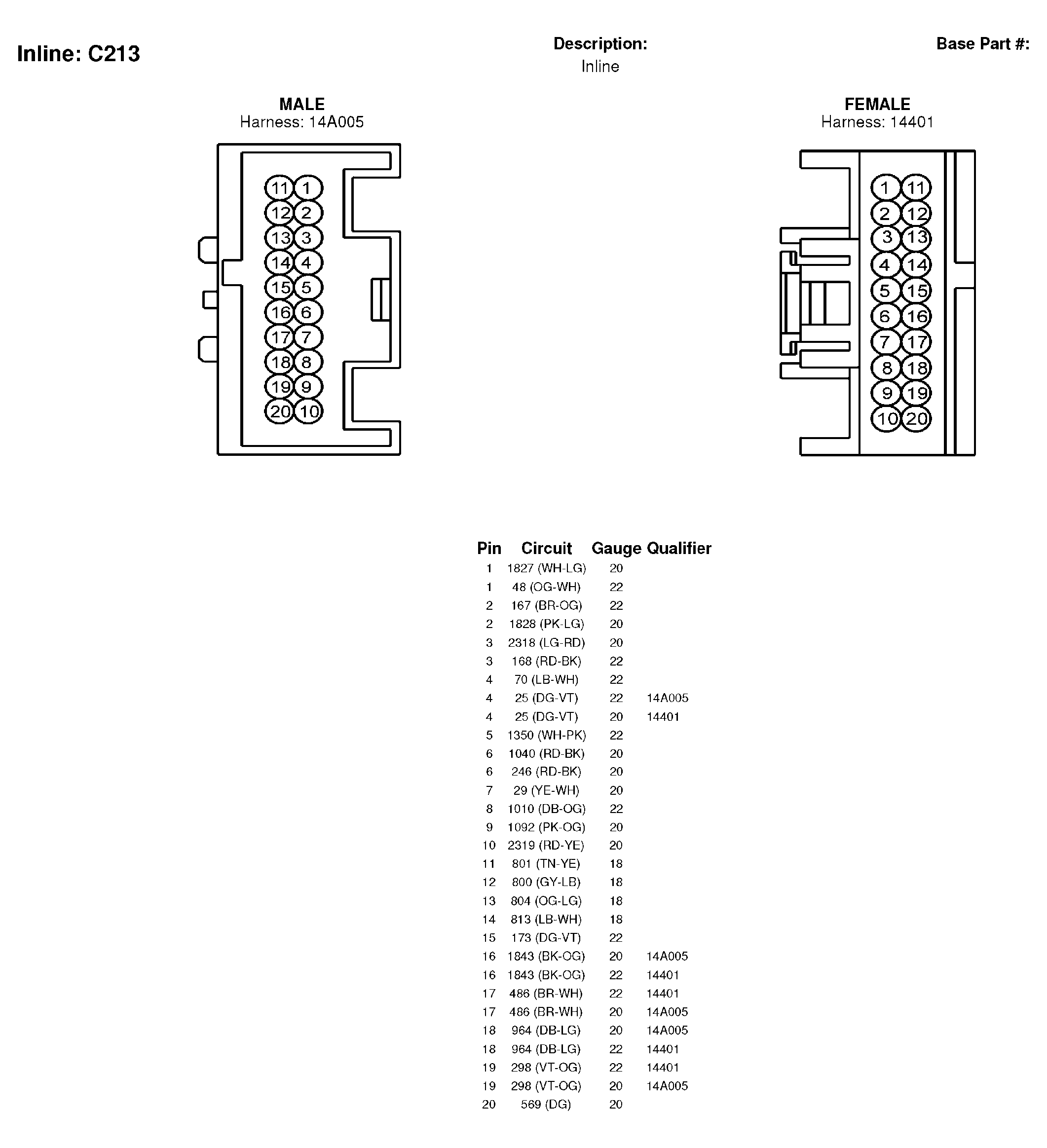

Fig 66: Inline Connector End View (C213)

G04595485

Courtesy of FORD MOTOR CO.

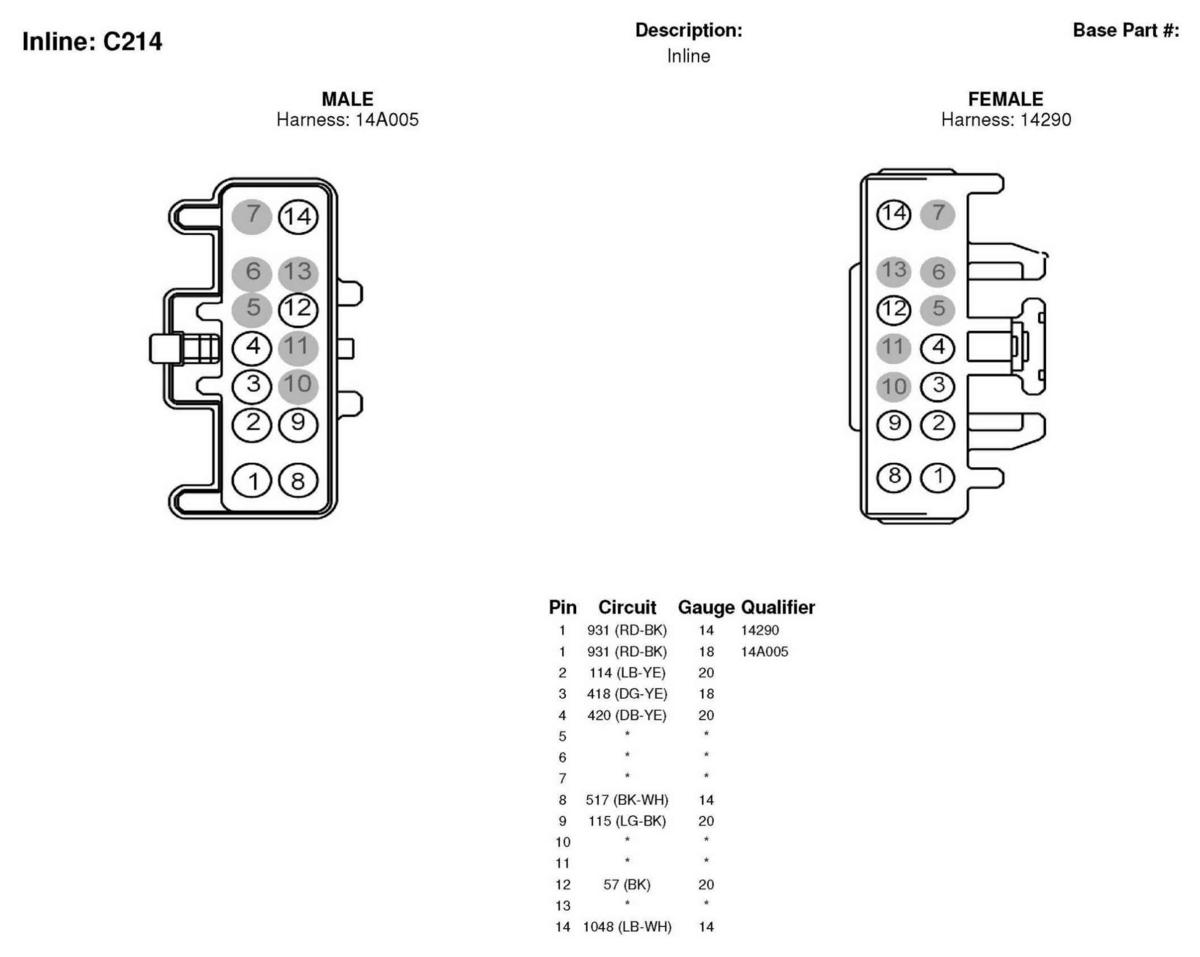

Fig 67: Inline Connector End View (C214)

G04595486

Courtesy of FORD MOTOR CO.

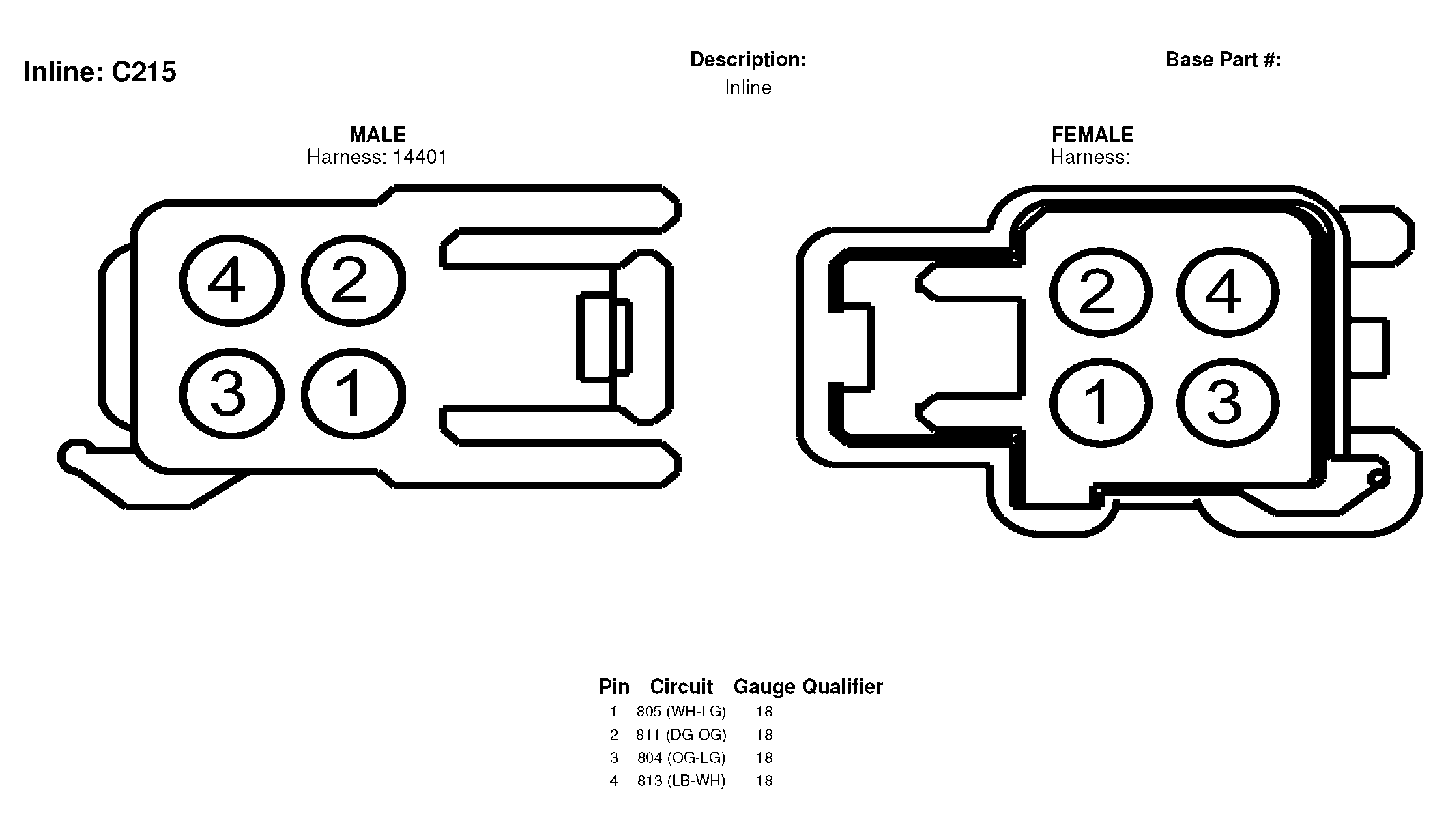

Fig 68: Inline Connector End View (C215)

G04595487

Courtesy of FORD MOTOR CO.

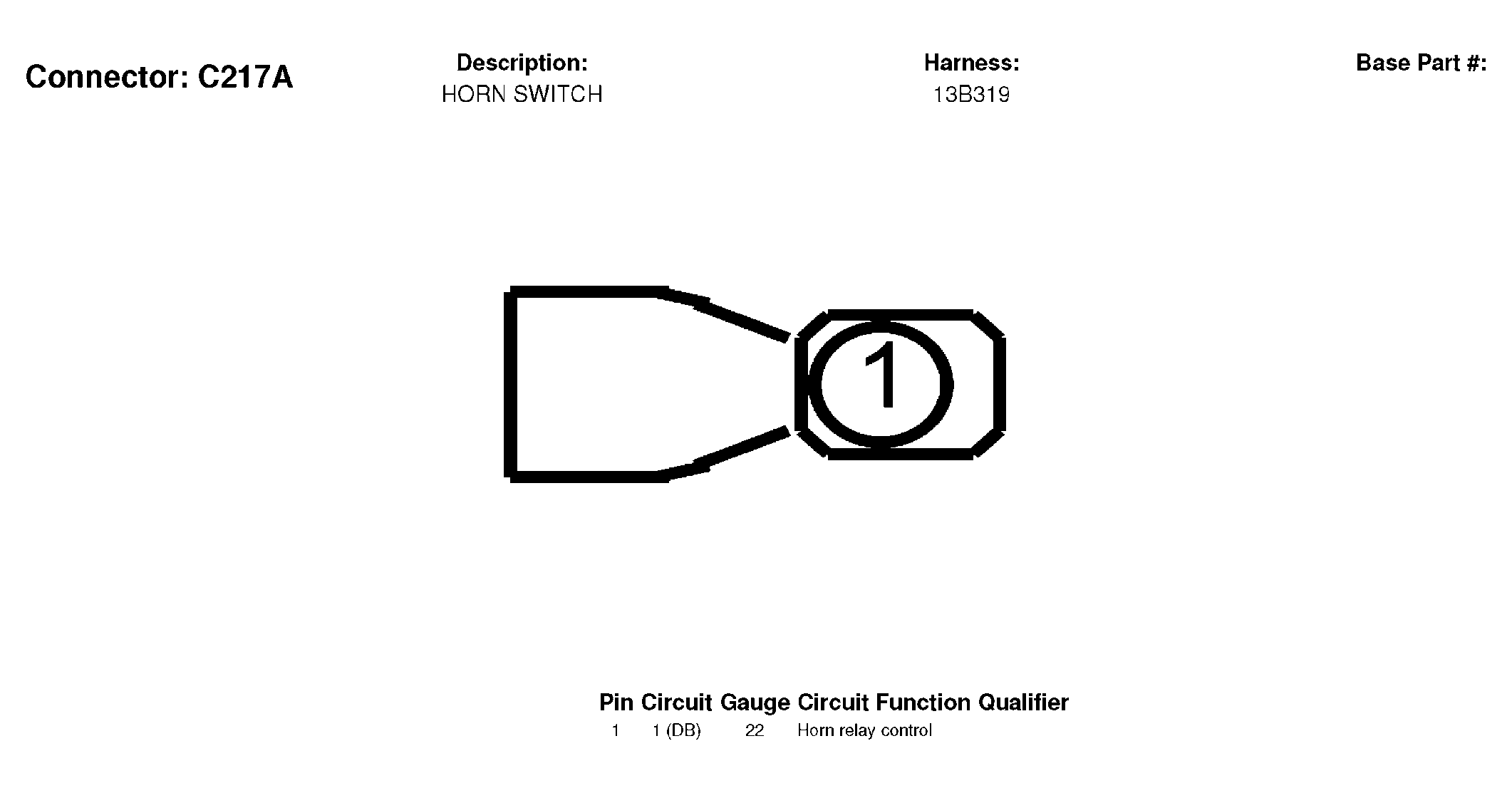

Fig 69: Horn Switch Connector End View (C217A)

G04595488

Courtesy of FORD MOTOR CO.

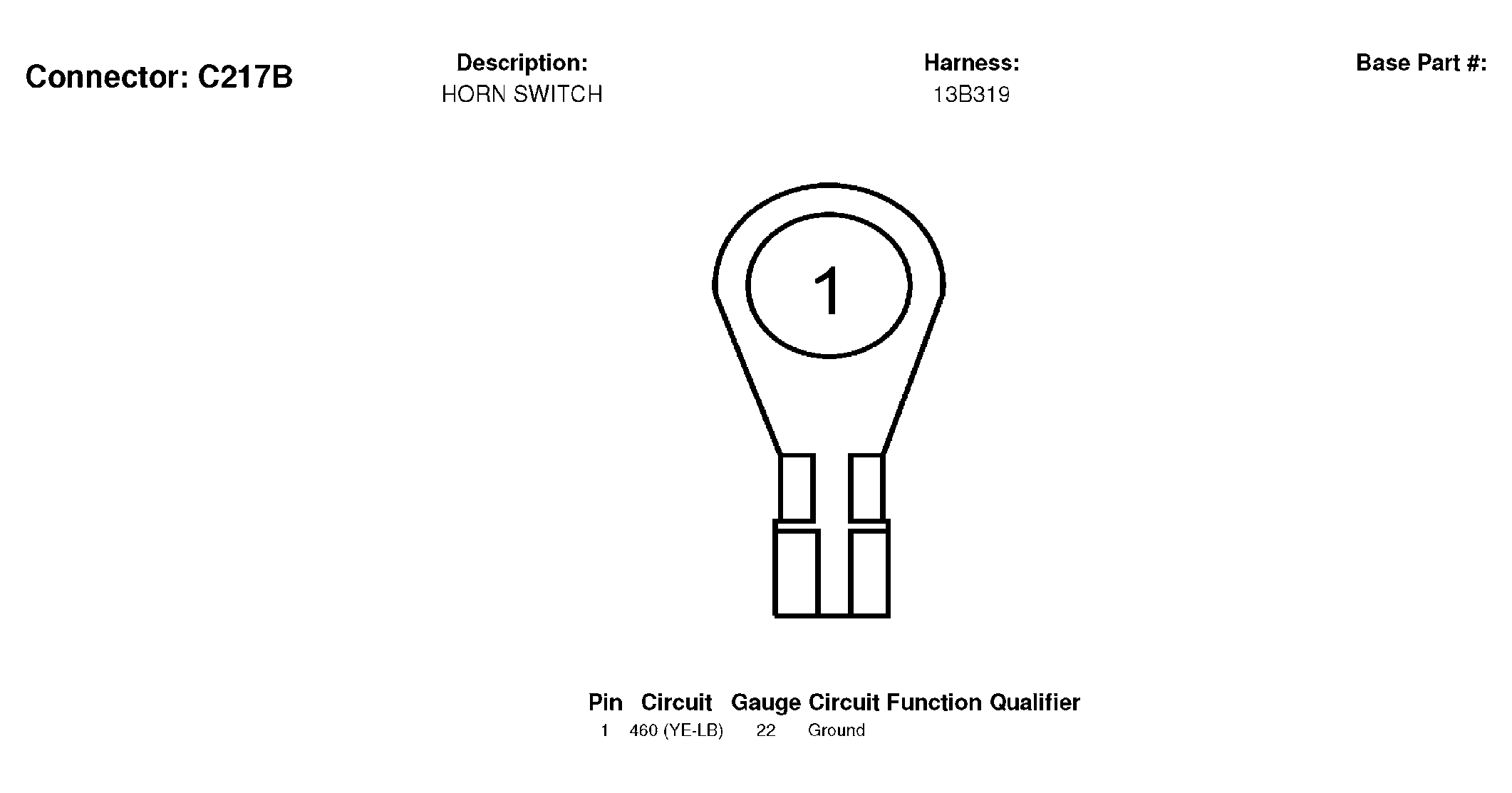

Fig 70: Horn Switch Connector End View (C217B)

G04595489

Courtesy of FORD MOTOR CO.

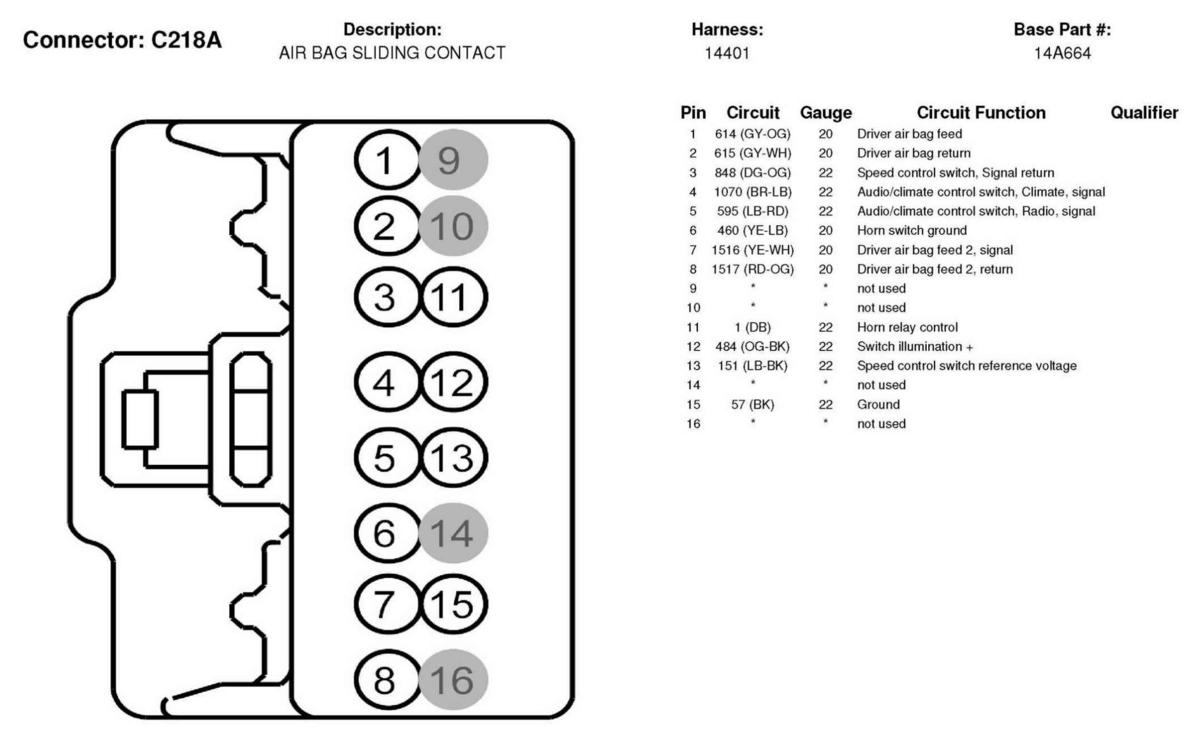

Fig 71: Air Bag Sliding Contact Connector End View (C218A)

G04595490

Courtesy of FORD MOTOR CO.

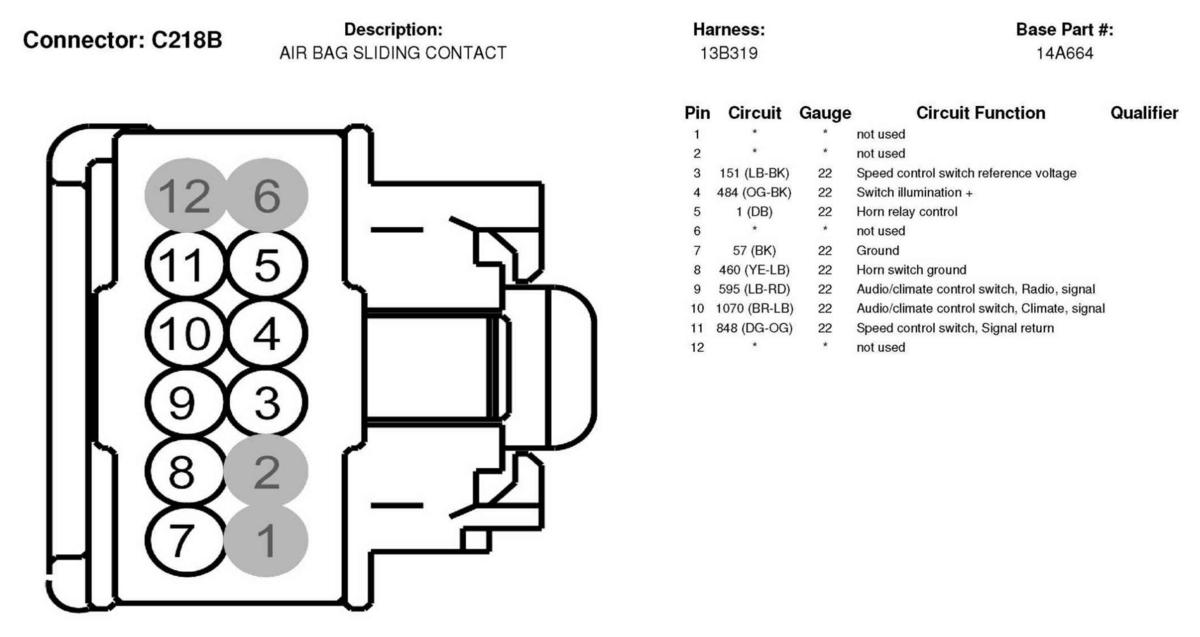

Fig 72: Air Bag Sliding Contact Connector End View (C218B)

G04595491

Courtesy of FORD MOTOR CO.

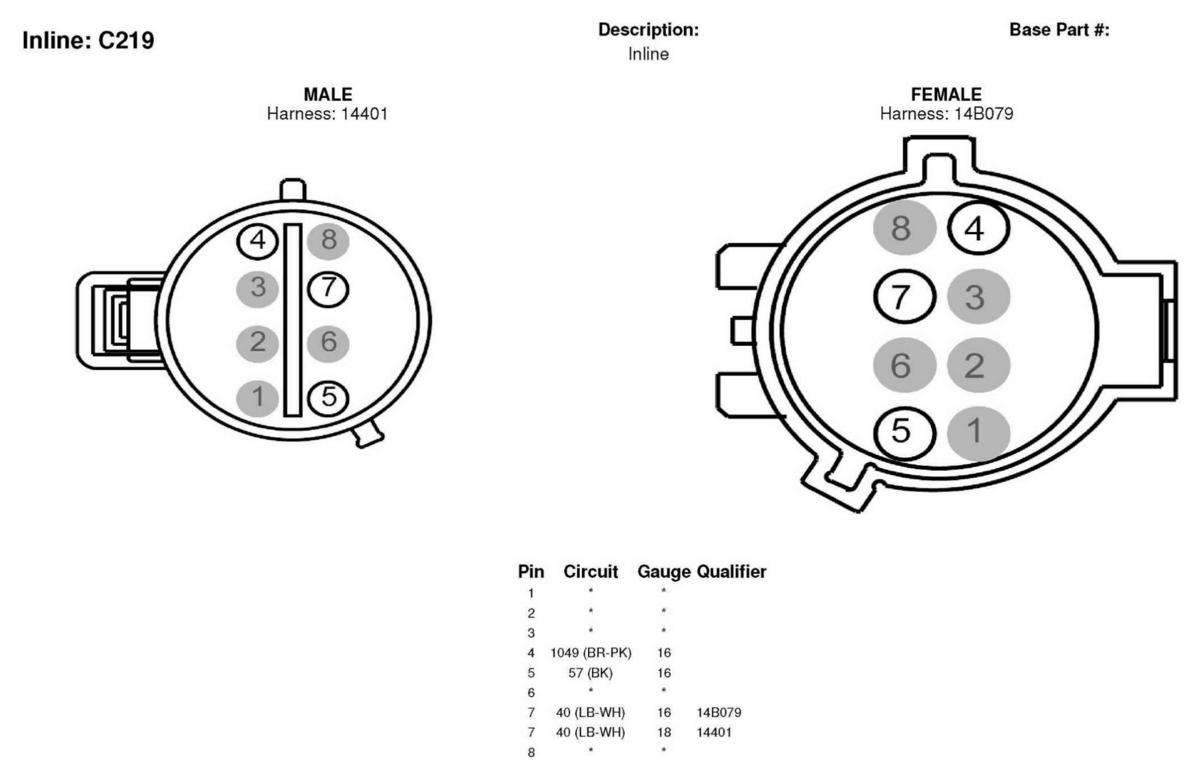

Fig 73: Inline Connector End View (C219)

G04595492

Courtesy of FORD MOTOR CO.

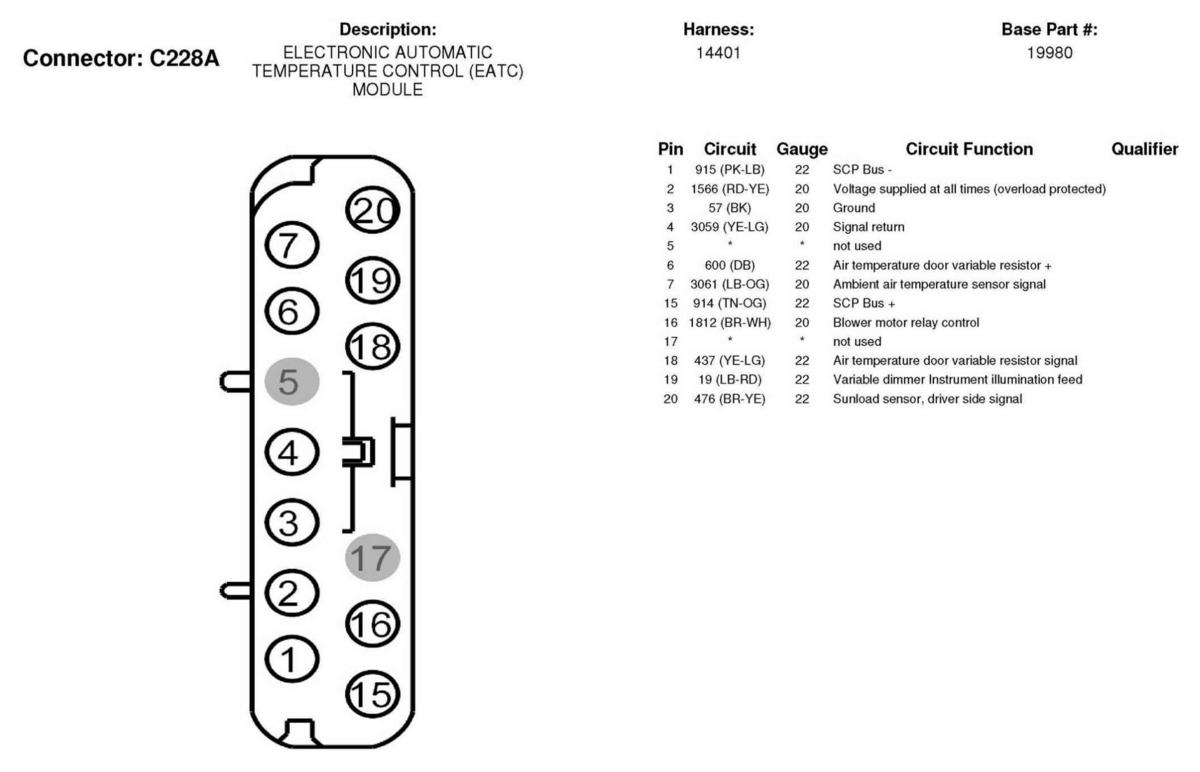

Fig 74: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228A)

G04595493

Courtesy of FORD MOTOR CO.

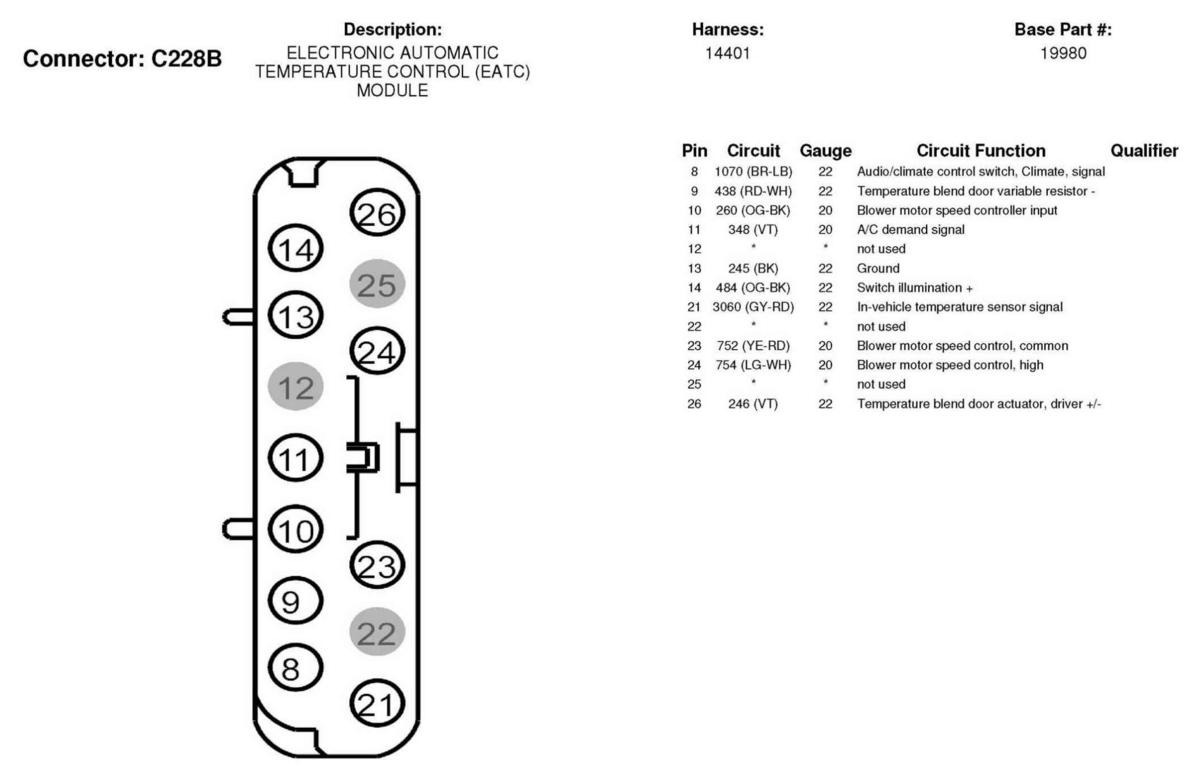

Fig 75: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228B)

G04595494

Courtesy of FORD MOTOR CO.

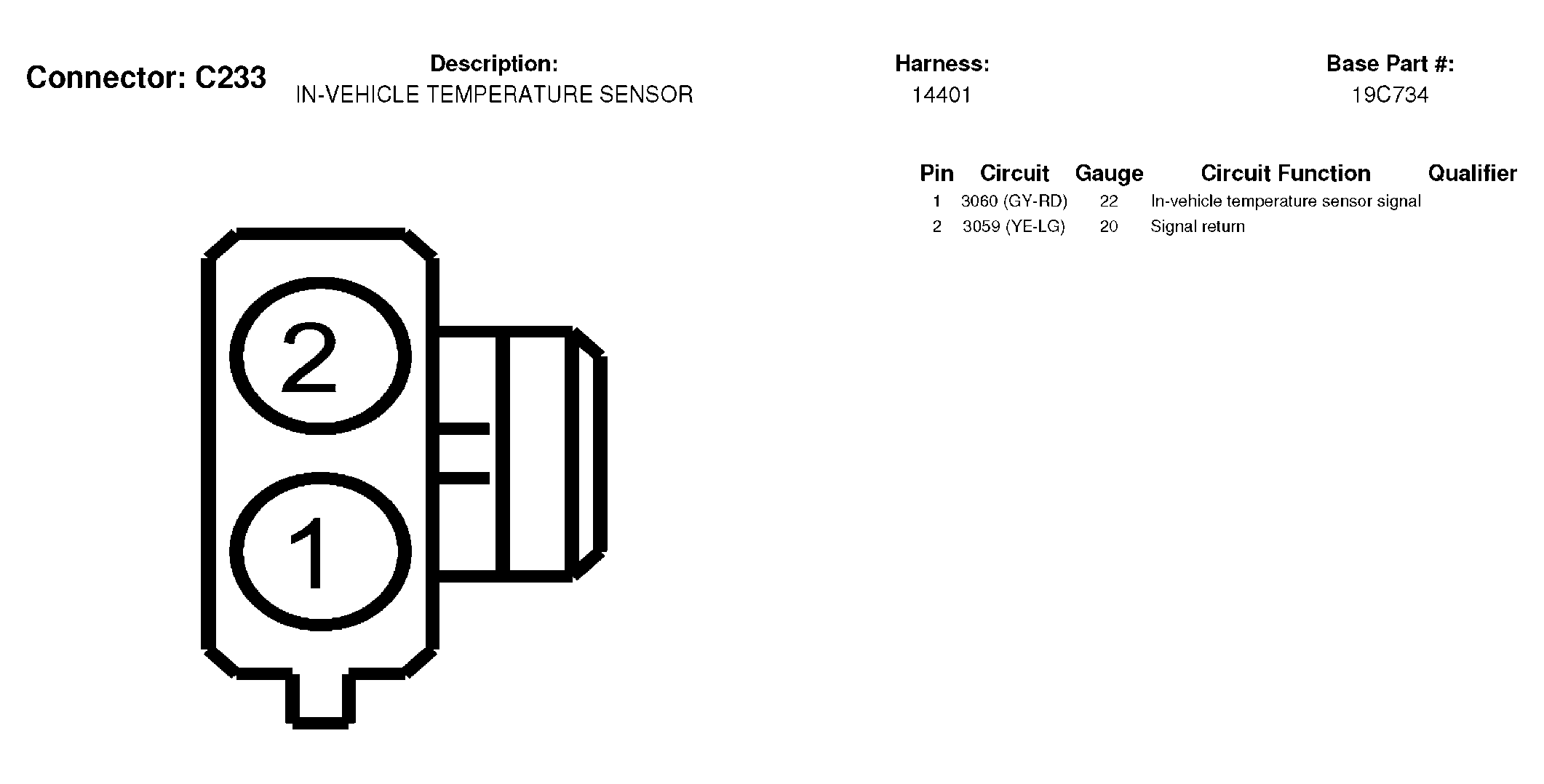

Fig 76: In-Vehicle Temperature Sensor Connector End View (C233)

G04595495

Courtesy of FORD MOTOR CO.

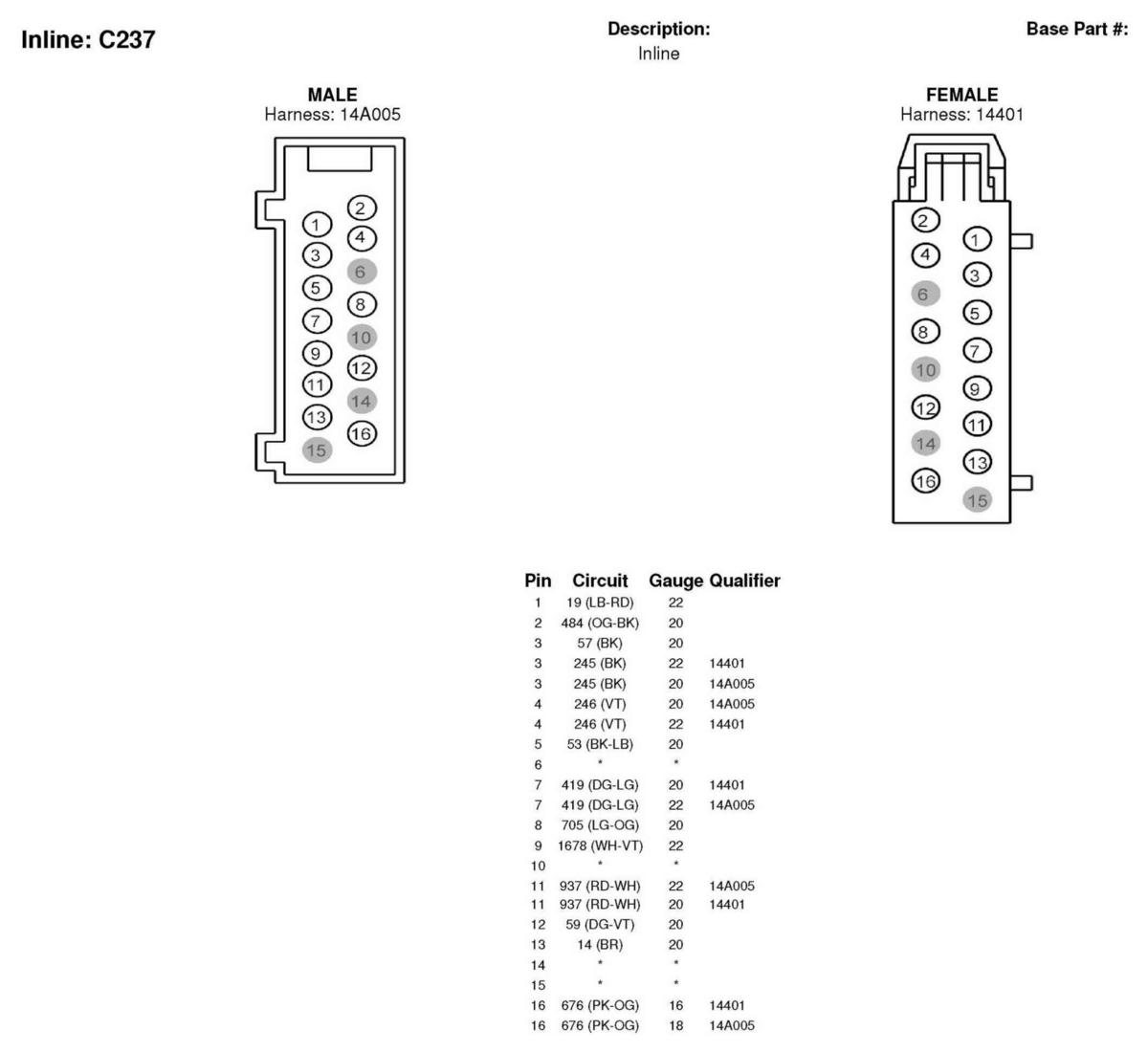

Fig 77: Inline Connector End View (C237)

G04595496

Courtesy of FORD MOTOR CO.

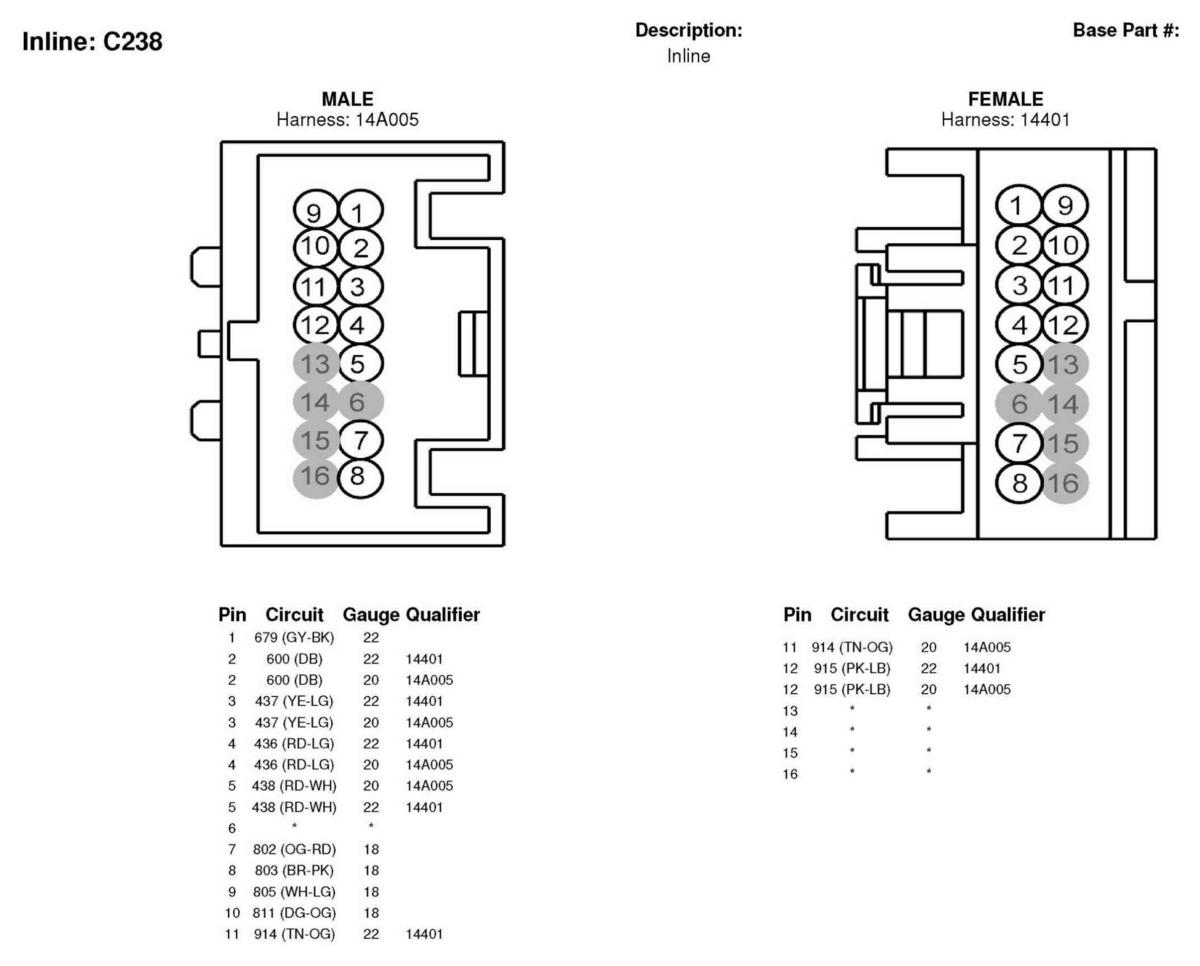

Fig 78: Inline Connector End View (C238)

G04595497

Courtesy of FORD MOTOR CO.

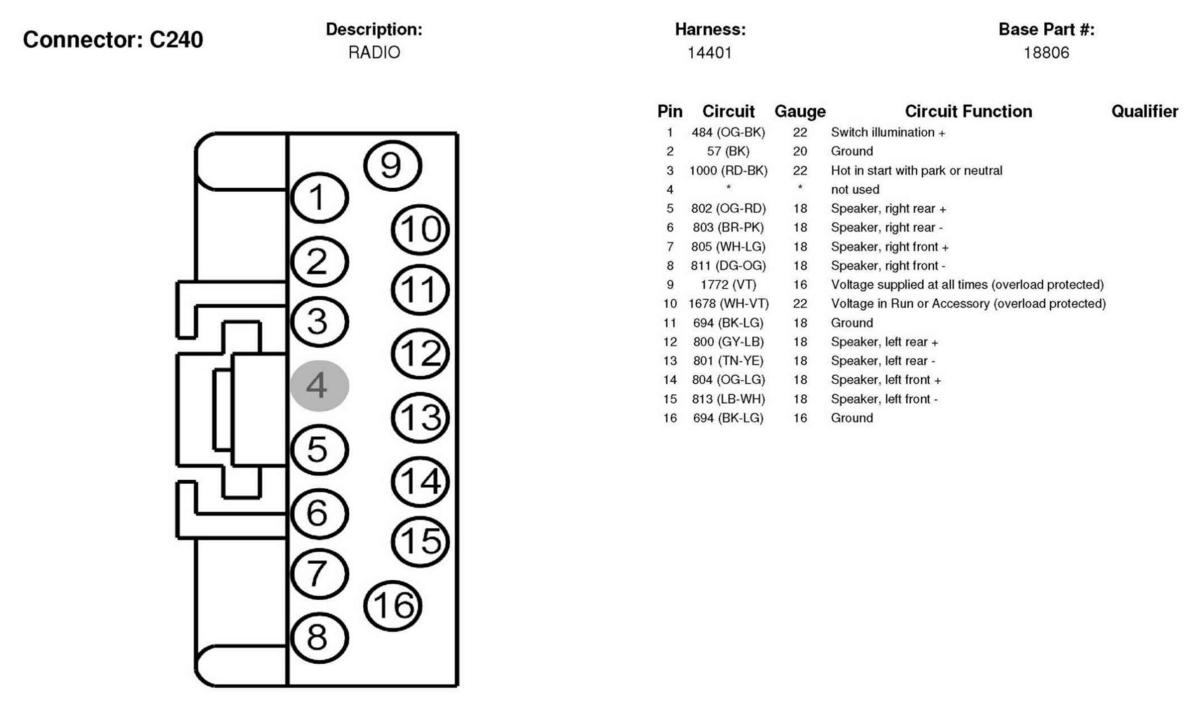

Fig 79: Radio Connector End View (C240)

G04595498

Courtesy of FORD MOTOR CO.

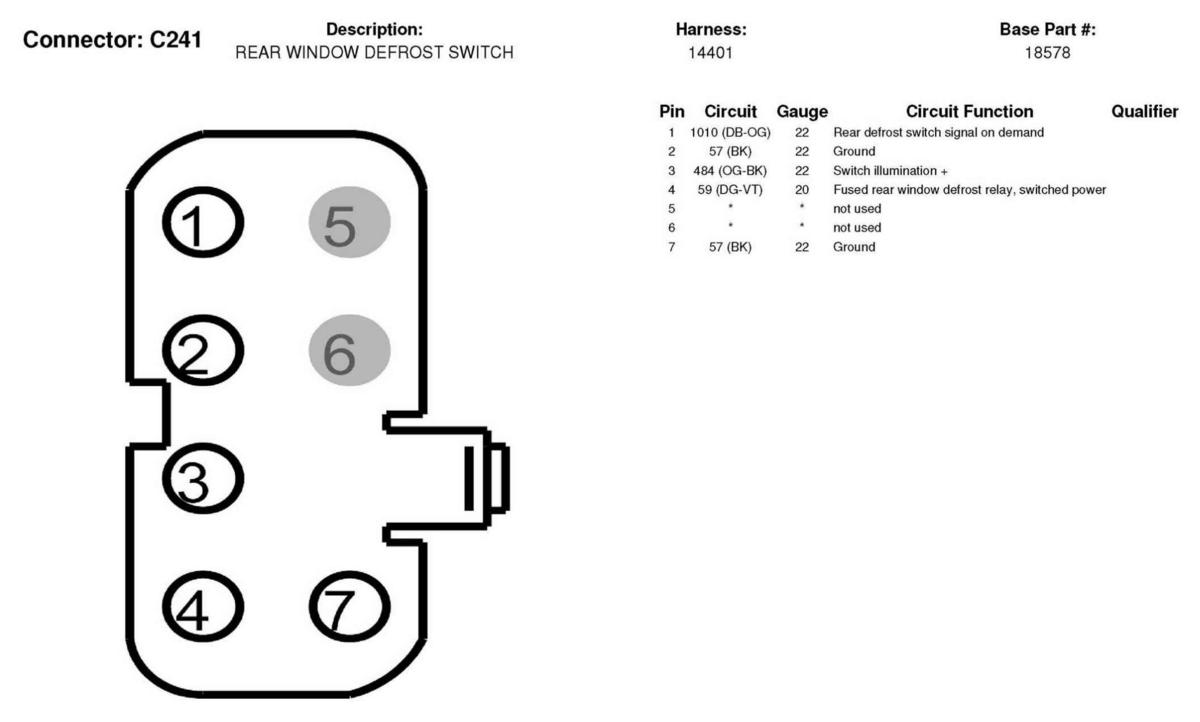

Fig 80: Rear Window Defrost Switch Connector End View (C241)

G04595499

Courtesy of FORD MOTOR CO.

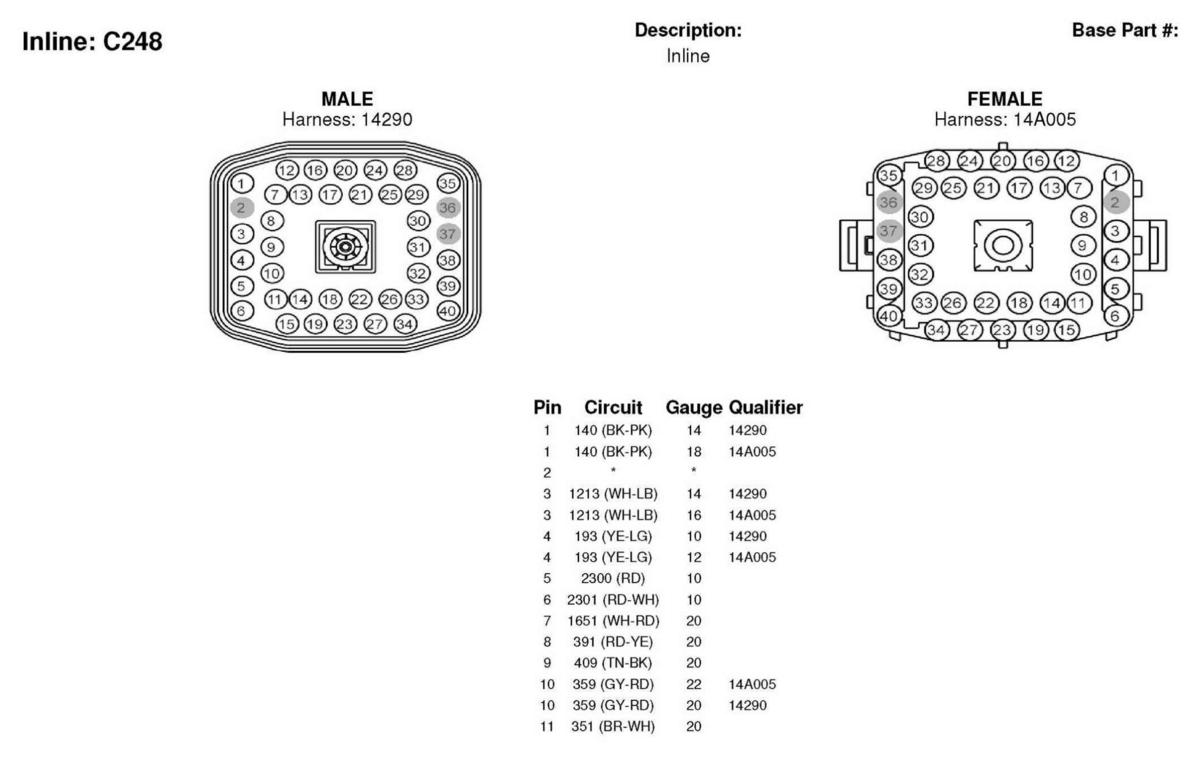

Fig 81: Inline Connector End View (C248) (1 Of 2)

G04595500

Courtesy of FORD MOTOR CO.

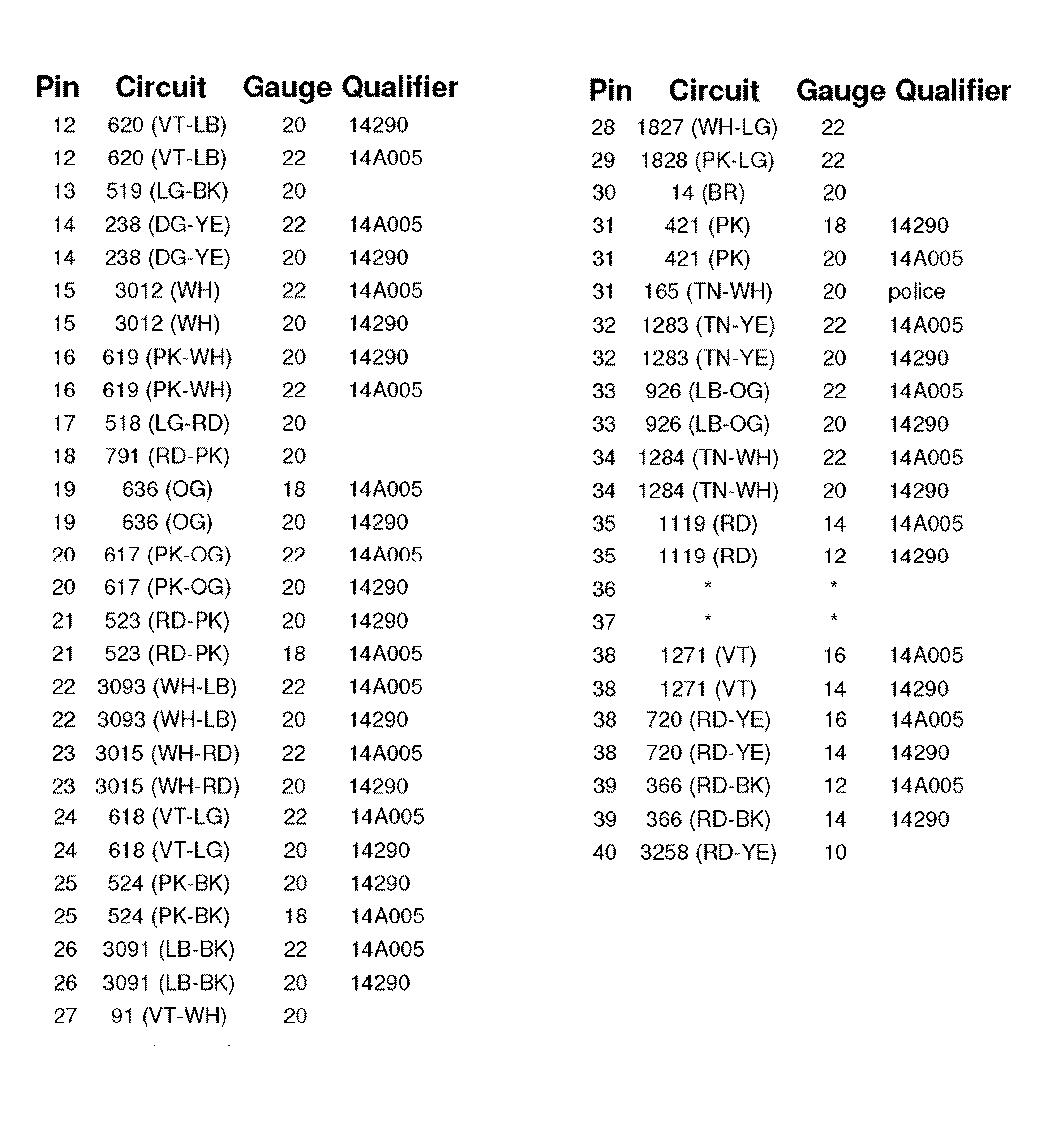

Fig 82: Inline Connector End View (C248) (2 Of 2)

G04595501

Courtesy of FORD MOTOR CO.

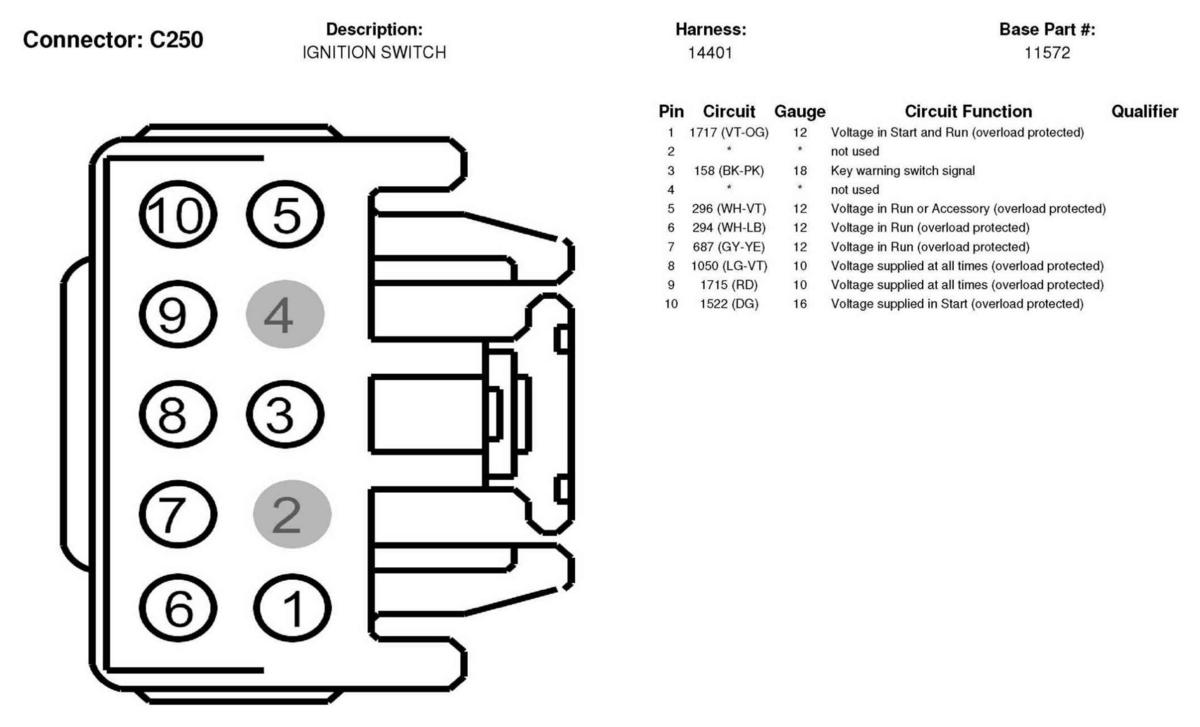

Fig 83: Ignition Switch Connector End View (C250)

G04595502

Courtesy of FORD MOTOR CO.

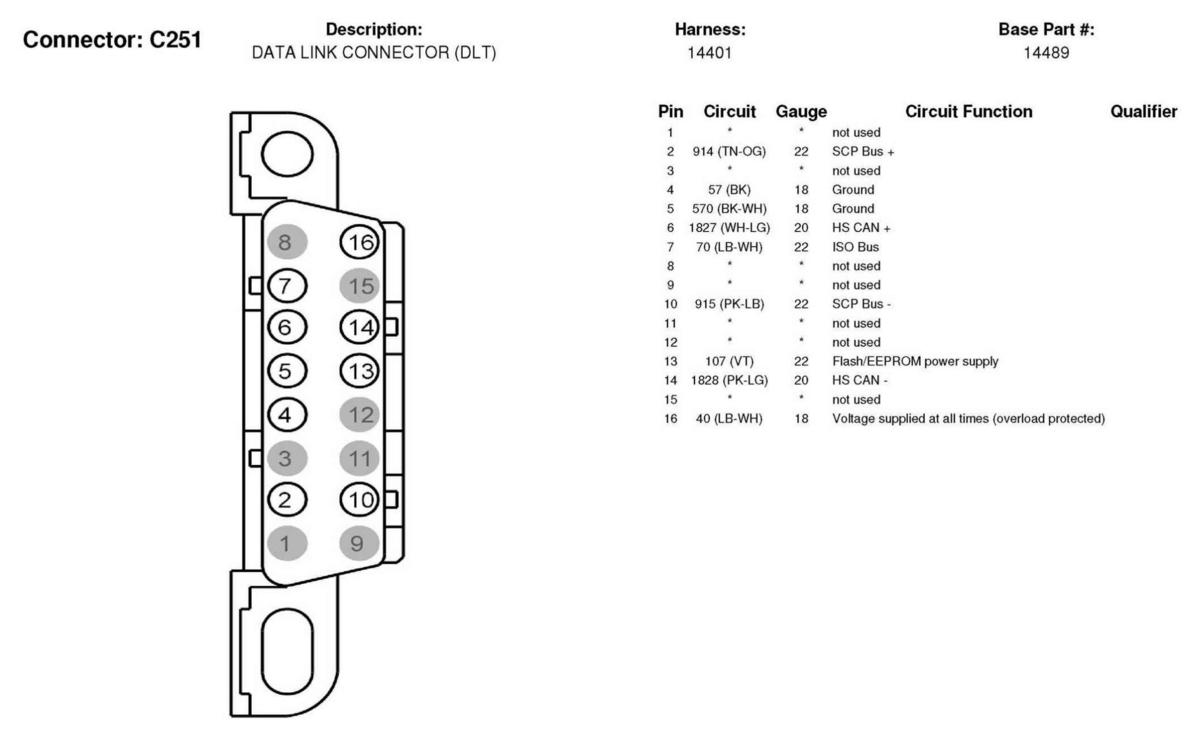

Fig 84: Data Link Connector (DLT) Connector End View (C251)

G04595503

Courtesy of FORD MOTOR CO.

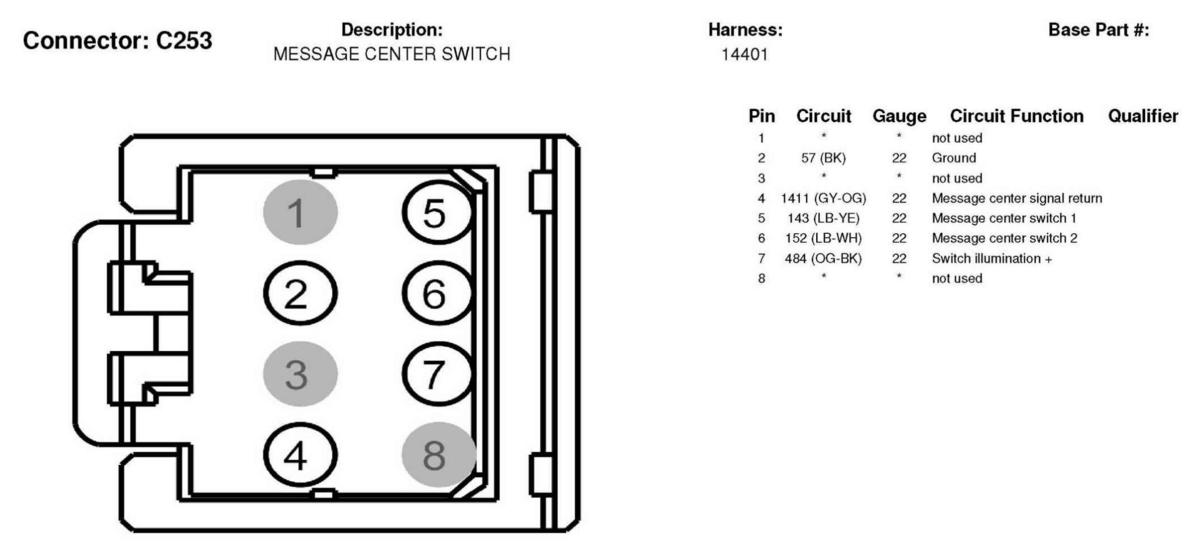

Fig 85: Message Center Switch Connector End View (C253)

G04595504

Courtesy of FORD MOTOR CO.

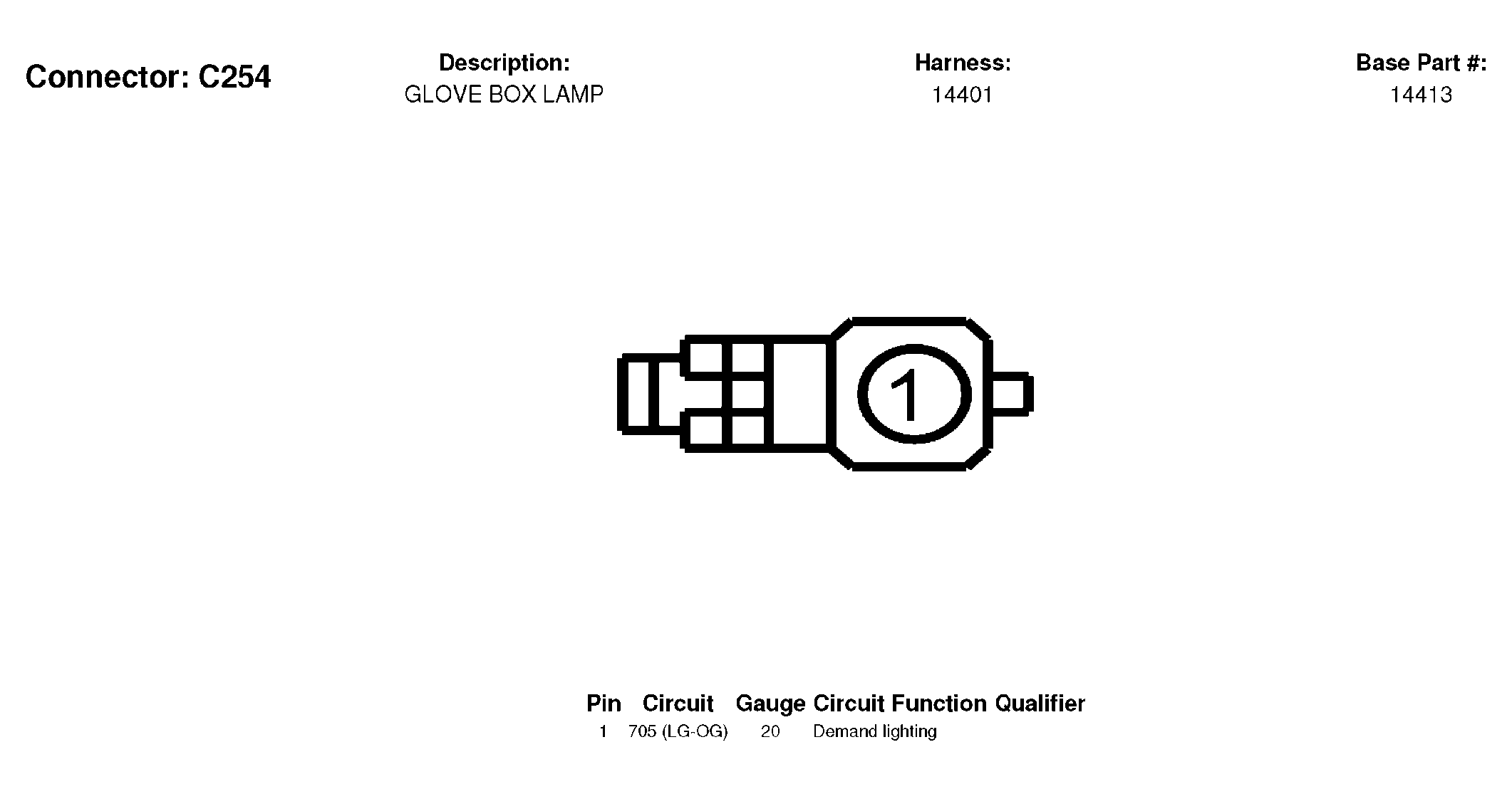

Fig 86: Glove Box Lamp Connector End View (C254)

G04595505

Courtesy of FORD MOTOR CO.

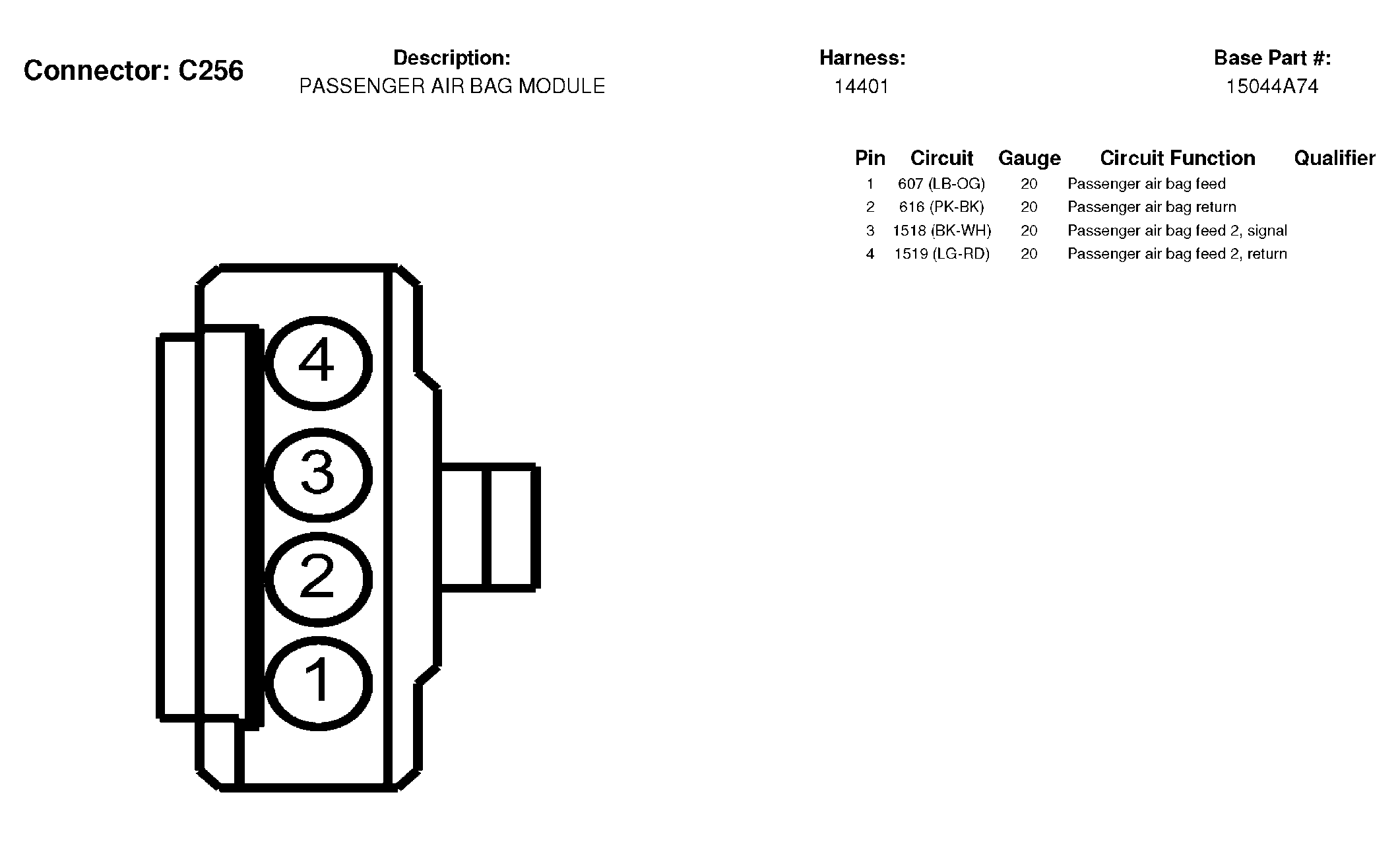

Fig 87: Passenger Air Bag Module Connector End View (C256)

G04595506

Courtesy of FORD MOTOR CO.

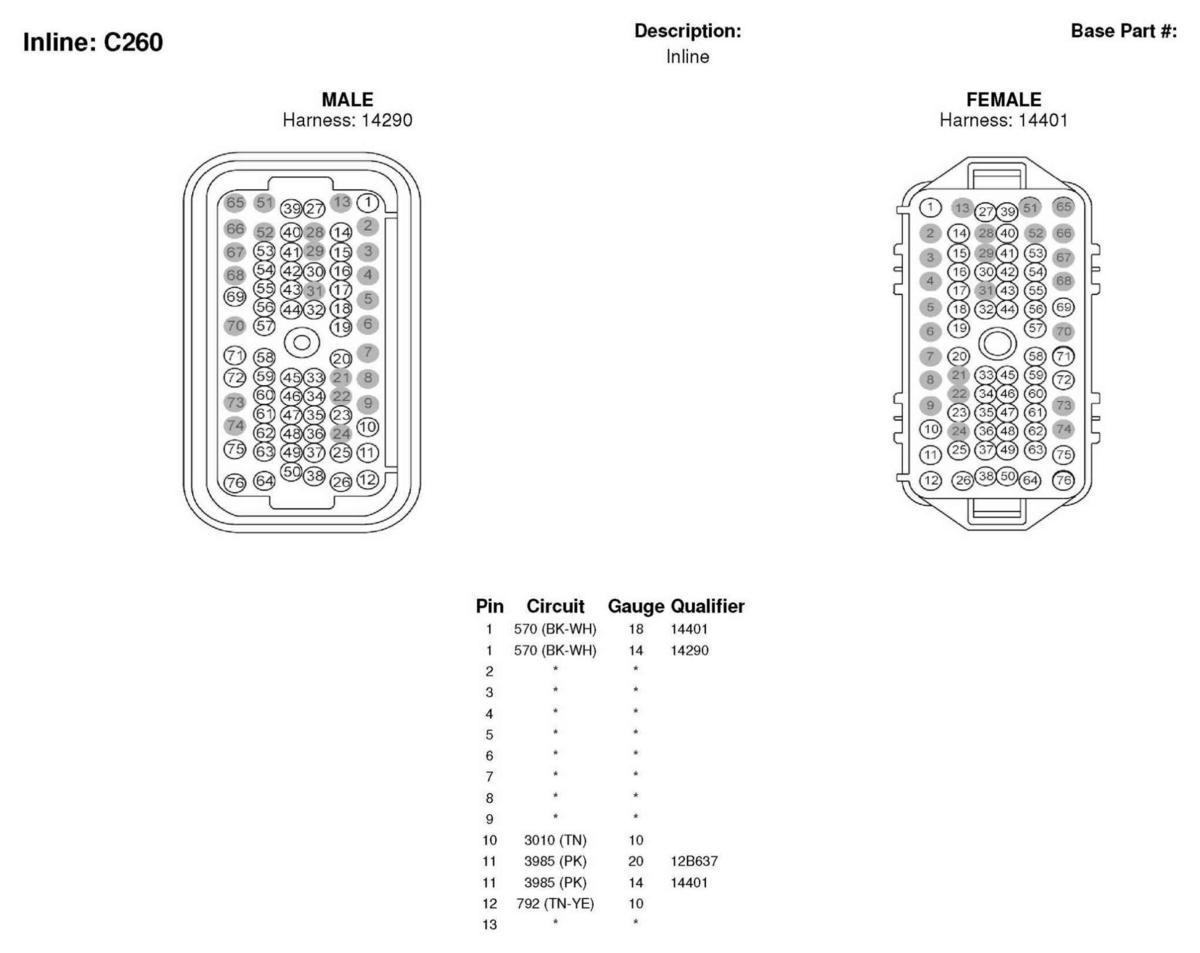

Fig 88: Inline Connector End View (C260) (1 Of 3)

G04595507

Courtesy of FORD MOTOR CO.

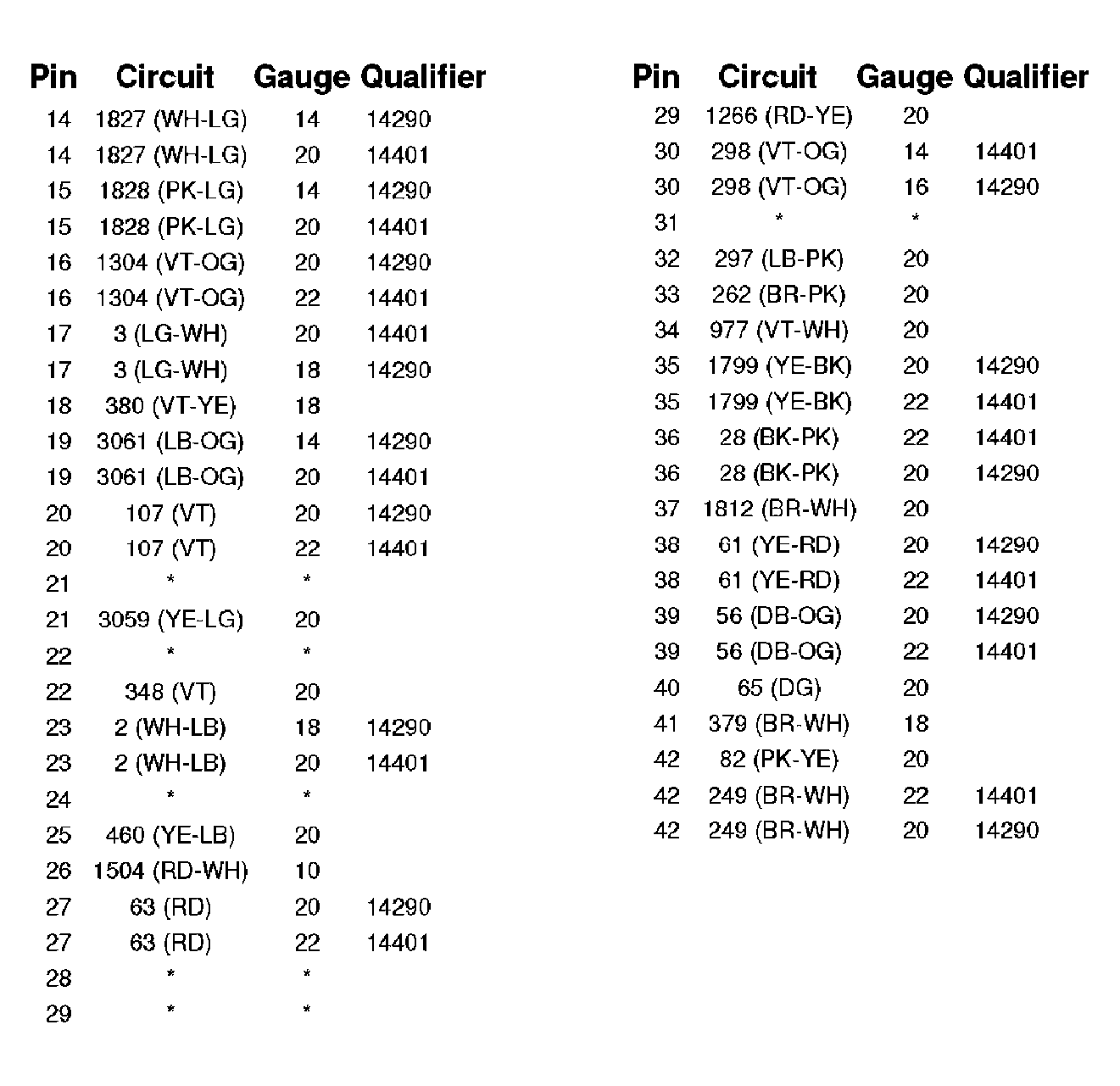

Fig 89: Inline Connector End View (C260) (2 Of 3)

G04595508

Courtesy of FORD MOTOR CO.

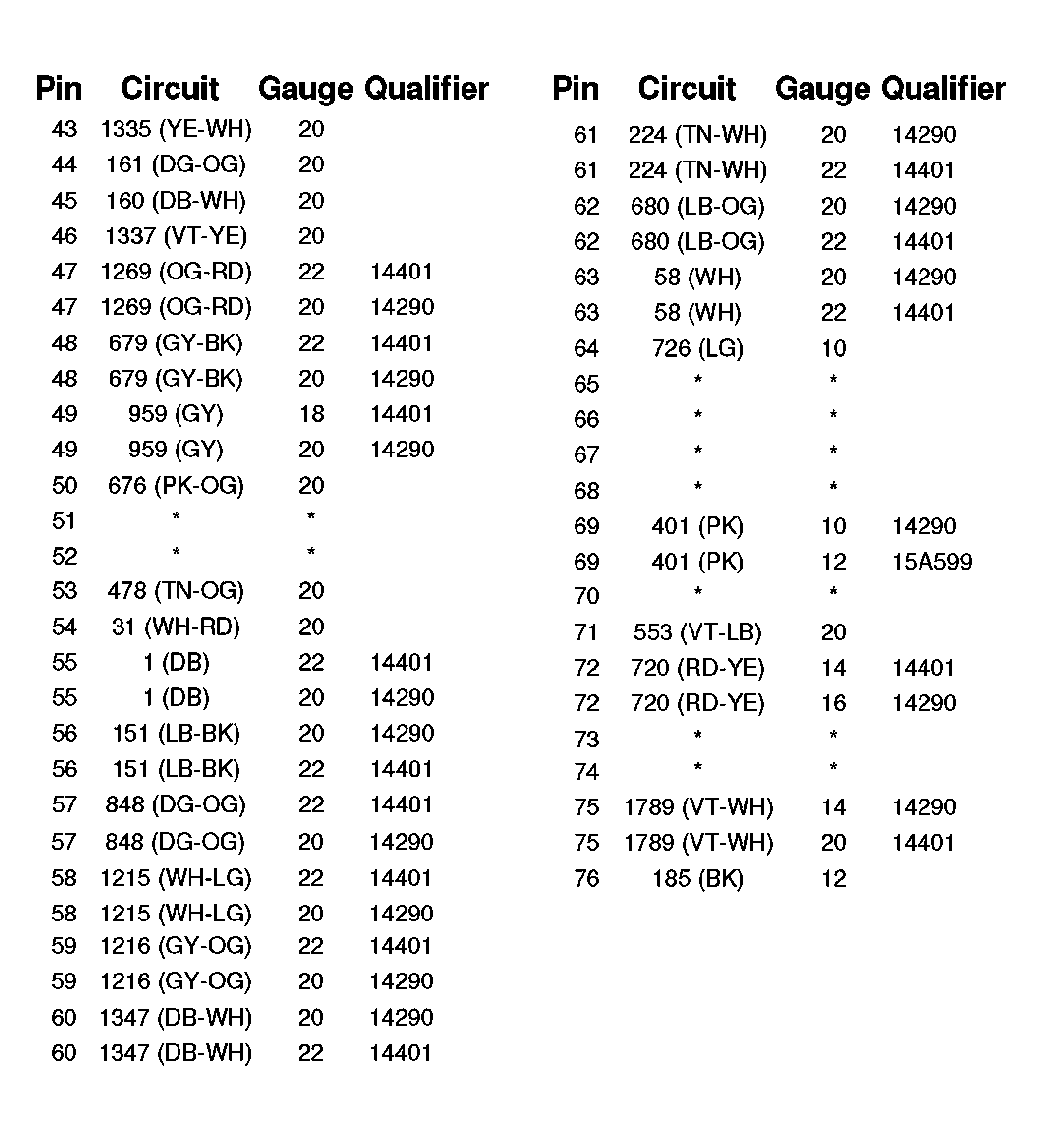

Fig 90: Inline Connector End View (C260) (3 Of 3)

G04595509

Courtesy of FORD MOTOR CO.

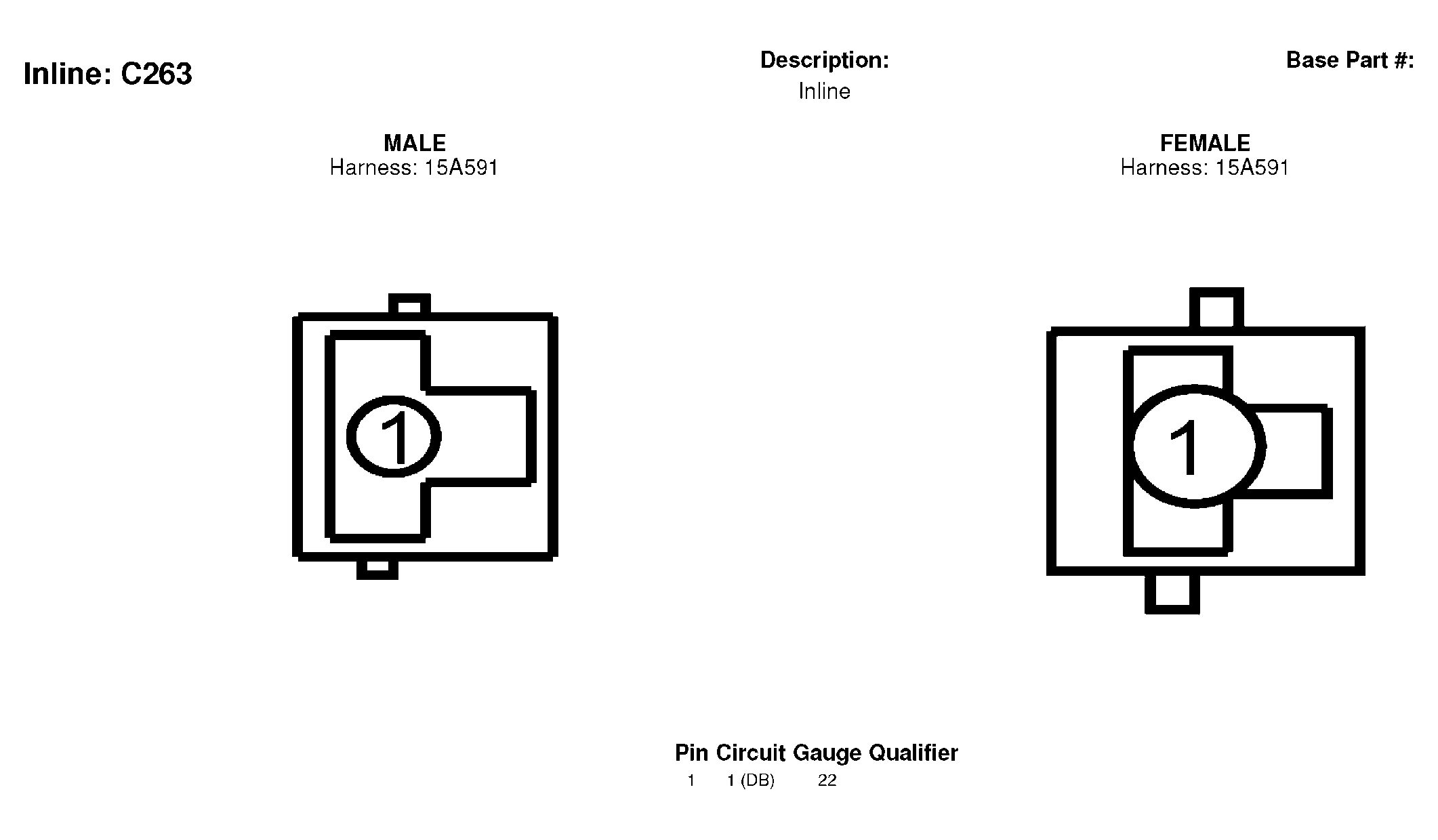

Fig 91: Inline Connector End View (C263)

G04595510

Courtesy of FORD MOTOR CO.

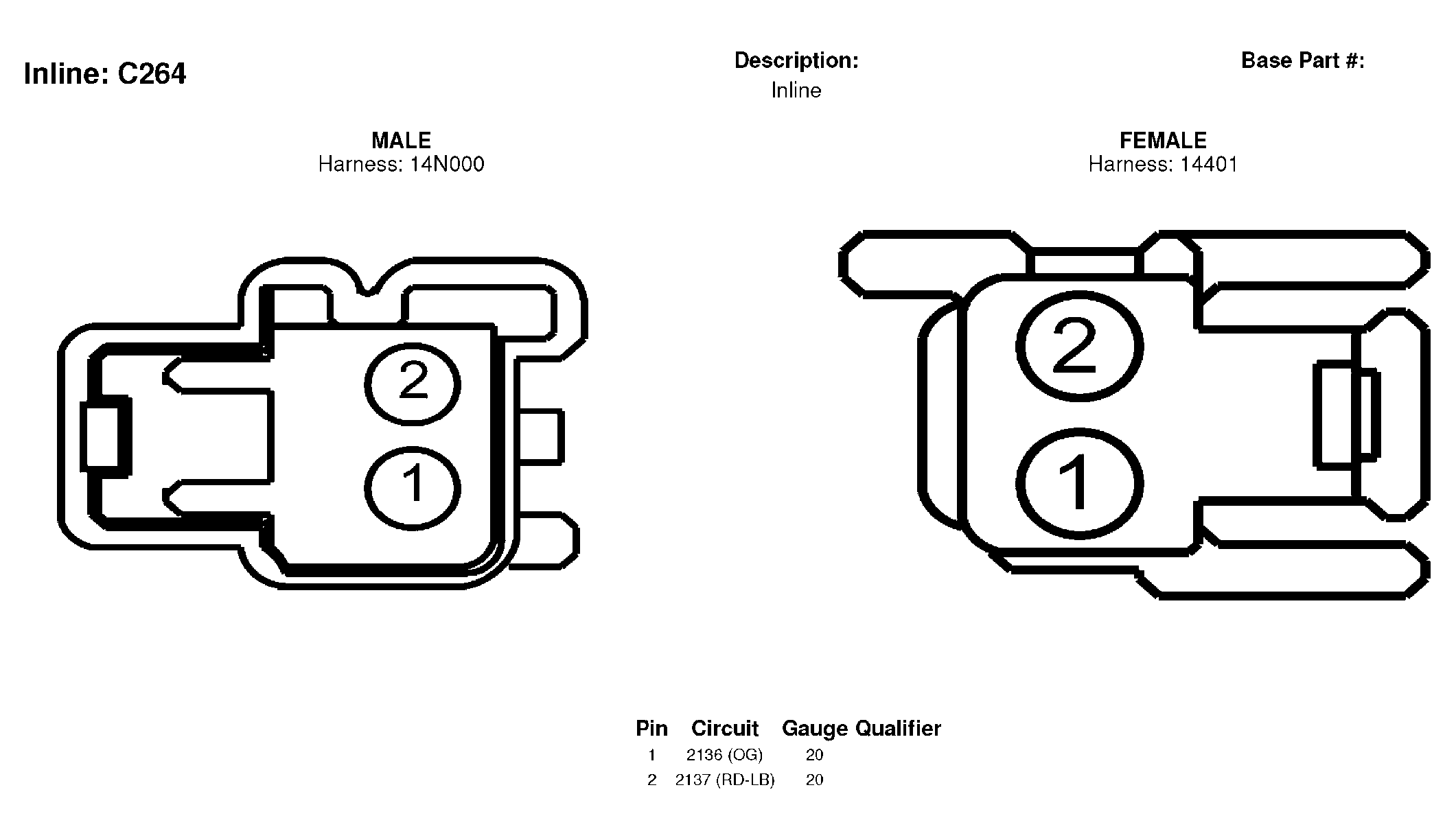

Fig 92: Inline Connector End View (C264)

G04595511

Courtesy of FORD MOTOR CO.

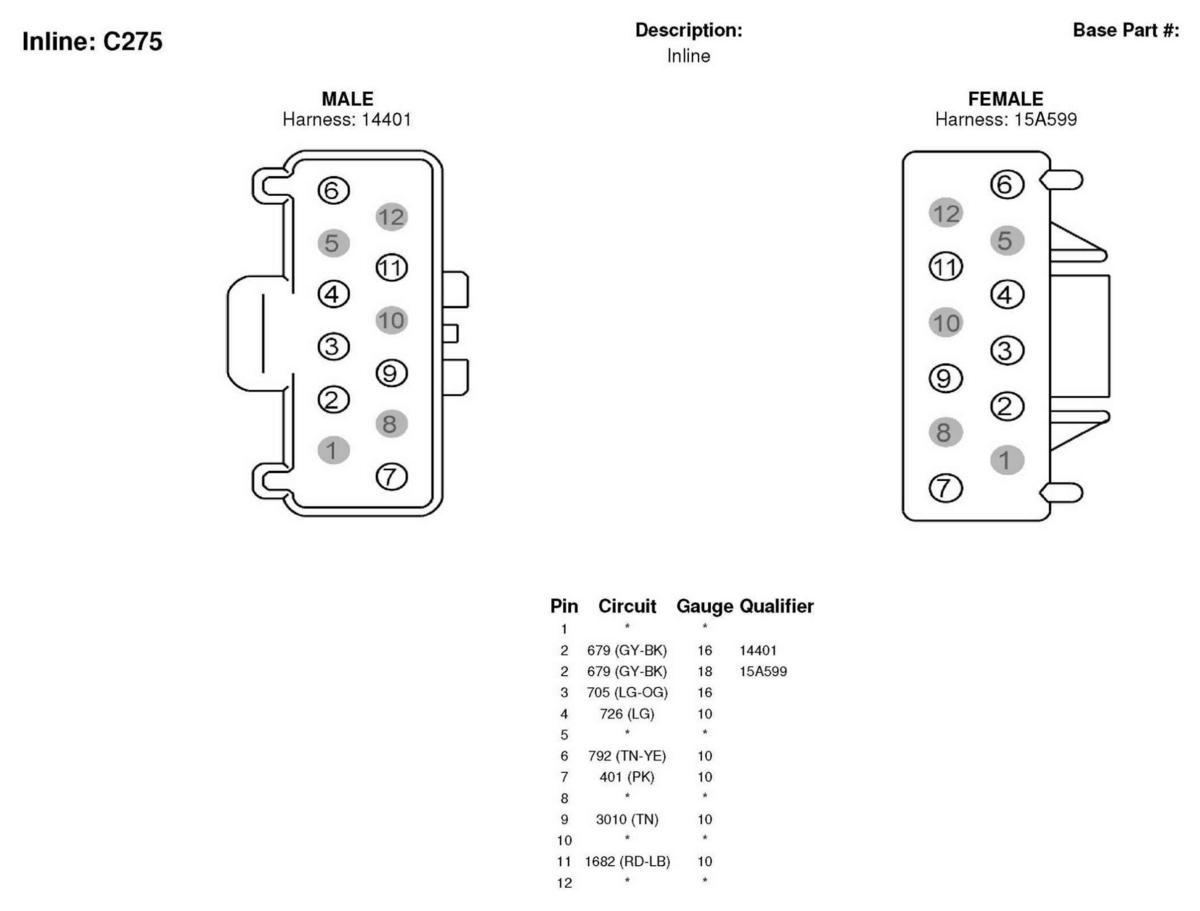

Fig 93: Inline Connector End View (C275)

G04595512

Courtesy of FORD MOTOR CO.

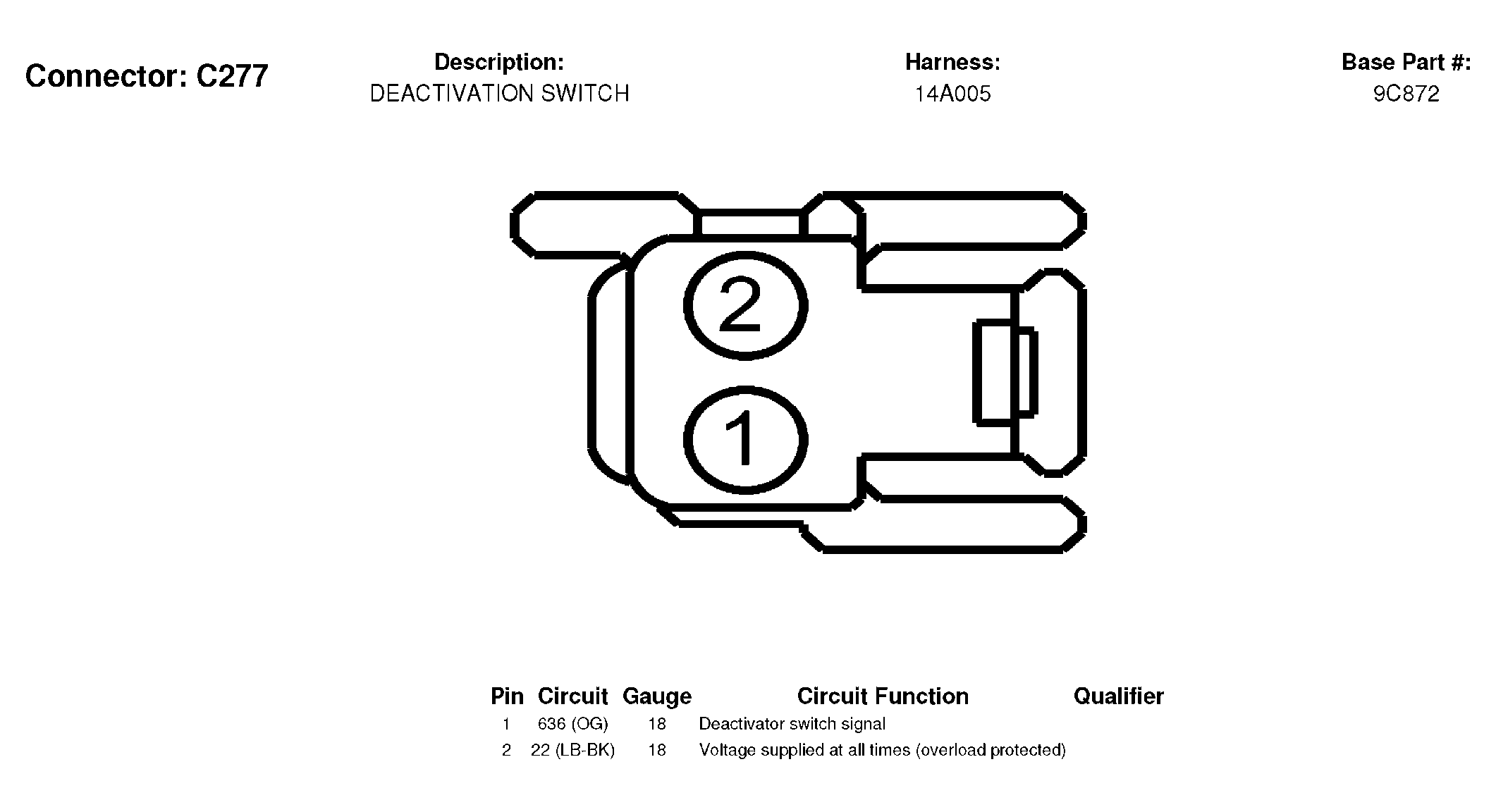

Fig 94: Deactivation Switch Connector End View (C277)

G04595513

Courtesy of FORD MOTOR CO.

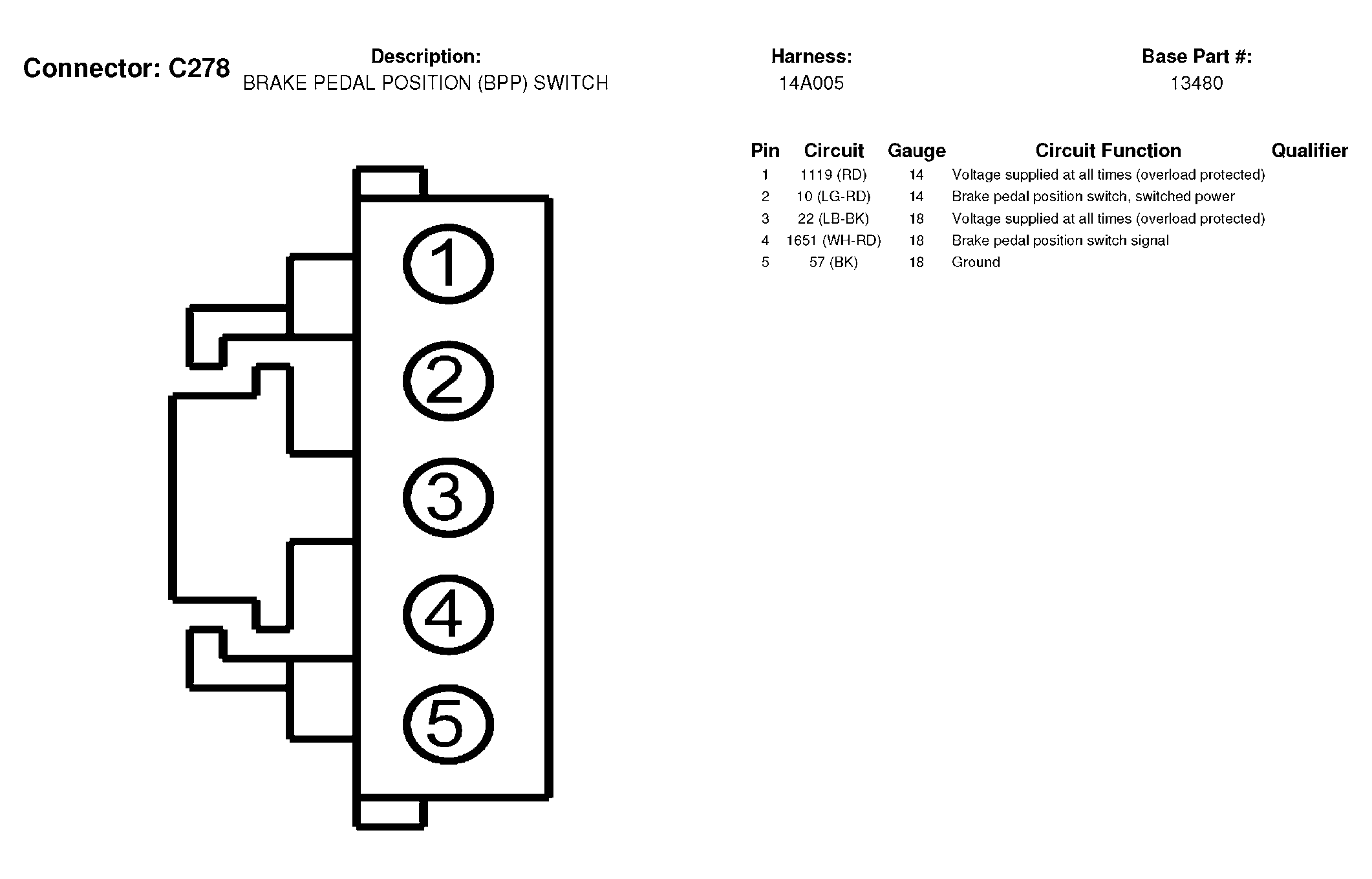

Fig 95: Brake Pedal Position (BPP) Switch Connector End View (C278)

G04595514

Courtesy of FORD MOTOR CO.

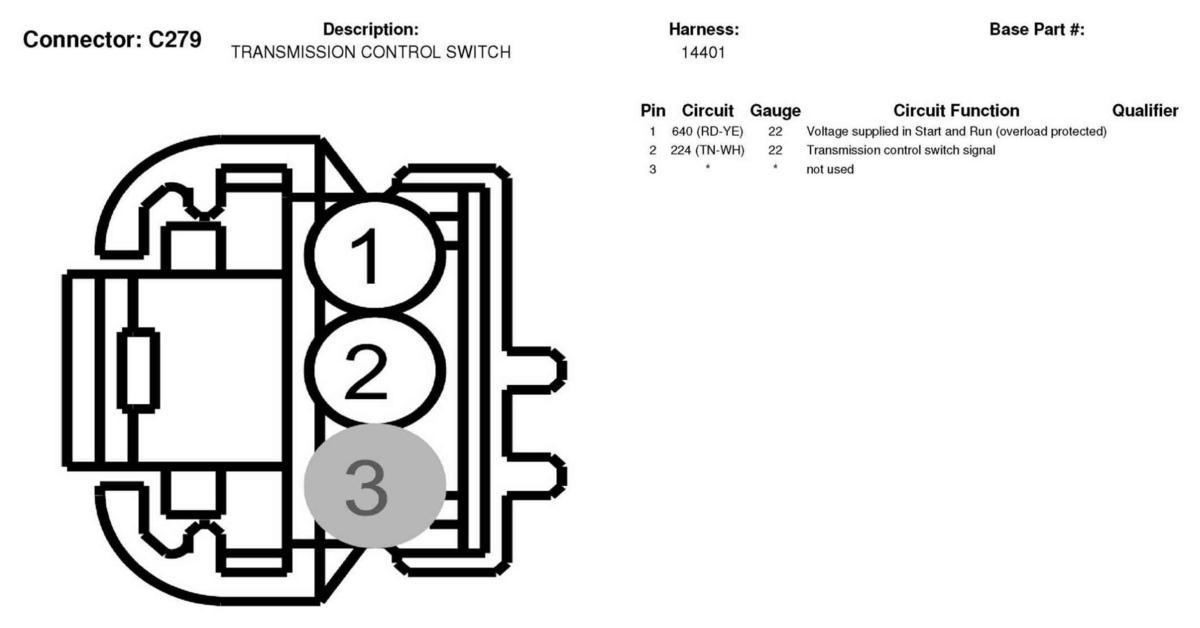

Fig 96: Transmission Control Switch Connector End View (C279)

G04595515

Courtesy of FORD MOTOR CO.

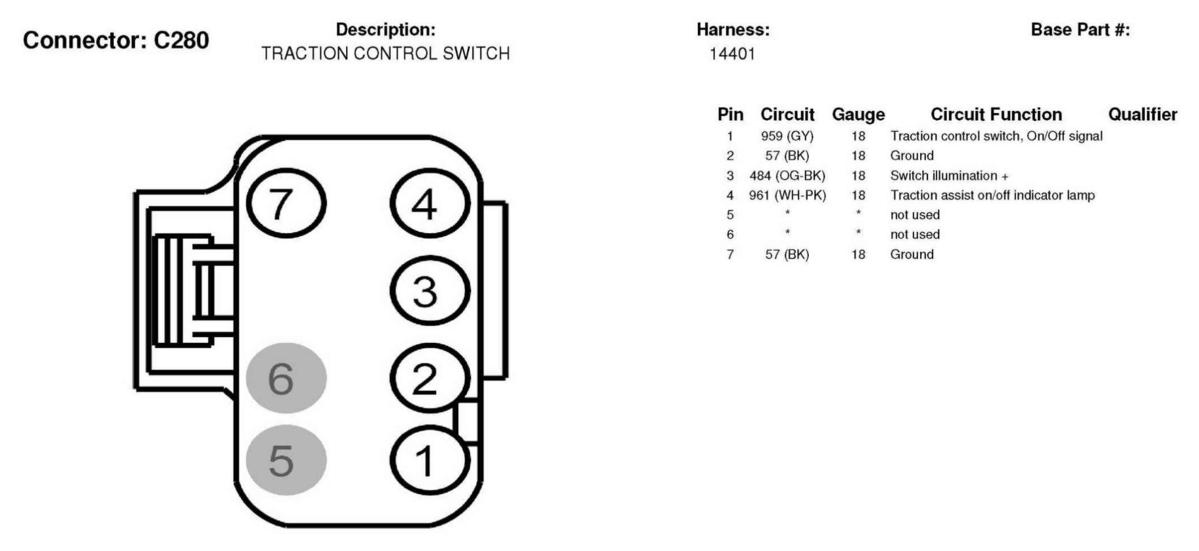

Fig 97: Traction Control Switch Connector End View (C280)

G04595516

Courtesy of FORD MOTOR CO.

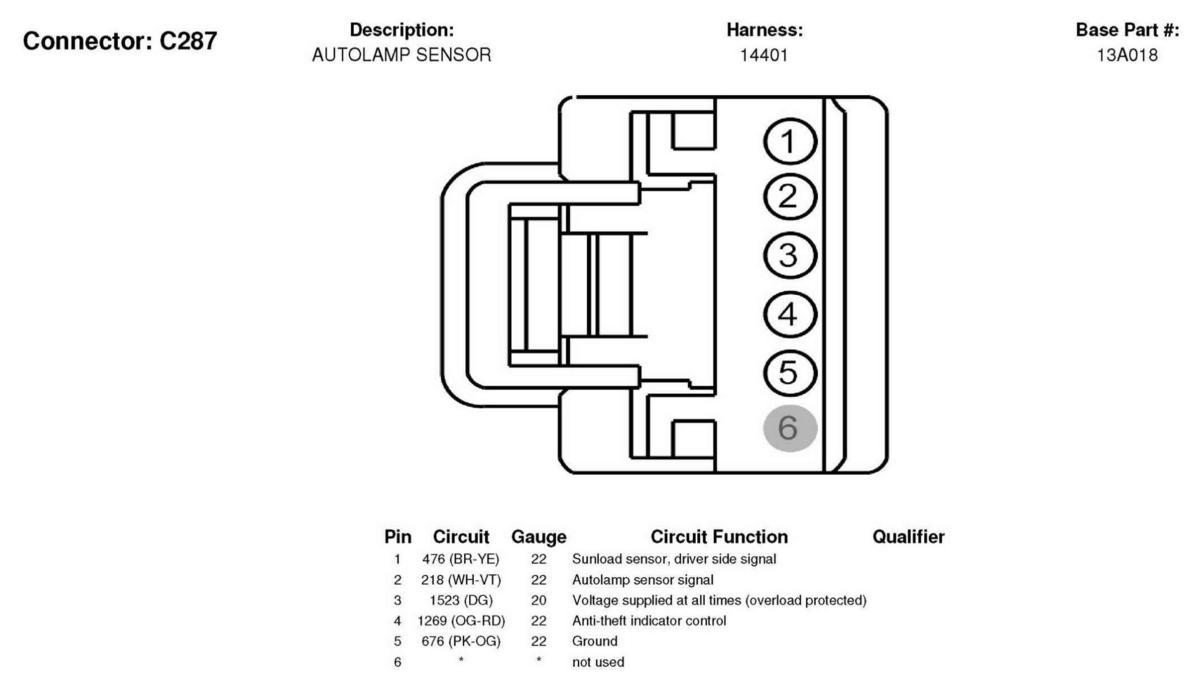

Fig 98: Autolamp Sensor Connector End View (C287)

G04595517

Courtesy of FORD MOTOR CO.

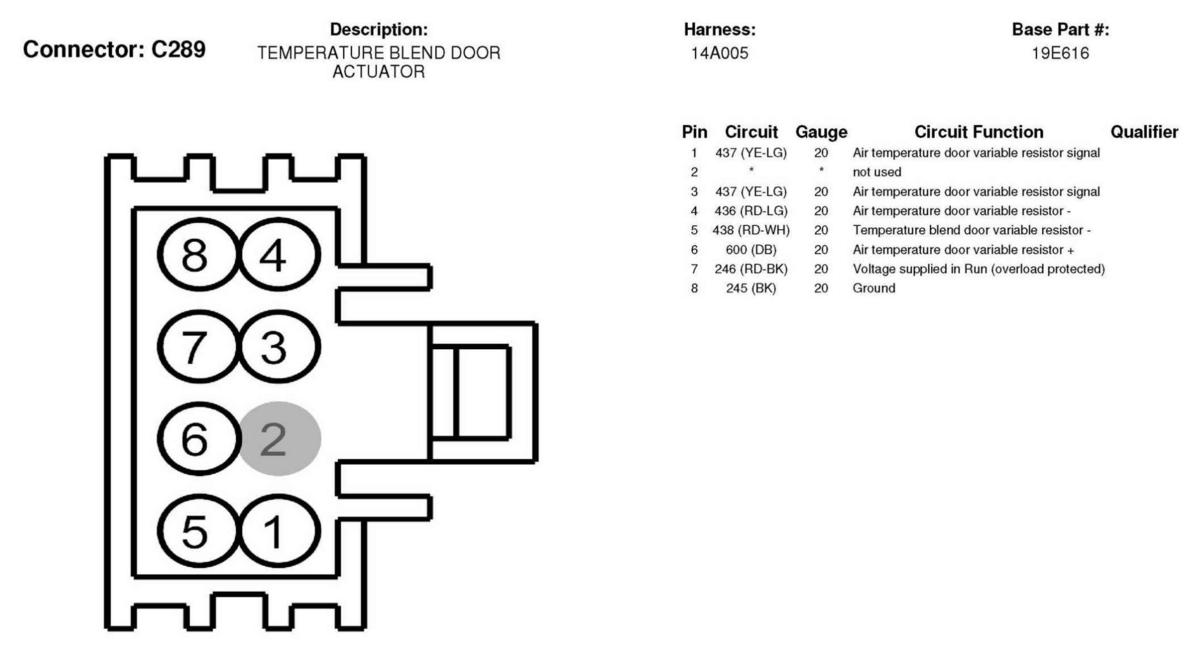

Fig 99: Temperature Blend Door Actuator Connector End View (C289)

G04595518

Courtesy of FORD MOTOR CO.

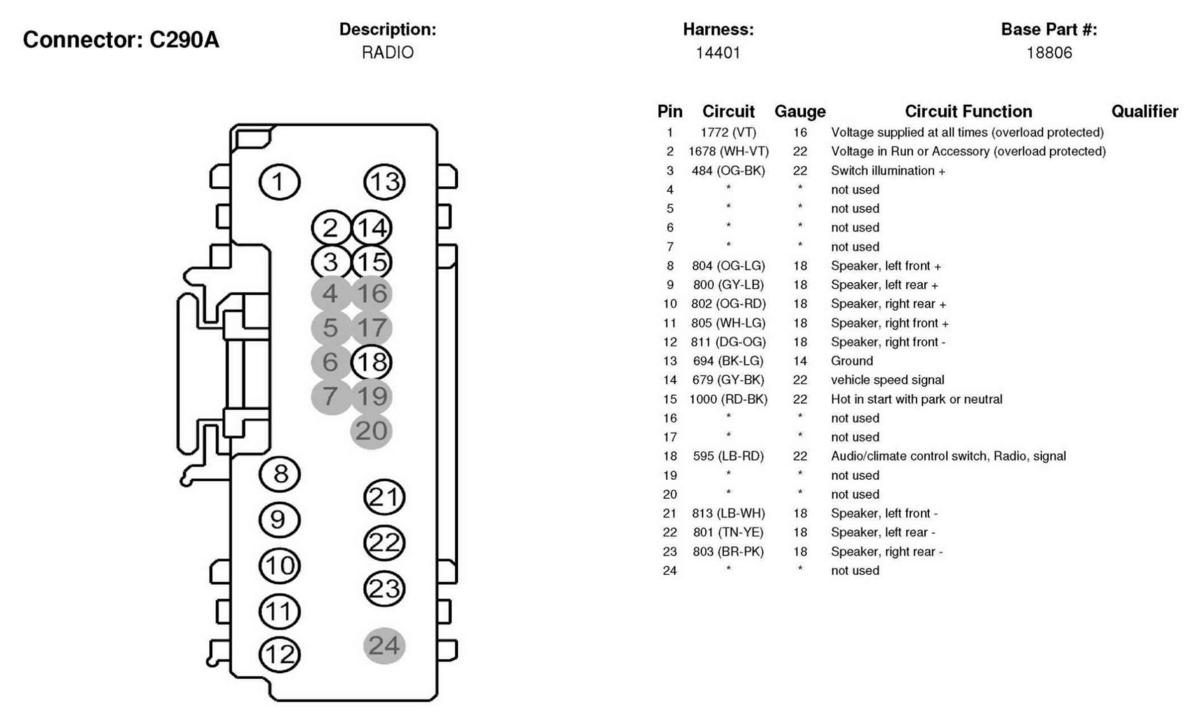

Fig 100: Radio Connector End View (C290A)

G04595519

Courtesy of FORD MOTOR CO.

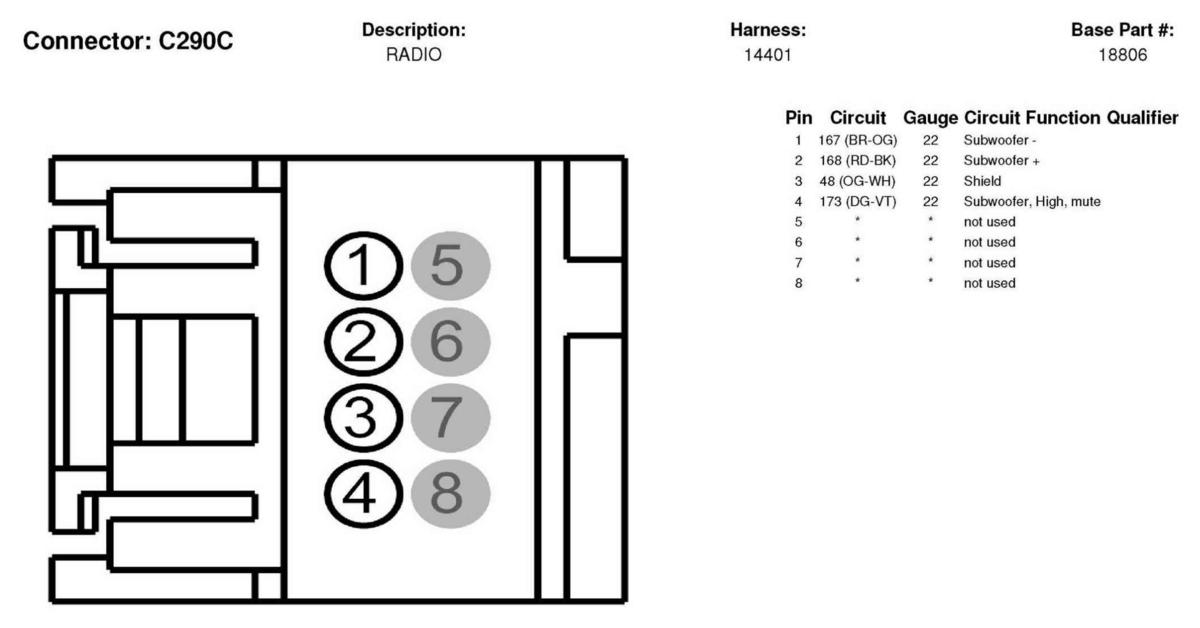

Fig 101: Radio Connector End View (C290C)

G04595520

Courtesy of FORD MOTOR CO.

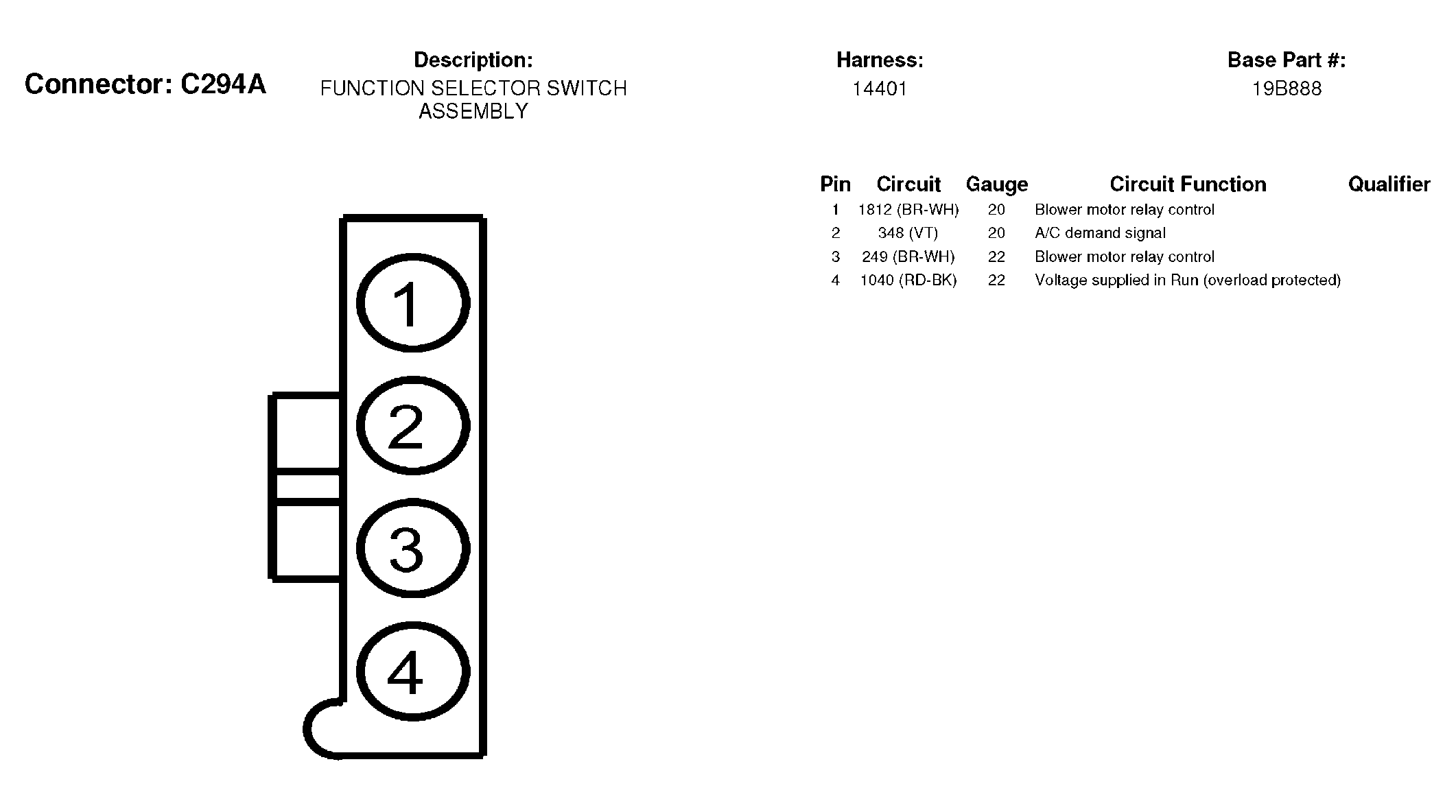

Fig 102: Function Selector Switch Assembly Connector End View (C294A)

G04595521

Courtesy of FORD MOTOR CO.

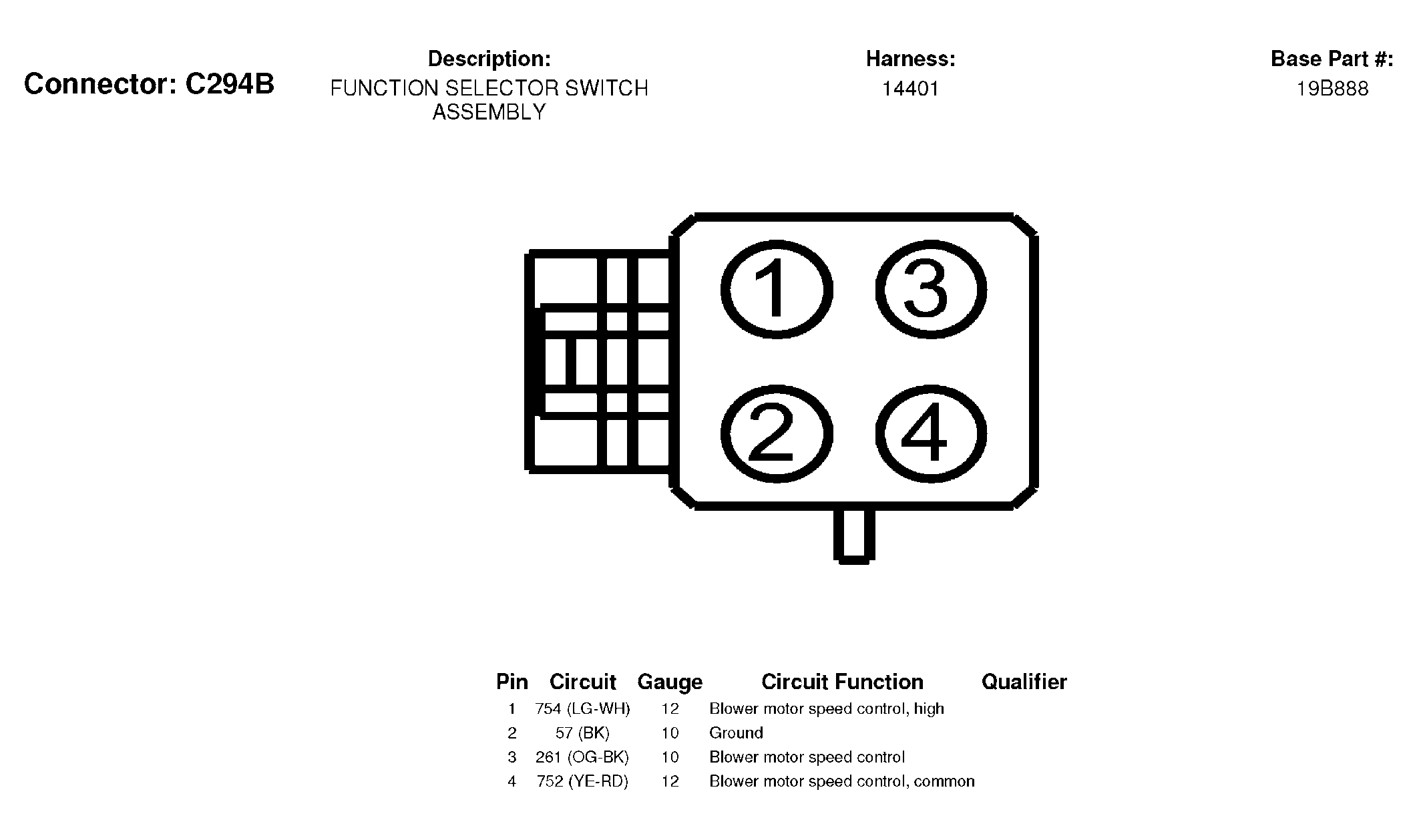

Fig 103: Function Selector Switch Assembly Connector End View (C294B)

G04595522

Courtesy of FORD MOTOR CO.

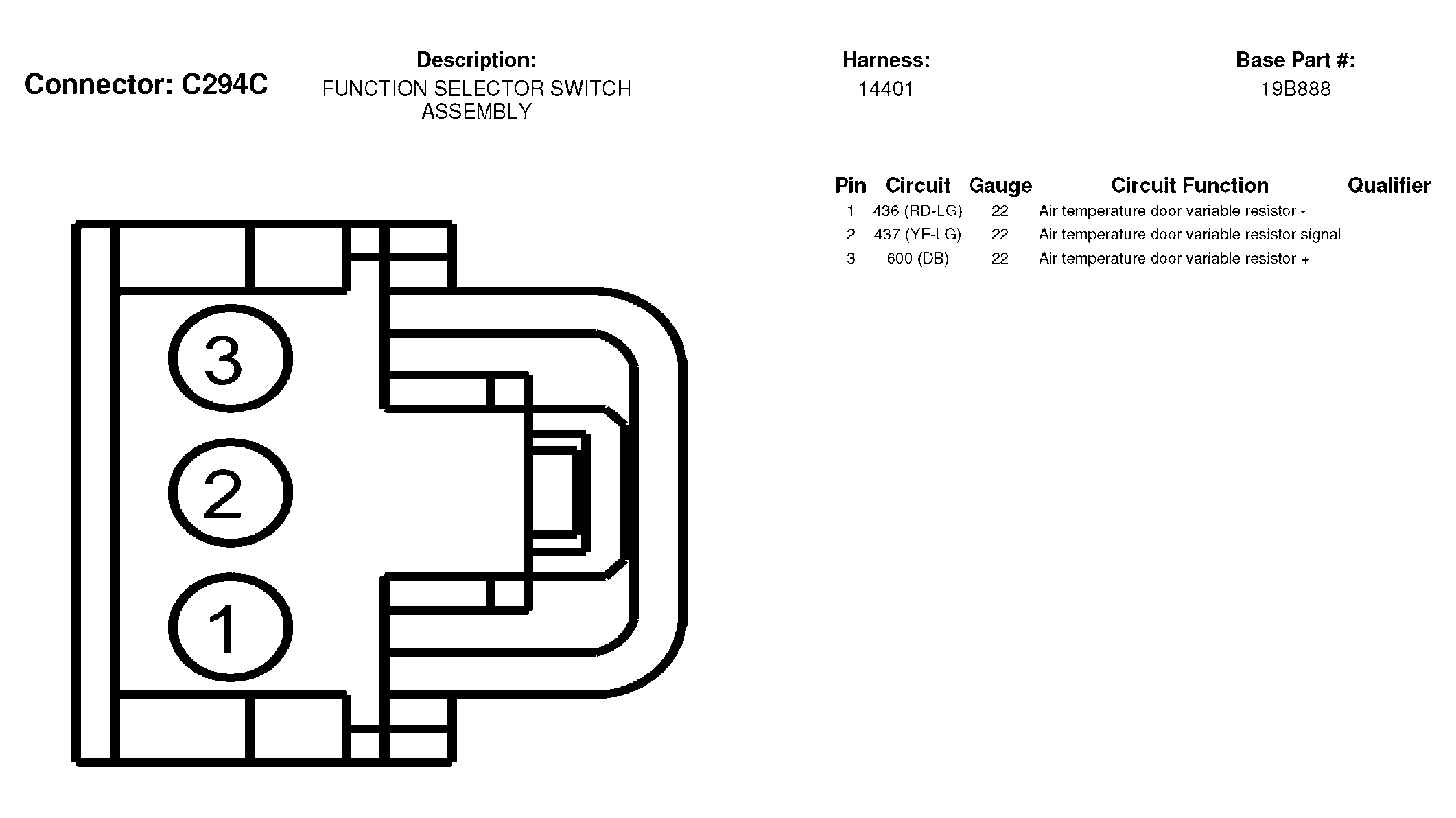

Fig 104: Function Selector Switch Assembly Connector End View (C294C)

G04595523

Courtesy of FORD MOTOR CO.

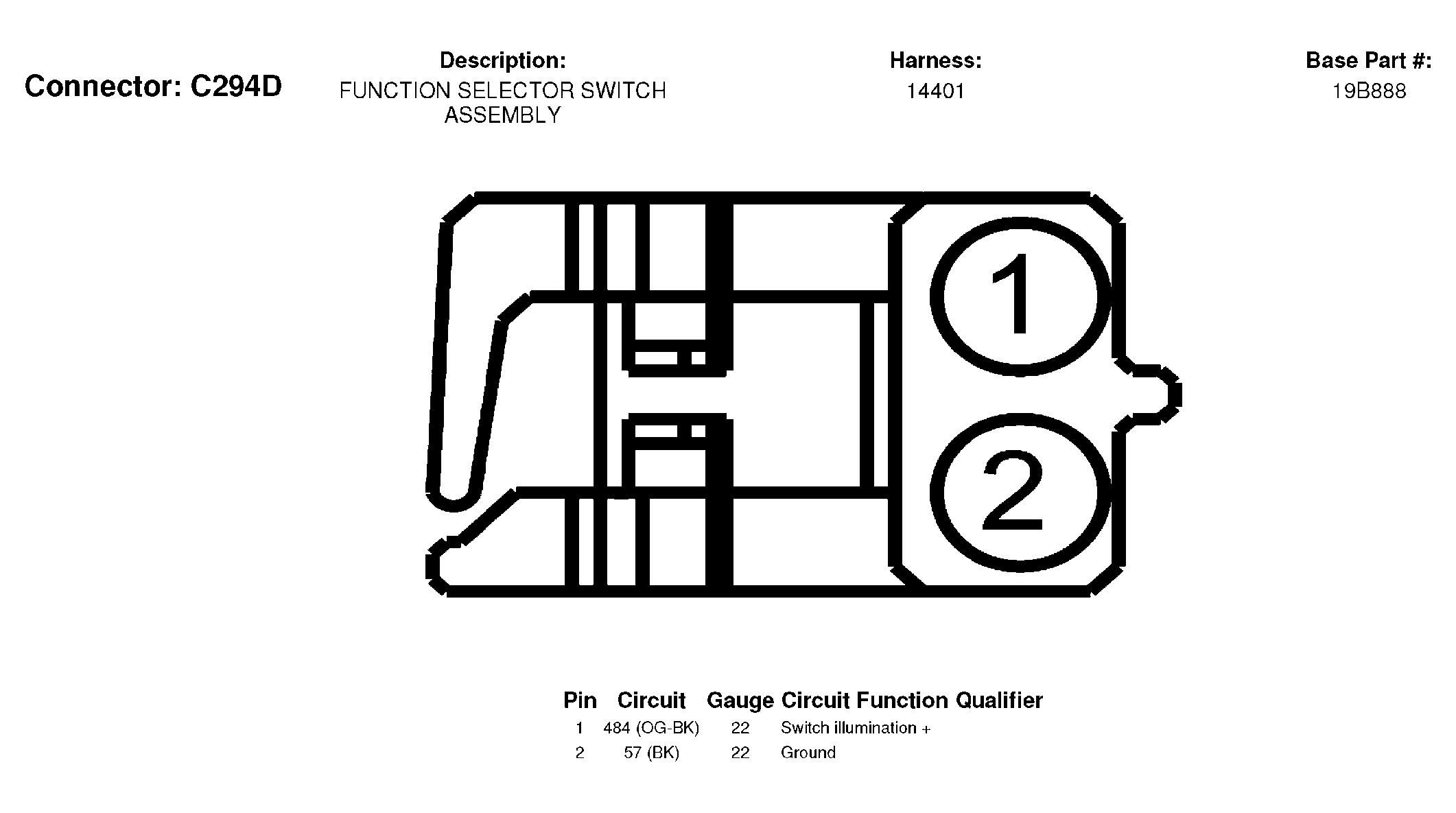

Fig 105: Function Selector Switch Assembly Connector End View (C294D)

G04595524

Courtesy of FORD MOTOR CO.

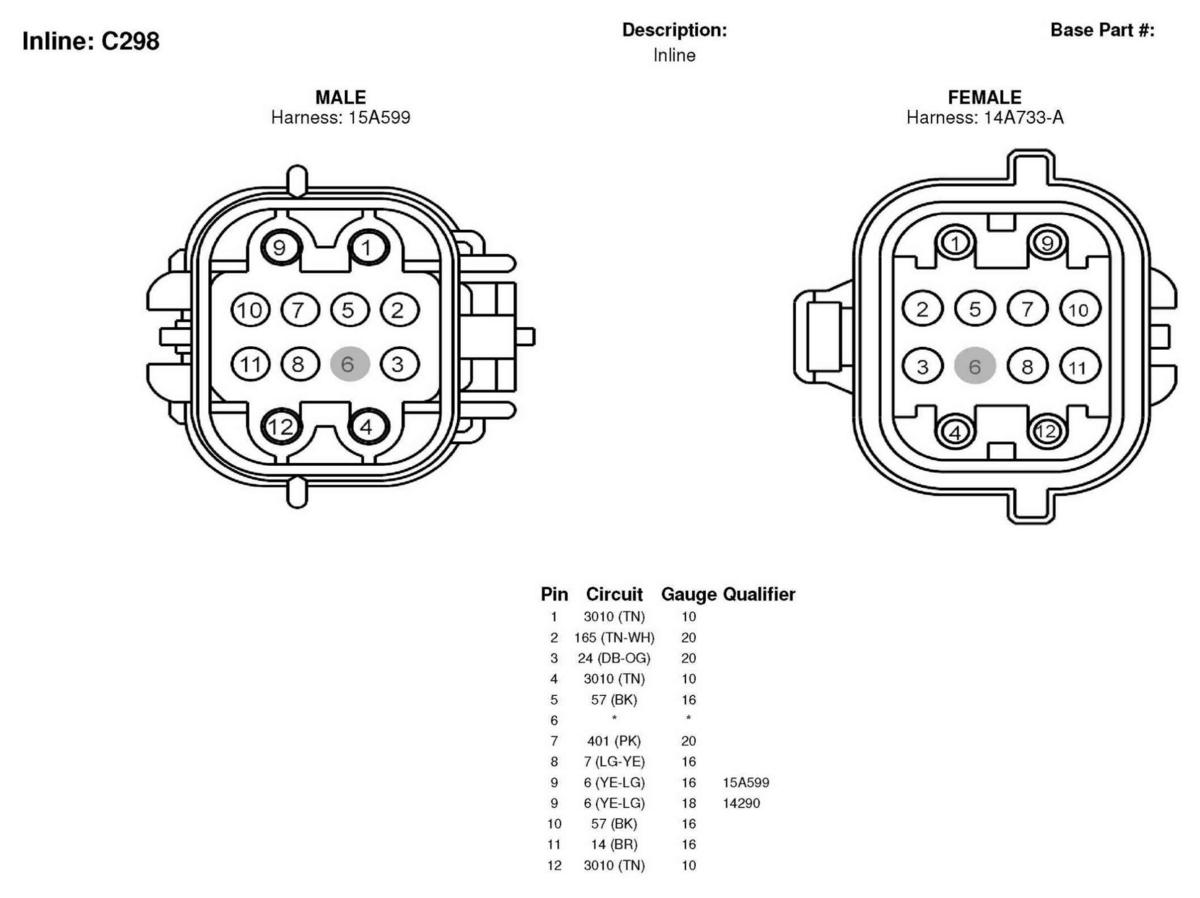

Fig 106: Inline Connector End View (C298)

G04595525

Courtesy of FORD MOTOR CO.

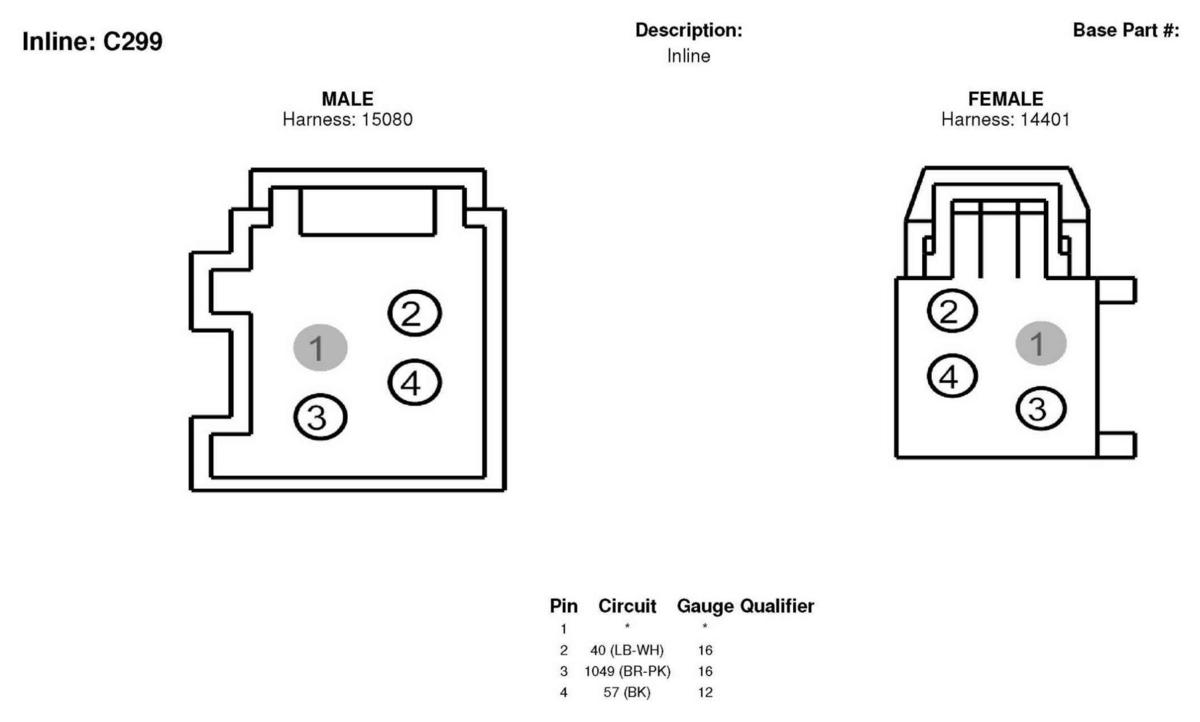

Fig 107: Inline Connector End View (C299)

G04595526

Courtesy of FORD MOTOR CO.

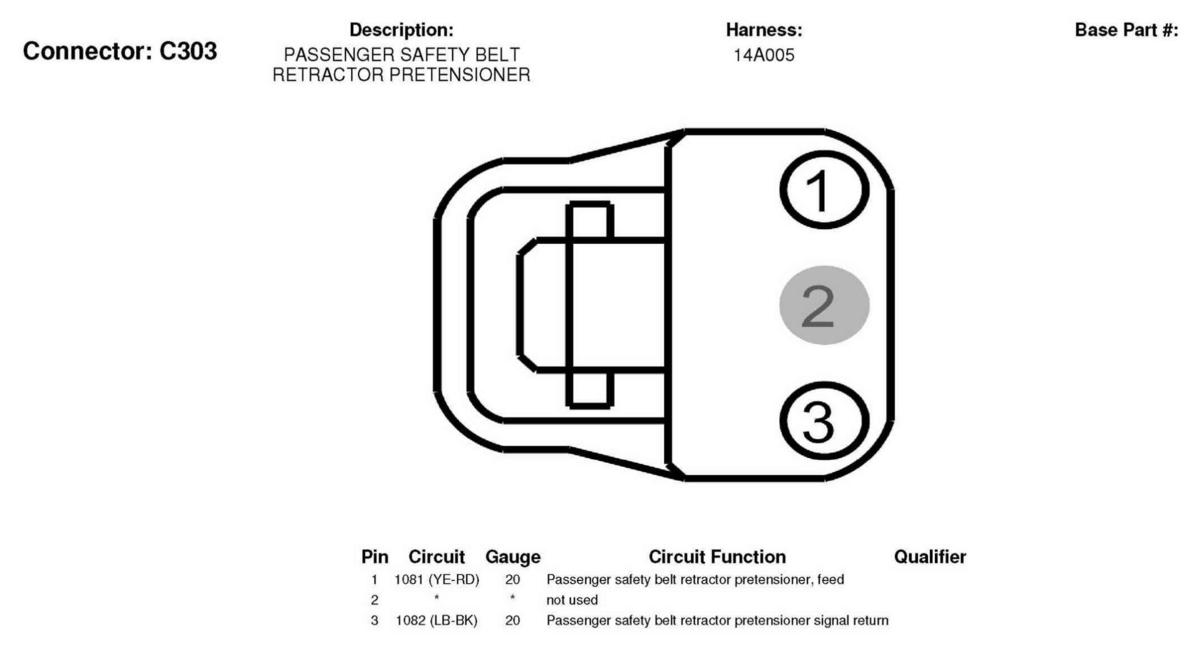

Fig 108: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)

G04595527

Courtesy of FORD MOTOR CO.

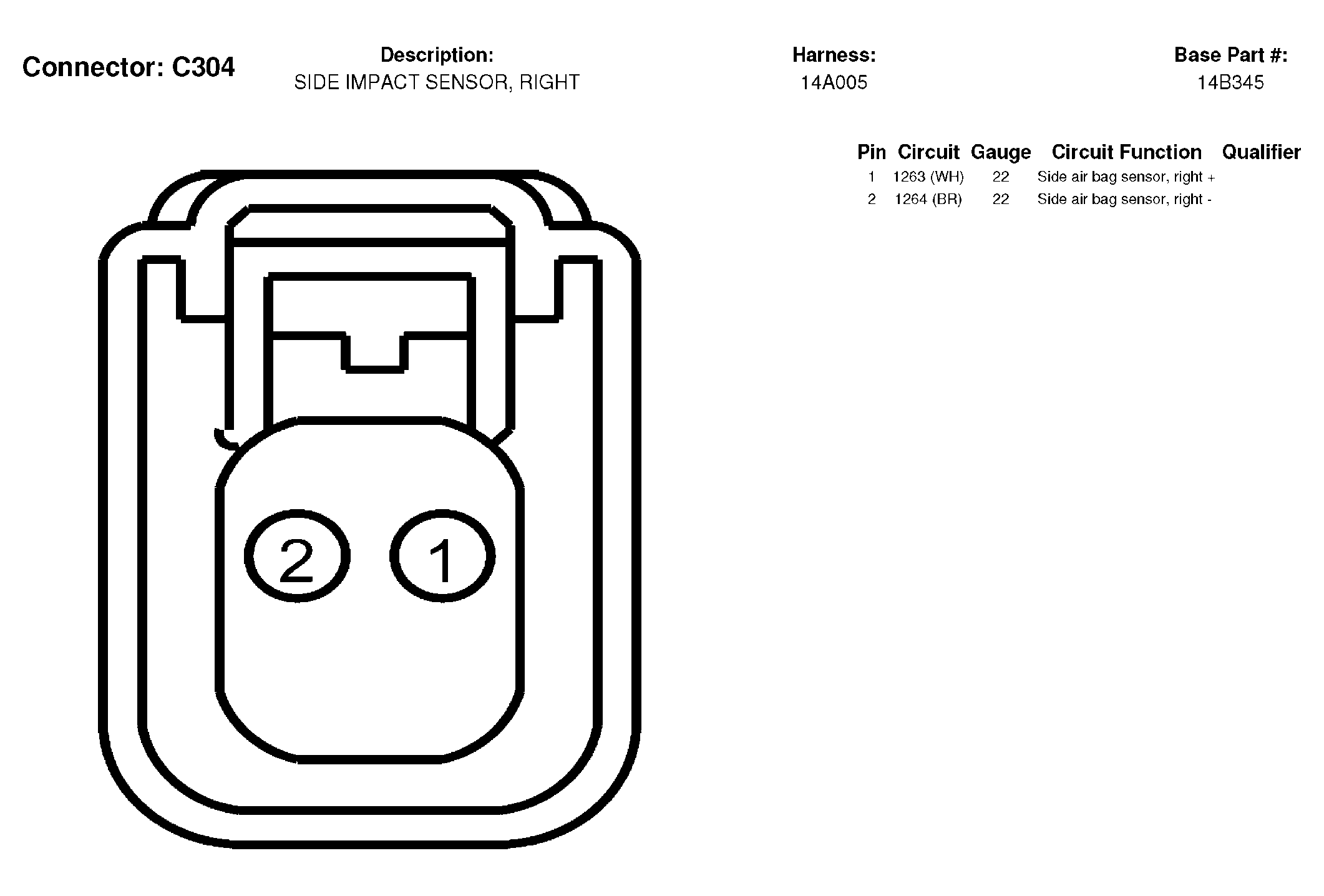

Fig 109: Side Impact Sensor, Right Connector End View (C304)

G04595528

Courtesy of FORD MOTOR CO.

Fig 110: Side Impact Sensor, Left Connector End View (C305)

G04595529

Courtesy of FORD MOTOR CO.

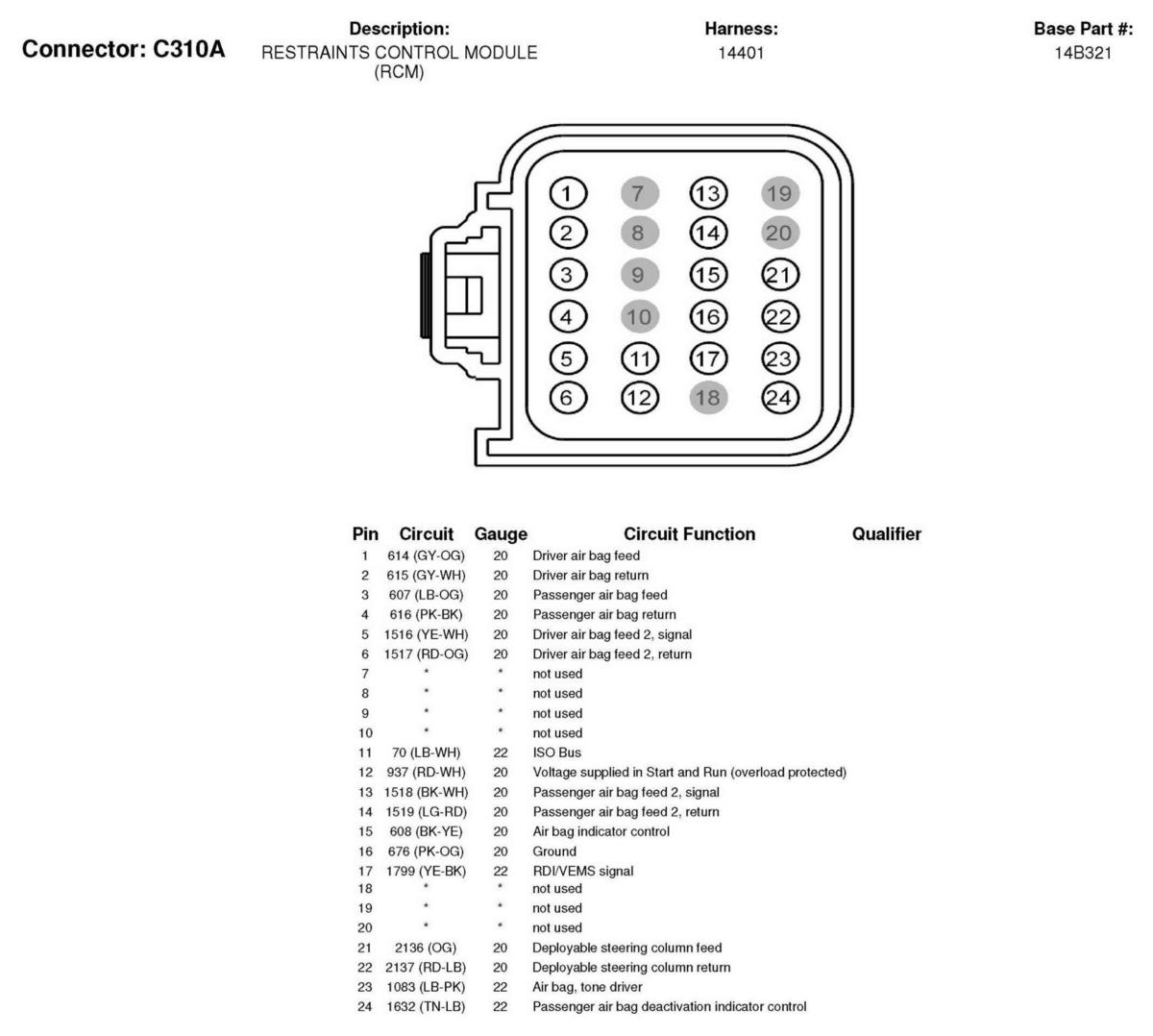

Fig 111: Restraints Control Module (RCM) Connector End View (C310A)

G04595530

Courtesy of FORD MOTOR CO.

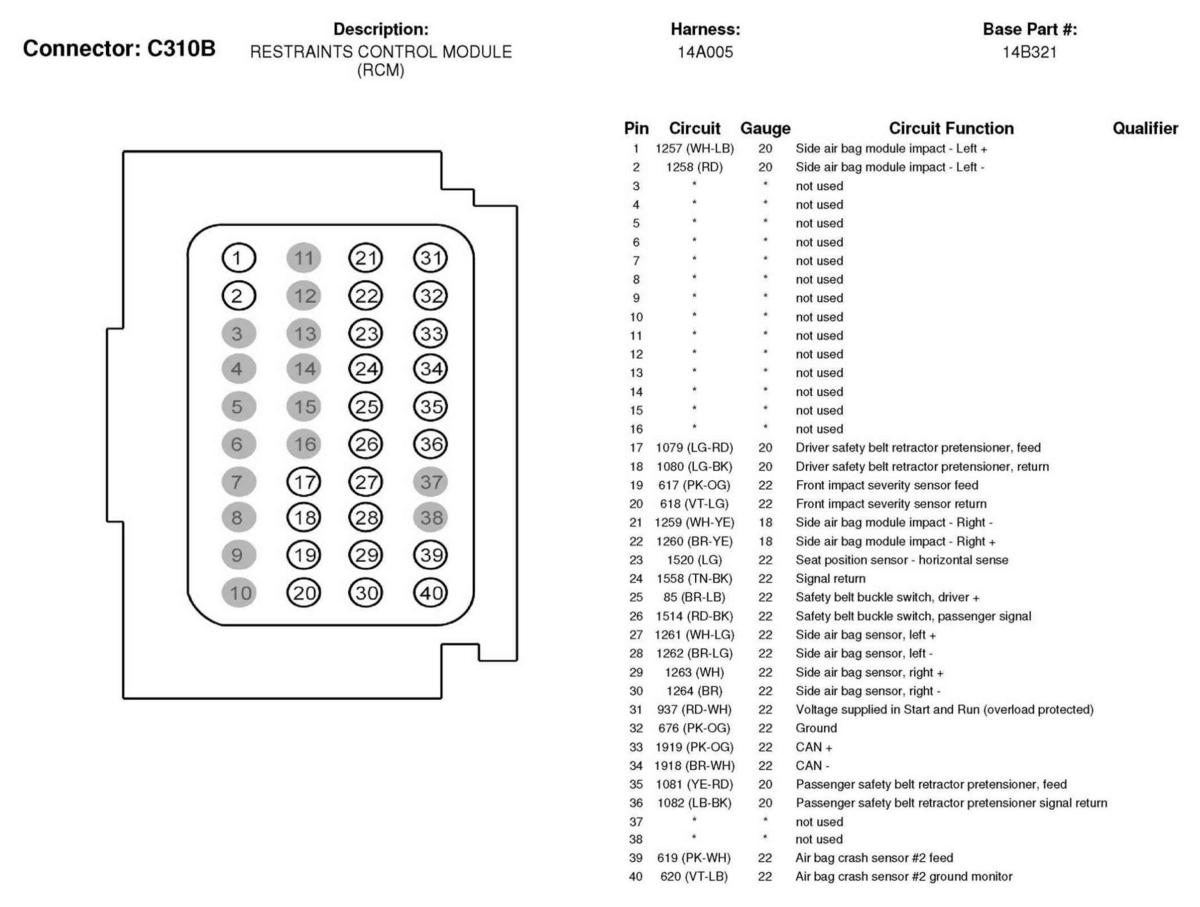

Fig 112: Restraints Control Module (RCM) Connector End View (C310B)

G04595531

Courtesy of FORD MOTOR CO.

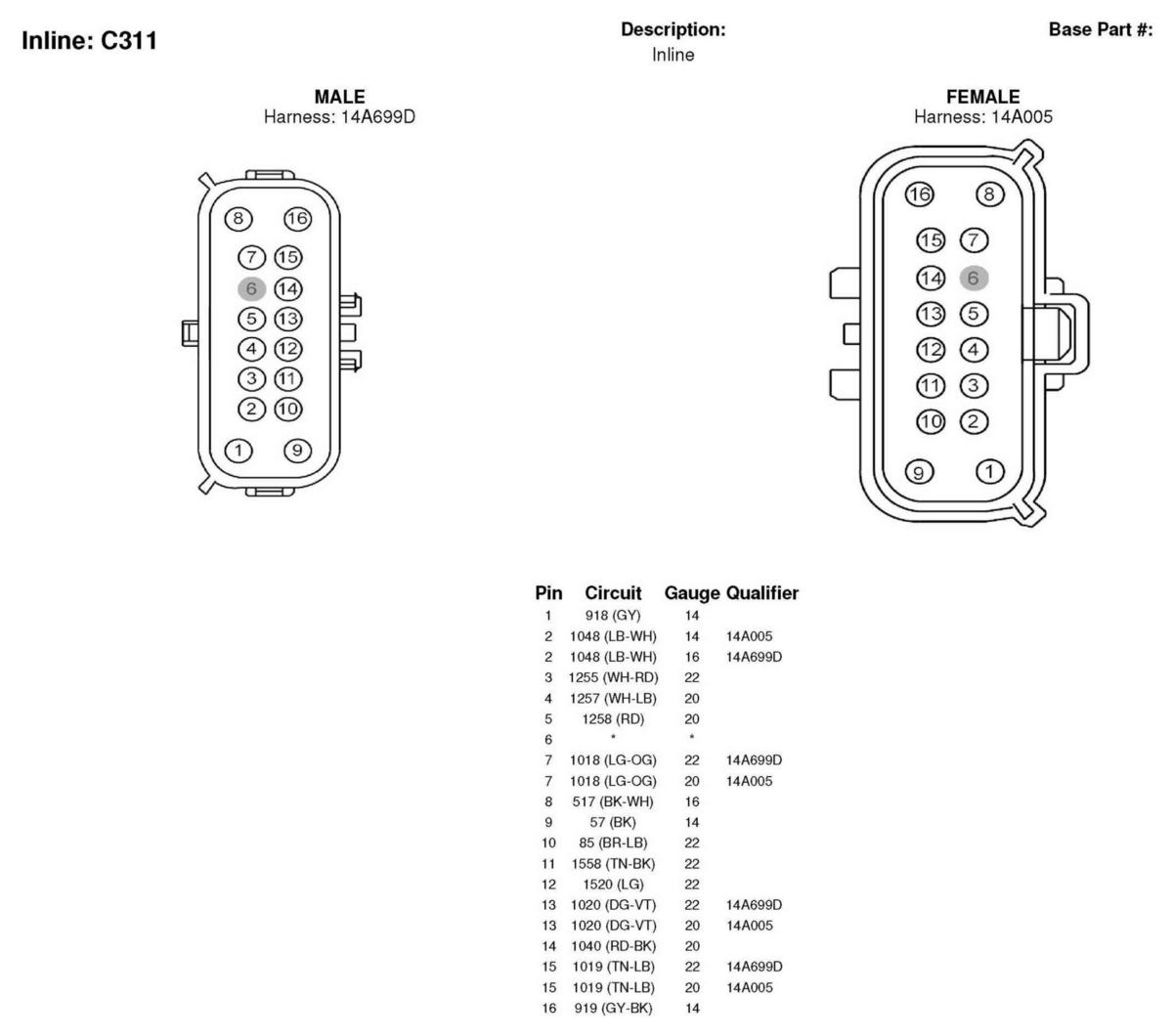

Fig 113: Inline Connector End View (C311)

G04595532

Courtesy of FORD MOTOR CO.

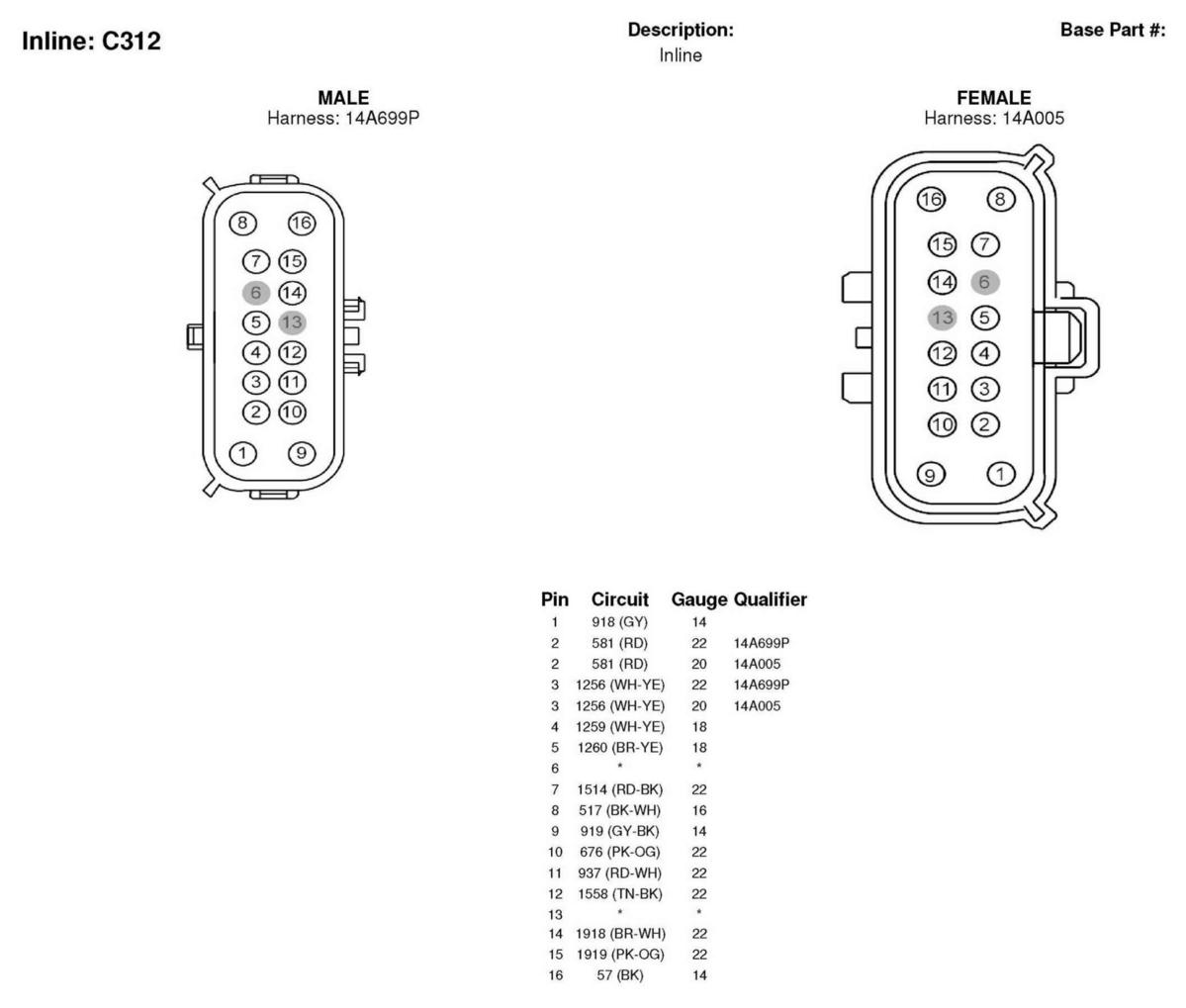

Fig 114: Inline Connector End View (C312)

G04595533

Courtesy of FORD MOTOR CO.

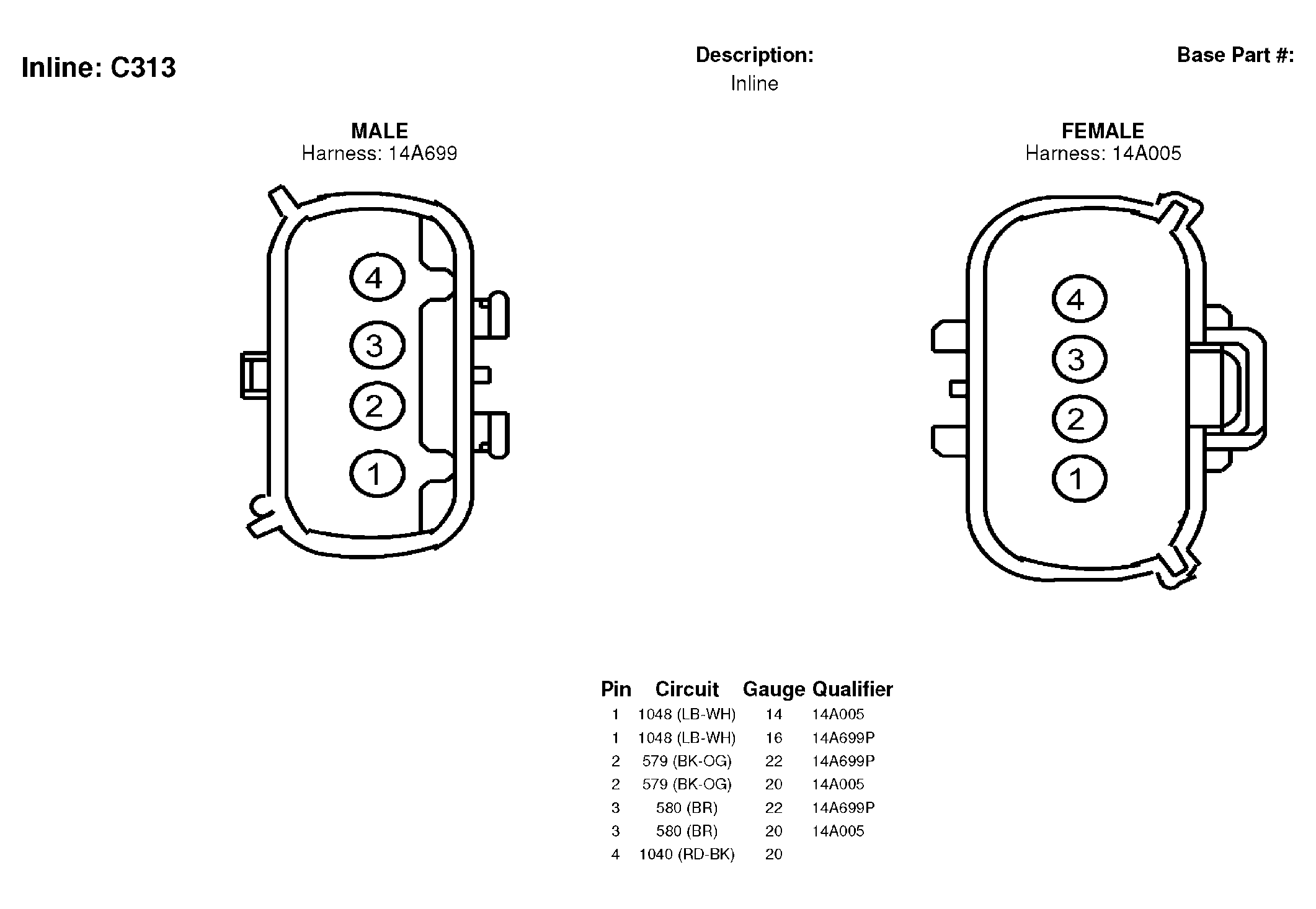

Fig 115: Inline Connector End View (C313)

G04595534

Courtesy of FORD MOTOR CO.

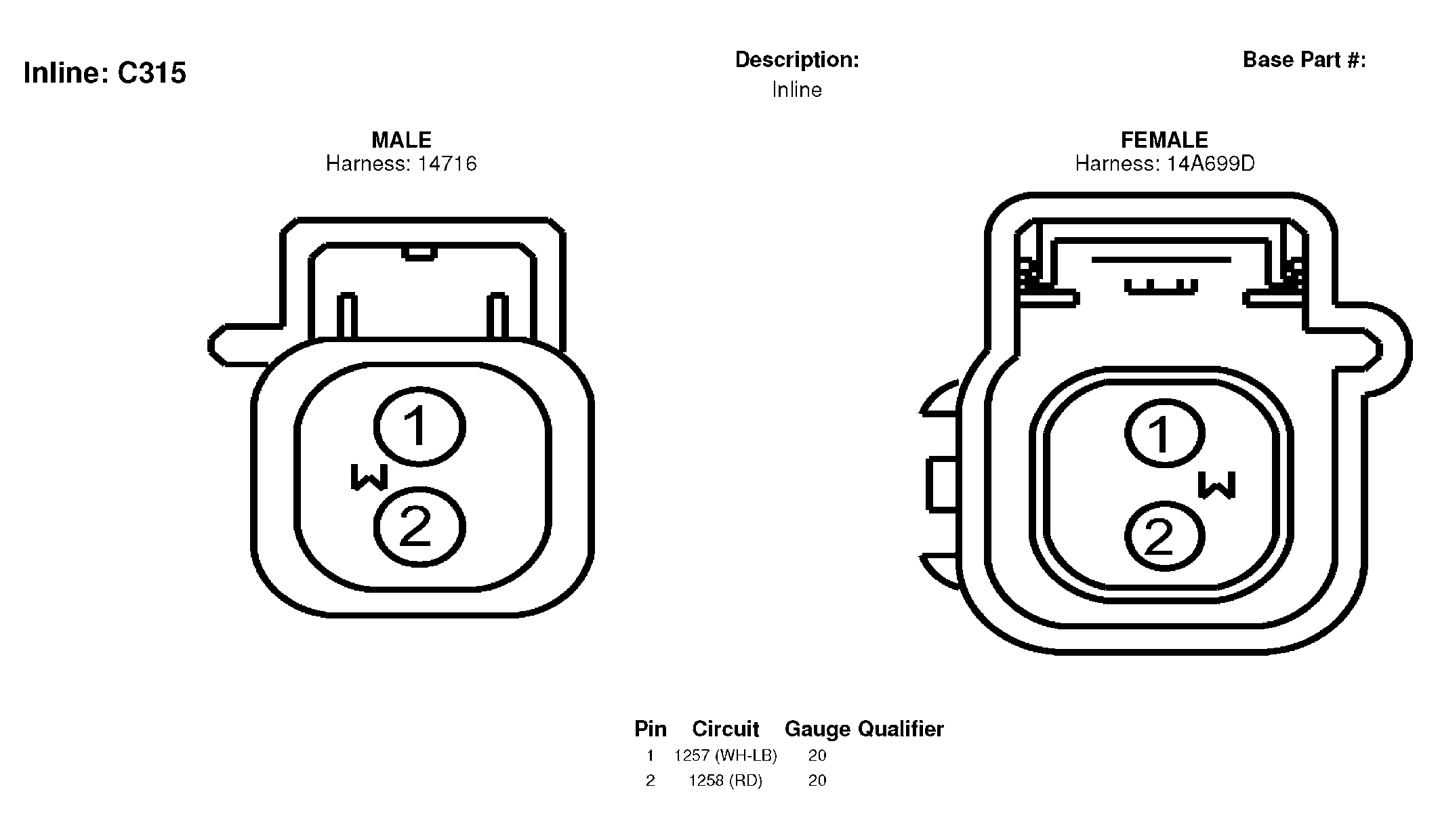

Fig 116: Inline Connector End View (C315)

G04595535

Courtesy of FORD MOTOR CO.

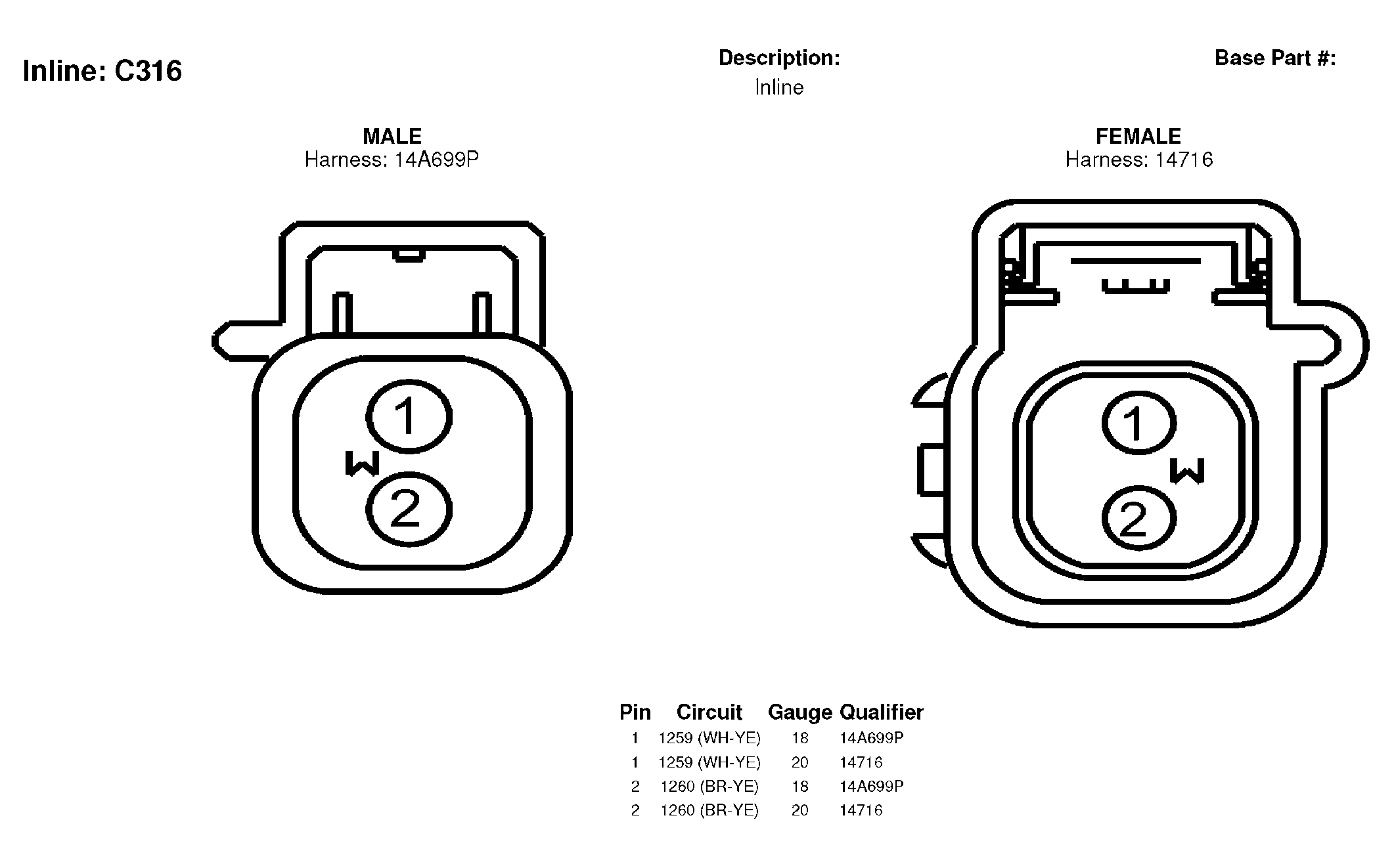

Fig 117: Inline Connector End View (C316)

G04595536

Courtesy of FORD MOTOR CO.

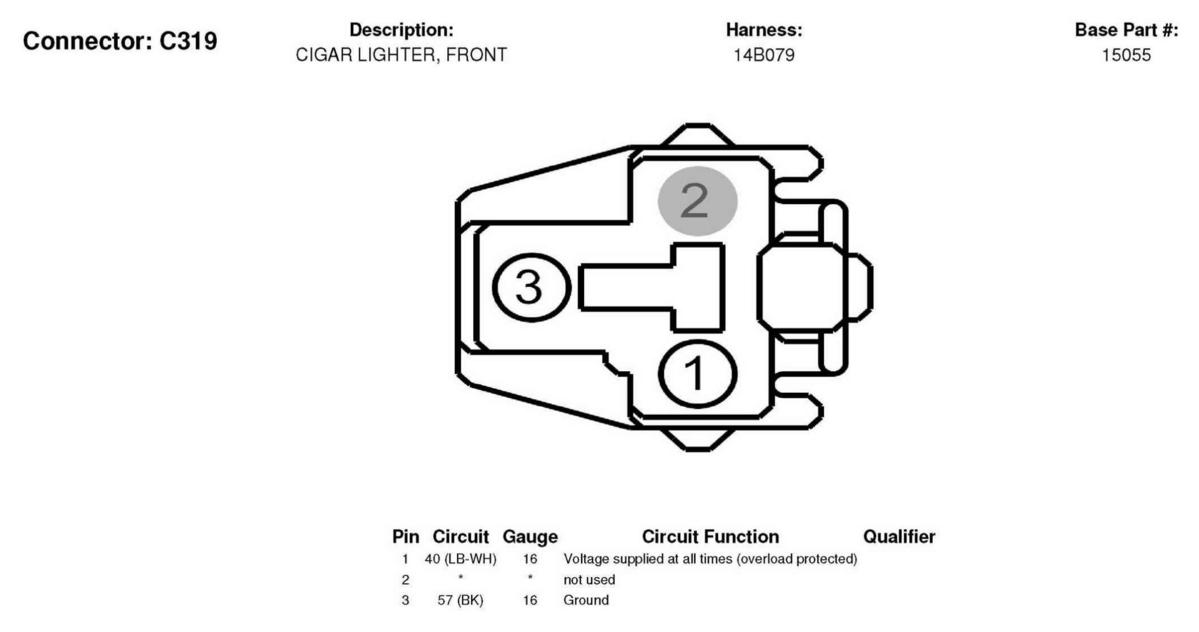

Fig 118: Cigar Lighter, Front Connector End View (C319)

G04595537

Courtesy of FORD MOTOR CO.

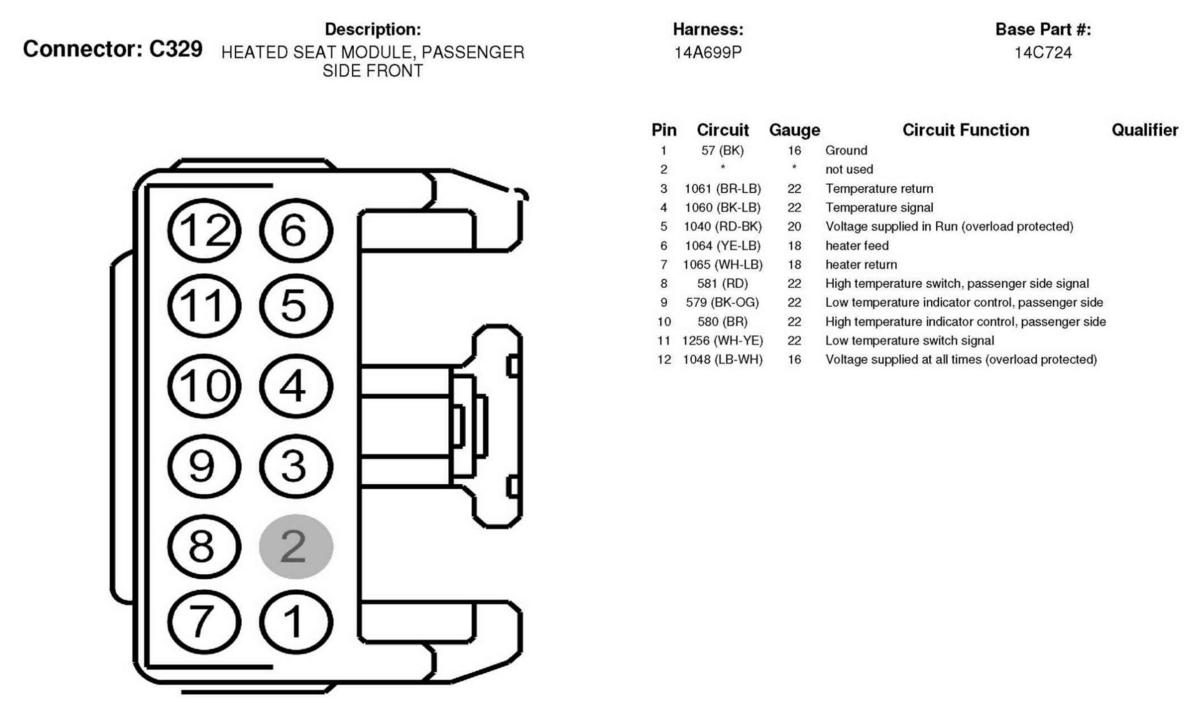

Fig 119: Heated Seat Module, Passenger Side Front Connector End View (C329)

G04595538

Courtesy of FORD MOTOR CO.

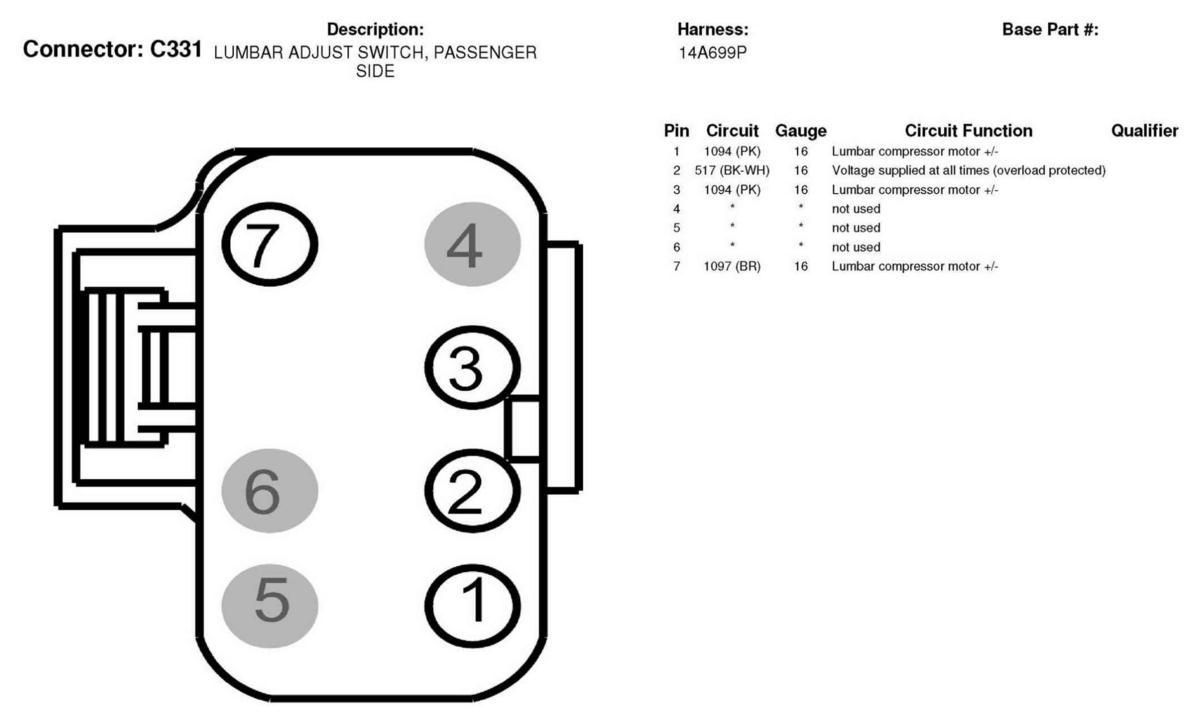

Fig 120: Lumbar Adjust Switch, Passenger Side Connector End View (C331)

G04595539

Courtesy of FORD MOTOR CO.

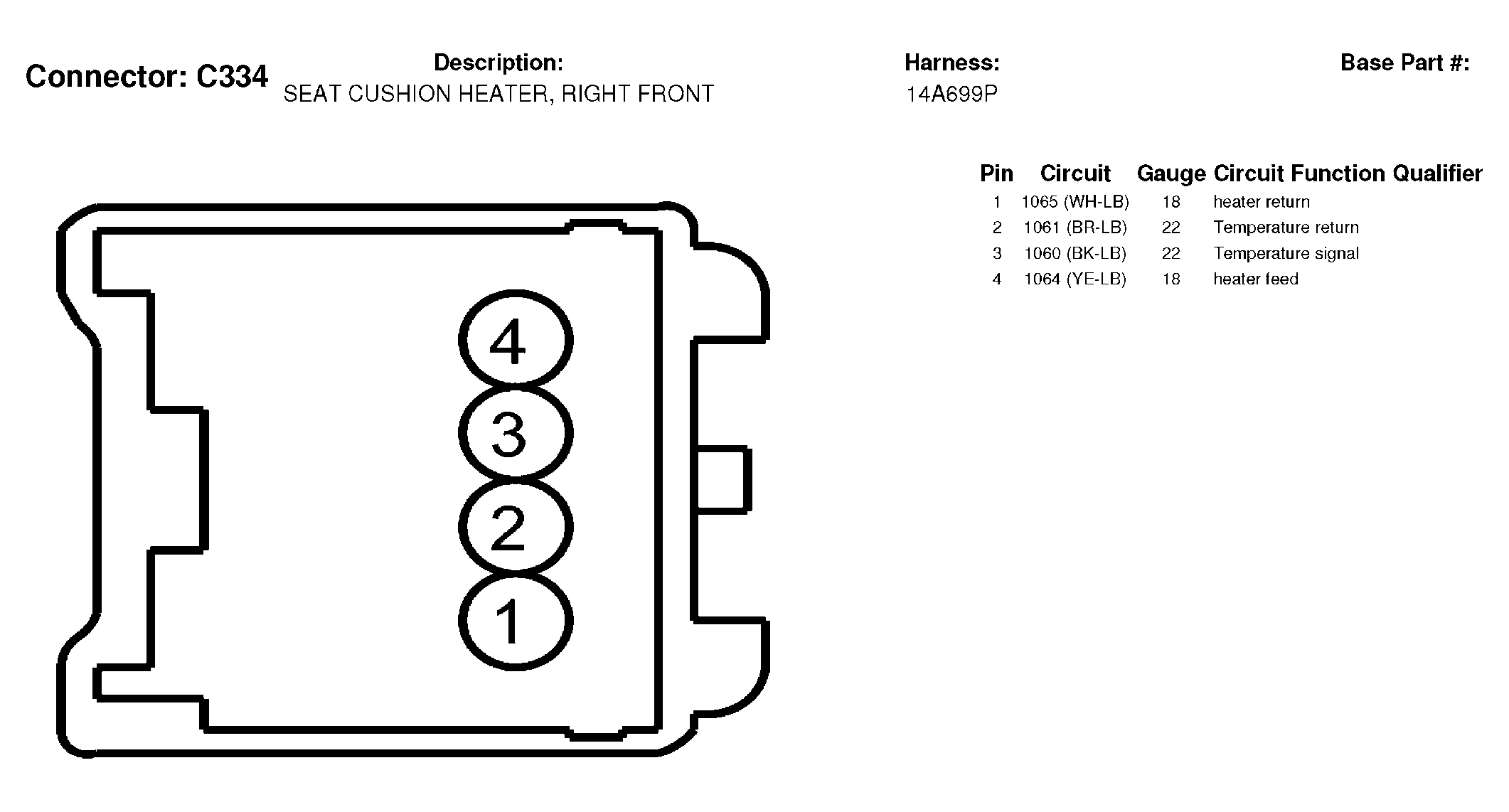

Fig 121: Seat Cushion Heater, Right Front Connector End View (C334)

G04595540

Courtesy of FORD MOTOR CO.

Fig 122: Passenger Seat Lumbar Compressor Motor Connector End View (C336)

G04595541

Courtesy of FORD MOTOR CO.

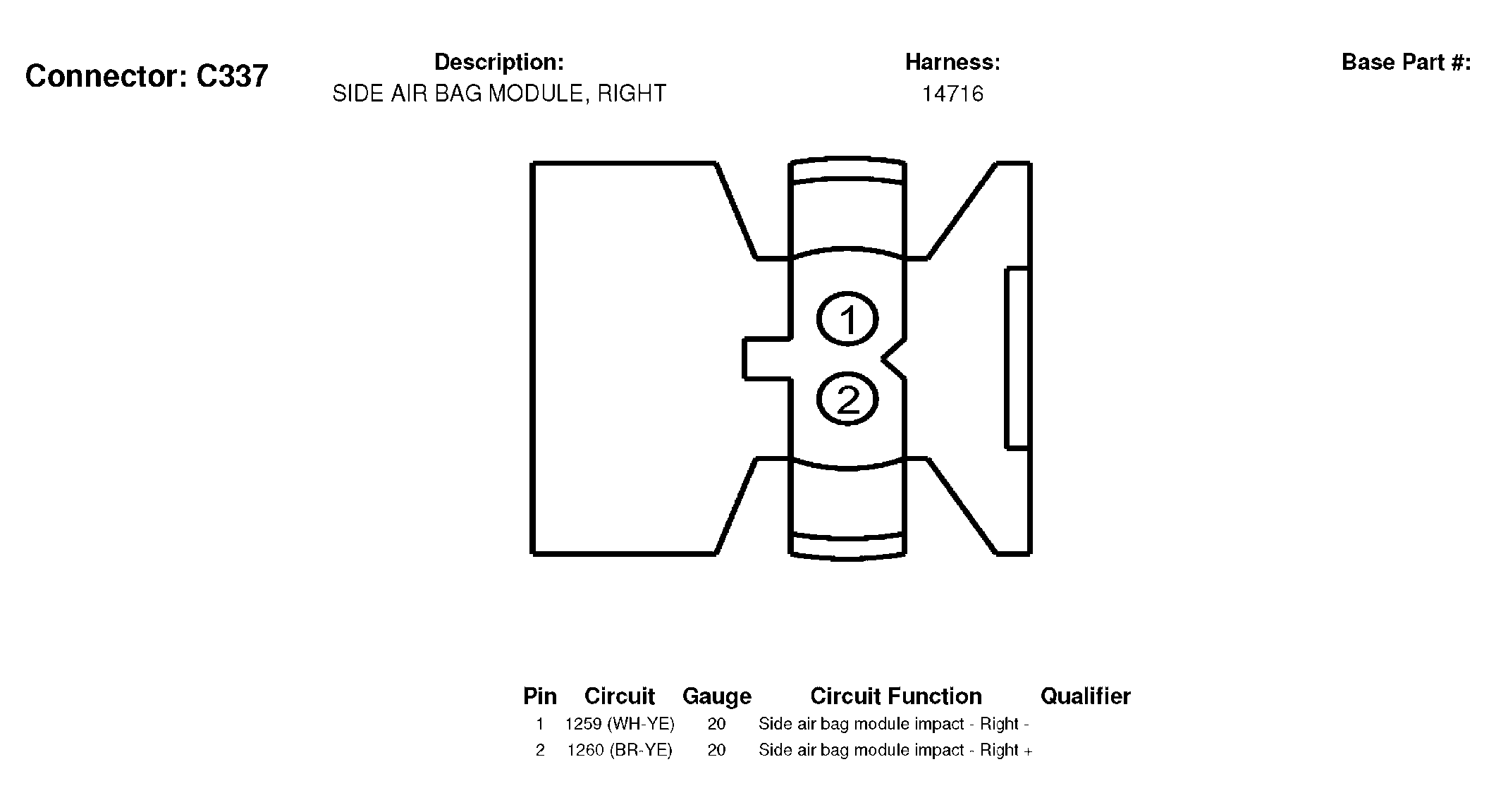

Fig 123: Side Air Bag Module, Right Connector End View (C337)

G04595542

Courtesy of FORD MOTOR CO.

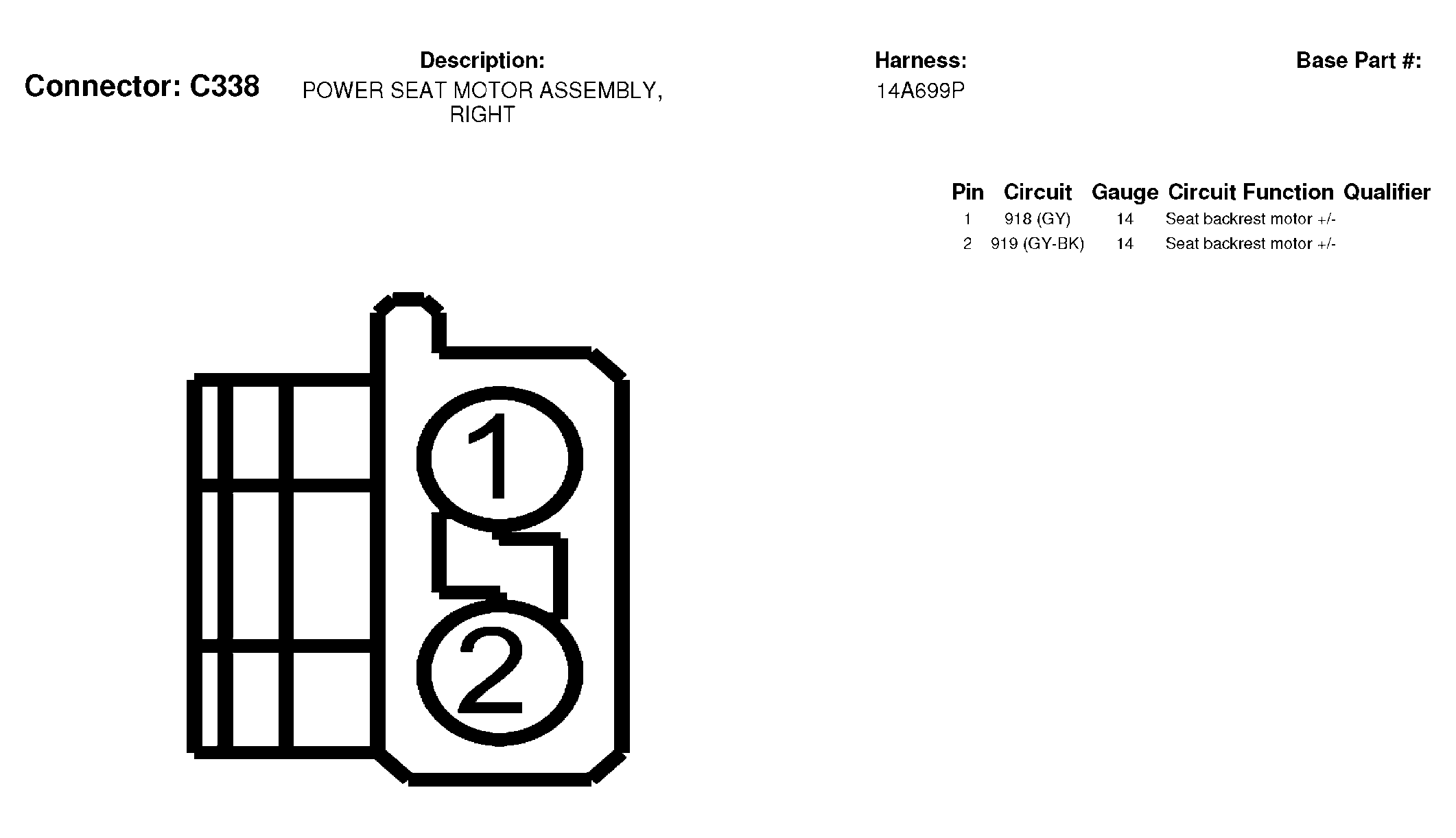

Fig 124: Power Seat Motor Assembly, Right Connector End View (C338)

G04595543

Courtesy of FORD MOTOR CO.

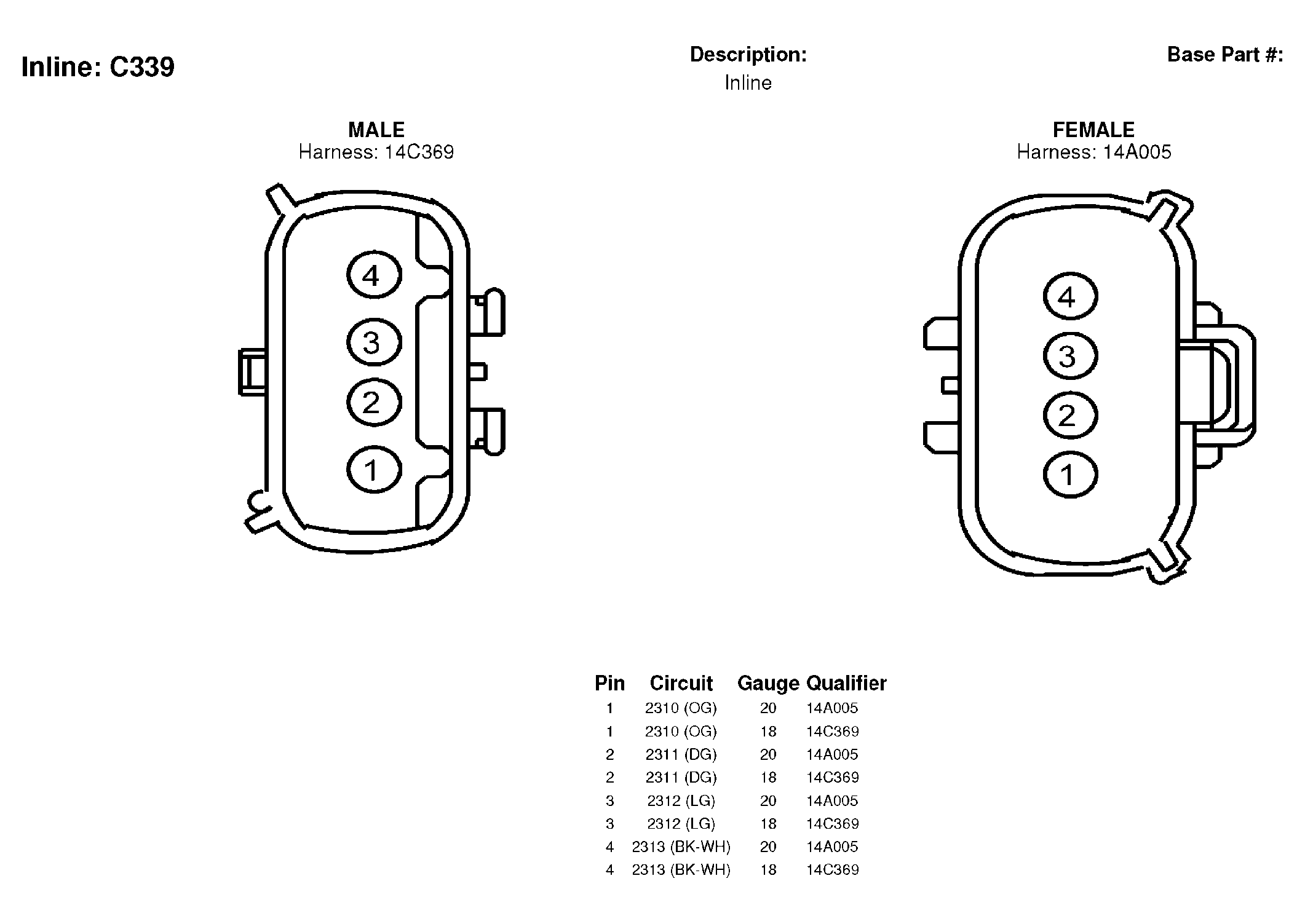

Fig 125: Inline Connector End View (C339)

G04595544

Courtesy of FORD MOTOR CO.

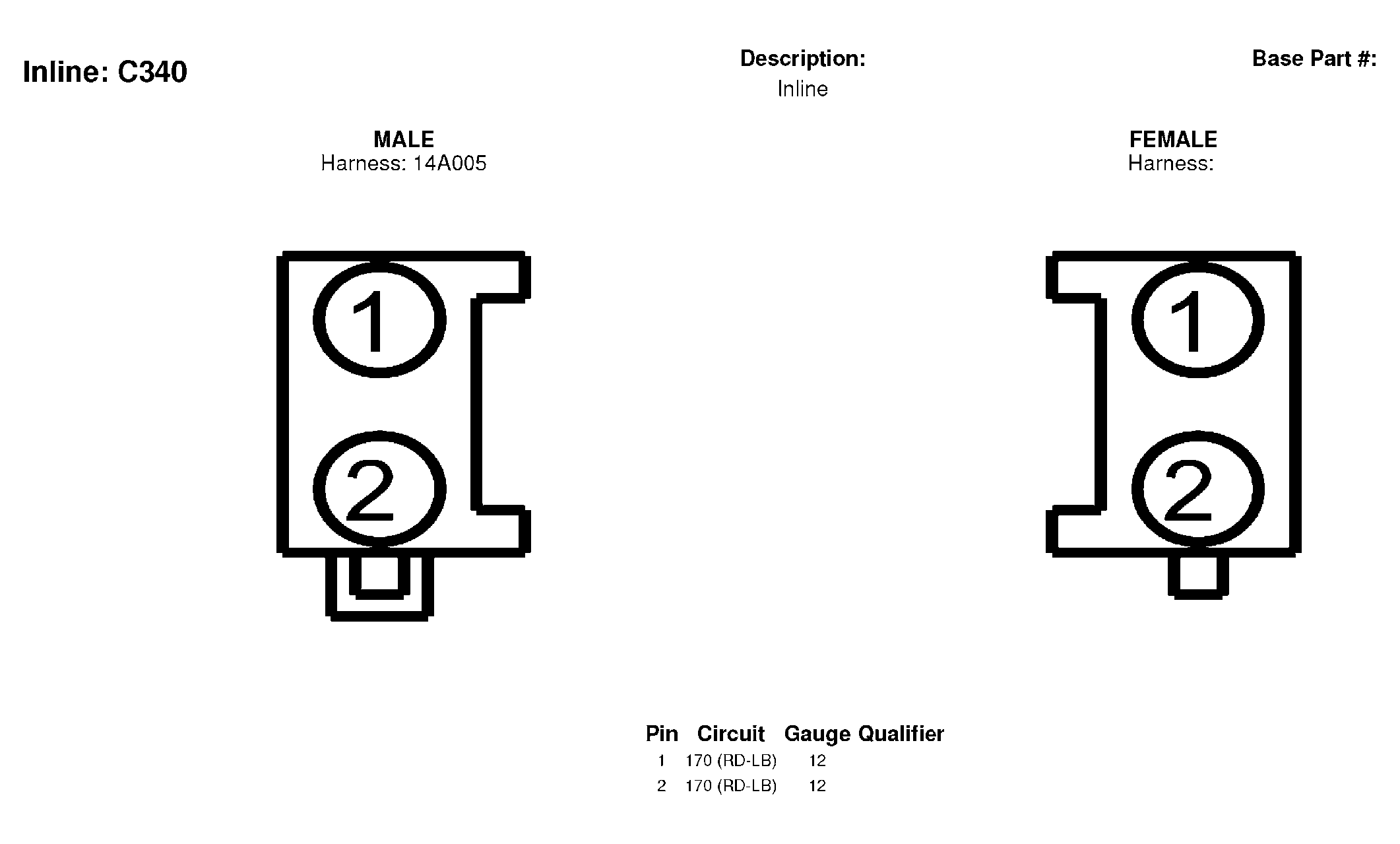

Fig 126: Inline Connector End View (C340)

G04595545

Courtesy of FORD MOTOR CO.

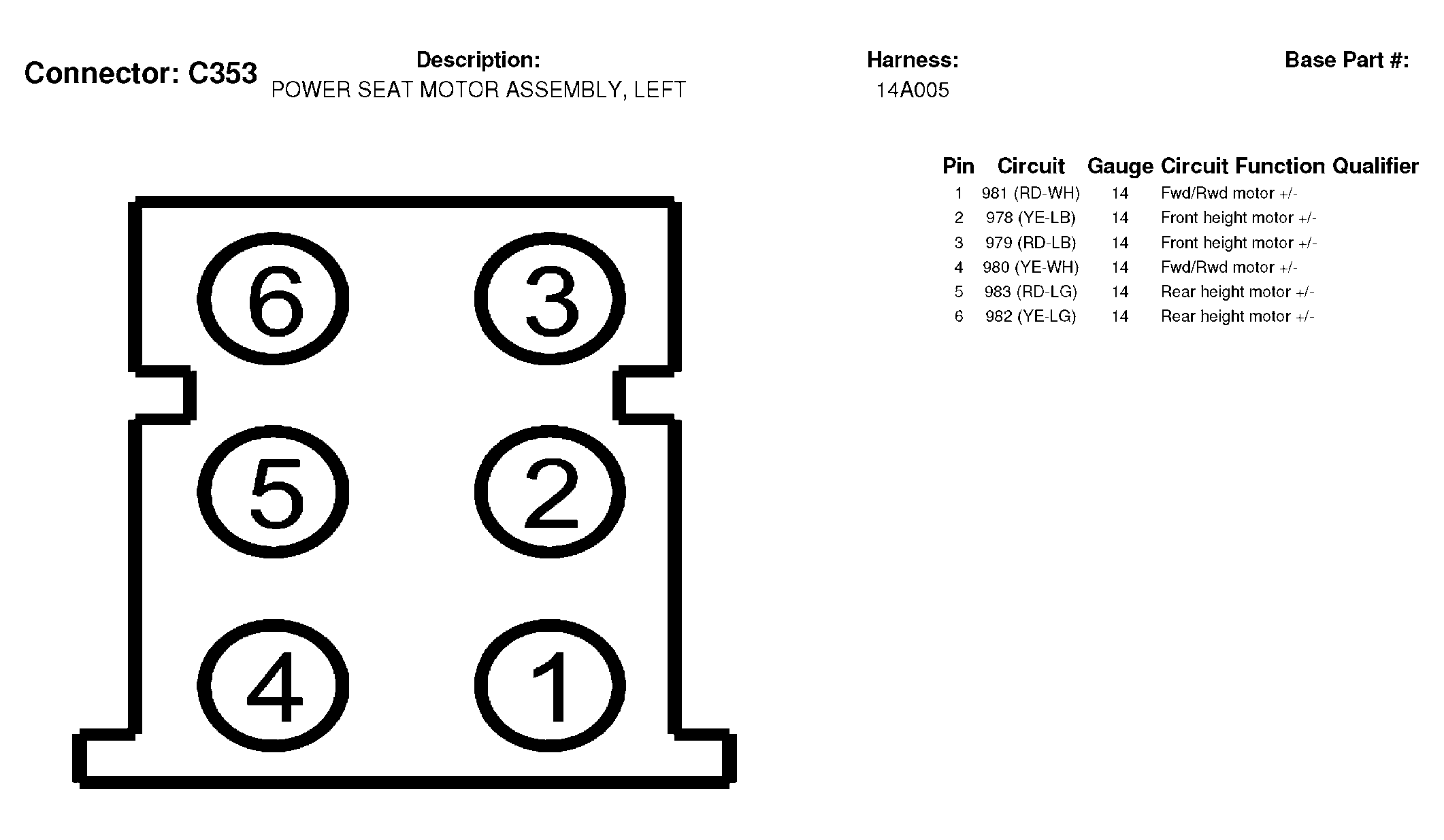

Fig 127: Power Seat Motor Assembly, Left Connector End View (C353)

G04595546

Courtesy of FORD MOTOR CO.

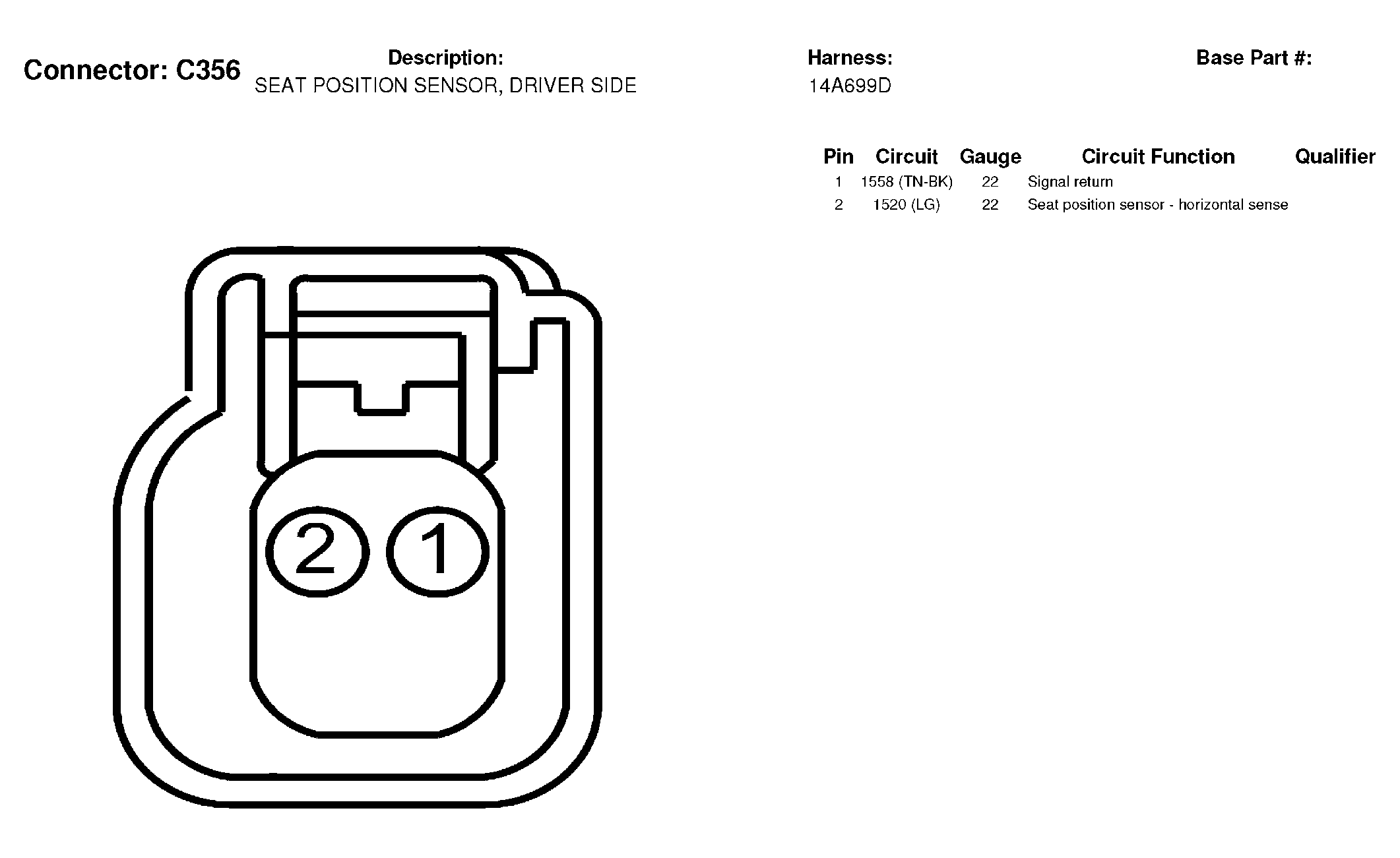

Fig 128: Seat Position Sensor, Driver Side Connector End View (C356)

G04595547

Courtesy of FORD MOTOR CO.

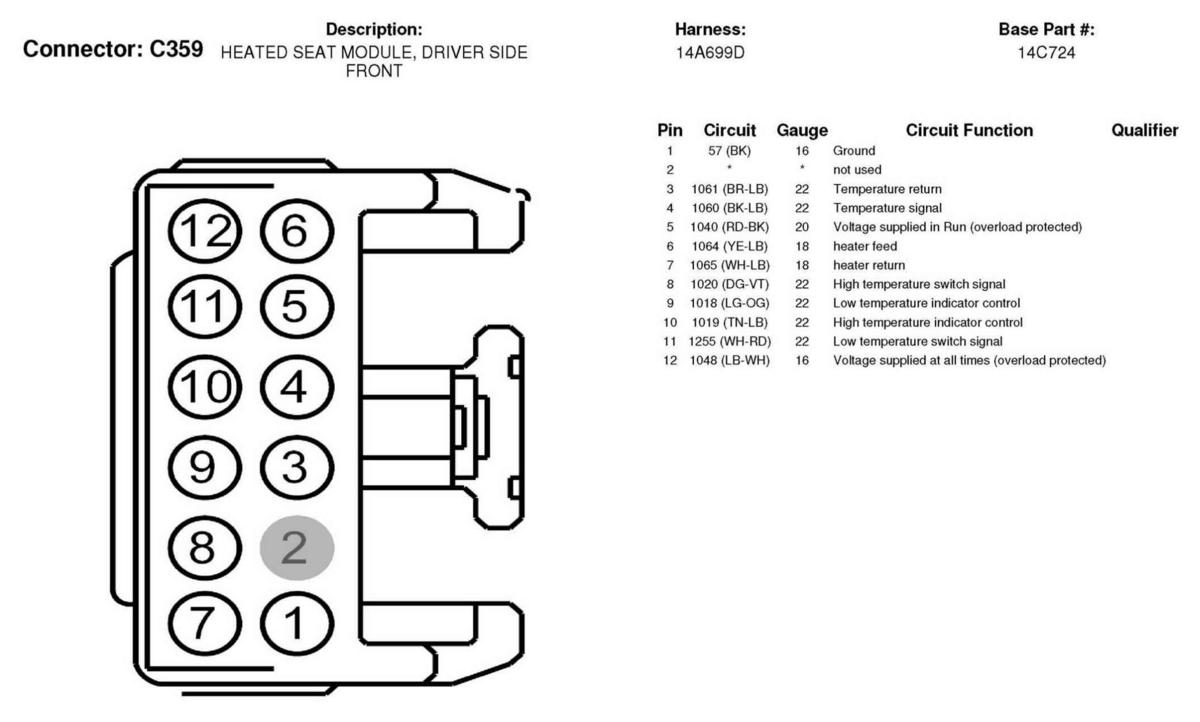

Fig 129: Heated Seat Module, Driver Side Front Connector End View (C359)

G04595548

Courtesy of FORD MOTOR CO.

Fig 130: Lumbar Adjust Switch, Driver Side Connector End View (C361)

G04595549

Courtesy of FORD MOTOR CO.

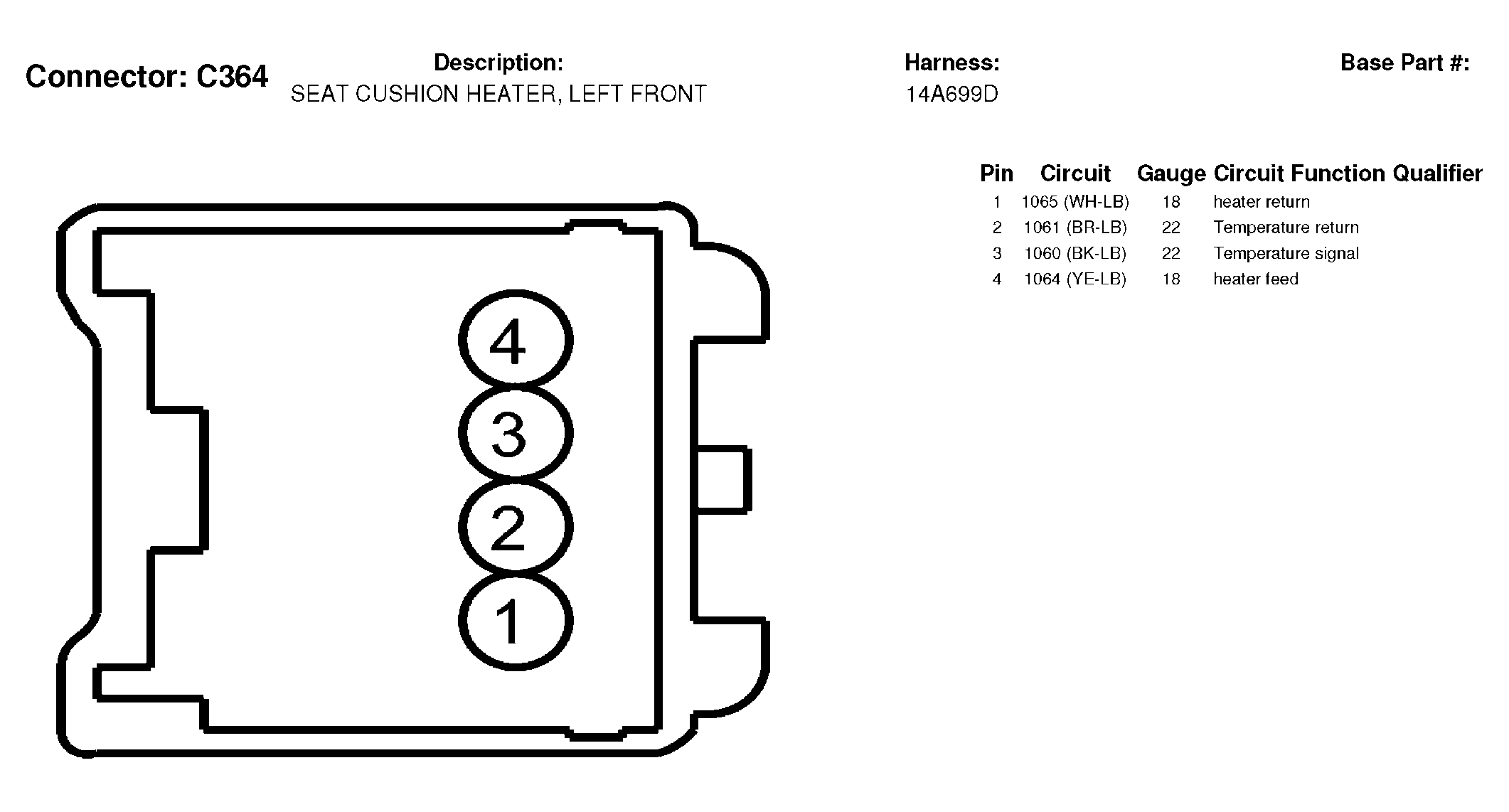

Fig 131: Seat Cushion Heater, Left Front Connector End View (C364)

G04595550

Courtesy of FORD MOTOR CO.

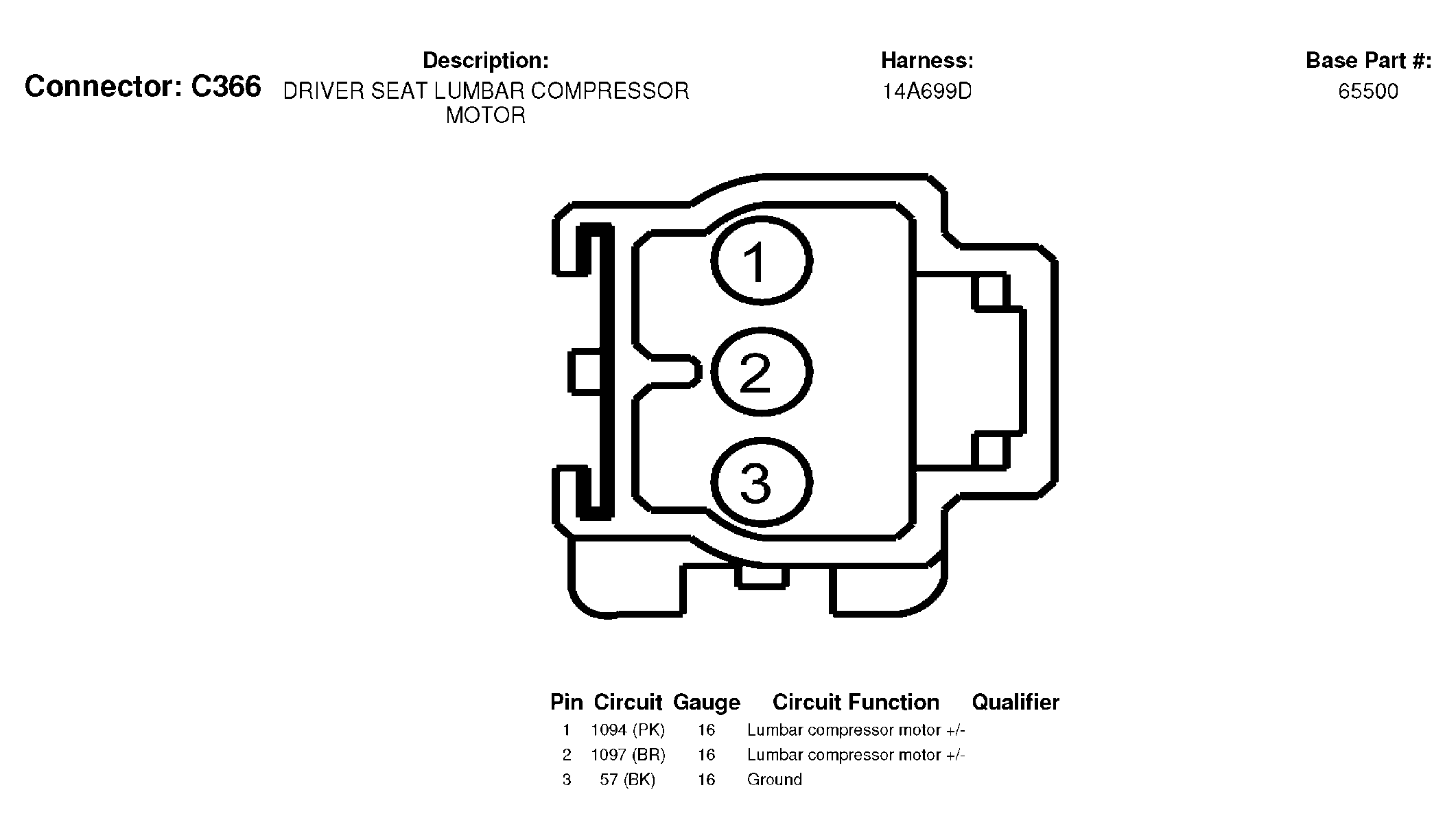

Fig 132: Driver Seat Lumbar Compressor Motor Connector End View (C366)

G04595551

Courtesy of FORD MOTOR CO.

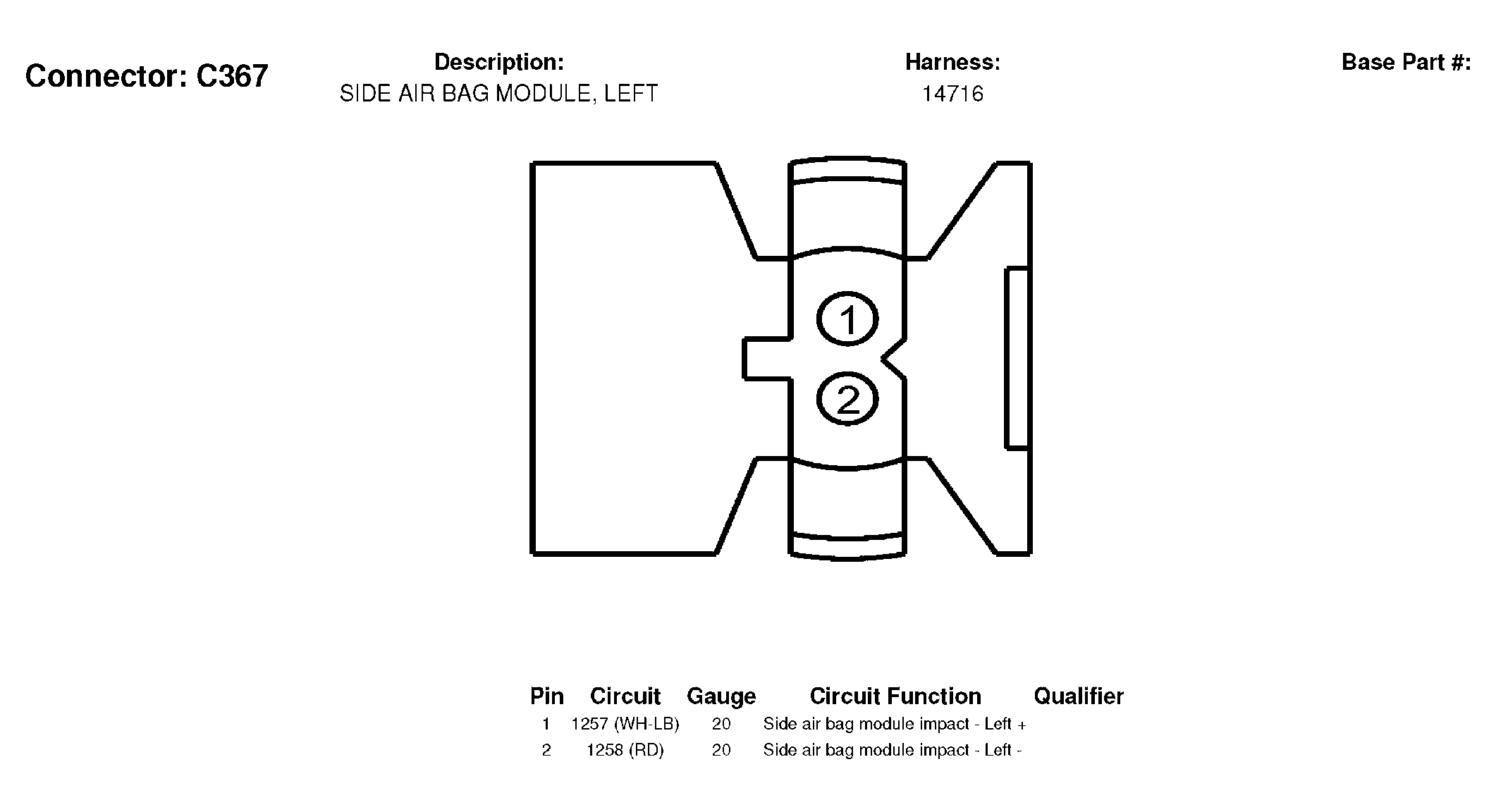

Fig 133: Side Air Bag Module, Left Connector End View (C367)

G04595552

Courtesy of FORD MOTOR CO.

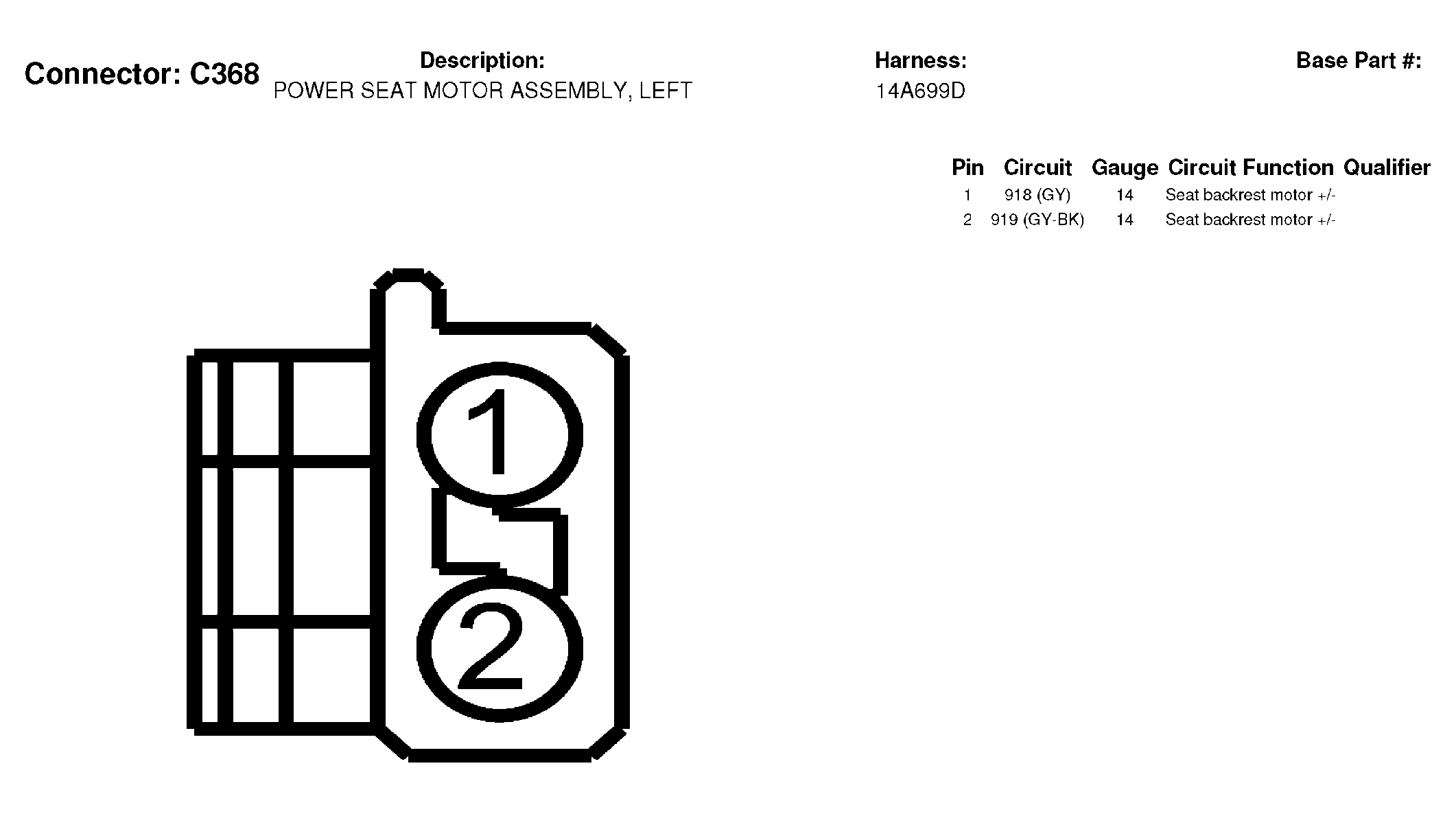

Fig 134: Power Seat Motor Assembly, Left Connector End View (C368)

G04595553

Courtesy of FORD MOTOR CO.

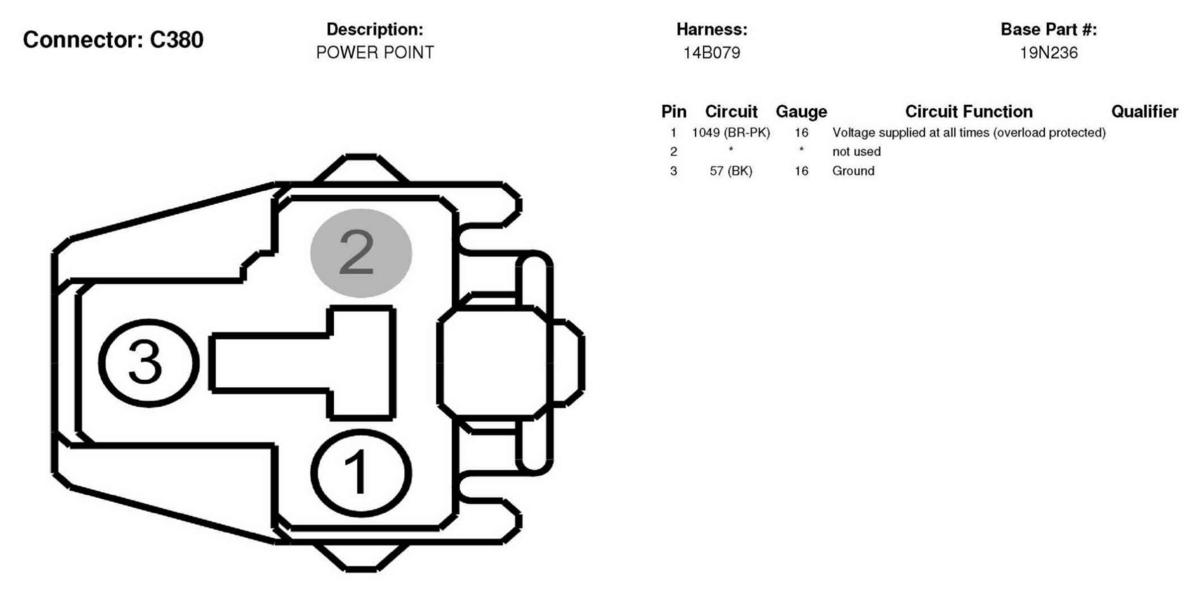

Fig 135: Power Point Connector End View (C380)

G04595554

Courtesy of FORD MOTOR CO.

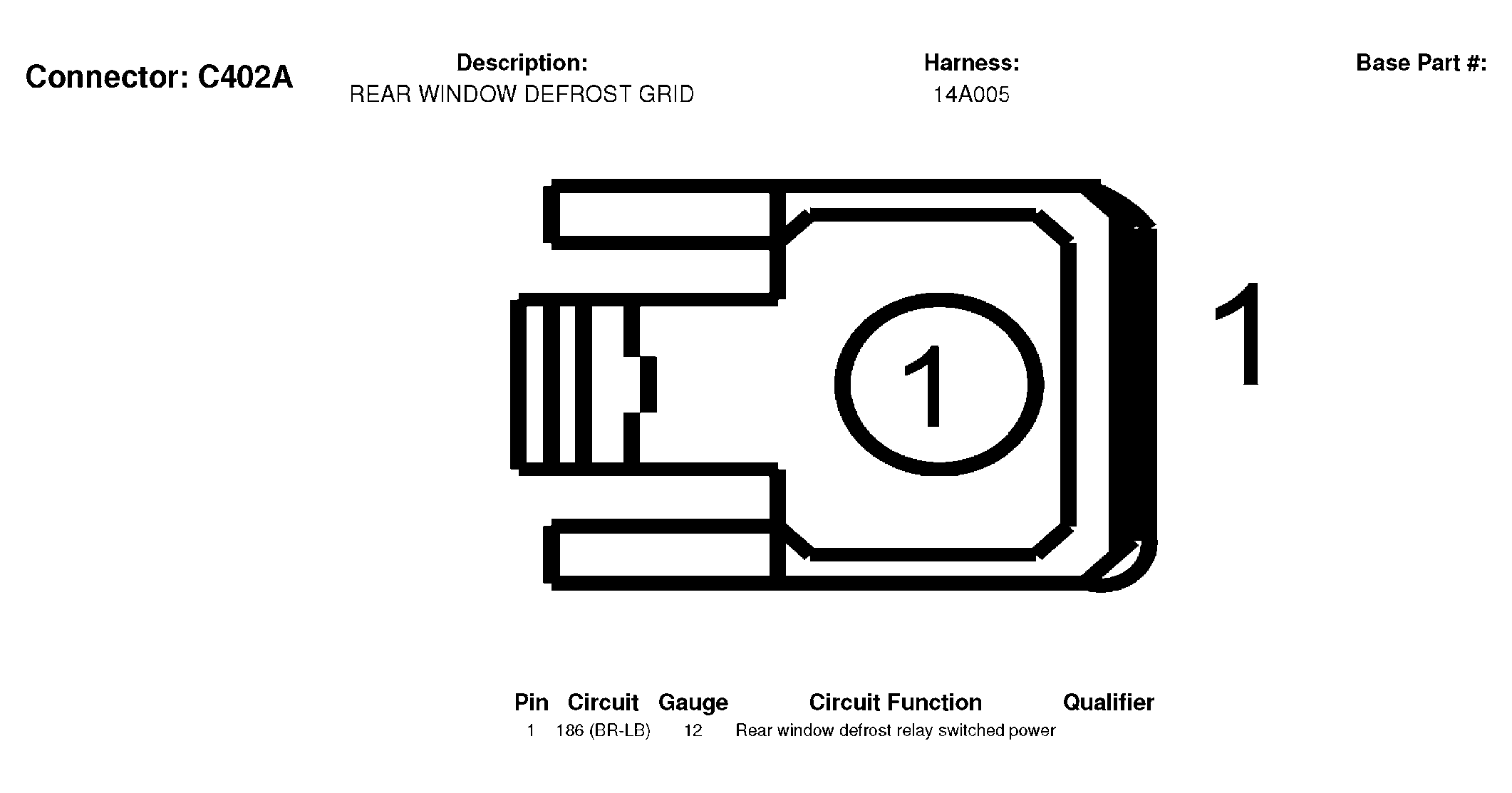

Fig 136: Rear Window Defrost Grid Connector End View (C402A)

G04595555

Courtesy of FORD MOTOR CO.

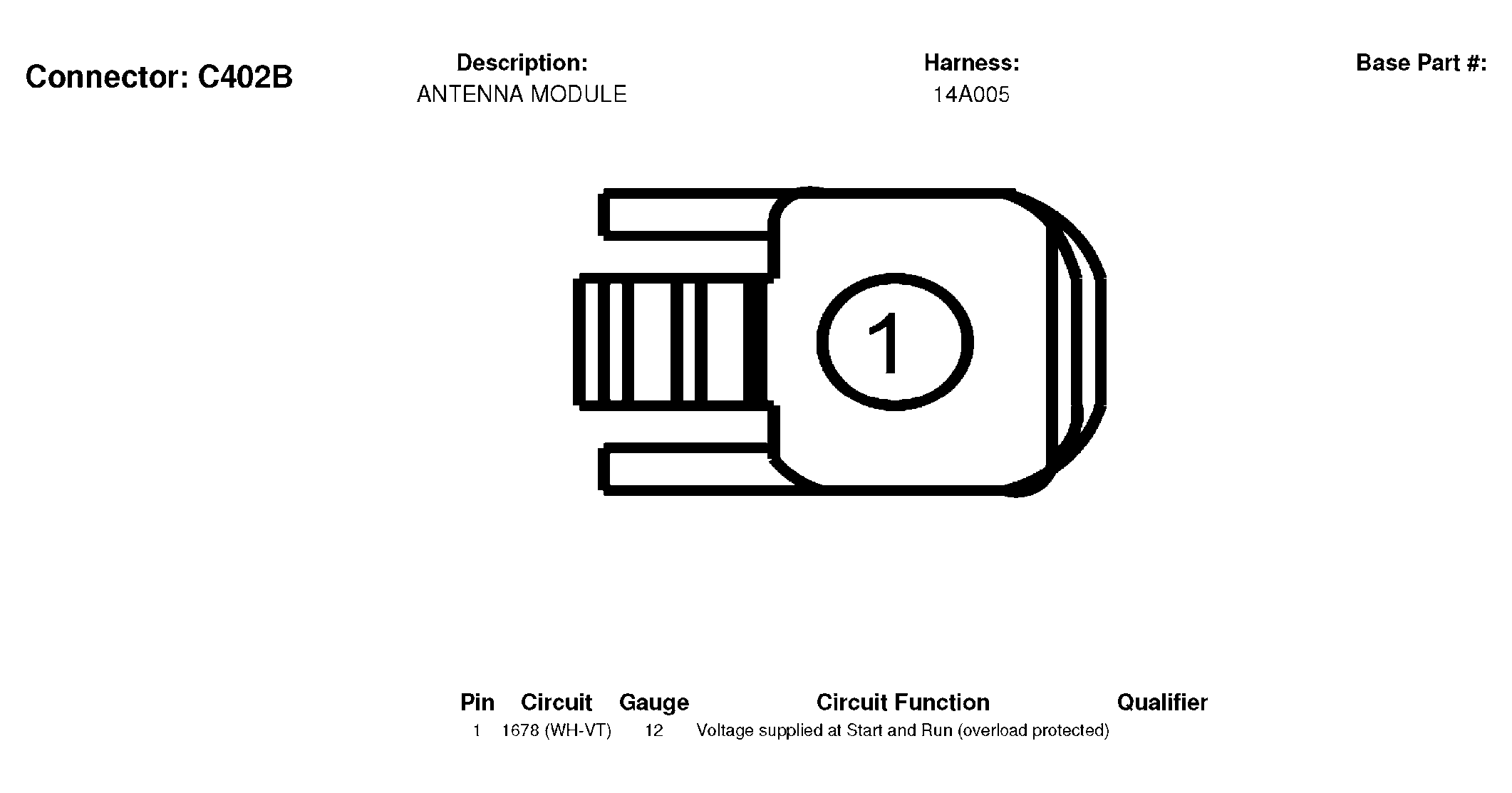

Fig 137: Antenna Module Connector End View (C402B)

G04595556

Courtesy of FORD MOTOR CO.

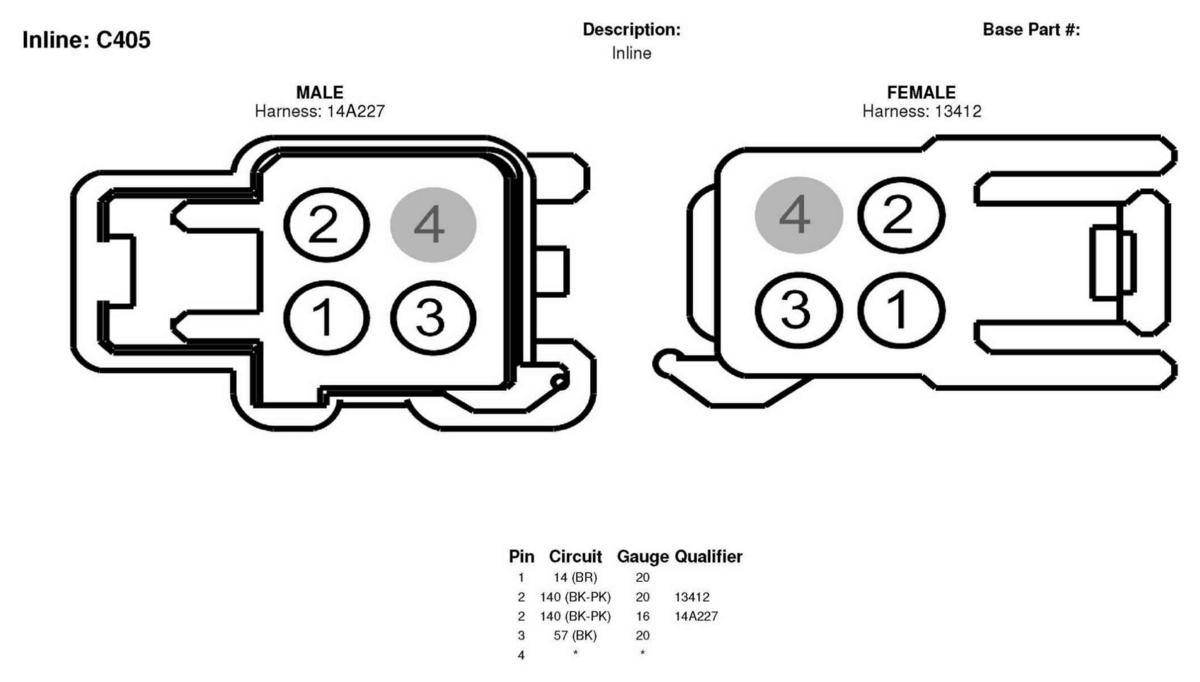

Fig 138: Inline Connector End View (C405)

G04595557

Courtesy of FORD MOTOR CO.

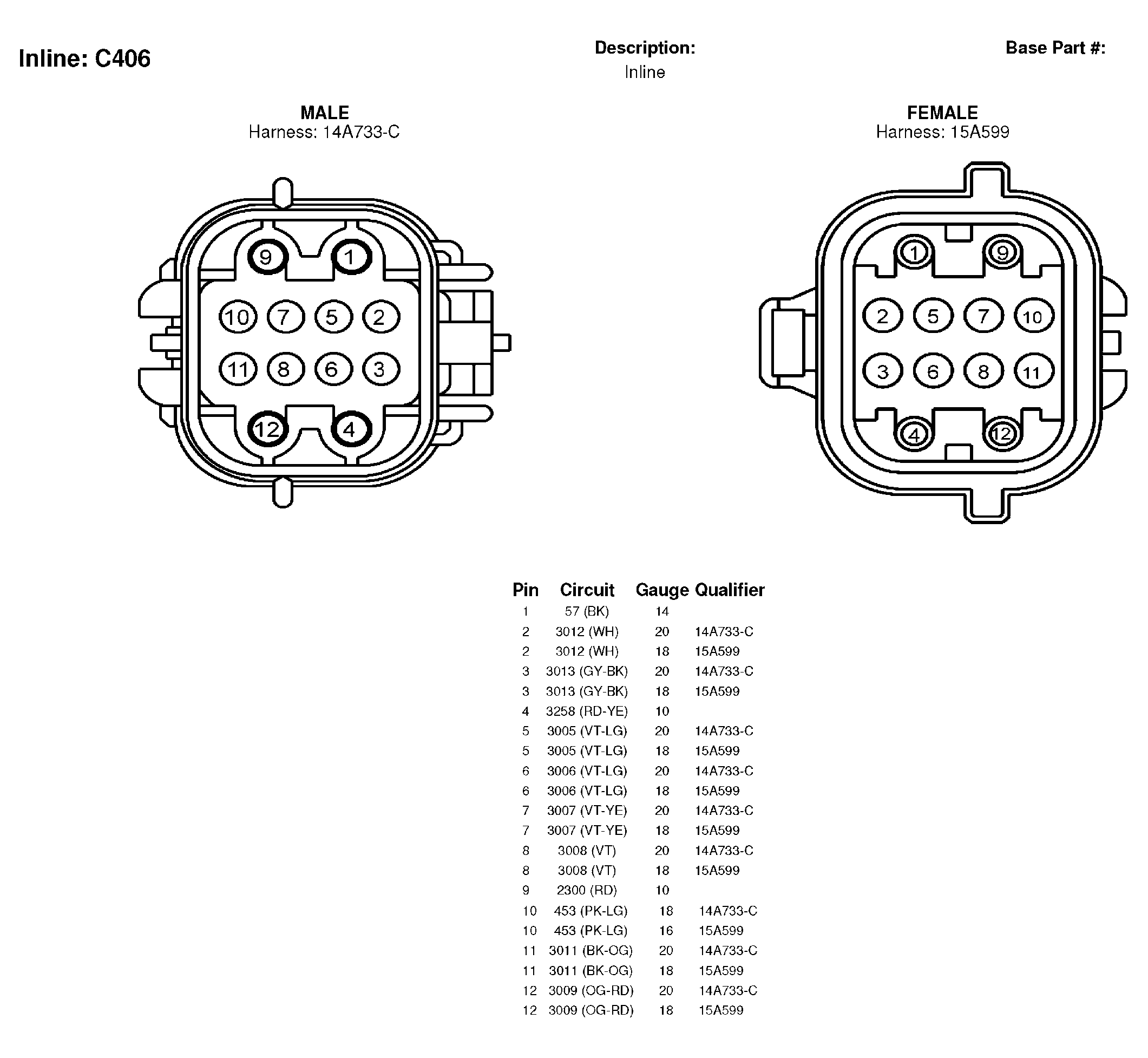

Fig 139: Inline Connector End View (C406)

G04595558

Courtesy of FORD MOTOR CO.

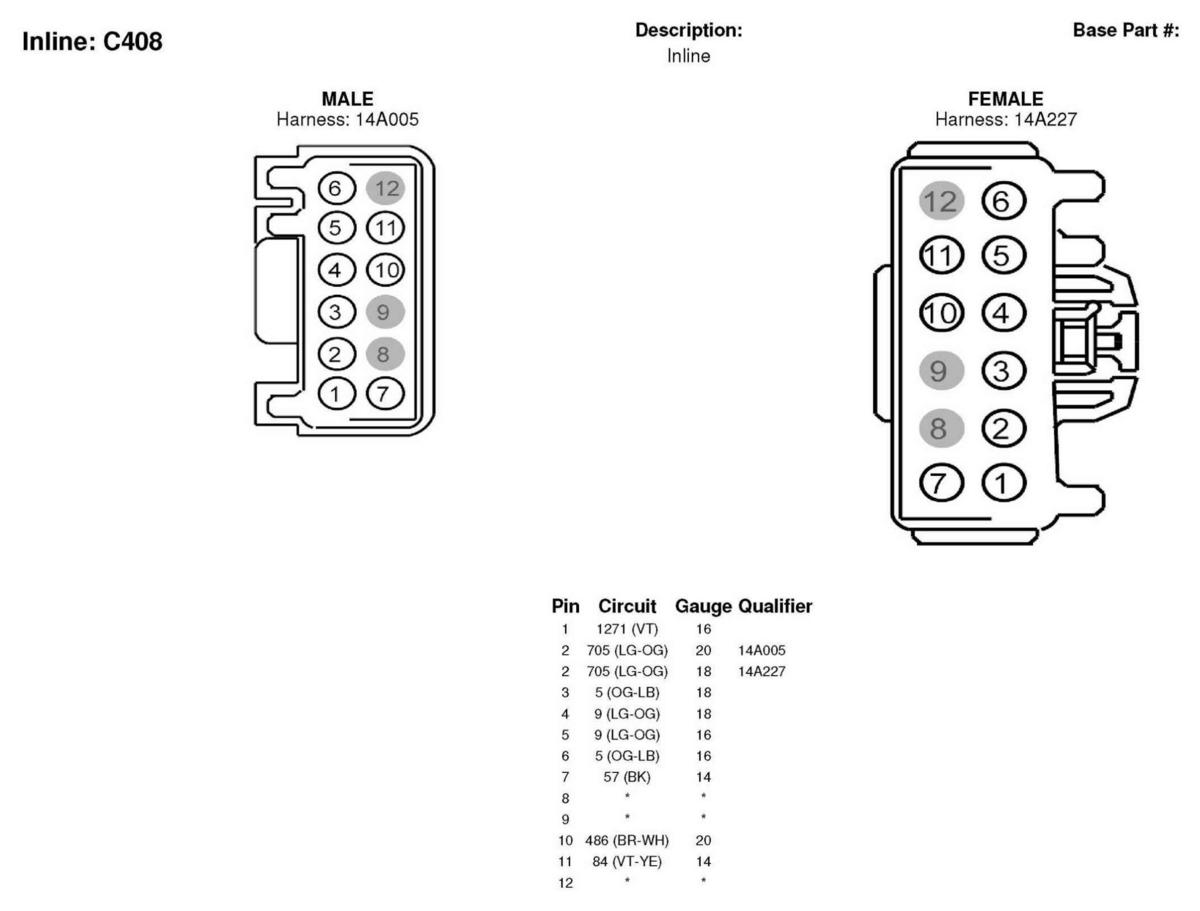

Fig 140: Inline Connector End View (C408)

G04595559

Courtesy of FORD MOTOR CO.

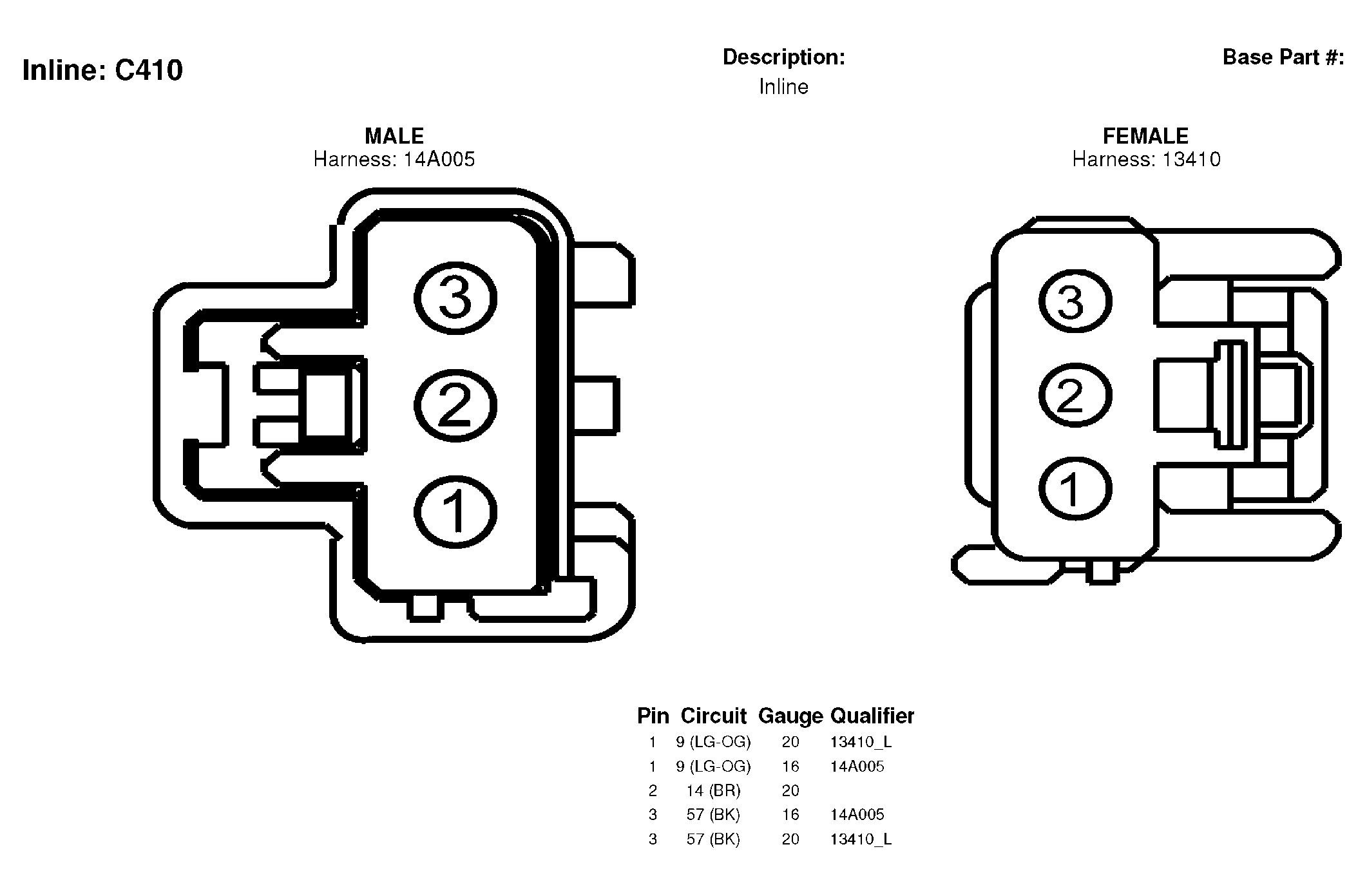

Fig 141: Inline Connector End View (C410)

G04595560

Courtesy of FORD MOTOR CO.

Fig 142: Inline Connector End View (C411)

G04595561

Courtesy of FORD MOTOR CO.

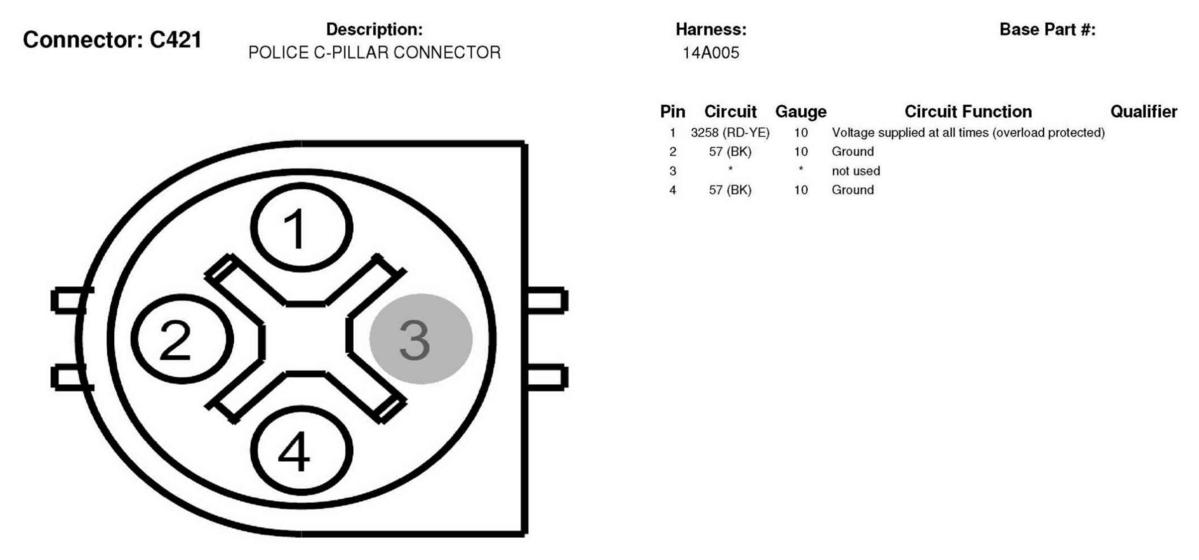

Fig 143: Police C-Pillar Connector, Connector End View (C421)

G04595562

Courtesy of FORD MOTOR CO.

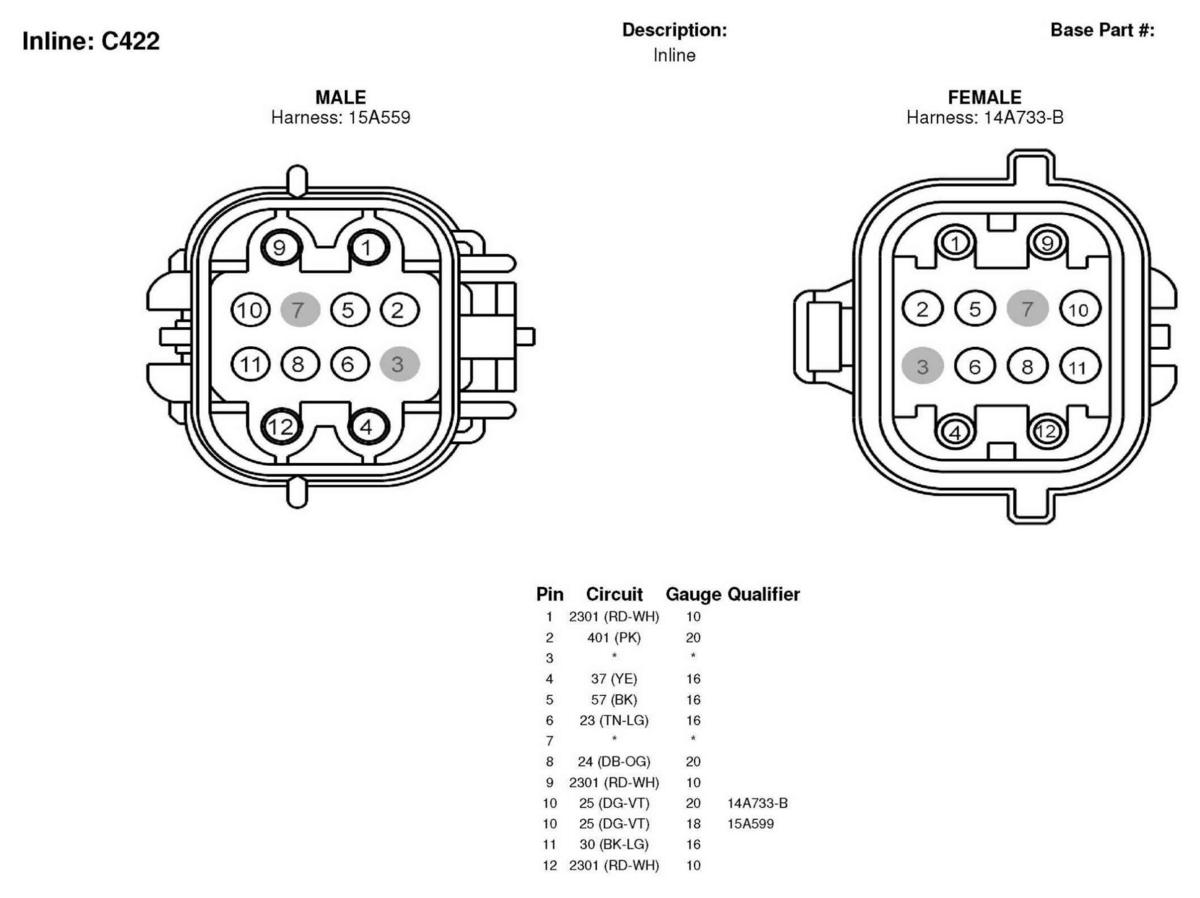

Fig 144: Inline Connector End View (C422)

G04595563

Courtesy of FORD MOTOR CO.

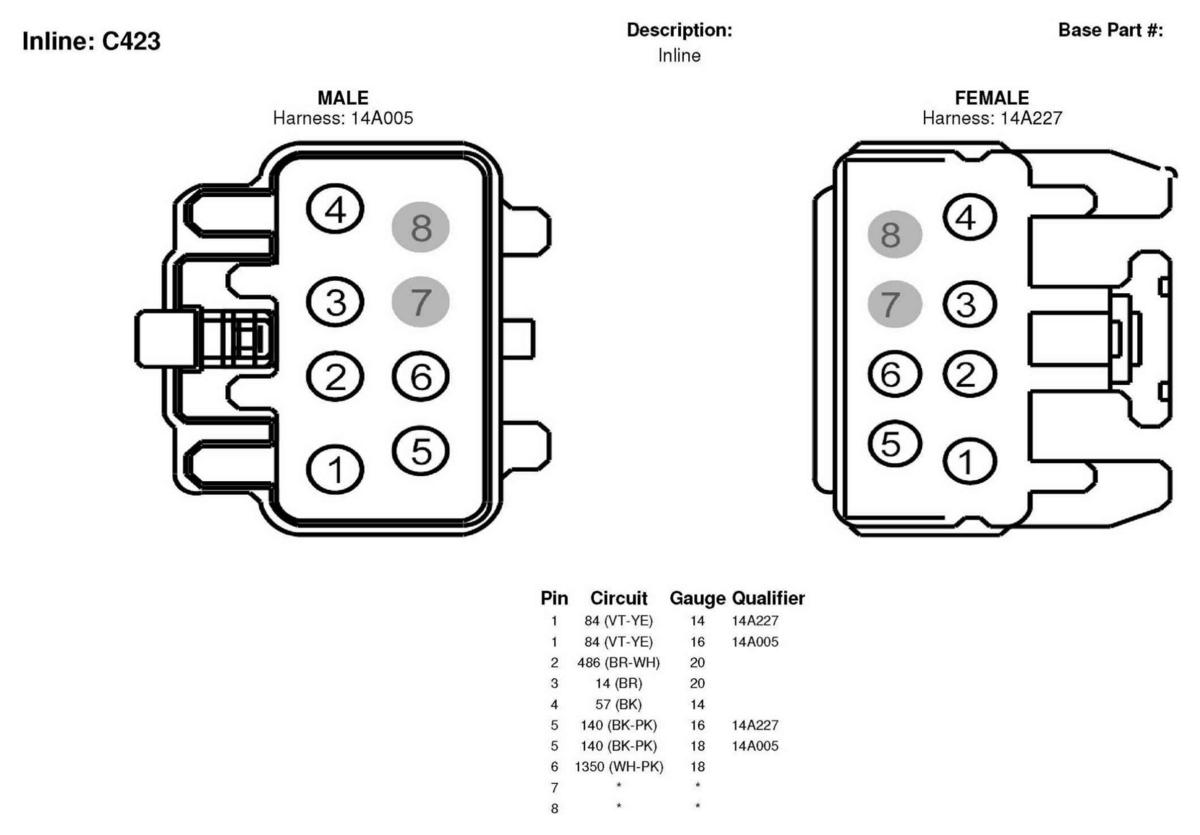

Fig 145: Inline Connector End View (C423)

G04595564

Courtesy of FORD MOTOR CO.

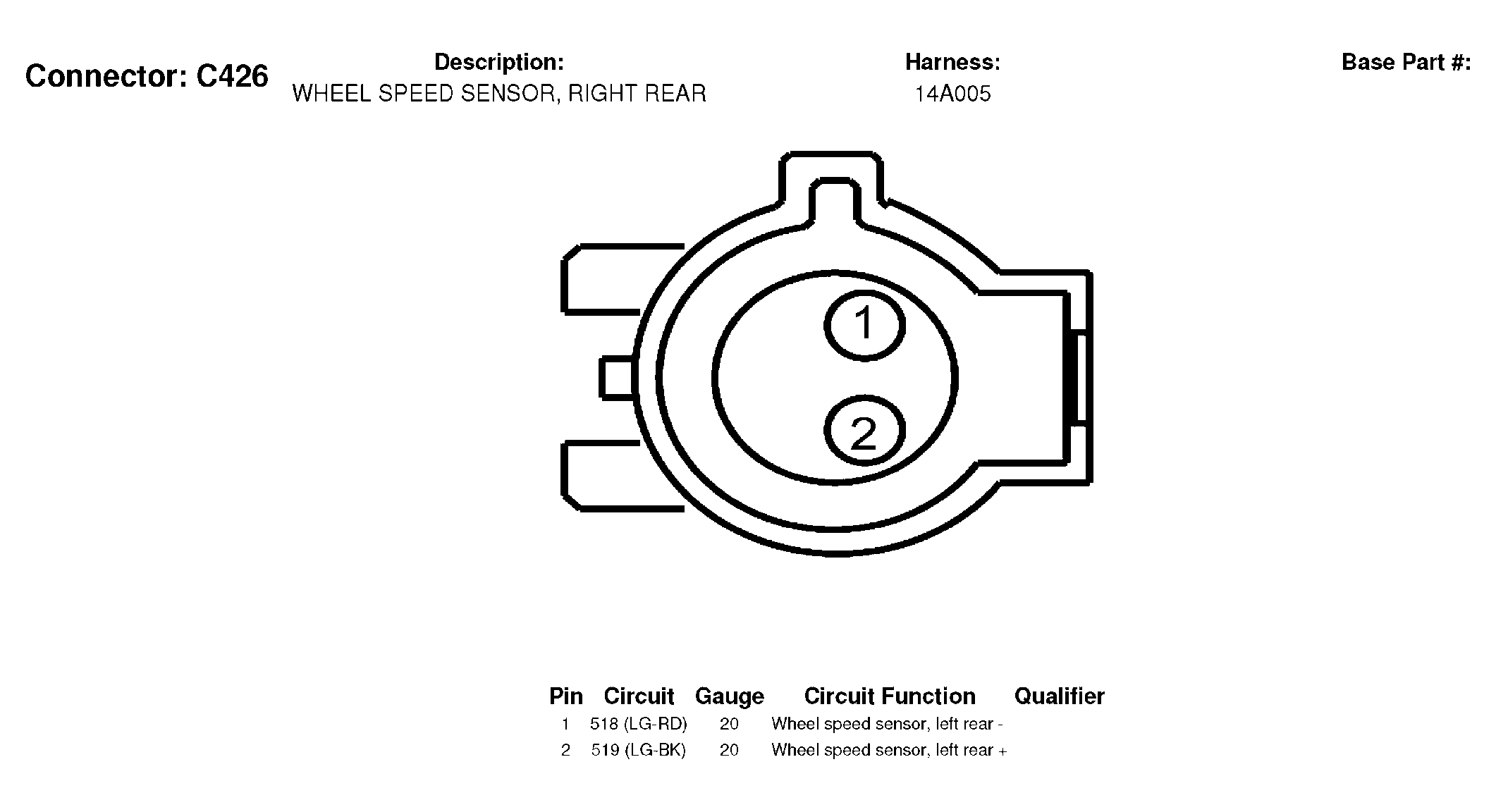

Fig 146: Wheel Speed Sensor, Right Rear Connector End View (C426)

G04595565

Courtesy of FORD MOTOR CO.

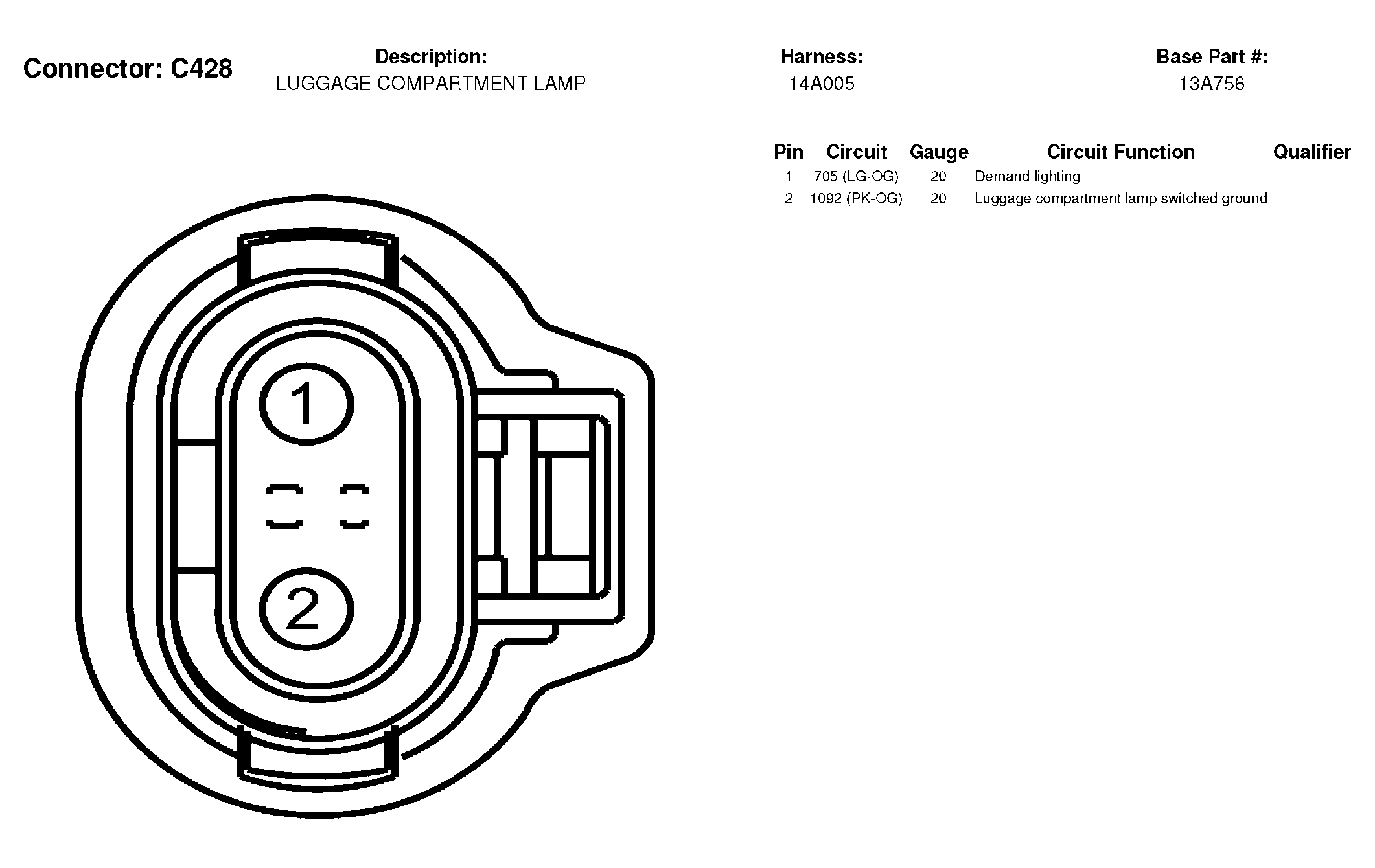

Fig 147: Luggage Compartment Lamp Connector End View (C428)

G04595566

Courtesy of FORD MOTOR CO.

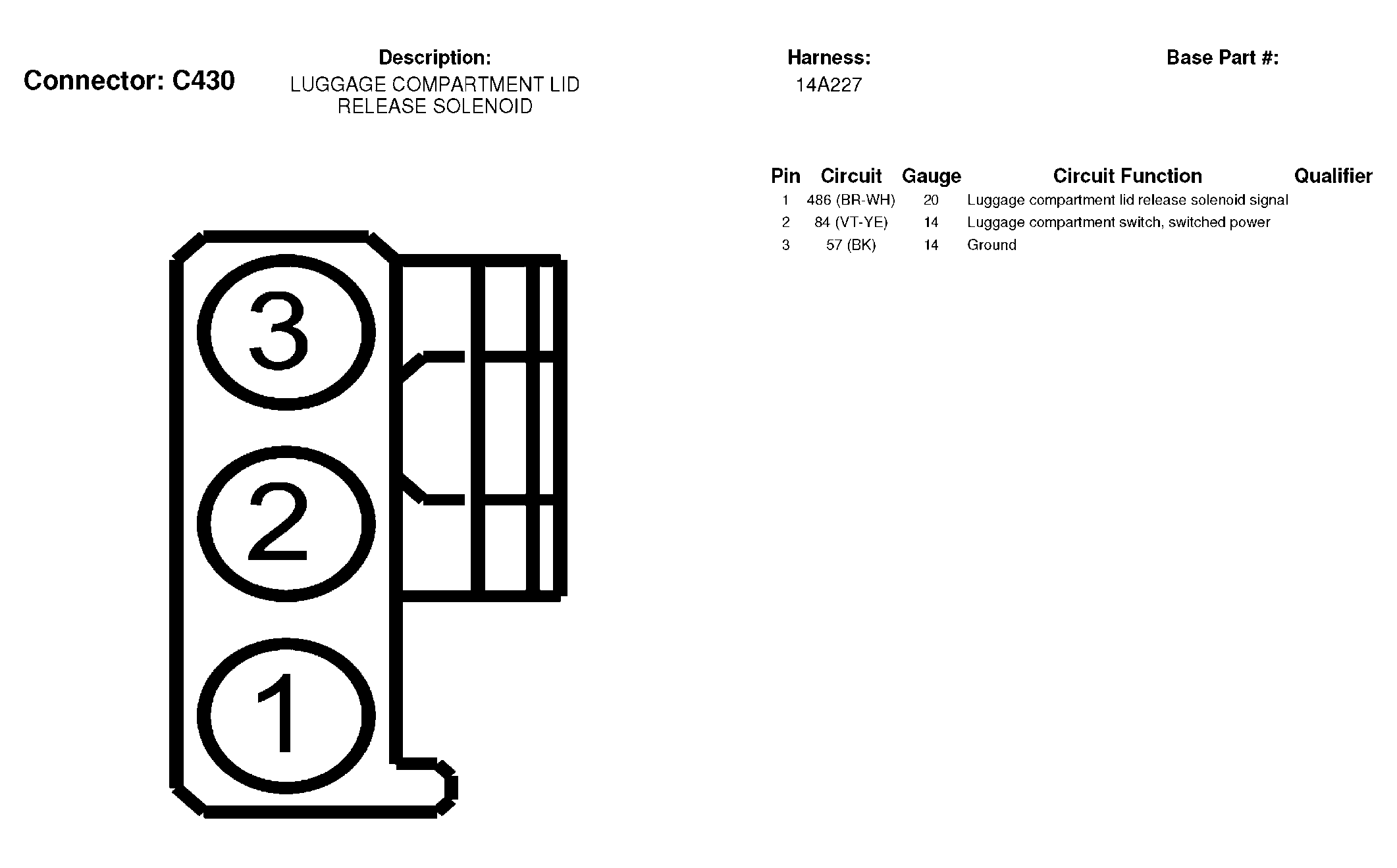

Fig 148: Luggage Compartment Lid Release Solenoid Connector End View (C430)

G04595567

Courtesy of FORD MOTOR CO.

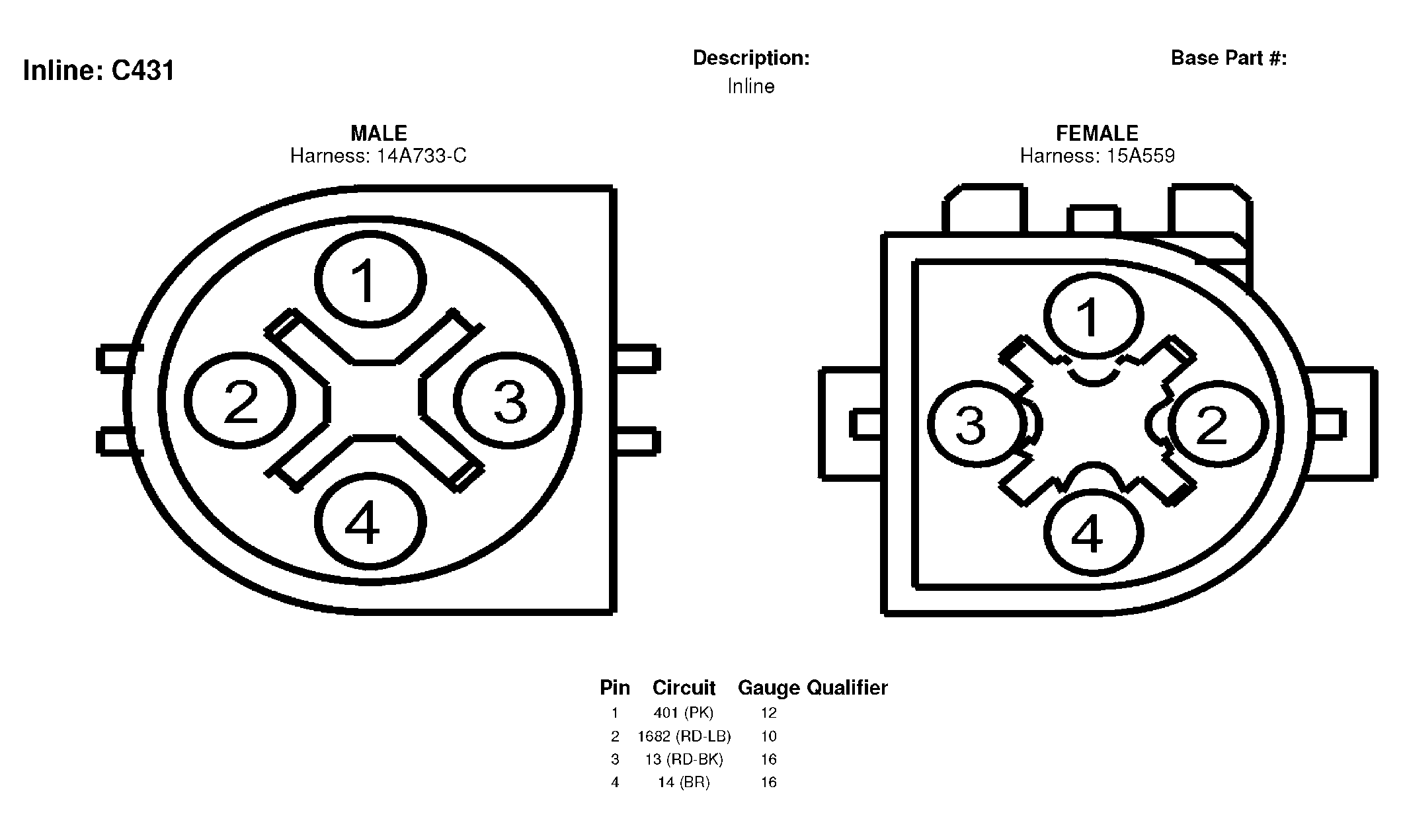

Fig 149: Inline Connector End View (C431)

G04595568

Courtesy of FORD MOTOR CO.

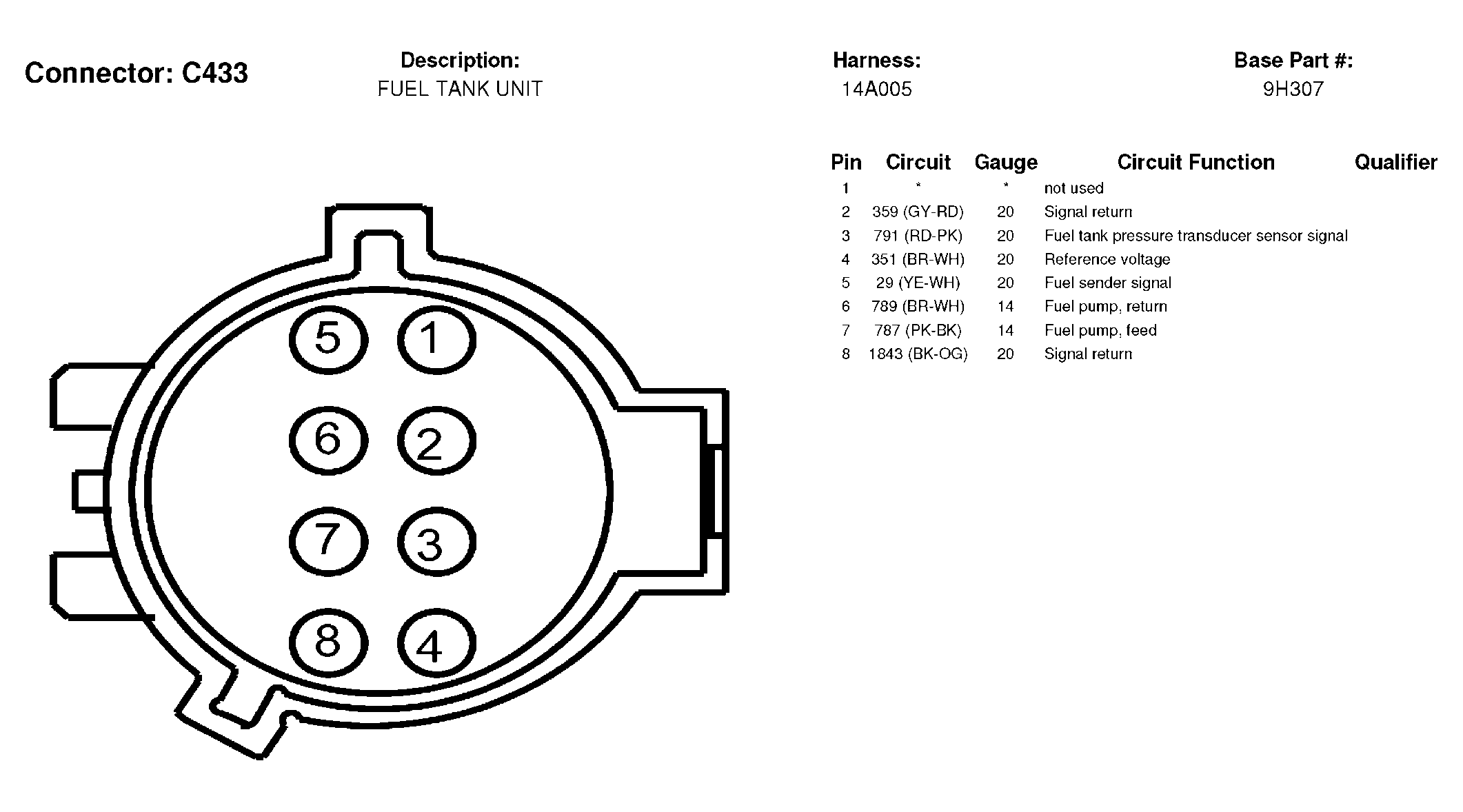

Fig 150: Fuel Tank Unit Connector End View (C433)

G04595569

Courtesy of FORD MOTOR CO.

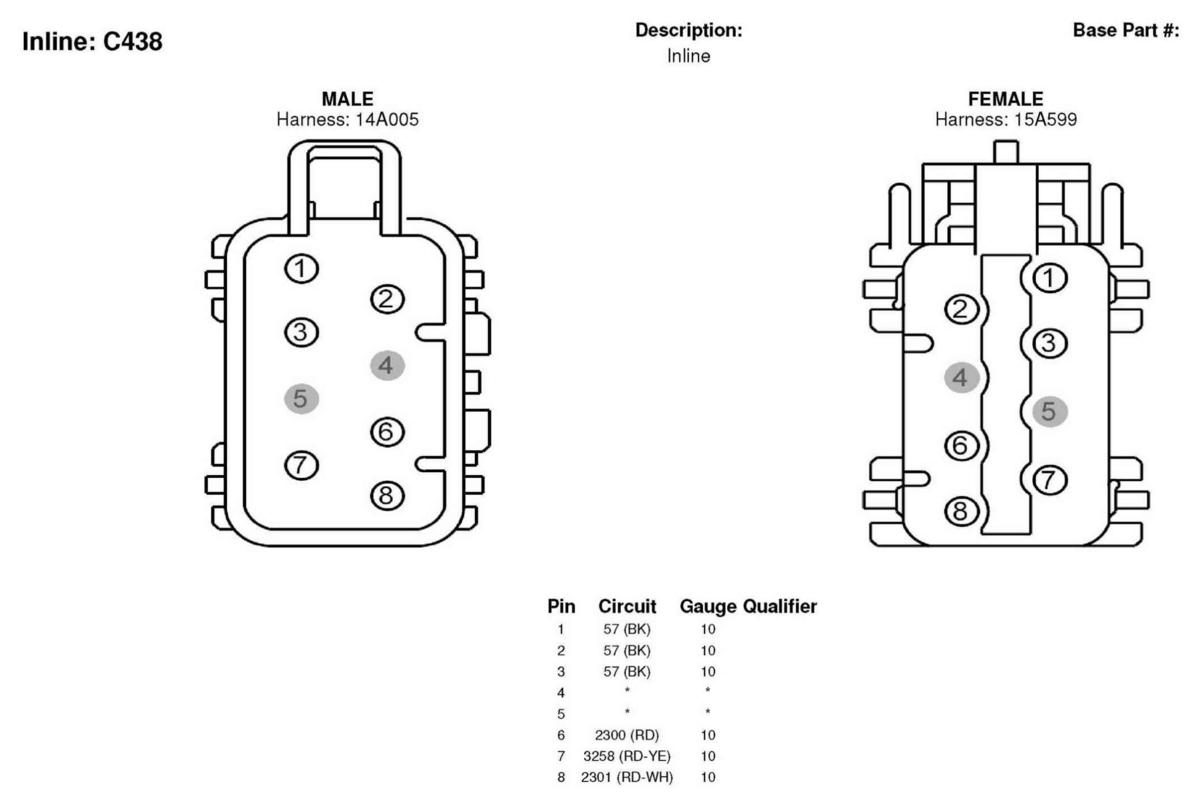

Fig 151: Inline Connector End View (C438)

G04595570

Courtesy of FORD MOTOR CO.

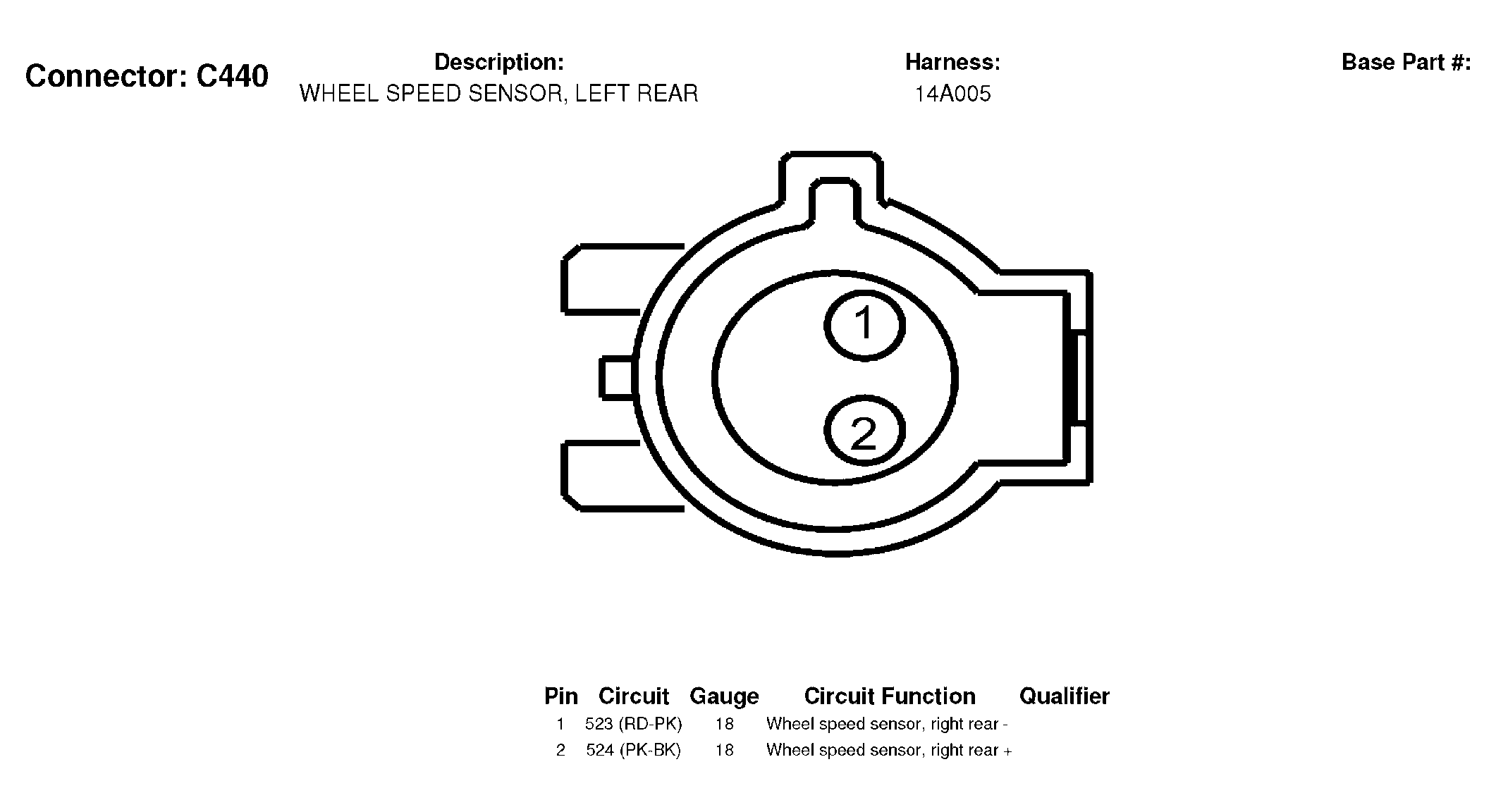

Fig 152: Wheel Speed Sensor, Left Rear Connector End View (C440)

G04595571

Courtesy of FORD MOTOR CO.

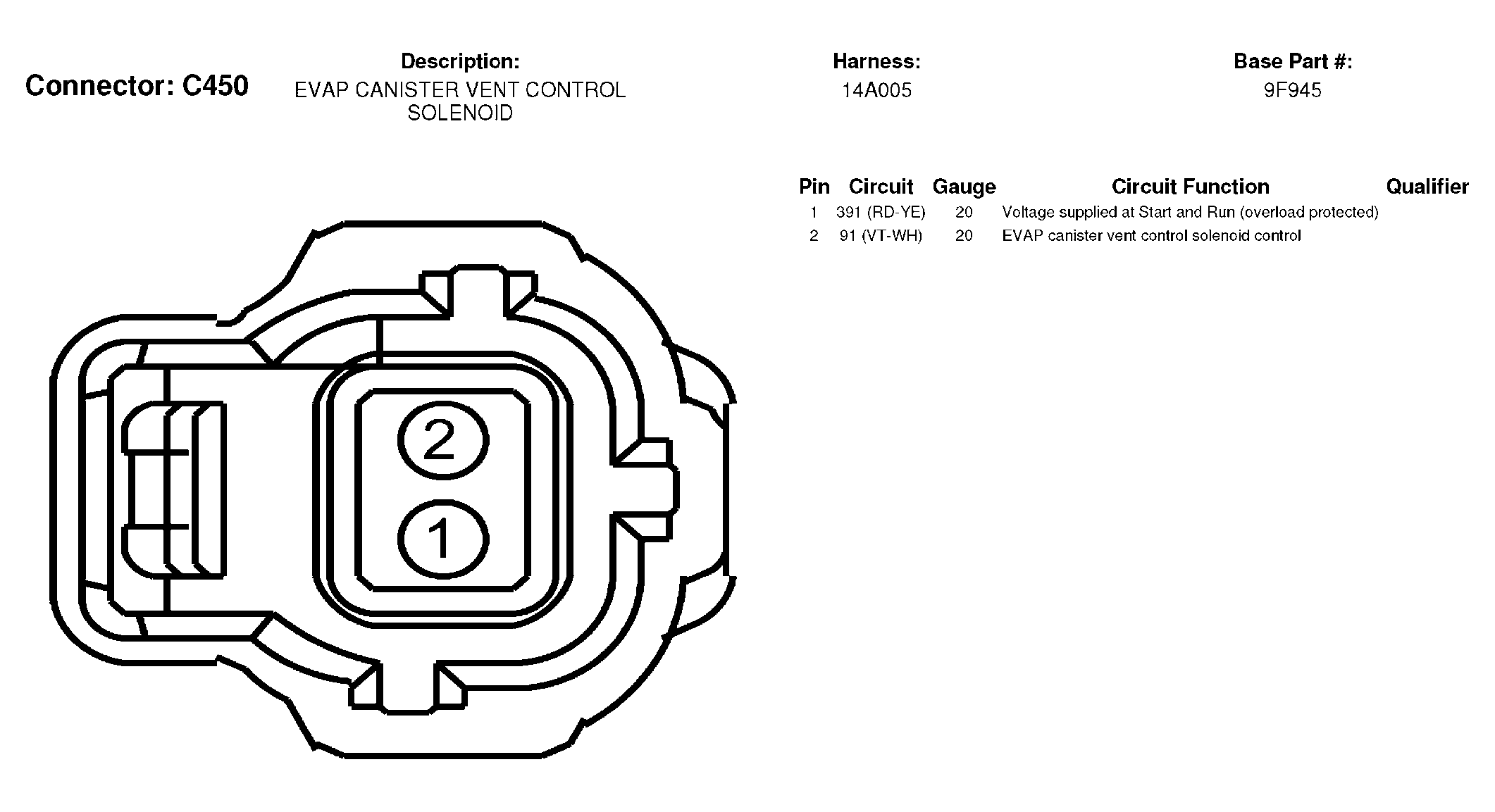

Fig 153: EVAP Canister Vent Control Solenoid Connector End View (C450)

G04595572

Courtesy of FORD MOTOR CO.

Fig 154: Reversing Lamp, Left Connector End View (C451)

G04595573

Courtesy of FORD MOTOR CO.

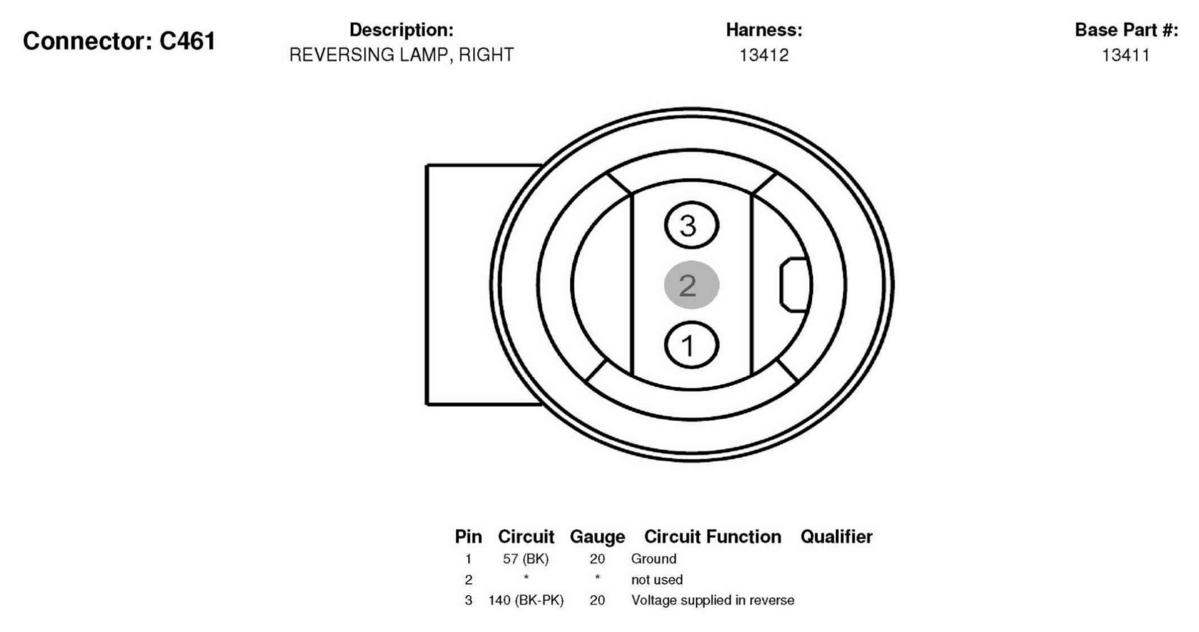

Fig 155: Reversing Lamp, Right Connector End View (C461)

G04595574

Courtesy of FORD MOTOR CO.

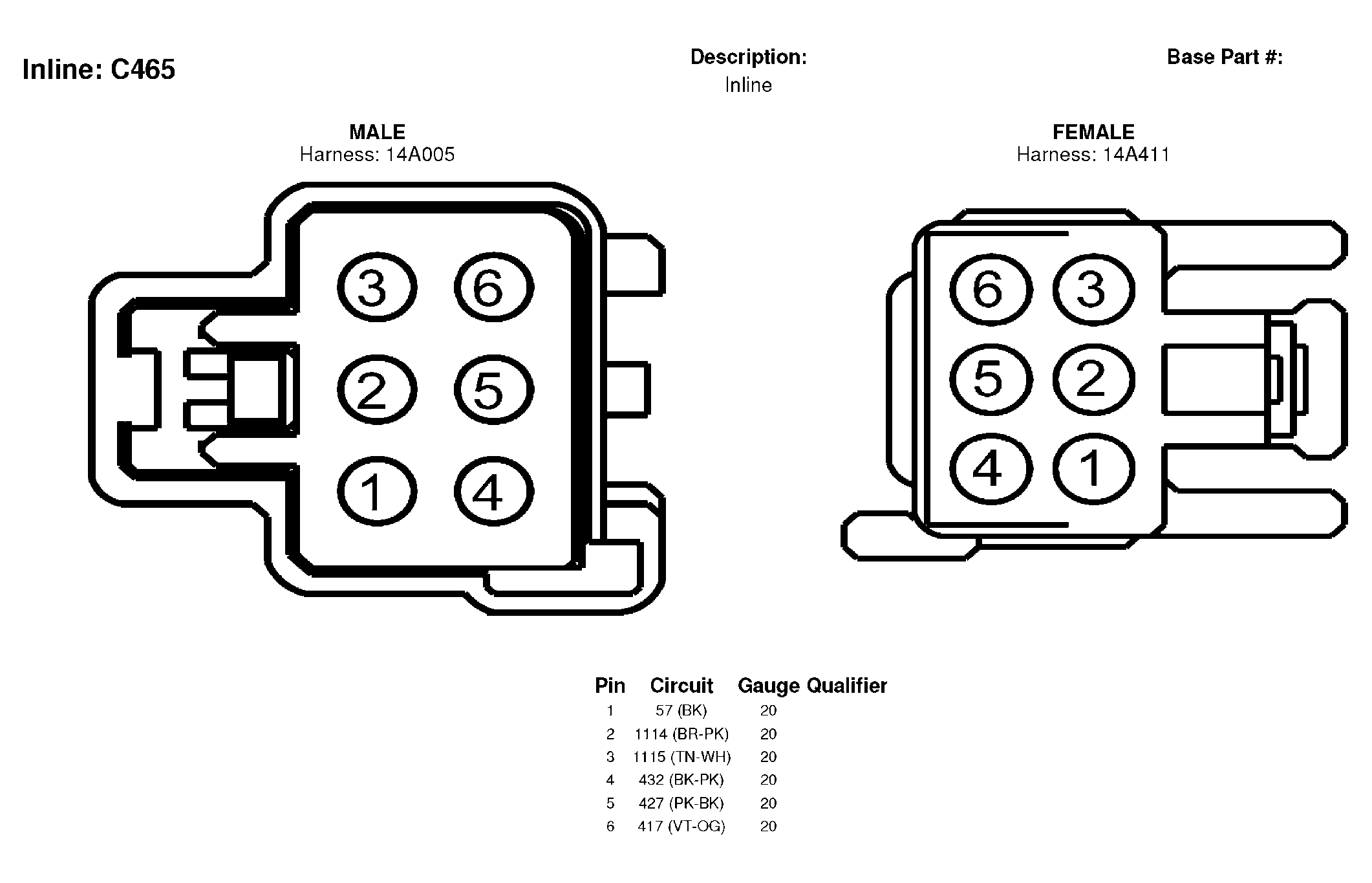

Fig 156: Inline Connector End View (C465)

G04595575

Courtesy of FORD MOTOR CO.

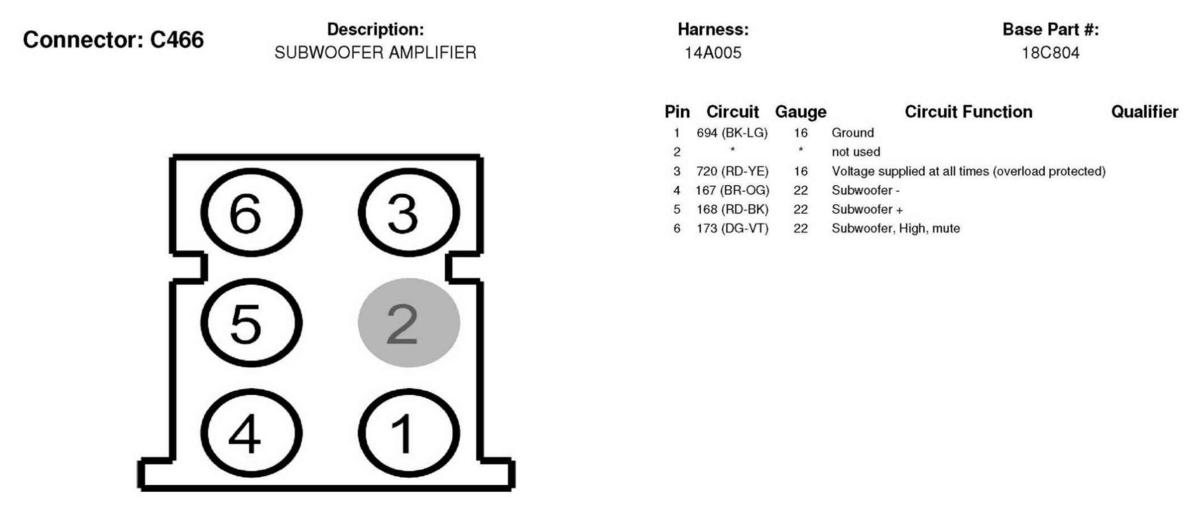

Fig 157: Subwoofer Amplifier Connector End View (C466)

G04595576

Courtesy of FORD MOTOR CO.

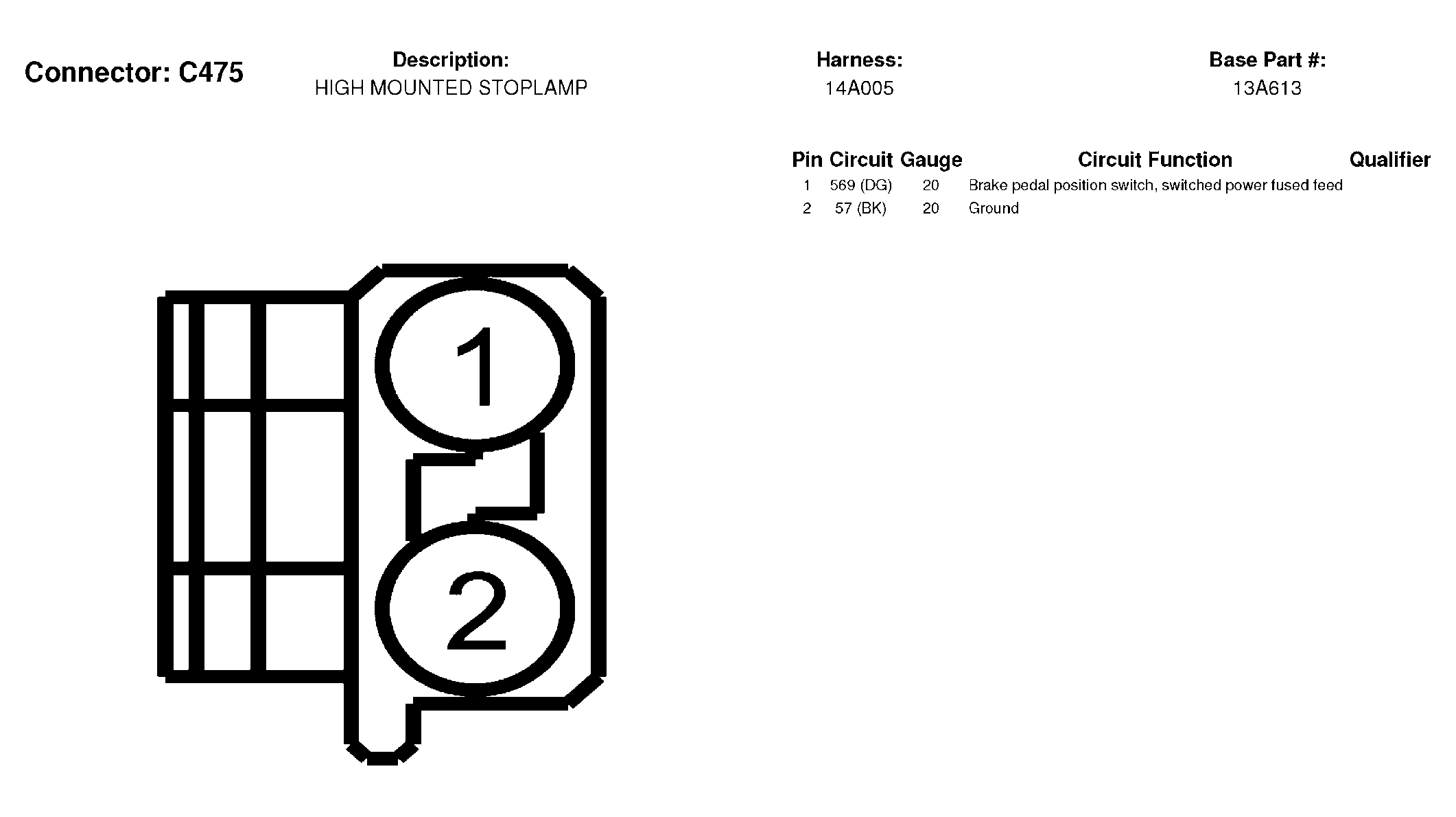

Fig 158: High Mounted Stoplamp Connector End View (C475)

G04595577

Courtesy of FORD MOTOR CO.

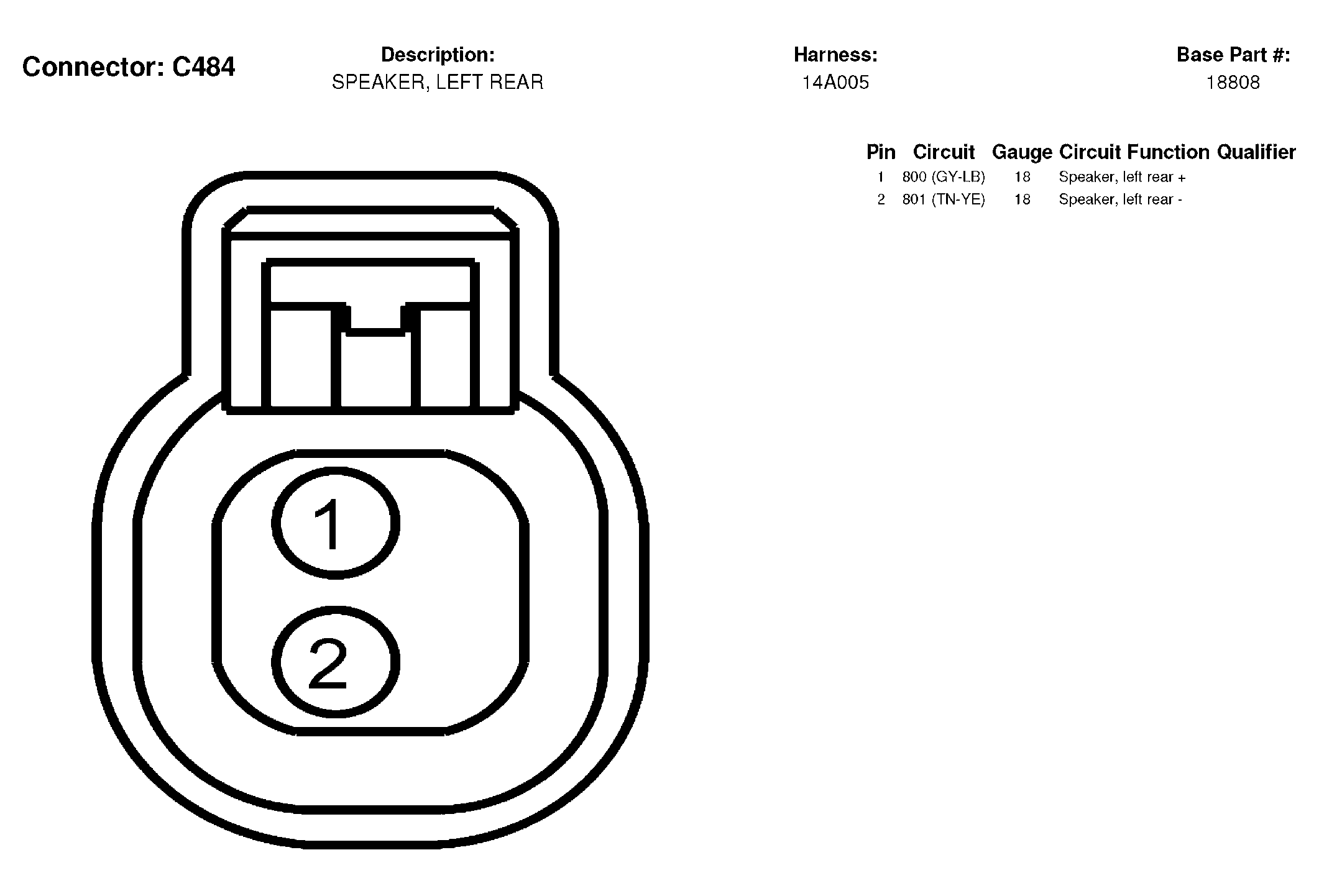

Fig 159: Speaker, Left Rear Connector End View (C484)

G04595578

Courtesy of FORD MOTOR CO.

Fig 160: Speaker, Right Rear Connector End View (C485)

G04595579

Courtesy of FORD MOTOR CO.

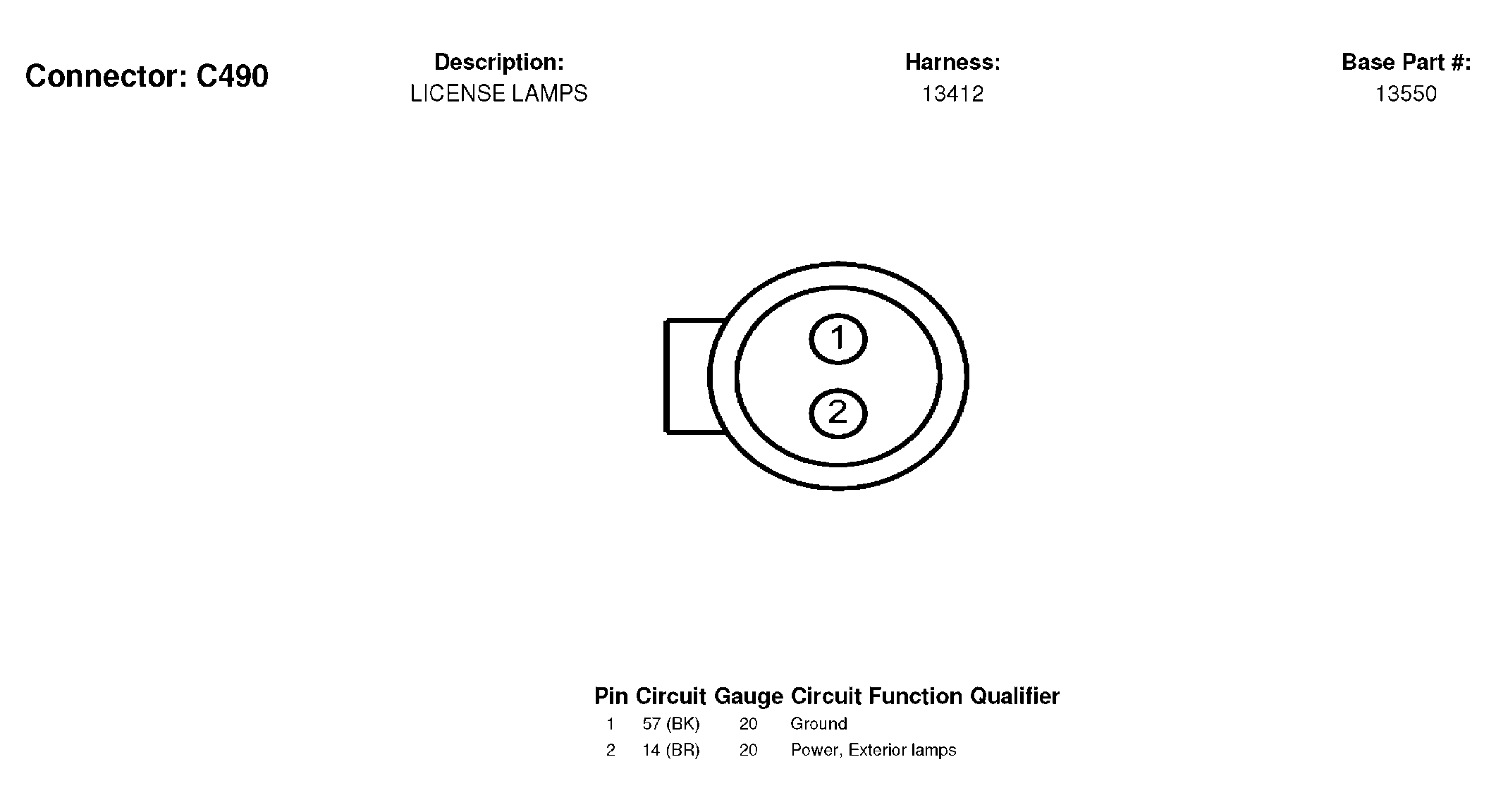

Fig 161: License Lamps Connector End View (C490)

G04595580

Courtesy of FORD MOTOR CO.

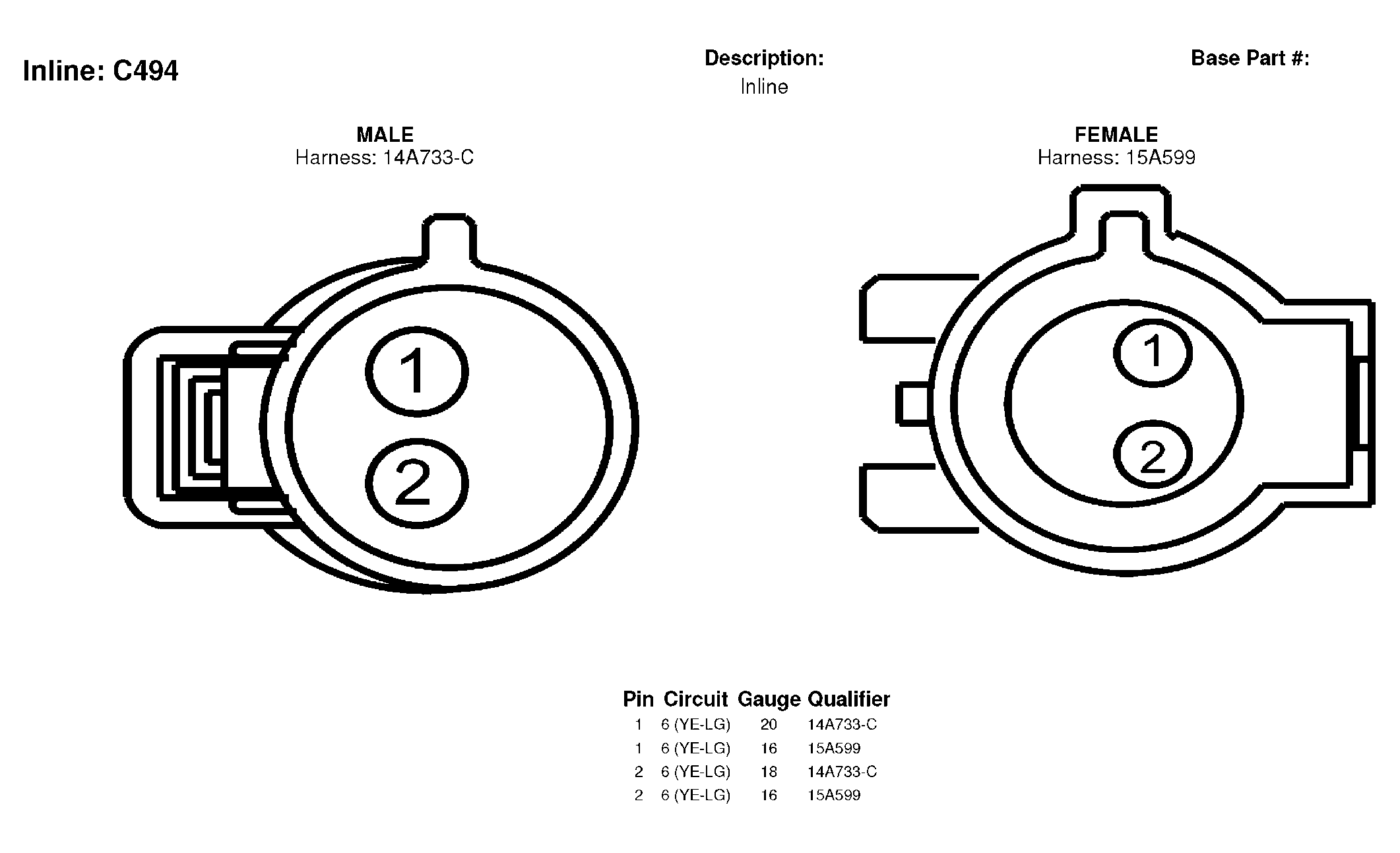

Fig 162: Inline Connector End View (C494)

G04595581

Courtesy of FORD MOTOR CO.

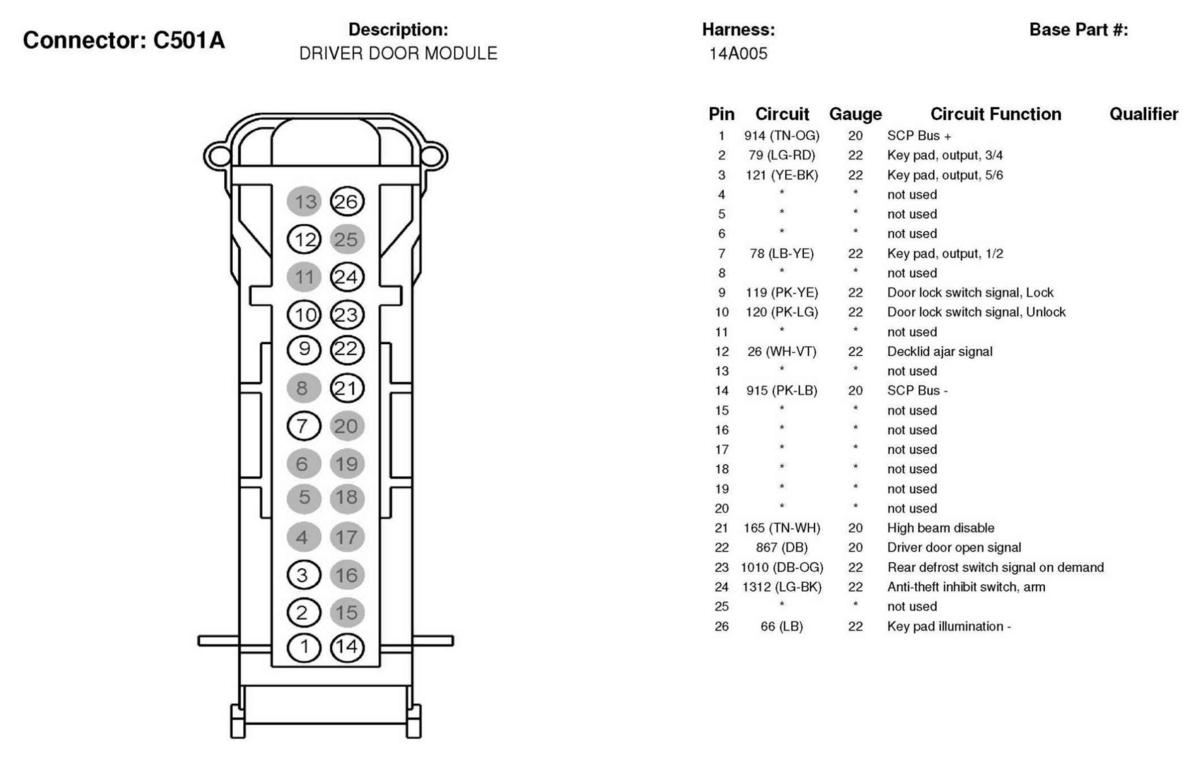

Fig 163: Driver Door Module Connector End View (C501A)

G04595582

Courtesy of FORD MOTOR CO.

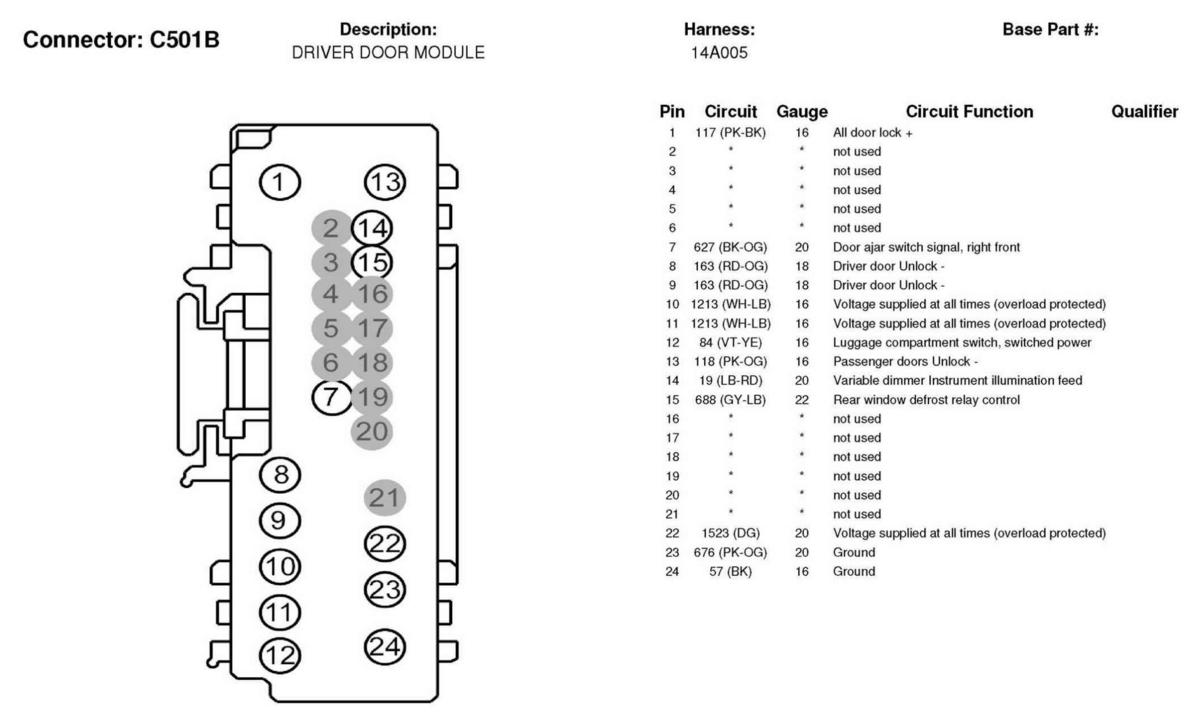

Fig 164: Driver Door Module Connector End View (C501B)

G04595583

Courtesy of FORD MOTOR CO.

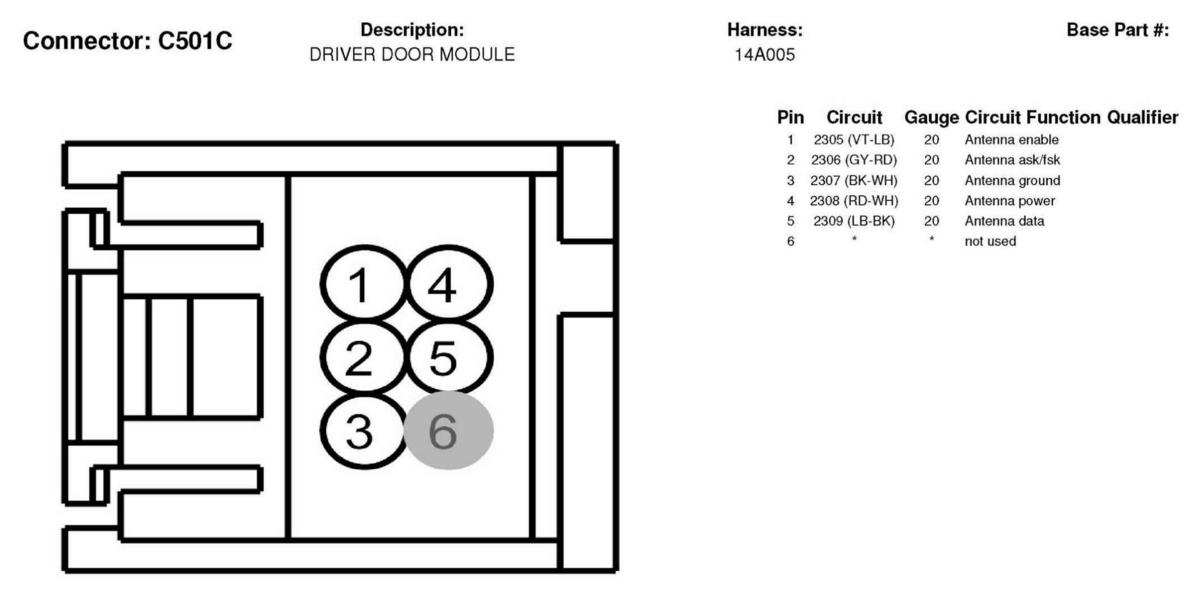

Fig 165: Driver Door Module Connector End View (C501C)

G04595584

Courtesy of FORD MOTOR CO.

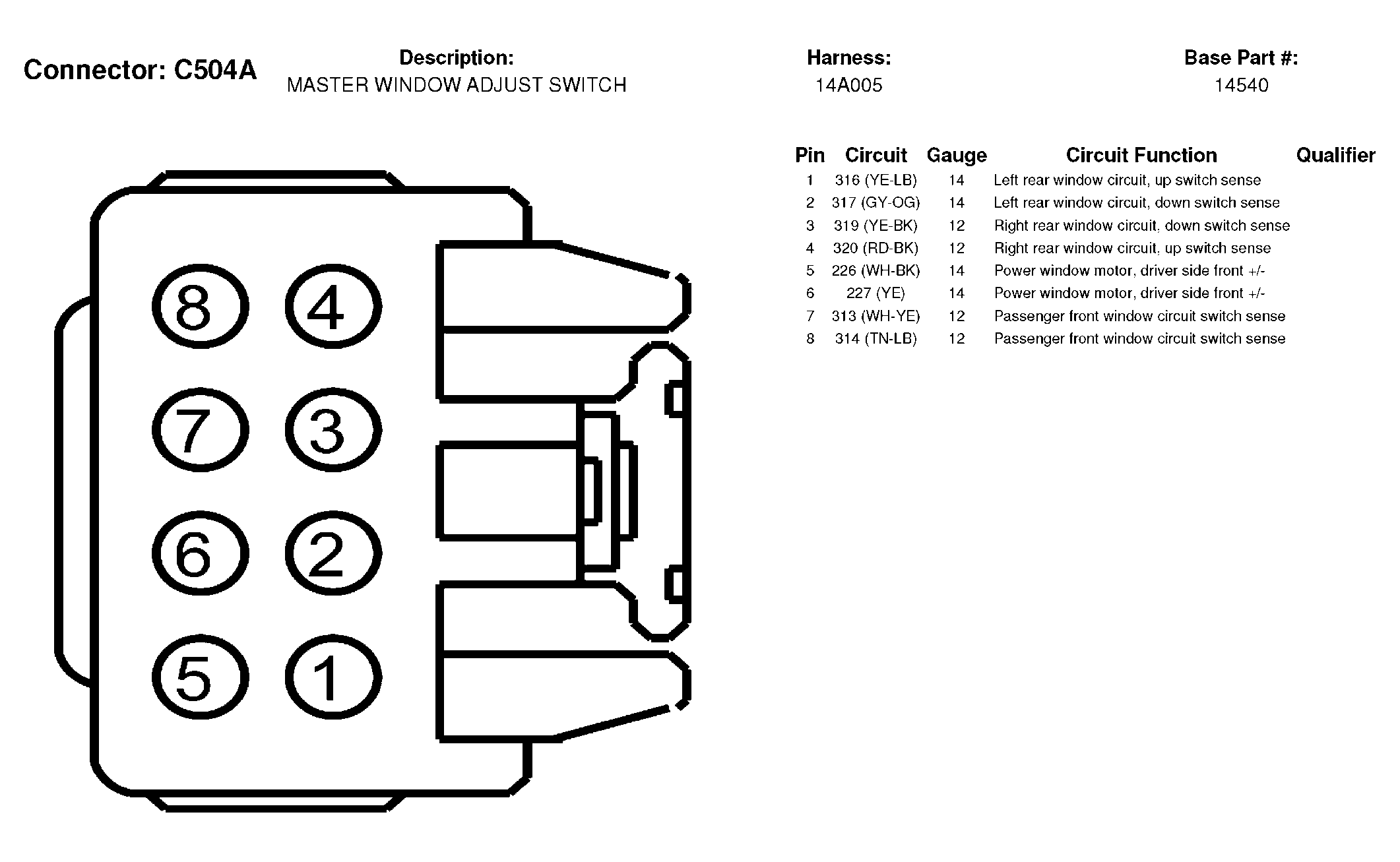

Fig 166: Master Window Adjust Switch Connector End View (C504A)

G04595585

Courtesy of FORD MOTOR CO.

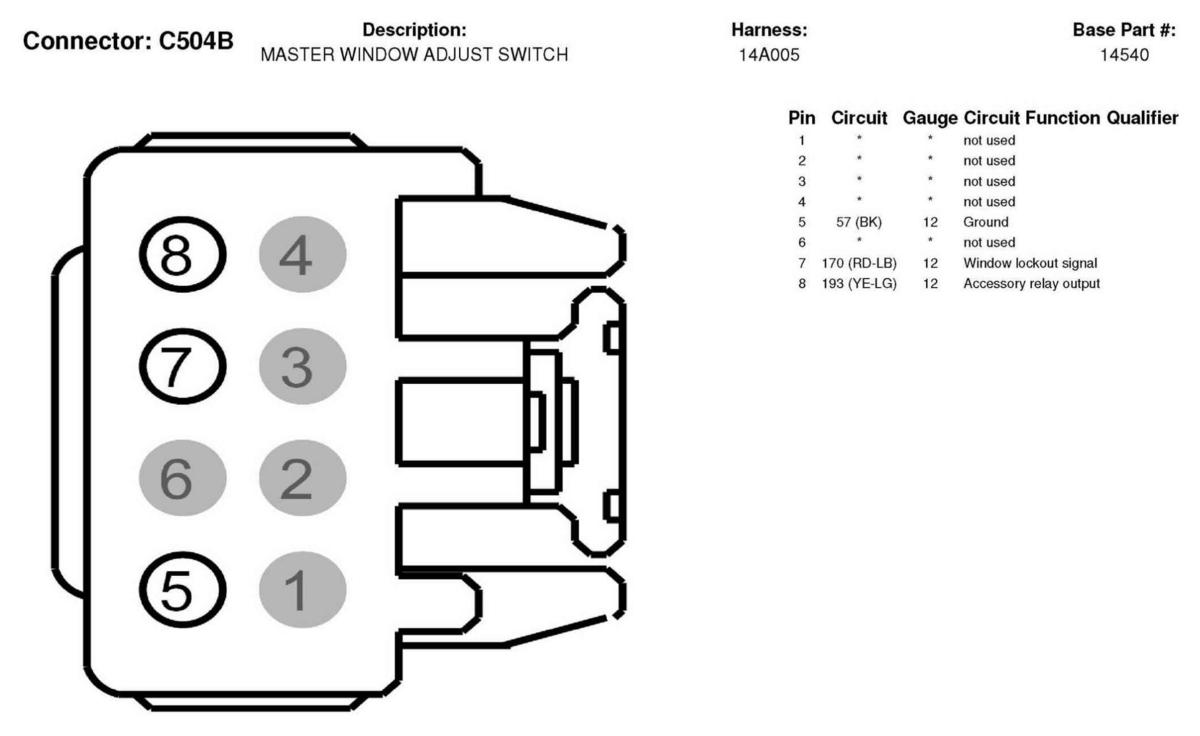

Fig 167: Master Window Adjust Switch Connector End View (C504B)

G04595586

Courtesy of FORD MOTOR CO.

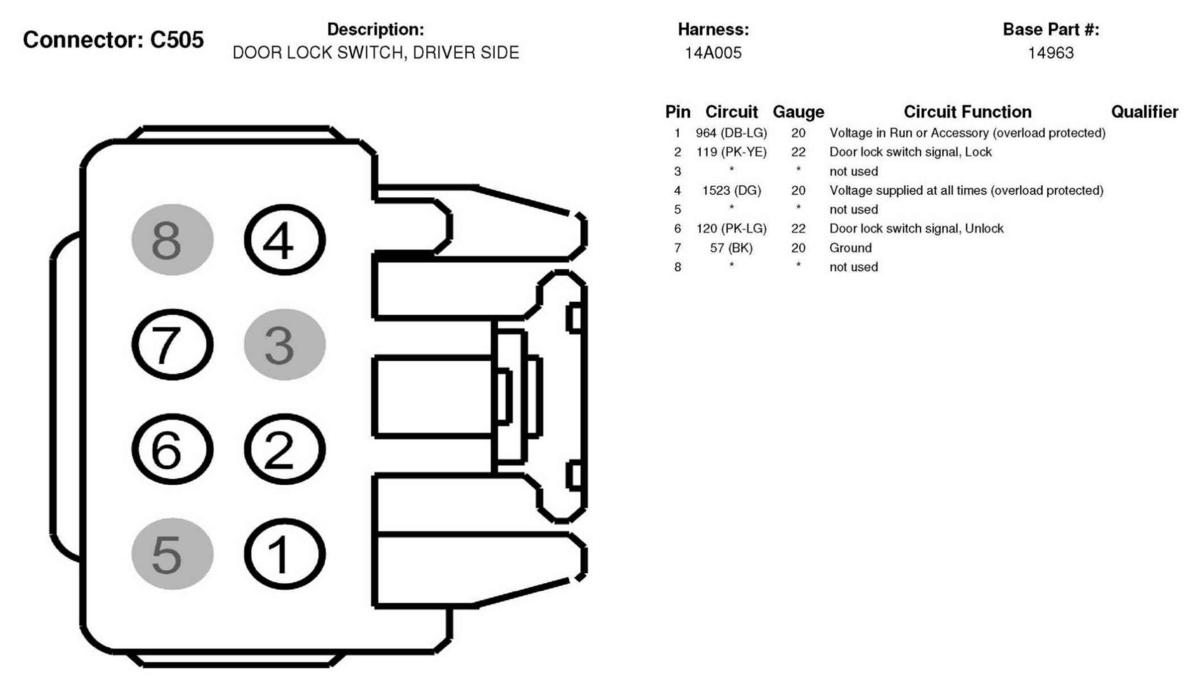

Fig 168: Door Lock Switch, Driver Side Connector End View (C505)

G04595587

Courtesy of FORD MOTOR CO.

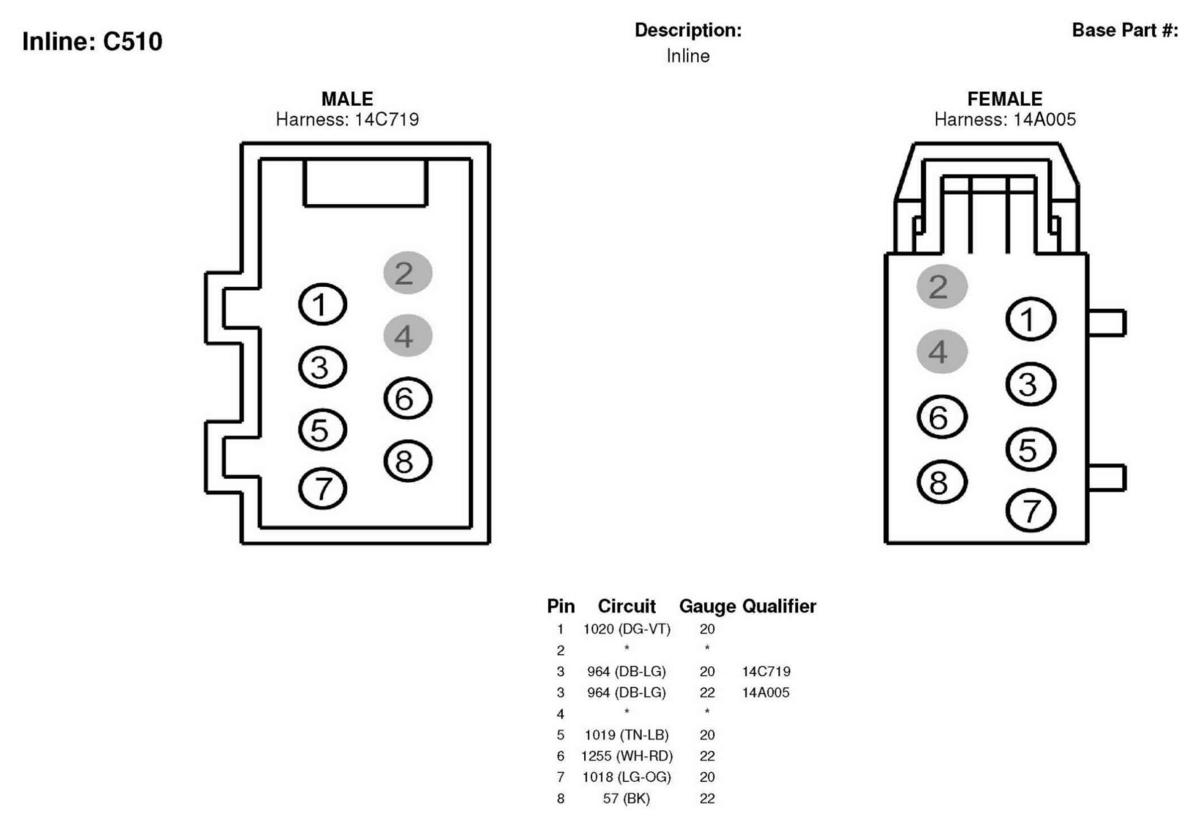

Fig 169: Inline Connector End View (C510)

G04595588

Courtesy of FORD MOTOR CO.

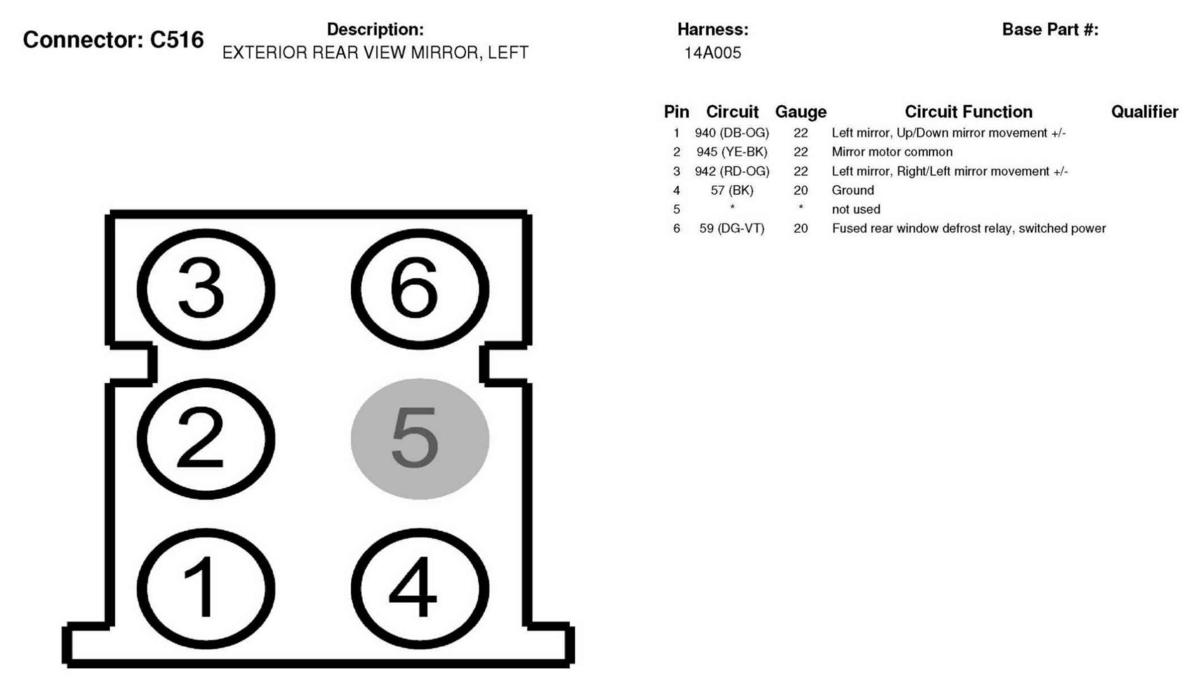

Fig 170: Exterior Rear View Mirror, Left Connector End View (C516)

G04595589

Courtesy of FORD MOTOR CO.

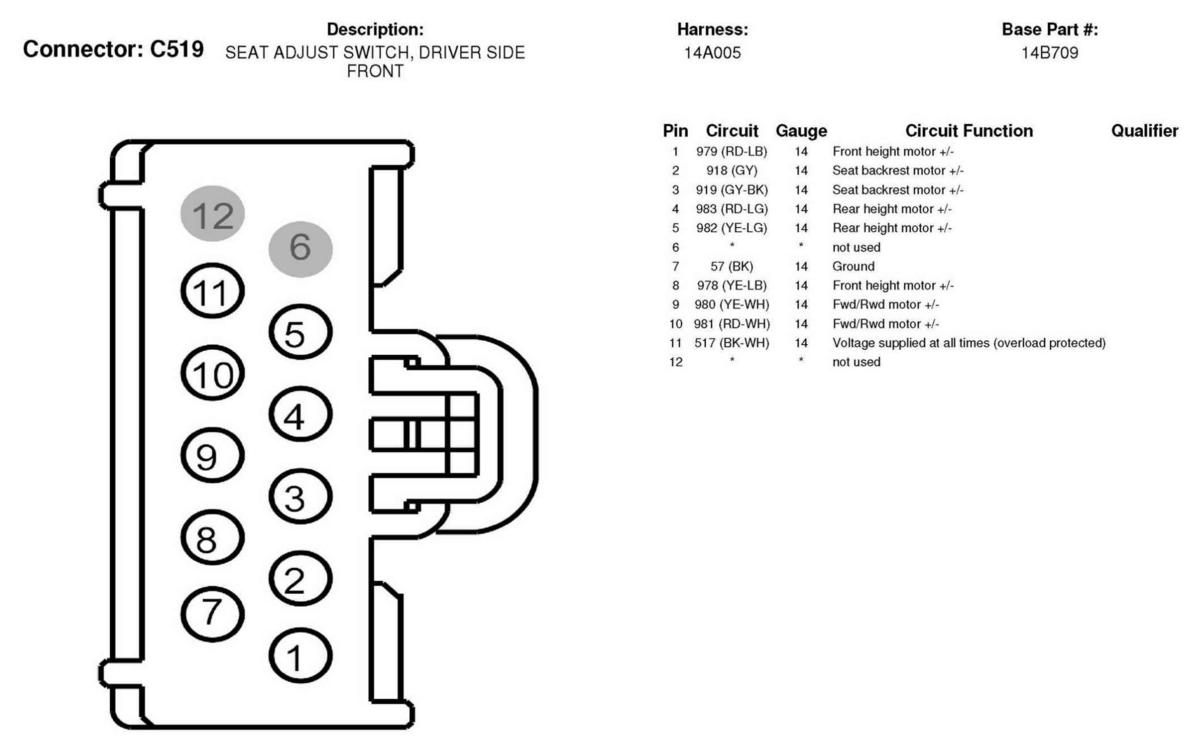

Fig 171: Seat Adjust Switch, Driver Side Front Connector End View (C519)

G04595590

Courtesy of FORD MOTOR CO.

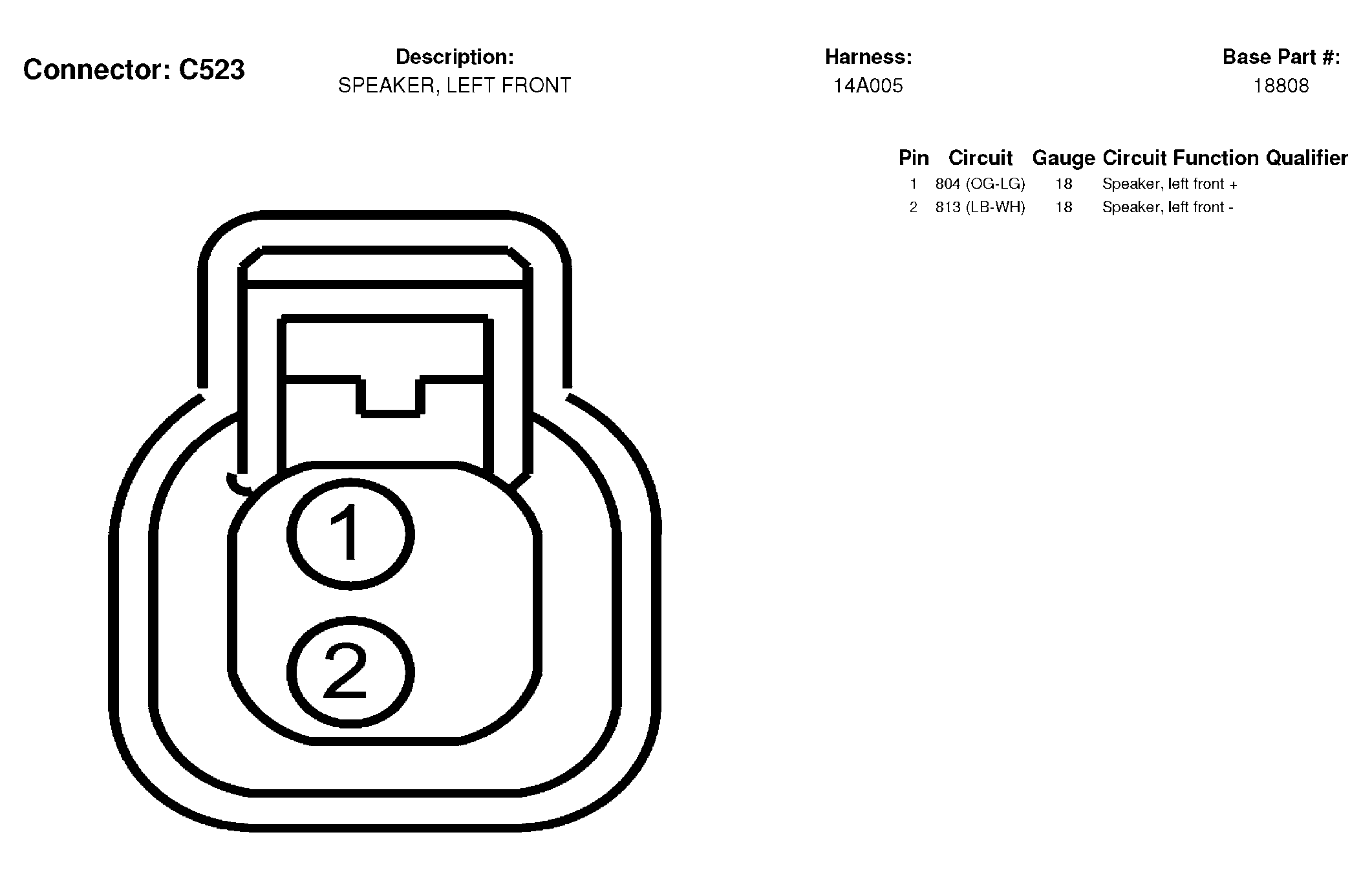

Fig 172: Speaker, Left Front Connector End View (C523)

G04595591

Courtesy of FORD MOTOR CO.

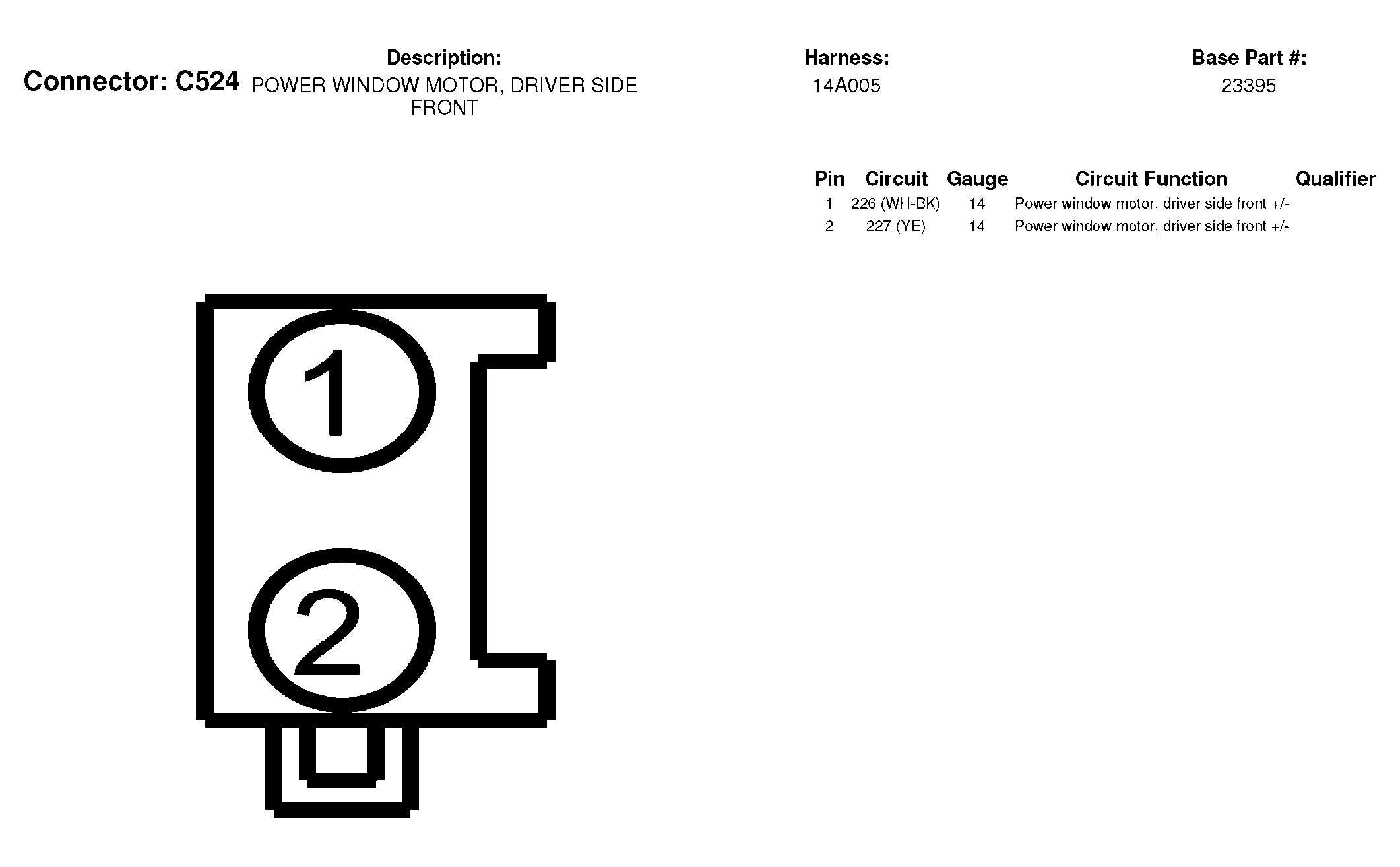

Fig 173: Power Window Motor, Driver Side Front Connector End View (C524)

G04595592

Courtesy of FORD MOTOR CO.

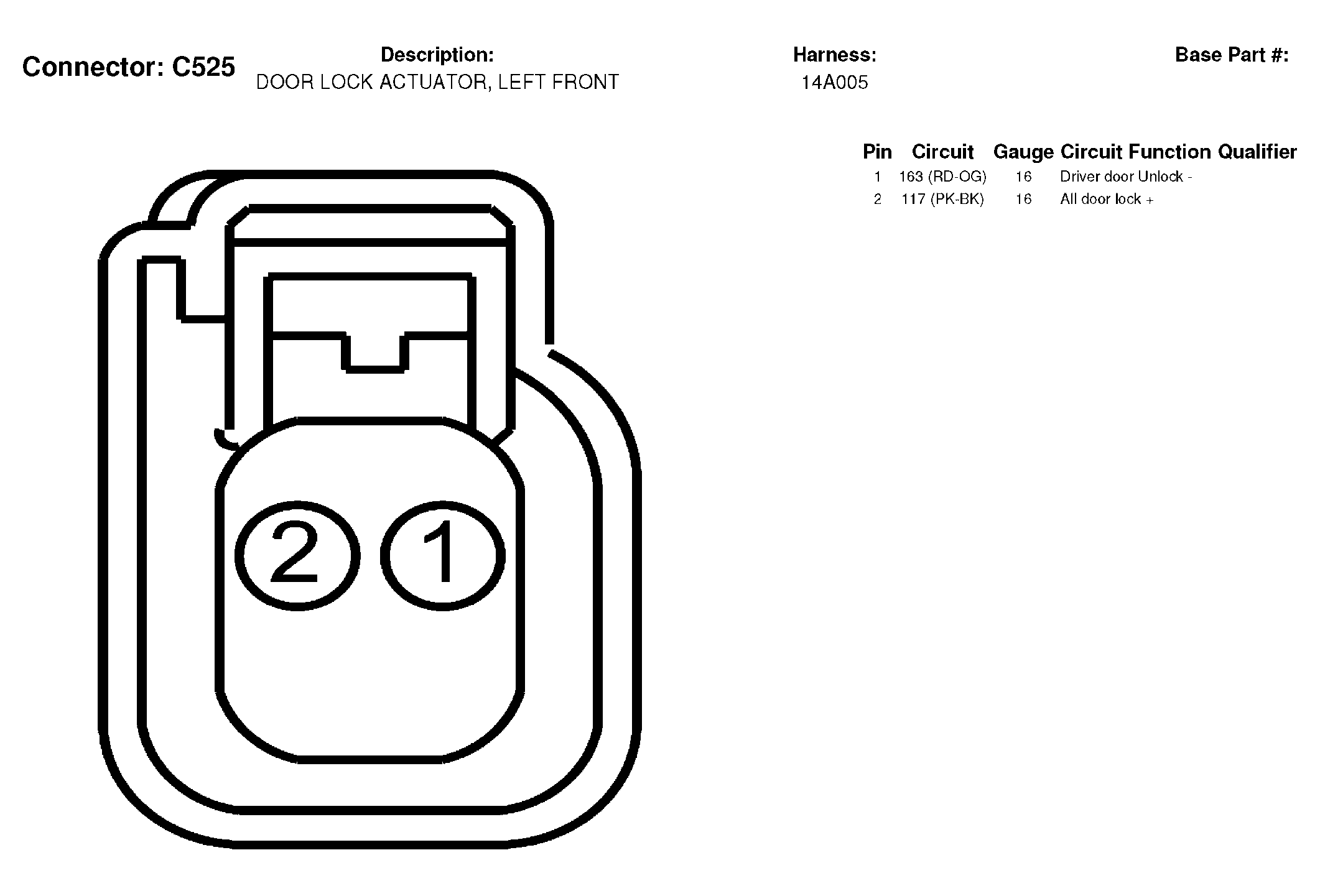

Fig 174: Door Lock Actuator, Left Front Connector End View (C525)

G04595593

Courtesy of FORD MOTOR CO.

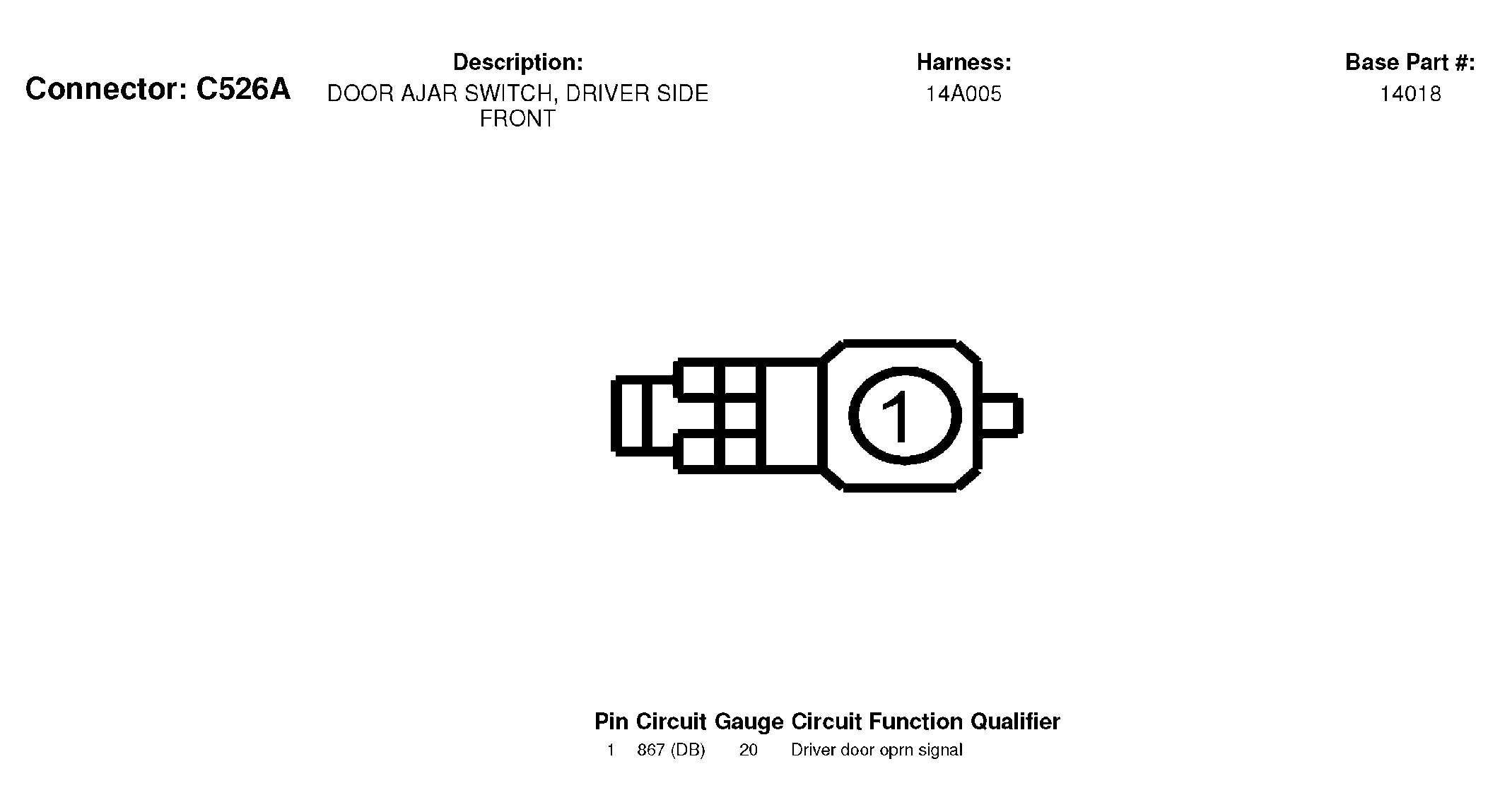

Fig 175: Door Ajar Switch, Driver Side Front Connector End View (C526A)

G04595594

Courtesy of FORD MOTOR CO.

Fig 176: Door Ajar Switch, Driver Side Front Connector End View (C526B)

G04595595

Courtesy of FORD MOTOR CO.

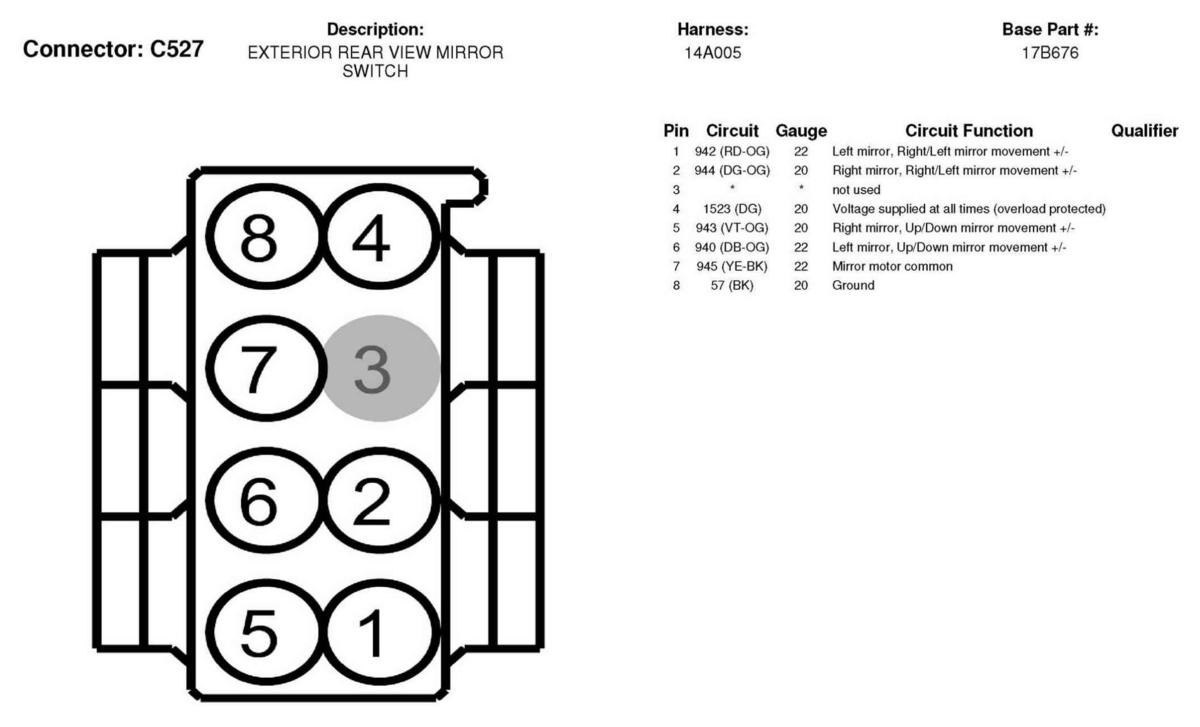

Fig 177: Exterior Rear View Mirror Switch Connector End View (C527)

G04595596

Courtesy of FORD MOTOR CO.

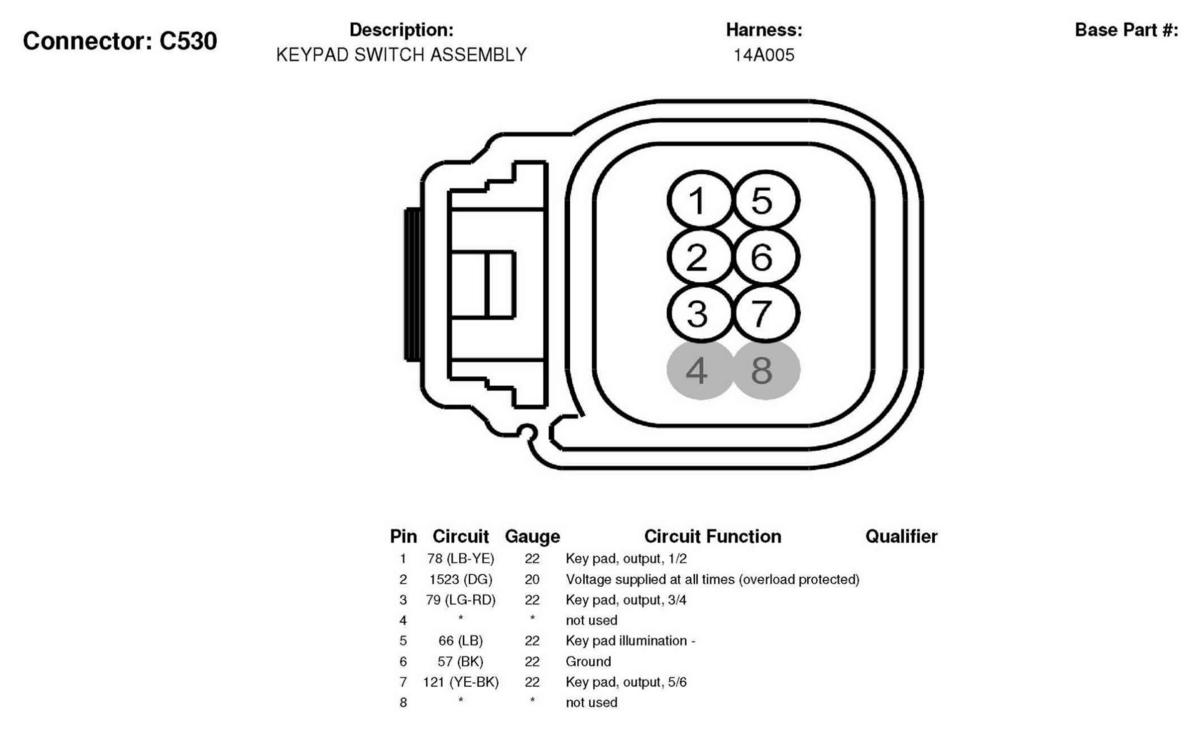

Fig 178: Keypad Switch Assembly Connector End View (C530)

G04595597

Courtesy of FORD MOTOR CO.

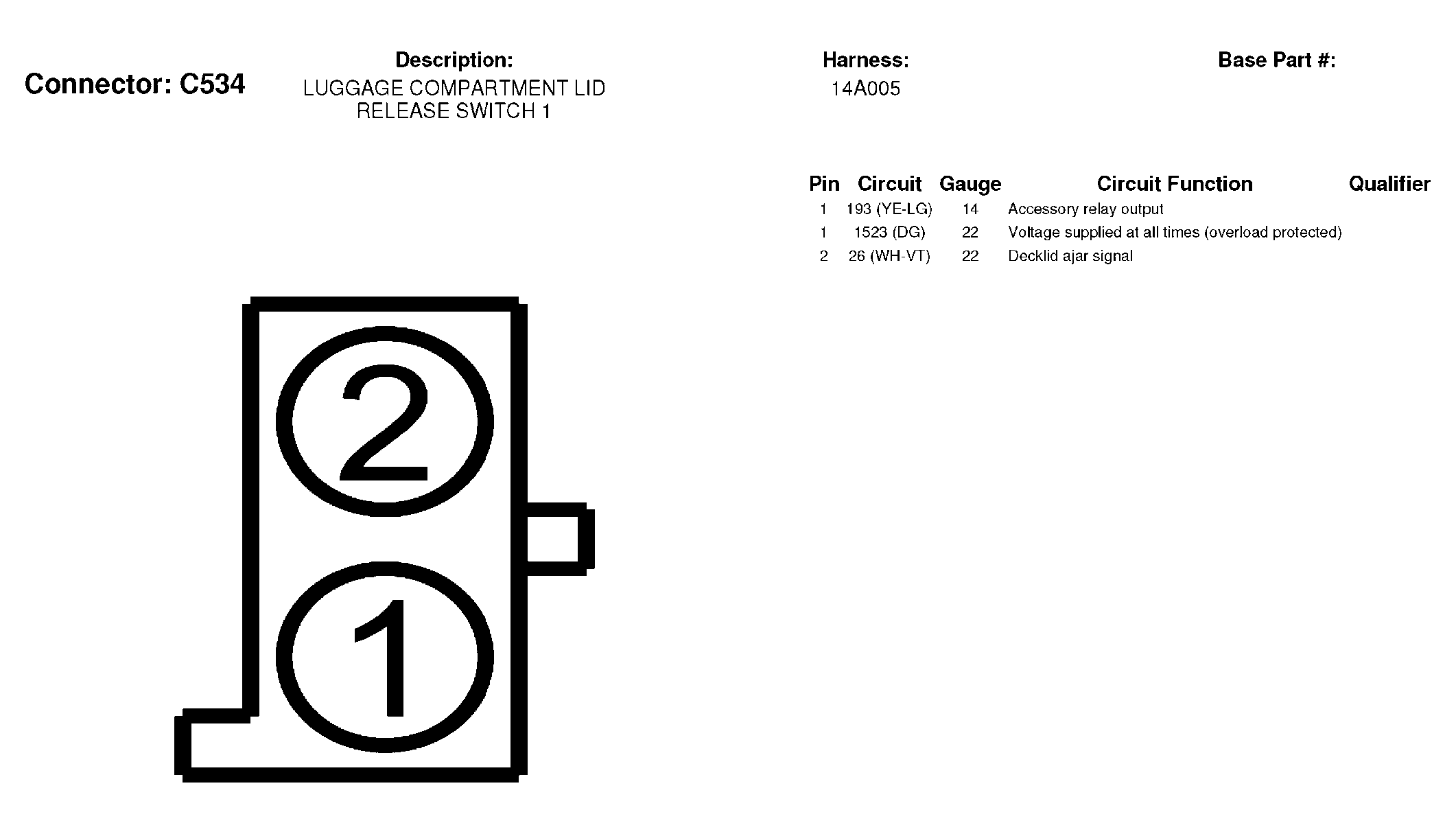

Fig 179: Luggage Compartment Lid Release Switch 1 Connector End View (C534)

G04595598

Courtesy of FORD MOTOR CO.

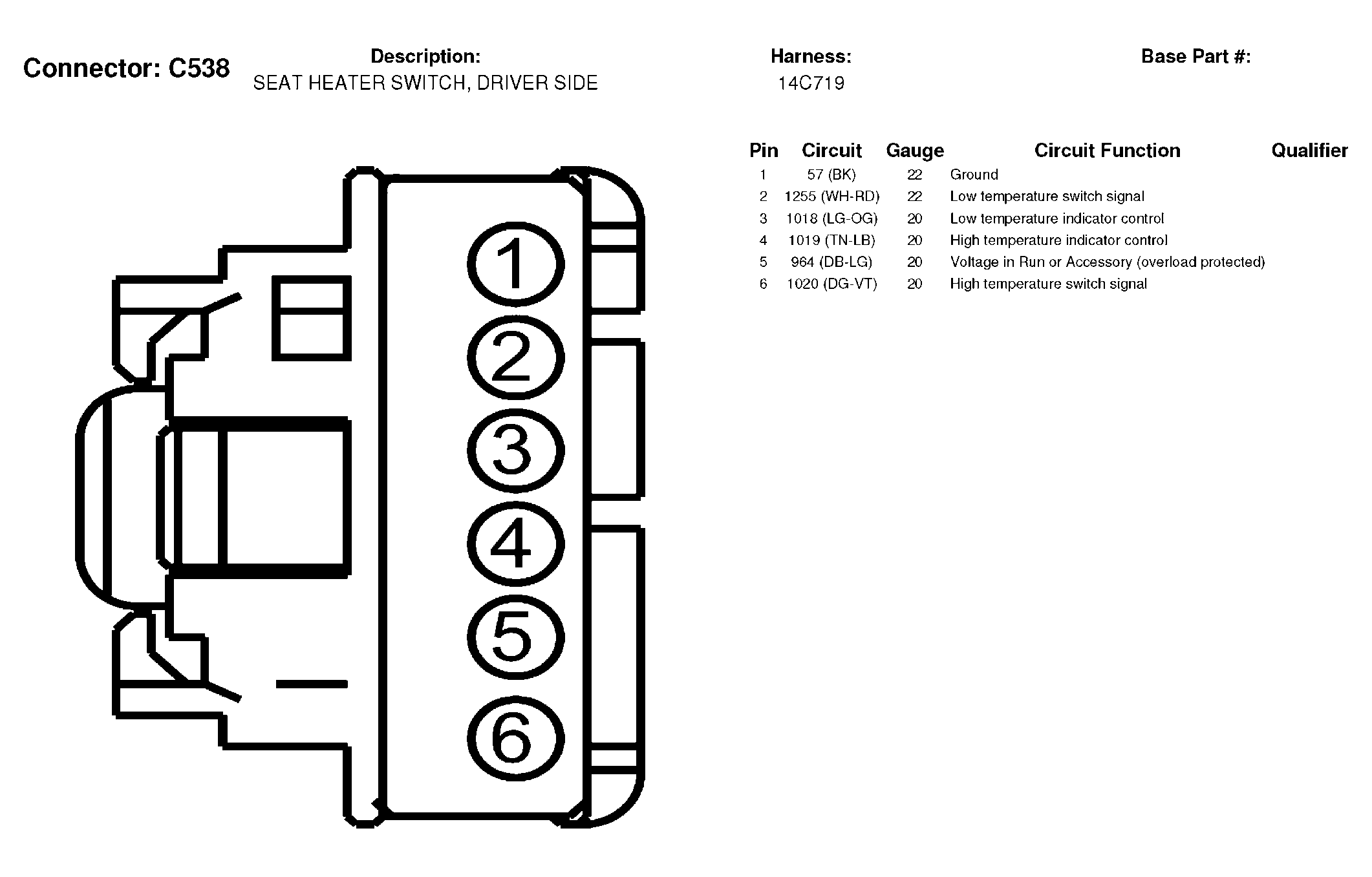

Fig 180: Seat Heater Switch, Driver Side Connector End View (C538)

G04595599

Courtesy of FORD MOTOR CO.

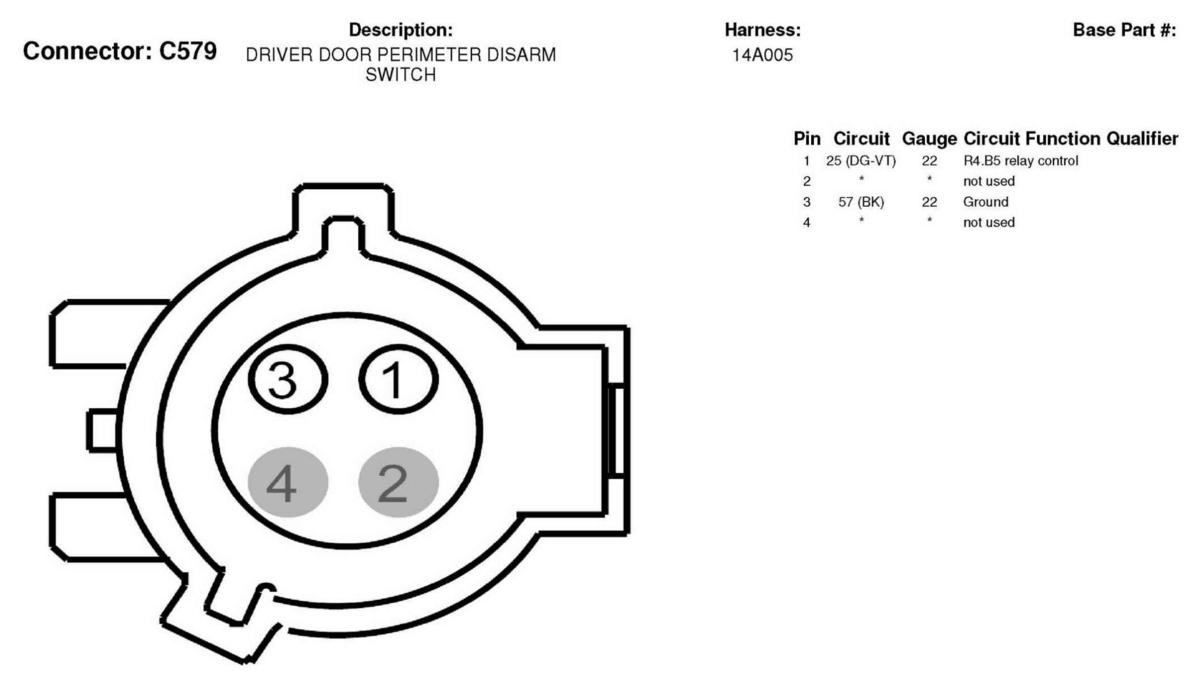

Fig 181: Driver Door Perimeter Disarm Switch Connector End View (C579)

G04595600

Courtesy of FORD MOTOR CO.

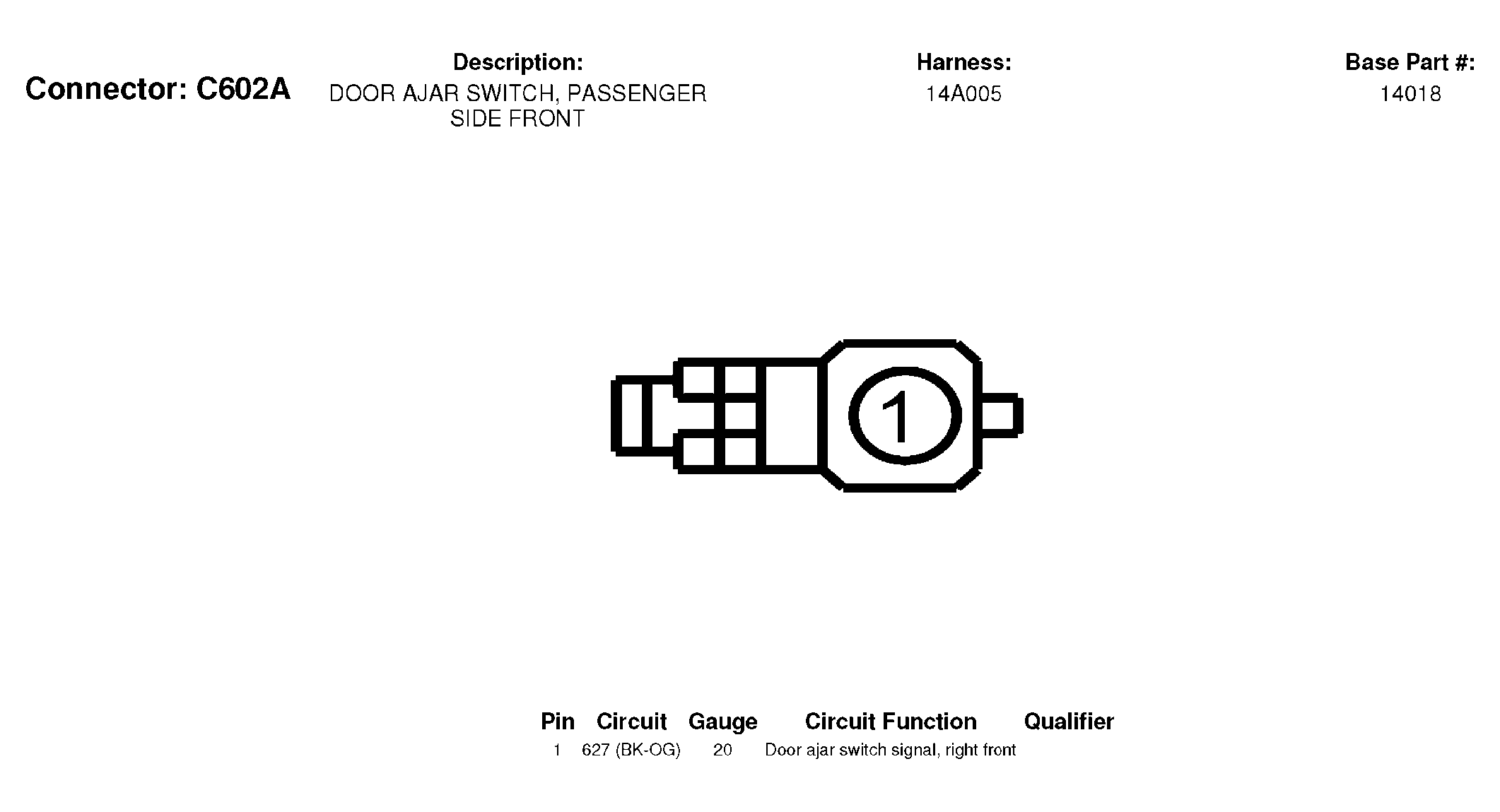

Fig 182: Door Ajar Switch, Passenger Side Front Connector End View (C602A)

G04595601

Courtesy of FORD MOTOR CO.

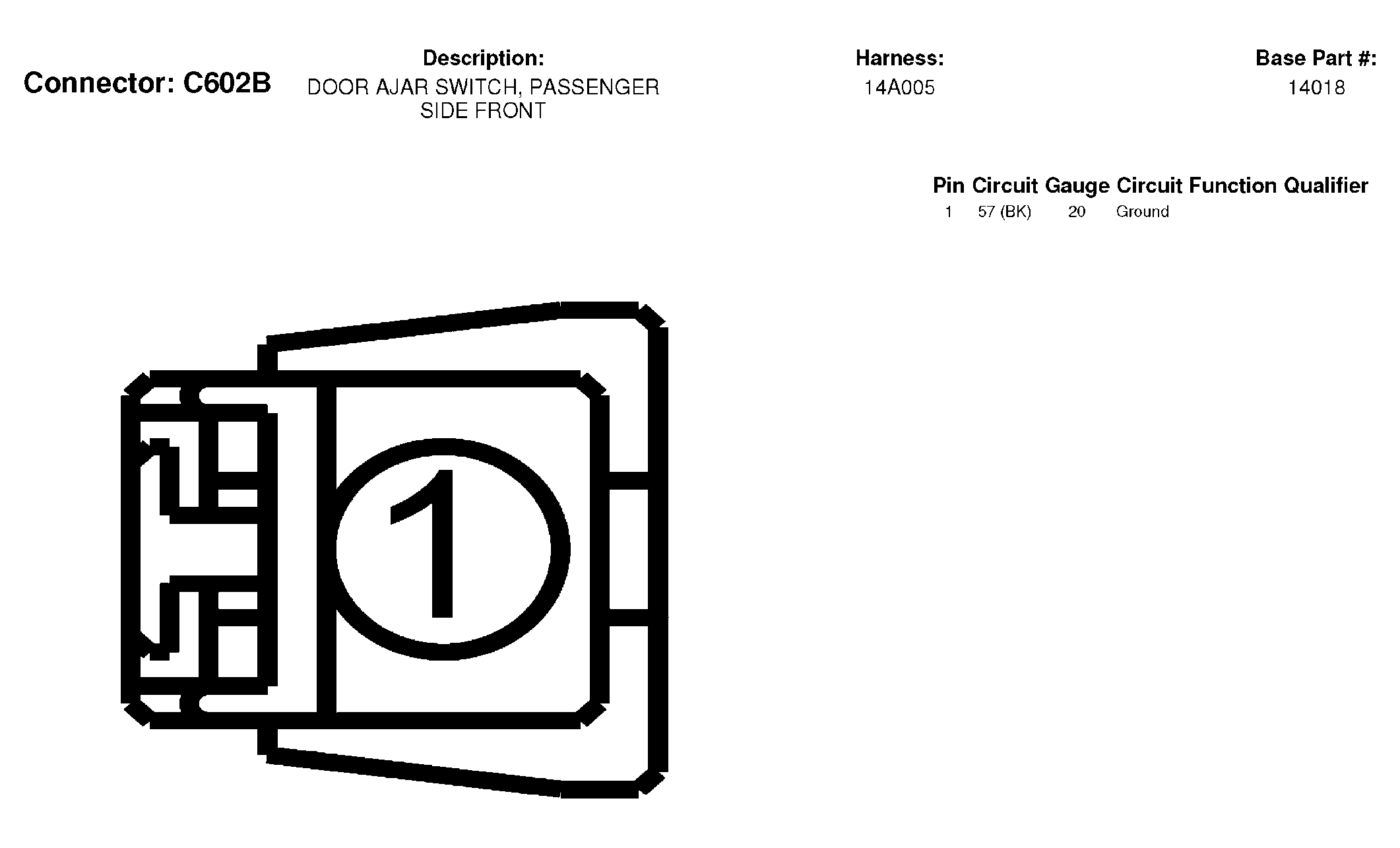

Fig 183: Door Ajar Switch, Passenger Side Front Connector End View (C602B)

G04595602

Courtesy of FORD MOTOR CO.

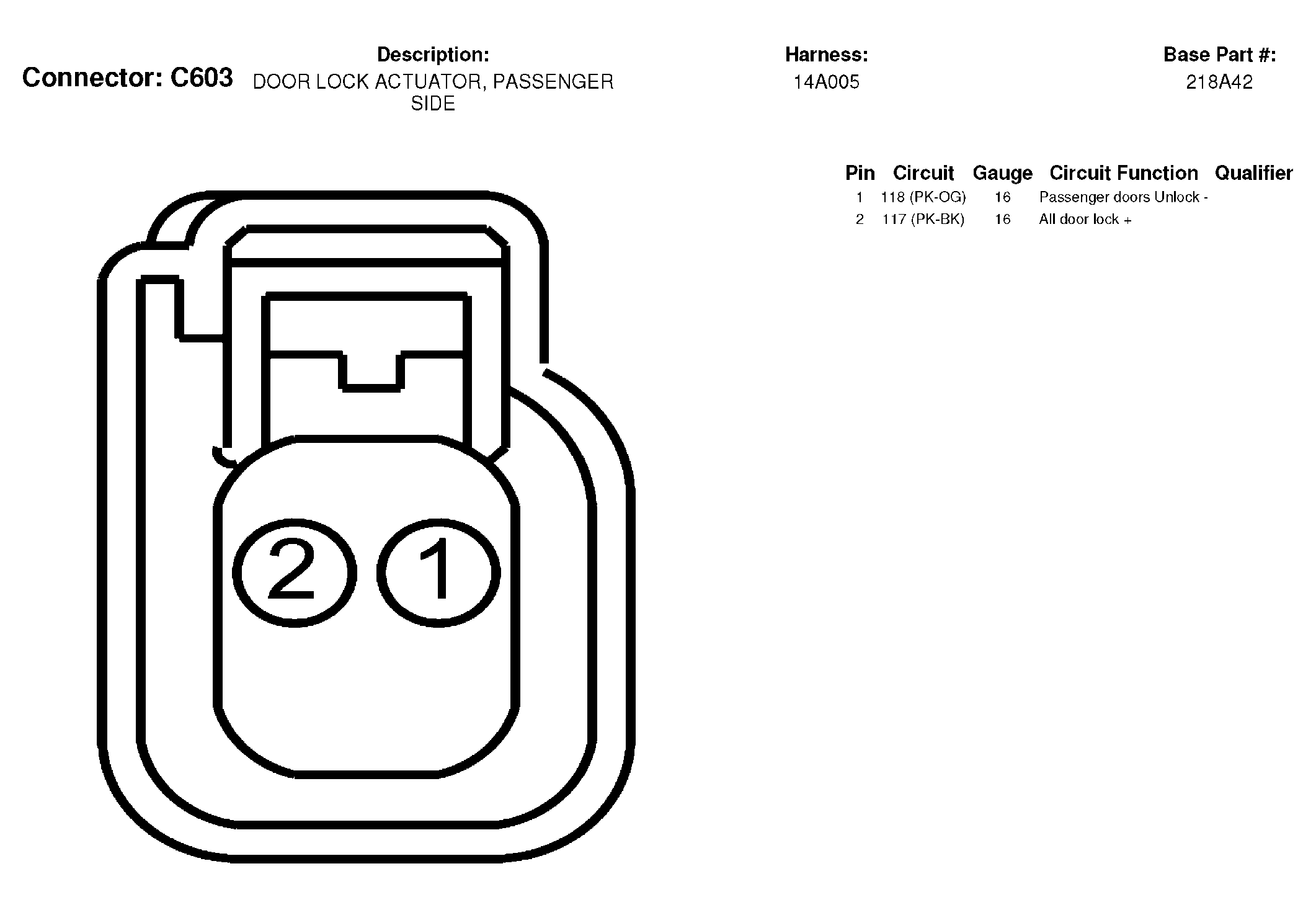

Fig 184: Door Lock Actuator, Passenger Side Connector End View (C603)

G04595603

Courtesy of FORD MOTOR CO.

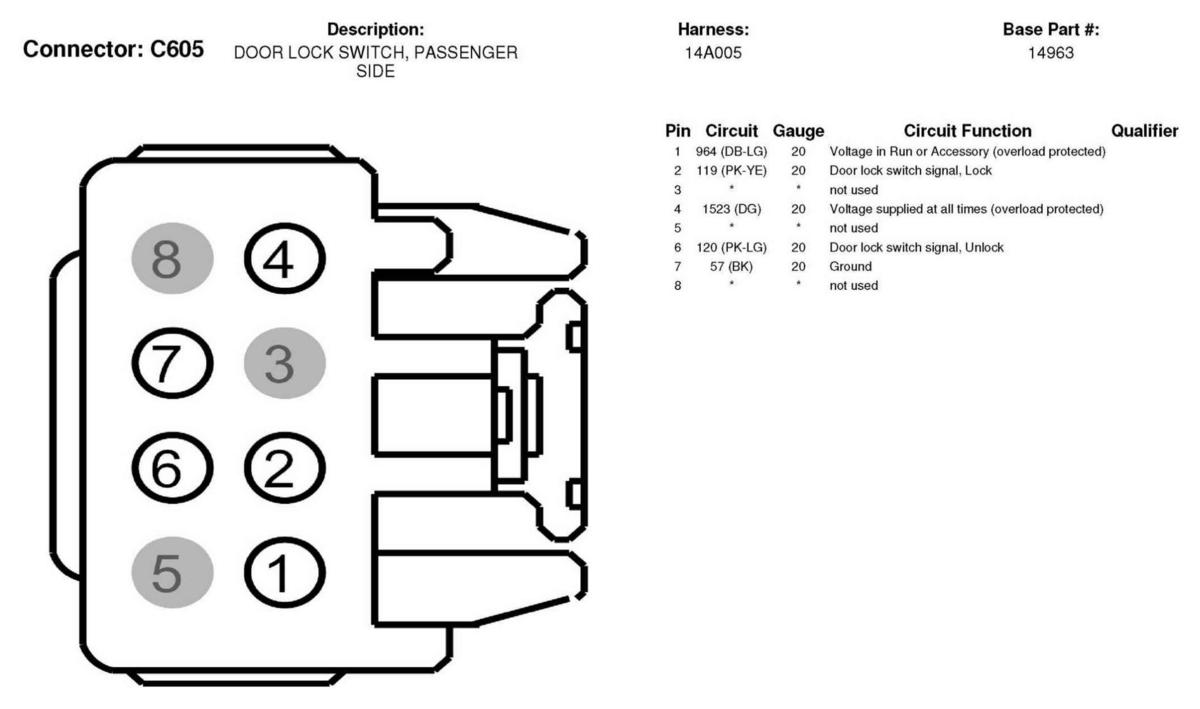

Fig 185: Door Lock Switch, Passenger Side Connector End View (C605)

G04595604

Courtesy of FORD MOTOR CO.

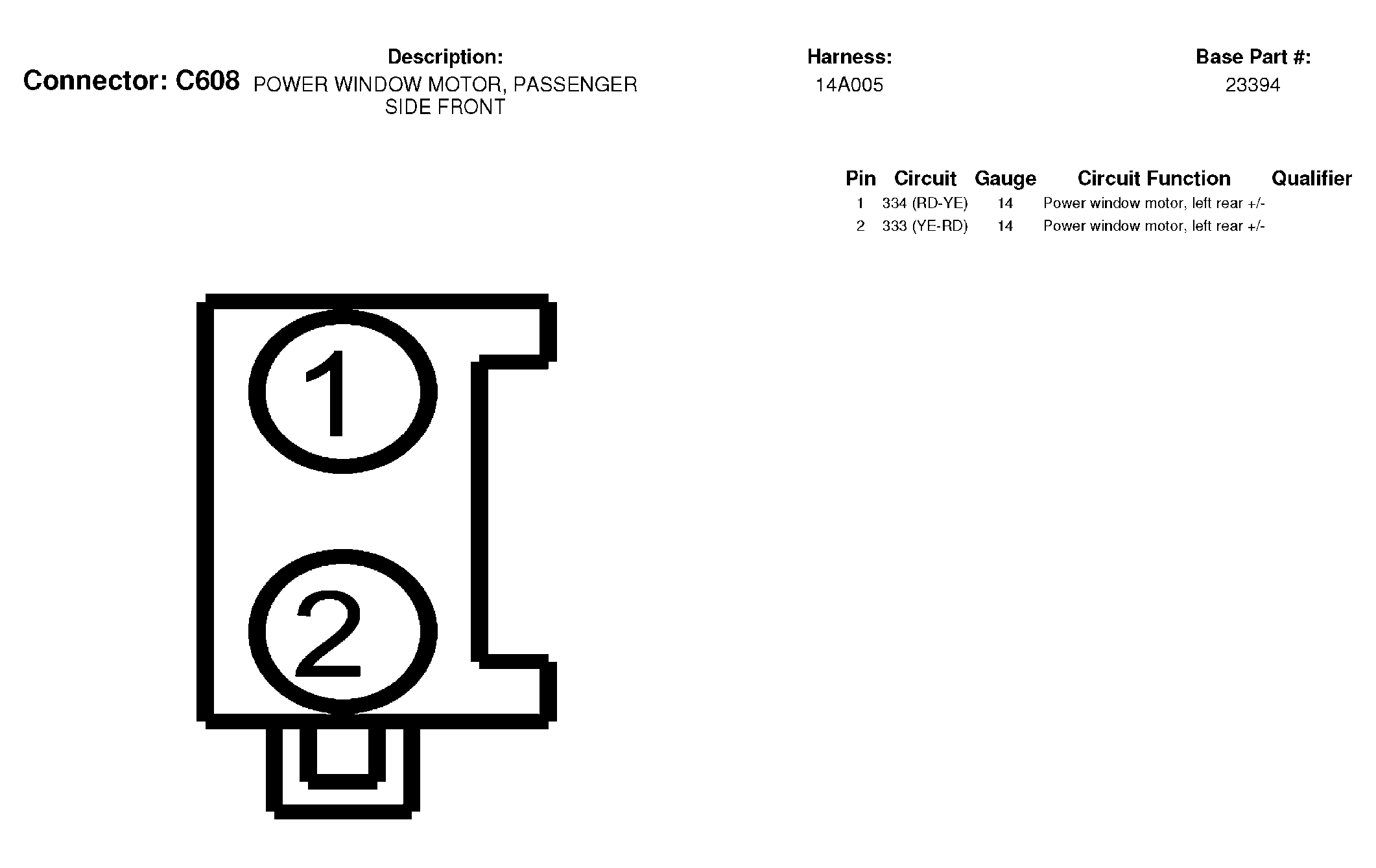

Fig 186: Power Window Motor, Passenger Side Front Connector End View (C608)

G04595605

Courtesy of FORD MOTOR CO.

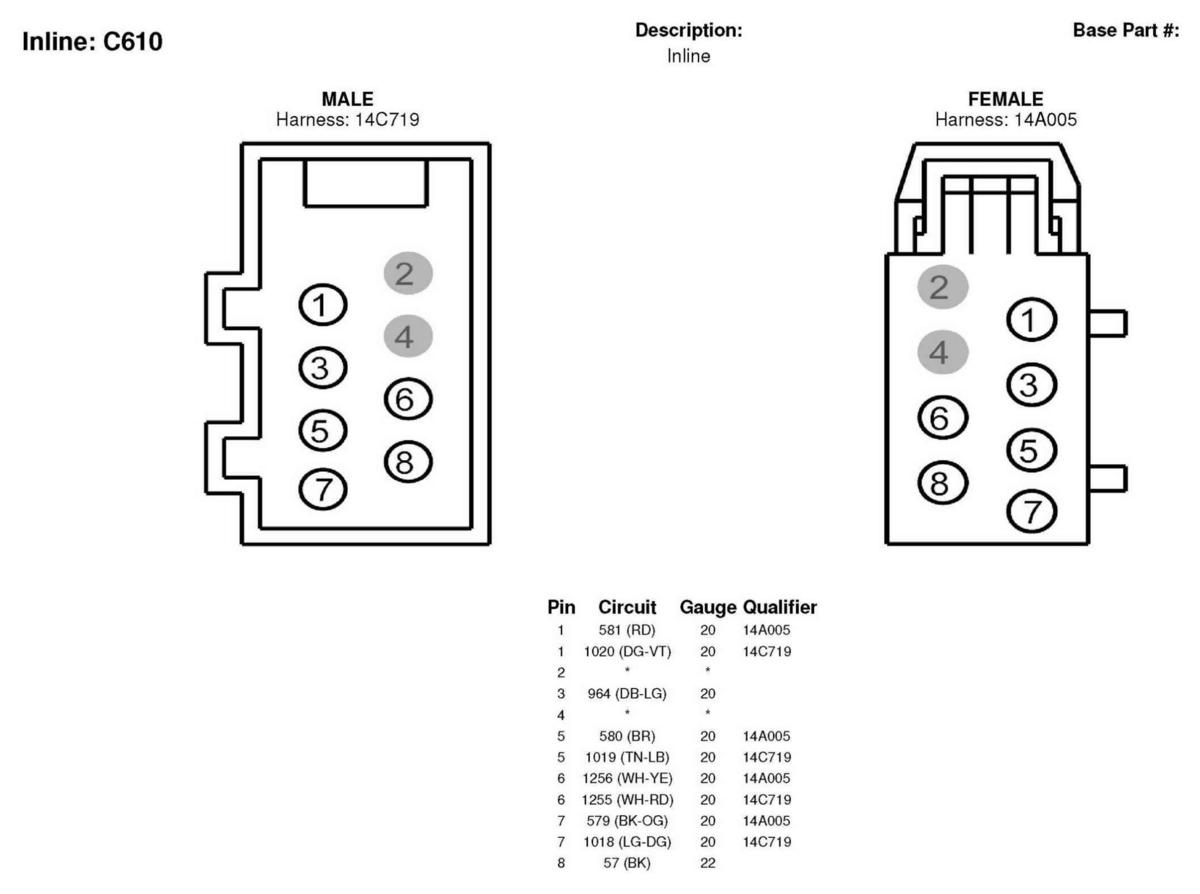

Fig 187: Inline Connector End View (C610)

G04595606

Courtesy of FORD MOTOR CO.

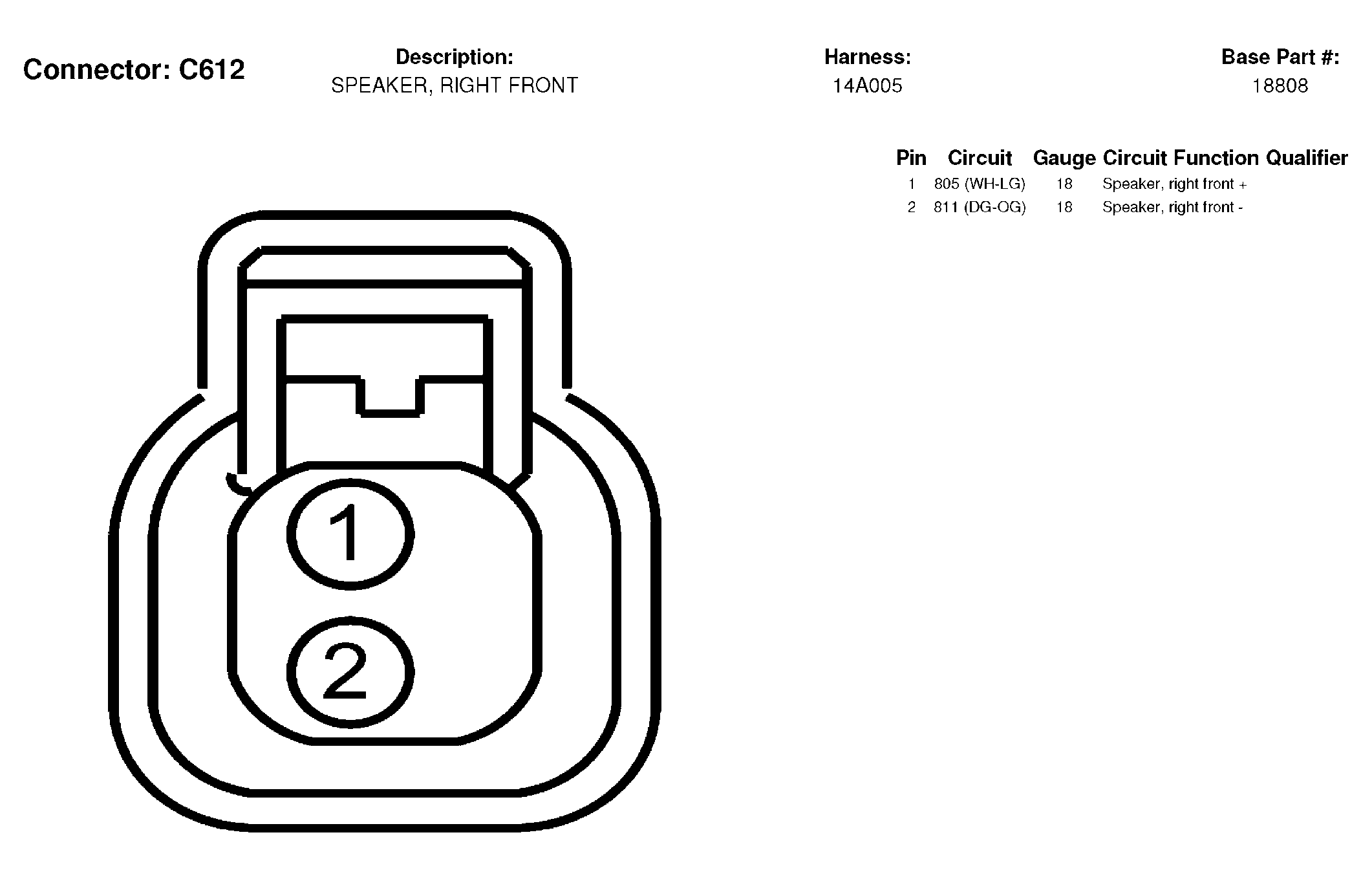

Fig 188: Speaker, Right Front Connector End View (C612)

G04595607

Courtesy of FORD MOTOR CO.

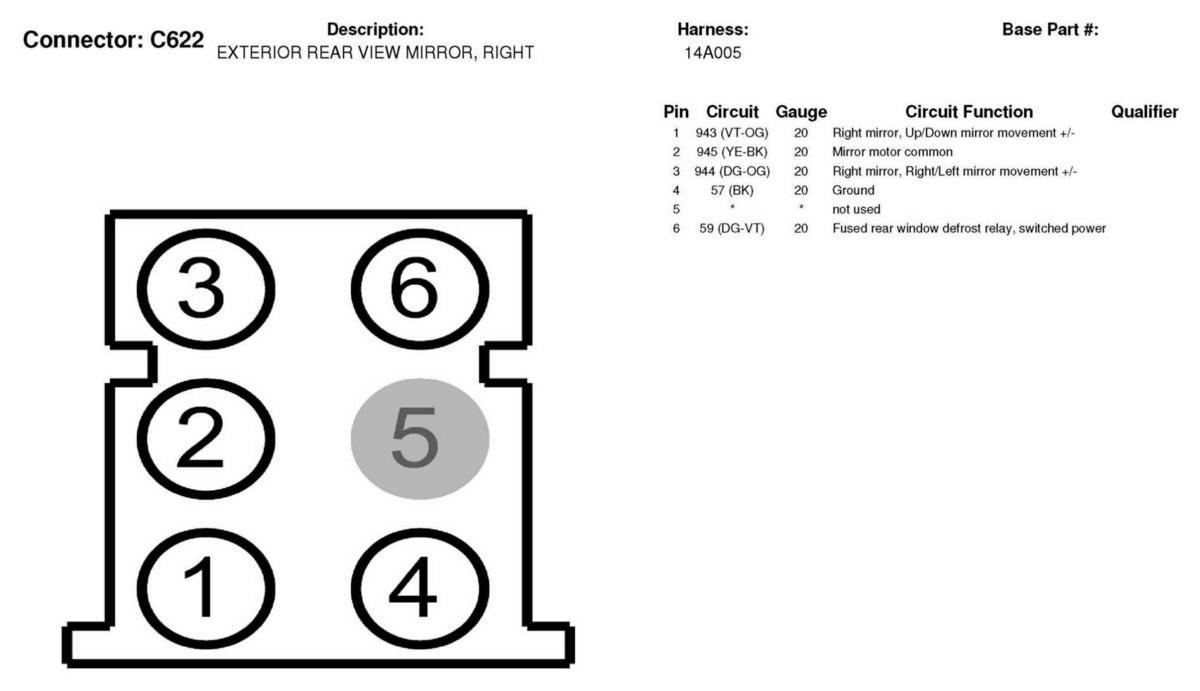

Fig 189: Exterior Rear View Mirror, Right Connector End View (C622)

G04595608

Courtesy of FORD MOTOR CO.

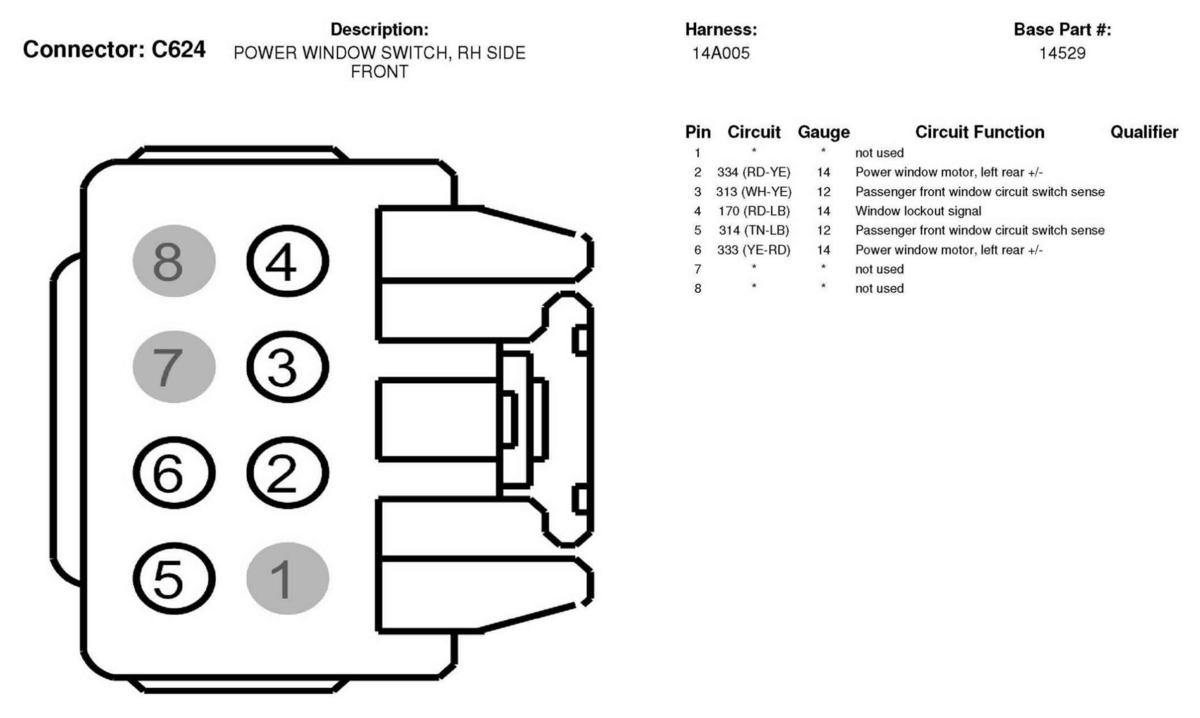

Fig 190: Power Window Switch, RH Side Front Connector End View (C624)

G04595609

Courtesy of FORD MOTOR CO.

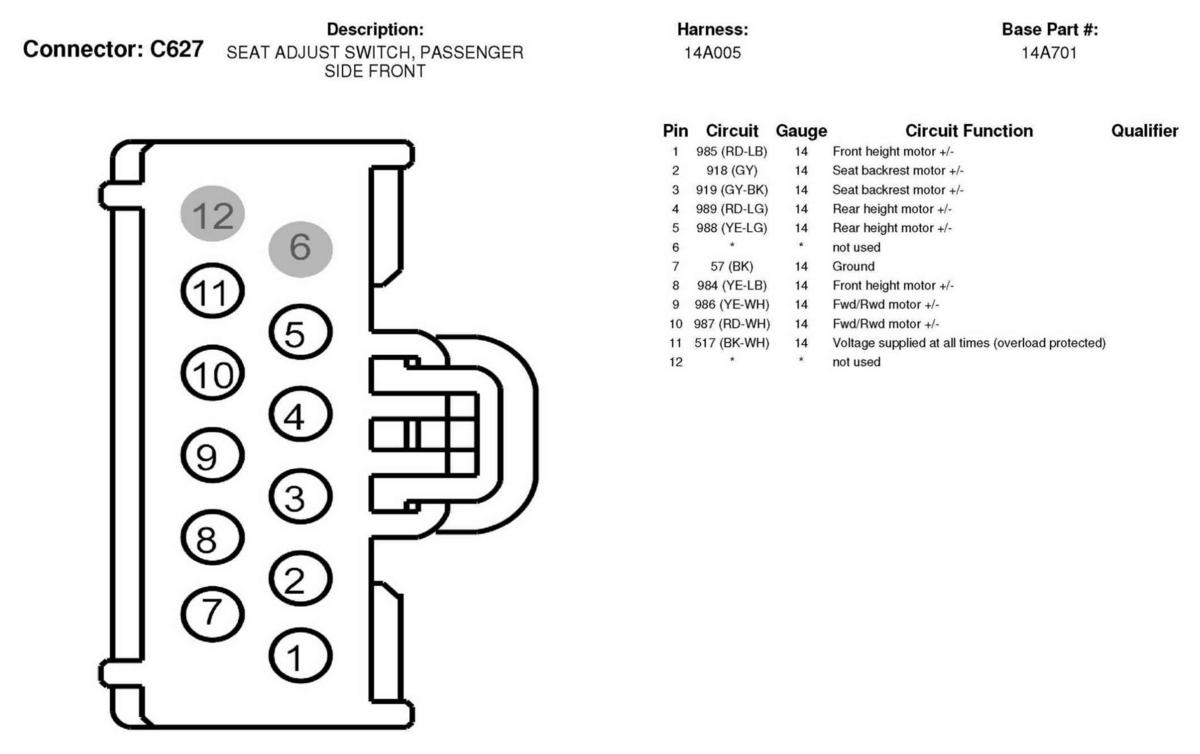

Fig 191: Seat Adjust Switch, Passenger Side Front Connector End View (C627)

G04595610

Courtesy of FORD MOTOR CO.

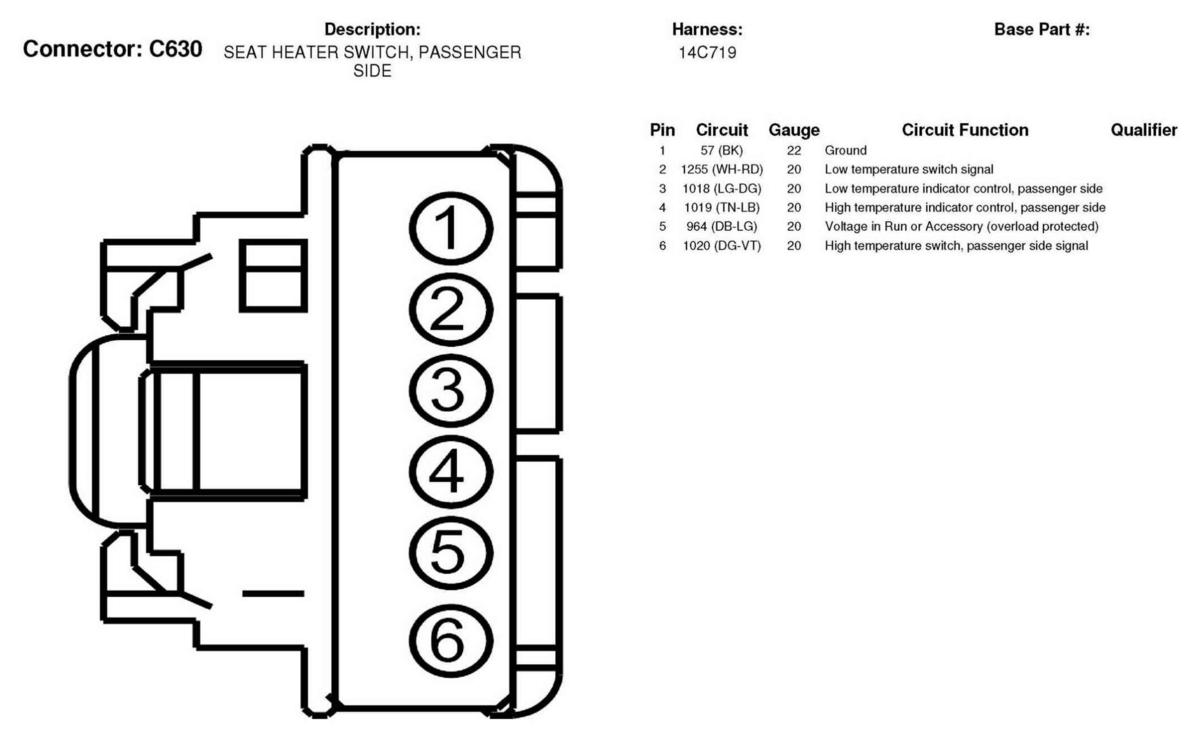

Fig 192: Seat Heater Switch, Passenger Side Connector End View (C630)

G04595611

Courtesy of FORD MOTOR CO.

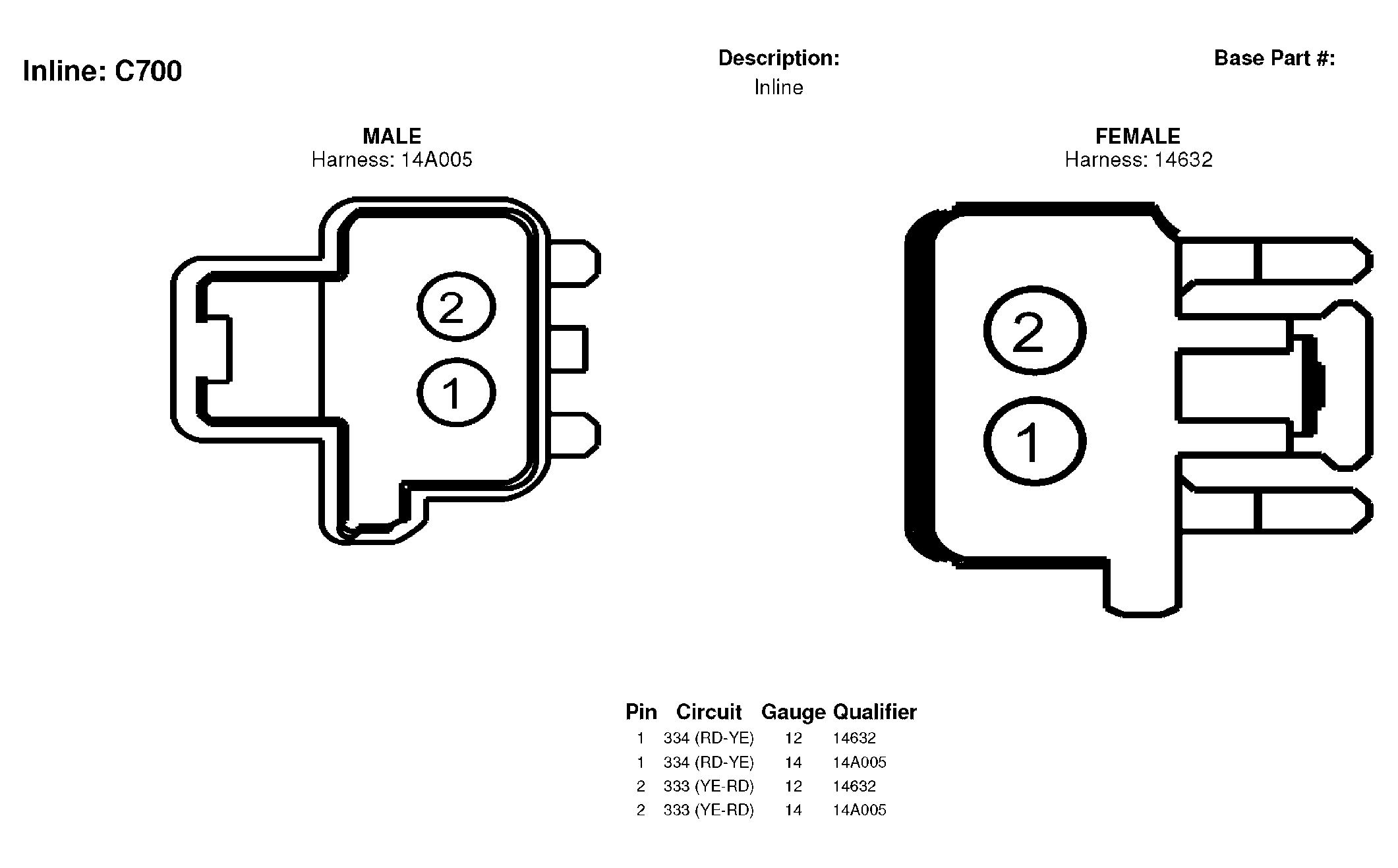

Fig 193: Inline Connector End View (C700)

G04595612

Courtesy of FORD MOTOR CO.

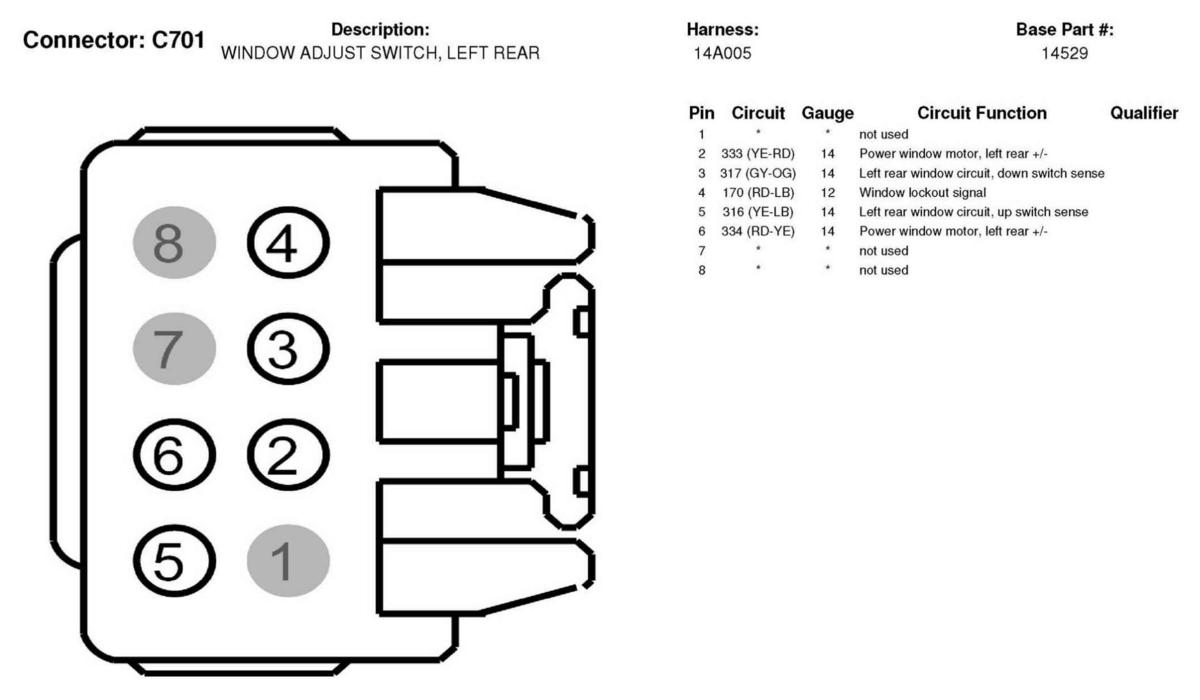

Fig 194: Window Adjust Switch, Left Rear Connector End View (C701)

G04595613

Courtesy of FORD MOTOR CO.

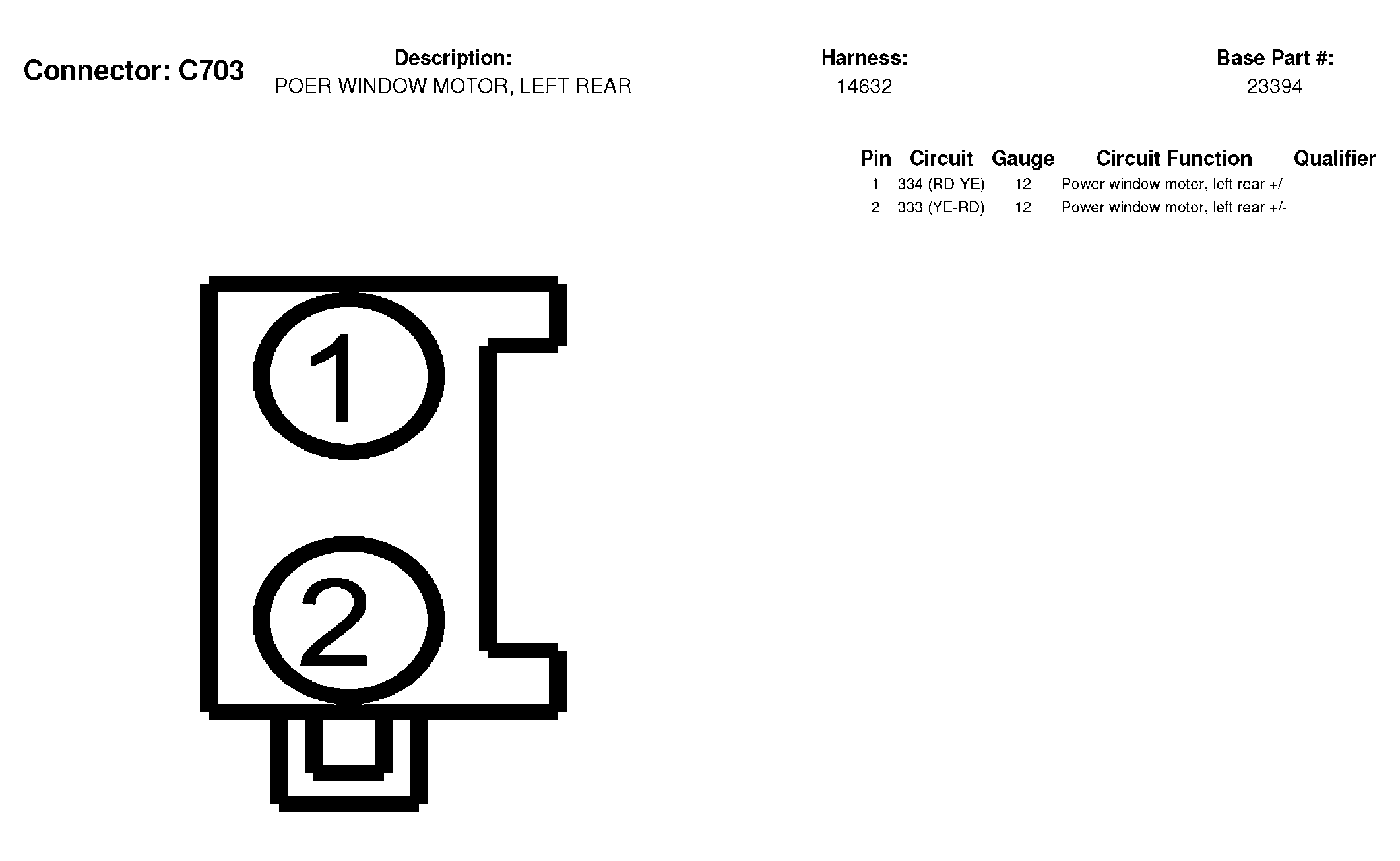

Fig 195: Power Window Motor, Left Rear Connector End View (C703)

G04595614

Courtesy of FORD MOTOR CO.

Fig 196: Door Lock Actuator, Left Rear Connector End View (C704)

G04595615

Courtesy of FORD MOTOR CO.

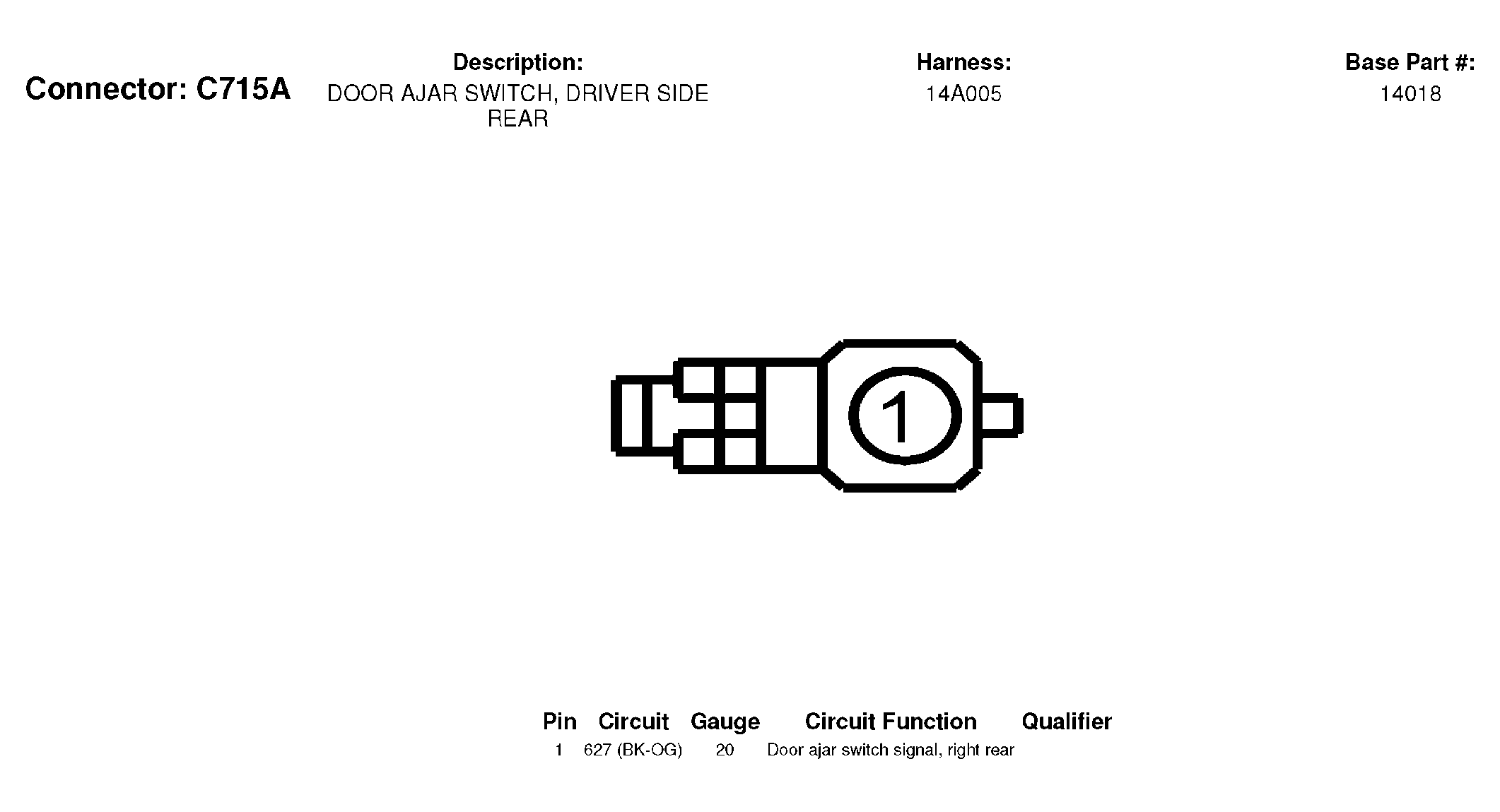

Fig 197: Door Ajar Switch, Driver Side Rear Connector End View (C715A)

G04595616

Courtesy of FORD MOTOR CO.

Fig 198: Door Ajar Switch, Driver Side Rear Connector End View (C715B)

G04595617

Courtesy of FORD MOTOR CO.

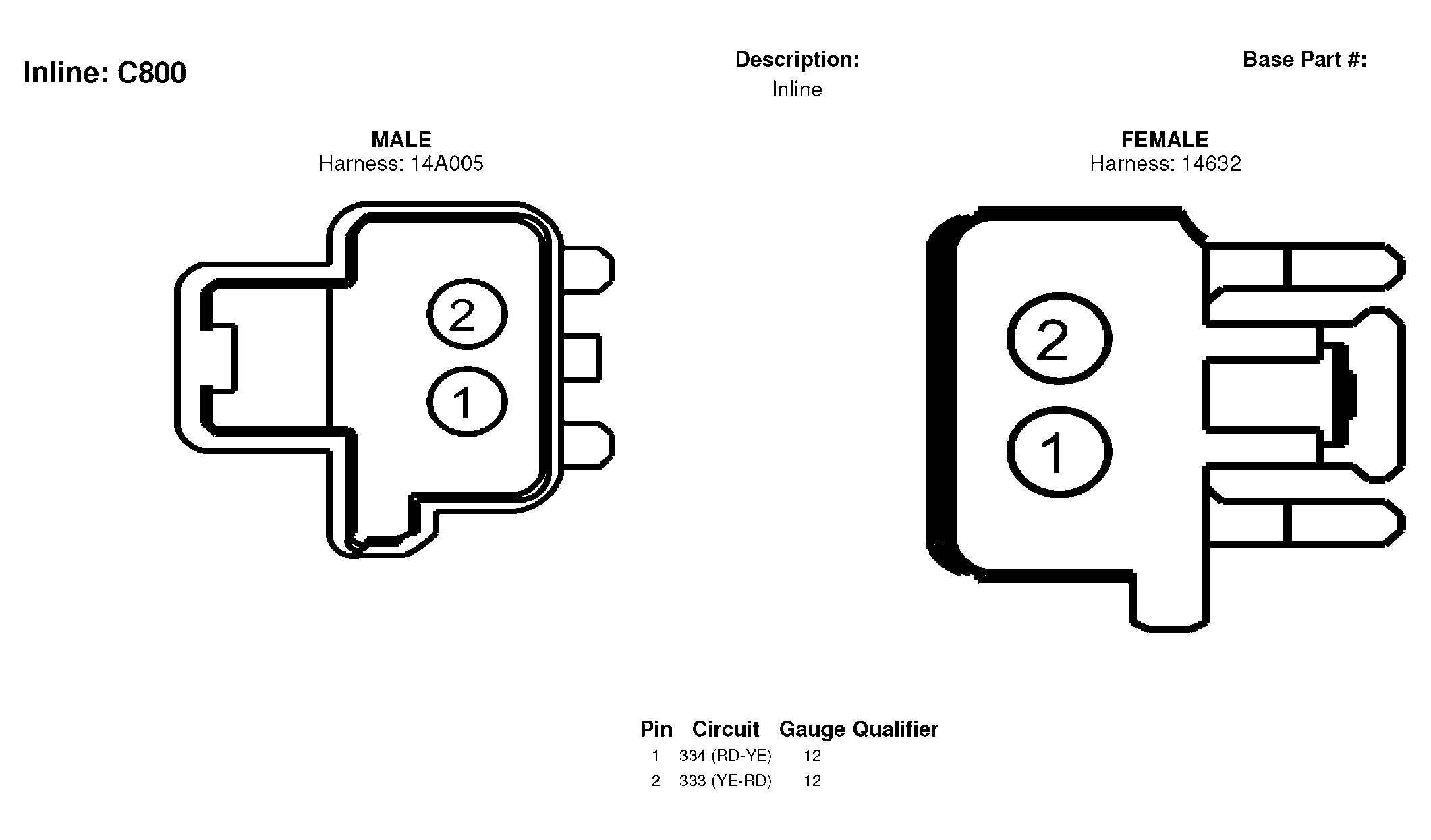

Fig 199: Inline Connector End View (C800)

G04595618

Courtesy of FORD MOTOR CO.

Fig 200: Window Adjust Switch, Right Rear Connector End View (C801)

G04595619

Courtesy of FORD MOTOR CO.

Fig 201: Power Window Motor, Right Rear Connector End View (C803)

G04595620

Courtesy of FORD MOTOR CO.

Fig 202: Door Lock Actuator, Right Rear Connector End View (C804)

G04595621

Courtesy of FORD MOTOR CO.

Fig 203: Door Ajar Switch, Passenger Side Rear Connector End View (C820A)

G04595622

Courtesy of FORD MOTOR CO.

Fig 204: Door Ajar Switch, Passenger Side Rear Connector End View (C820B)

G04595623

Courtesy of FORD MOTOR CO.

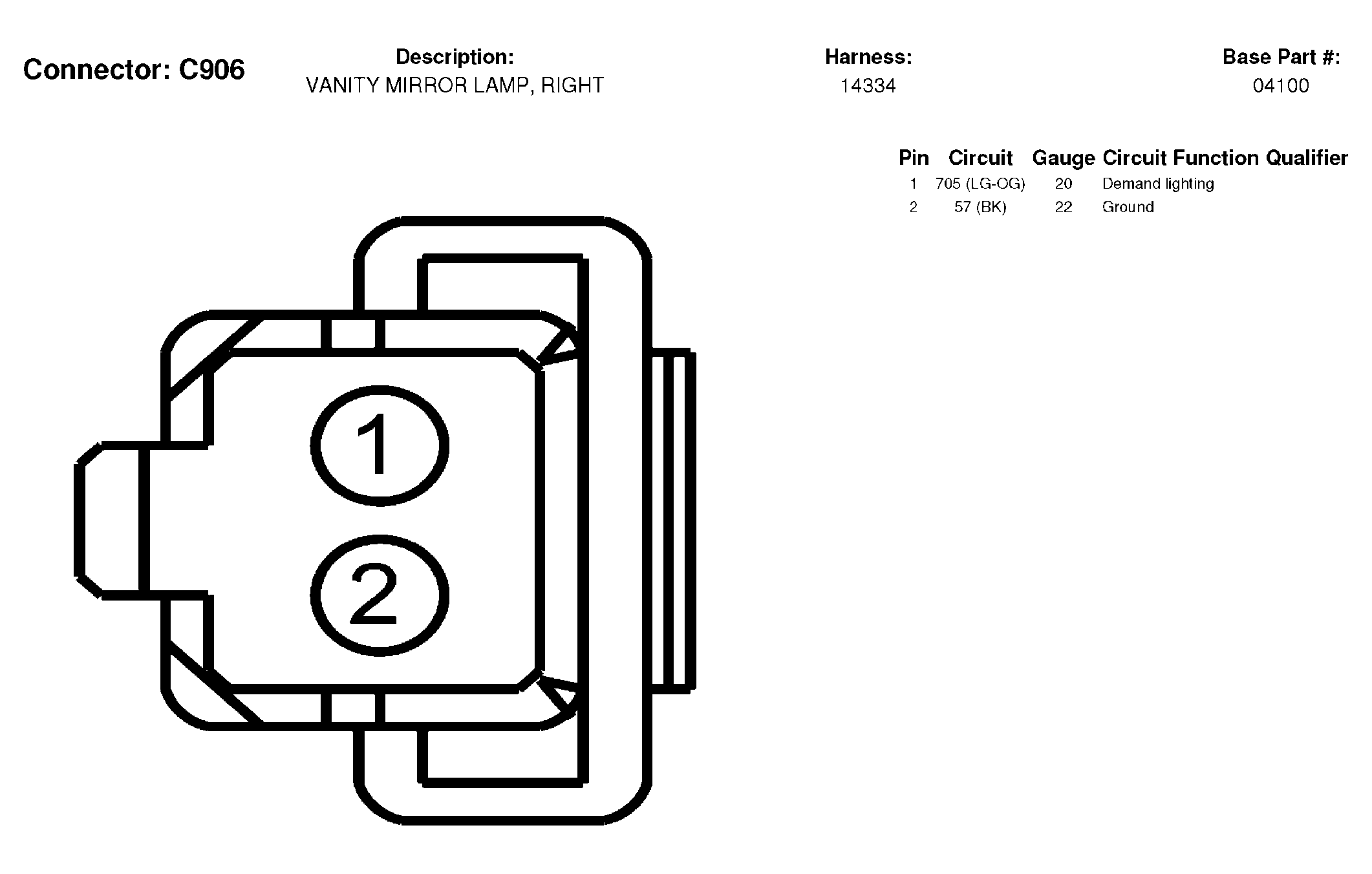

Fig 205: Vanity Mirror Lamp, Right Connector End View (C906)

G04595624

Courtesy of FORD MOTOR CO.

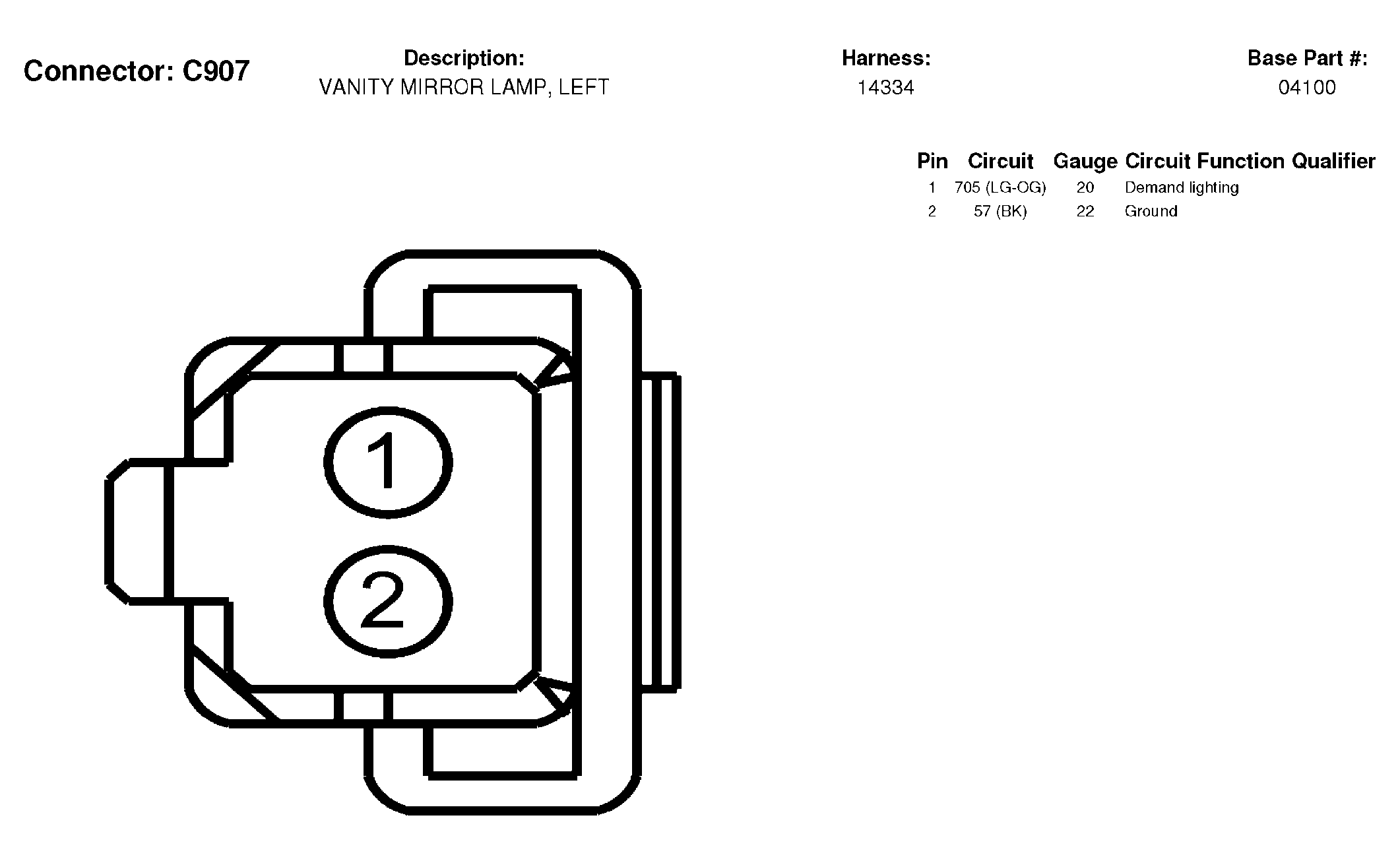

Fig 206: Vanity Mirror Lamp, Left Connector End View (C907)

G04595625

Courtesy of FORD MOTOR CO.

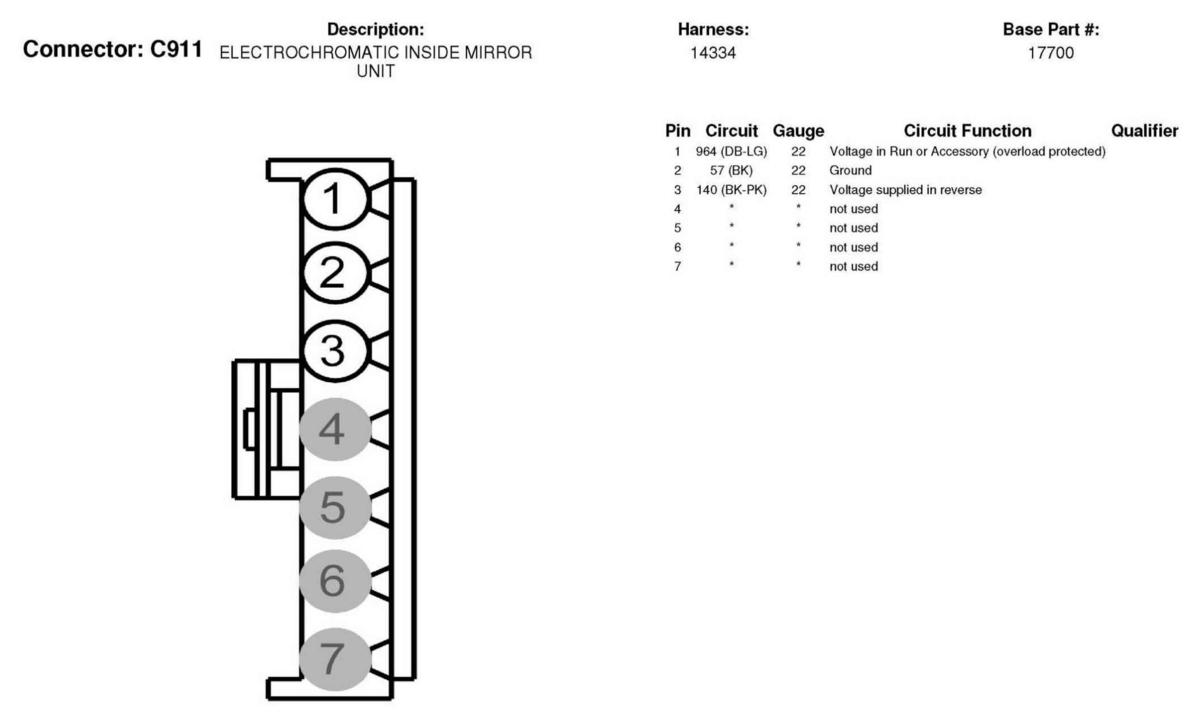

Fig 207: Electrochromatic Inside Mirror Unit Connector End View (C911)

G04595626

Courtesy of FORD MOTOR CO.

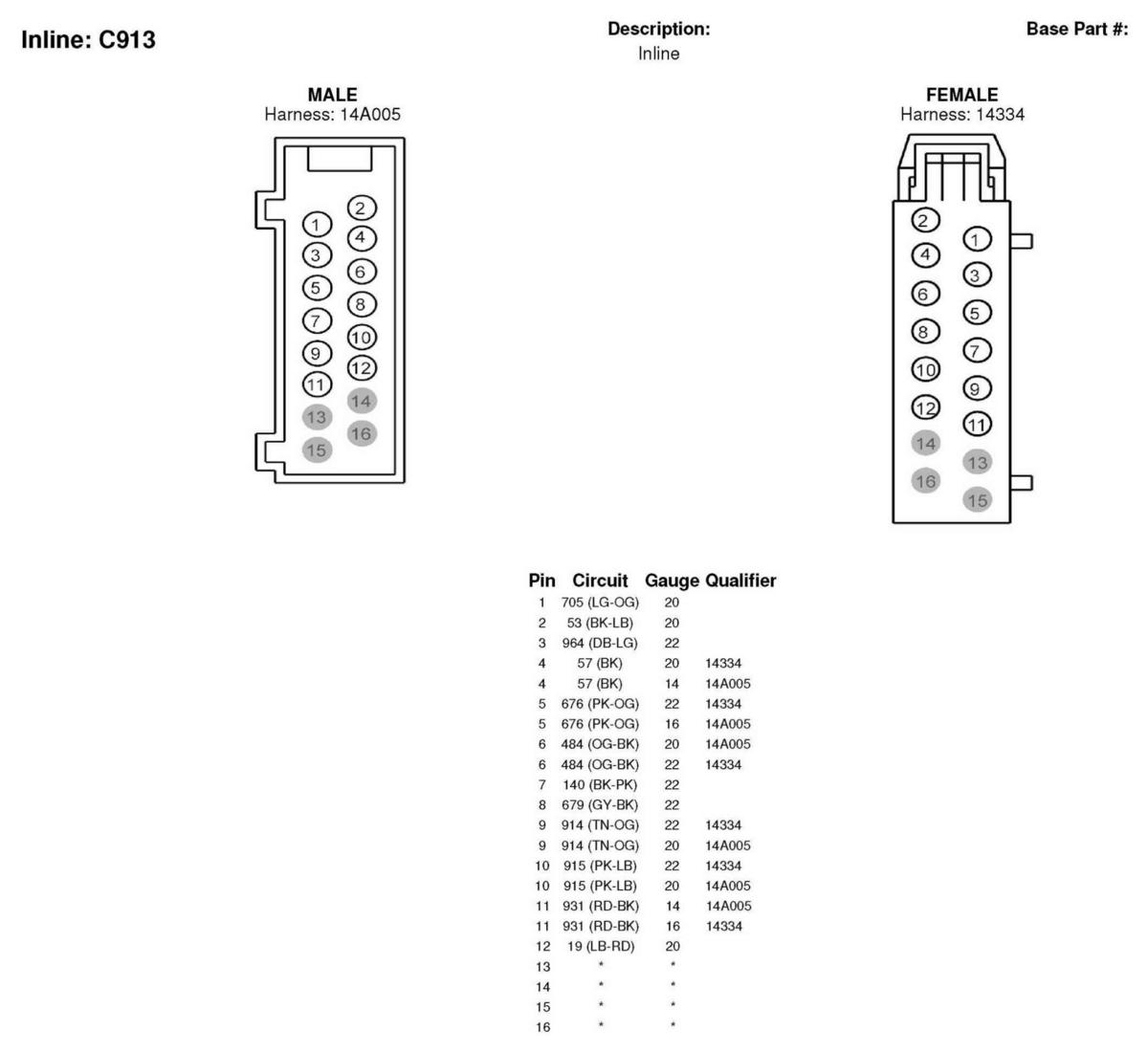

Fig 208: Inline Connector End View (C913)

G04595627

Courtesy of FORD MOTOR CO.

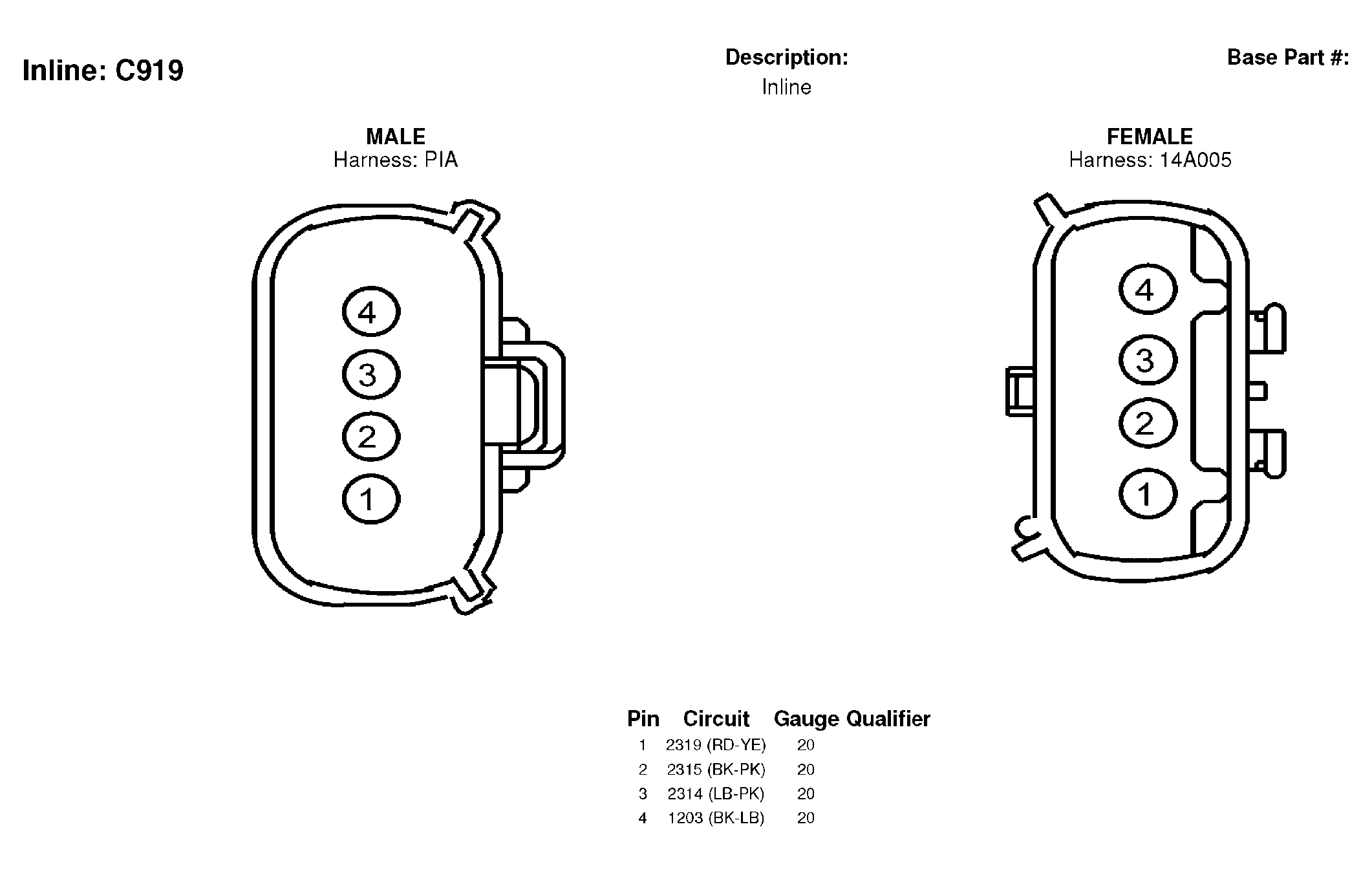

Fig 209: Inline Connector End View (C919)

G04595628

Courtesy of FORD MOTOR CO.

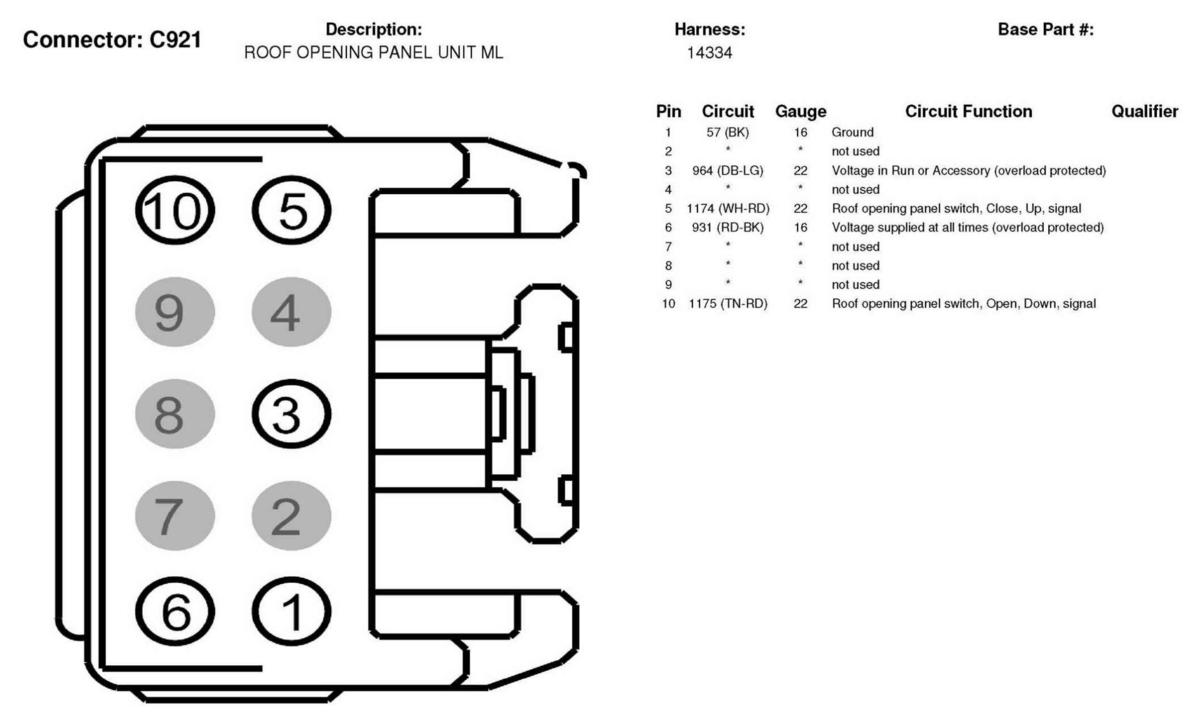

Fig 210: Roof Opening Panel Unit ML Connector End View (C921)

G04595629

Courtesy of FORD MOTOR CO.

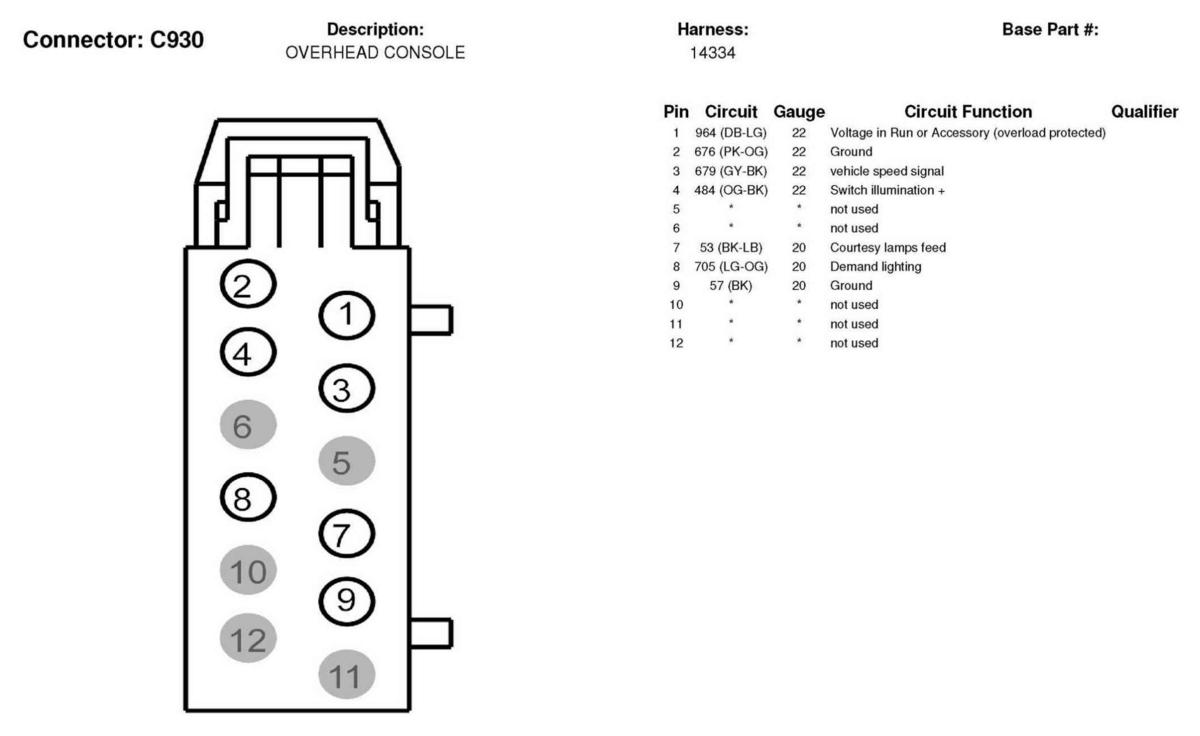

Fig 211: Overhead Console Connector End View (C930)

G04595630

Courtesy of FORD MOTOR CO.

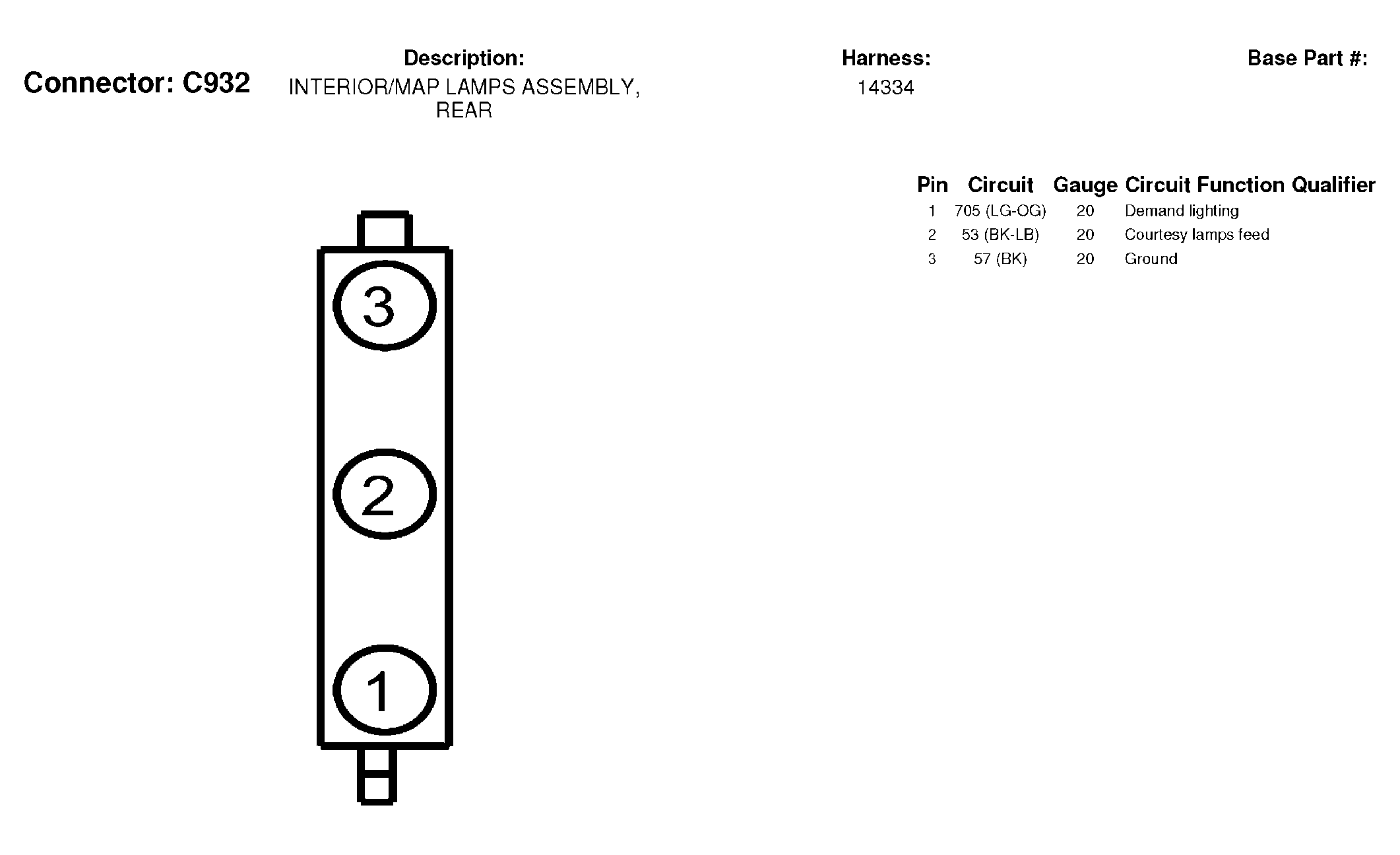

Fig 212: Interior/MAP Lamps Assembly, Rear Connector End View (C932)

G04595631

Courtesy of FORD MOTOR CO.

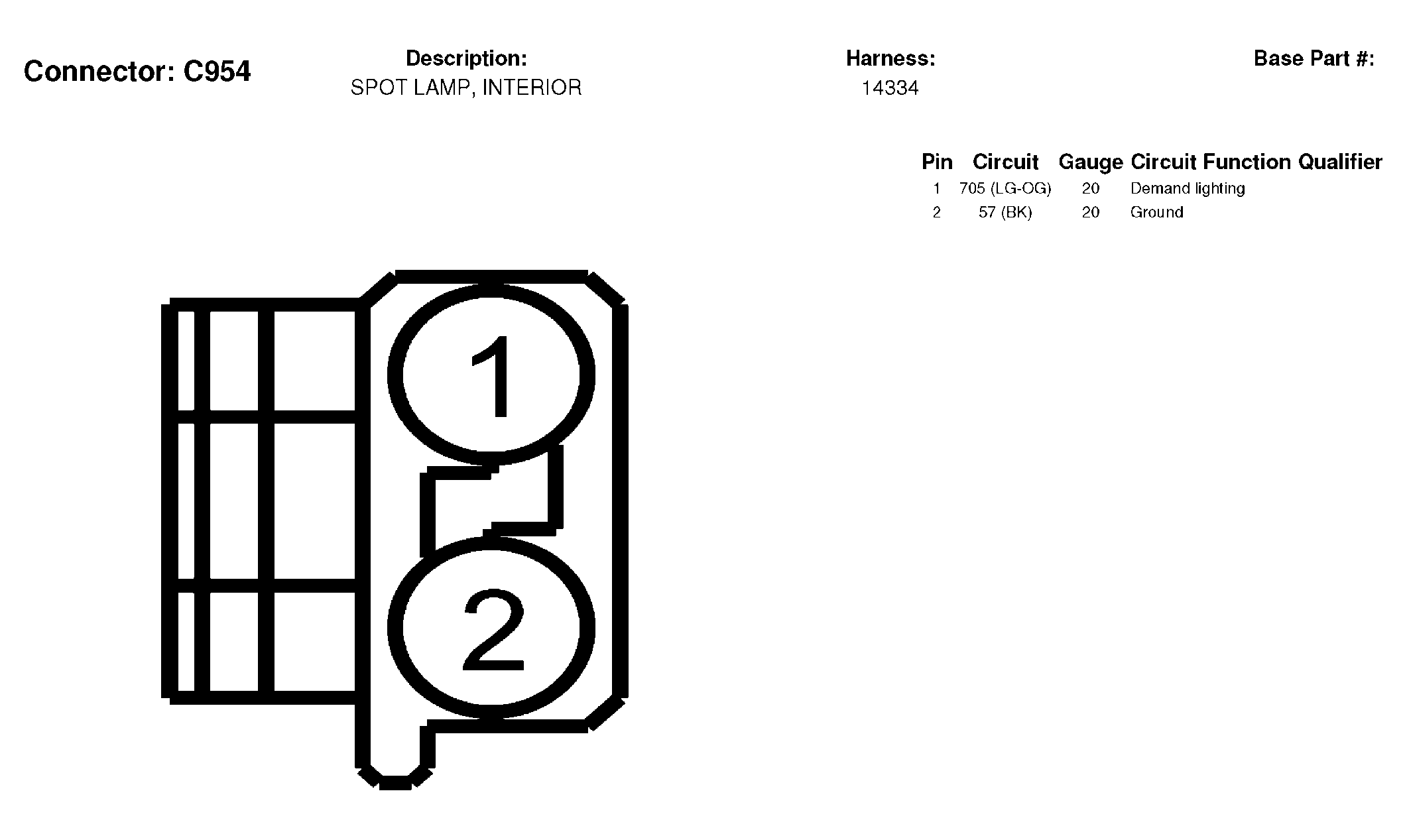

Fig 213: Spot Lamp, Interior Connector End View (C954)

G04595632

Courtesy of FORD MOTOR CO.

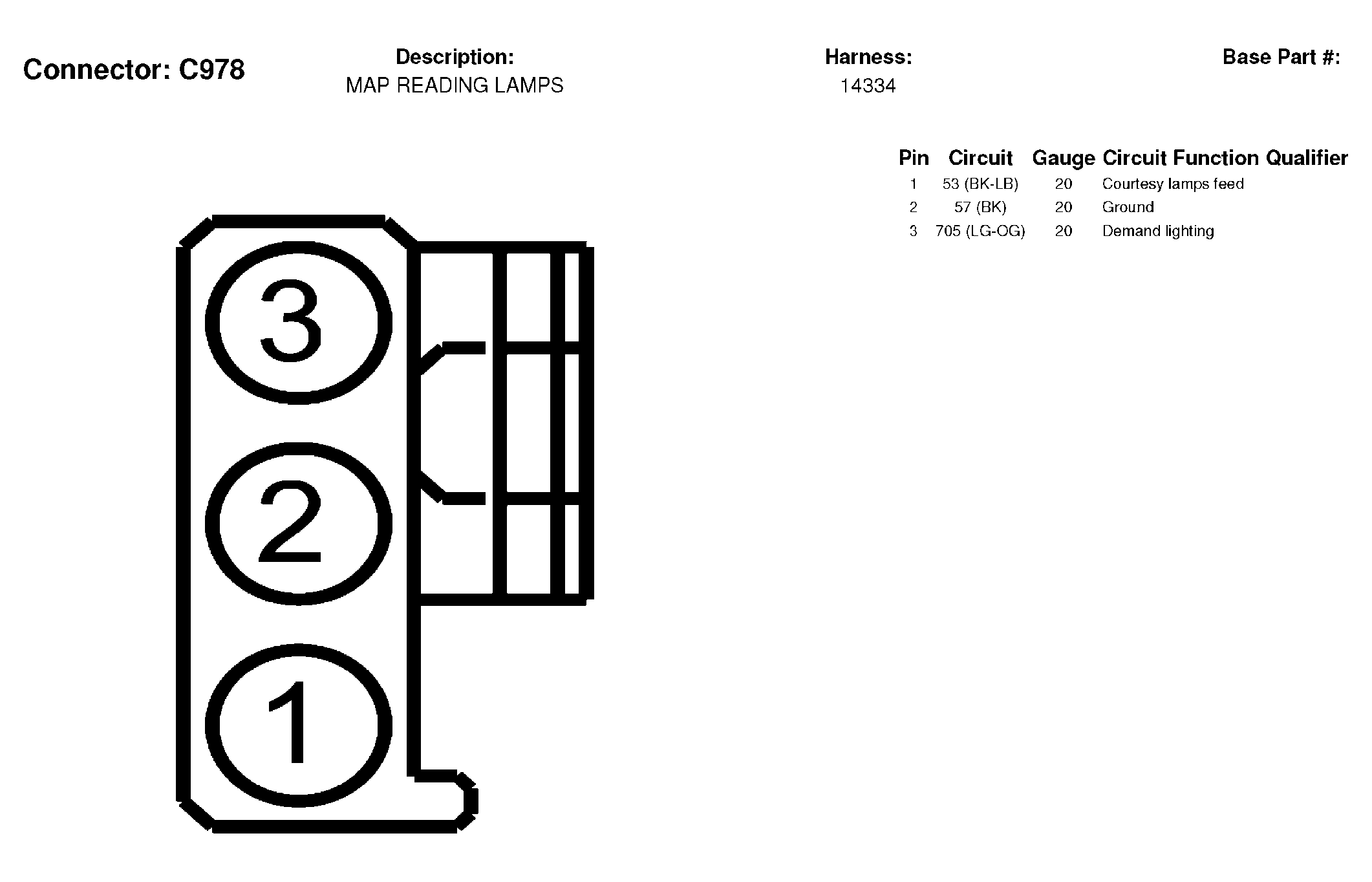

Fig 214: MAP Reading Lamps Connector End View (C978)

G04595633

Courtesy of FORD MOTOR CO.

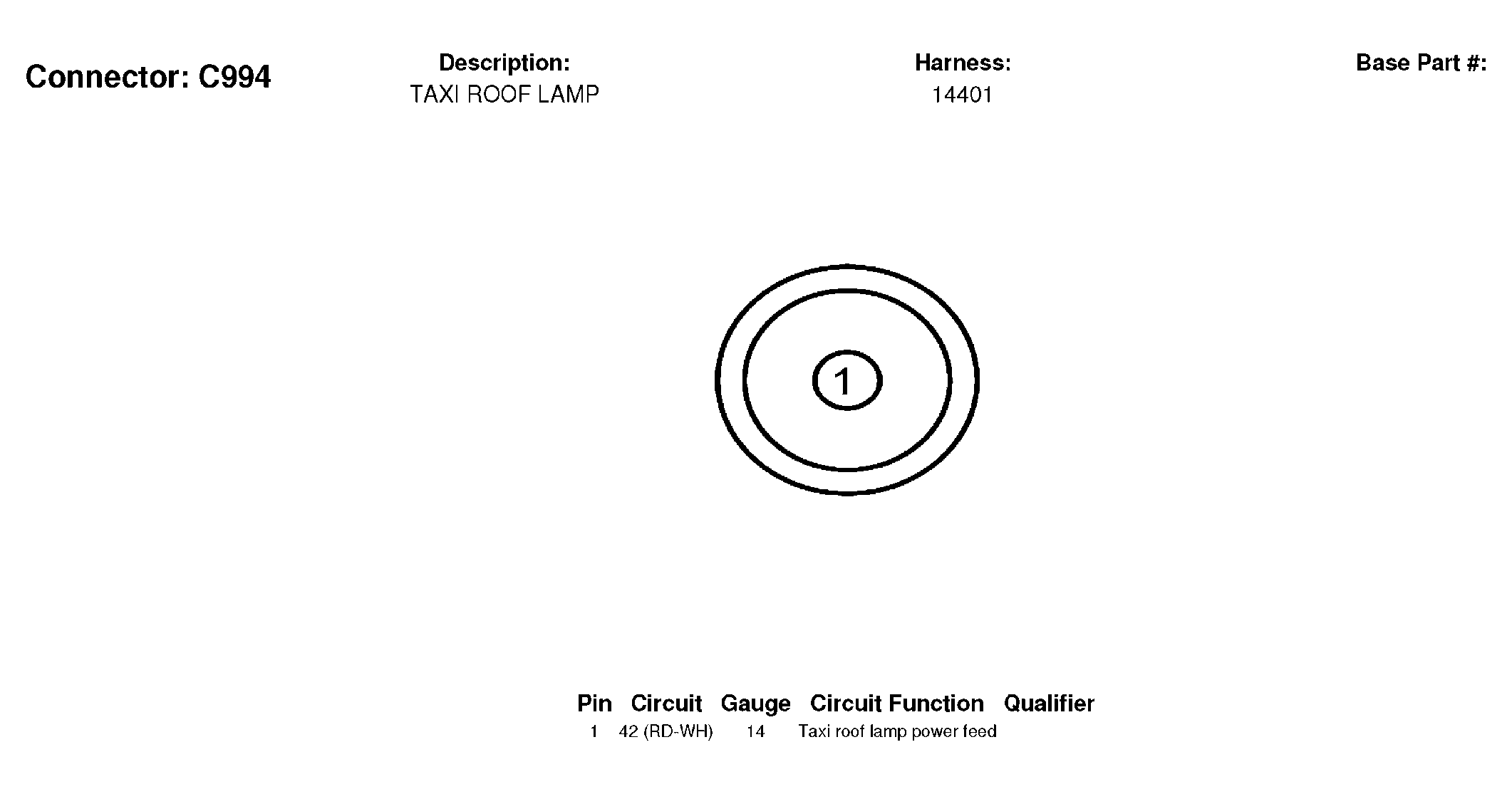

Fig 215: Taxi Roof Lamp Connector End View (C994)

G04595634

Courtesy of FORD MOTOR CO.

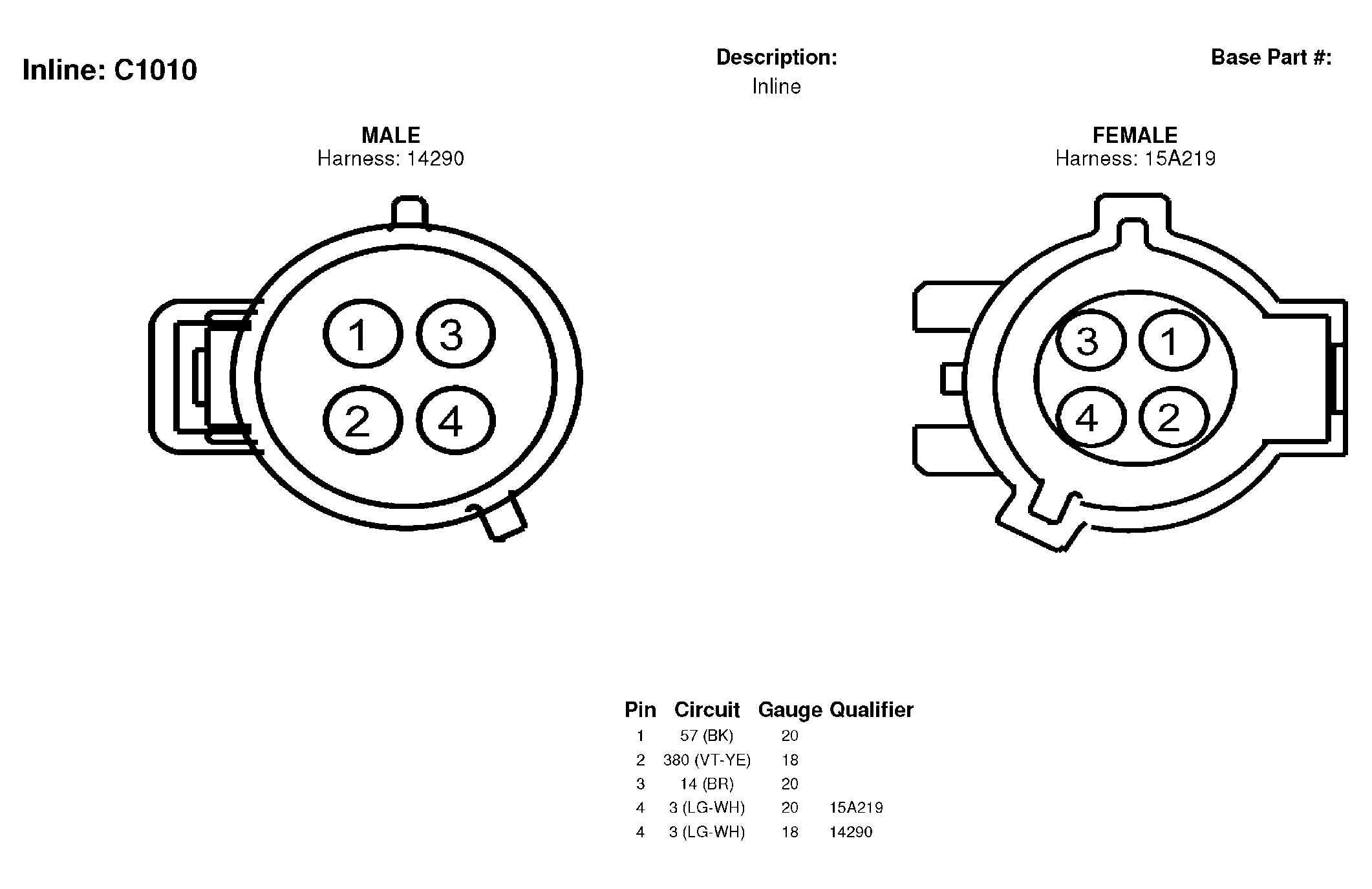

Fig 216: Inline Connector End View (C1010)

G04595635

Courtesy of FORD MOTOR CO.

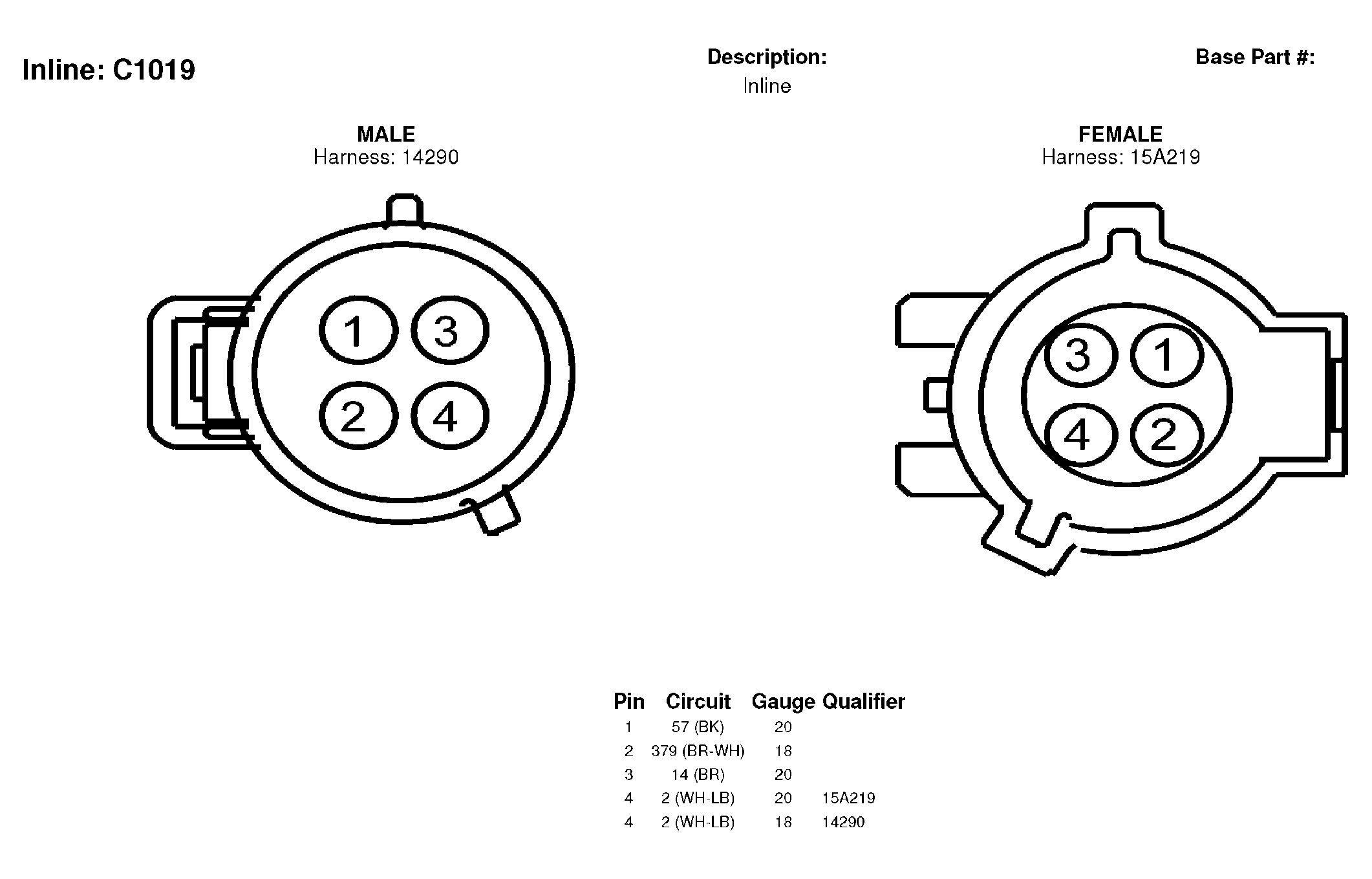

Fig 217: Inline Connector End View (C1019)

G04595636

Courtesy of FORD MOTOR CO.

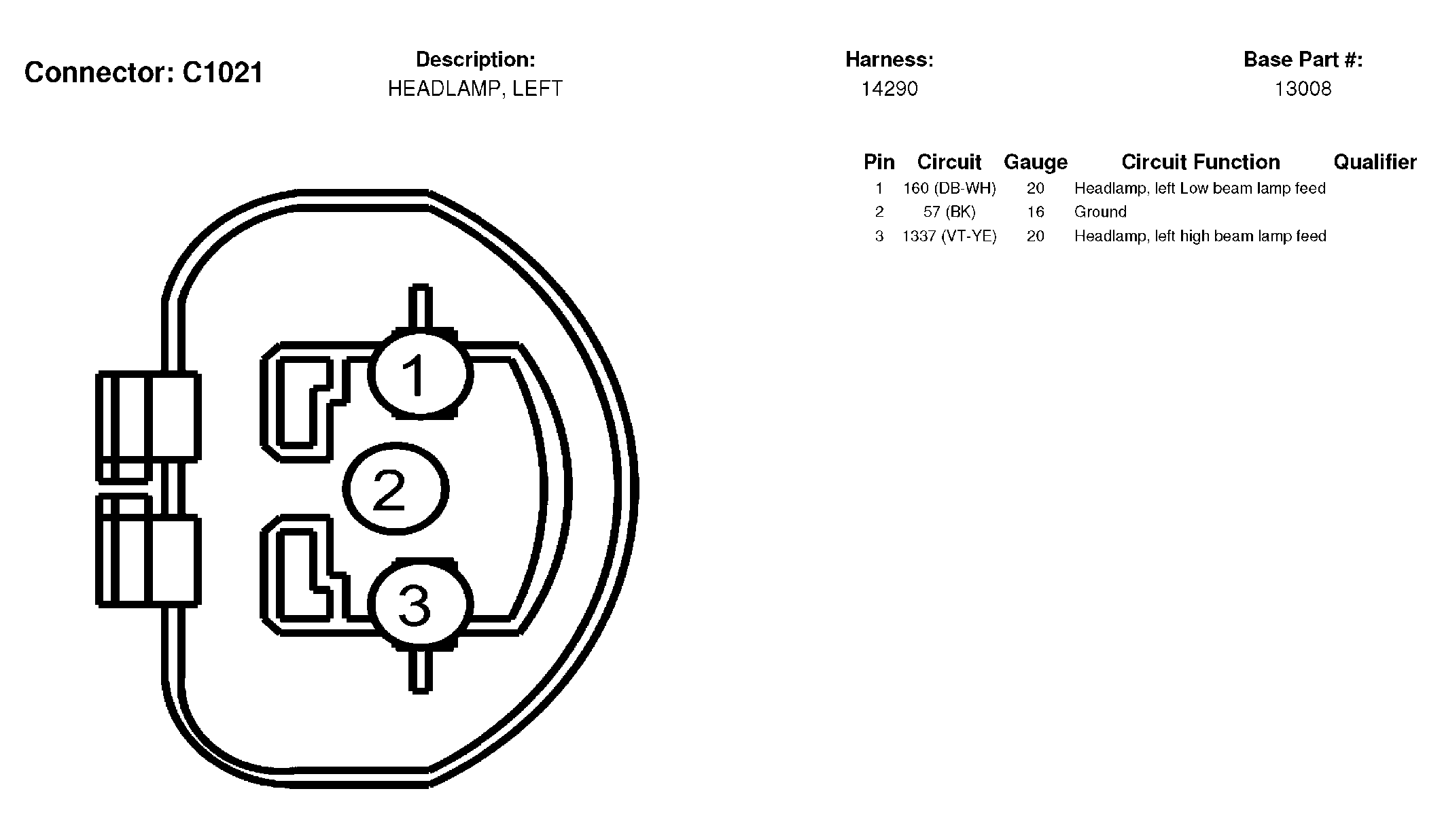

Fig 218: Headlamp, Left Connector End View (C1021)

G04595637

Courtesy of FORD MOTOR CO.

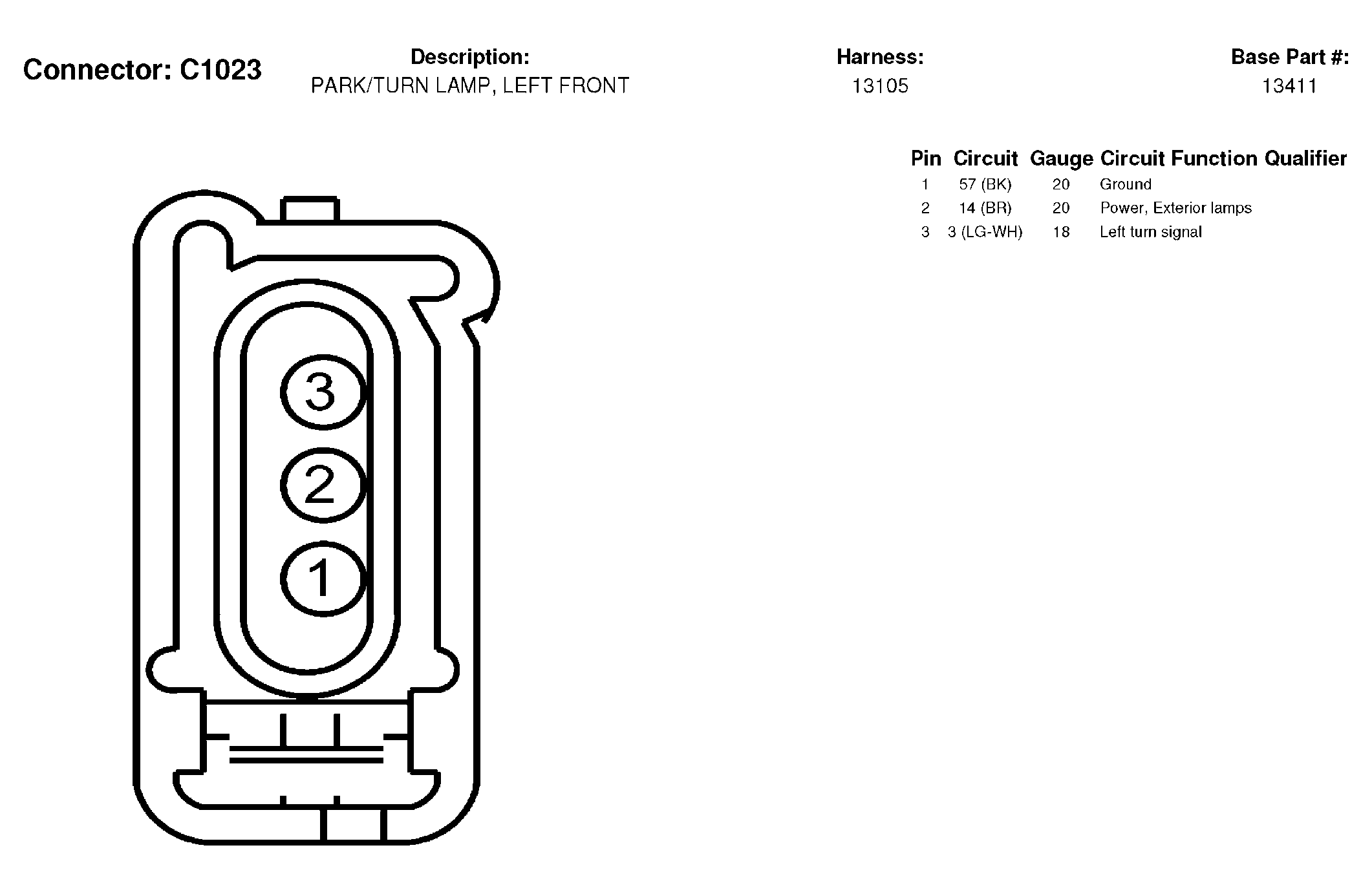

Fig 219: Park/Turn Lamp, Left Front Connector End View (C1023)

G04595638

Courtesy of FORD MOTOR CO.

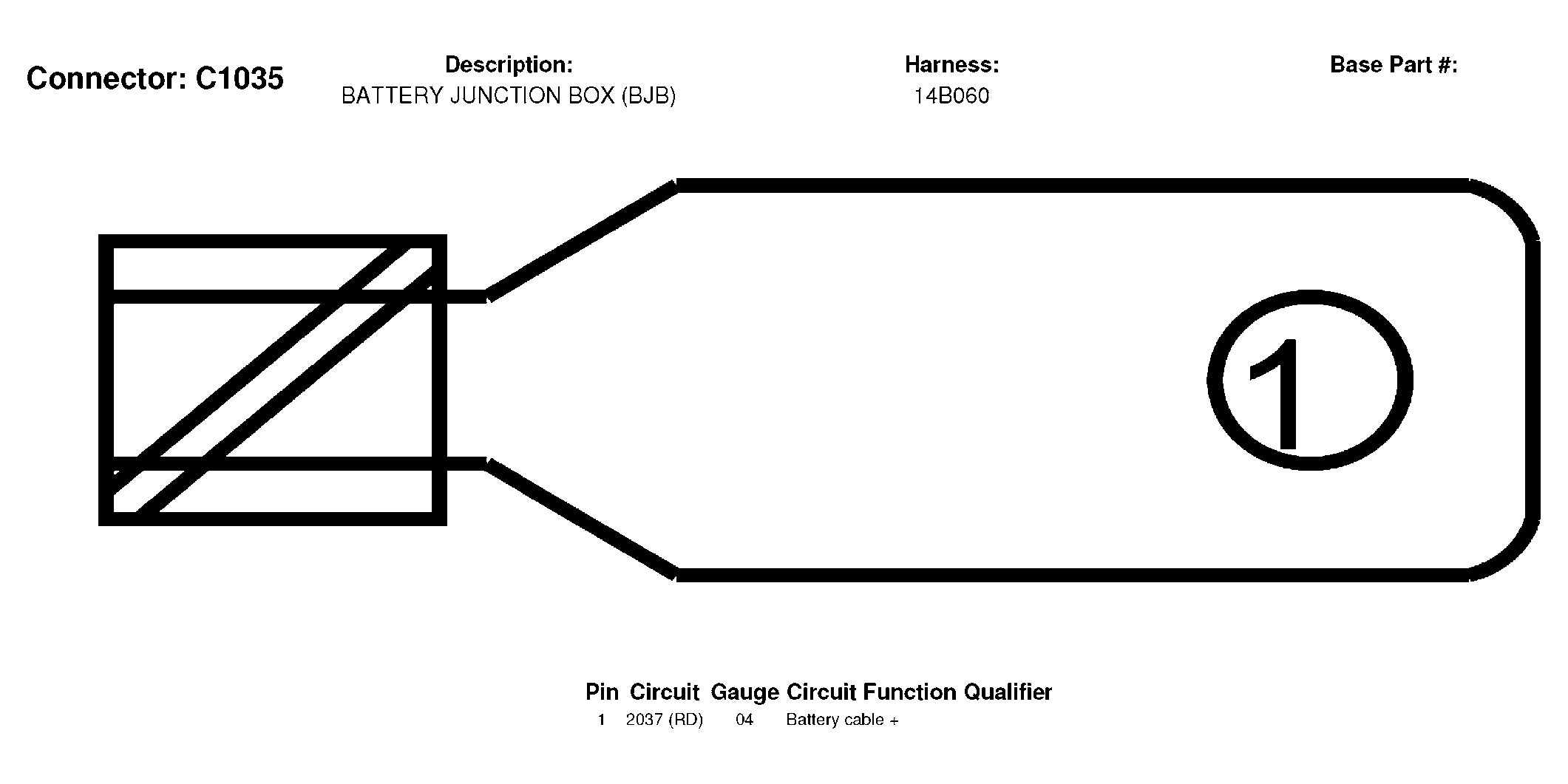

Fig 220: Battery Junction Box (BJB) Connector End View (C1035)

G04595639

Courtesy of FORD MOTOR CO.

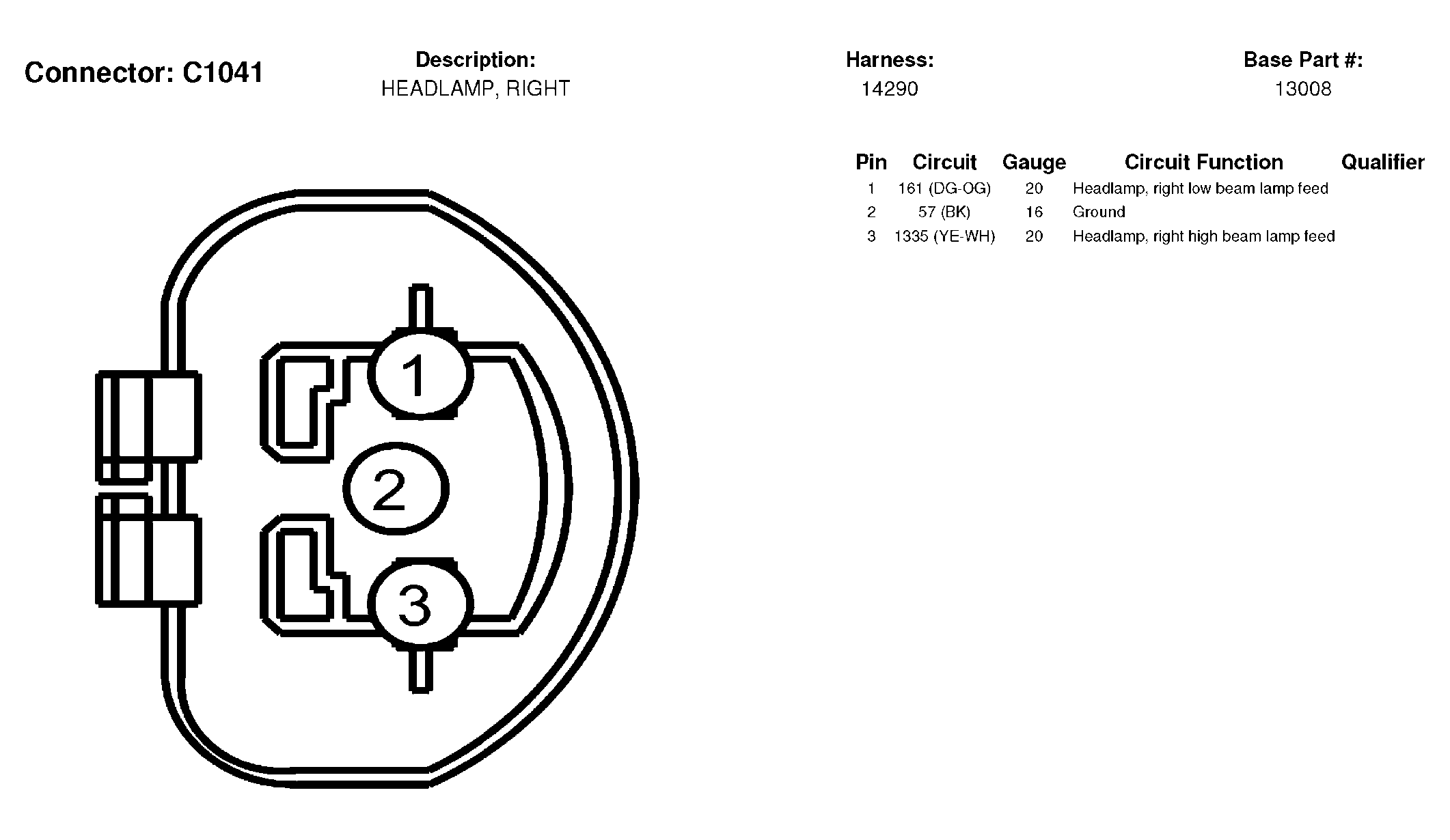

Fig 221: Headlamp, Right Connector End View (C1041)

G04595640

Courtesy of FORD MOTOR CO.

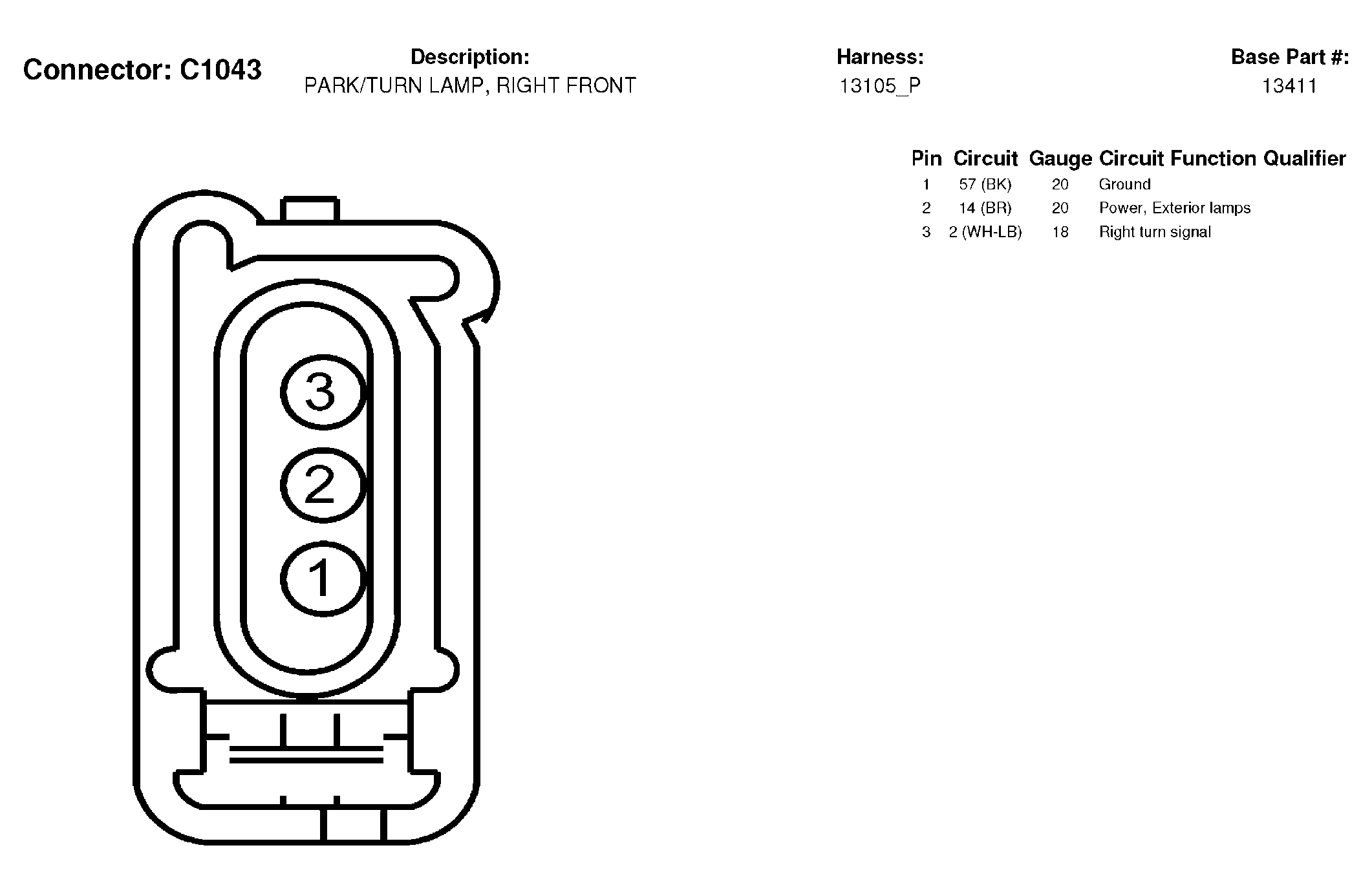

Fig 222: Park/Turn Lamp, Right Front Connector End View (C1043)

G04595641

Courtesy of FORD MOTOR CO.

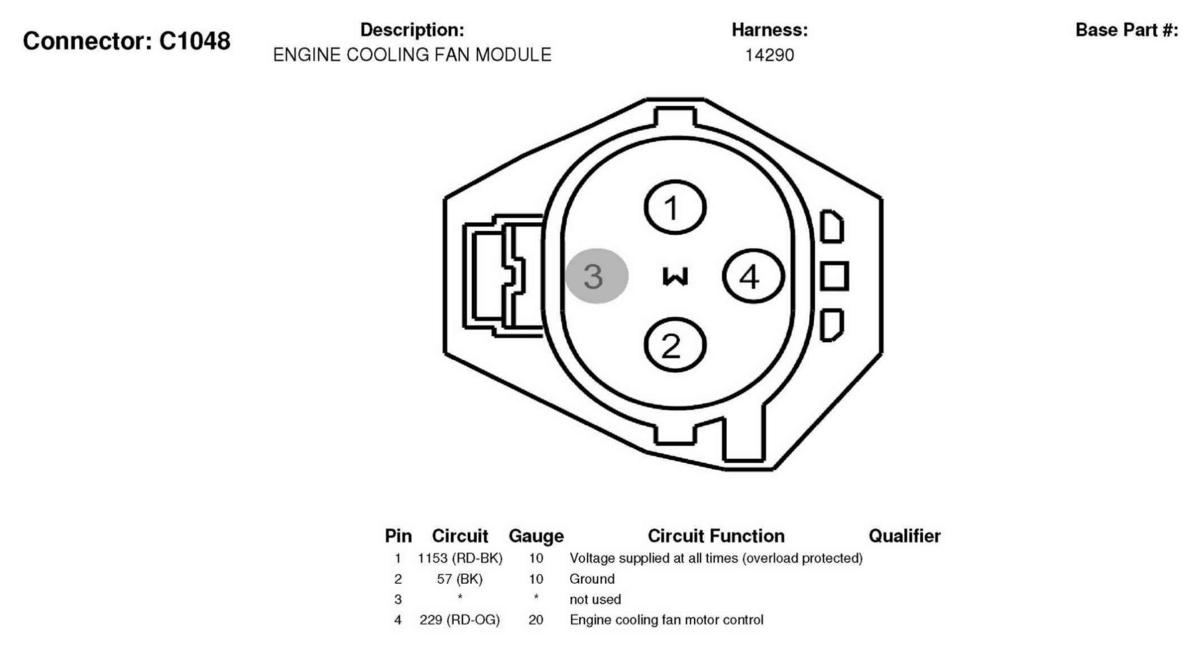

Fig 223: Engine Cooling Fan Module Connector End View (C1048)

G04595642

Courtesy of FORD MOTOR CO.

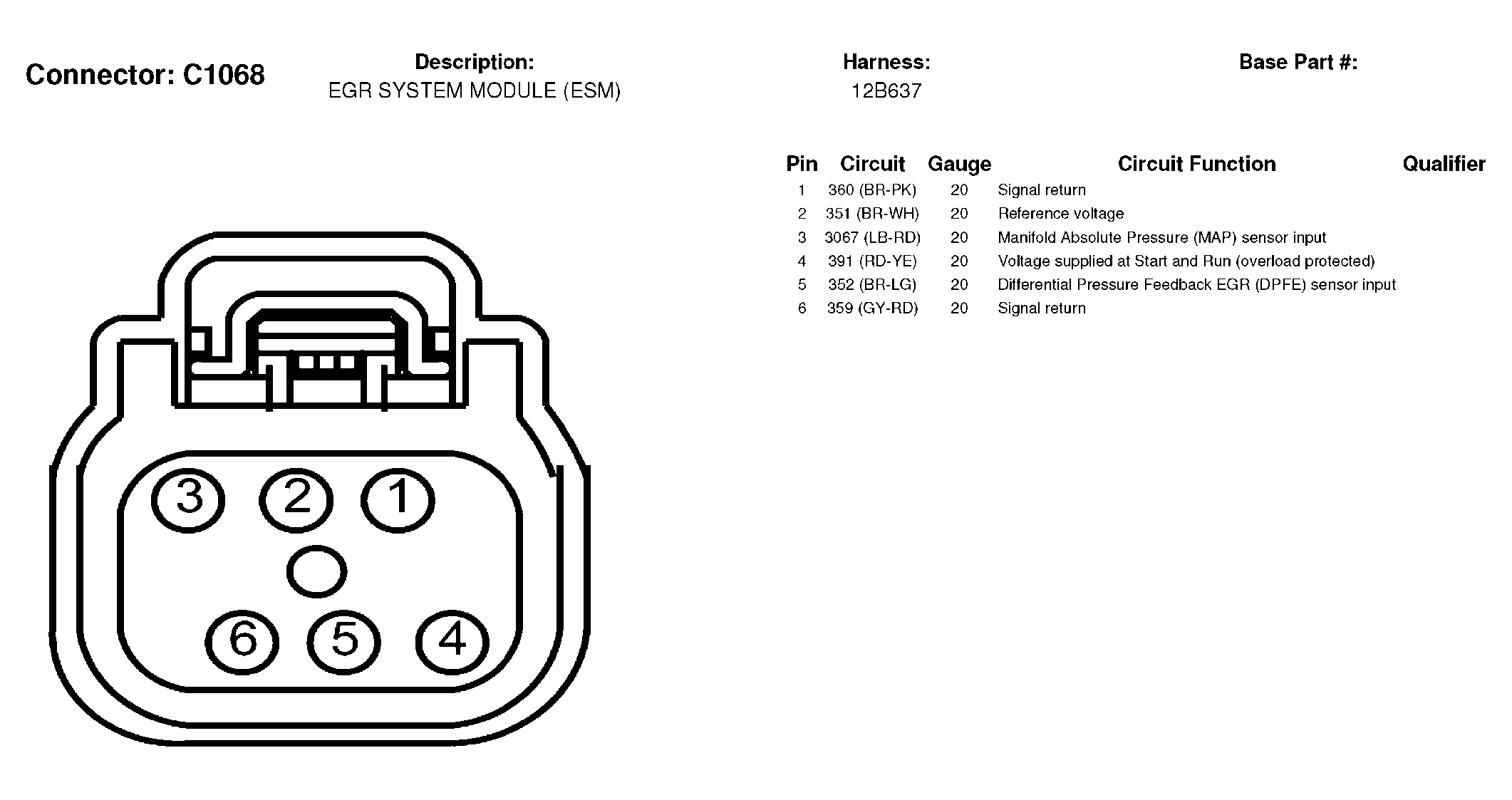

Fig 224: EGR System Module (ESM) Connector End View (C1068)

G04595643

Courtesy of FORD MOTOR CO.

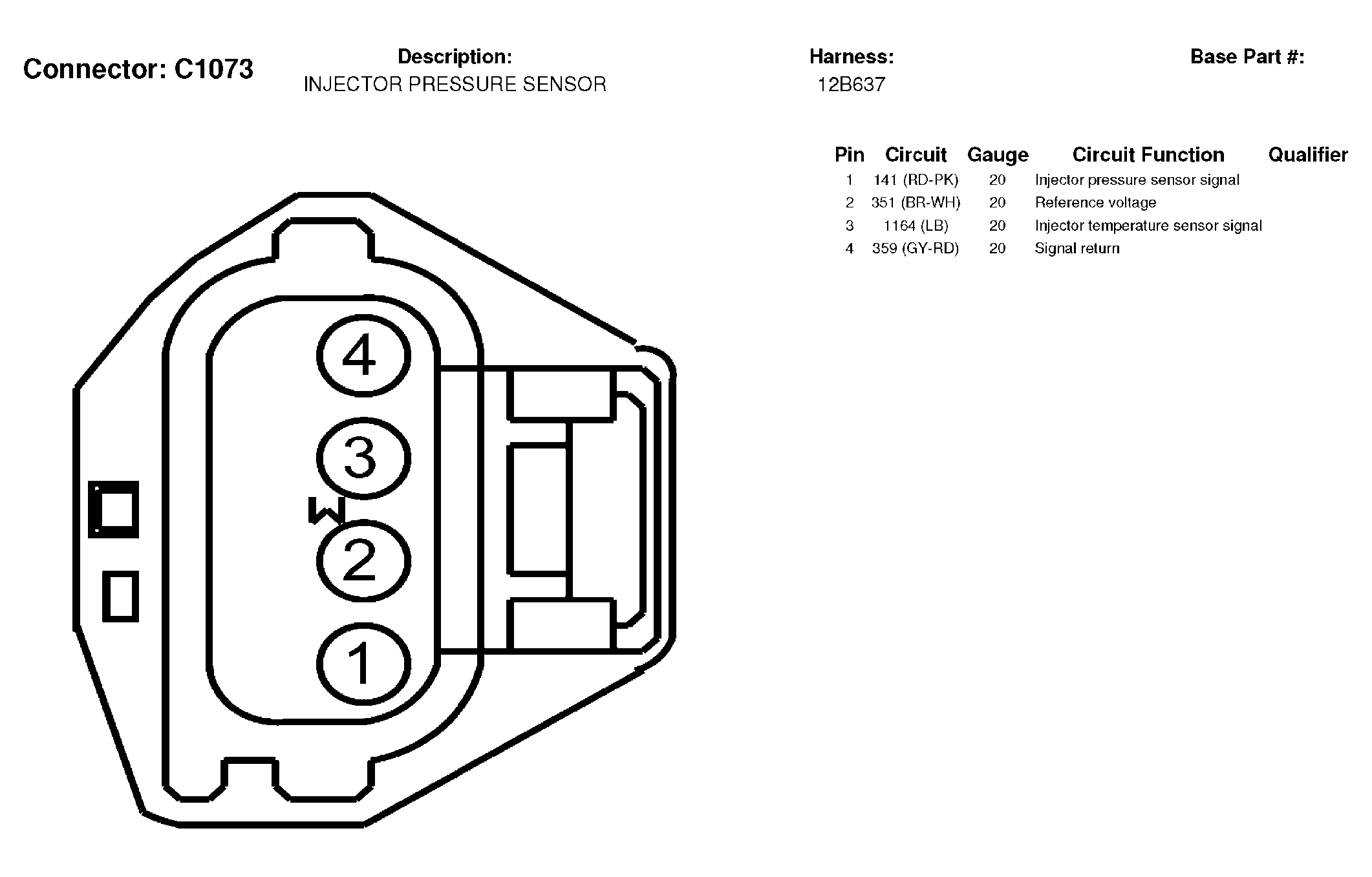

Fig 225: Injector Pressure Sensor Connector End View (C1073)

G04595644

Courtesy of FORD MOTOR CO.

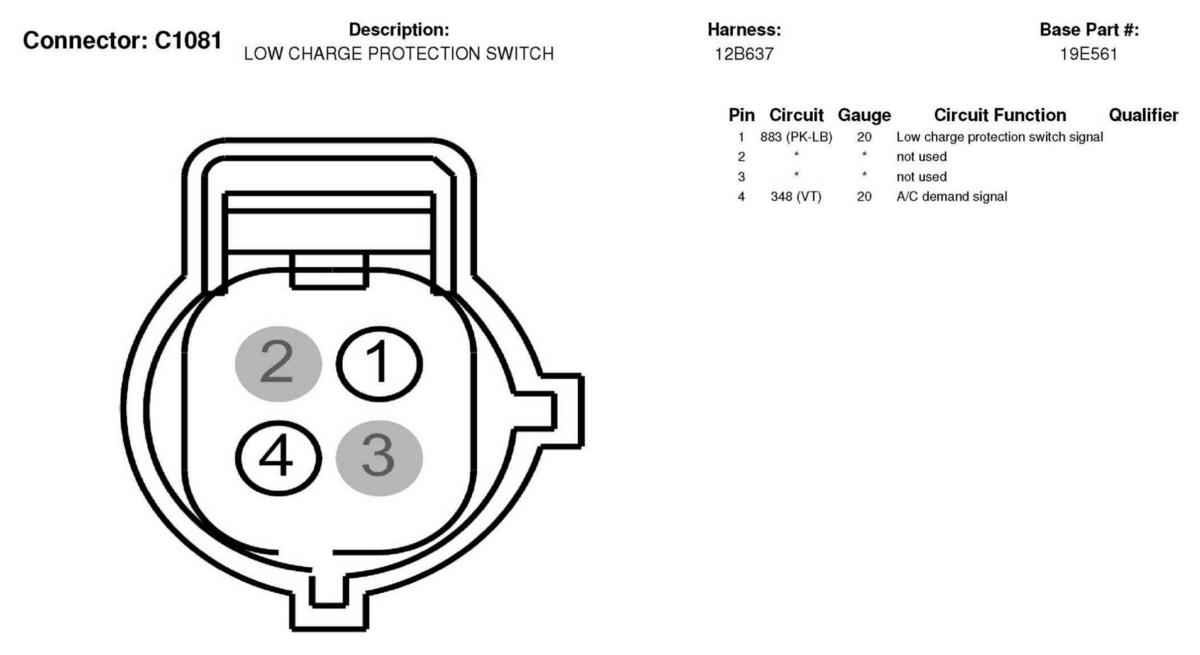

Fig 226: Low Charge Protection Switch Connector End View (C1081)

G04595645

Courtesy of FORD MOTOR CO.

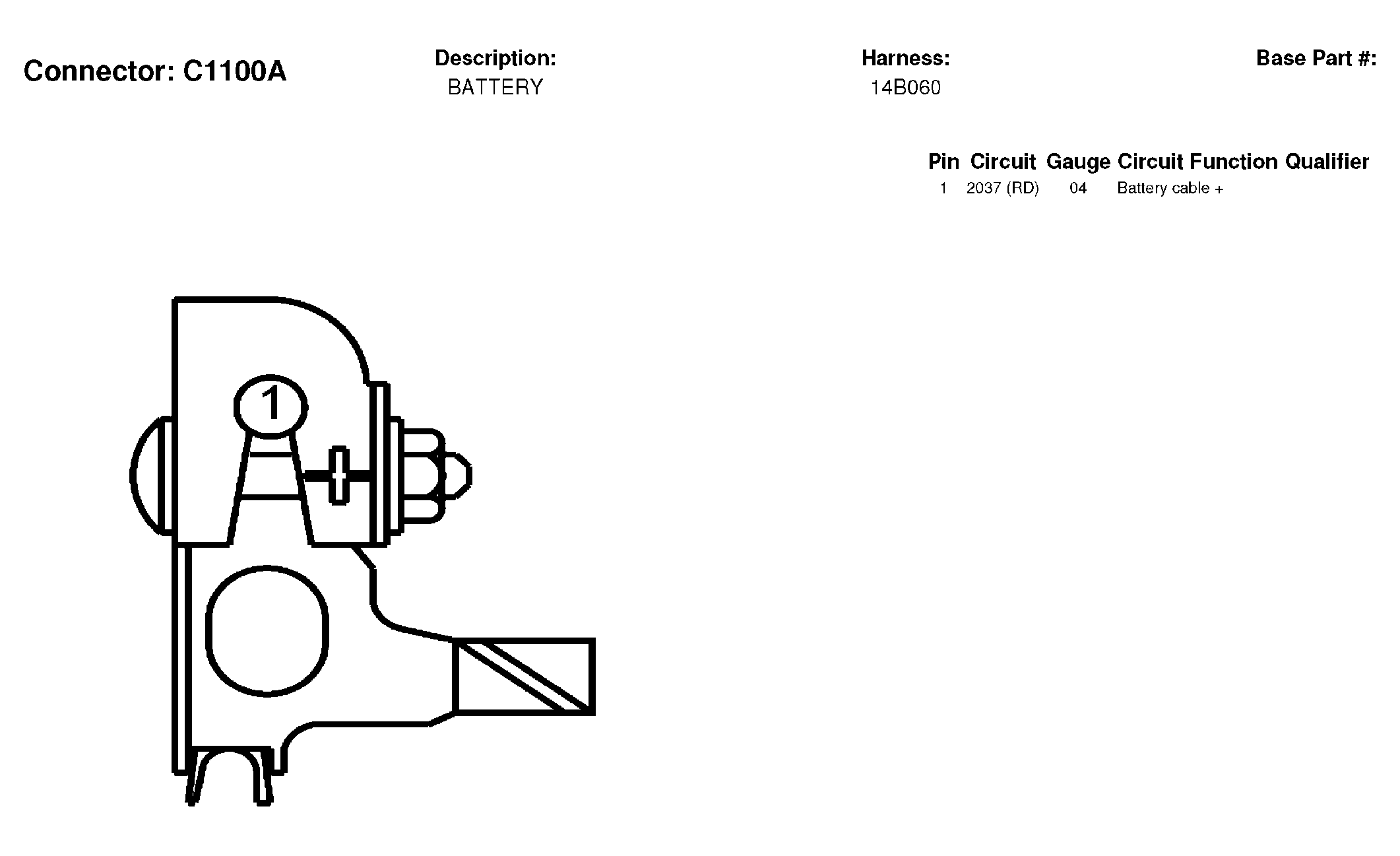

Fig 227: Battery Connector End View (C1100A)

G04595646

Courtesy of FORD MOTOR CO.

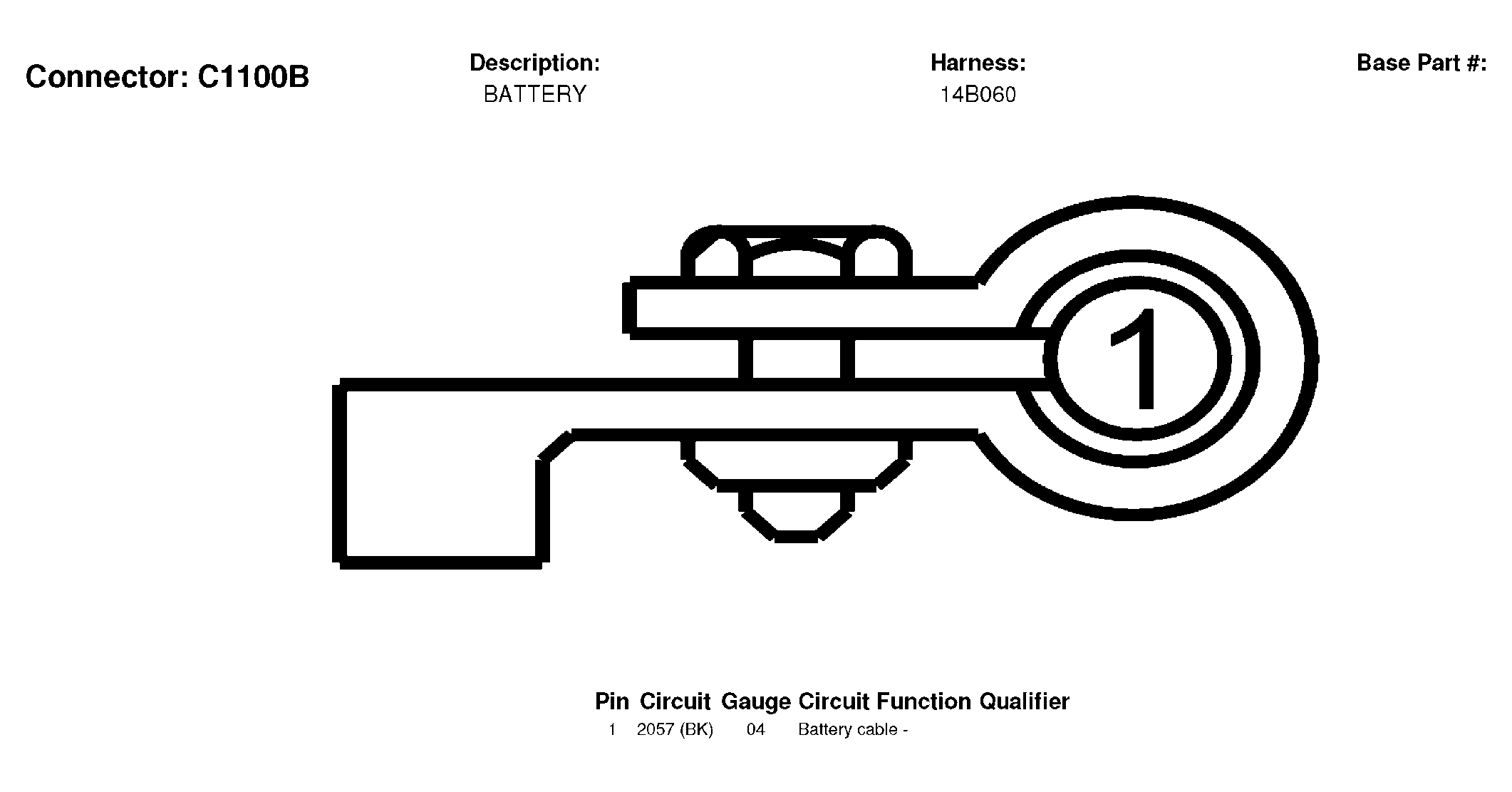

Fig 228: Battery Connector End View (C1100B)

G04595647

Courtesy of FORD MOTOR CO.

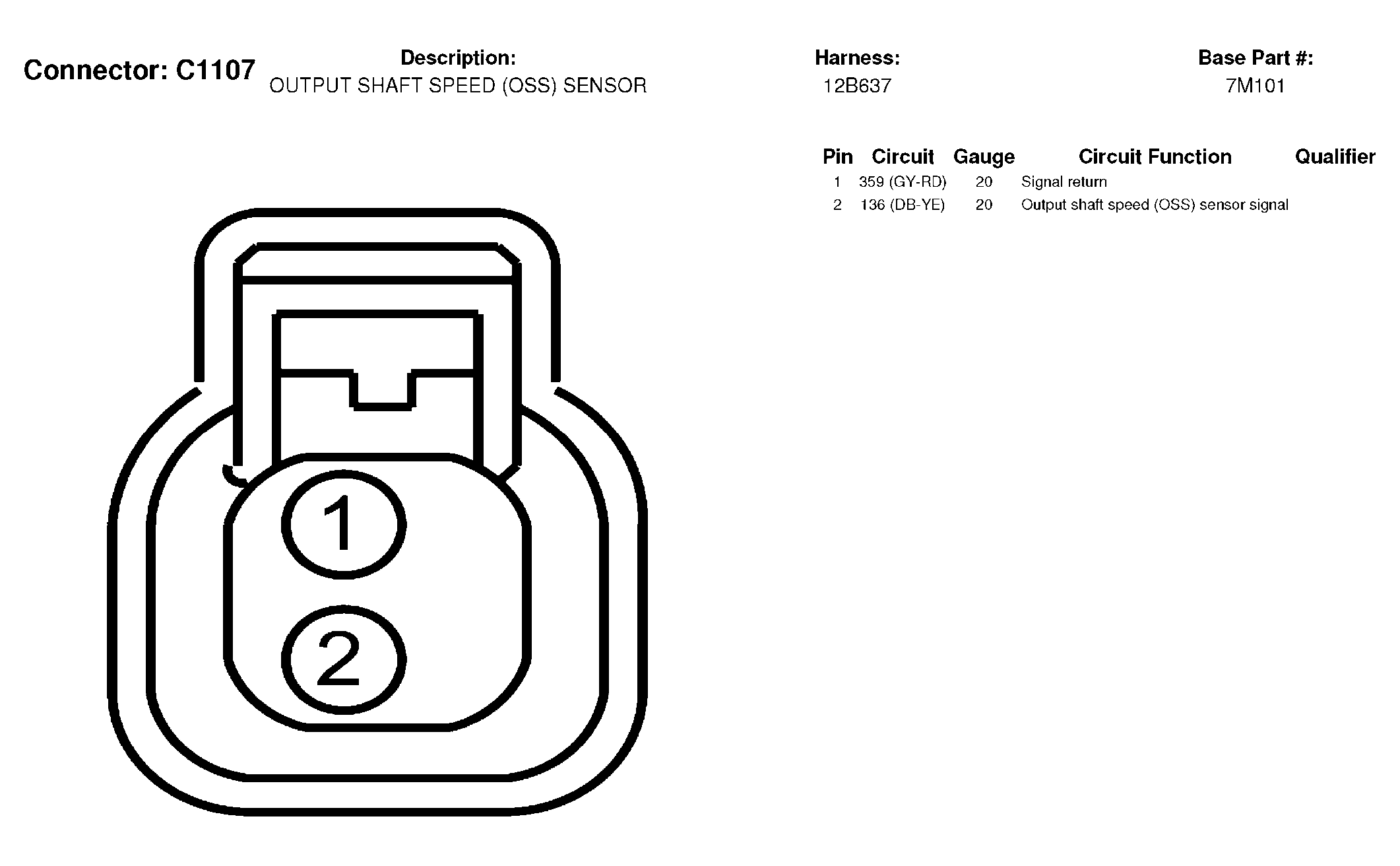

Fig 229: Output Shaft Speed (OSS) Sensor Connector End View (C1107)

G04595648

Courtesy of FORD MOTOR CO.

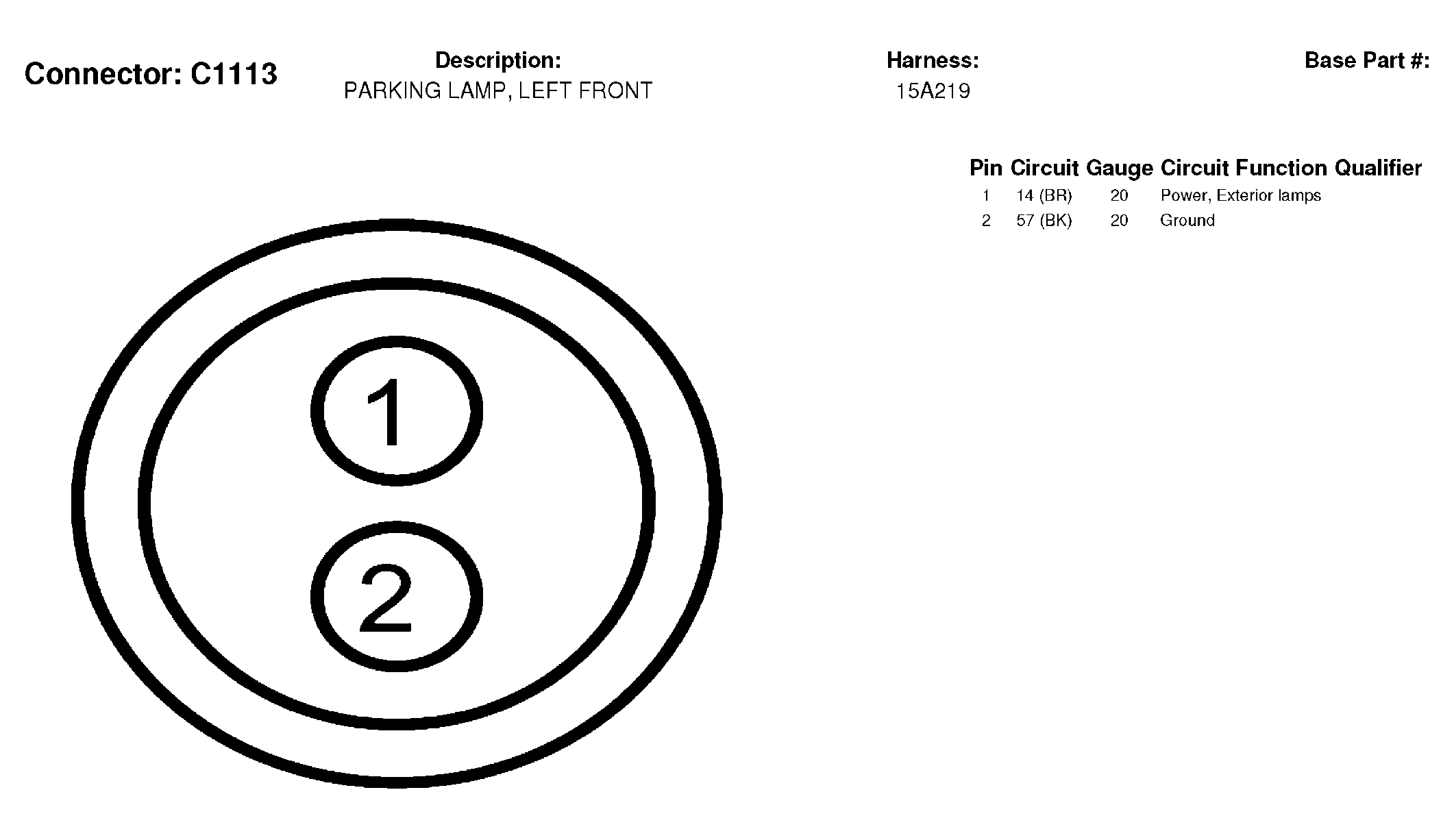

Fig 230: Parking Lamp, Left Front Connector End View (C1113)

G04595649

Courtesy of FORD MOTOR CO.

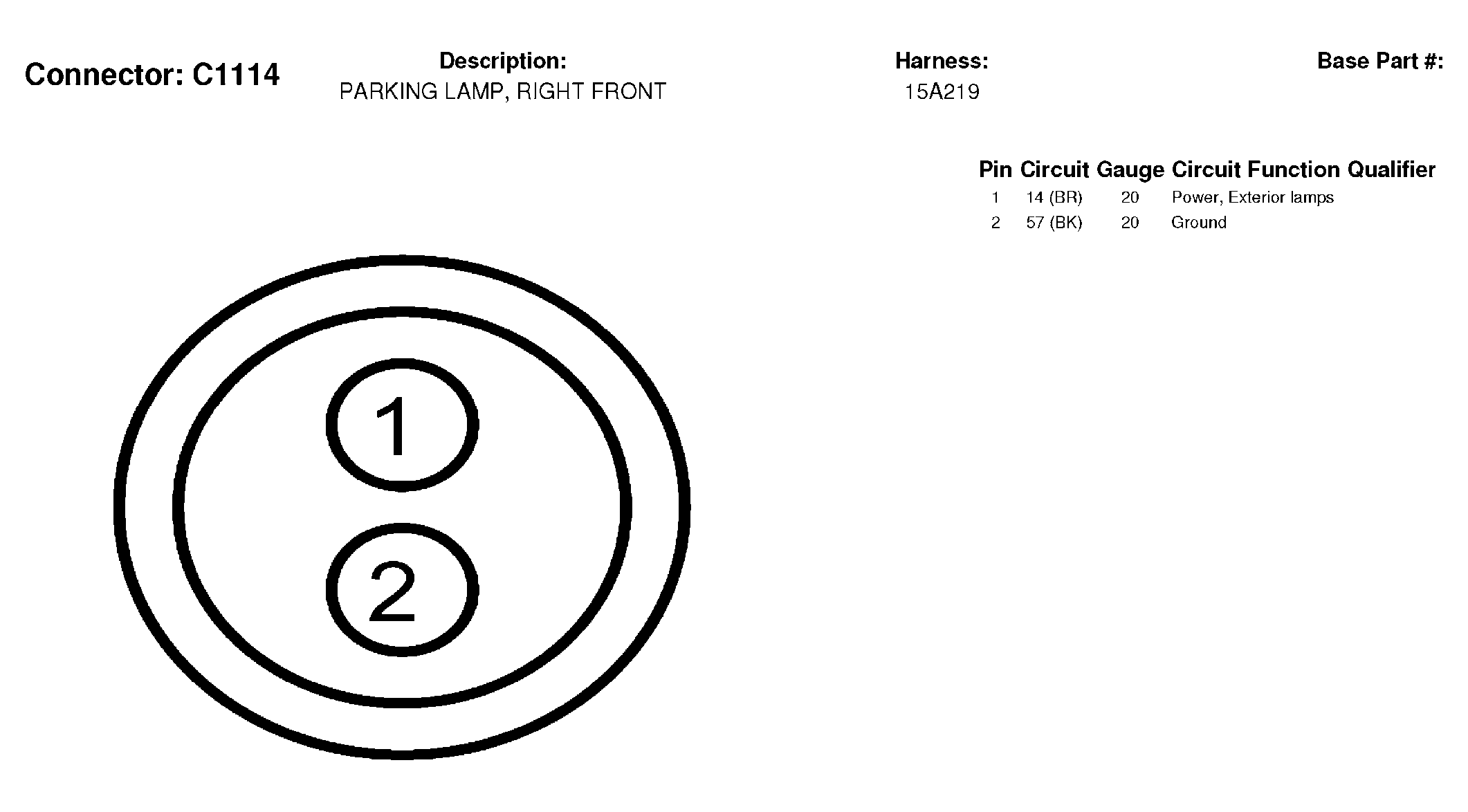

Fig 231: Parking Lamp, Right Front Connector End View (C1114)

G04595650

Courtesy of FORD MOTOR CO.

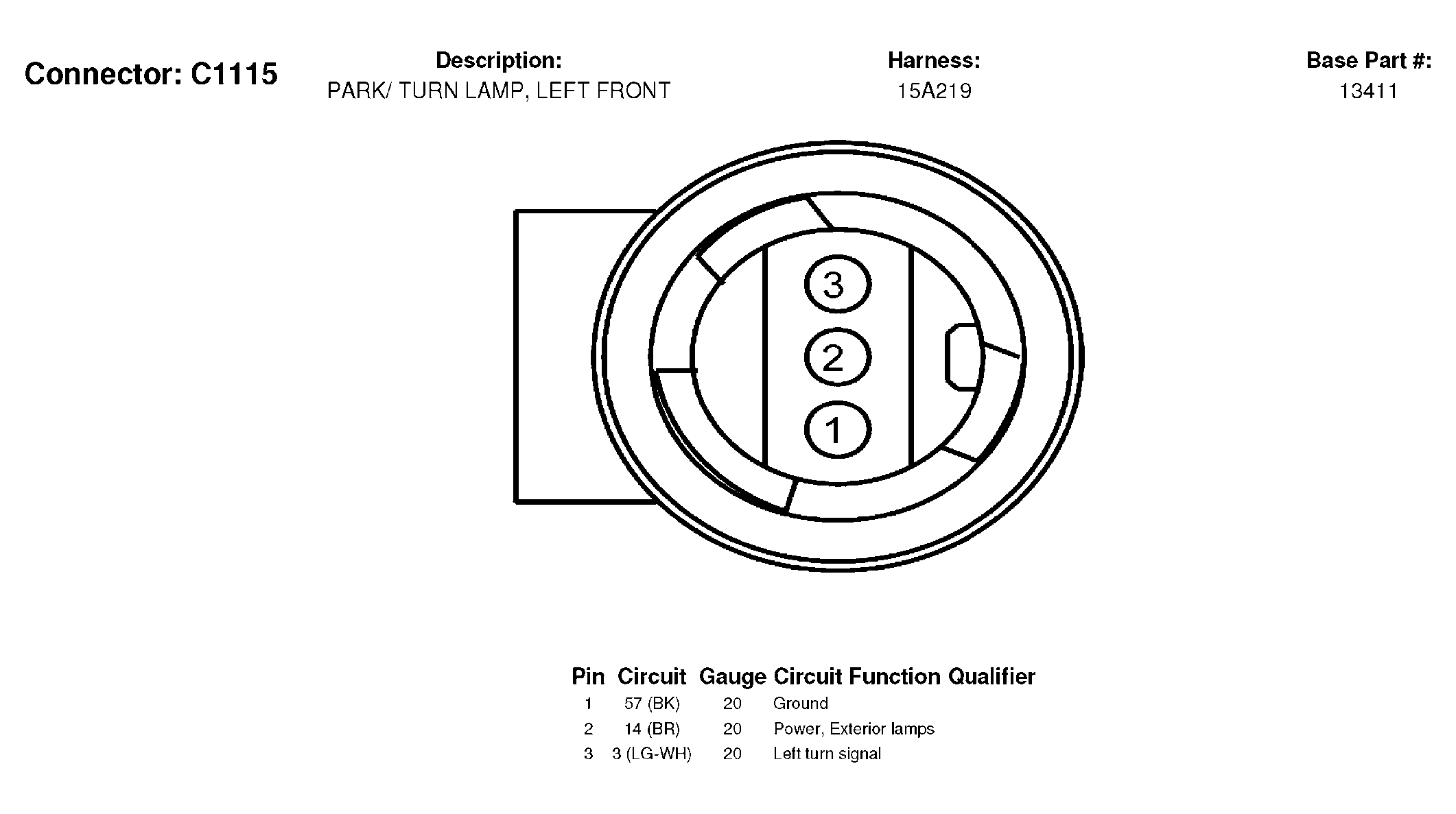

Fig 232: Park/Turn Lamp, Left Front Connector End View (C1115)

G04595651

Courtesy of FORD MOTOR CO.

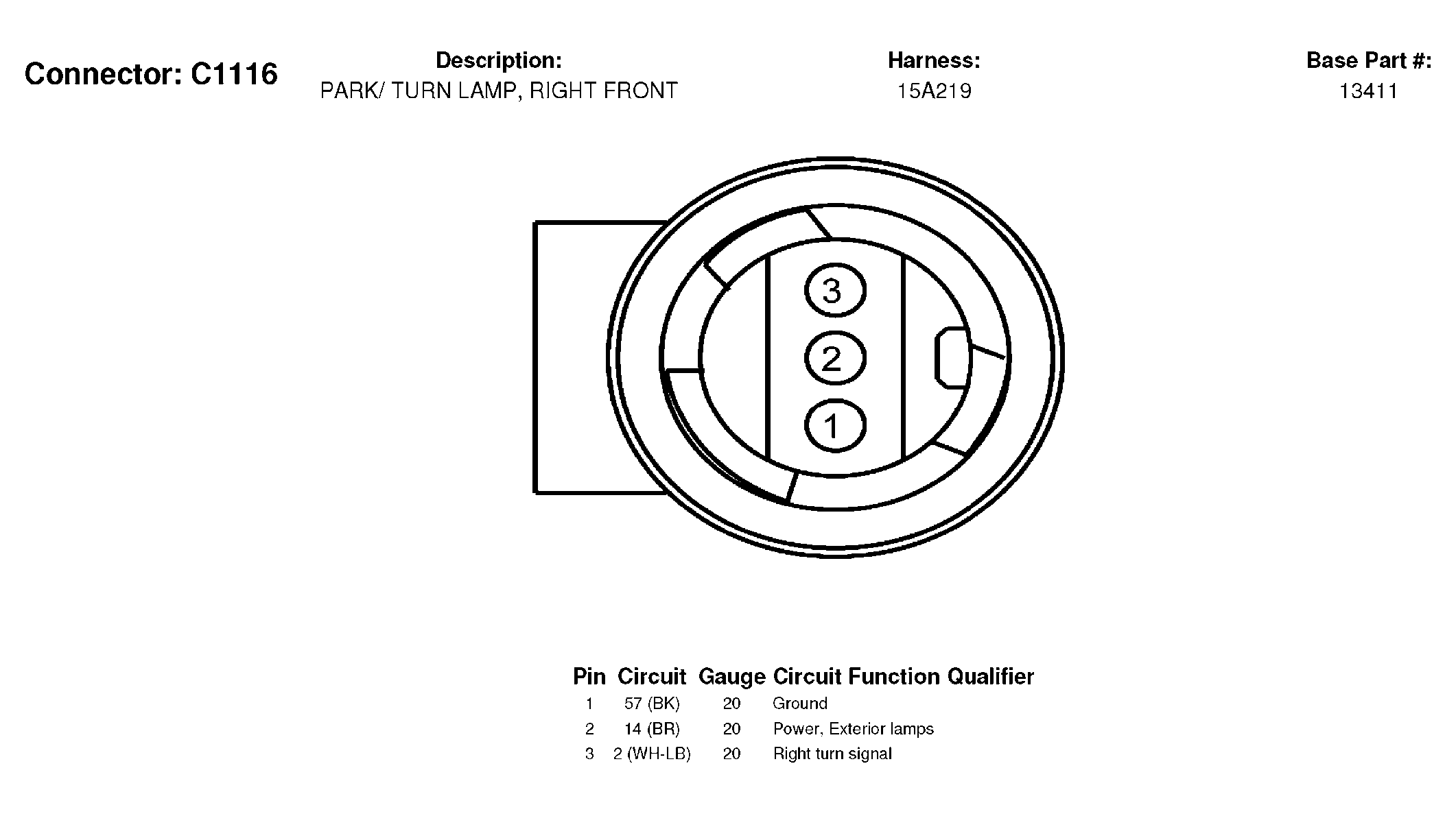

Fig 233: Park/Turn Lamp, Right Front Connector End View (C1116)

G04595652

Courtesy of FORD MOTOR CO.

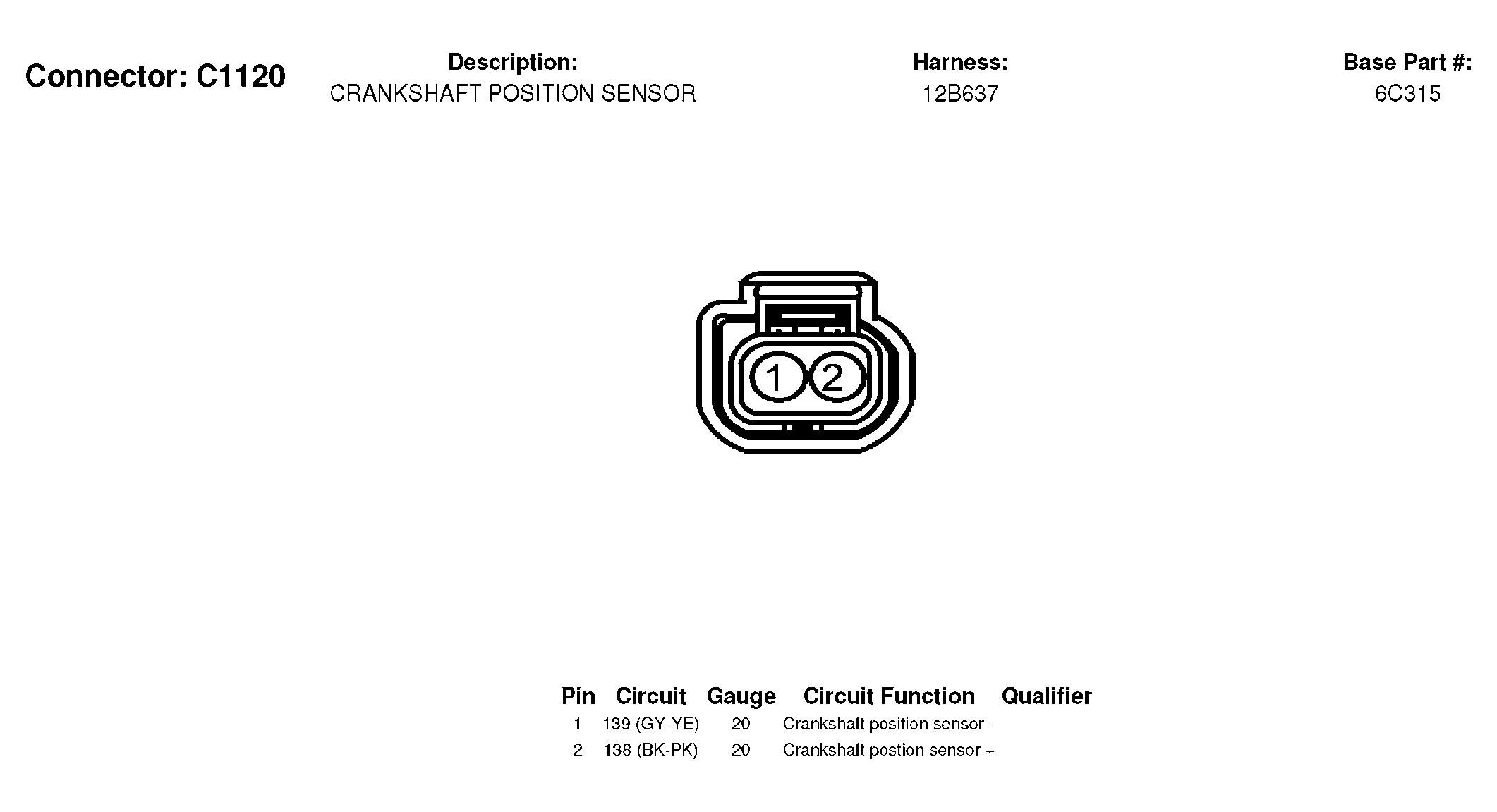

Fig 234: Crankshaft Position Sensor Connector End View (C1120)

G04595653

Courtesy of FORD MOTOR CO.

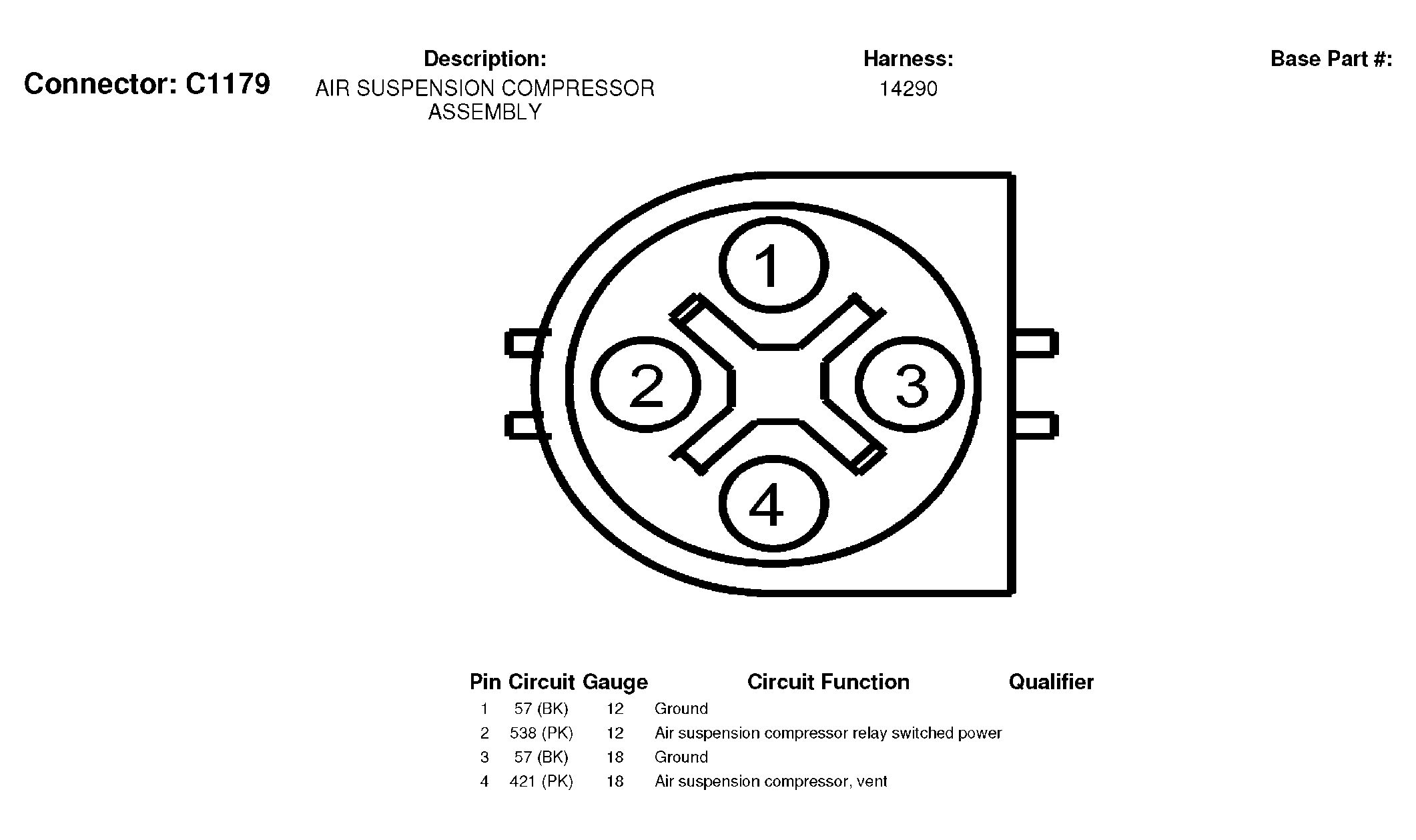

Fig 235: Air Suspension Compressor Assembly Connector End View (C1179)

G04595654

Courtesy of FORD MOTOR CO.

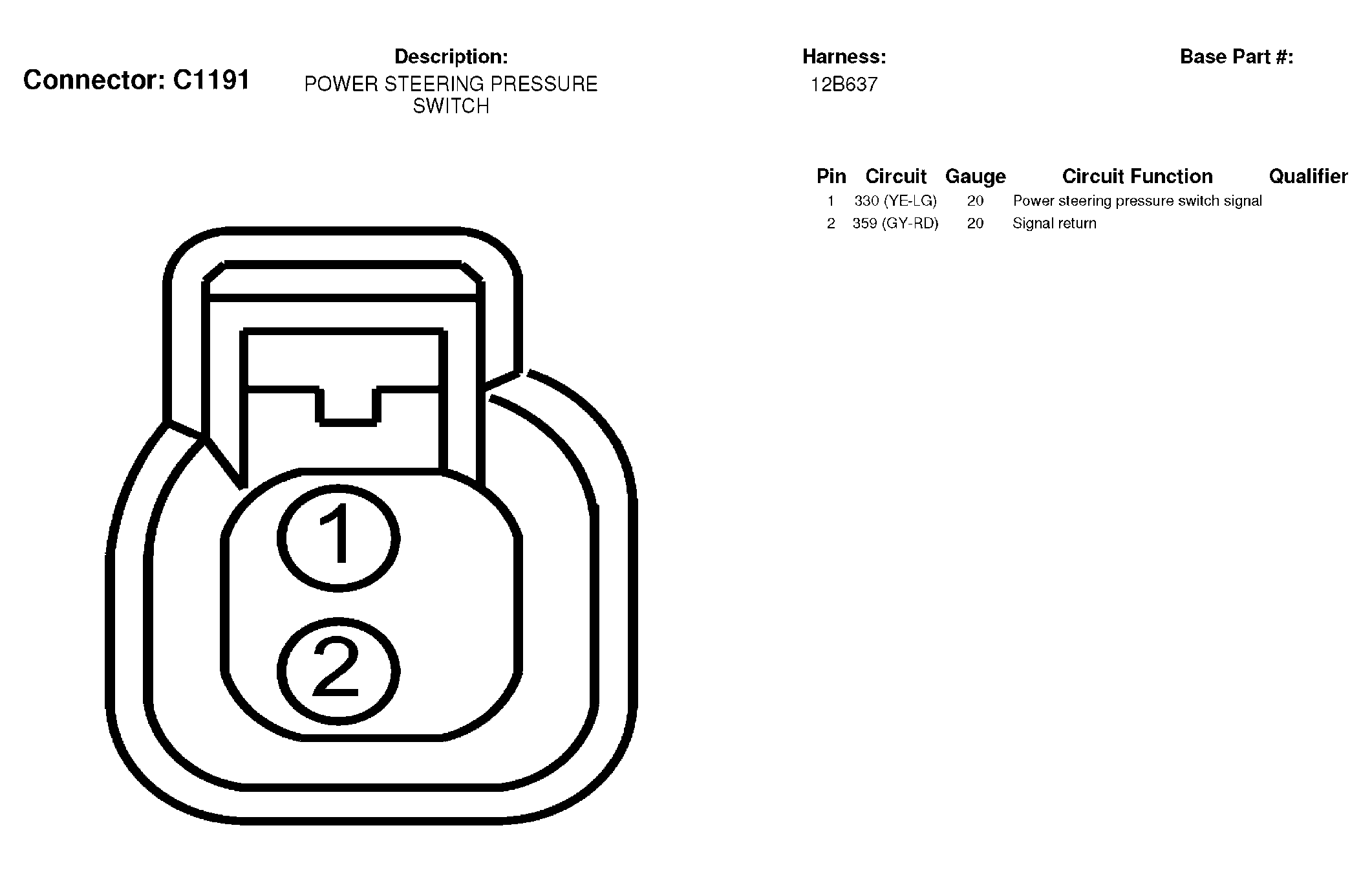

Fig 236: Power Steering Pressure Switch Connector End View (C1191)

G04595655

Courtesy of FORD MOTOR CO.

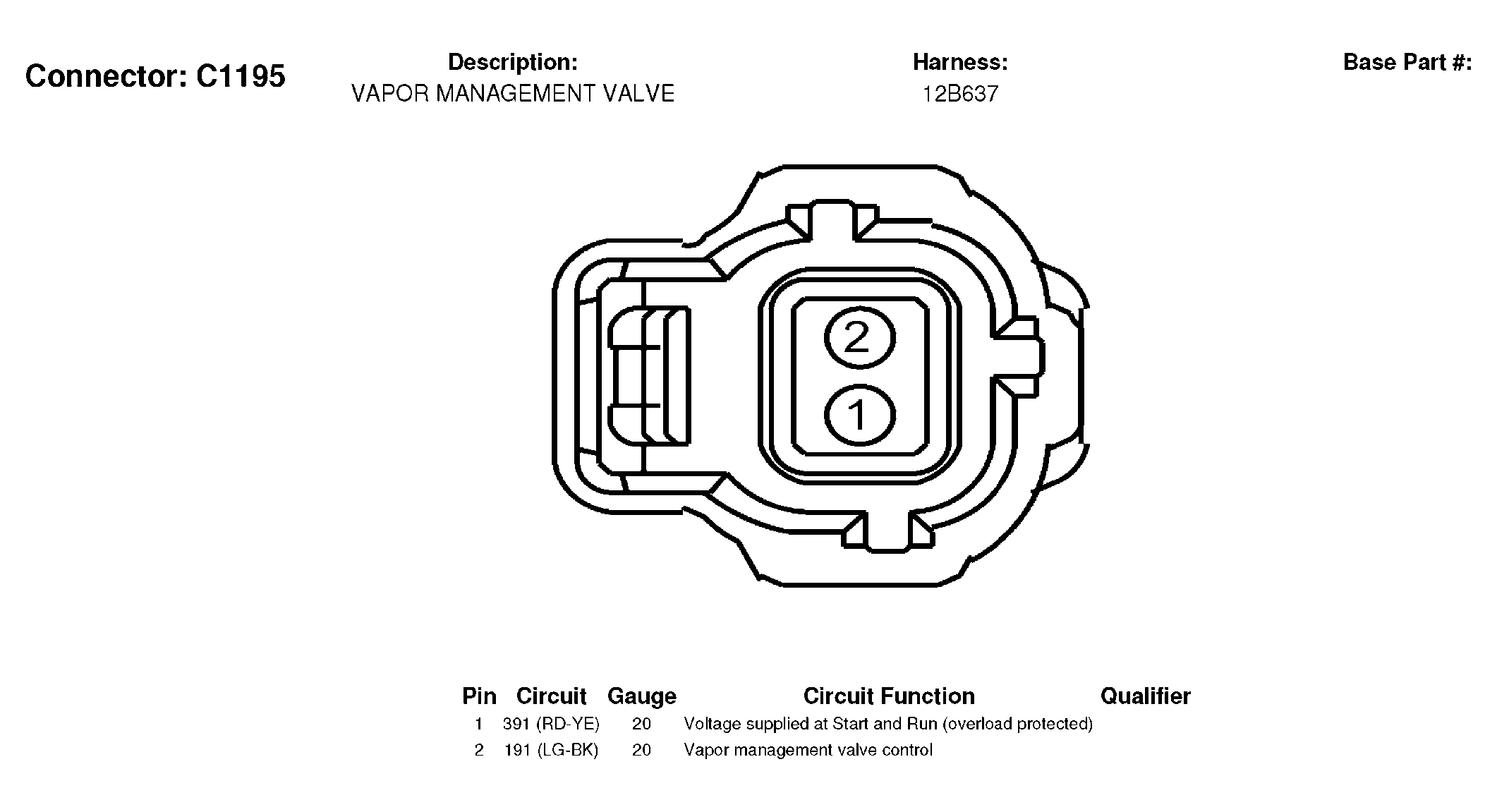

Fig 237: Vapor Management Valve Connector End View (C1195)

G04595656

Courtesy of FORD MOTOR CO.

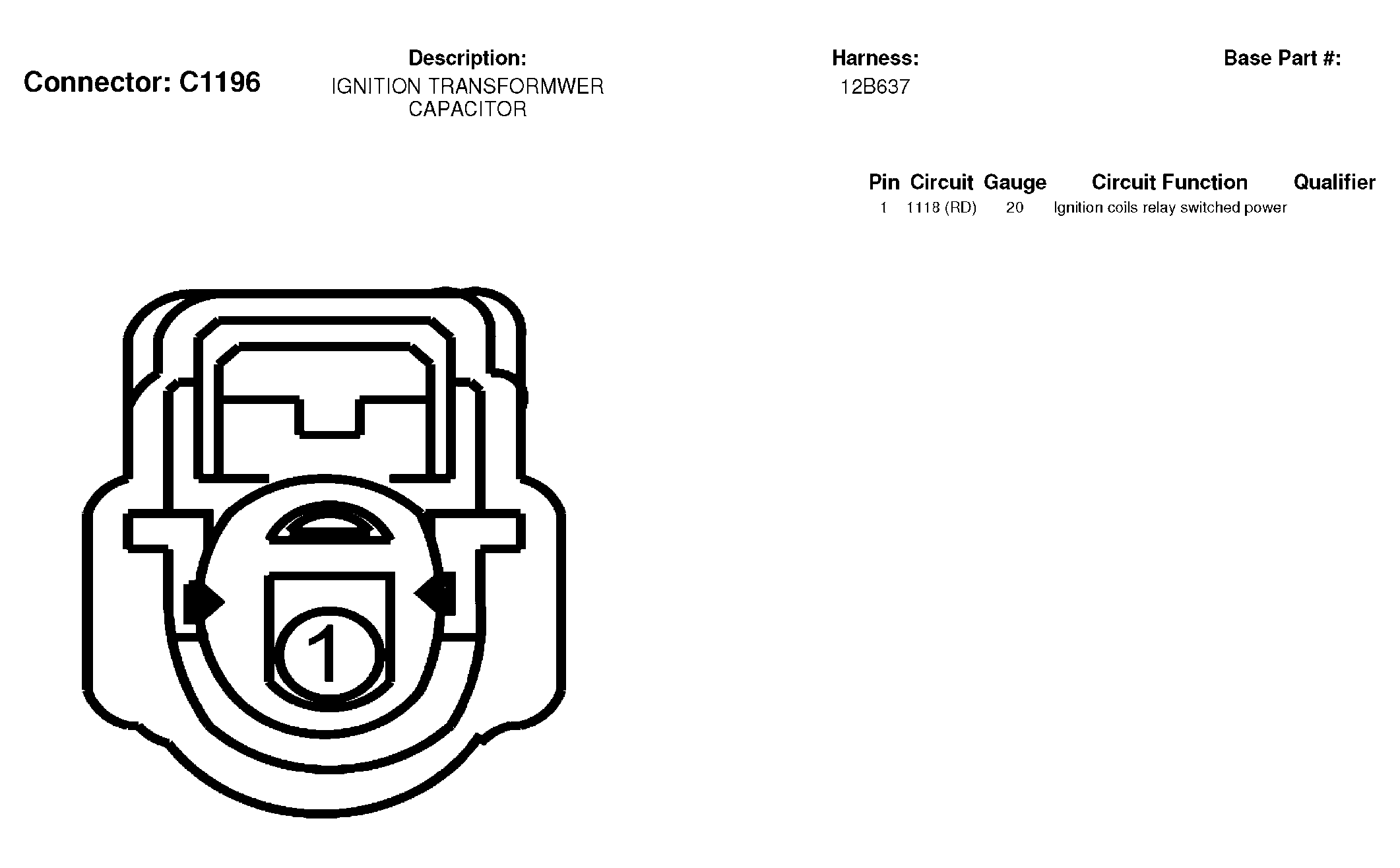

Fig 238: Ignition Transformer Capacitor Connector End View (C1196)

G04595657

Courtesy of FORD MOTOR CO.

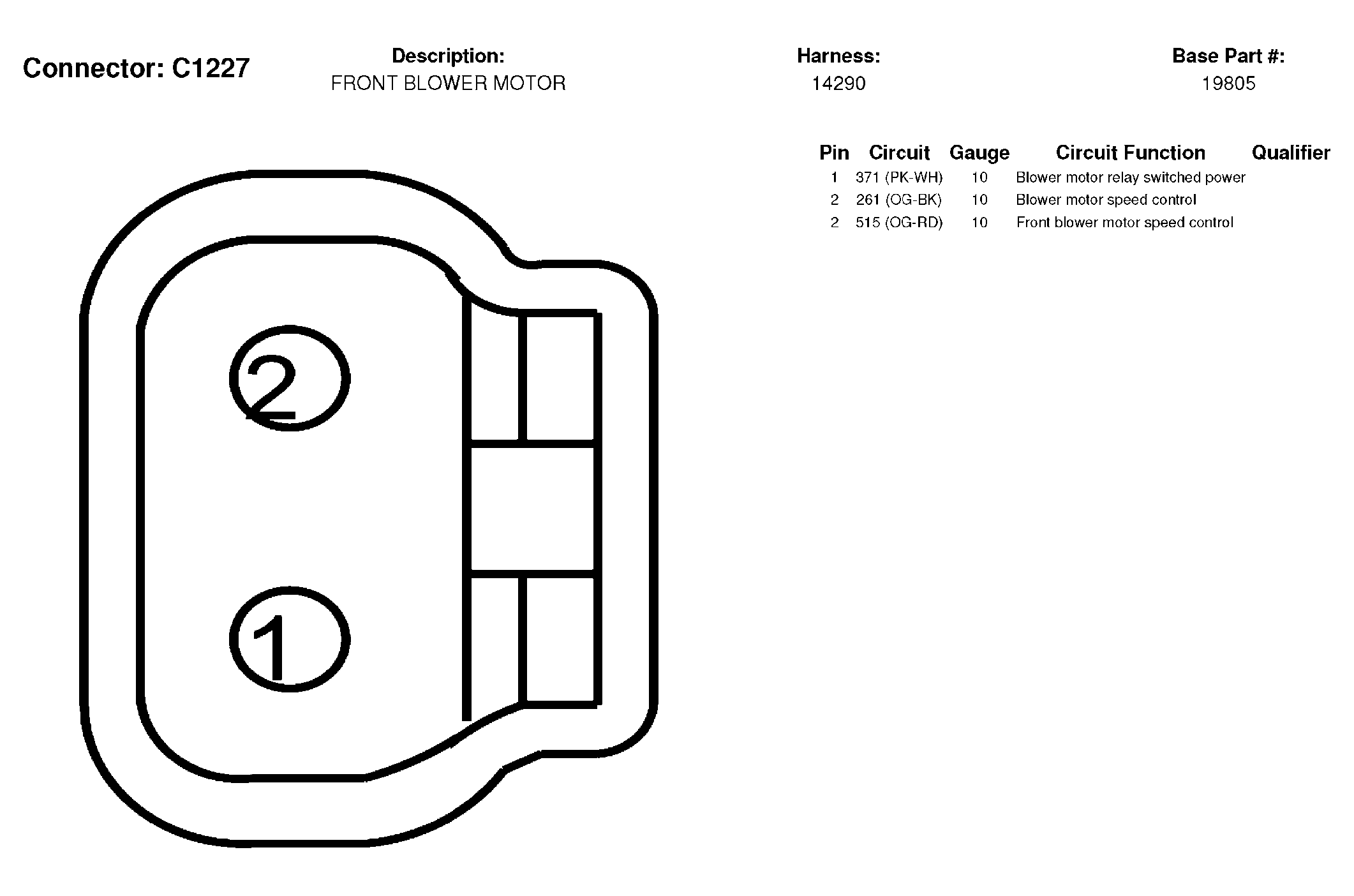

Fig 239: Front Blower Motor Connector End View (C1227)

G04595658

Courtesy of FORD MOTOR CO.

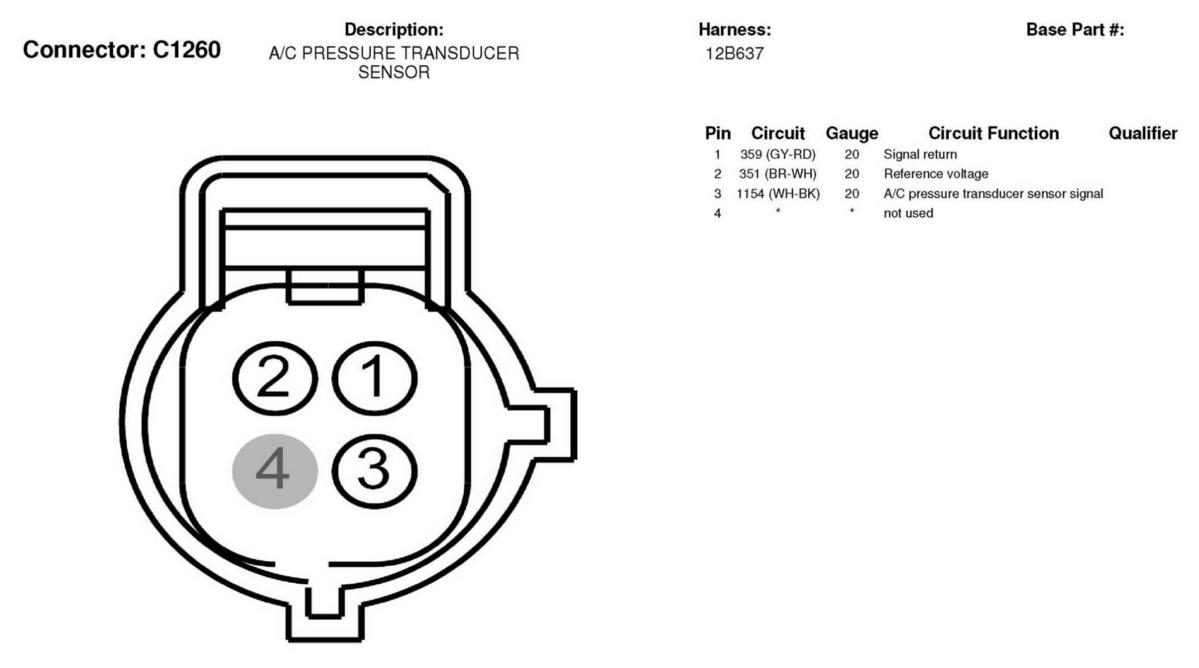

Fig 240: A/C Pressure Transducer Sensor Connector End View (C1260)

G04595659

Courtesy of FORD MOTOR CO.

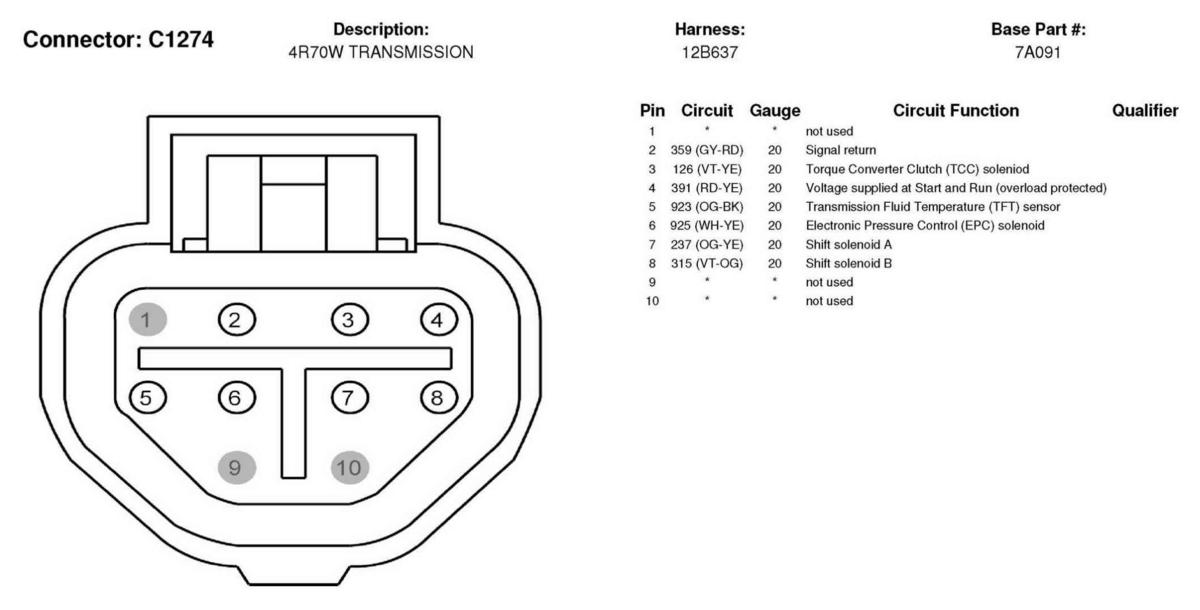

Fig 241: 4R70W Transmission Connector End View (C1274)

G04595660

Courtesy of FORD MOTOR CO.

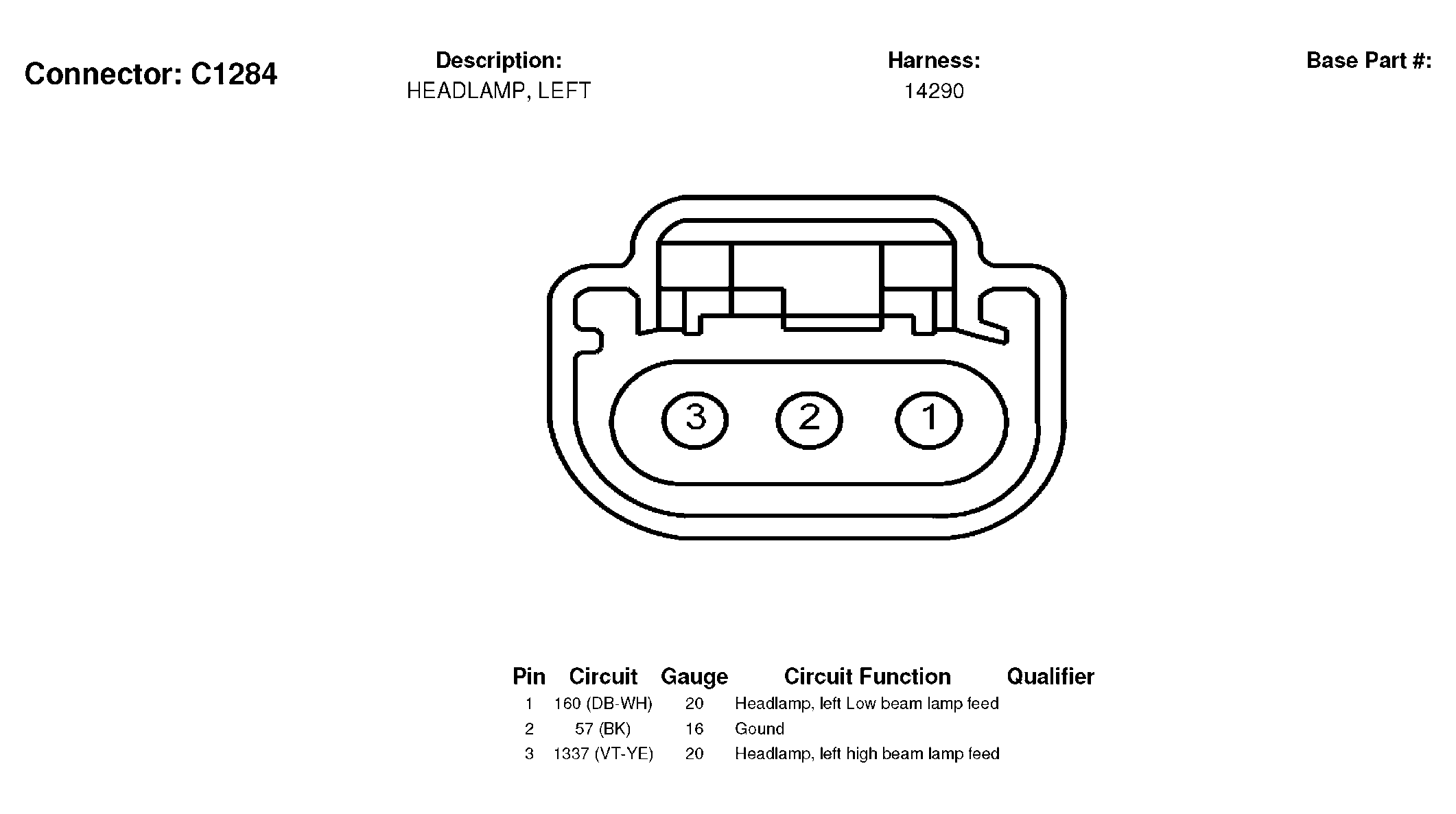

Fig 242: Headlamp, Left Connector End View (C1284)

G04595661

Courtesy of FORD MOTOR CO.

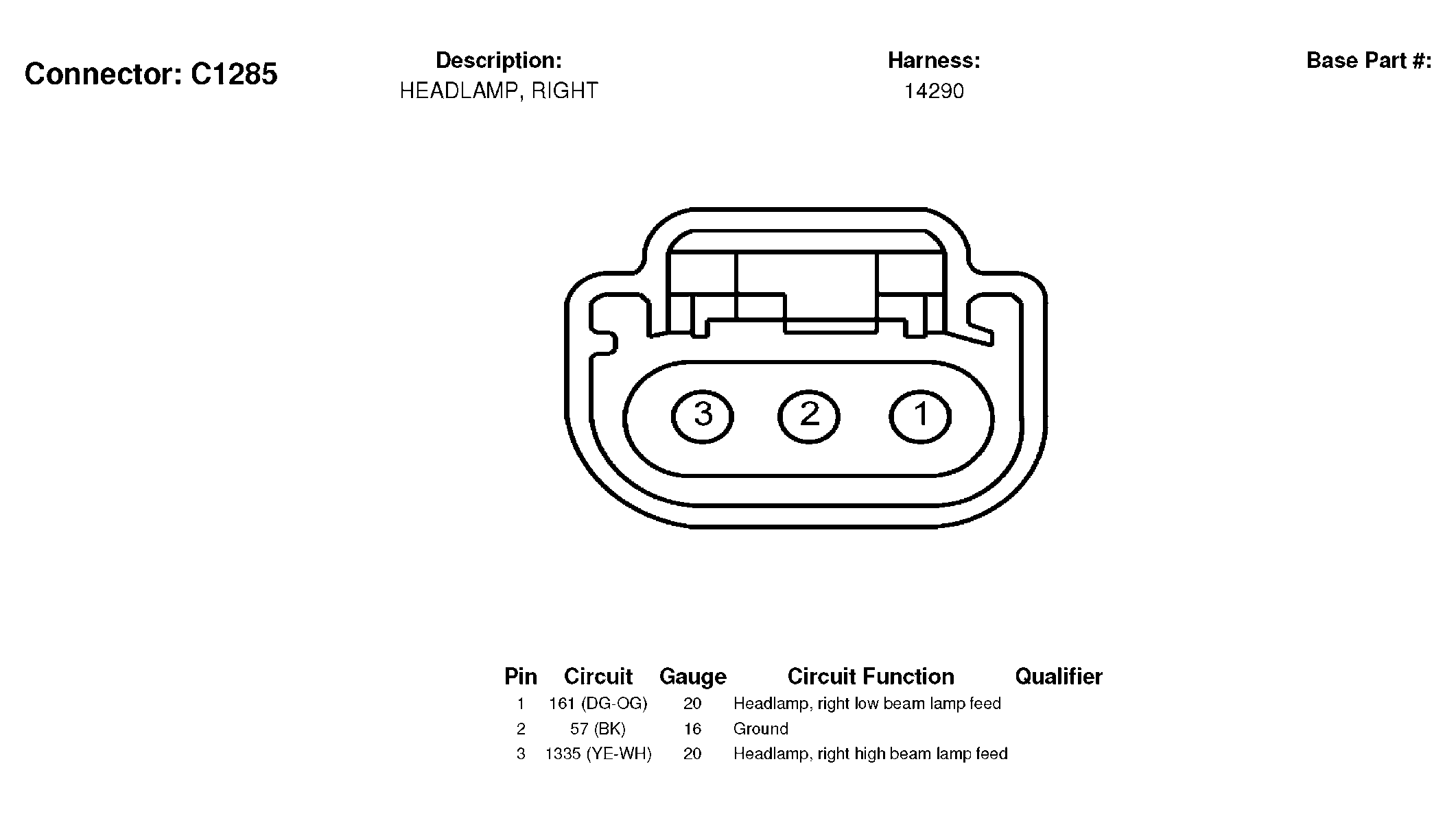

Fig 243: Headlamp, Right Connector End View (C1285)

G04595662

Courtesy of FORD MOTOR CO.

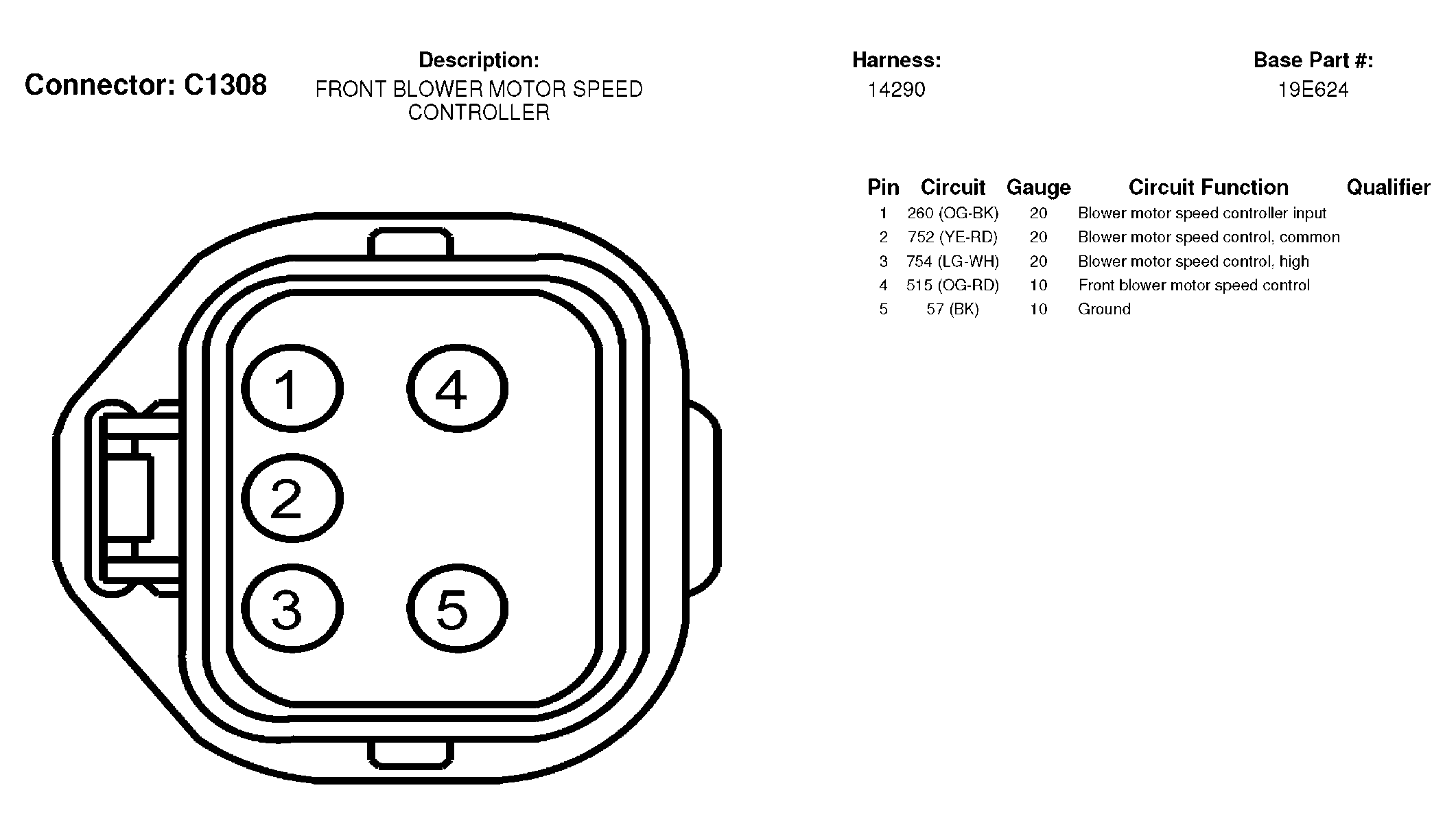

Fig 244: Front Blower Motor Speed Controller Connector End View (C1308)

G04595663

Courtesy of FORD MOTOR CO.

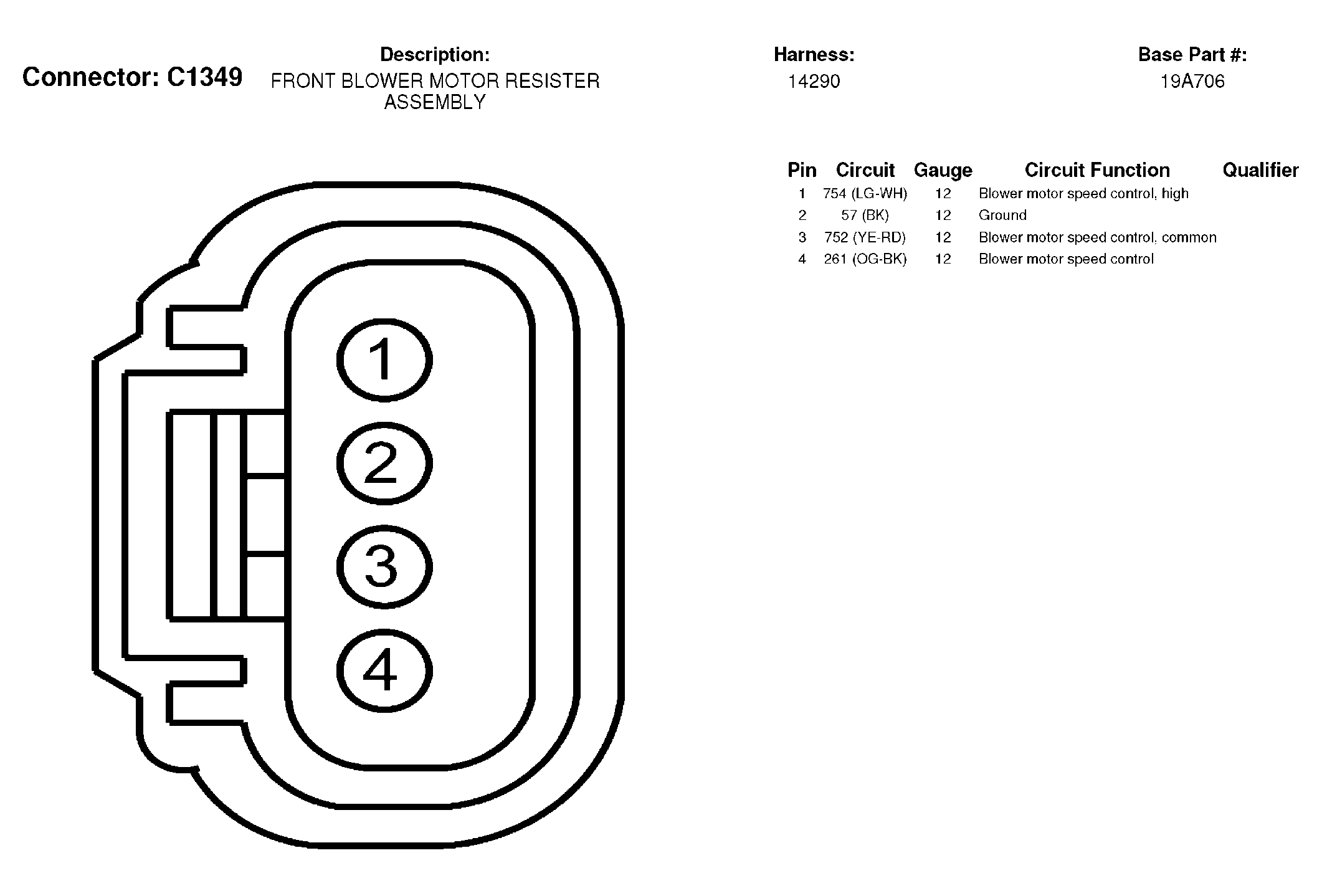

Fig 245: Front Blower Motor Resister Assembly Connector End View (C1349)

G04595664

Courtesy of FORD MOTOR CO.

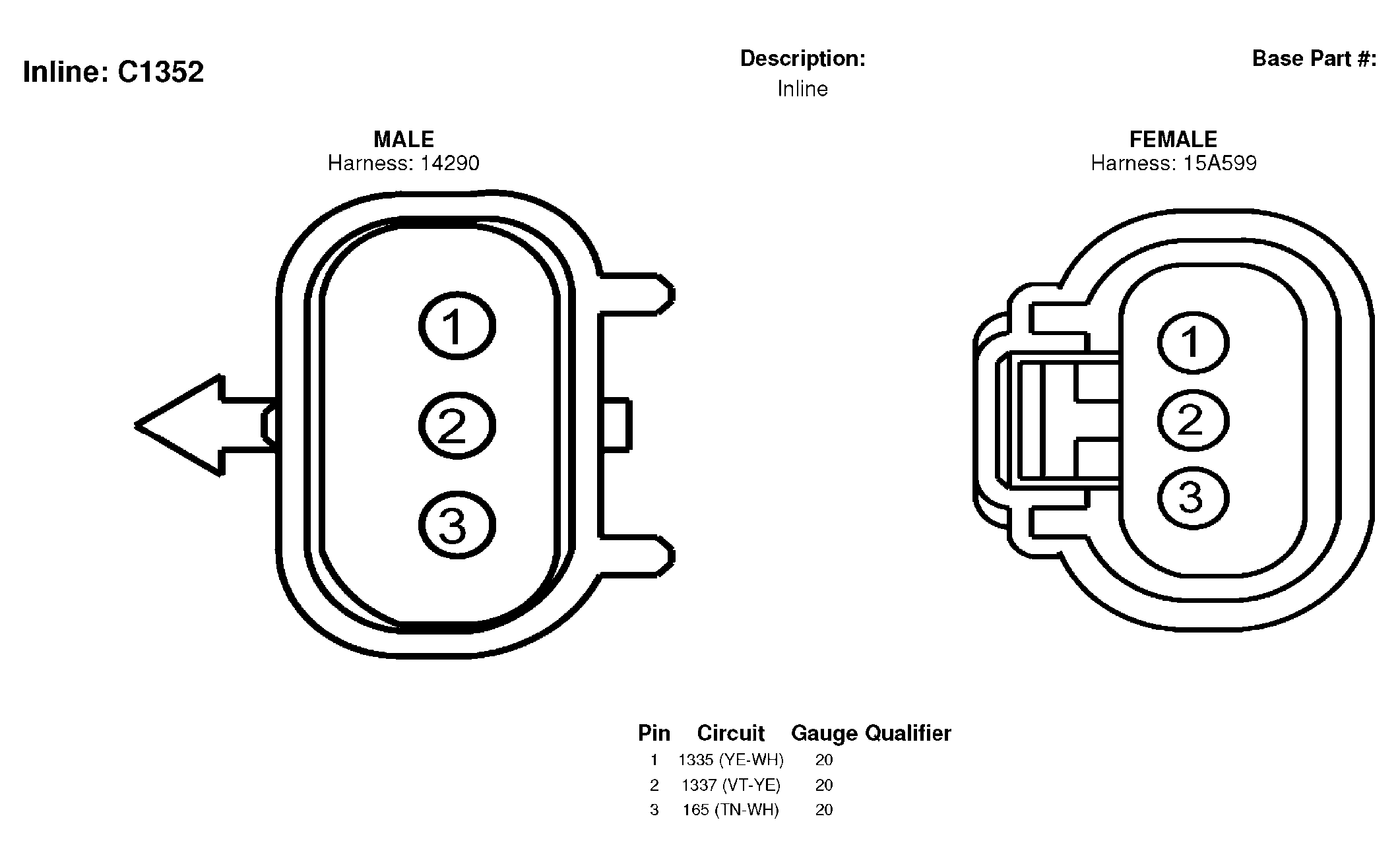

Fig 246: Inline Connector End View (C1352)

G04595665

Courtesy of FORD MOTOR CO.

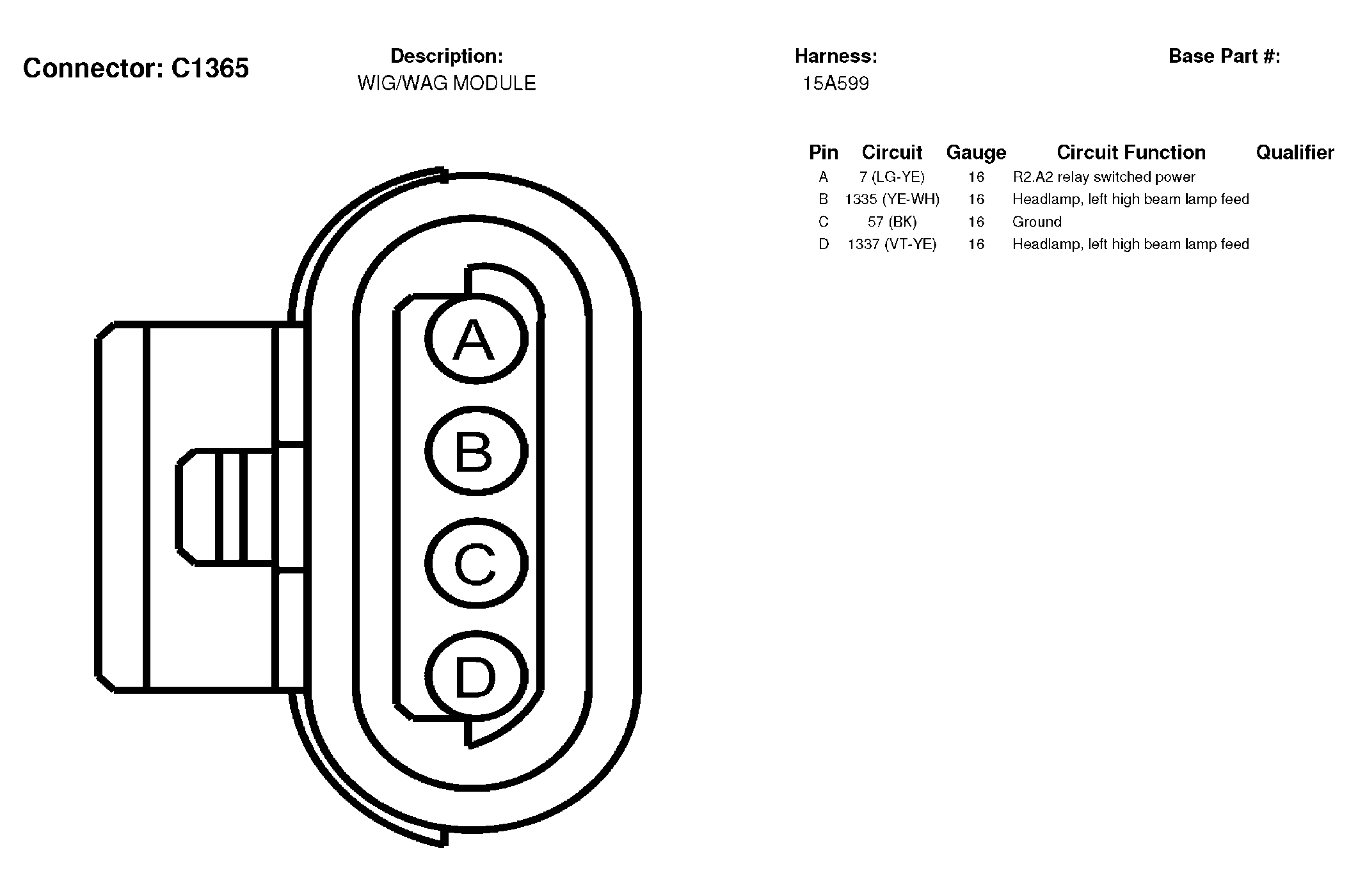

Fig 247: WIG/WAG Module Connector End View (C1365)

G04595666

Courtesy of FORD MOTOR CO.

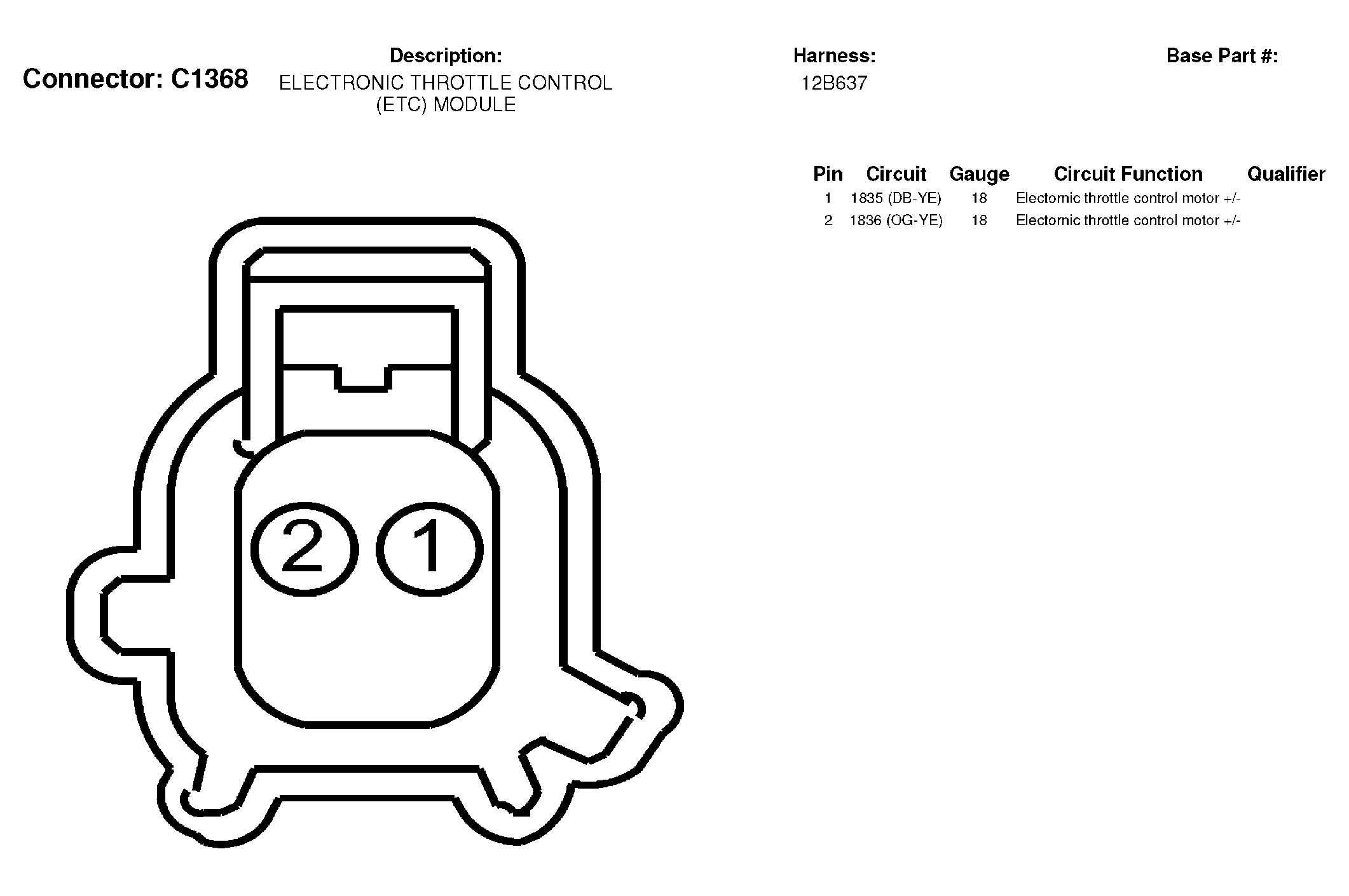

Fig 248: Electronic Throttle Control (ETC) Module Connector End View (C1368)

G04595667

Courtesy of FORD MOTOR CO.

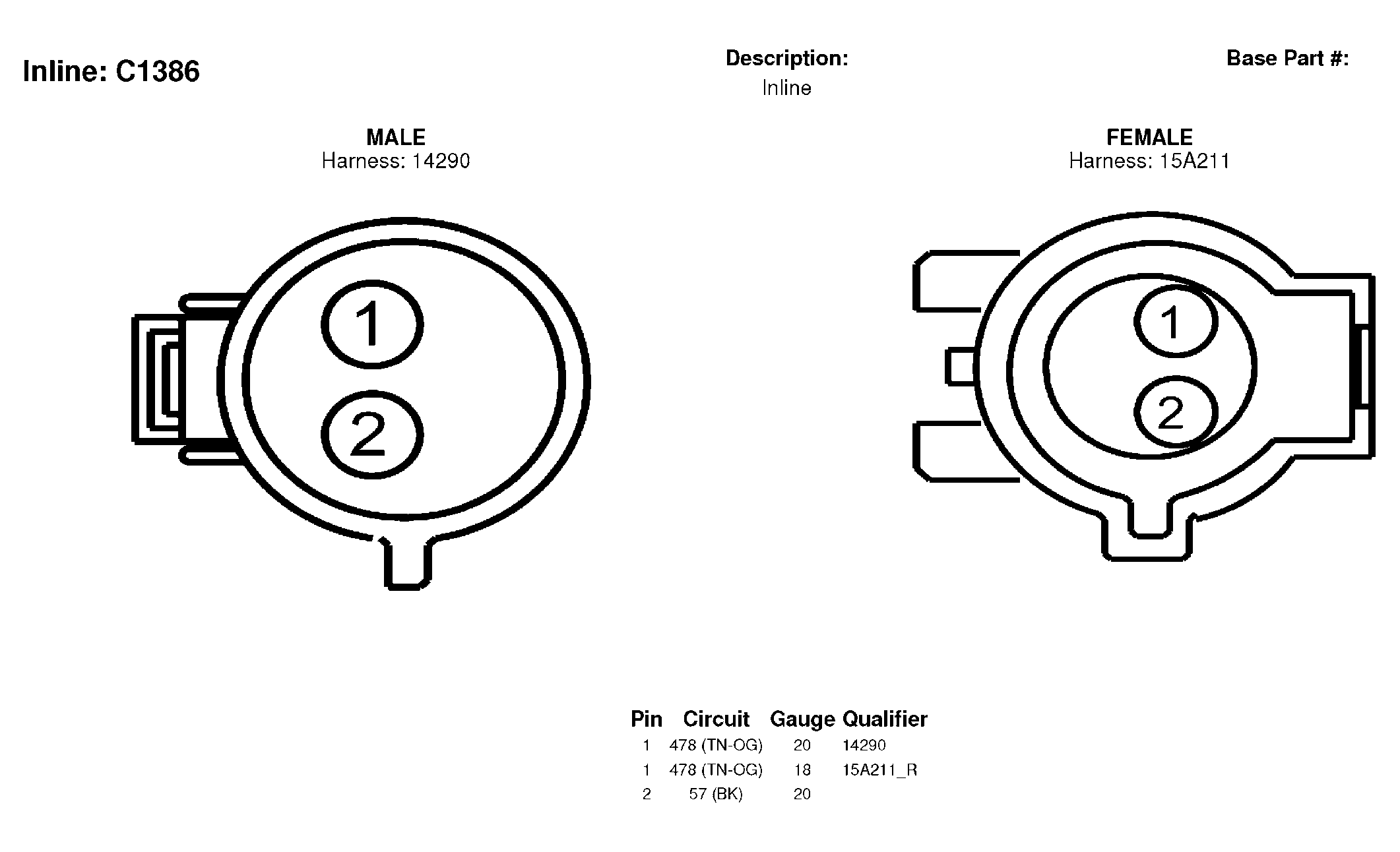

Fig 249: Inline Connector End View (C1386)

G04595668

Courtesy of FORD MOTOR CO.

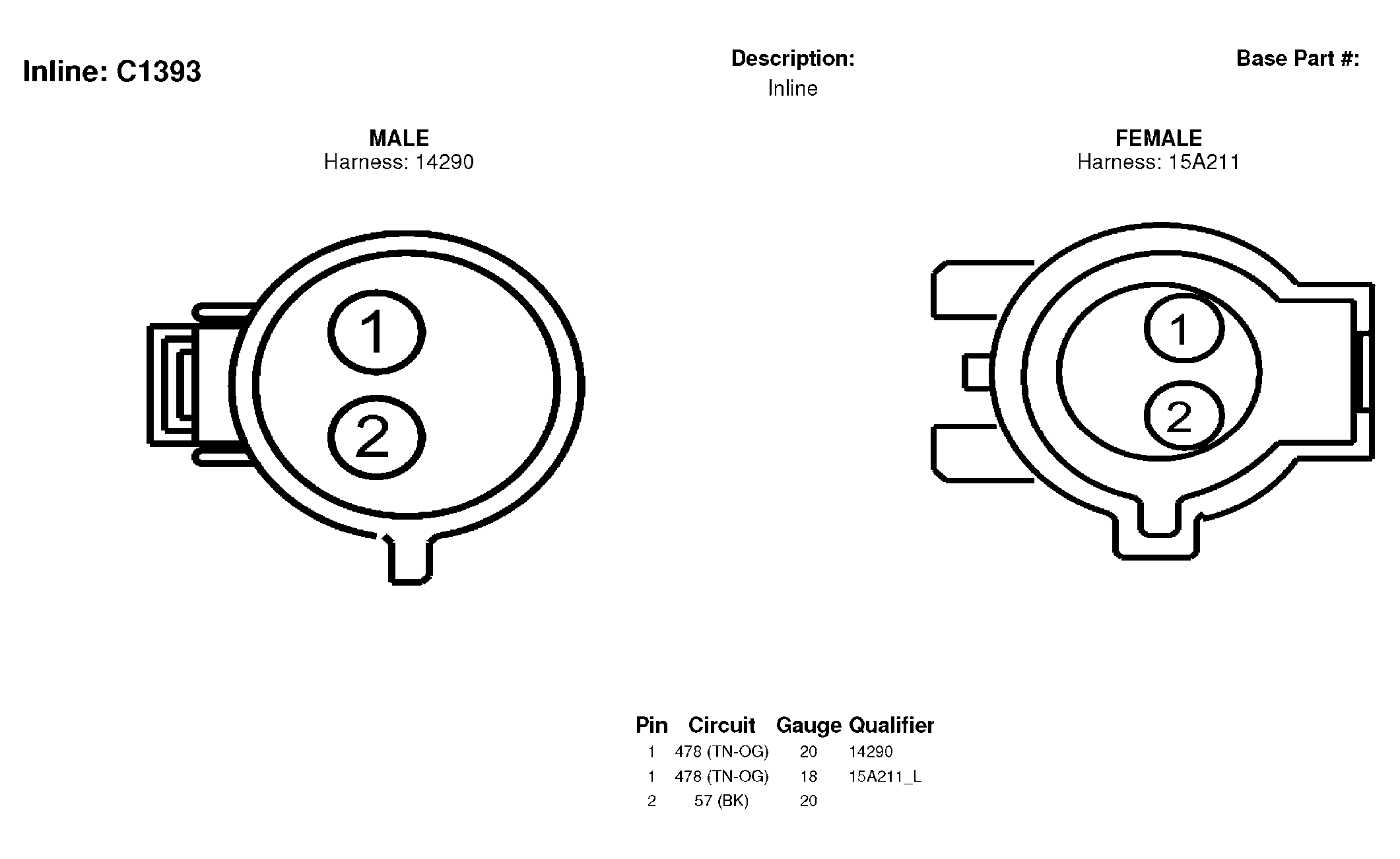

Fig 250: Inline Connector End View (C1393)

G04595669

Courtesy of FORD MOTOR CO.

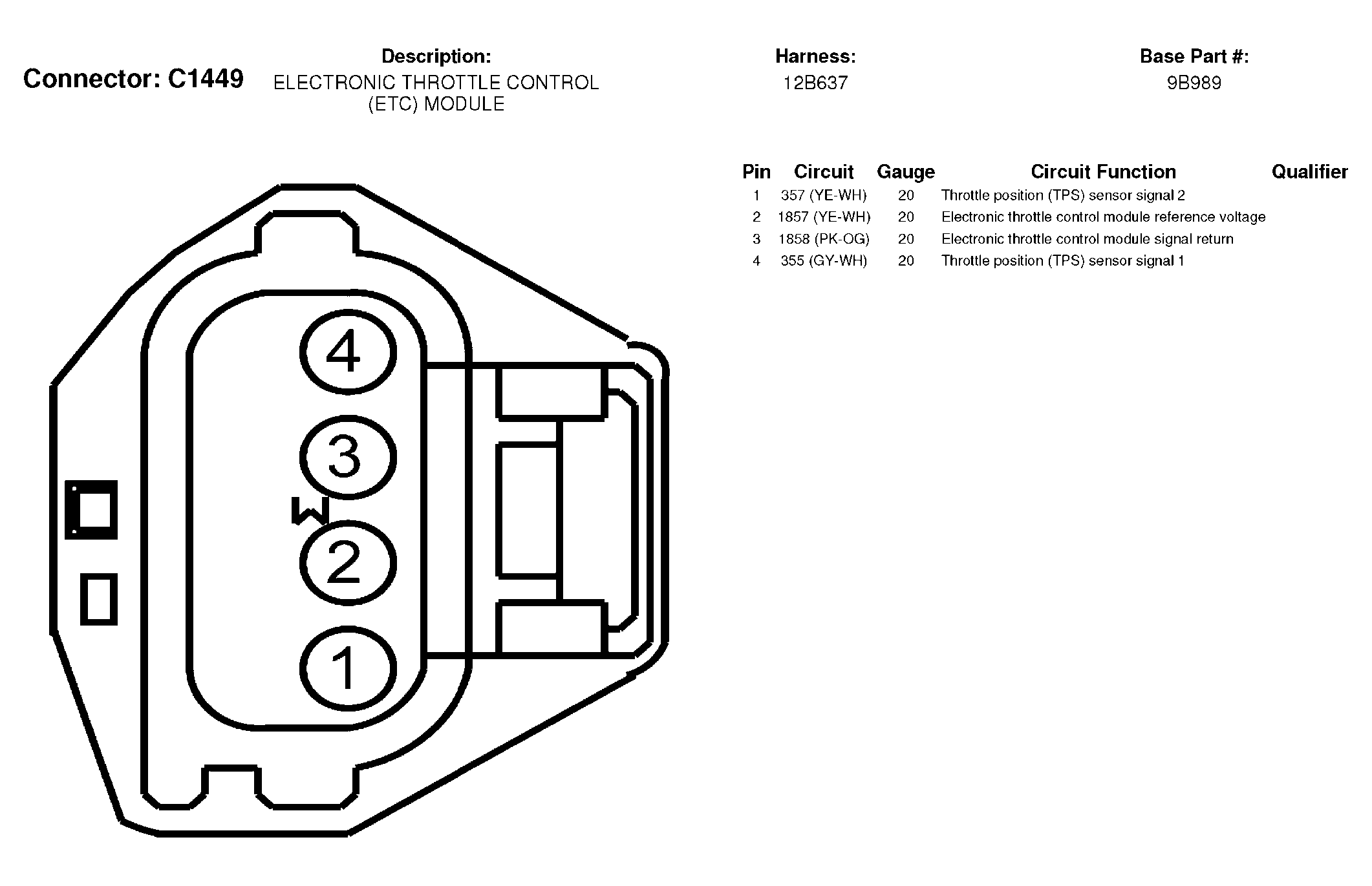

Fig 251: Electronic Throttle Control (ETC) Module Connector End View (C1449)

G04595670

Courtesy of FORD MOTOR CO.

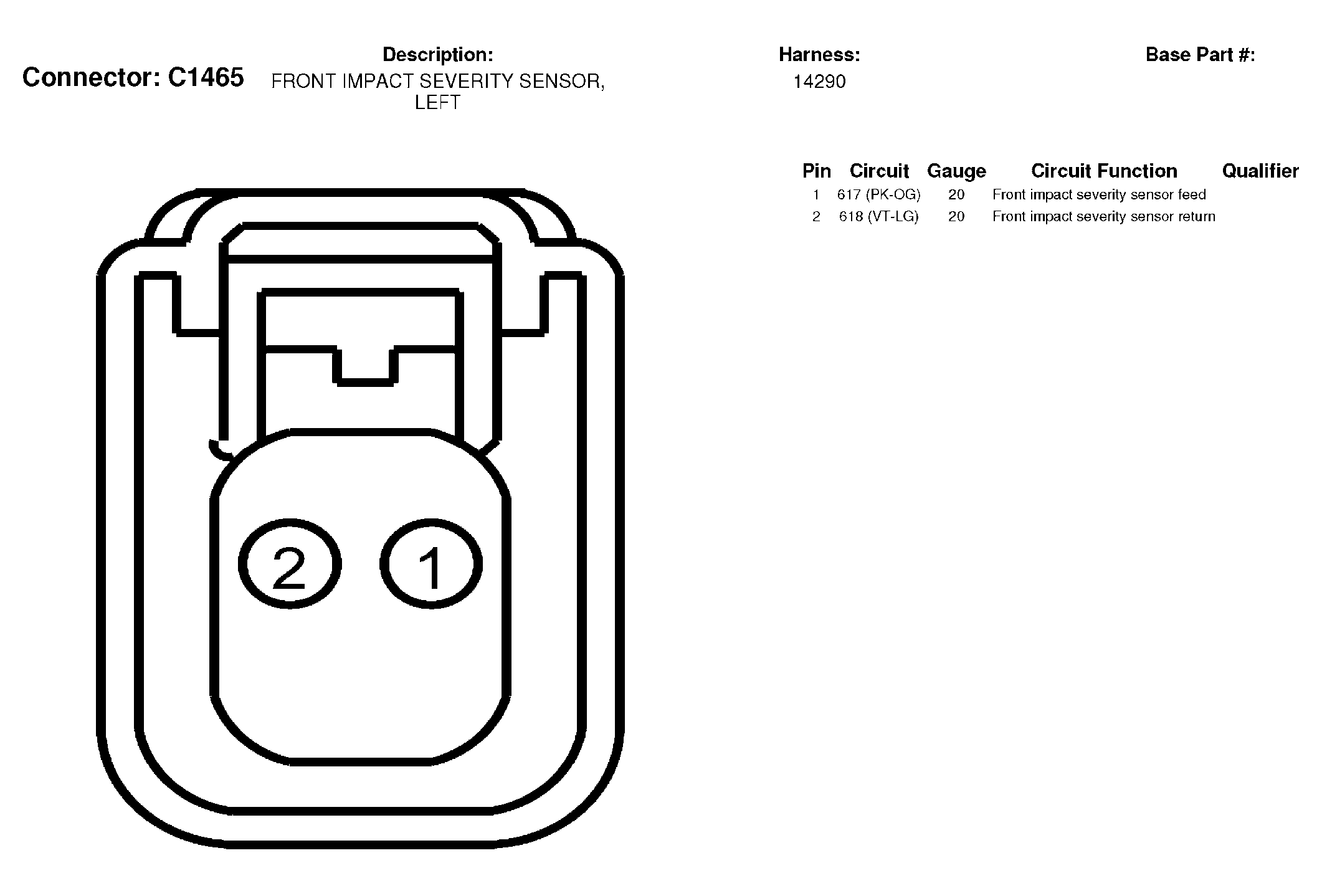

Fig 252: Front Impact Severity Sensor, Left Connector End View (C1465)

G04595671

Courtesy of FORD MOTOR CO.

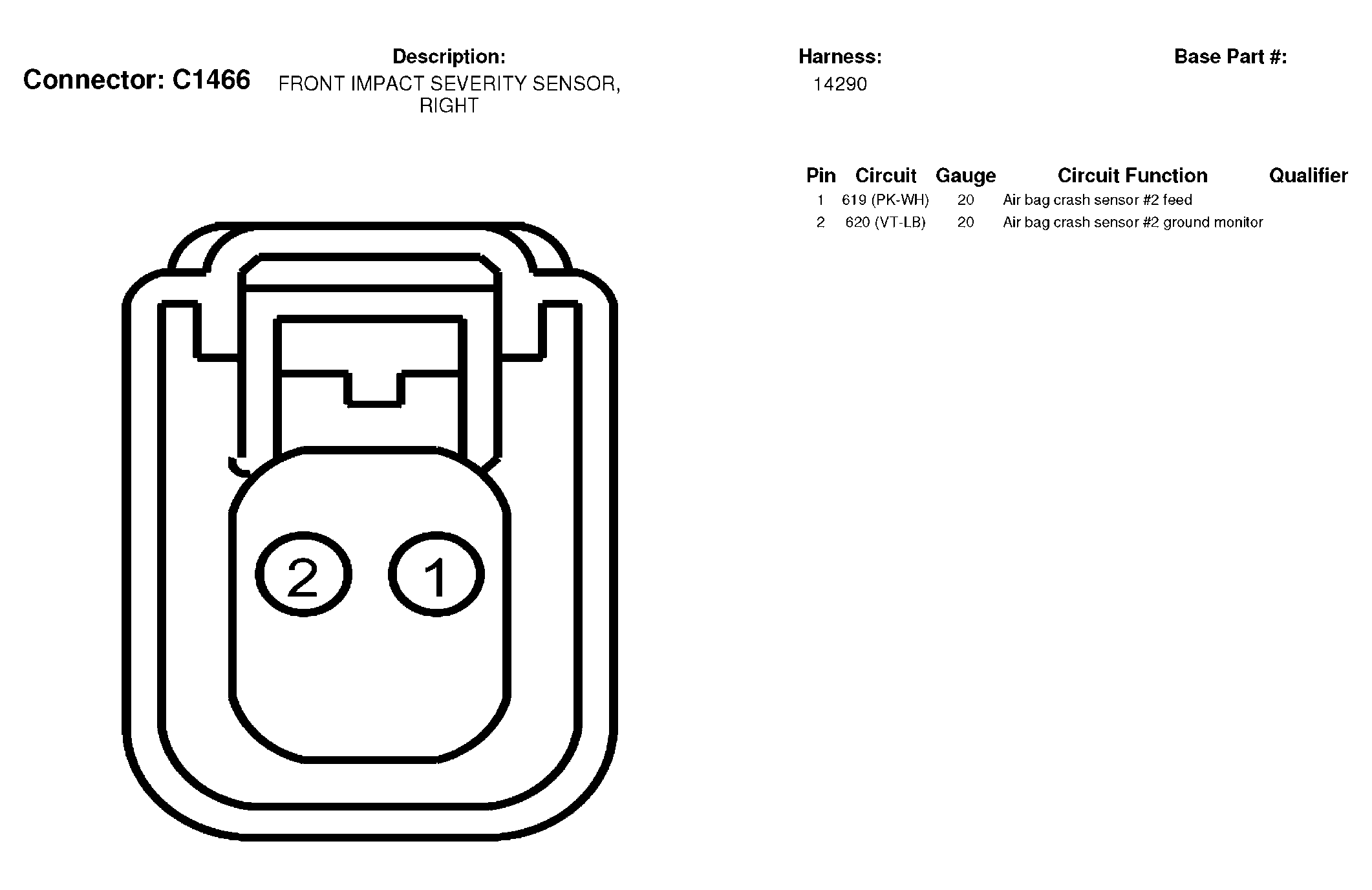

Fig 253: Front Impact Severity Sensor, Right Connector End View (C1466)

G04595672

Courtesy of FORD MOTOR CO.

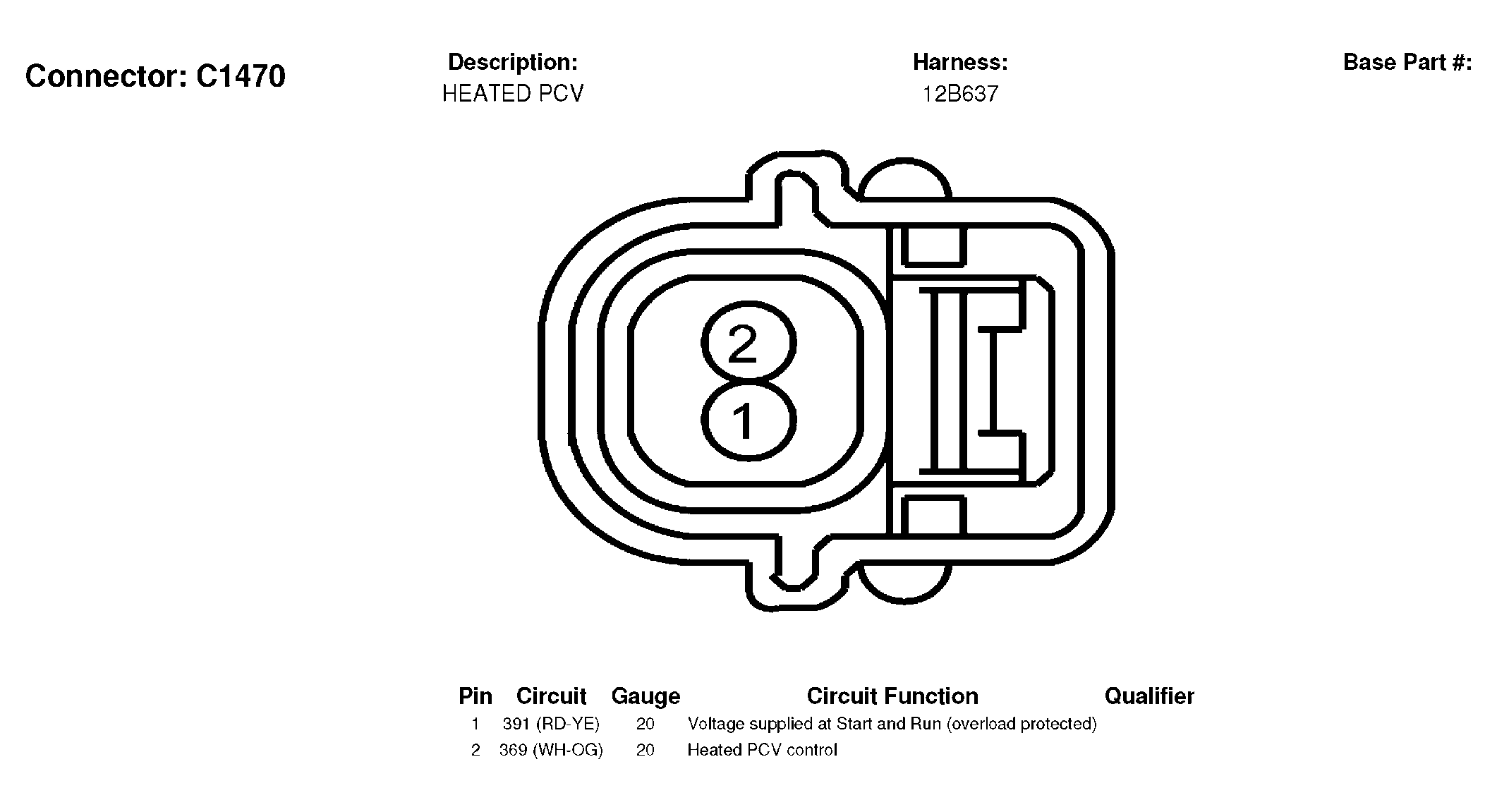

Fig 254: Heated PCV Connector End View (C1470)

G04595673

Courtesy of FORD MOTOR CO.

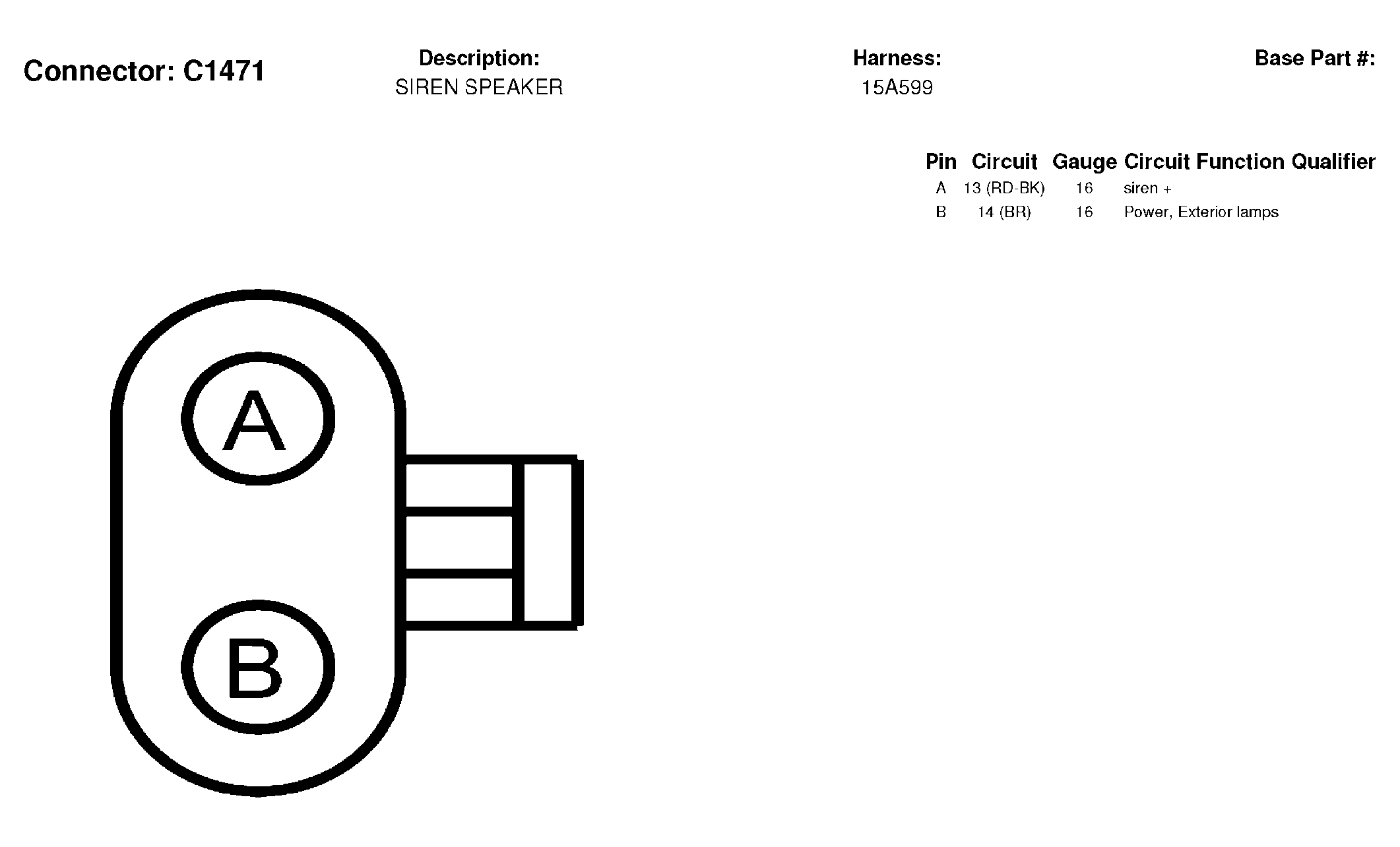

Fig 255: Siren Speaker Connector End View (C1471)

G04595674

Courtesy of FORD MOTOR CO.

Fig 256: Left Front Strobe Assembly Connector End View (C1478)

G04595675

Courtesy of FORD MOTOR CO.

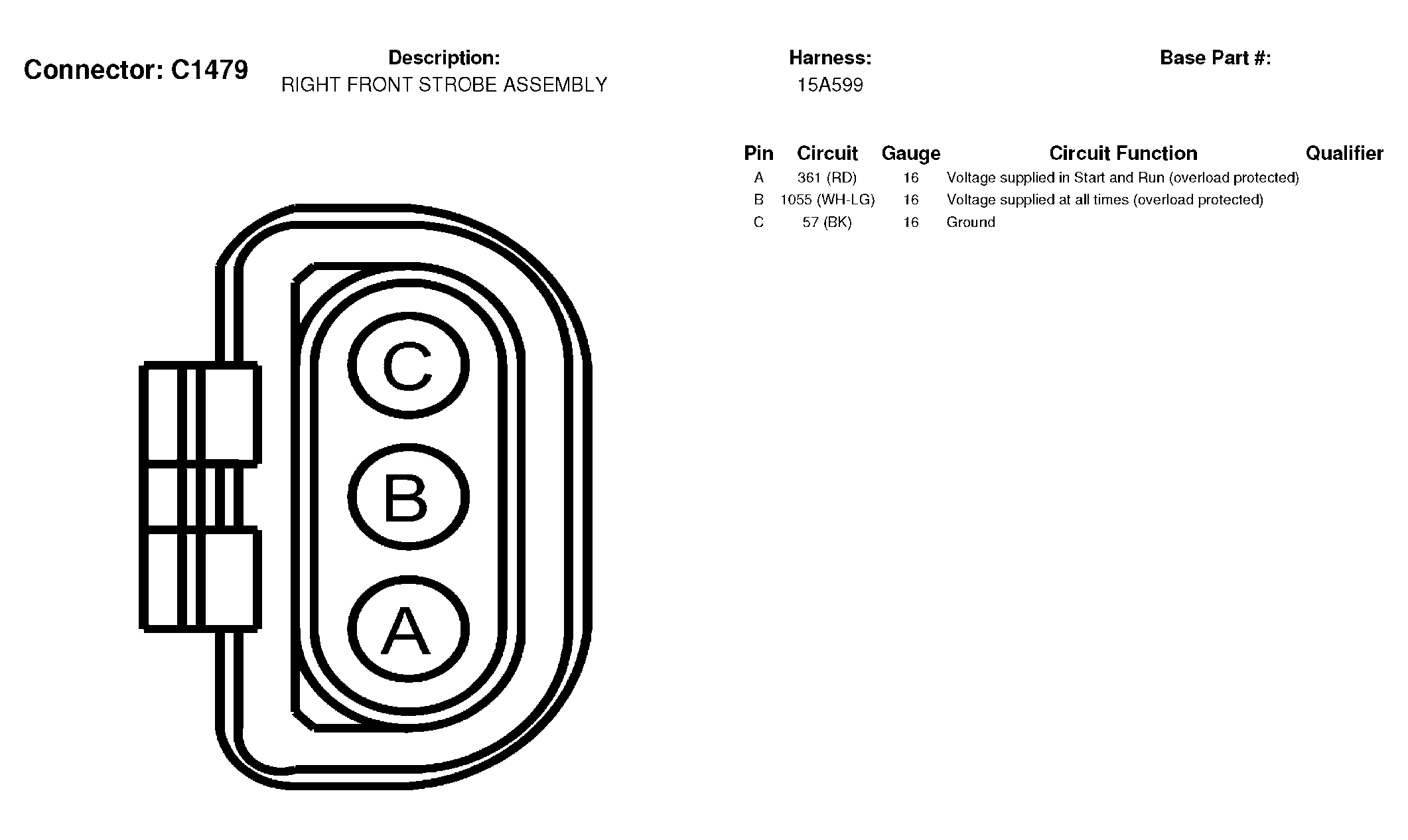

Fig 257: Right Front Strobe Assembly Connector End View (C1479)

G04595676

Courtesy of FORD MOTOR CO.

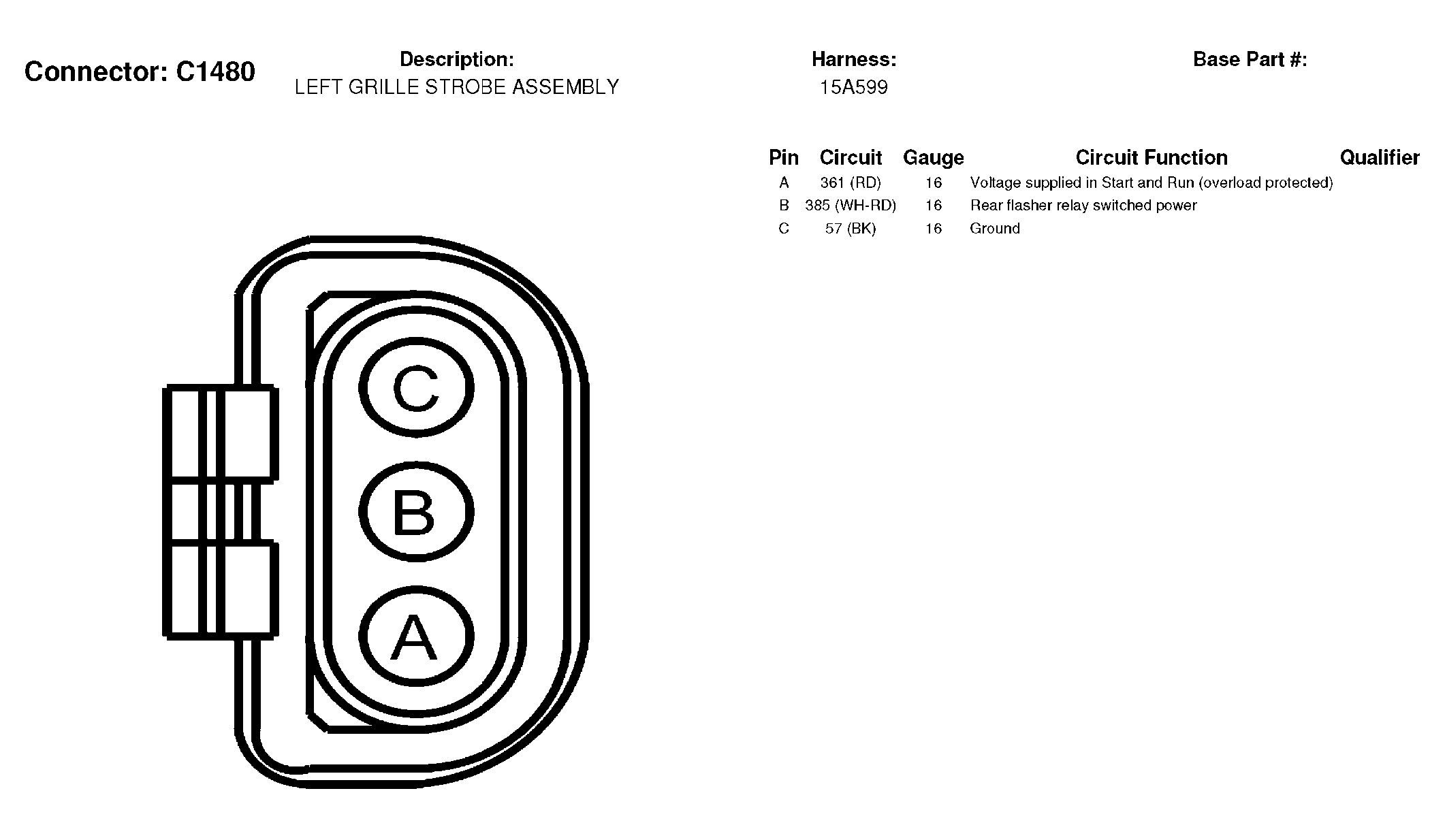

Fig 258: Left Grille Strobe Assembly Connector End View (C1480)

G04595677

Courtesy of FORD MOTOR CO.

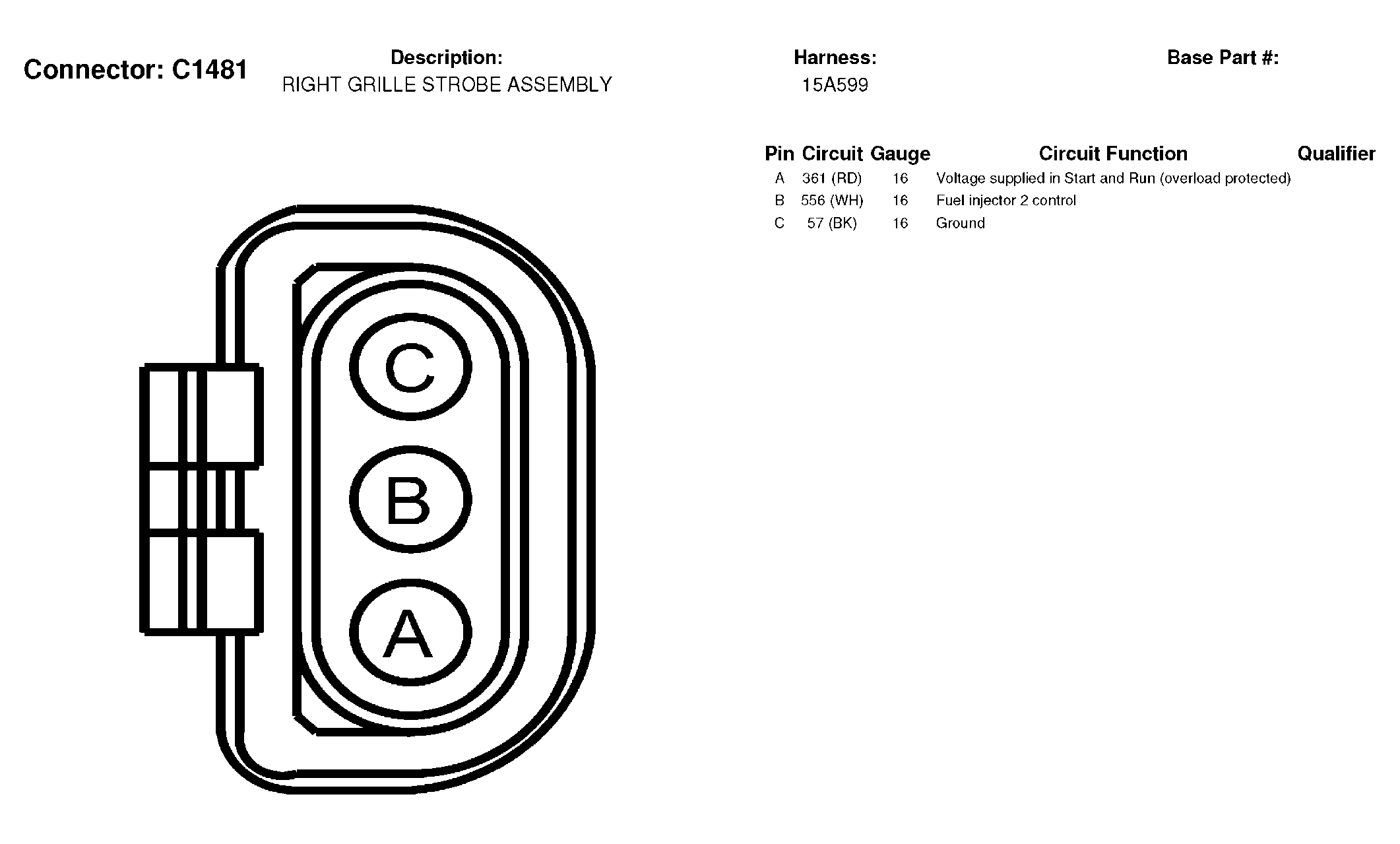

Fig 259: Right Grille Strobe Assembly Connector End View (C1481)

G04595678

Courtesy of FORD MOTOR CO.

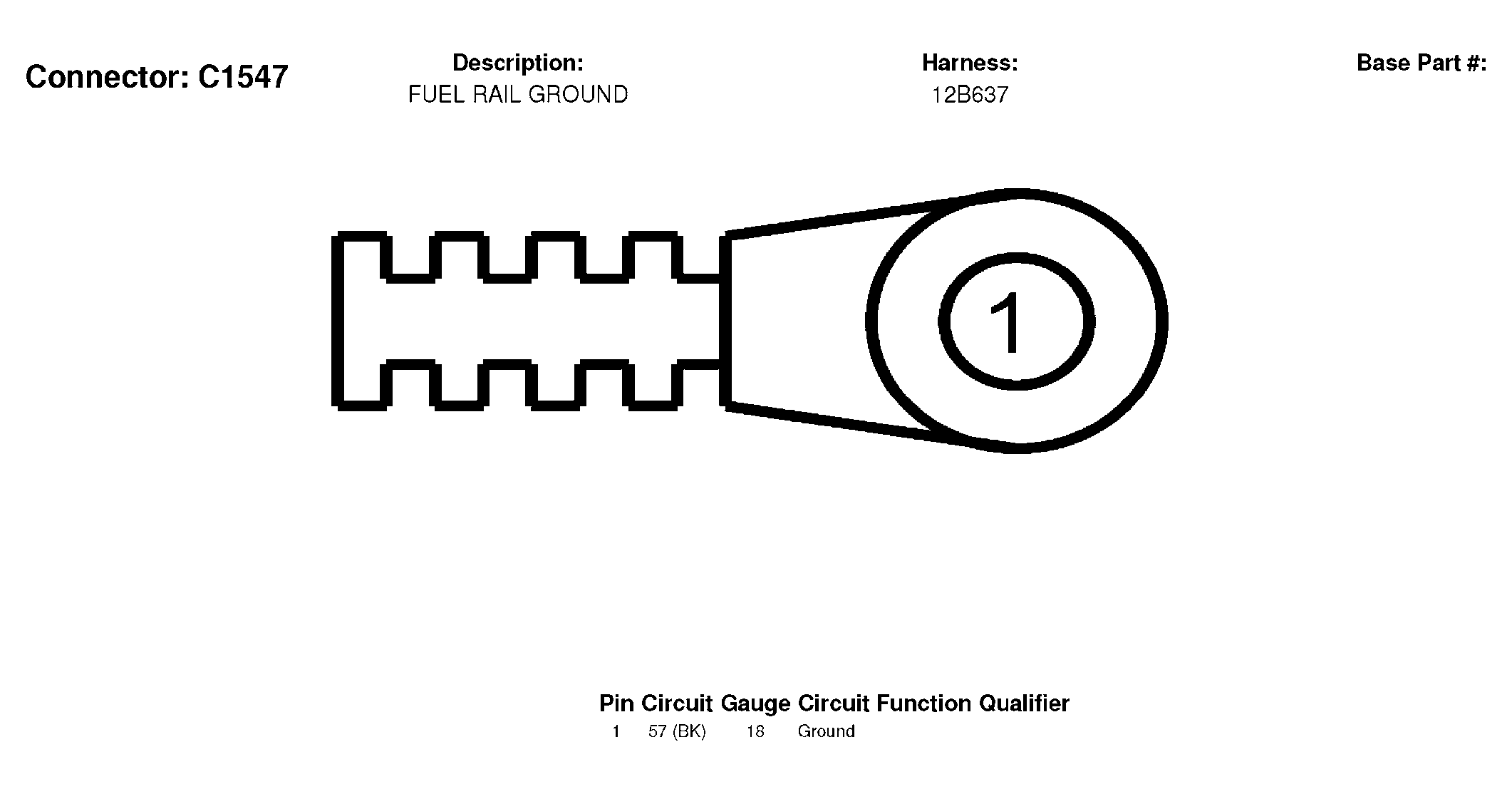

Fig 260: Fuel Rail Ground Connector End View (C1547)

G04595679

Courtesy of FORD MOTOR CO.

Fig 261: Fuel Rail Ground Connector End View (C1549)

G04595680

Courtesy of FORD MOTOR CO.

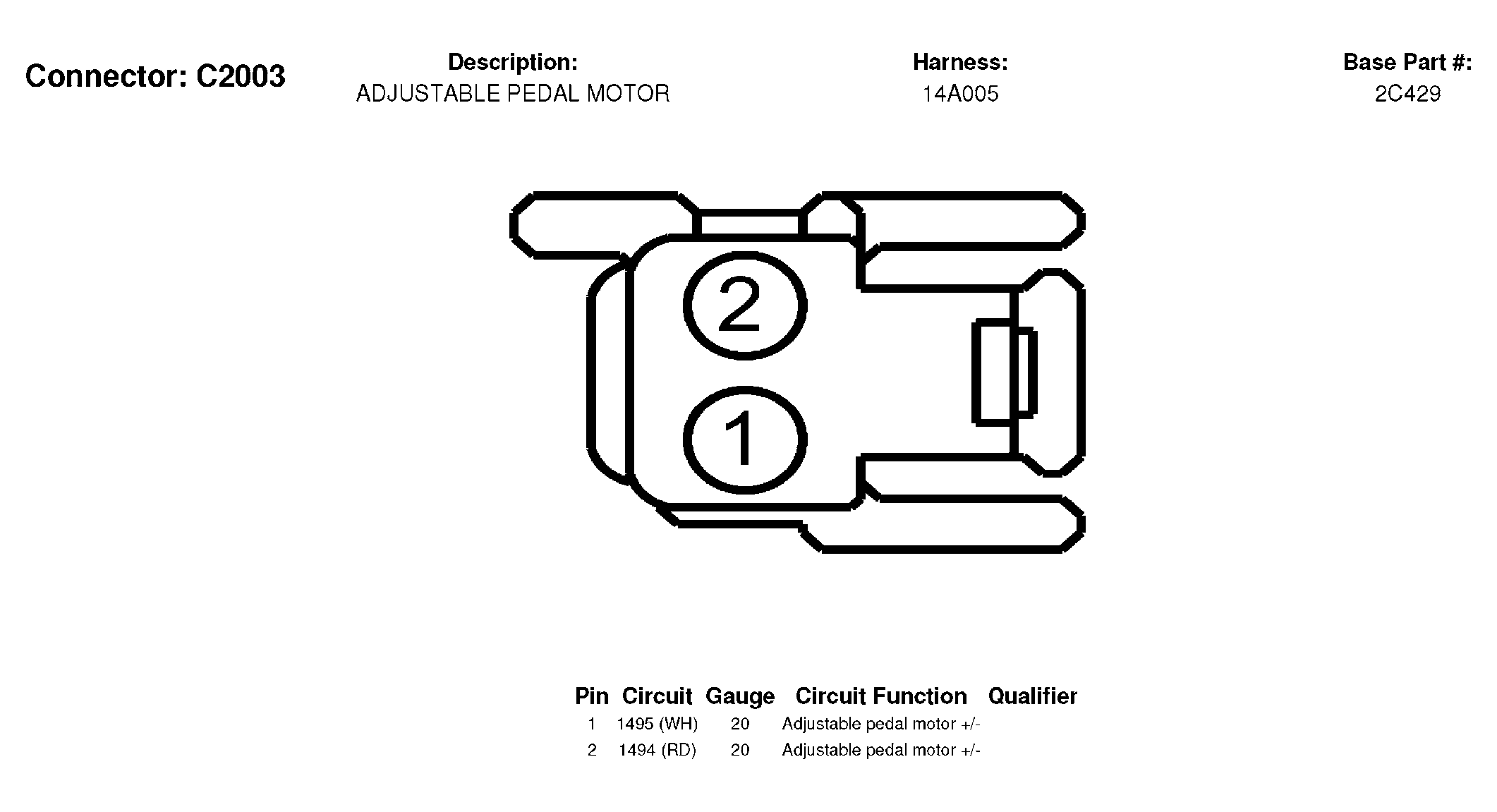

Fig 262: Adjustable Pedal Motor Connector End View (C2003)

G04595681

Courtesy of FORD MOTOR CO.

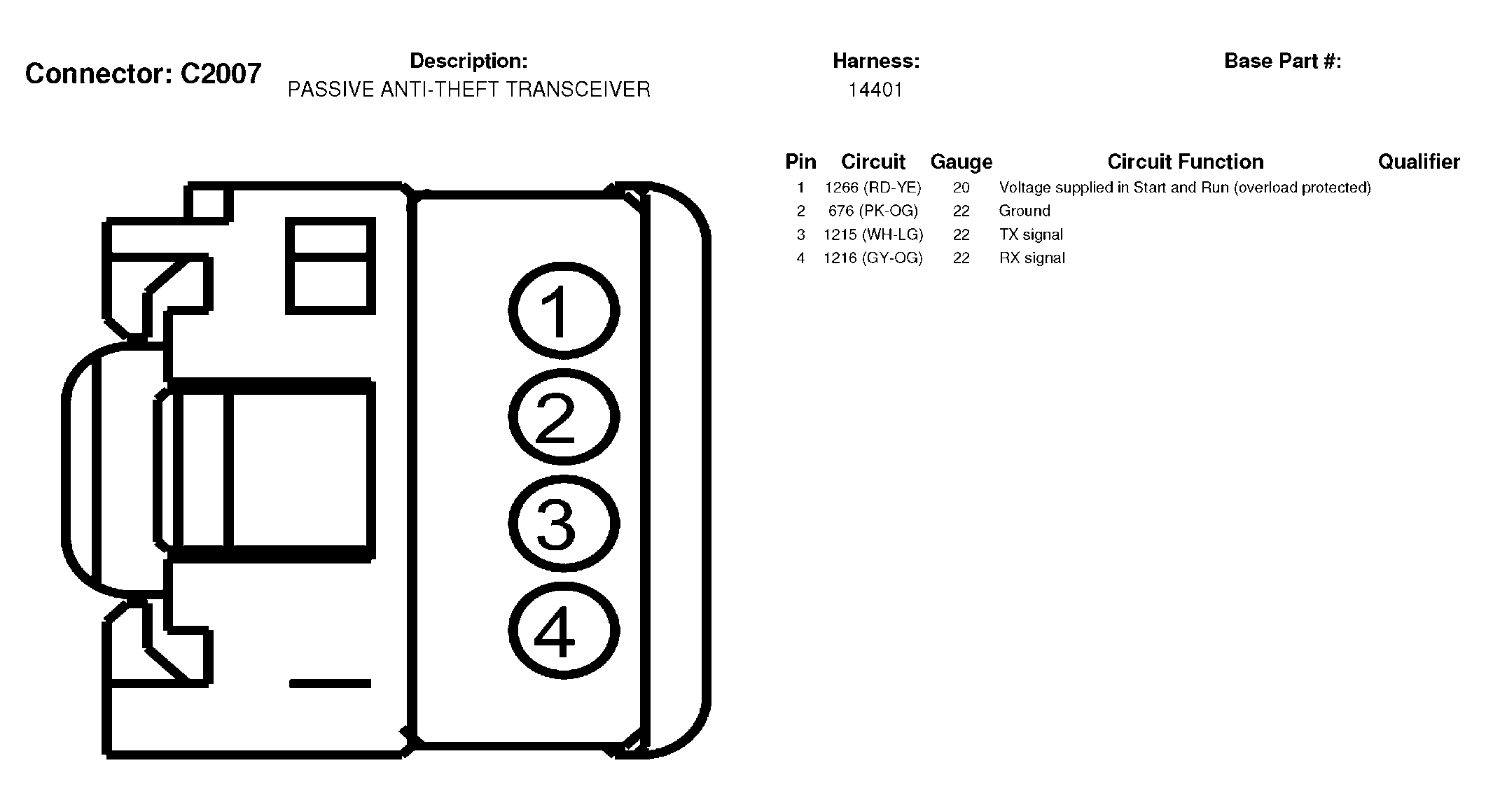

Fig 263: Passive Anti-Theft Transceiver Connector End View (C2007)

G04595682

Courtesy of FORD MOTOR CO.

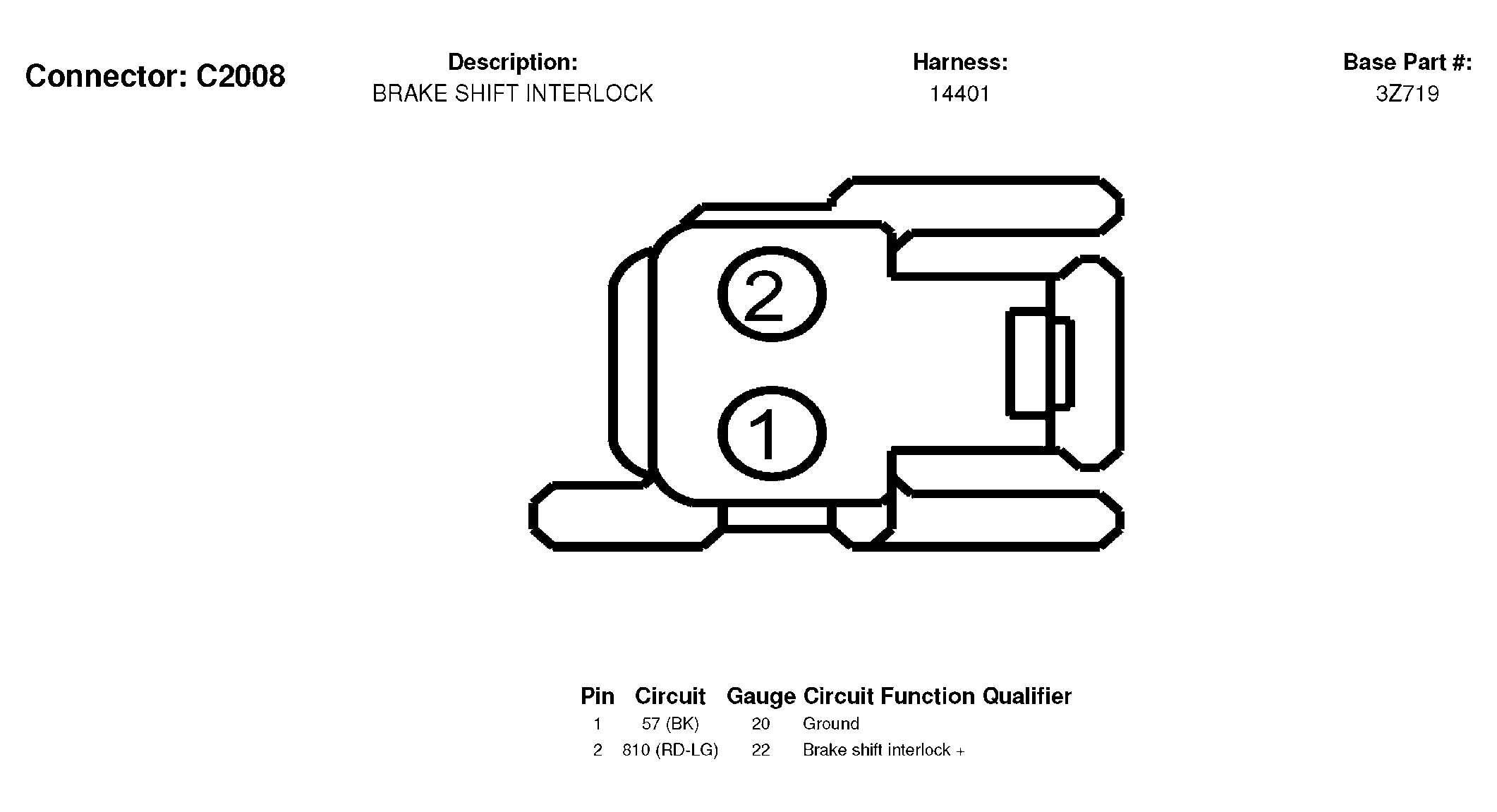

Fig 264: Brake Shift Interlock Connector End View (C2008)

G04595683

Courtesy of FORD MOTOR CO.

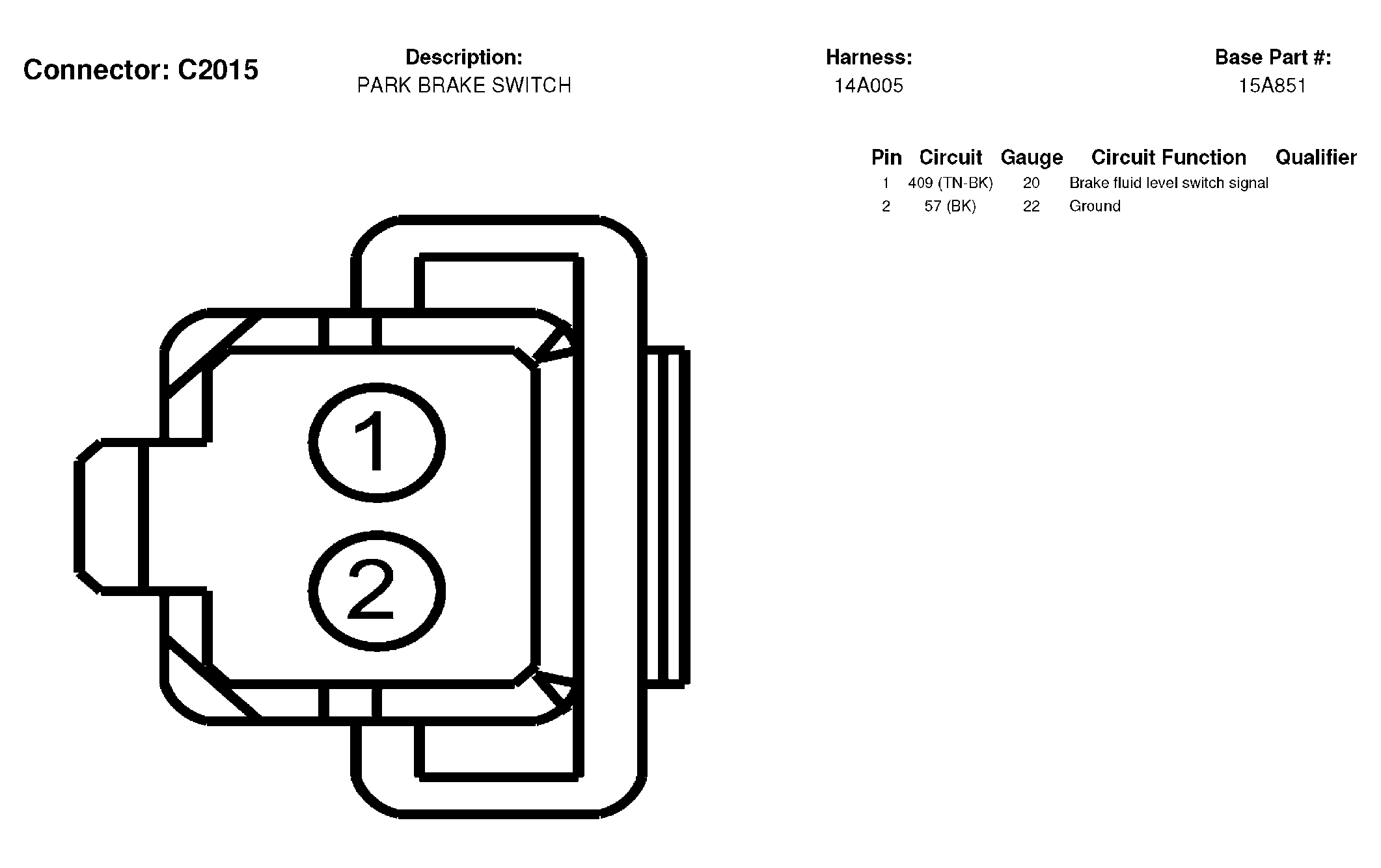

Fig 265: Park Brake Switch Connector End View (C2015)

G04595684

Courtesy of FORD MOTOR CO.

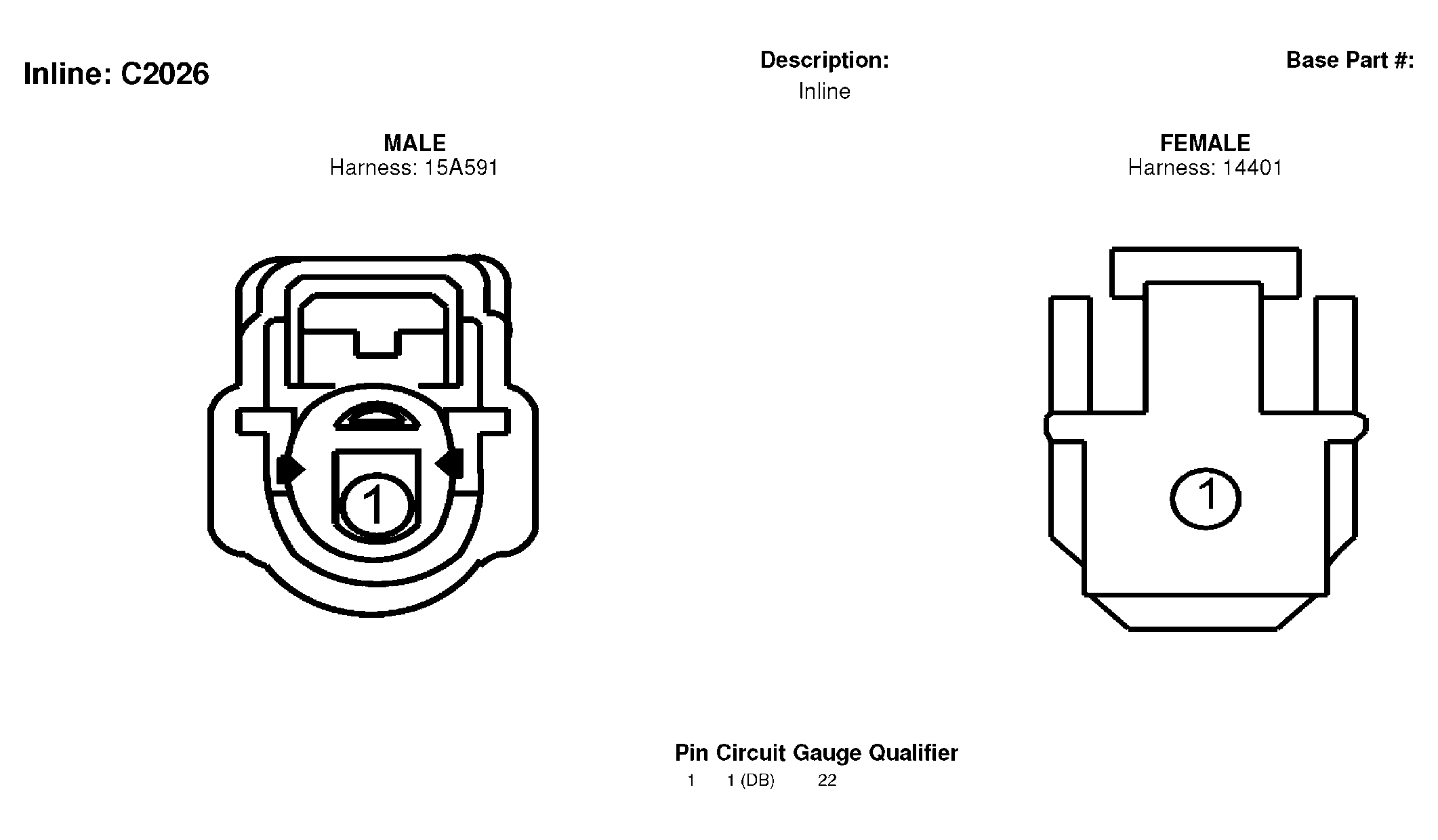

Fig 266: Inline Connector End View (C2026)

G04595685

Courtesy of FORD MOTOR CO.

Fig 267: Cigar Lighter, Front Connector End View (C2031)

G04595686

Courtesy of FORD MOTOR CO.

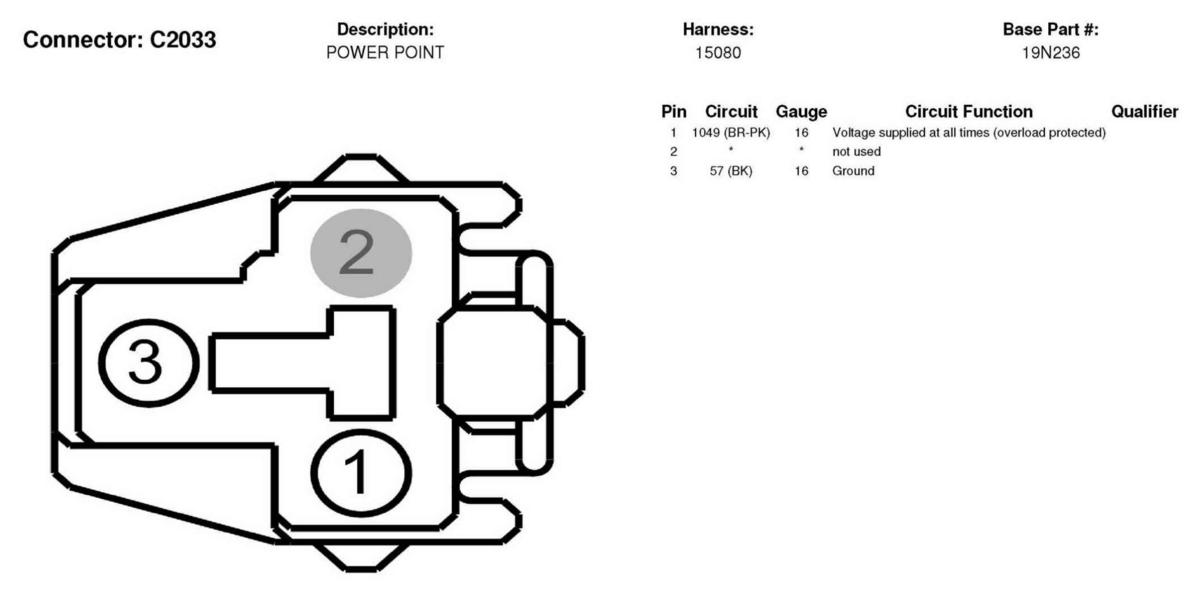

Fig 268: Power Point Connector End View (C2033)

G04595687

Courtesy of FORD MOTOR CO.

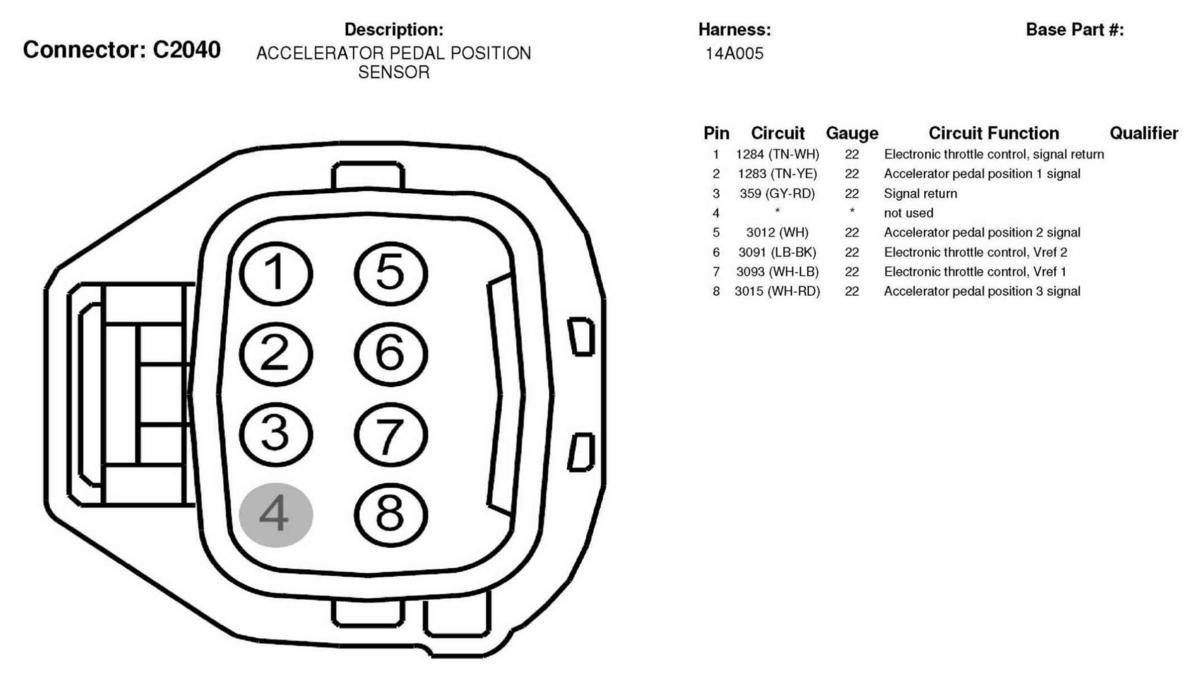

Fig 269: Accelerator Pedal Position Sensor Connector End View (C2040)

G04595688

Courtesy of FORD MOTOR CO.

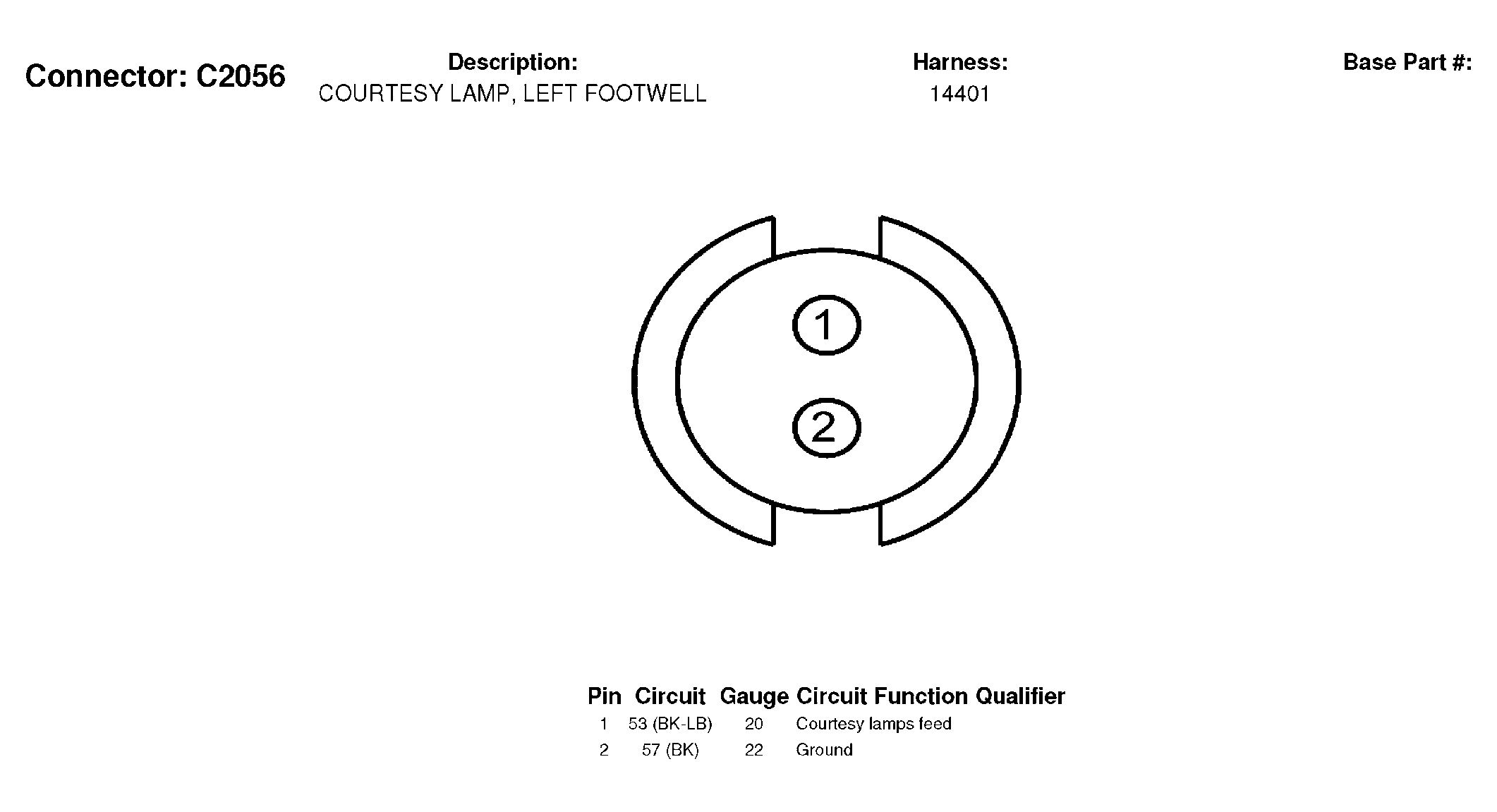

Fig 270: Courtesy Lamp, Left Footwell Connector End View (C2056)

G04595689

Courtesy of FORD MOTOR CO.

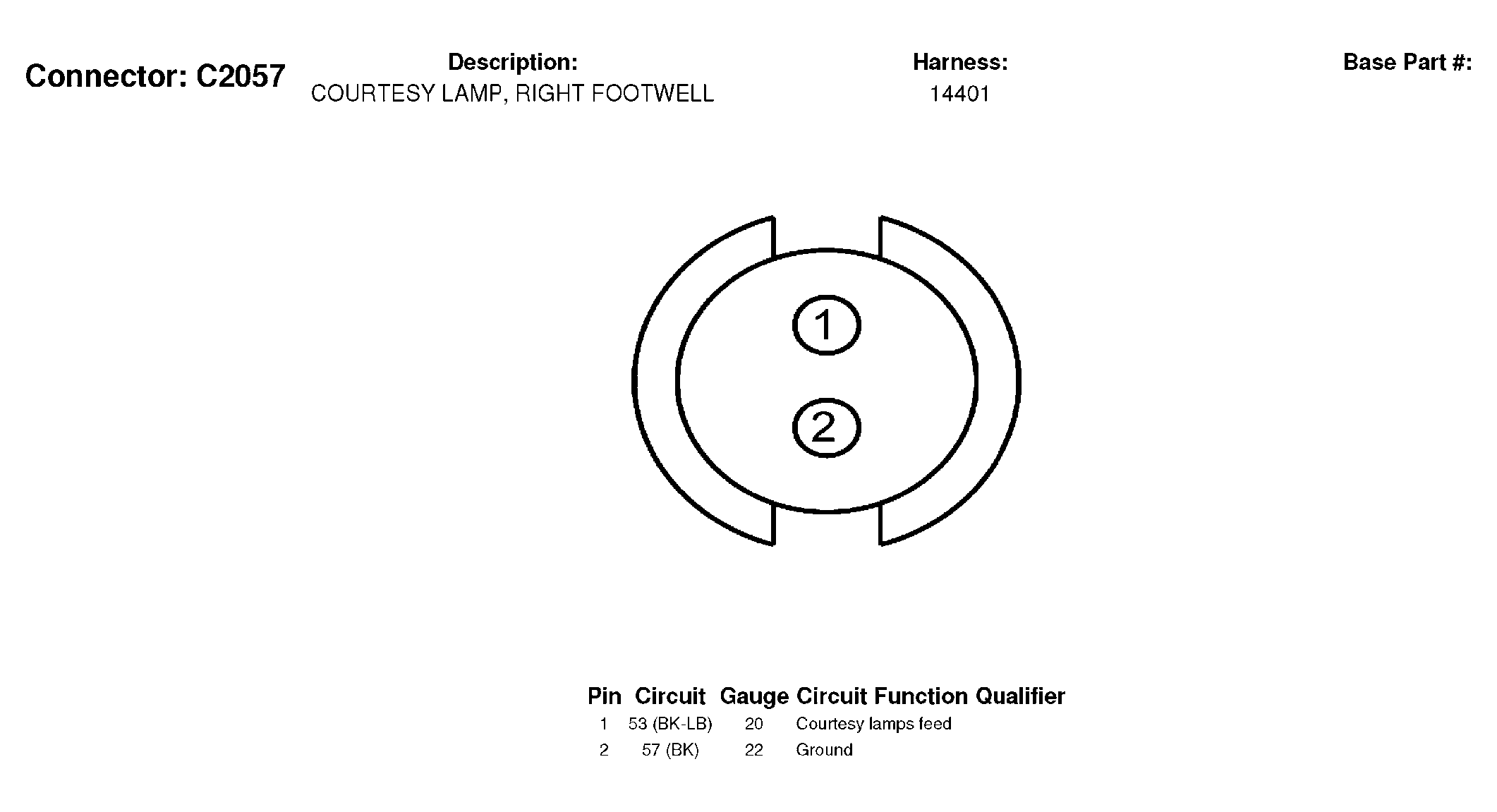

Fig 271: Courtesy Lamp, Right Footwell Connector End View (C2057)

G04595690

Courtesy of FORD MOTOR CO.

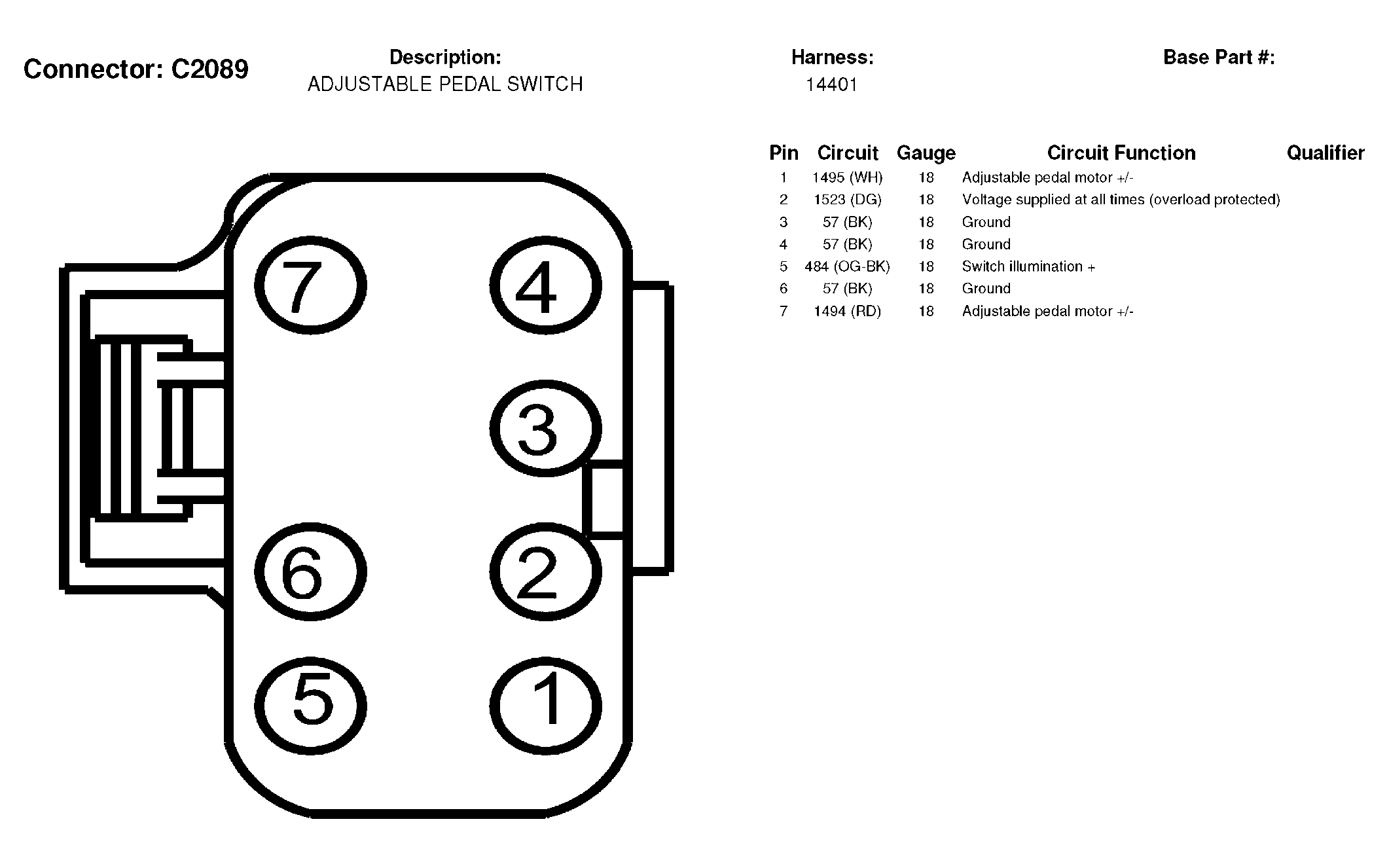

Fig 272: Adjustable Pedal Switch Connector End View (C2089)

G04595691

Courtesy of FORD MOTOR CO.

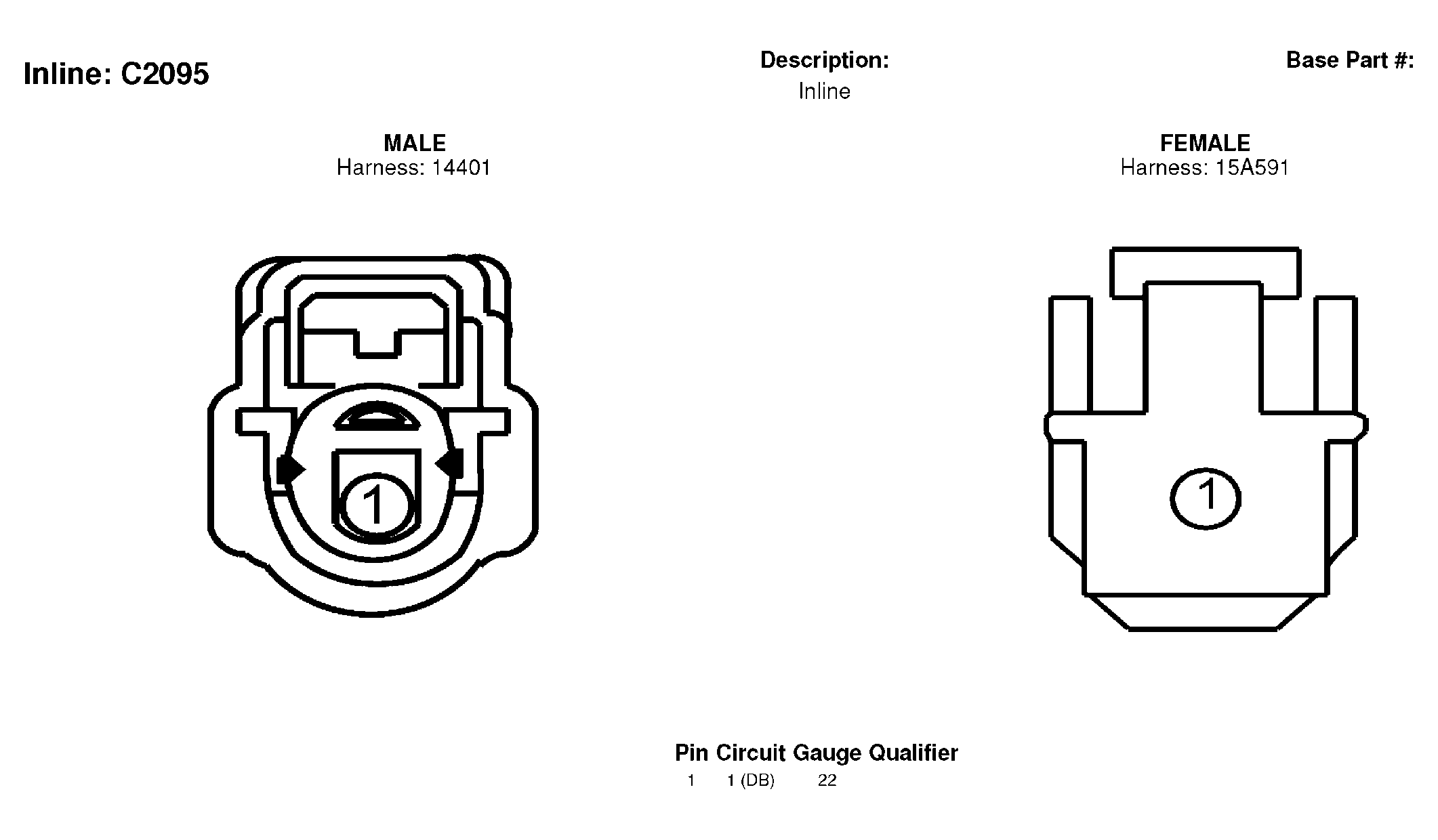

Fig 273: Inline Connector End View (C2095)

G04595692

Courtesy of FORD MOTOR CO.

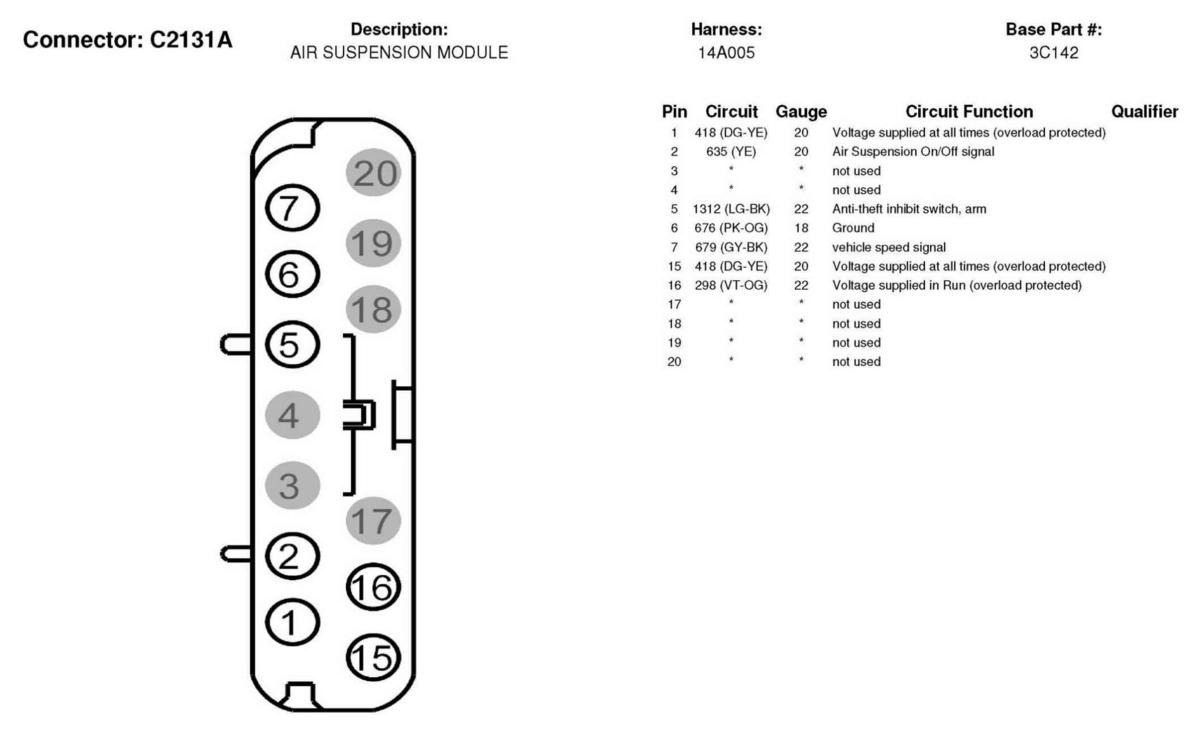

Fig 274: Air Suspension Module Connector End View (C2131A)

G04595693

Courtesy of FORD MOTOR CO.

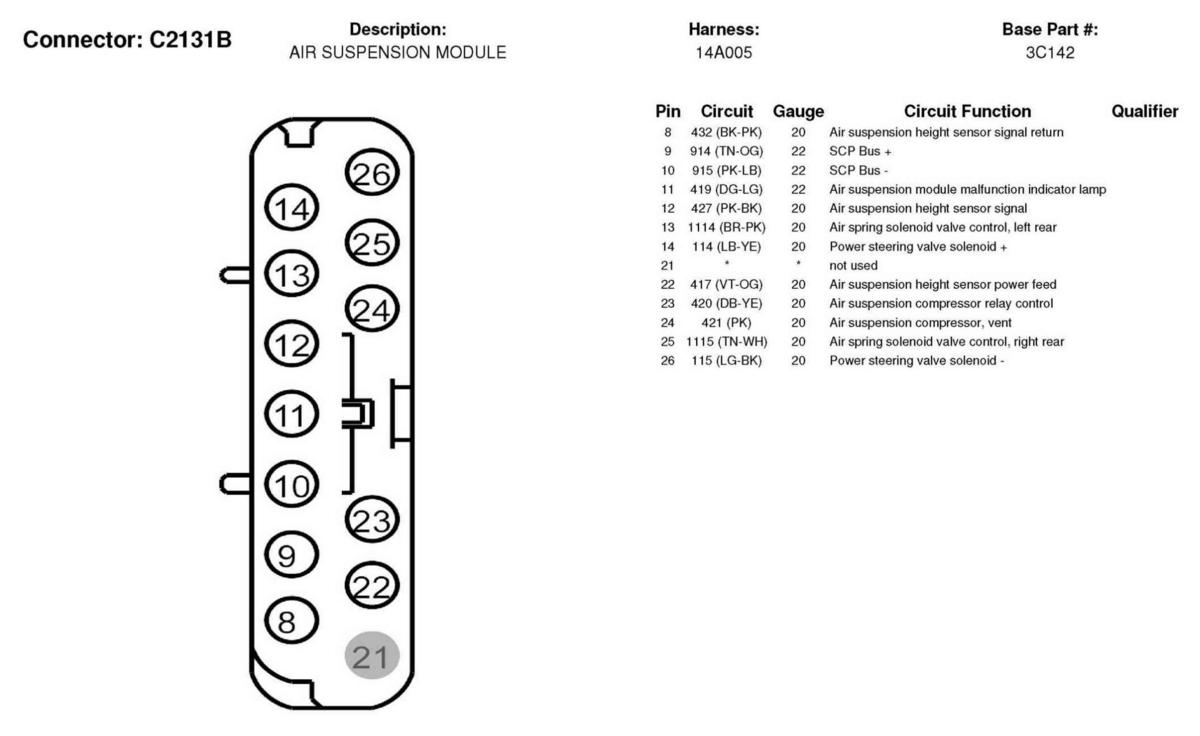

Fig 275: Air Suspension Module Connector End View (C2131B)

G04595694

Courtesy of FORD MOTOR CO.

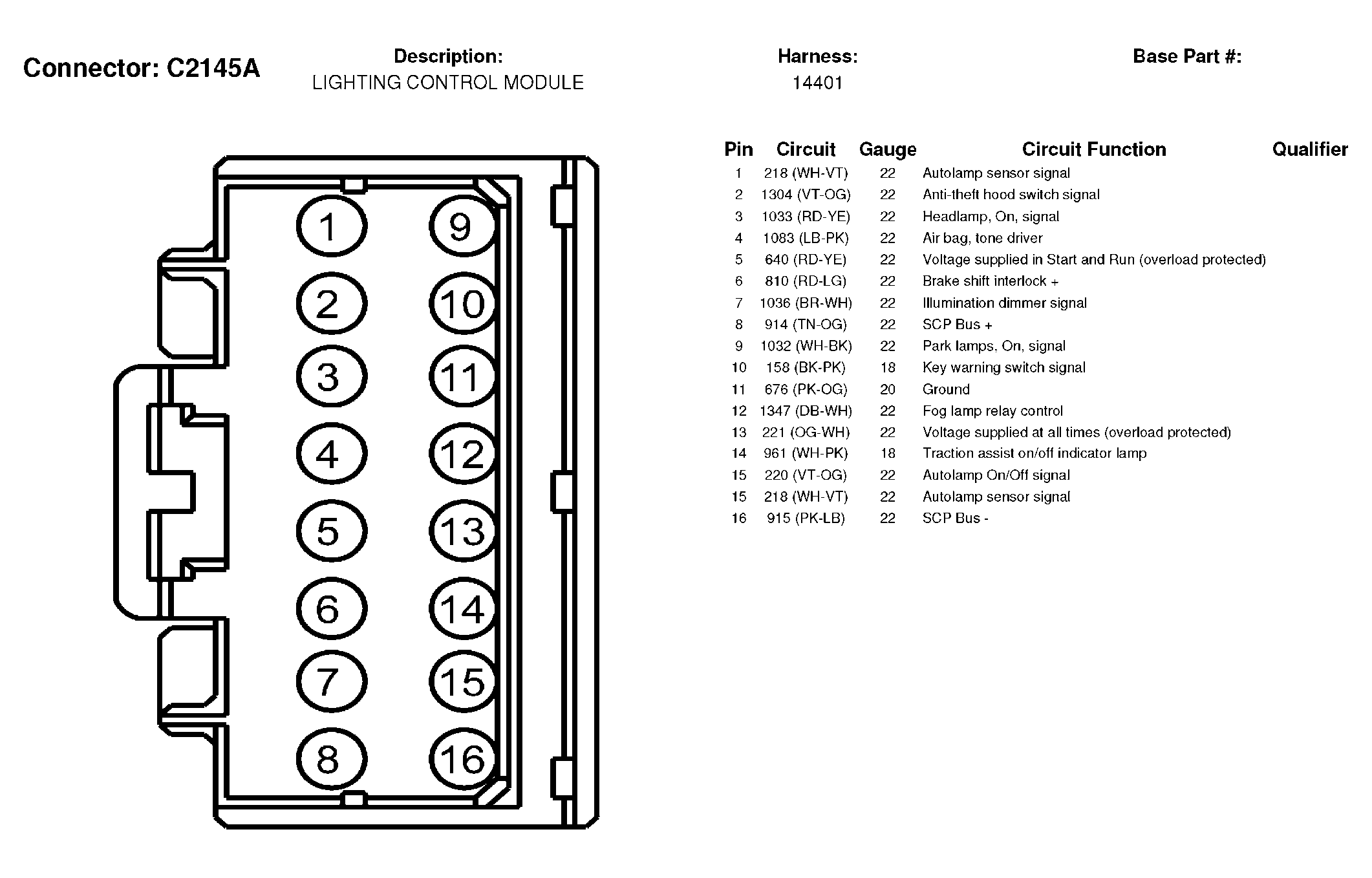

Fig 276: Lighting Control Module Connector End View (C2145A)

G04595695

Courtesy of FORD MOTOR CO.

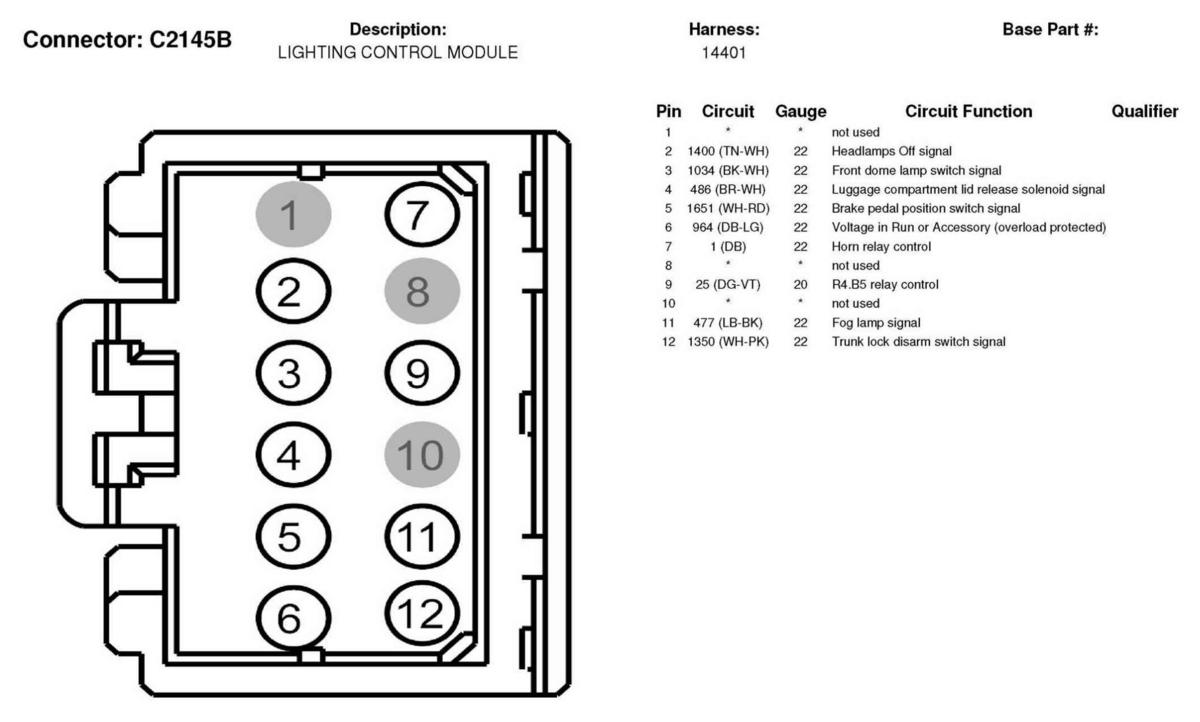

Fig 277: Lighting Control Module Connector End View (C2145B)

G04595696

Courtesy of FORD MOTOR CO.

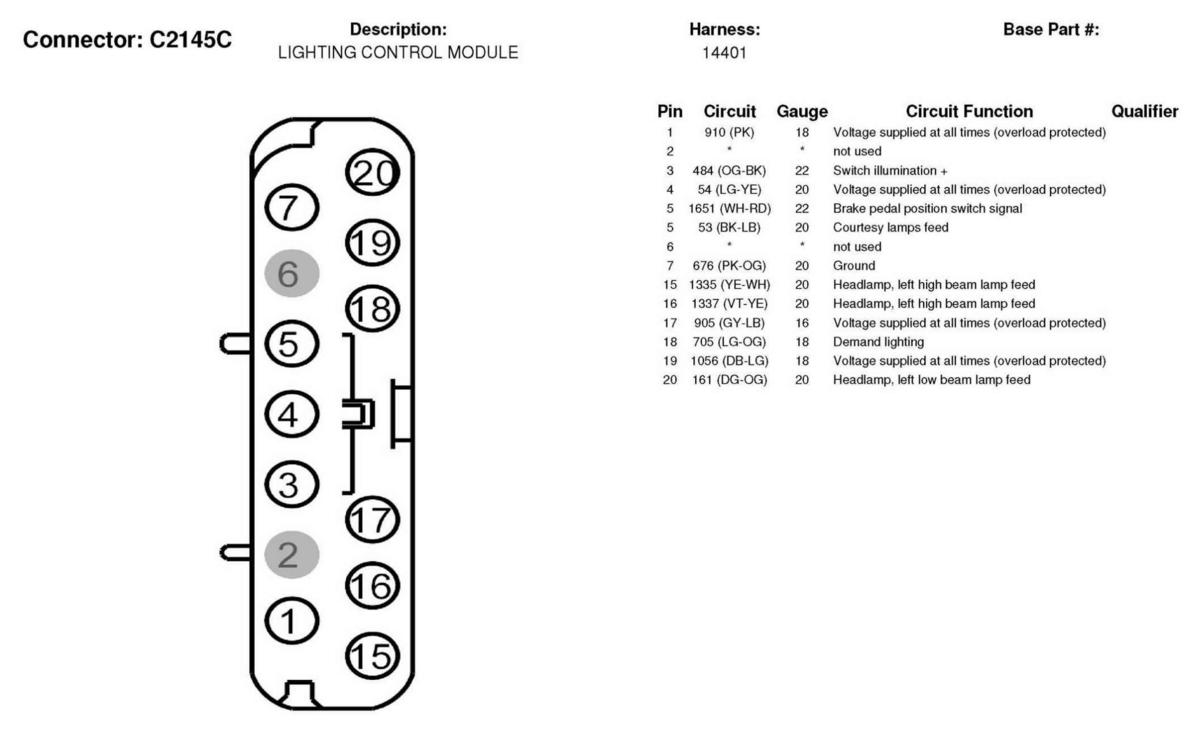

Fig 278: Lighting Control Module Connector End View (C2145C)

G04595697

Courtesy of FORD MOTOR CO.

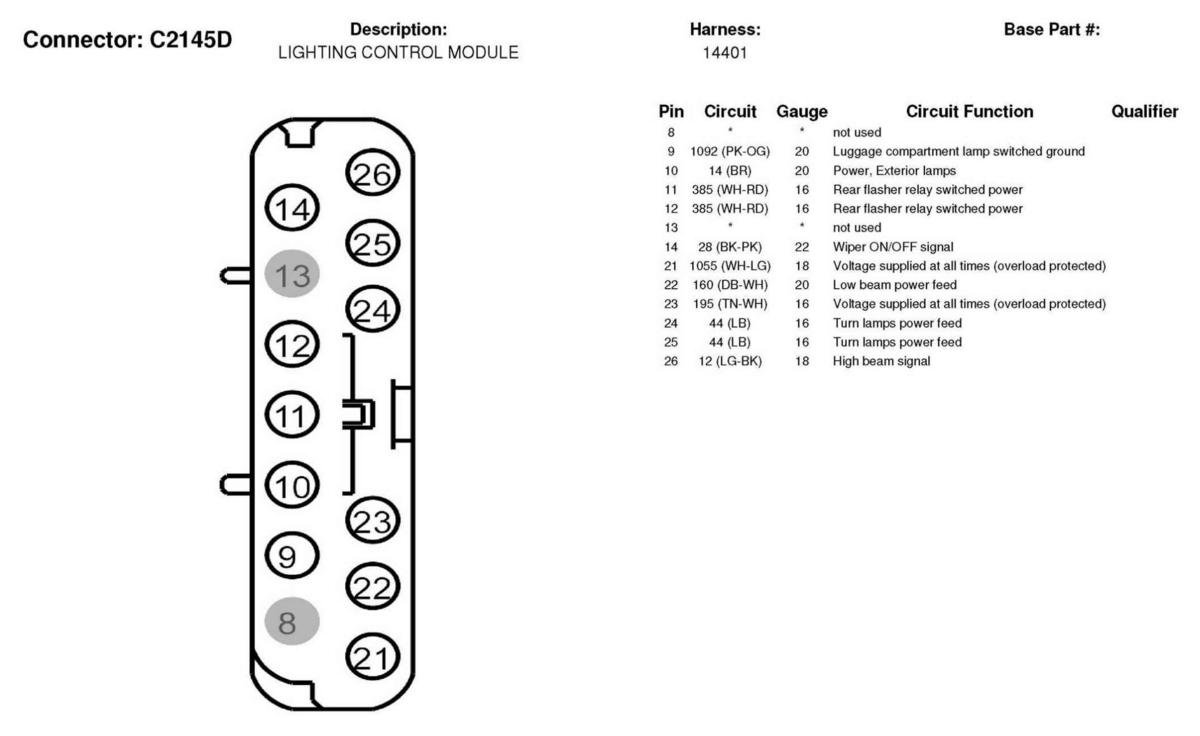

Fig 279: Lighting Control Module Connector End View (C2145D)

G04595698

Courtesy of FORD MOTOR CO.

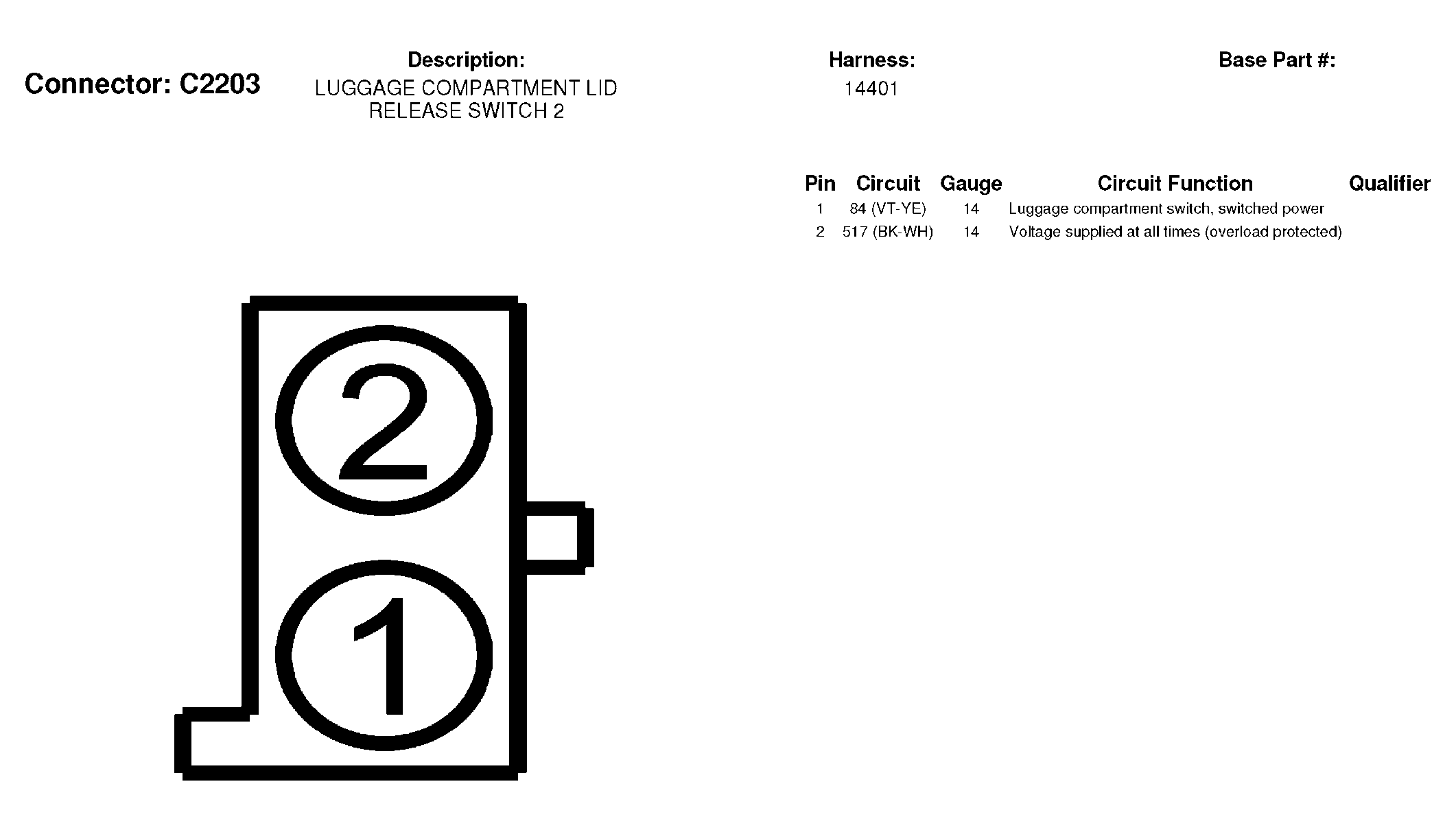

Fig 280: Luggage Compartment Lid Release Switch 2 Connector End View (C2203)

G04595699

Courtesy of FORD MOTOR CO.

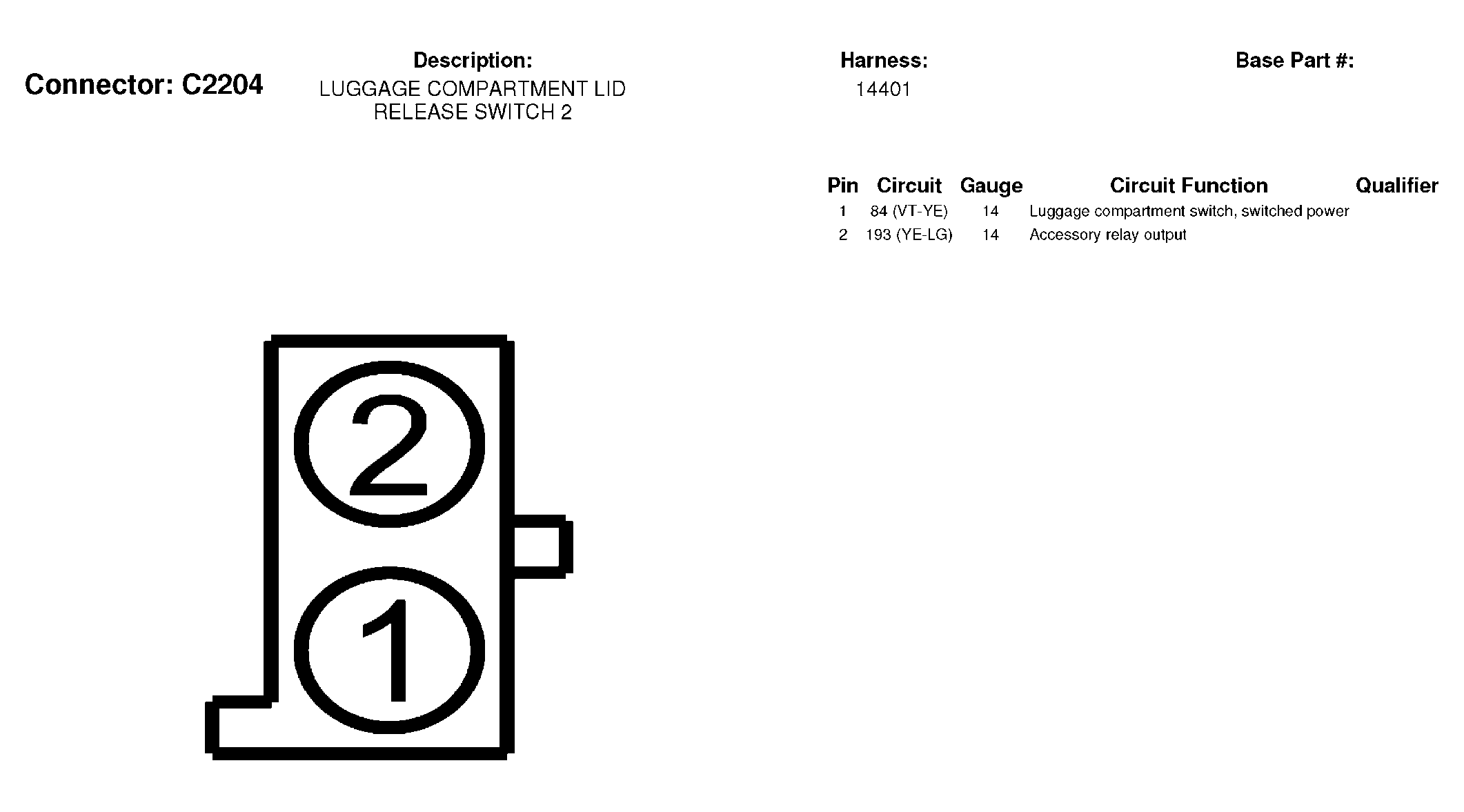

Fig 281: Luggage Compartment Lid Release Switch 2 Connector End View (C2204)

G04595700

Courtesy of FORD MOTOR CO.

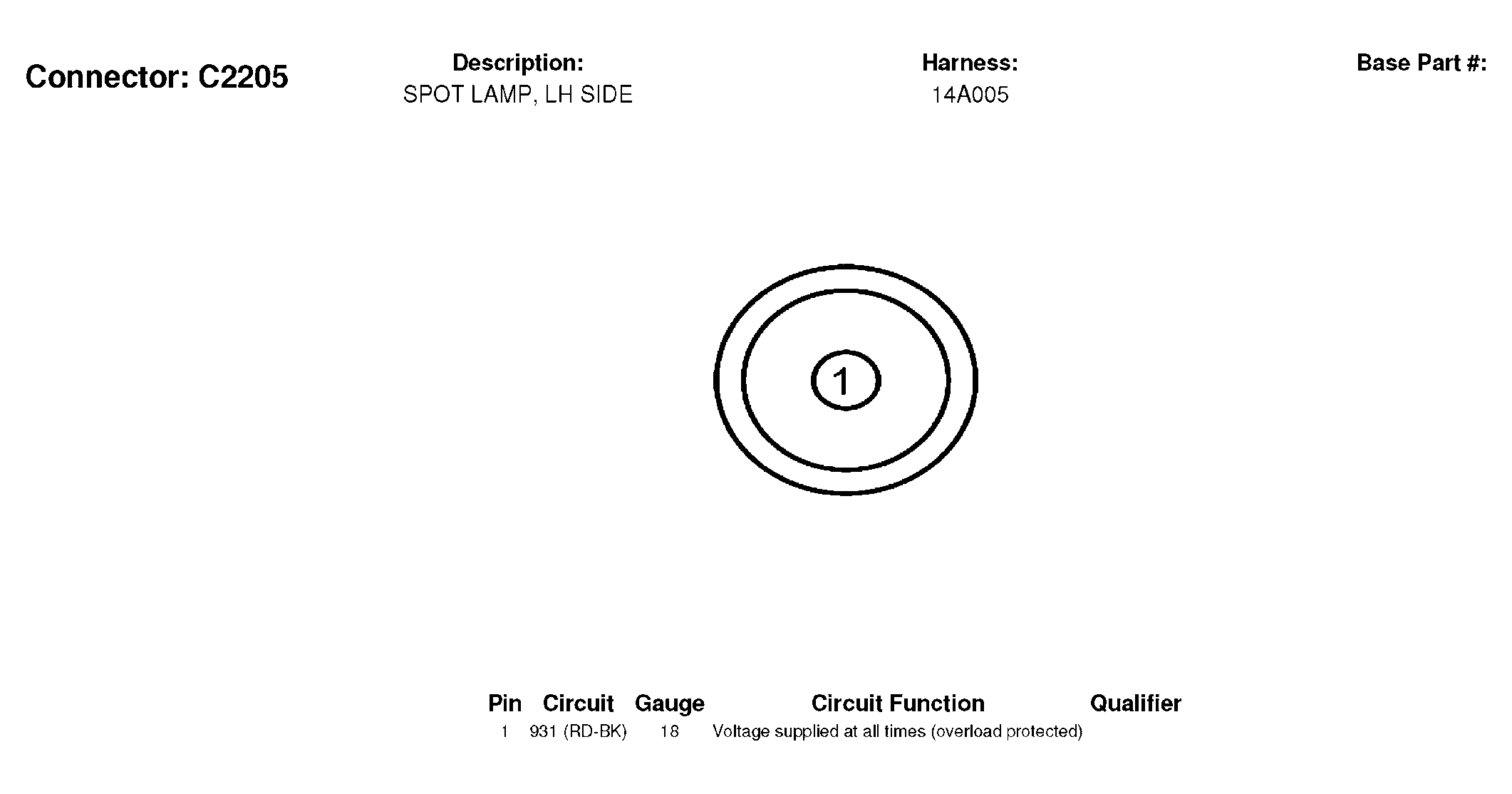

Fig 282: Spot Lamp, LH Side Connector End View (C2205)

G04595701

Courtesy of FORD MOTOR CO.

Fig 283: Spot Lamp, RH Side Connector End View (C2206)

G04595702

Courtesy of FORD MOTOR CO.

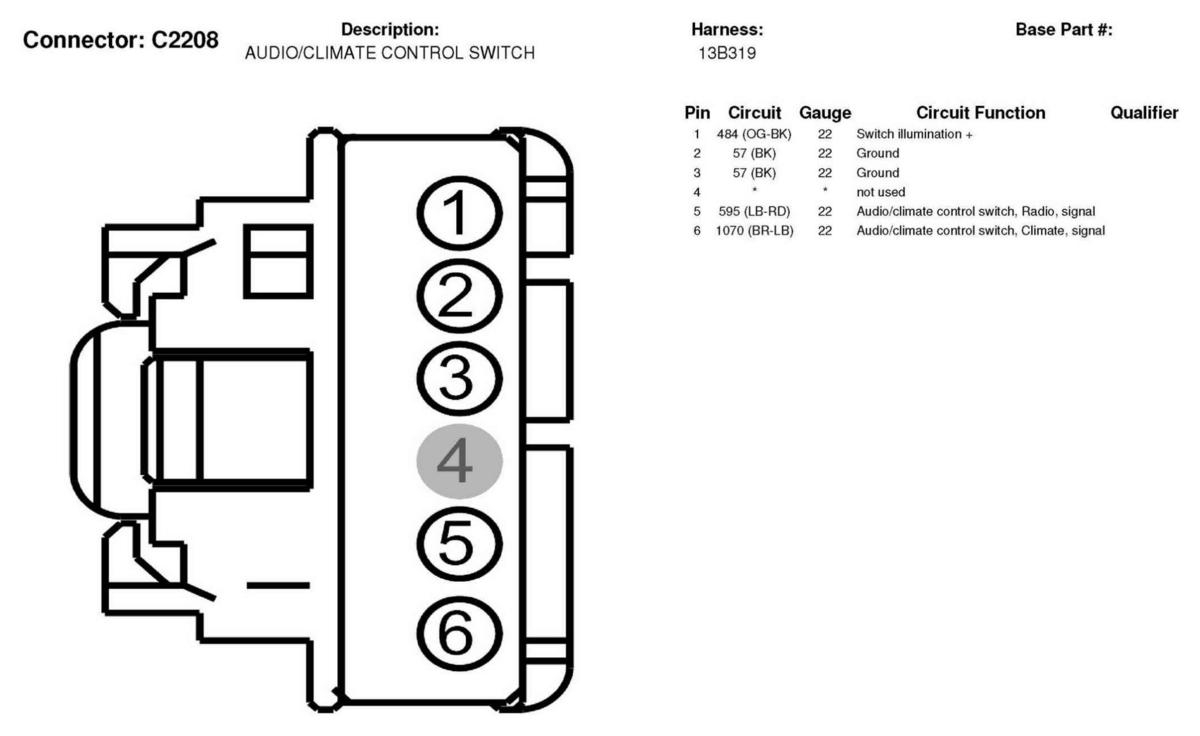

Fig 284: Audio/Climate Control Switch Connector End View (C2208)

G04595703

Courtesy of FORD MOTOR CO.

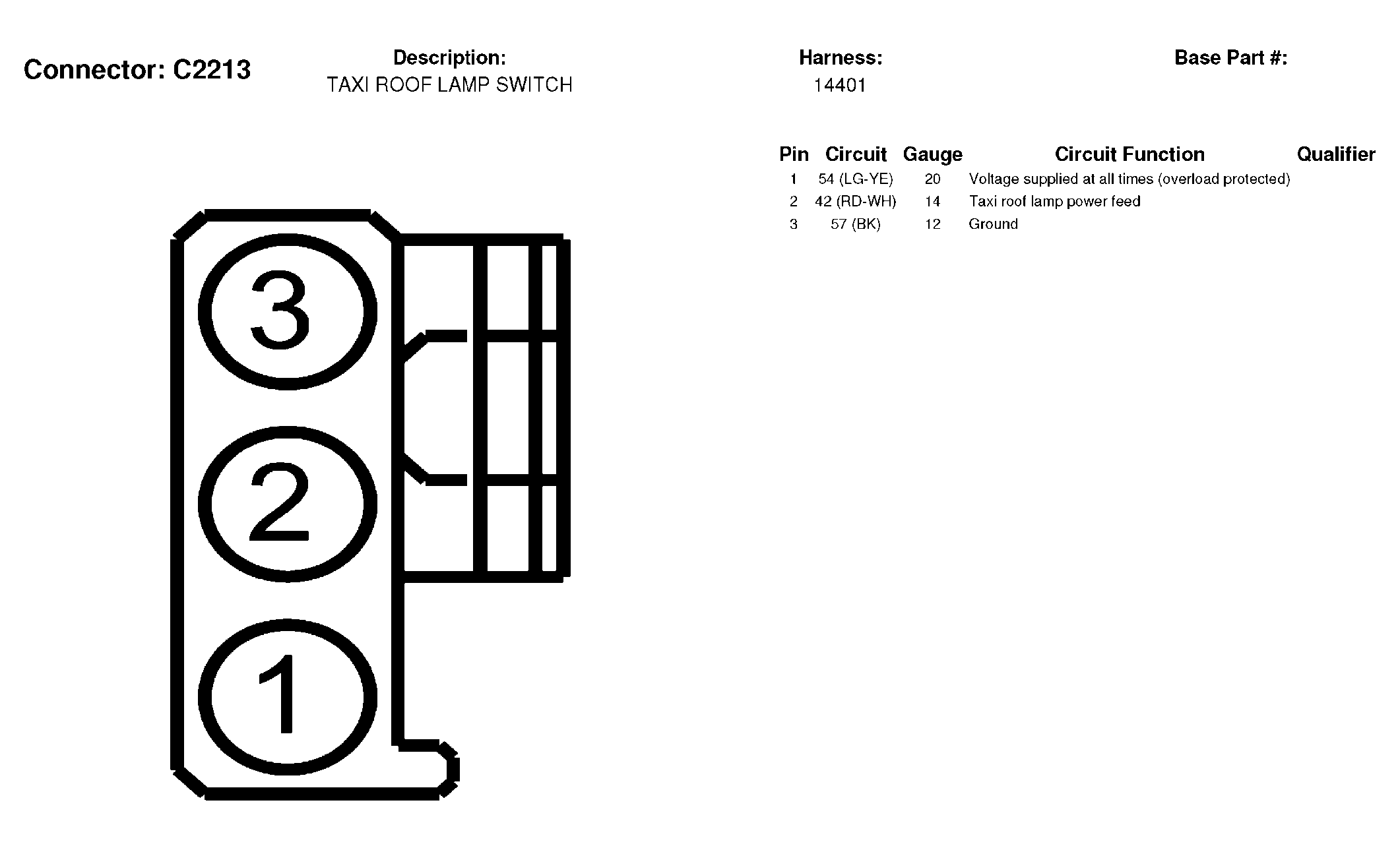

Fig 285: Taxi Roof Lamp Switch Connector End View (C2213)

G04595704

Courtesy of FORD MOTOR CO.

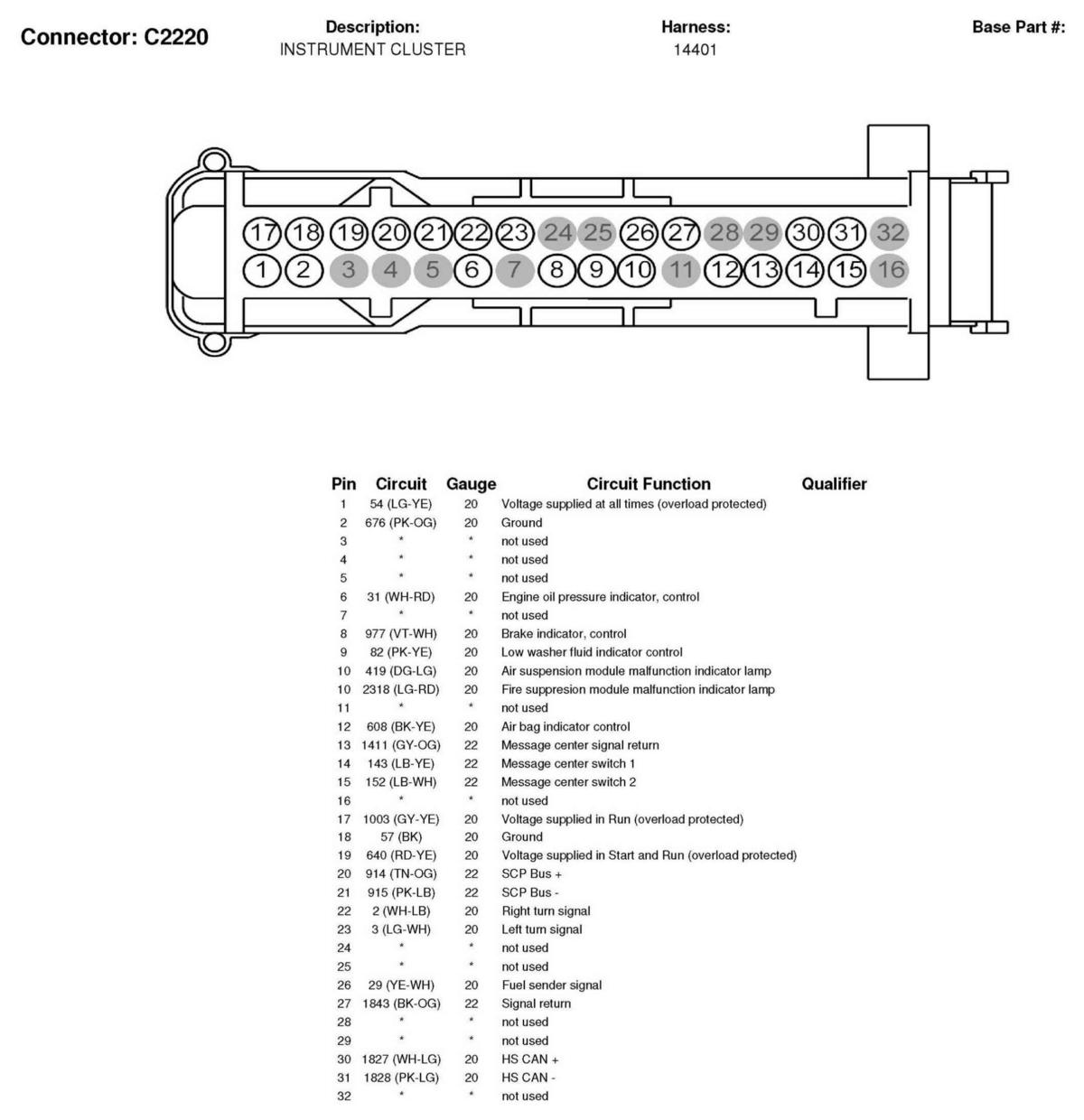

Fig 286: Instrument Cluster Connector End View (C2220)

G04595705

Courtesy of FORD MOTOR CO.

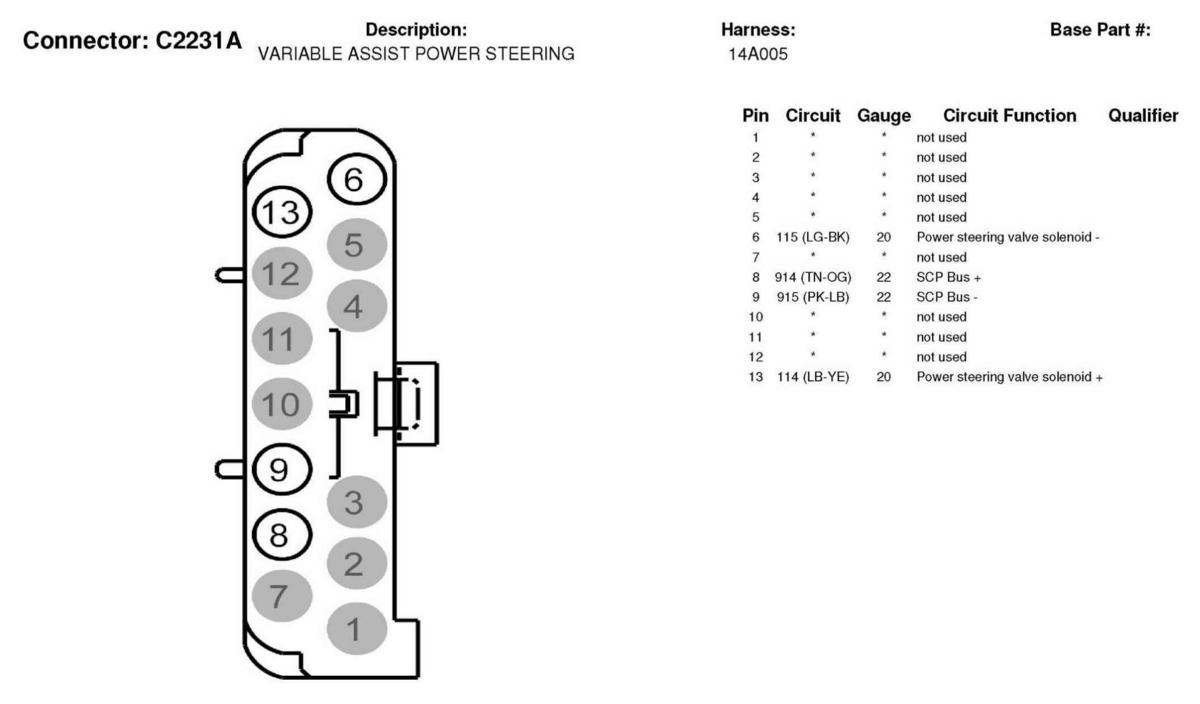

Fig 287: Variable Assist Power Steering Connector End View (C2231A)

G04595706

Courtesy of FORD MOTOR CO.

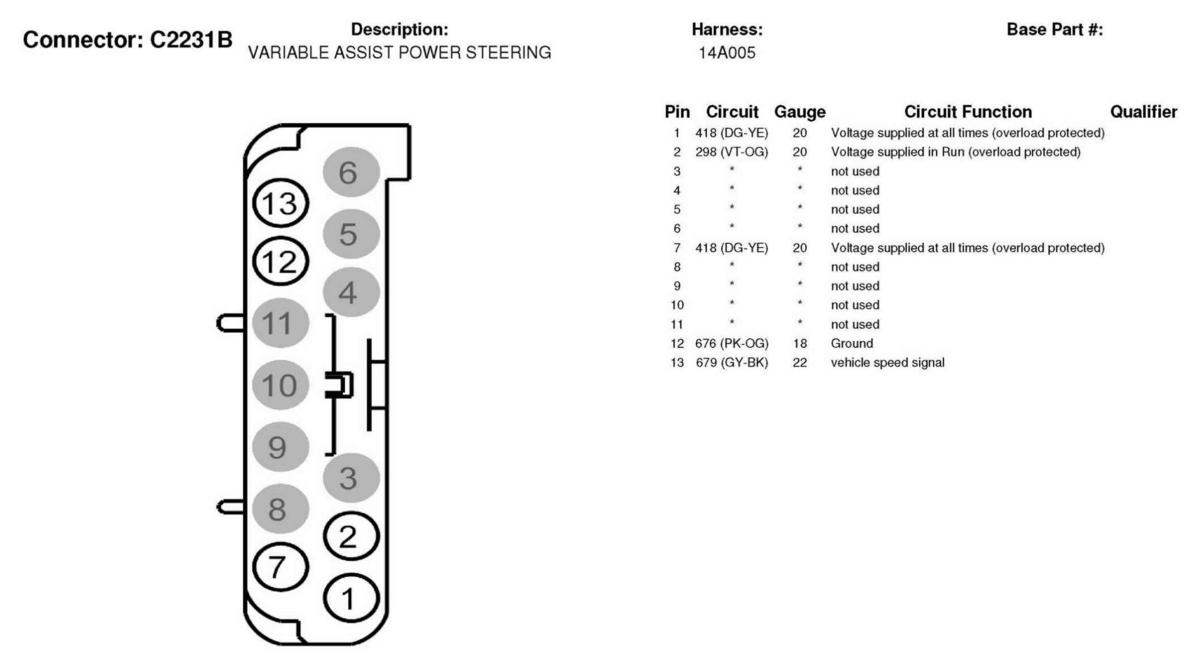

Fig 288: Variable Assist Power Steering Connector End View (C2231B)

G04595707

Courtesy of FORD MOTOR CO.

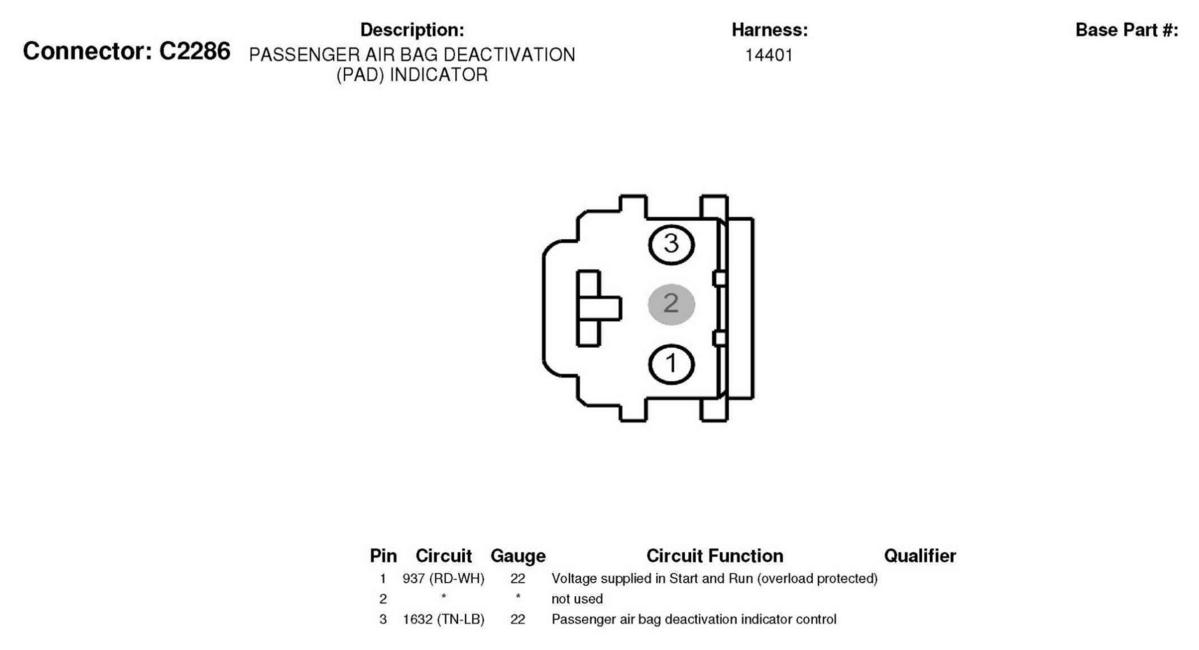

Fig 289: Passenger Air Bag Deactivation (PAD) Indicator Connector End View (C2286)

G04595708

Courtesy of FORD MOTOR CO.

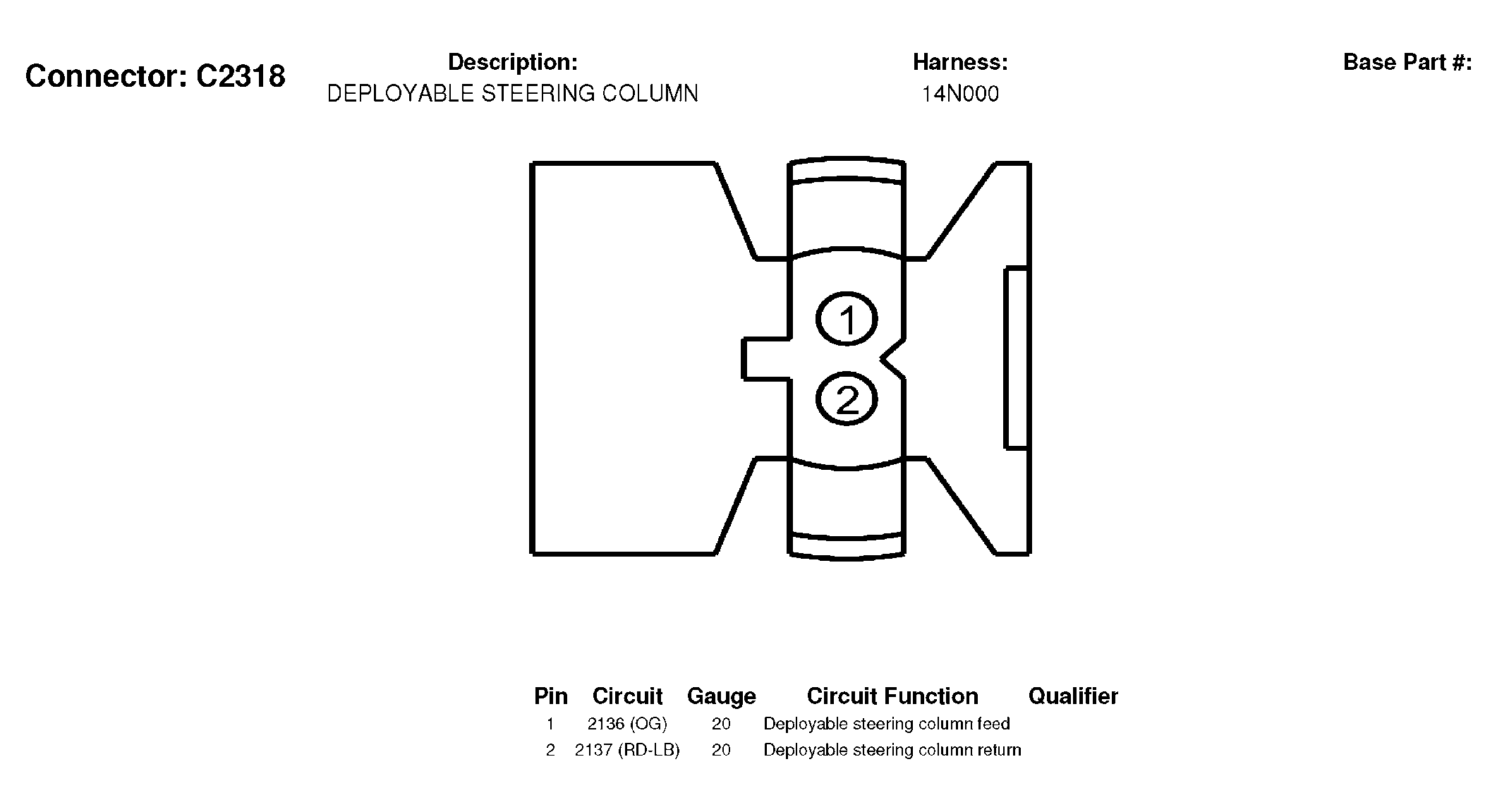

Fig 290: Deployable Steering Column Connector End View (C2318)

G04595709

Courtesy of FORD MOTOR CO.

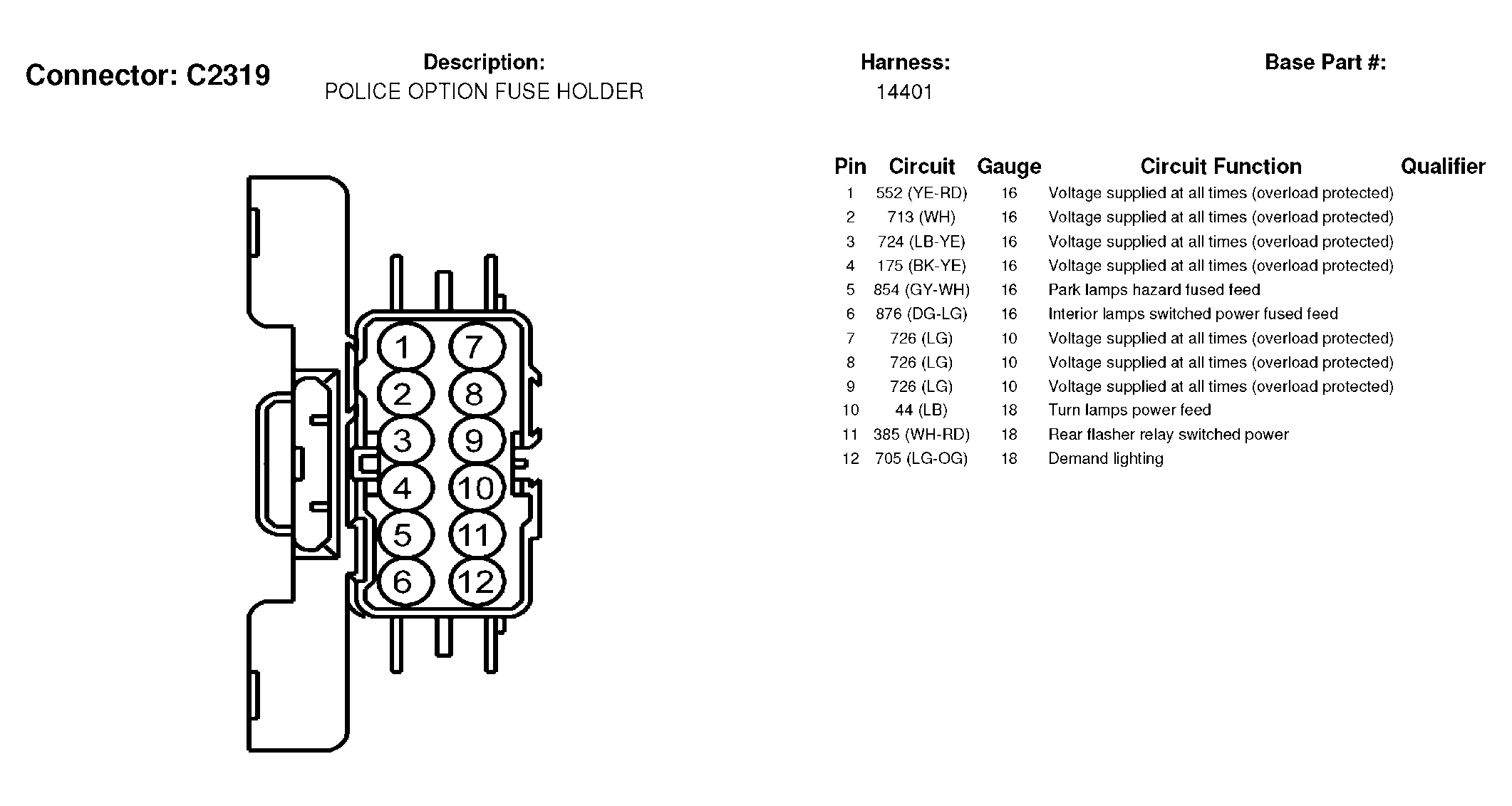

Fig 291: Police Option Fuse Holder Connector End View (C2319)

G04595710

Courtesy of FORD MOTOR CO.

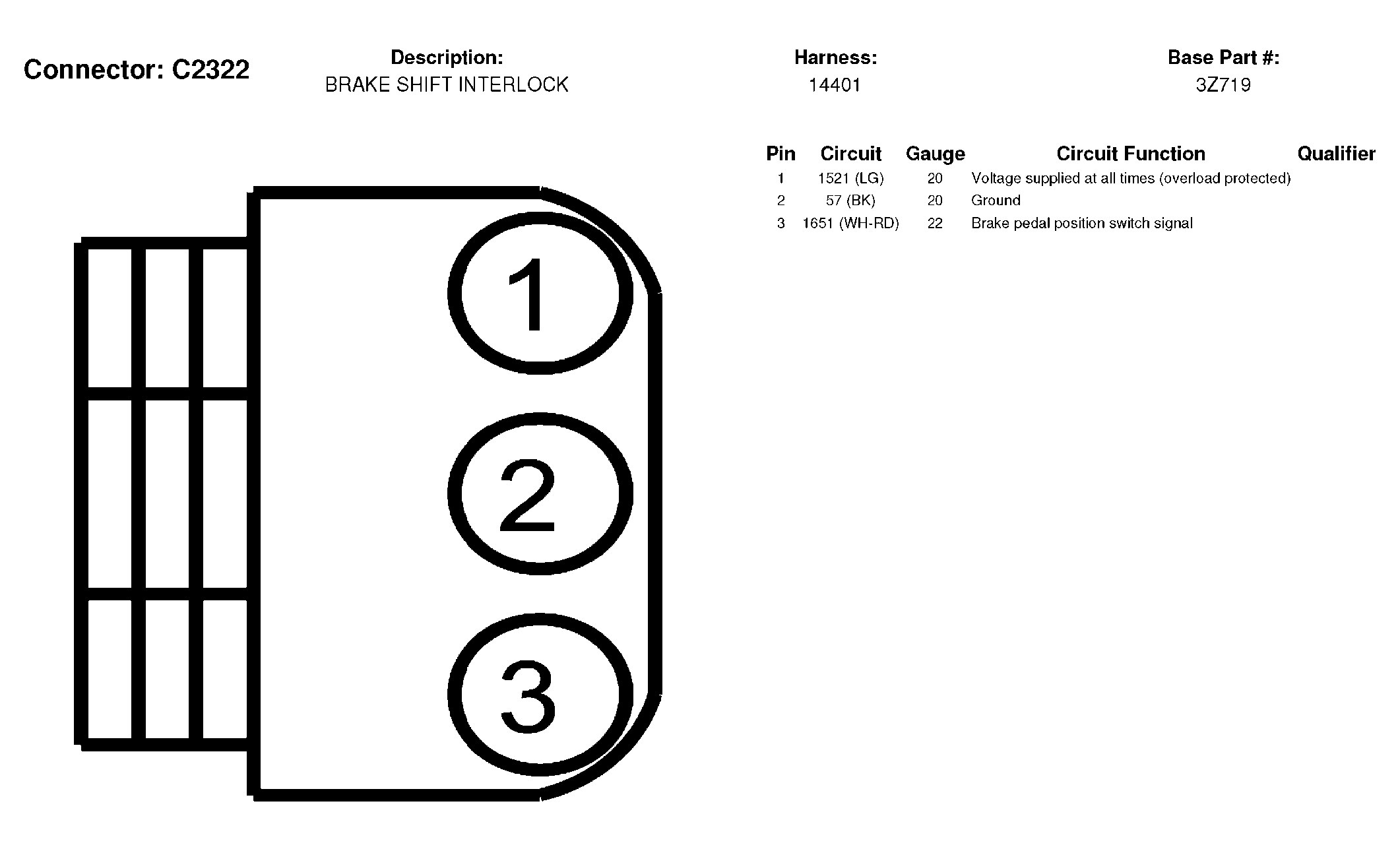

Fig 292: Brake Shift Interlock Connector End View (C2322)

G04595711

Courtesy of FORD MOTOR CO.

Fig 293: Steering Wheel/Speed Control Switch Connector End View (C2330A)

G04595712

Courtesy of FORD MOTOR CO.

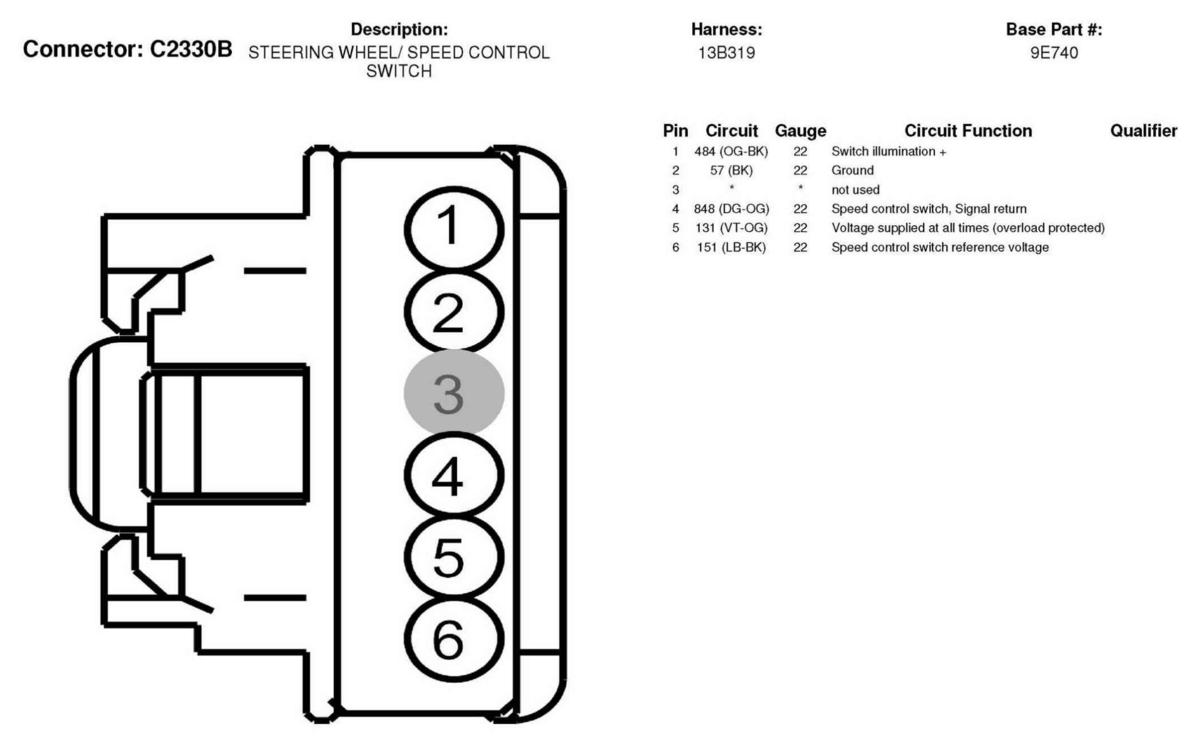

Fig 294: Steering Wheel/Speed Control Switch Connector End View (C2330B)

G04595713

Courtesy of FORD MOTOR CO.

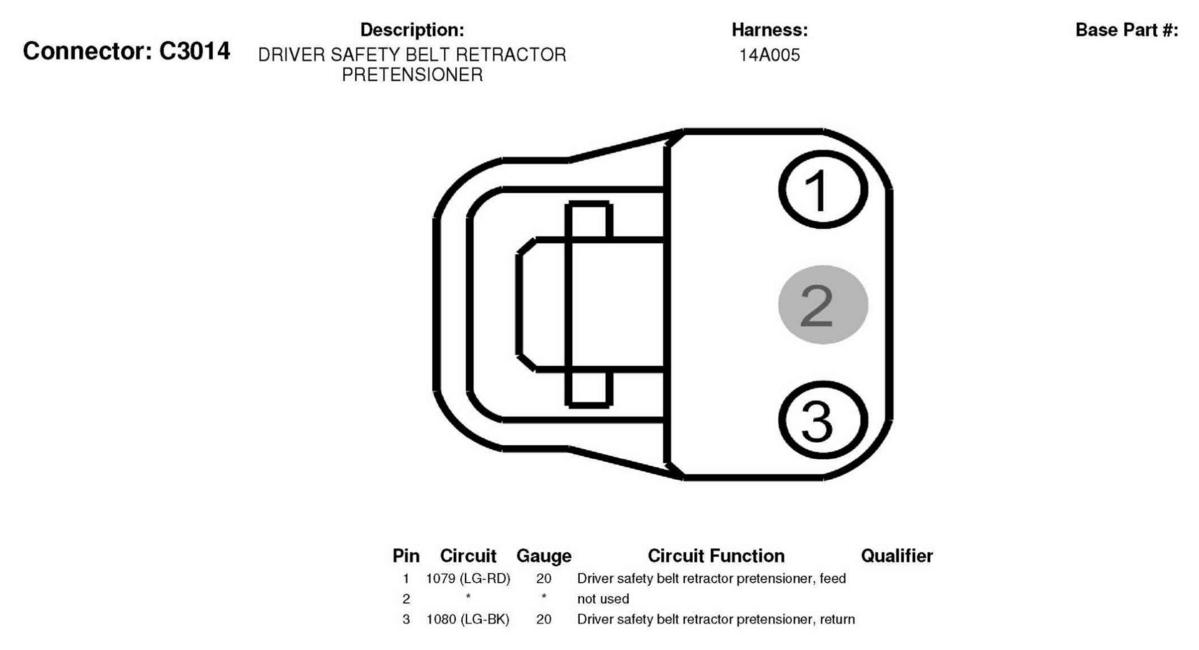

Fig 295: Driver Safety Belt Retractor Pretensioner Connector End View (C3014)

G04595714

Courtesy of FORD MOTOR CO.

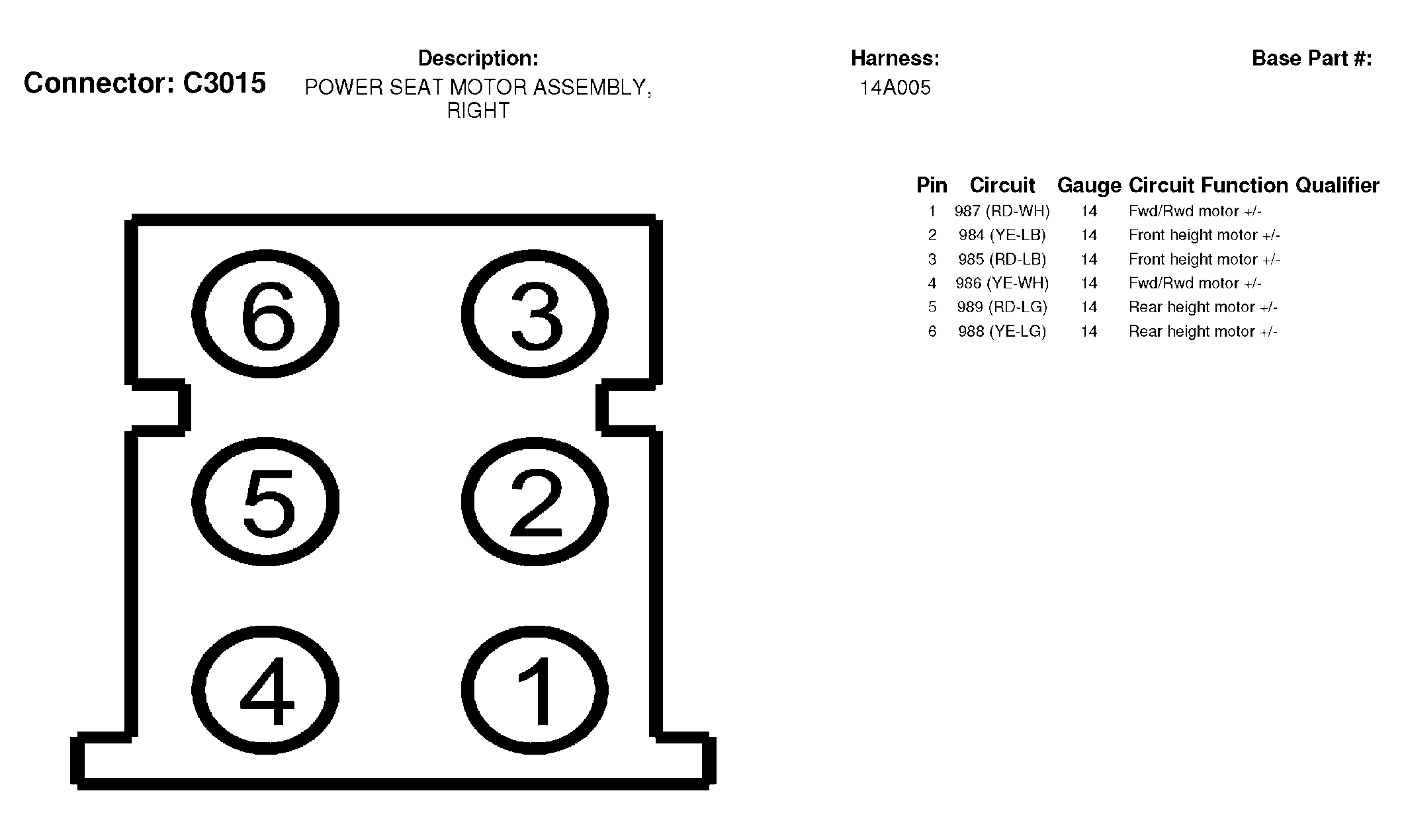

Fig 296: Power Seat Motor Assembly, Right Connector End View (C3015)

G04595715

Courtesy of FORD MOTOR CO.

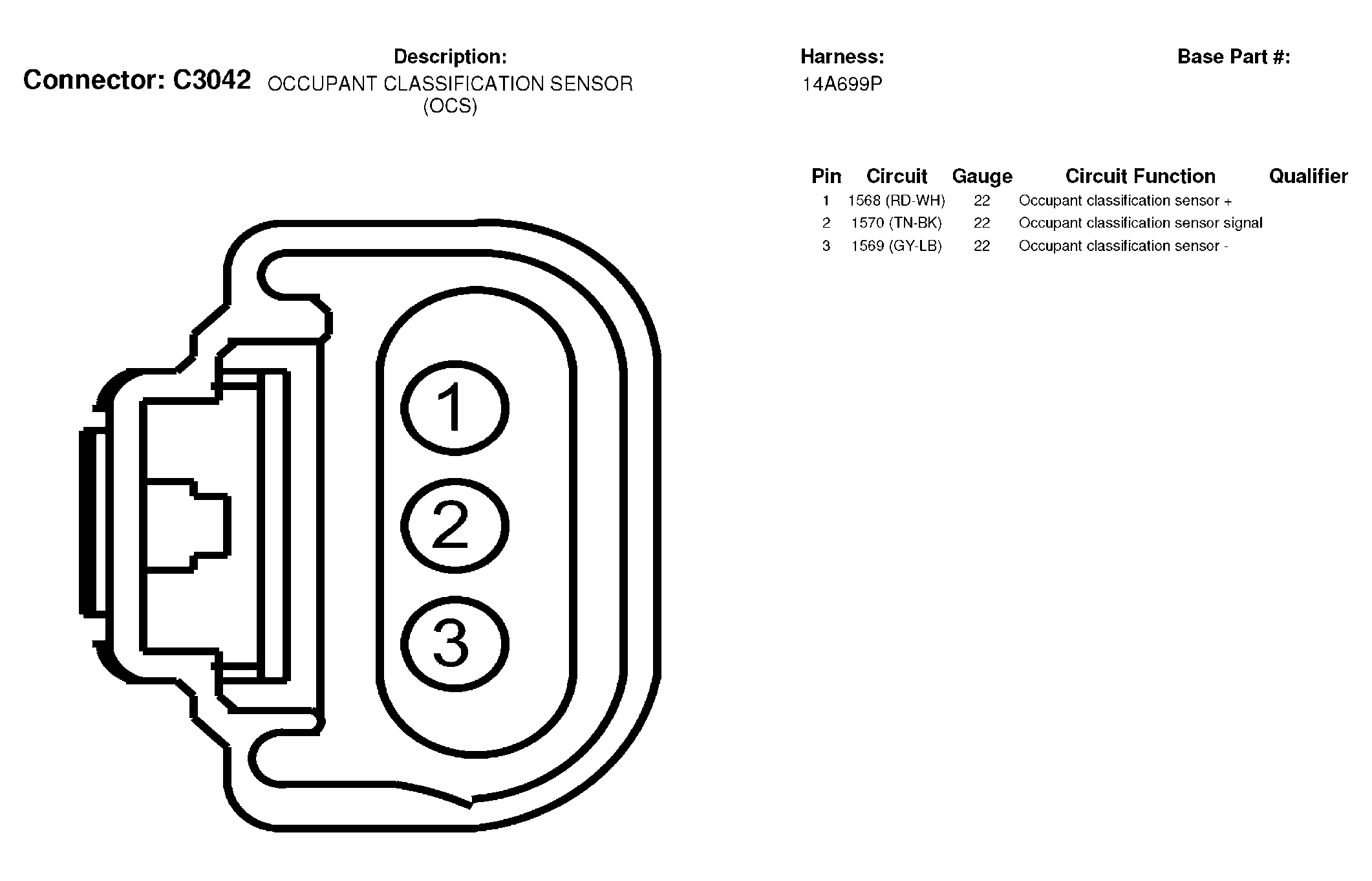

Fig 297: Occupant Classification Sensor (OCS) Connector End View (C3042)

G04595716

Courtesy of FORD MOTOR CO.

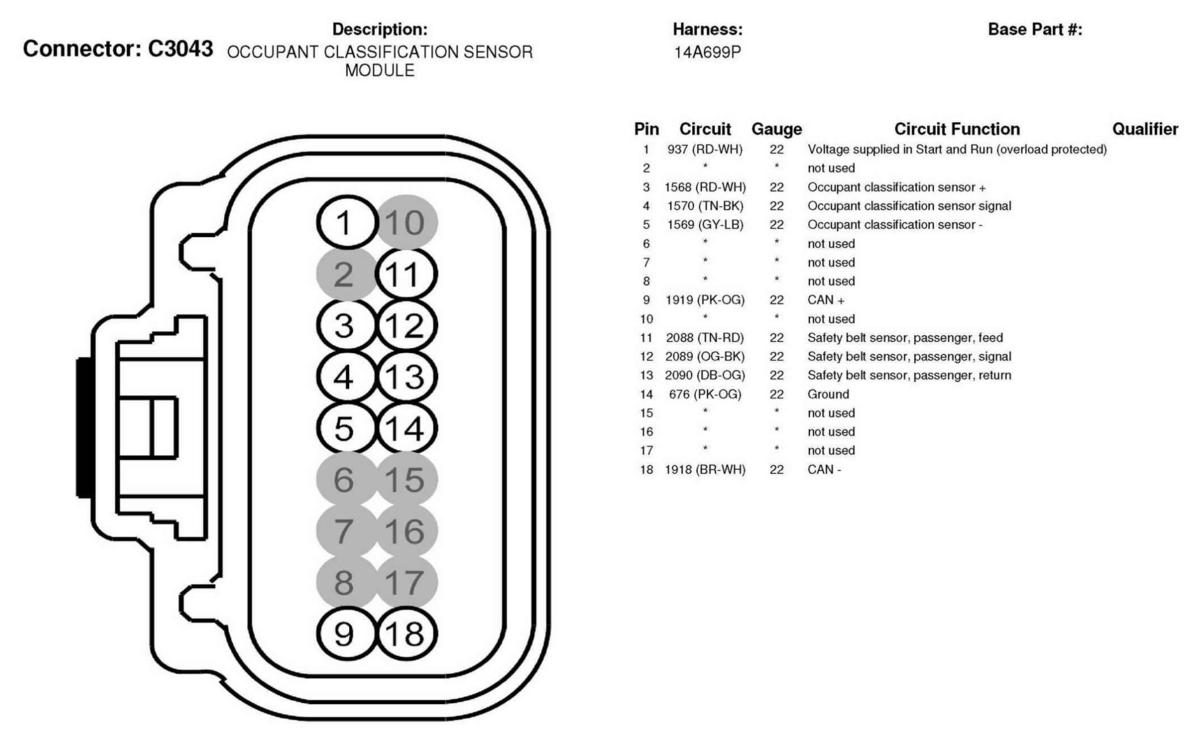

Fig 298: Occupant Classification Sensor Module Connector End View (C3043)

G04595717

Courtesy of FORD MOTOR CO.

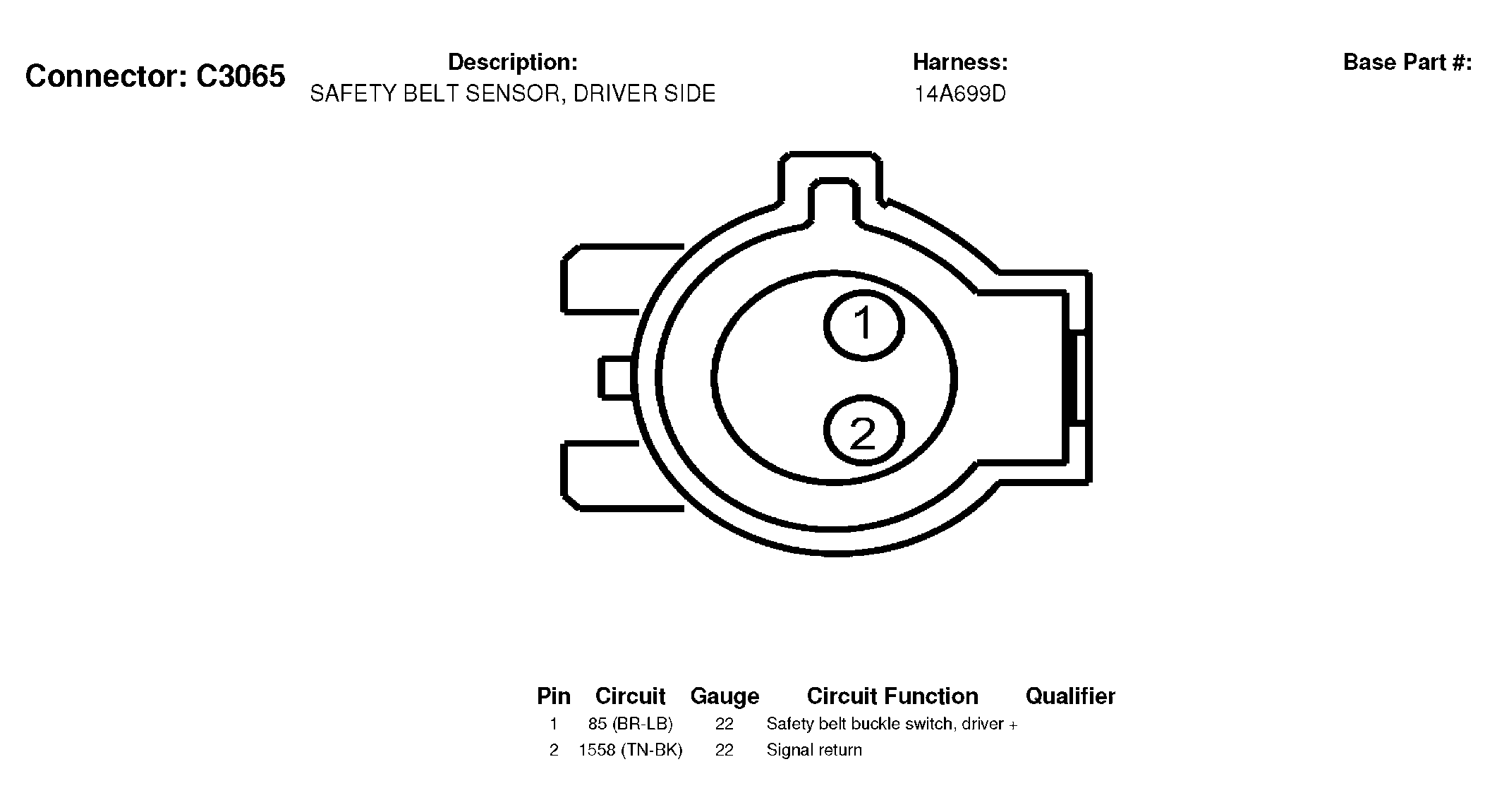

Fig 299: Safety Belt Sensor, Driver Side Connector End View (C3065)

G04595718

Courtesy of FORD MOTOR CO.

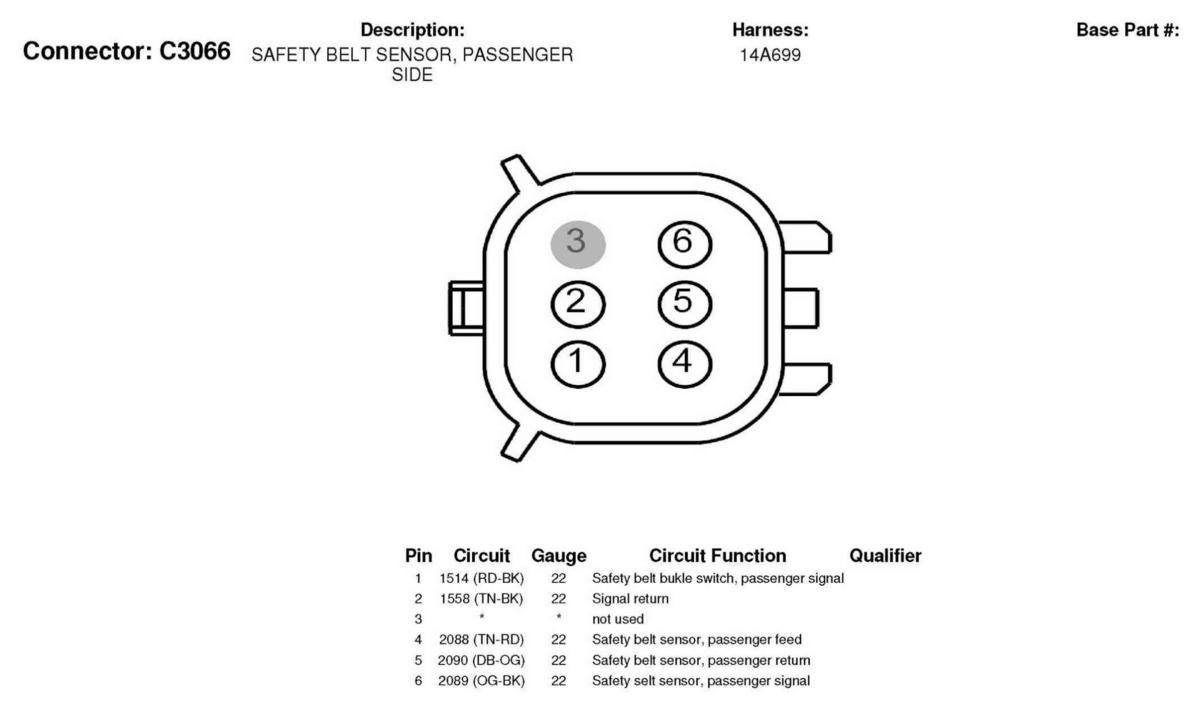

Fig 300: Safety Belt Sensor, Passenger Side Connector End View (C3066)

G04595719

Courtesy of FORD MOTOR CO.

Fig 301: Safety Belt Sensor, Passenger Side Connector End View (C3068)

G04595720

Courtesy of FORD MOTOR CO.

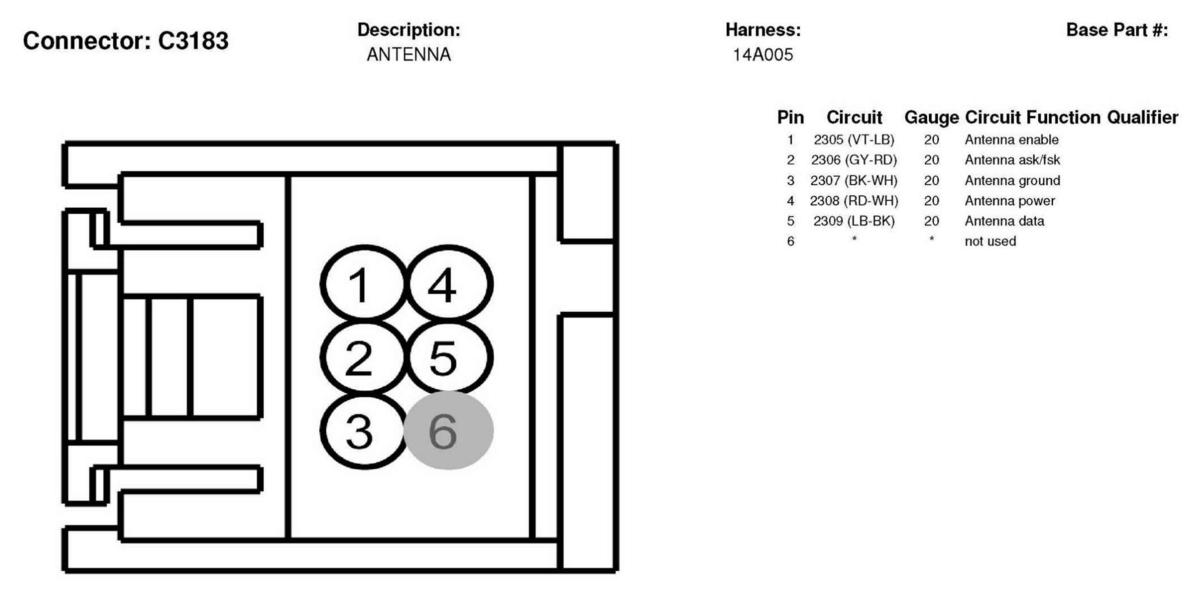

Fig 302: Antenna Connector End View (C3183)

G04595721

Courtesy of FORD MOTOR CO.

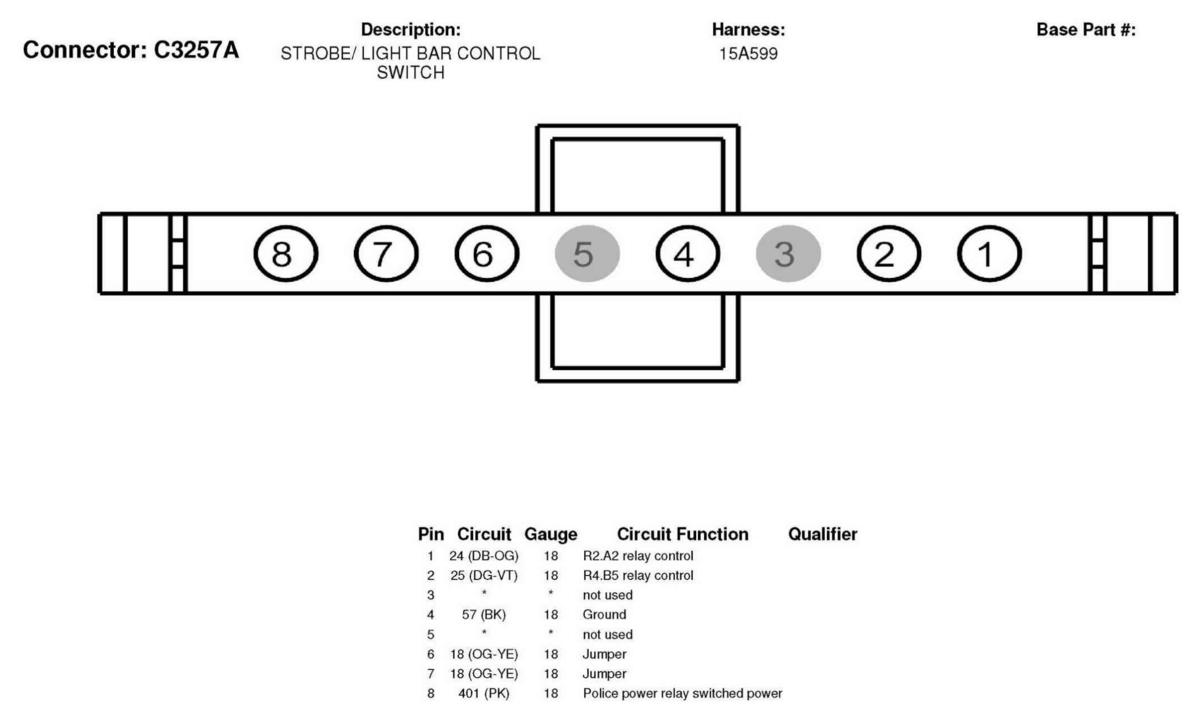

Fig 303: Strobe/Light Bar Control Switch Connector End View (C3257A)

G04595722

Courtesy of FORD MOTOR CO.

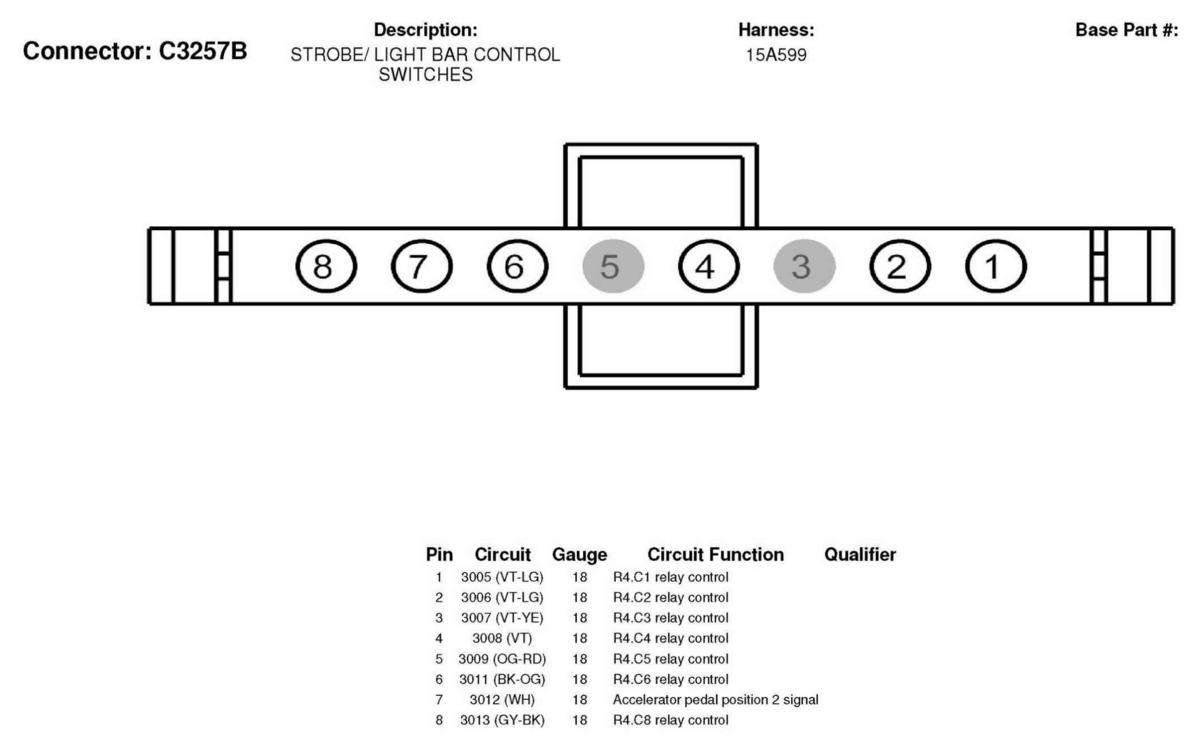

Fig 304: Strobe/Light Bar Control Switches Connector End View (C3257B)

G04595723

Courtesy of FORD MOTOR CO.

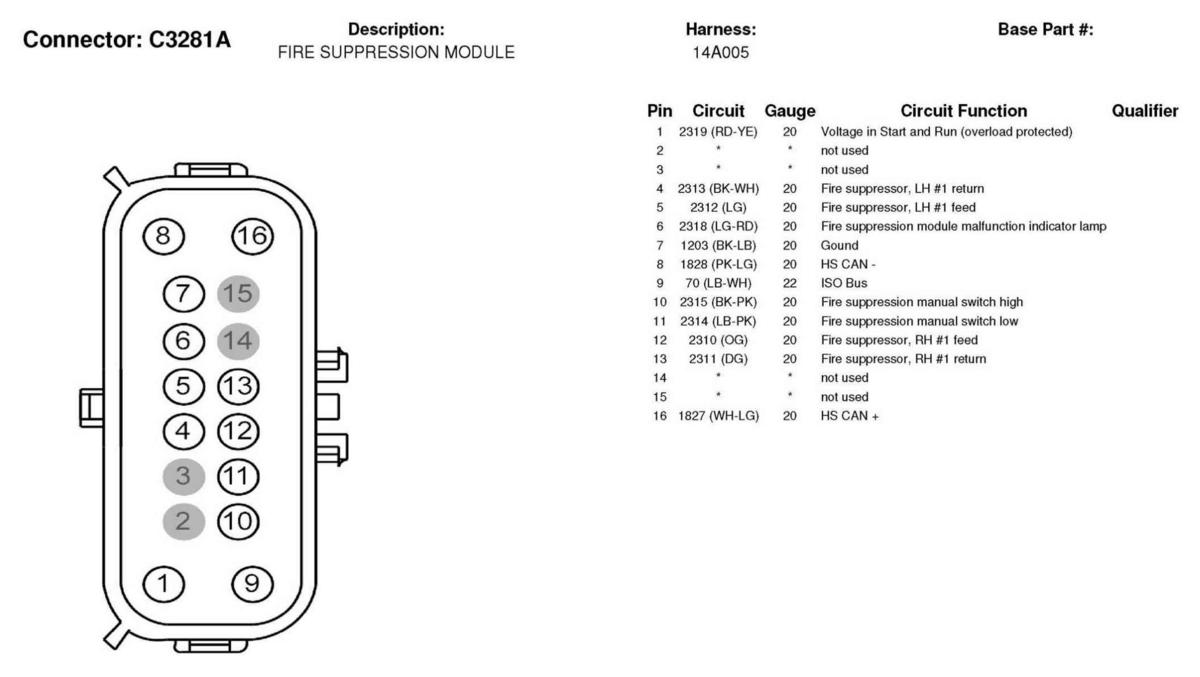

Fig 305: Fire Suppression Module Connector End View (C3281A)

G04595724

Courtesy of FORD MOTOR CO.

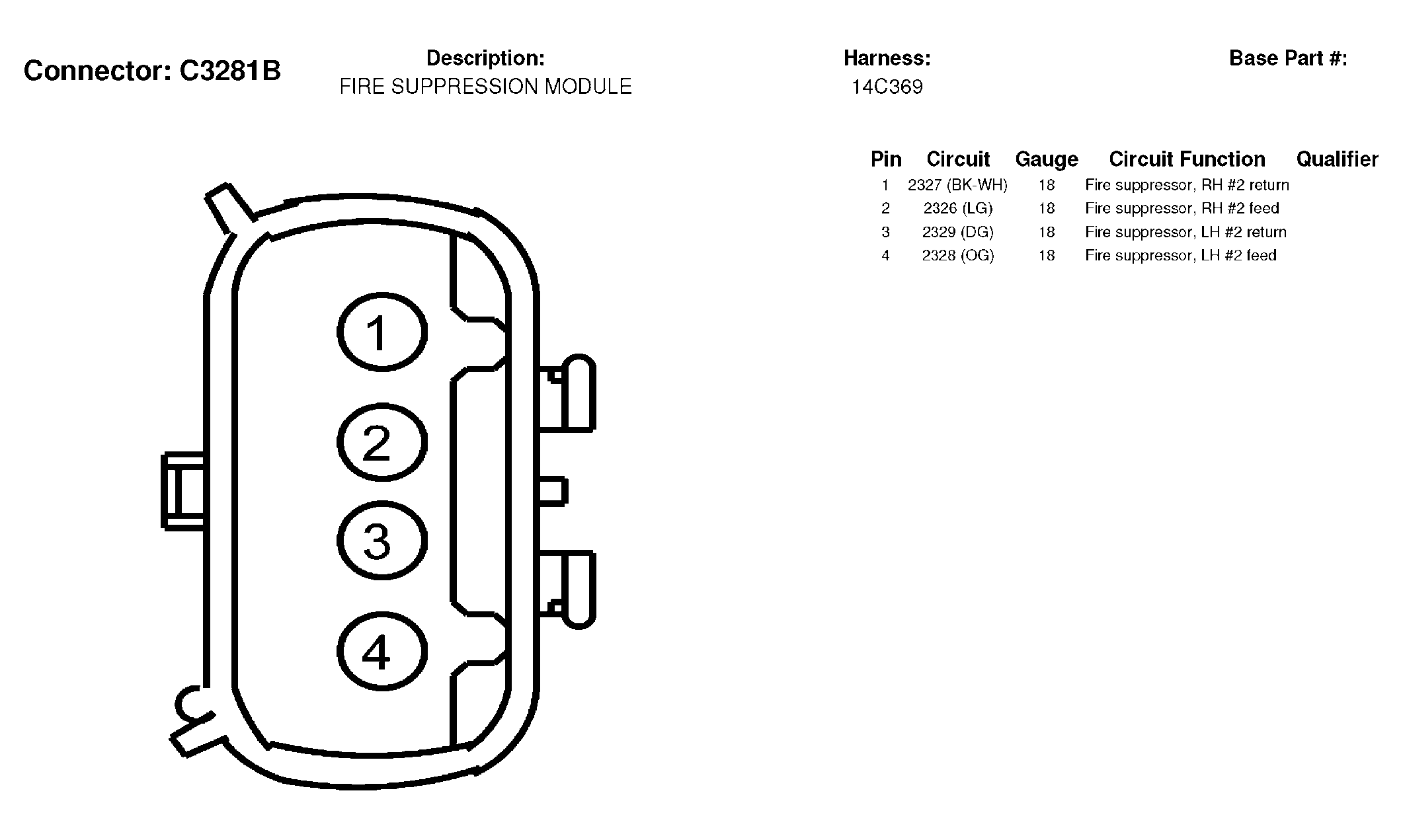

Fig 306: Fire Suppression Module Connector End View (C3281B)

G04595725

Courtesy of FORD MOTOR CO.

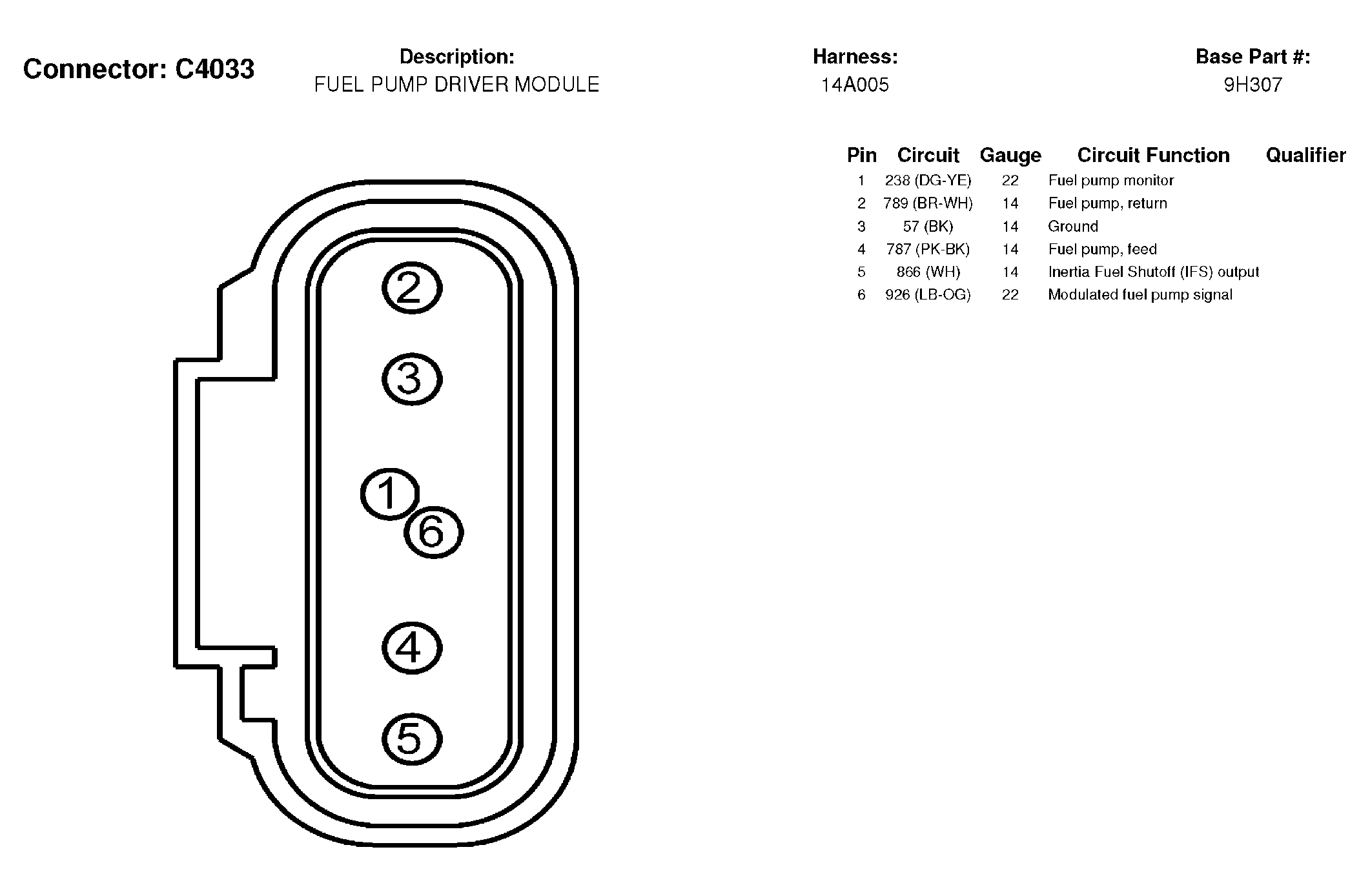

Fig 307: Fuel Pump Driver Module Connector End View (C4033)

G04595726

Courtesy of FORD MOTOR CO.

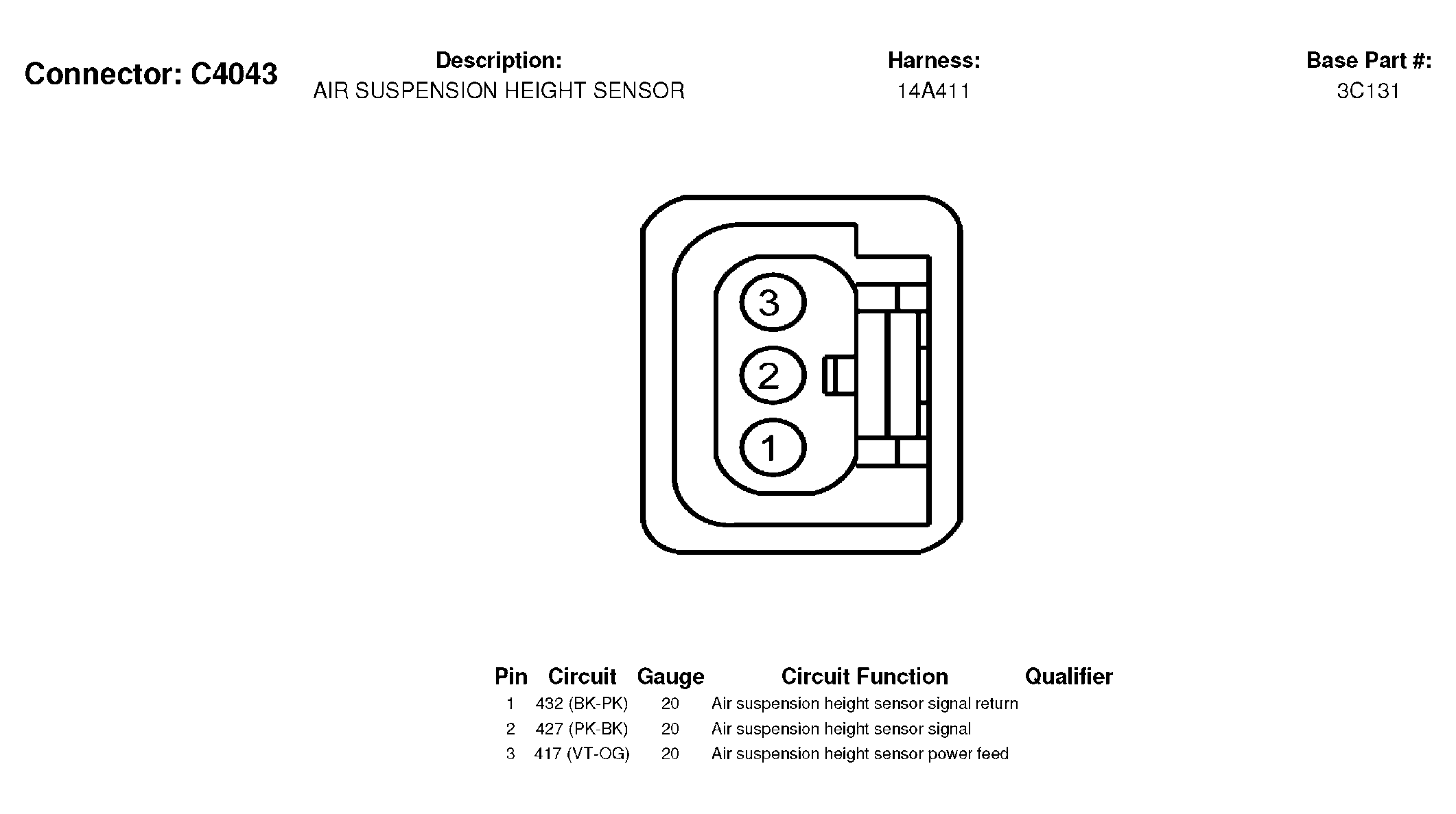

Fig 308: Air Suspension Height Sensor Connector End View (C4043)

G04595727

Courtesy of FORD MOTOR CO.

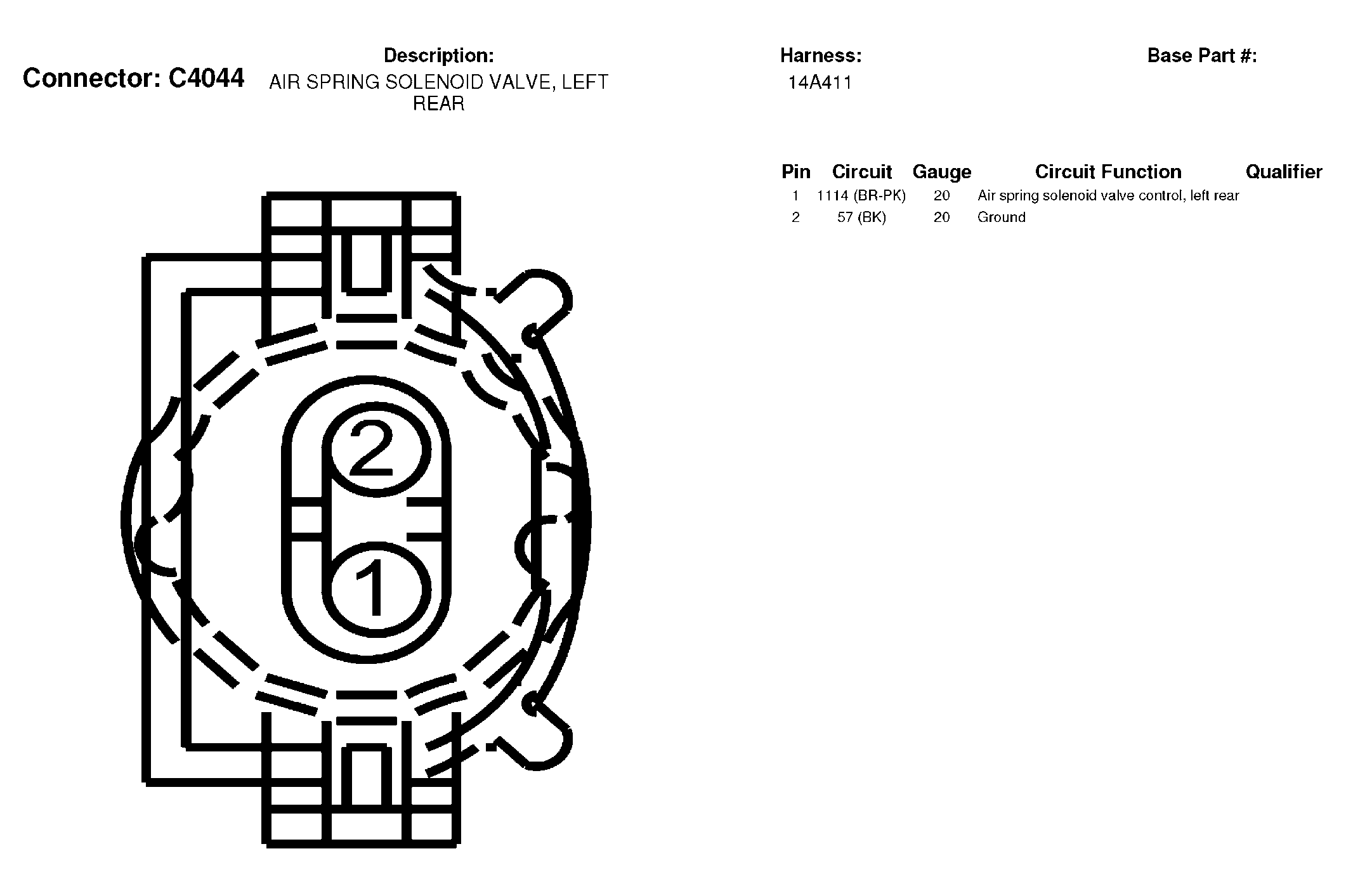

Fig 309: Air Spring Solenoid Valve, Left Rear Connector End View (C4044)

G04595728

Courtesy of FORD MOTOR CO.

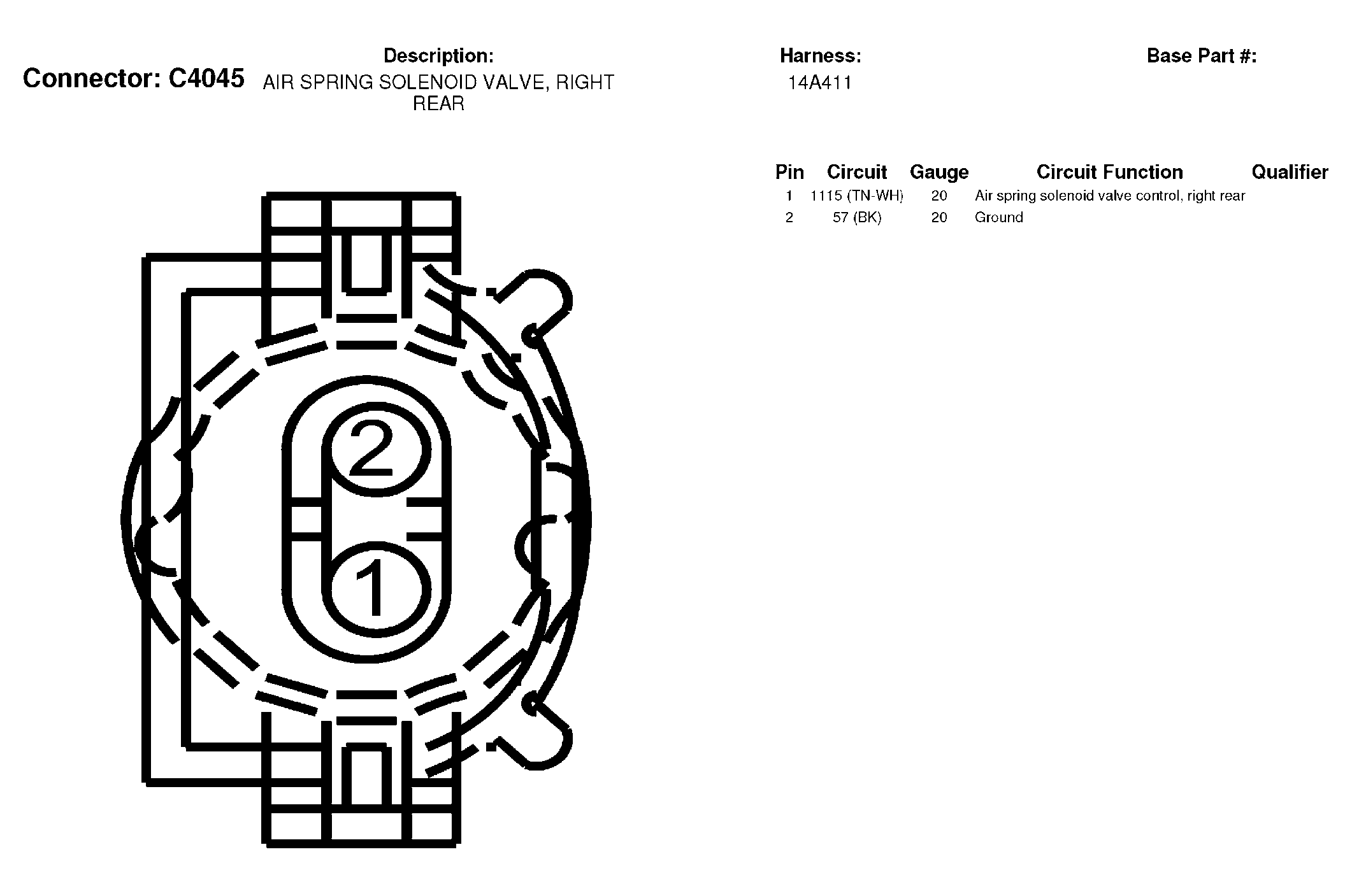

Fig 310: Air Spring Solenoid Valve, Right Rear Connector End View (C4045)

G04595729

Courtesy of FORD MOTOR CO.

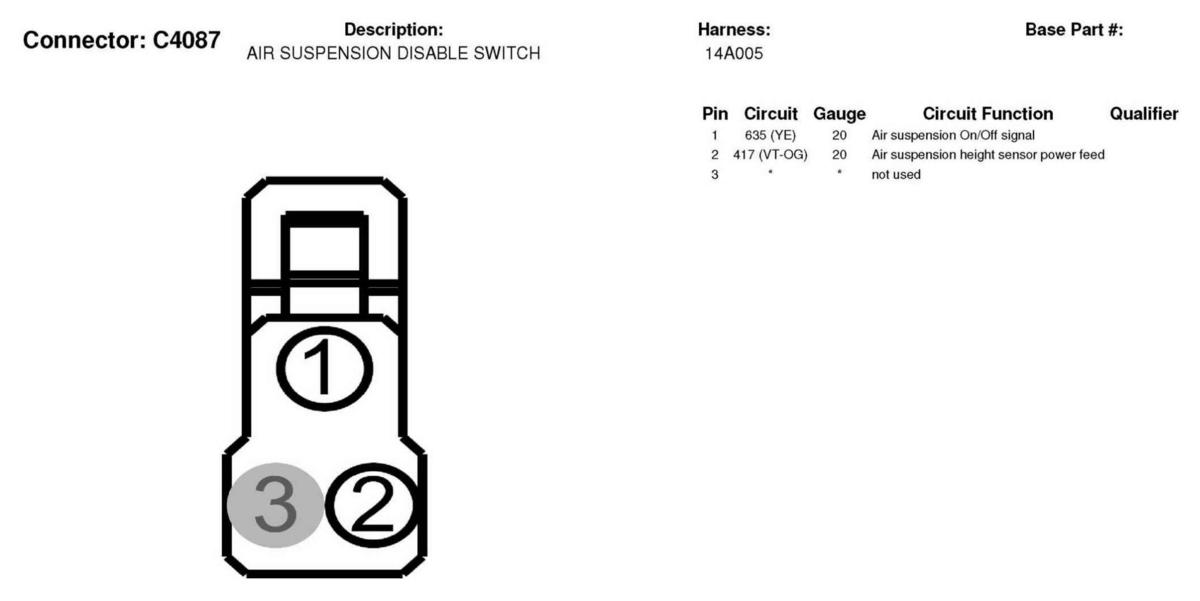

Fig 311: Air Suspension Disable Switch Connector End View (C4087)

G04595730

Courtesy of FORD MOTOR CO.

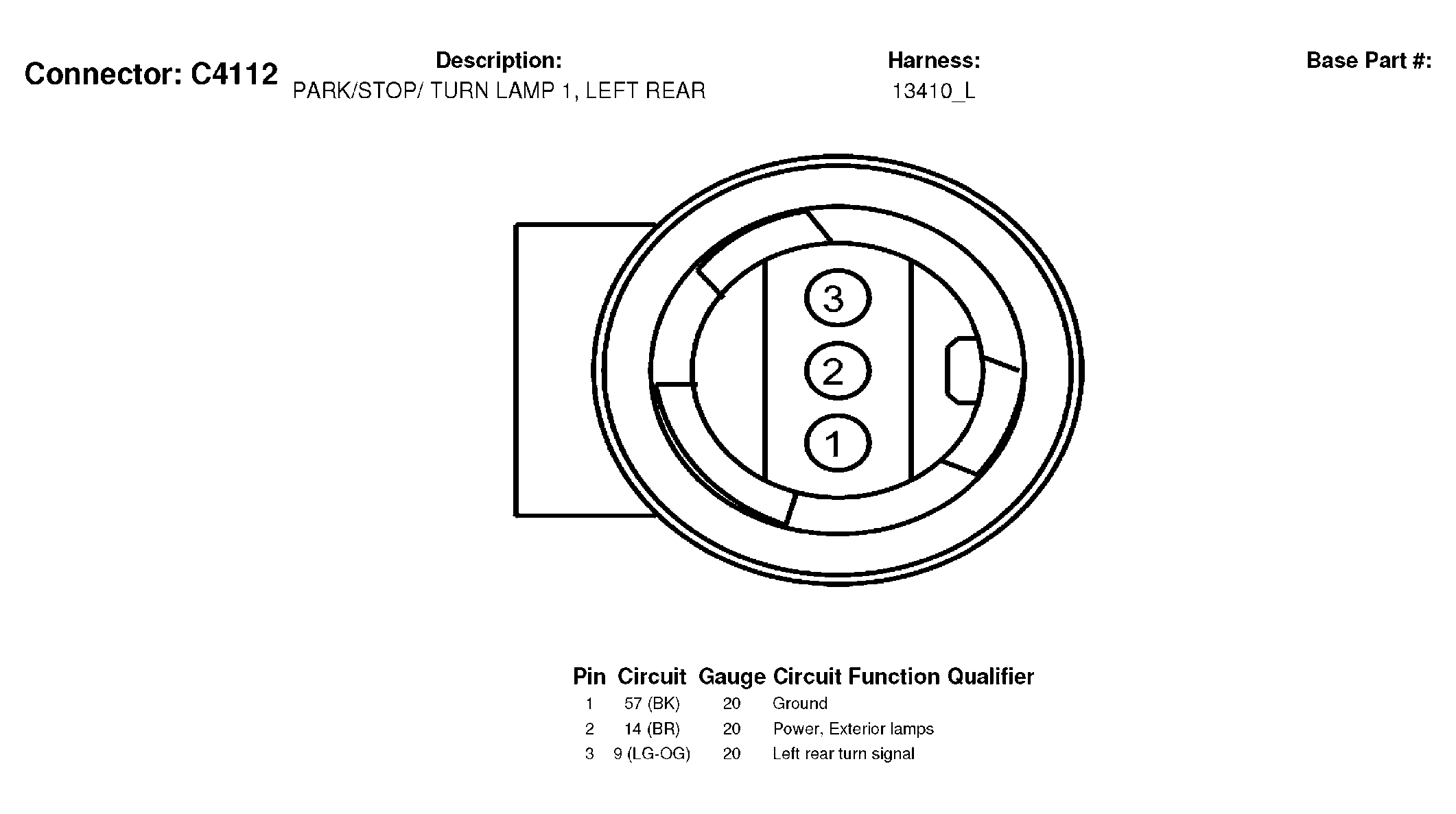

Fig 312: Park/Stop/Turn Lamp 1, Left Rear Connector End View (C4112)

G04595731

Courtesy of FORD MOTOR CO.

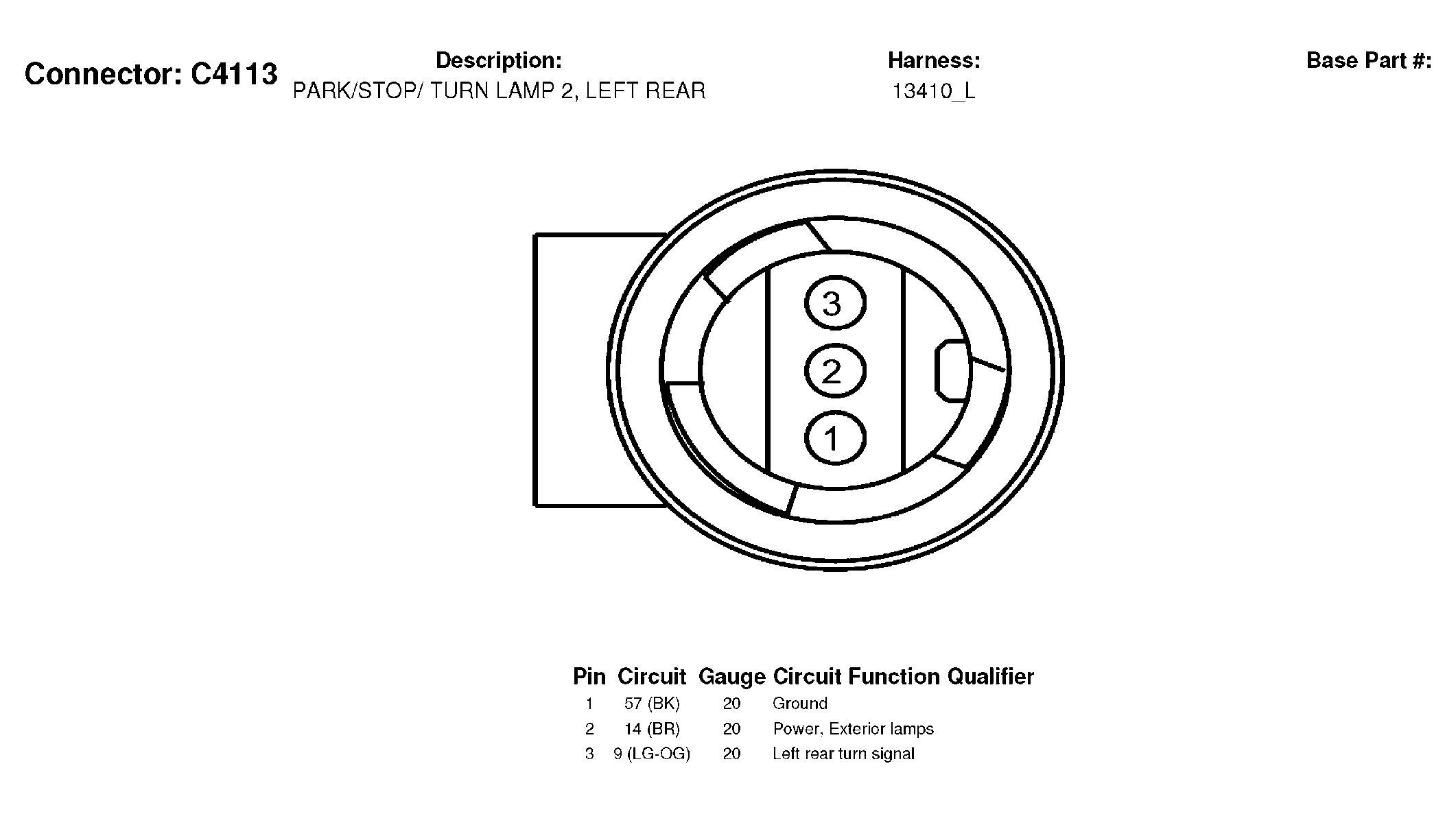

Fig 313: Park/Stop/Turn Lamp 2, Left Rear Connector End View (C4113)

G04595732

Courtesy of FORD MOTOR CO.

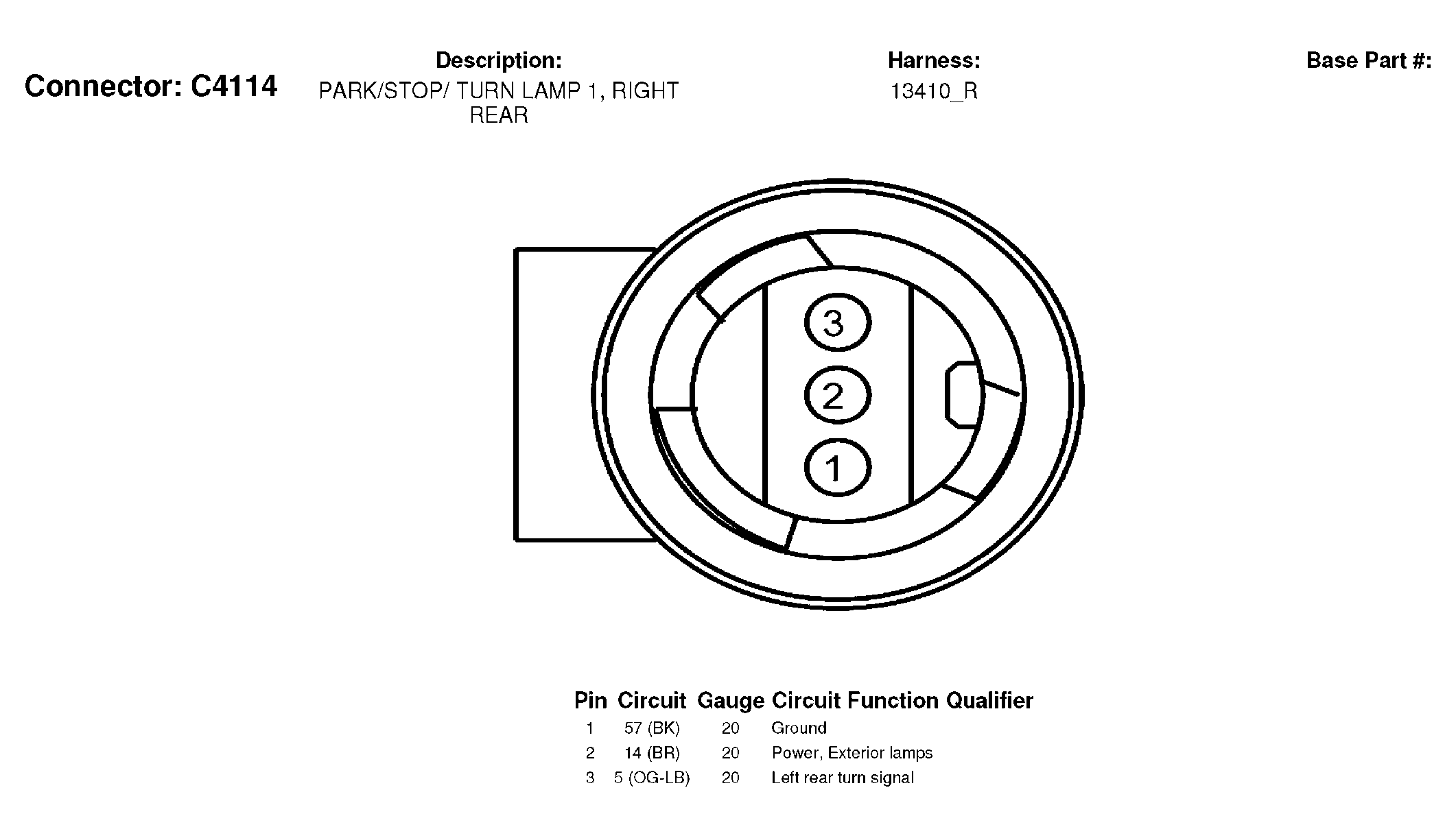

Fig 314: Park/Stop/Turn Lamp 1, Right Rear Connector End View (C4114)

G04595733

Courtesy of FORD MOTOR CO.

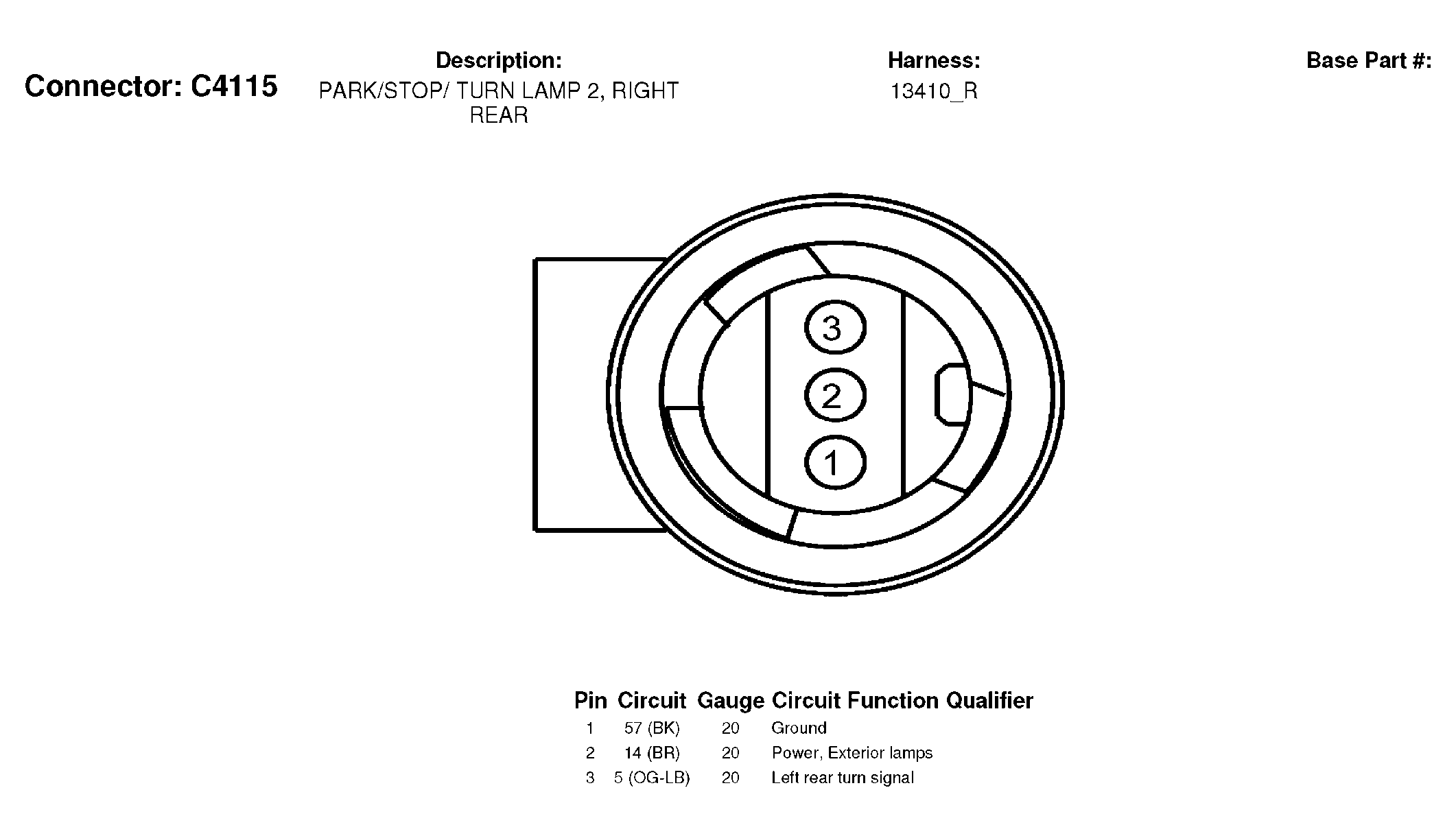

Fig 315: Park/Stop/Turn Lamp 2, Right Rear Connector End View (C4115)

G04595734

Courtesy of FORD MOTOR CO.

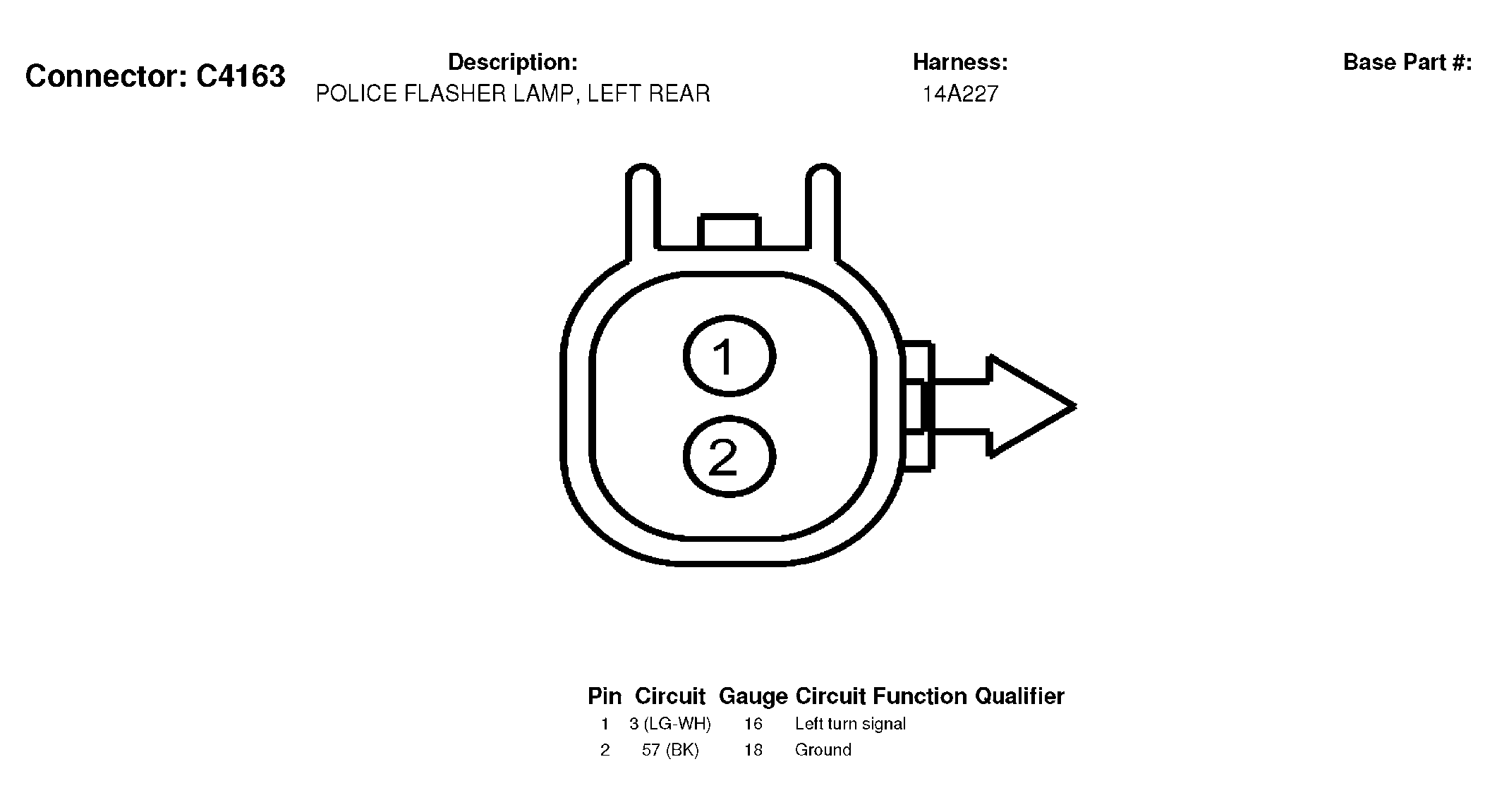

Fig 316: Police Flasher Lamp, Left Rear Connector End View (C4163)

G04595735

Courtesy of FORD MOTOR CO.

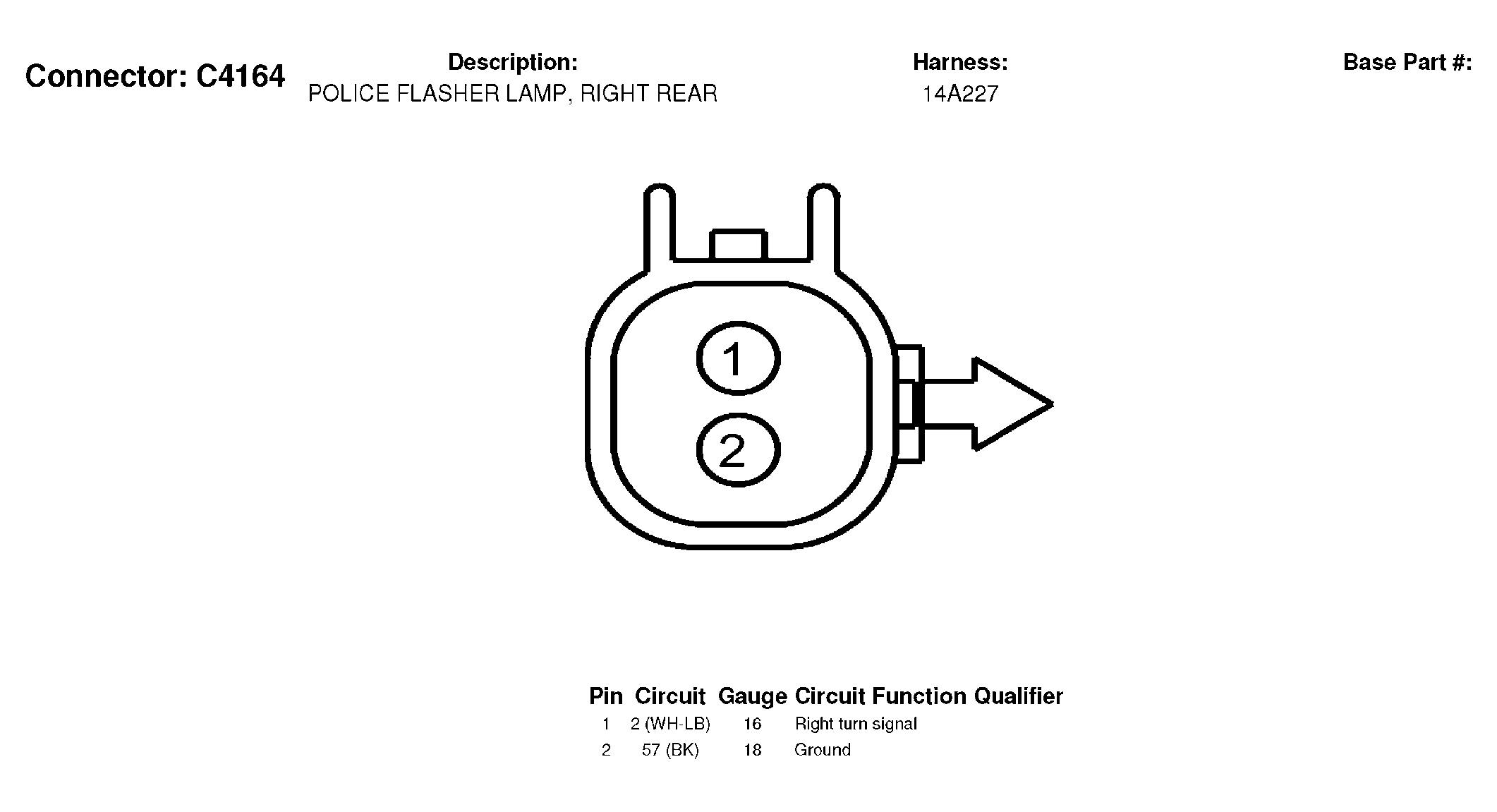

Fig 317: Police Flasher Lamp, Right Rear Connector End View (C4164)

G04595736

Courtesy of FORD MOTOR CO.

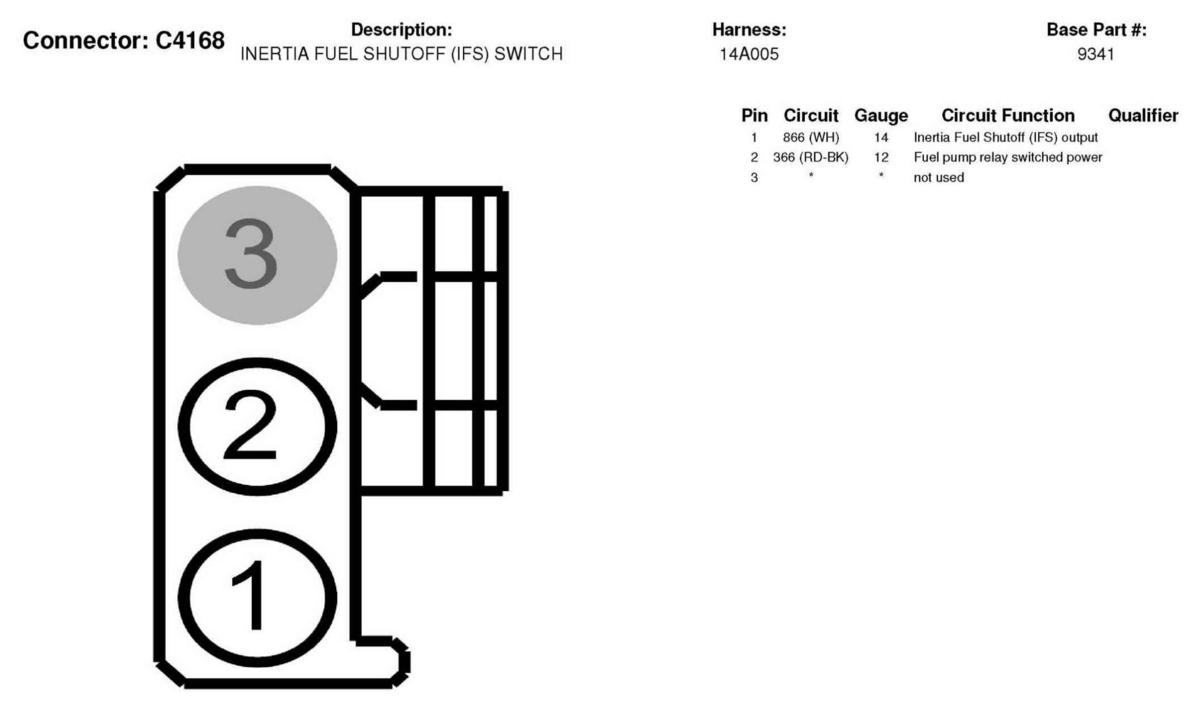

Fig 318: Inertia Fuel Shutoff (IFS) Switch Connector End View (C4168)

G04595737

Courtesy of FORD MOTOR CO.

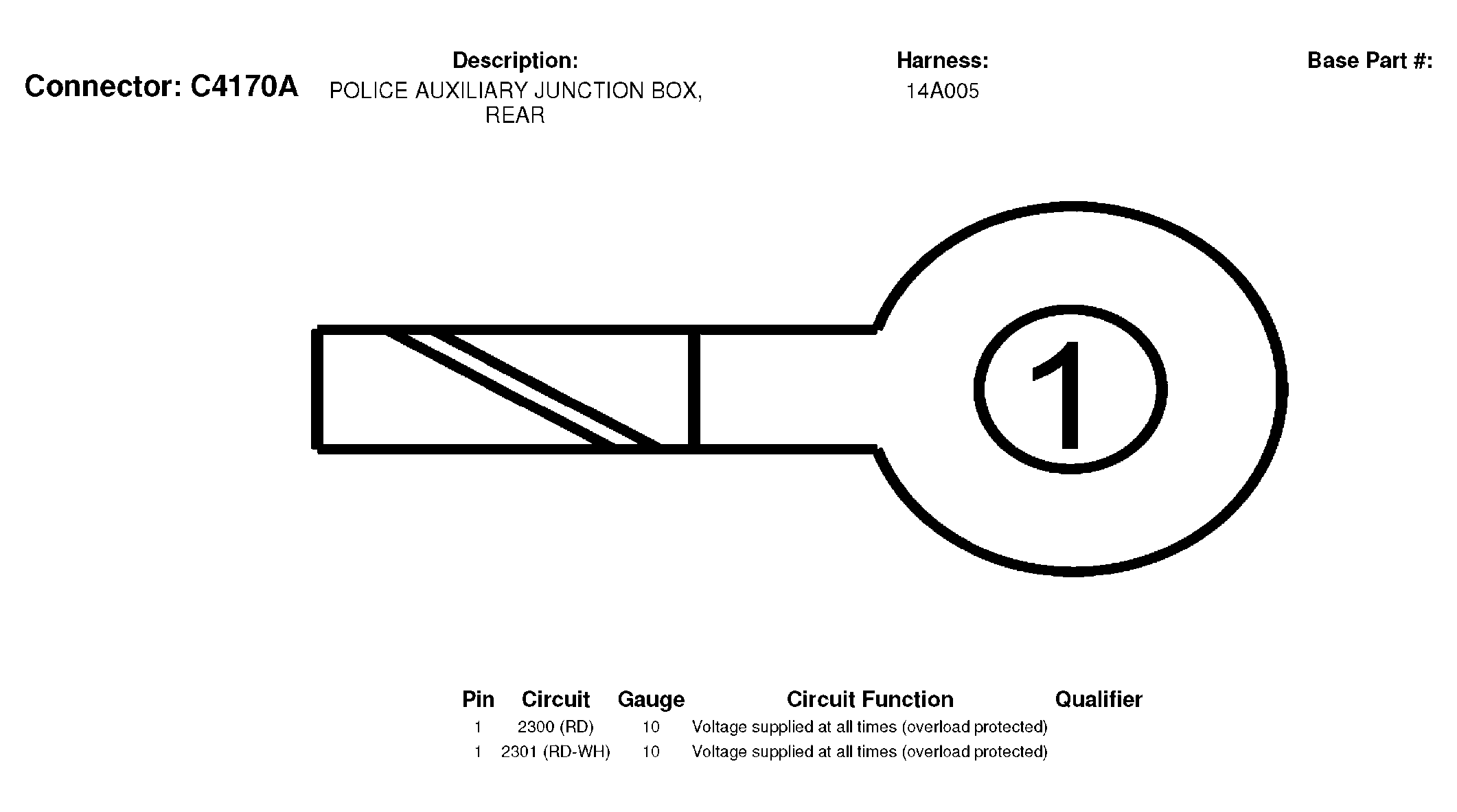

Fig 319: Police Auxiliary Junction Box, Rear Connector End View (C4170A)

G04595738

Courtesy of FORD MOTOR CO.

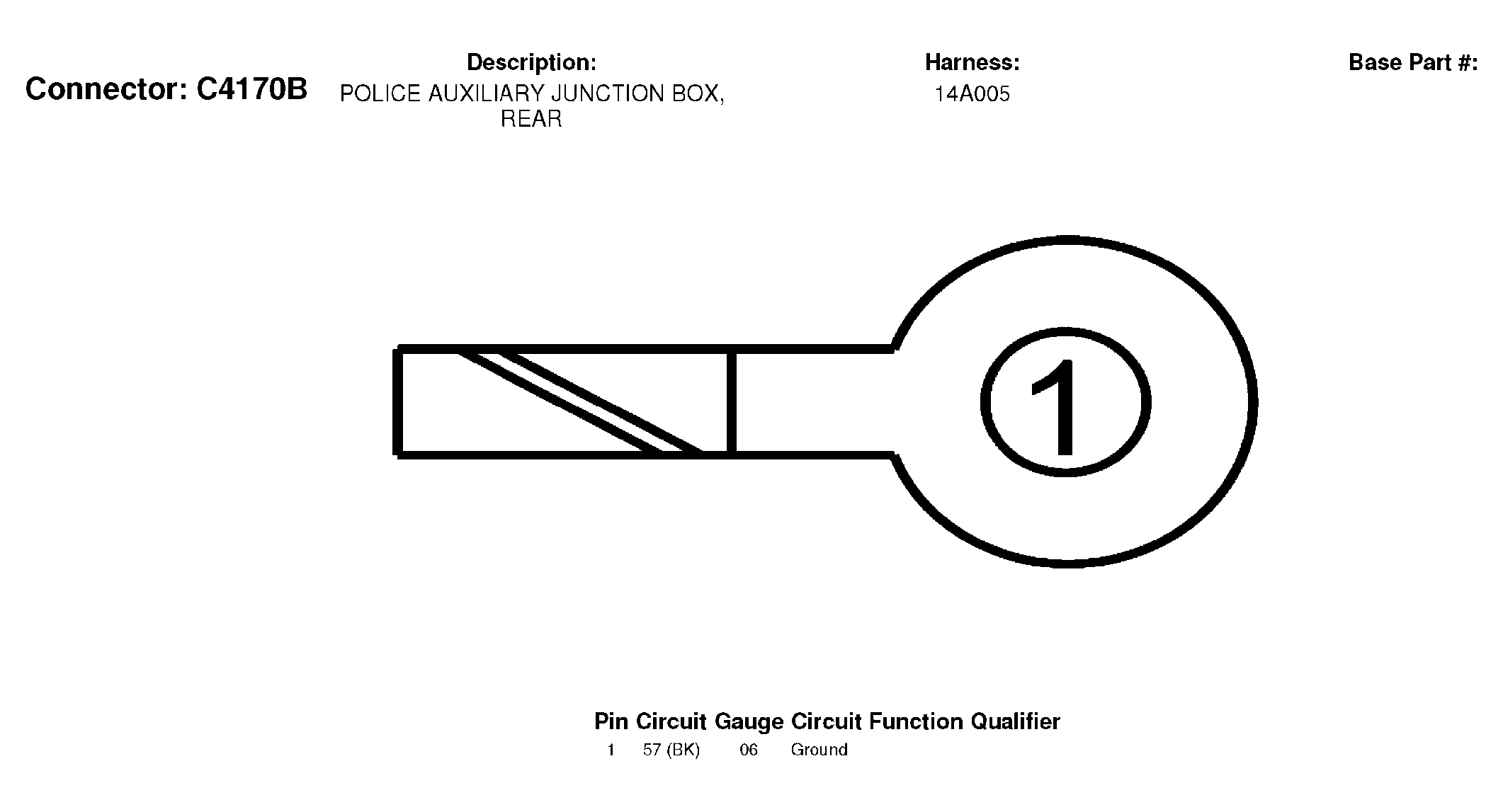

Fig 320: Police Auxiliary Junction Box, Rear Connector End View (C4170B)

G04595739

Courtesy of FORD MOTOR CO.

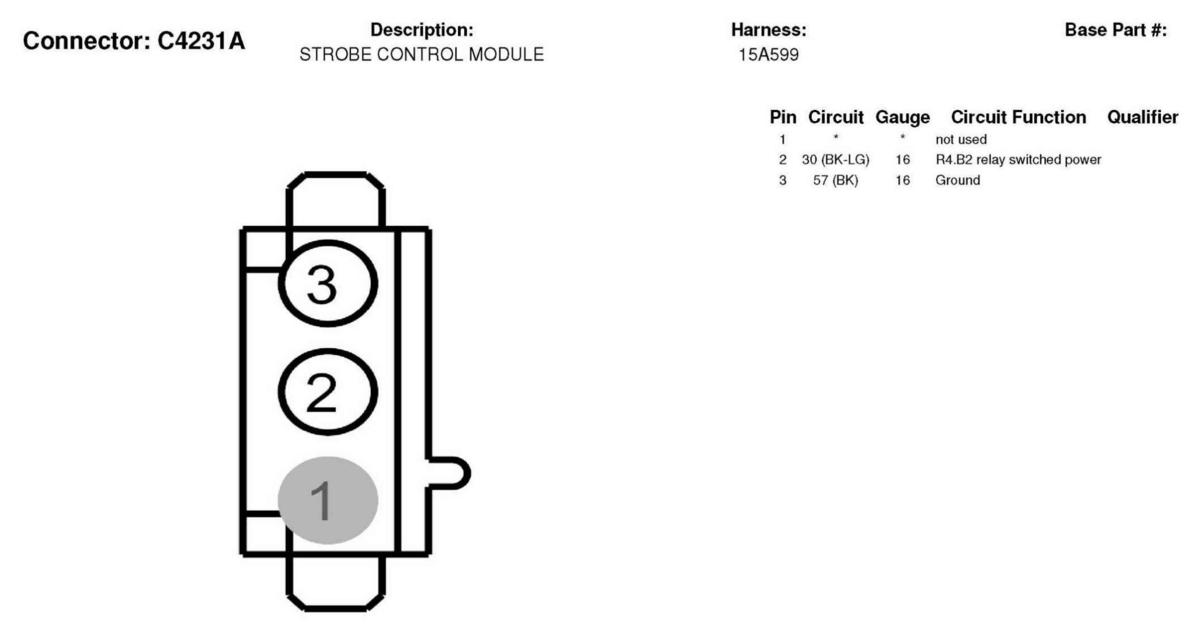

Fig 321: Strobe Control Module Connector End View (C4231A)

G04595740

Courtesy of FORD MOTOR CO.

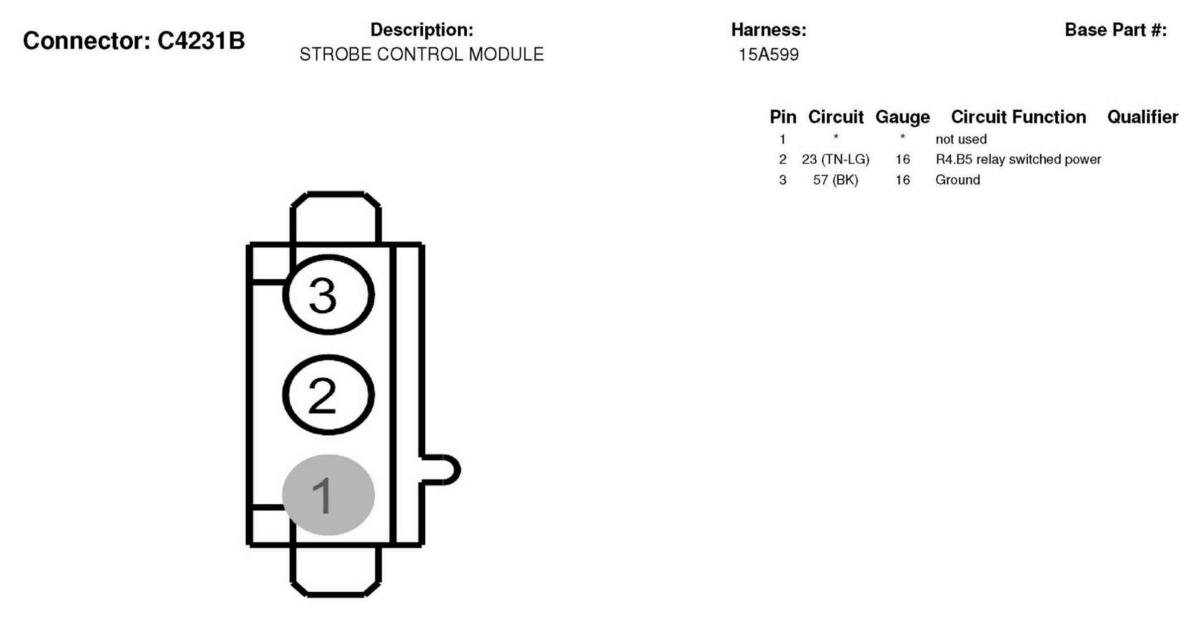

Fig 322: Strobe Control Module Connector End View (C4231B)

G04595741

Courtesy of FORD MOTOR CO.

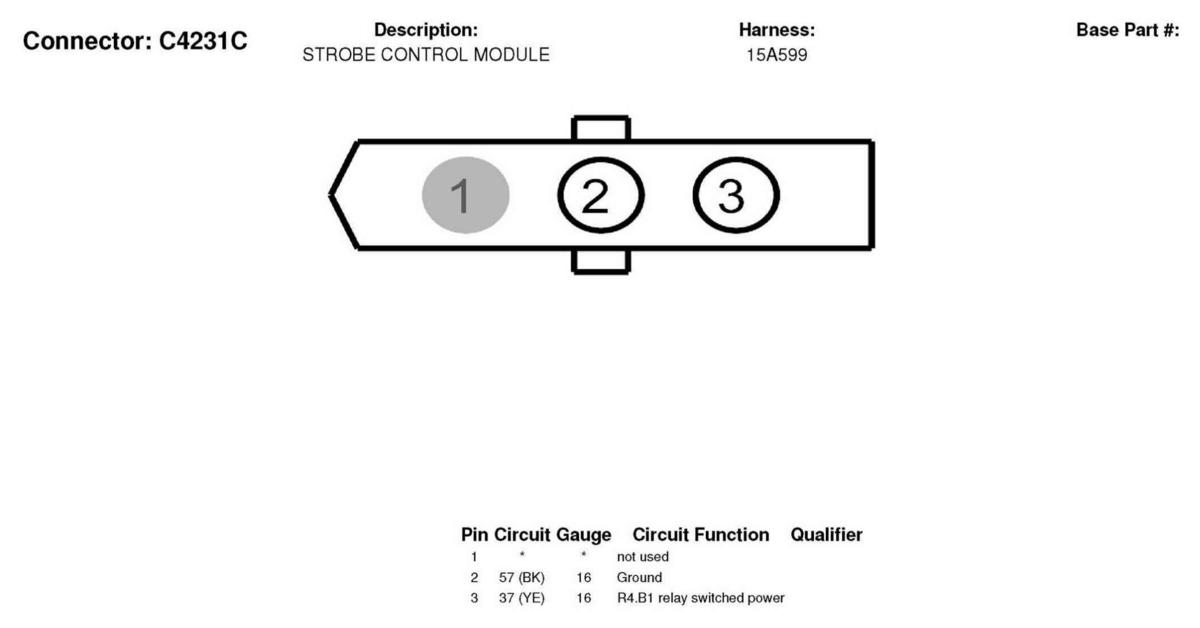

Fig 323: Strobe Control Module Connector End View (C4231C)

G04595742

Courtesy of FORD MOTOR CO.

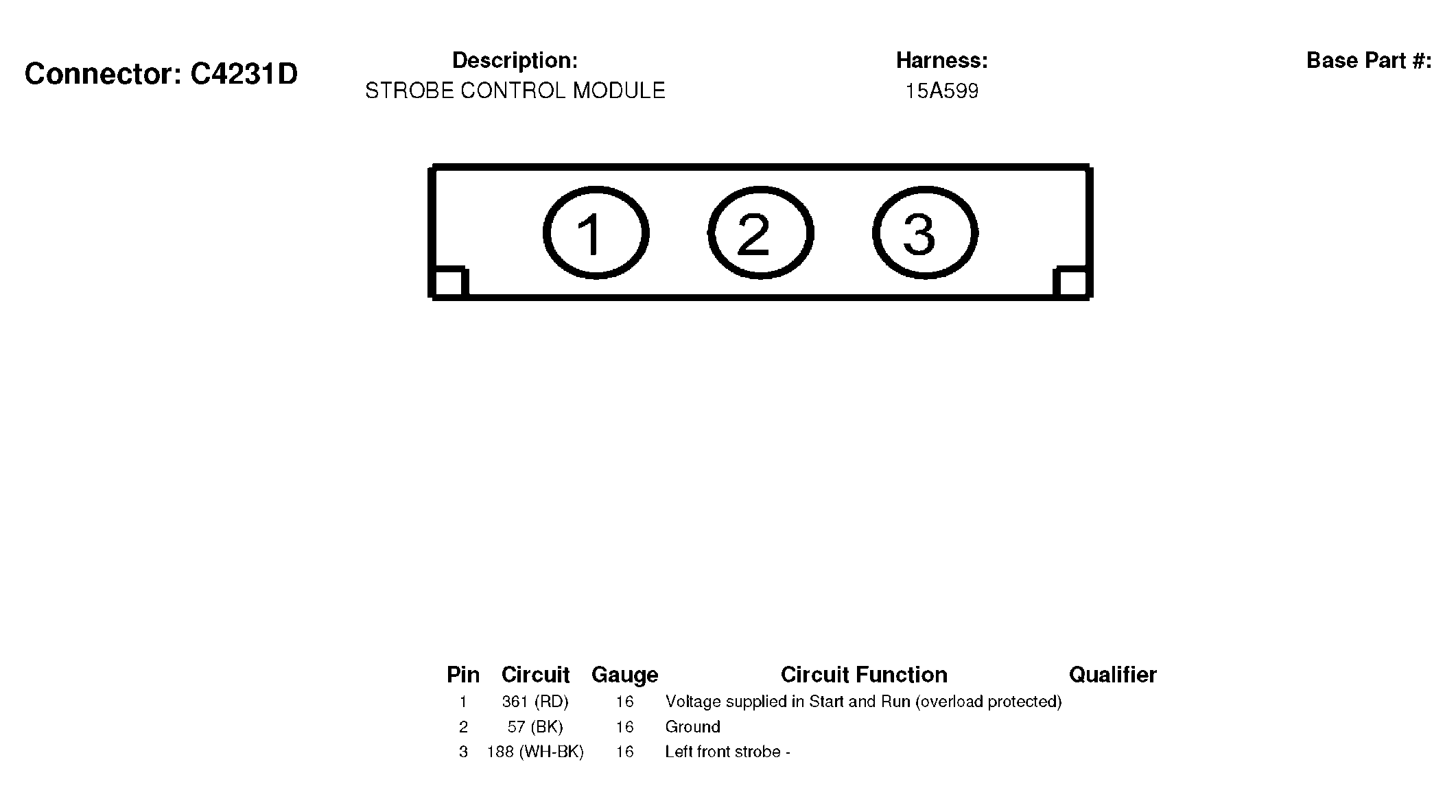

Fig 324: Strobe Control Module Connector End View (C4231D)

G04595743

Courtesy of FORD MOTOR CO.

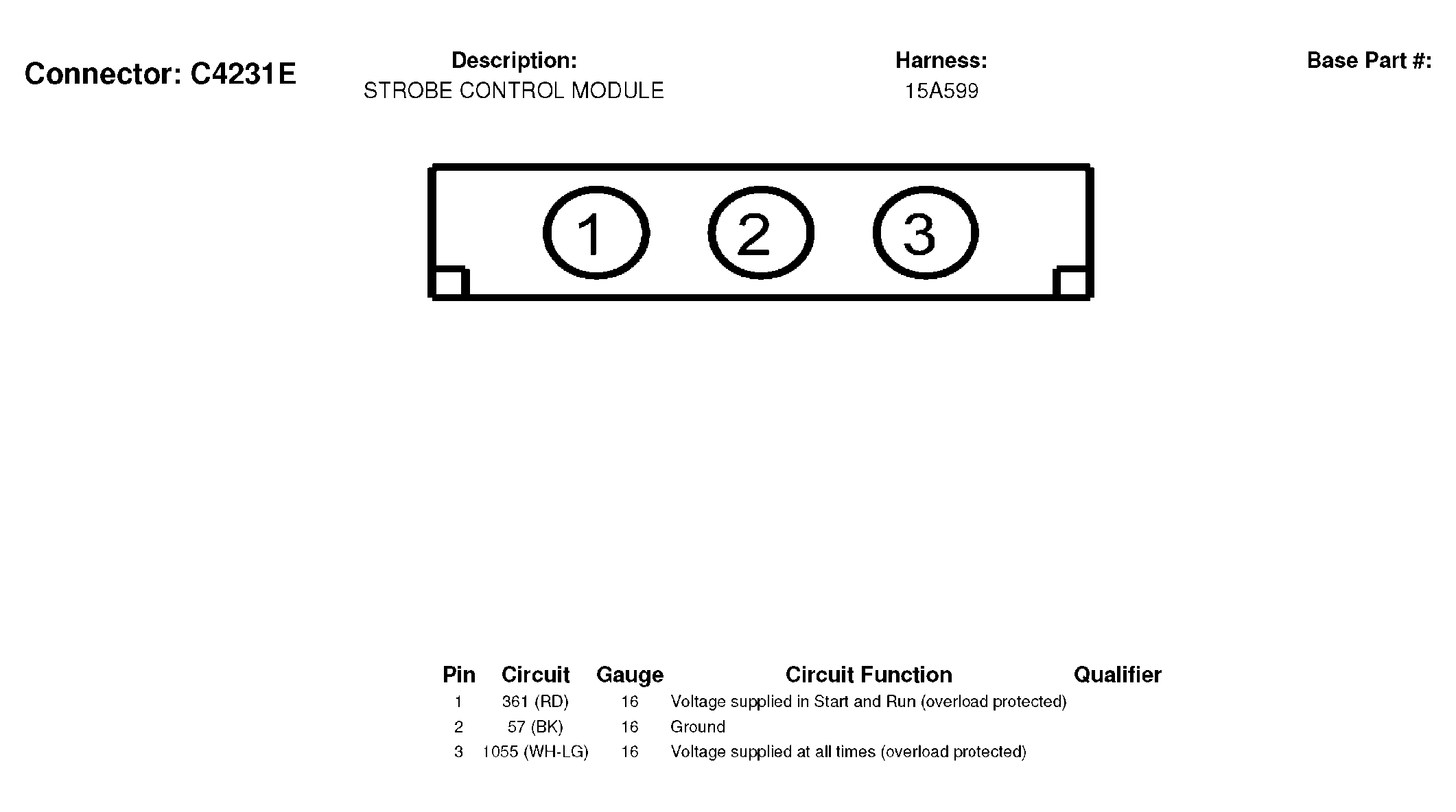

Fig 325: Strobe Control Module Connector End View (C4231E)

G04595744

Courtesy of FORD MOTOR CO.

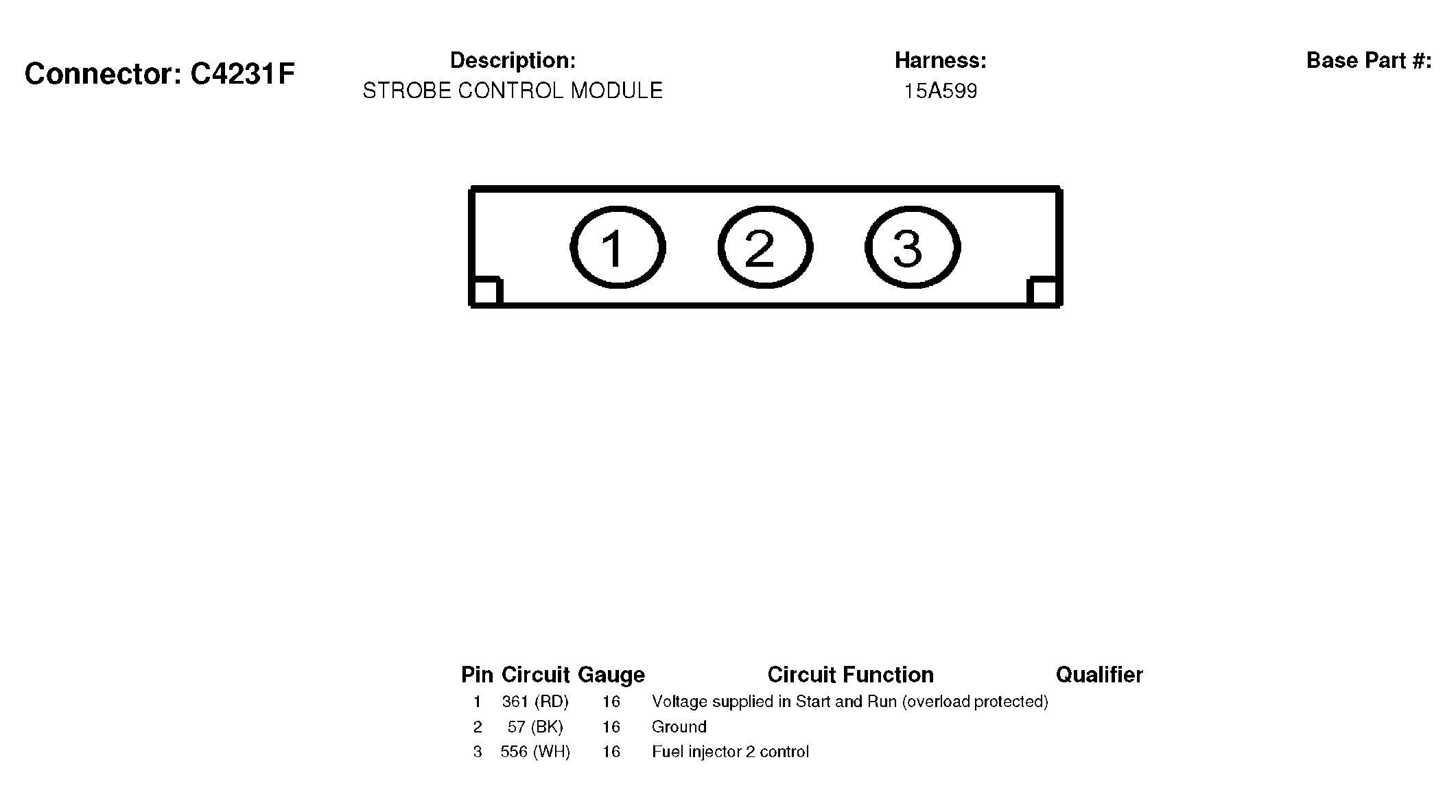

Fig 326: Strobe Control Module Connector End View (C4231F)

G04595745

Courtesy of FORD MOTOR CO.

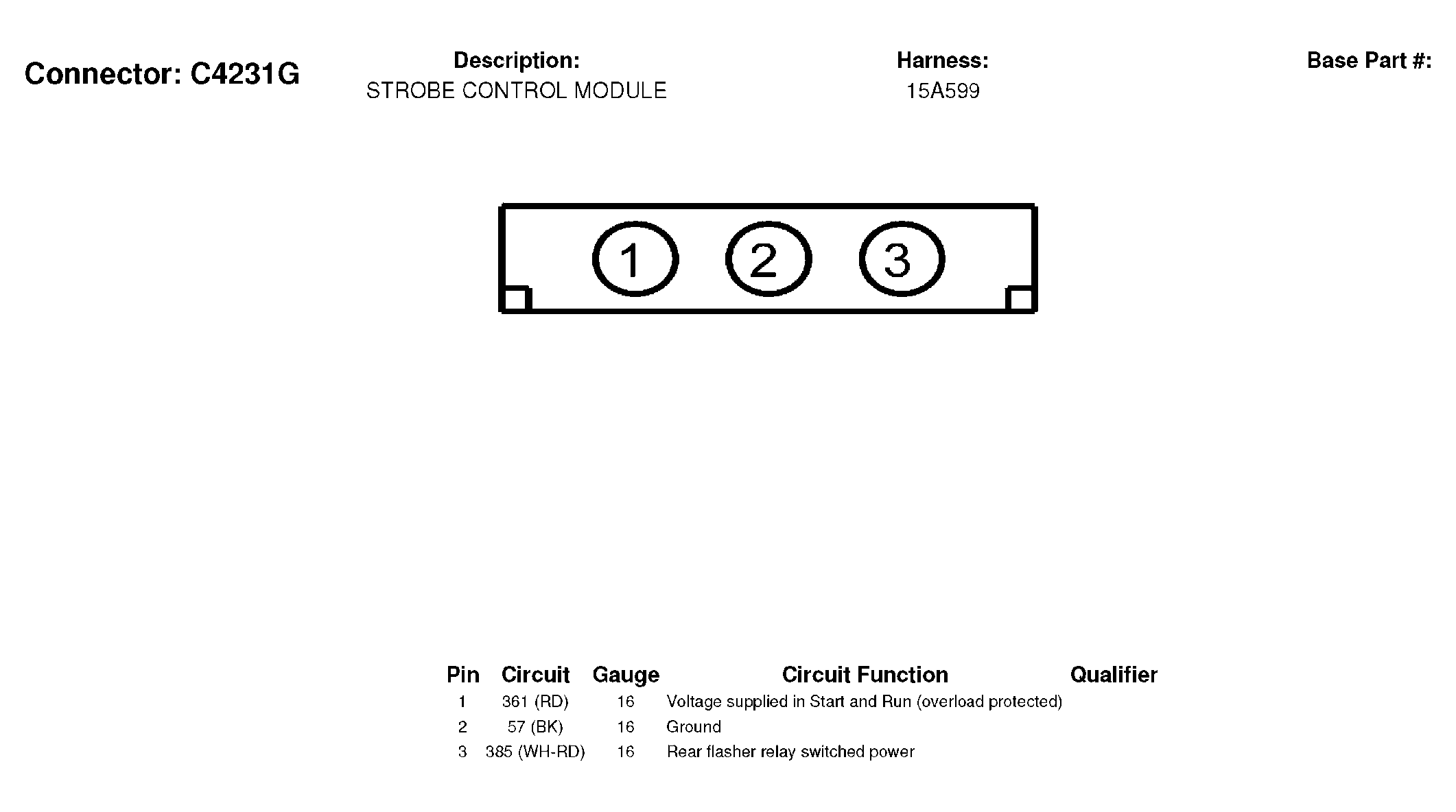

Fig 327: Strobe Control Module Connector End View (C4231G)

G04595746

Courtesy of FORD MOTOR CO.

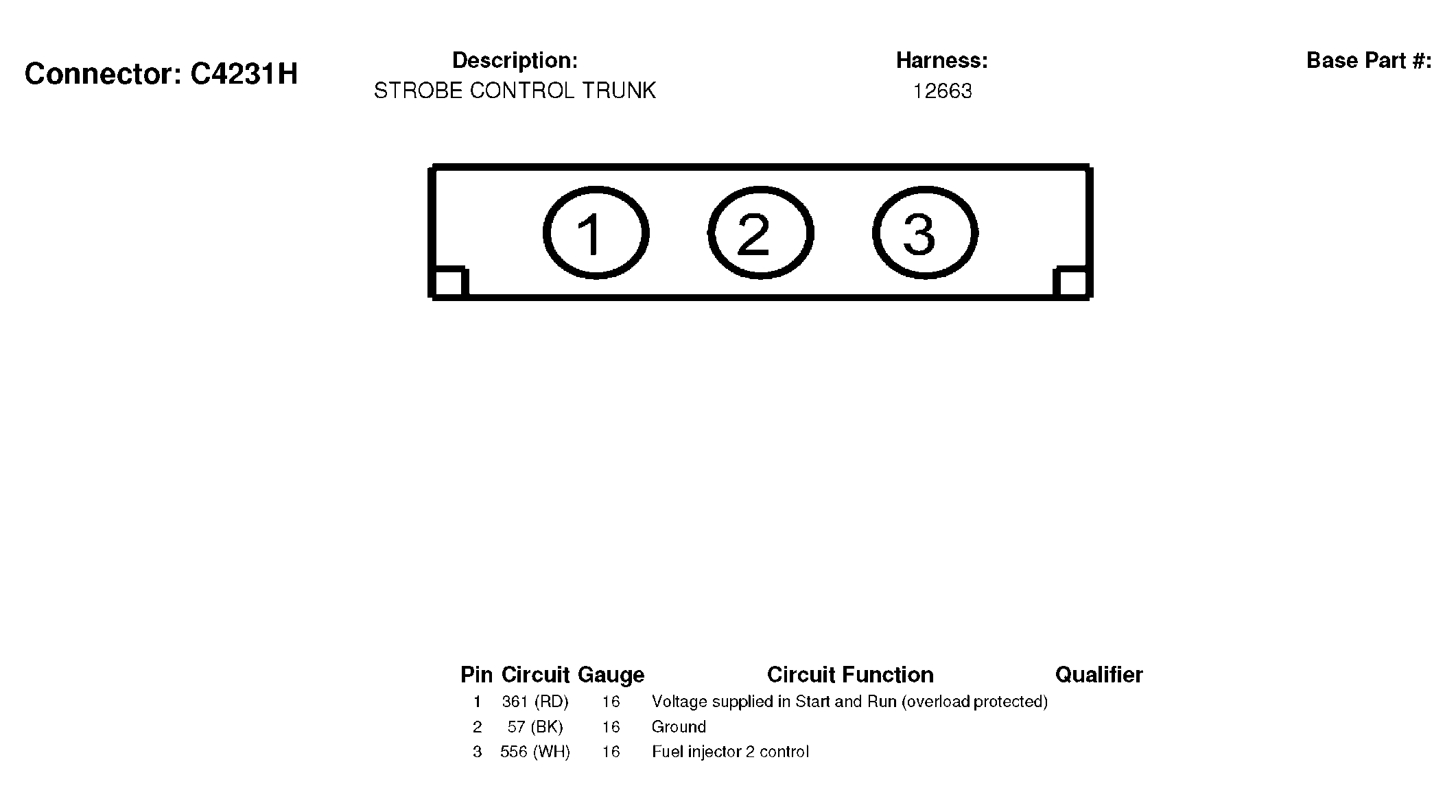

Fig 328: Strobe Control Module Connector End View (C4231H)

G04595747

Courtesy of FORD MOTOR CO.

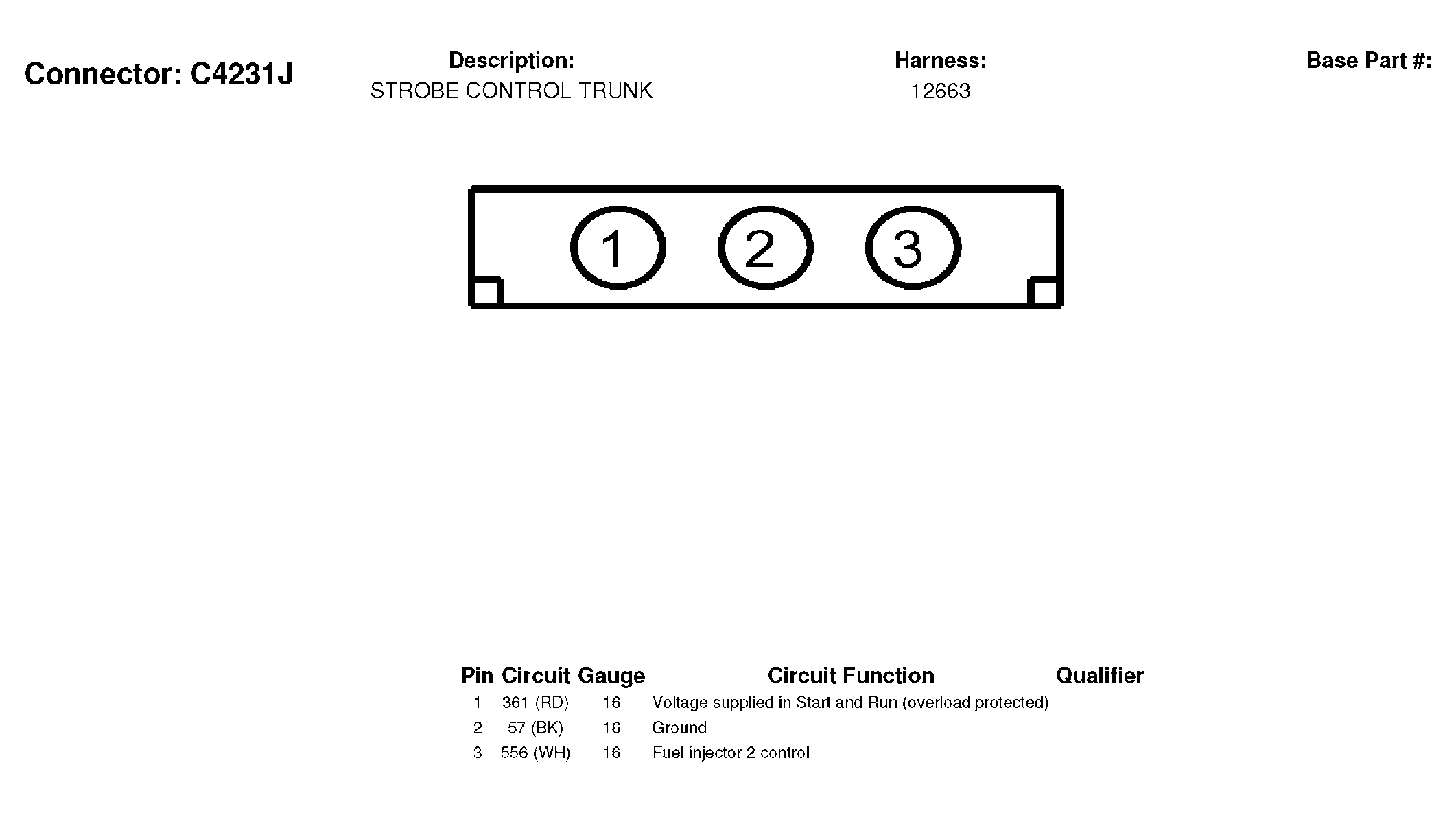

Fig 329: Strobe Control Module Connector End View (C4231J)

G04595748

Courtesy of FORD MOTOR CO.

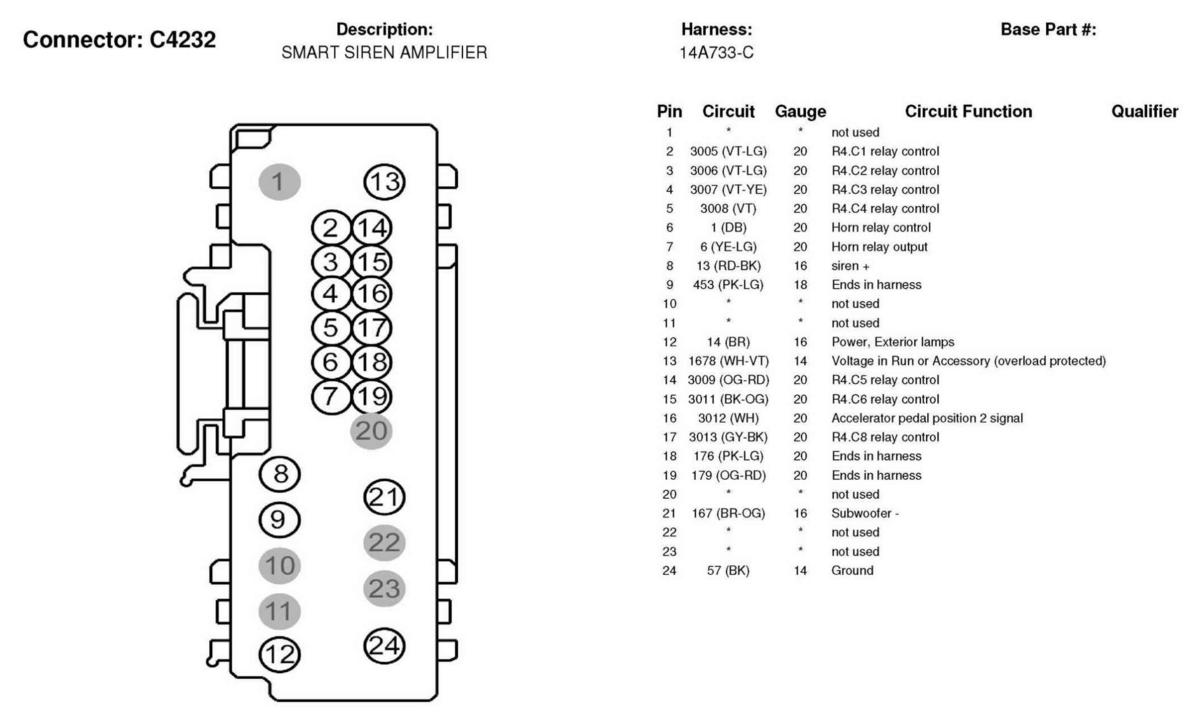

Fig 330: Smart Siren Amplifier Connector End View (C4232)

G04595749

Courtesy of FORD MOTOR CO.

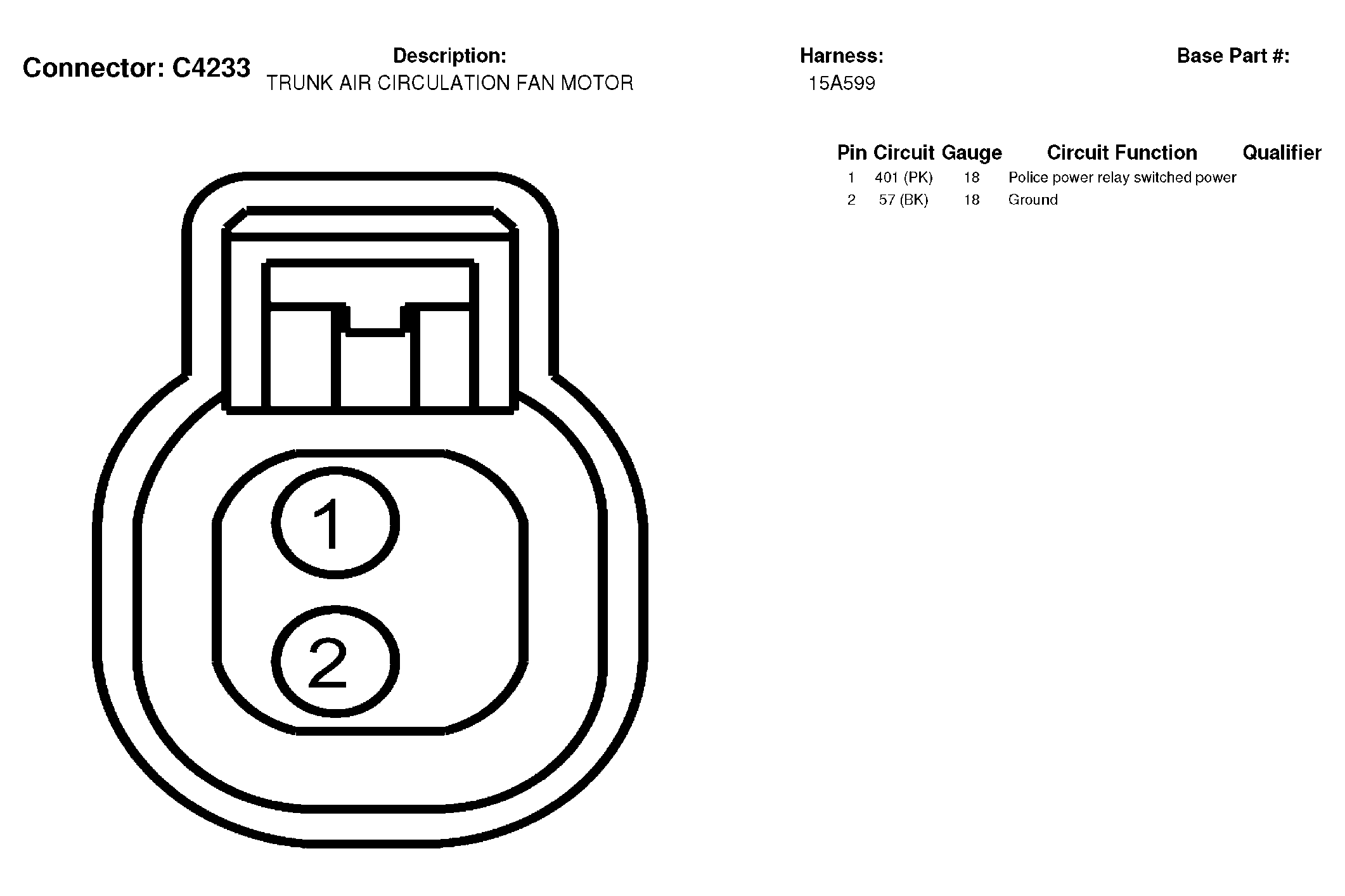

Fig 331: Trunk Air Circulation Fan Motor Connector End View (C4233)

G04595750

Courtesy of FORD MOTOR CO.

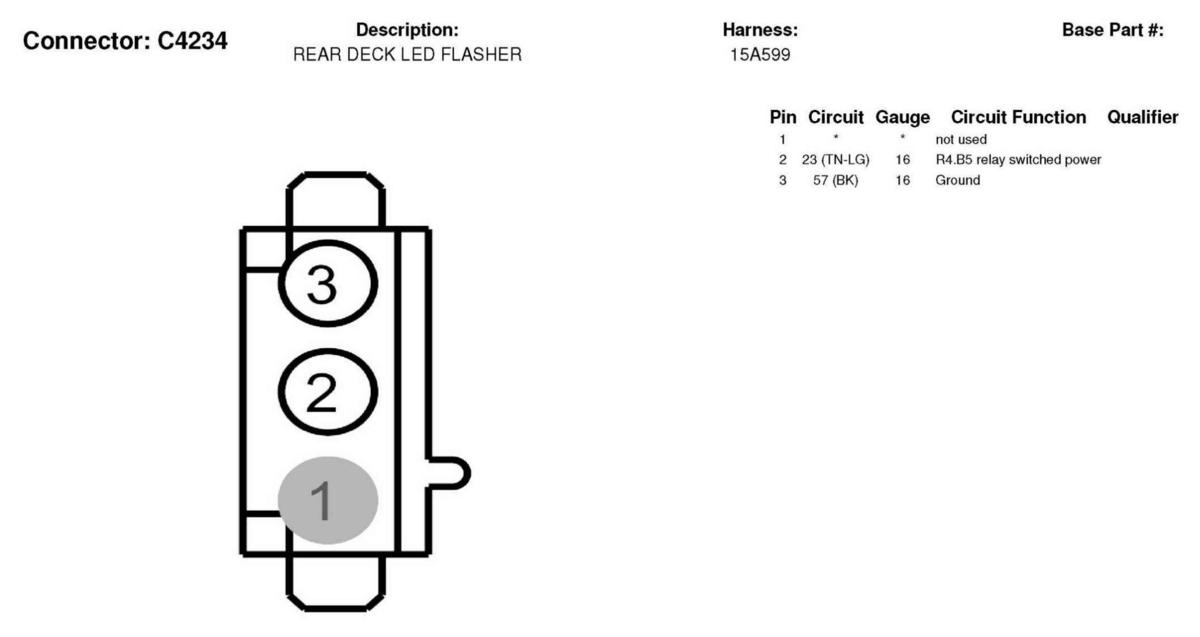

Fig 332: Rear Deck Led Flasher Connector End View (C4234)

G04595751

Courtesy of FORD MOTOR CO.

Fig 333: Left Rear Strobe Assembly Connector End View (C4235)

G04595752

Courtesy of FORD MOTOR CO.

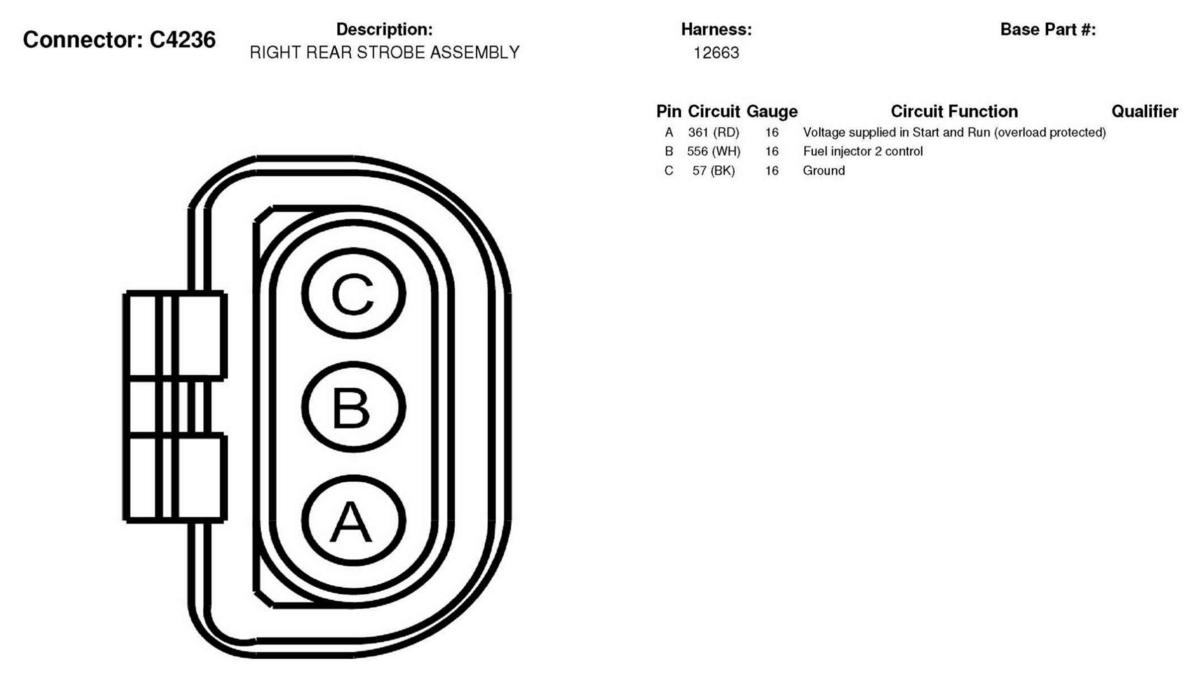

Fig 334: Right Rear Strobe Assembly Connector End View (C4236)

G04595753

Courtesy of FORD MOTOR CO.

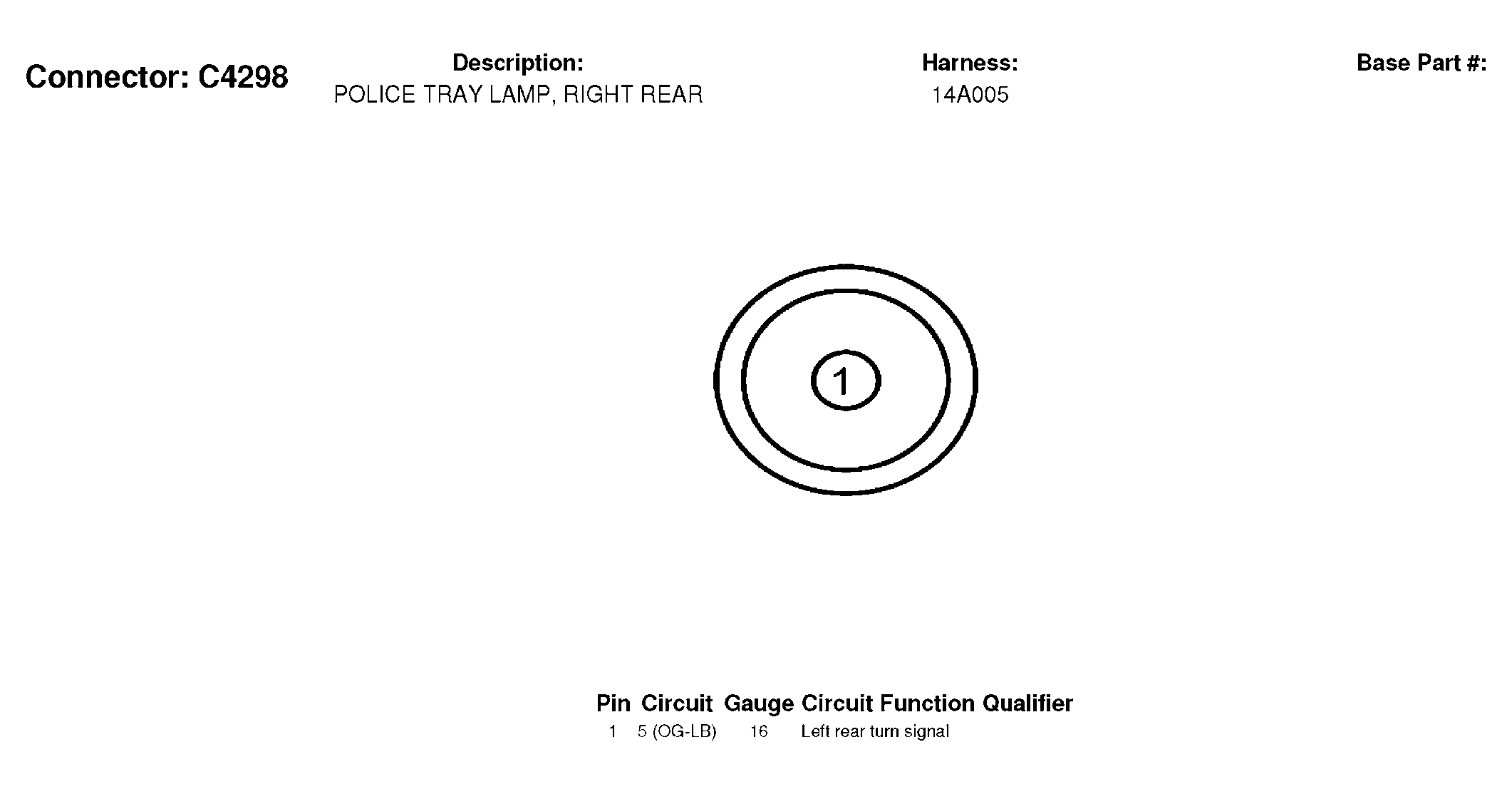

Fig 335: Police Tray Lamp, Right Rear Connector End View (C4298)

G04595754

Courtesy of FORD MOTOR CO.

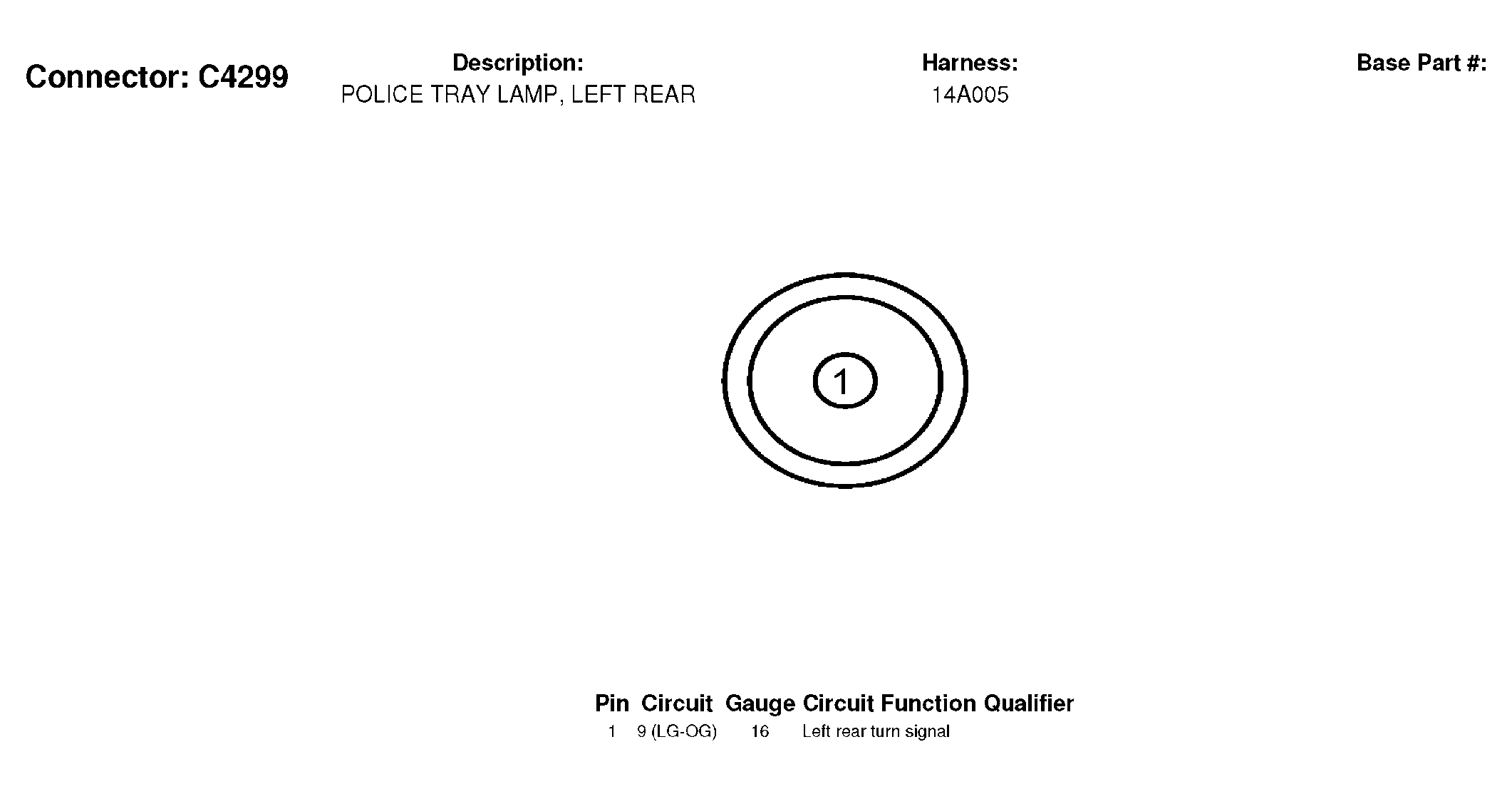

Fig 336: Police Tray Lamp, Left Rear Connector End View (C4299)

G04595755

Courtesy of FORD MOTOR CO.

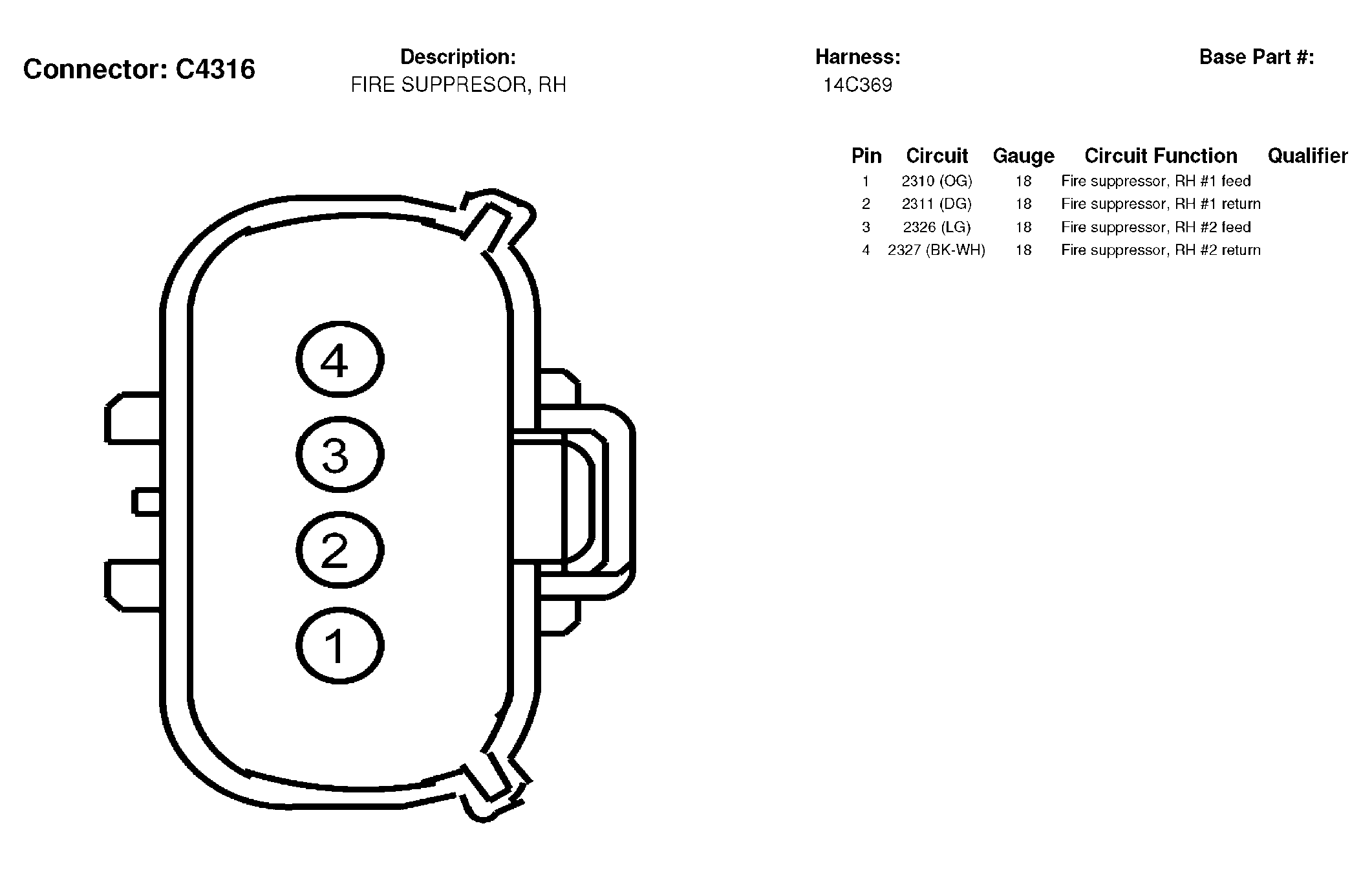

Fig 337: Fire Suppressor, RH Connector End View (C4316)

G04595756

Courtesy of FORD MOTOR CO.

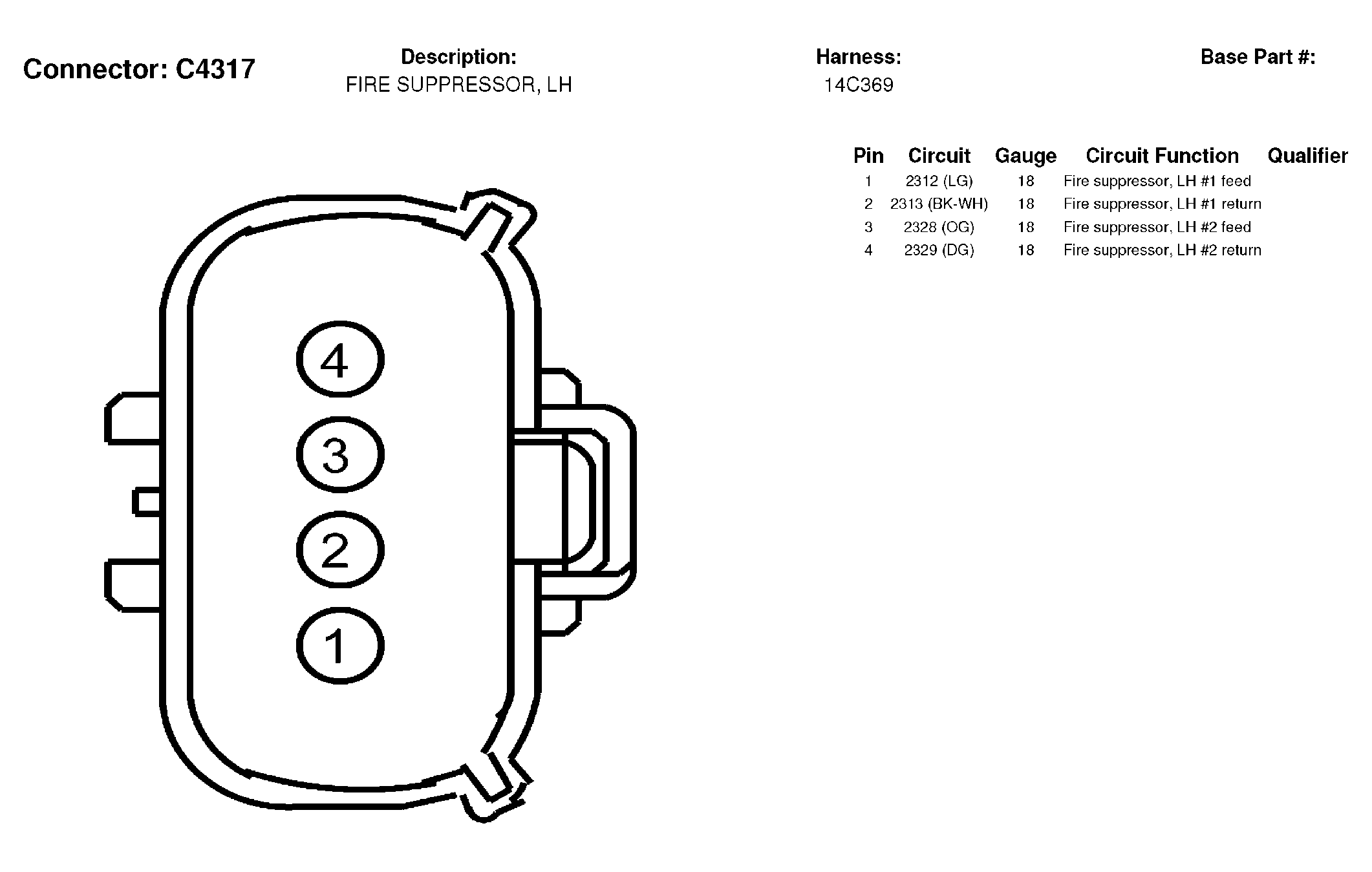

Fig 338: Fire Suppressor, LH Connector End View (C4317)

G04595757

Courtesy of FORD MOTOR CO.

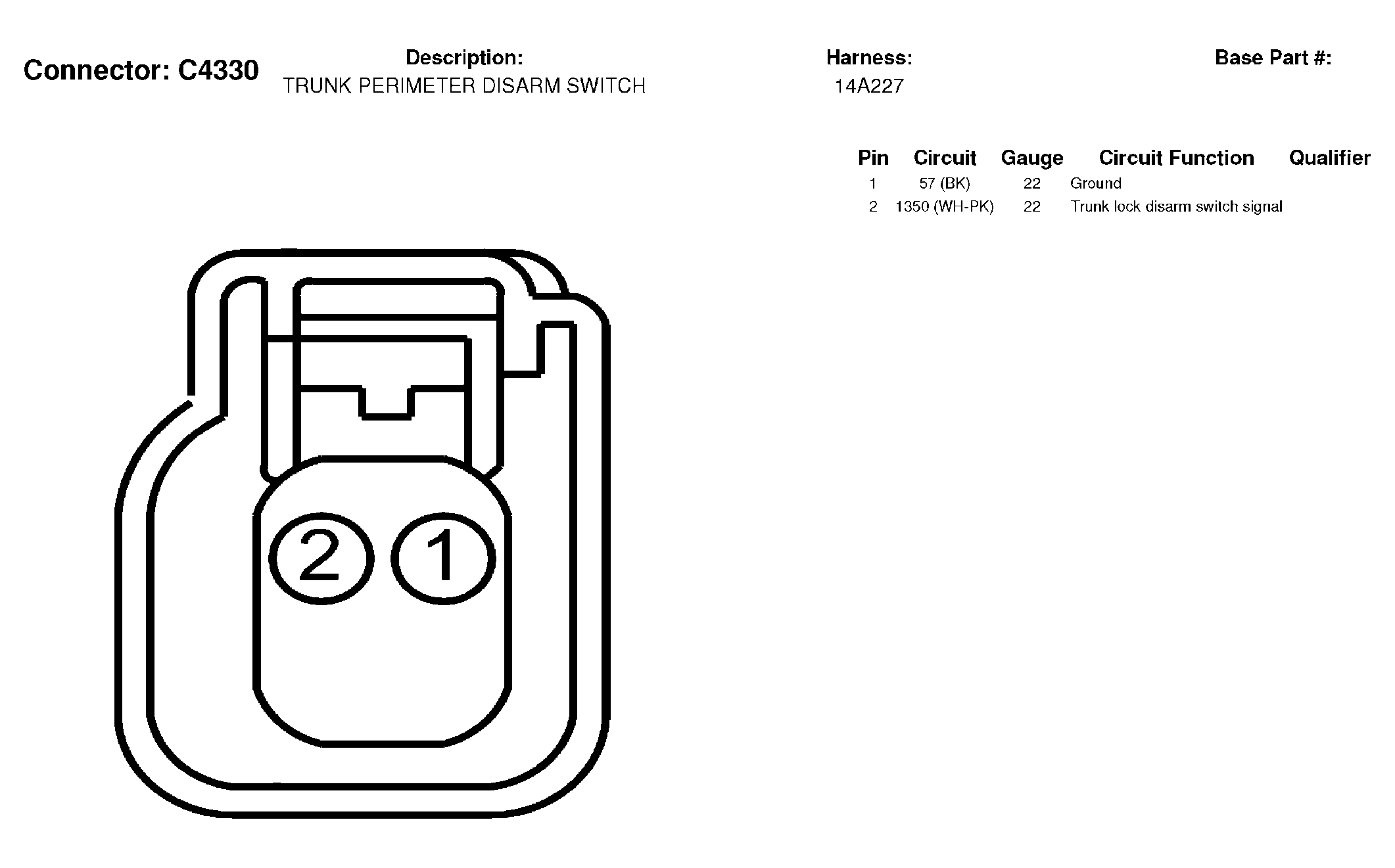

Fig 339: Trunk Perimeter Disarm Switch Connector End View (C4330)

G04595758

Courtesy of FORD MOTOR CO.

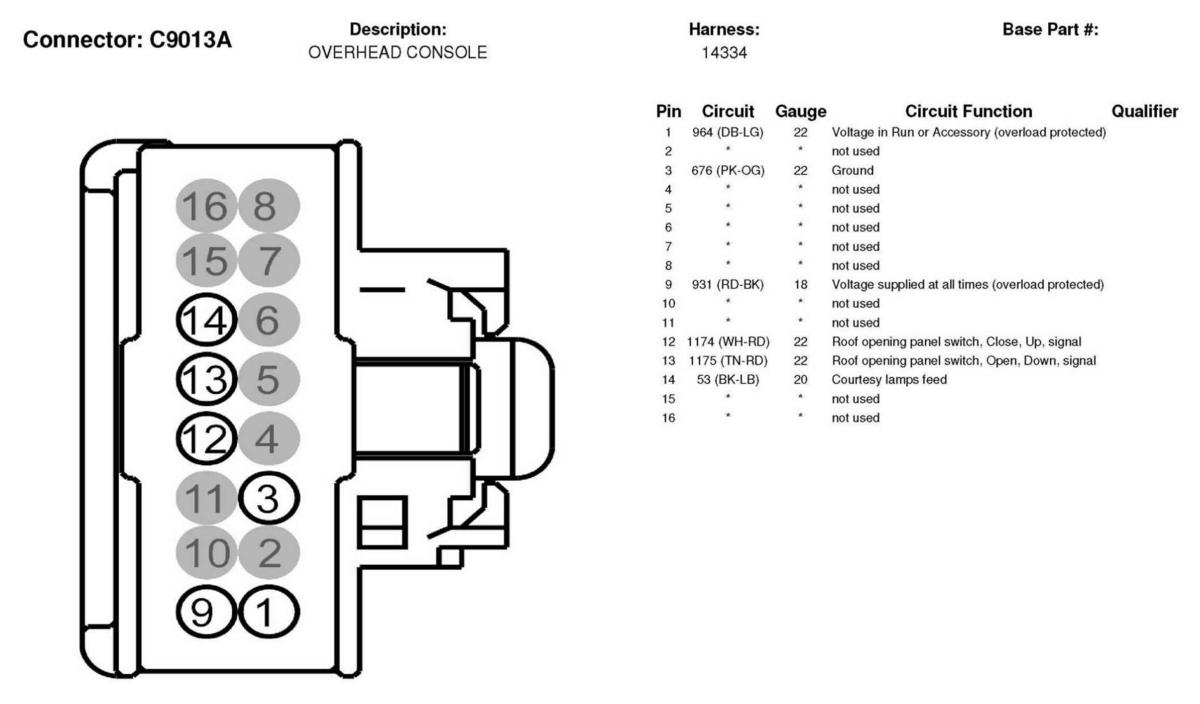

Fig 340: Overhead Console Connector End View (C9013A)

G04595759

Courtesy of FORD MOTOR CO.

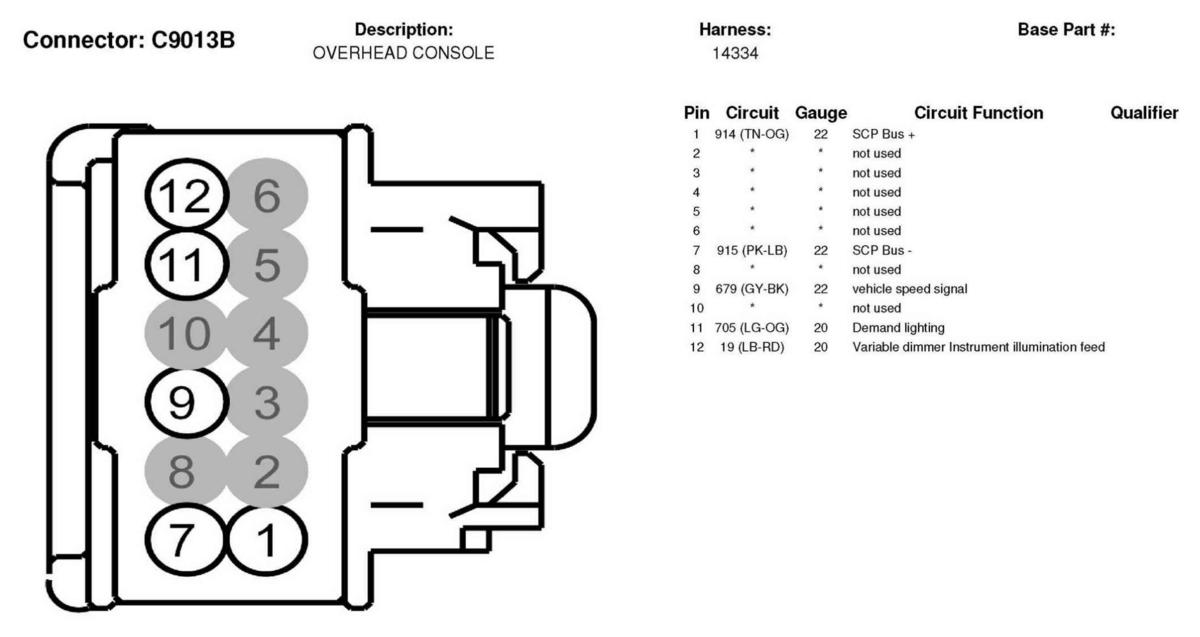

Fig 341: Overhead Console Connector End View (C9013B)

G04595760

Courtesy of FORD MOTOR CO.

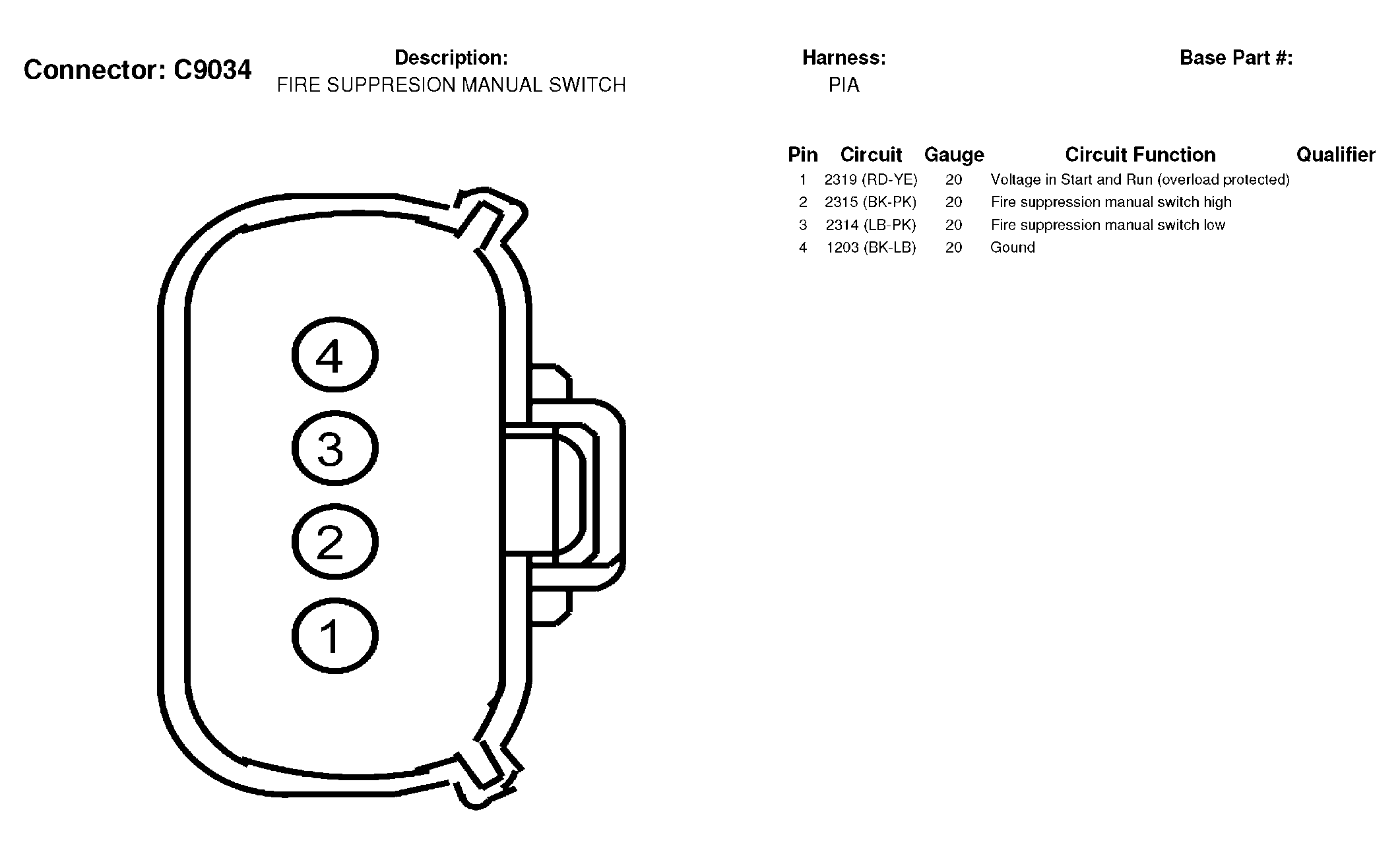

Fig 342: Fire Suppression Manual Switch Connector End View (C9034)

G04595761

Courtesy of FORD MOTOR CO.
