Transmission Range (TR) Sensor Adjustment

SPECIAL TOOL DESCRIPTION

Alignment Gauge, TR Sensor 307-351 (T97L-70010-A)

WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
2. Loosen the digital transmission range (TR) sensor bolts.

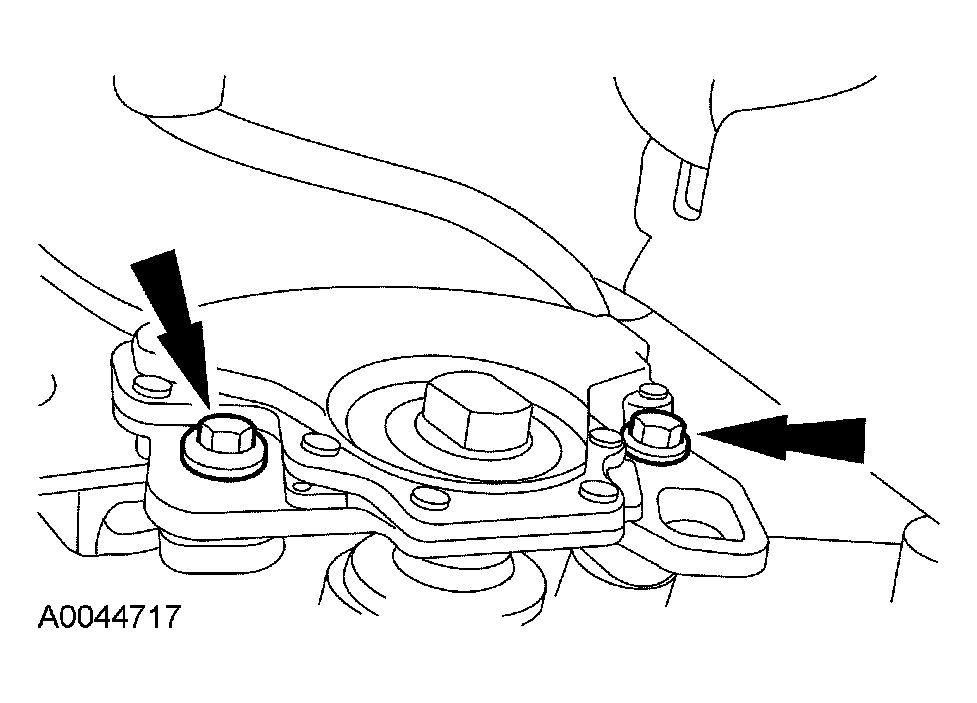

   Fig 1: Identifying Digital Transmission Range (TR) Sensor Bolts

   Courtesy of FORD MOTOR CO.
NOTE: Make sure that the manual lever is in the NEUTRAL position.
Fig 2: Aligning Digital TR Sensor Slots Using Special Tool (307-351)
Courtesy of FORD MOTOR CO.
3. Using the special tool, align the digital TR sensor slots. The tool is designed to fit snugly.
CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.
4. Tighten the digital TR sensor bolts and remove the special tool.
   • Tighten to 9 Nm (80 lb-in).
     Fig 3: Aligning Digital TR Sensor Slots With Special Tool

     Courtesy of FORD MOTOR CO.
5. Verify that the vehicle starts in the PARK and NEUTRAL positions and the reverse lamps illuminate in REVERSE.
WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .
6. If equipped with fire suppression system, repower the system.
