Anti-Lock Brake System (Abs) Module: Notes

NOTE: Standard ABS shown, traction control stability assist similar.

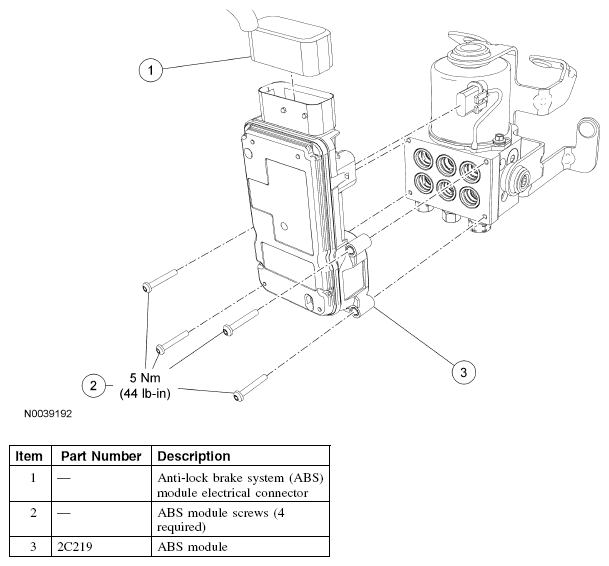

Fig 1: Anti-Lock Brake System (ABS) Module With Torque Specification

Courtesy of FORD MOTOR CO.
