Exhaust System - Exploded View

Exhaust System, 4.6L Engine

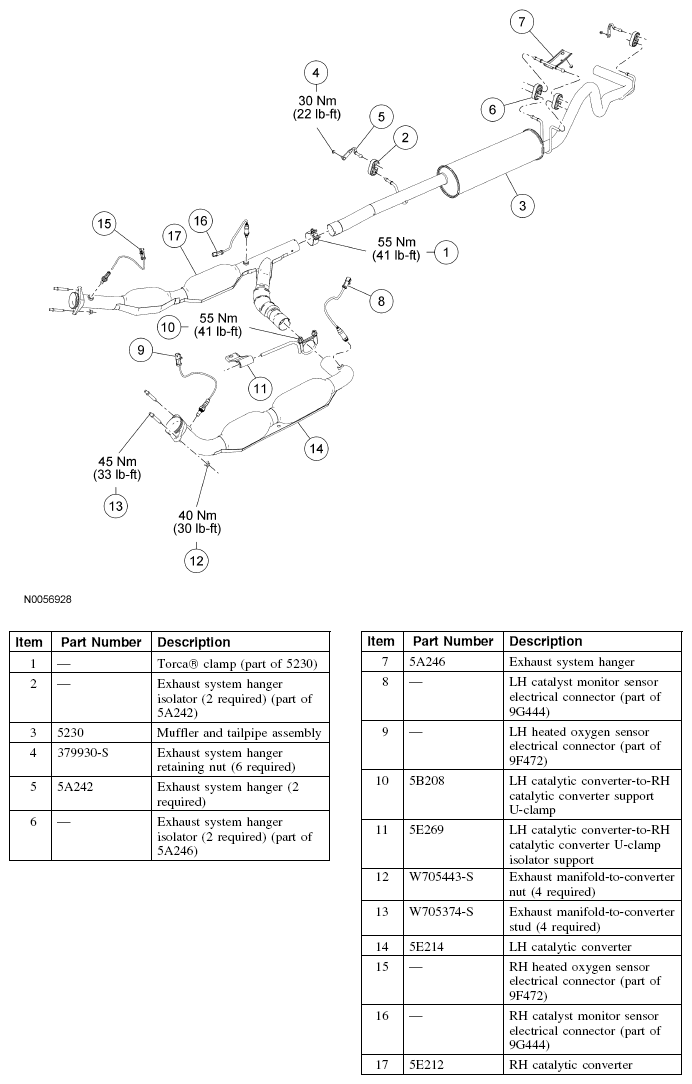

Fig 1: Exploded View Of Exhaust System - 4.6L Engine With Torque Specifications
G04616521Courtesy of FORD MOTOR CO.

Exhaust System, 5.4L and California 6.8L Engines

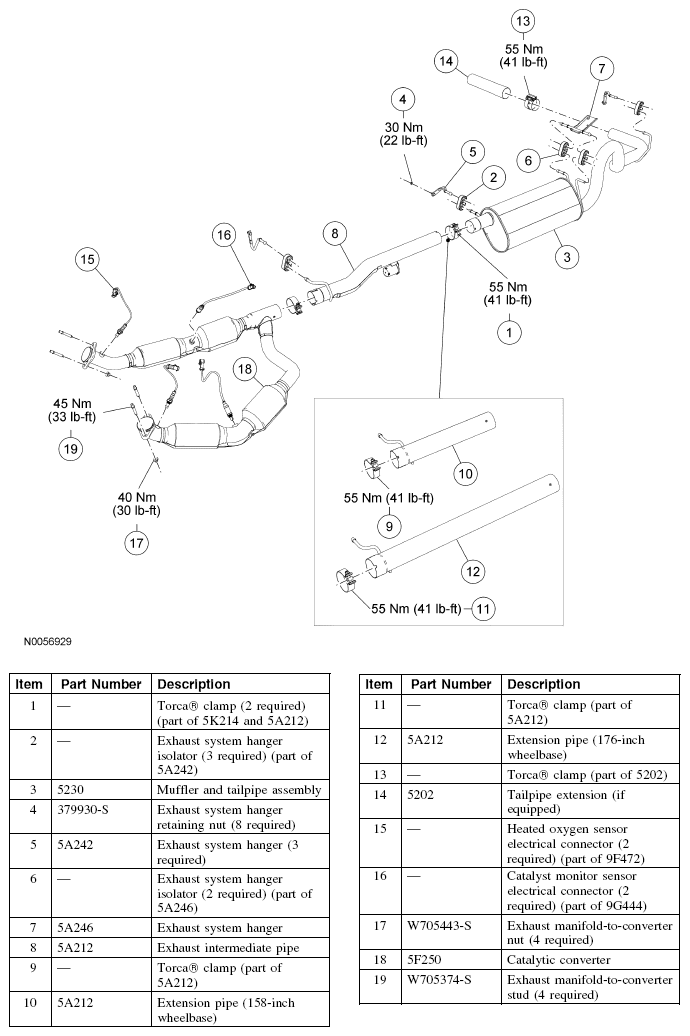

Fig 2: Exploded View Of Exhaust System - 5.4L & California 6.8L Engines With Torque Specifications
G04616522Courtesy of FORD MOTOR CO.

Exhaust System, 6.8L Engine

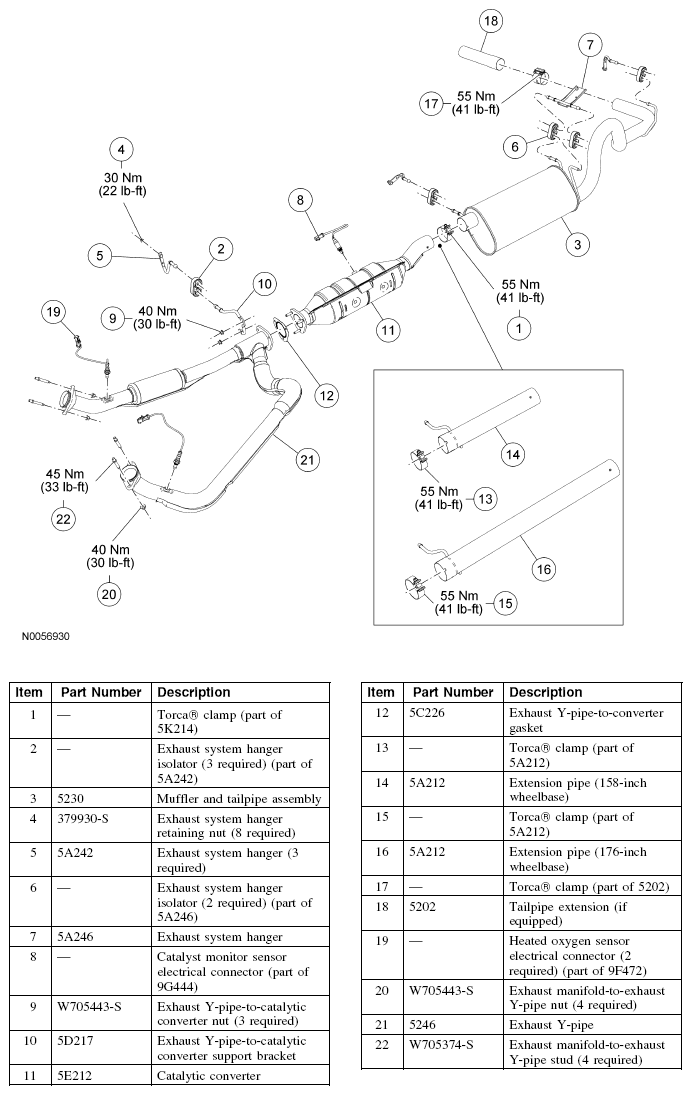

Fig 3: Exploded View Of Exhaust System - 6.8L Engine With Torque Specifications
G04616523Courtesy of FORD MOTOR CO.

Exhaust System, 6.0L Diesel Engine

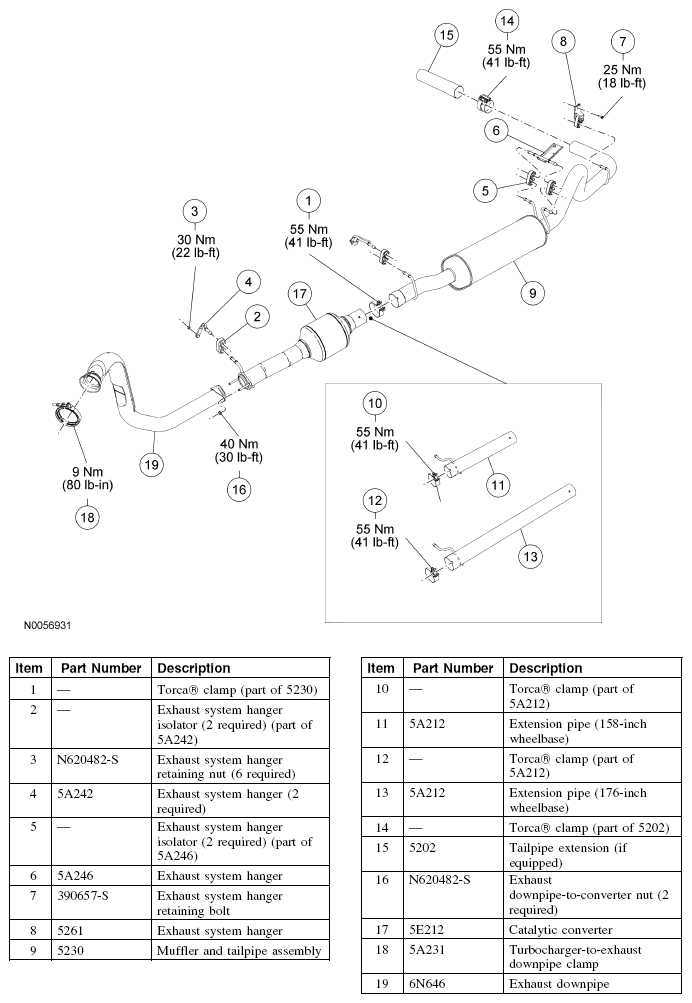

Fig 4: Exploded View Of Exhaust System - 6.0L Diesel Engine With Torque Specifications
G04616524Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedures.
