Engine Ignition - 6.8L
›
Removal And Installation
›
Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View
LH Shown, RH Similar

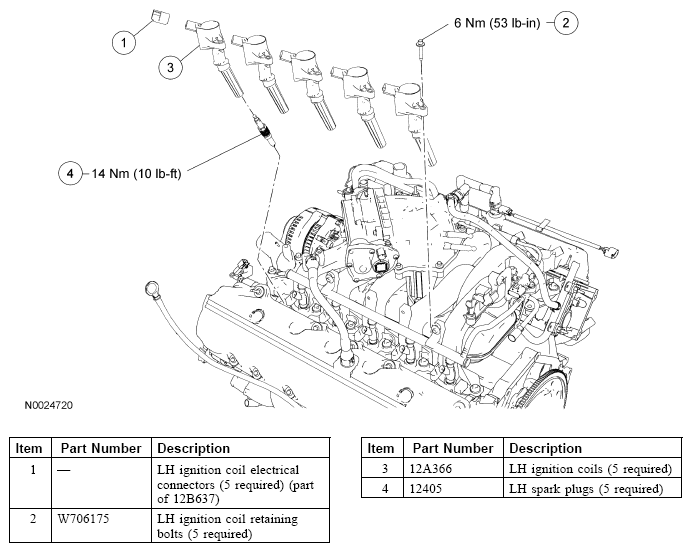

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications & Part Numbers
Courtesy of FORD MOTOR CO.
