Steering Linkage - Exploded View

NOTE: E-250-450 shown, E-150 similar.

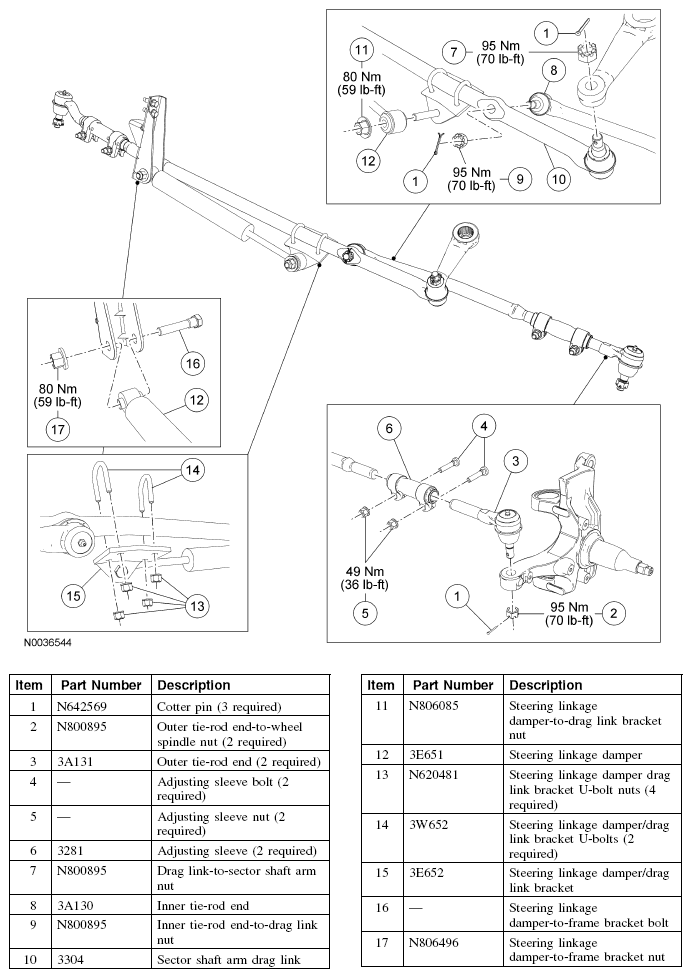

Fig 1: Exploded View Of Steering Linkage With Torque Specifications

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the appropriate procedures.
