Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment (Except Diesel & Stripped Chassis)

G00418273

Courtesy of FORD MOTOR CO.

Fig 2: Engine Compartment (Diesel)

G00365071

Courtesy of FORD MOTOR CO.

Fig 3: Engine Compartment (Stripped Chassis)

G00365072

Courtesy of FORD MOTOR CO.

Fig 4: Left Rear Of Engine Compartment (Except Diesel & Stripped Chassis)

G00418274

Courtesy of FORD MOTOR CO.

Fig 5: Engine Compartment, Master Cylinder Area (Except Diesel & Stripped Chassis)

G00575073

Courtesy of FORD MOTOR CO.

Fig 6: Left Rear Of Engine Compartment (Diesel)

G00365074

Courtesy of FORD MOTOR CO.

Fig 7: Left Rear Of Engine Compartment (Diesel)

G00365075

Courtesy of FORD MOTOR CO.

Fig 8: Right Front Of Engine Compartment (Except Diesel)

G00365076

Courtesy of FORD MOTOR CO.

Fig 9: Front Of Engine (4.6L)

G00418275

Courtesy of FORD MOTOR CO.

Fig 10: Rear Of Engine (4.6L)

G00365078

Courtesy of FORD MOTOR CO.

Fig 11: Front Of Engine (5.4L)

G00365079

Courtesy of FORD MOTOR CO.

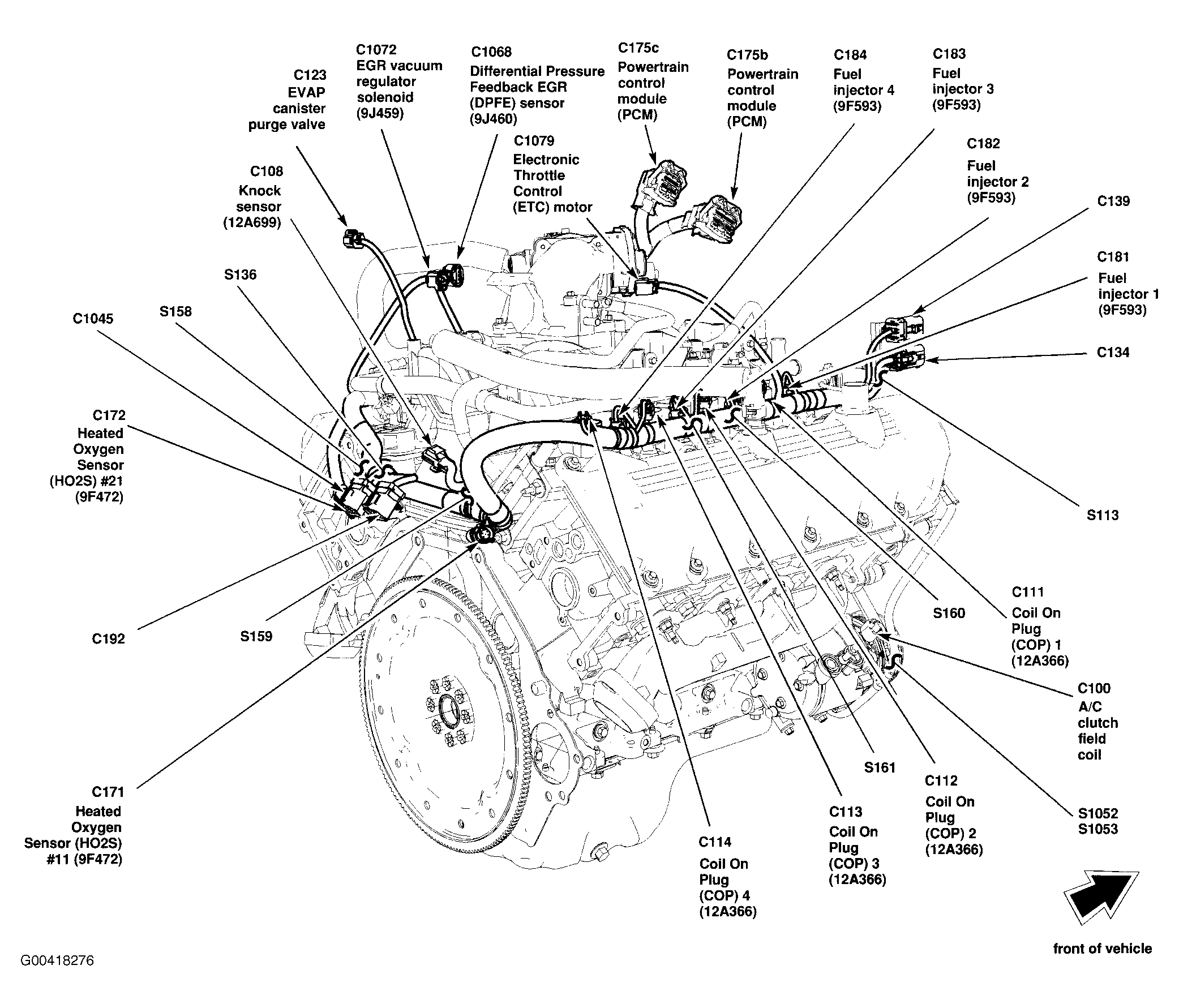

Fig 12: Rear Of Engine (5.4L)

G00418276

Courtesy of FORD MOTOR CO.

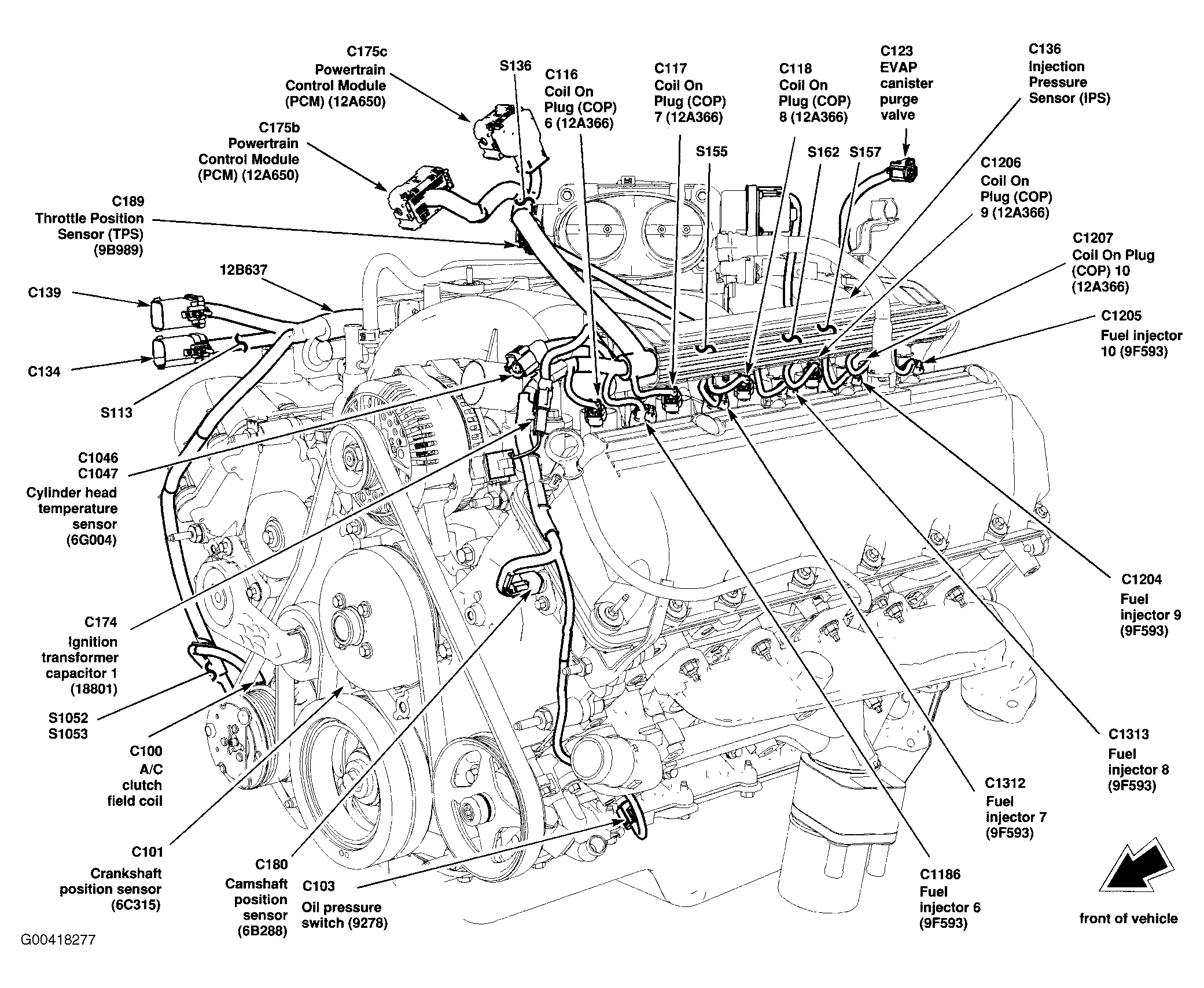

Fig 13: Front of Engine (6.8L)

G00418277

Courtesy of FORD MOTOR CO.

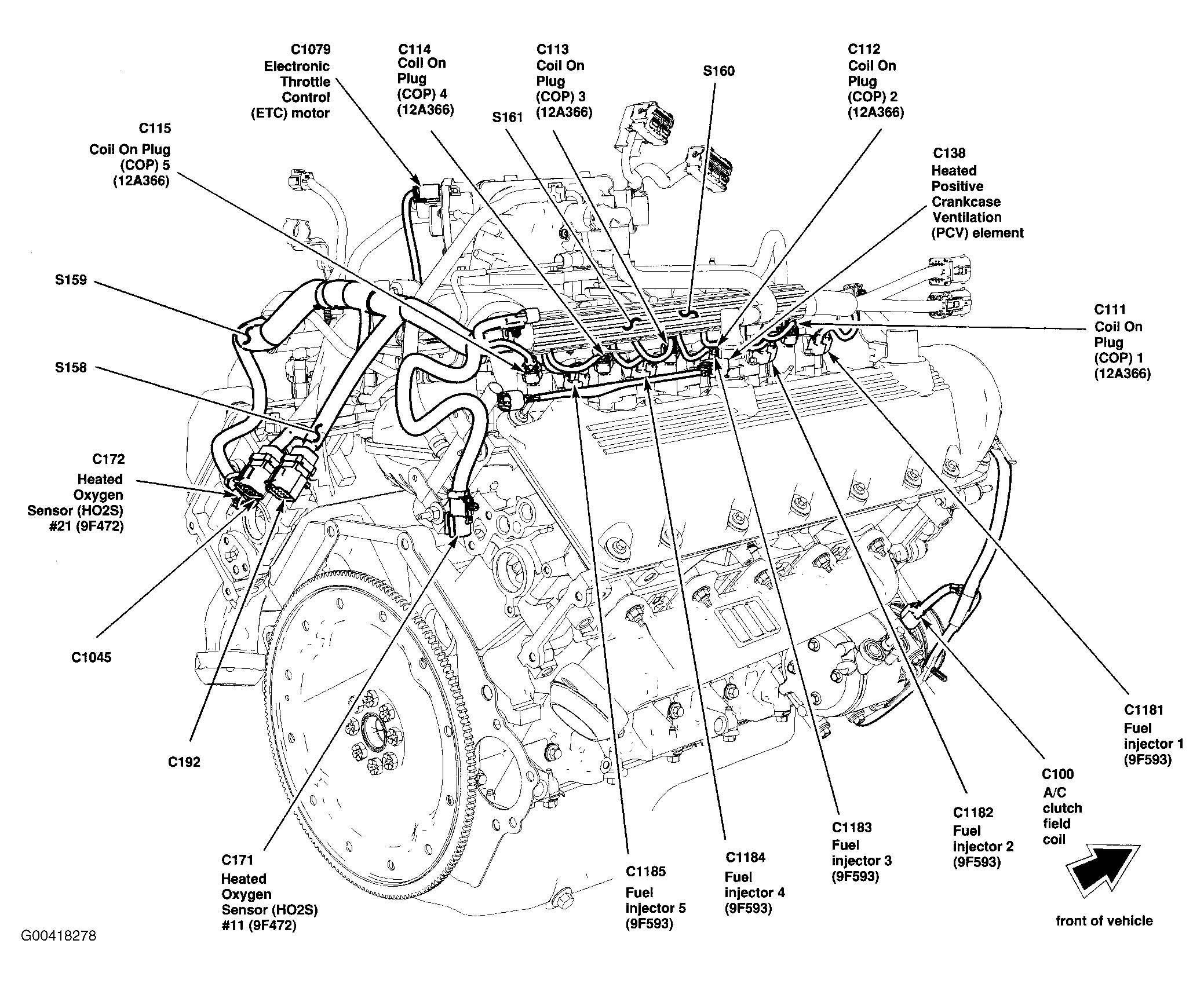

Fig 14: Rear Of Engine (6.8L)

G00418278

Courtesy of FORD MOTOR CO.

Fig 15: Front Of Engine (6.0L)

G00418279

Courtesy of FORD MOTOR CO.

Fig 16: Rear Of Engine (6.0L)

G00365084

Courtesy of FORD MOTOR CO.

Fig 17: Right Side Of Engine Compartment

G00365085

Courtesy of FORD MOTOR CO.

Fig 18: Top Front Of Engine

G00365086

Courtesy of FORD MOTOR CO.

Fig 19: 4R70E/4R75E Transmission

G00365087

Courtesy of FORD MOTOR CO.

Fig 20: TorqShift Transmission

G00365088

Courtesy of FORD MOTOR CO.

Fig 21: Dash (Except Stripped Chassis)

G00418280

Courtesy of FORD MOTOR CO.

Fig 22: Rear Of Dash

G00365090

Courtesy of FORD MOTOR CO.

Fig 23: Instrument Panel Harness (Stripped Chassis)

G00365091

Courtesy of FORD MOTOR CO.

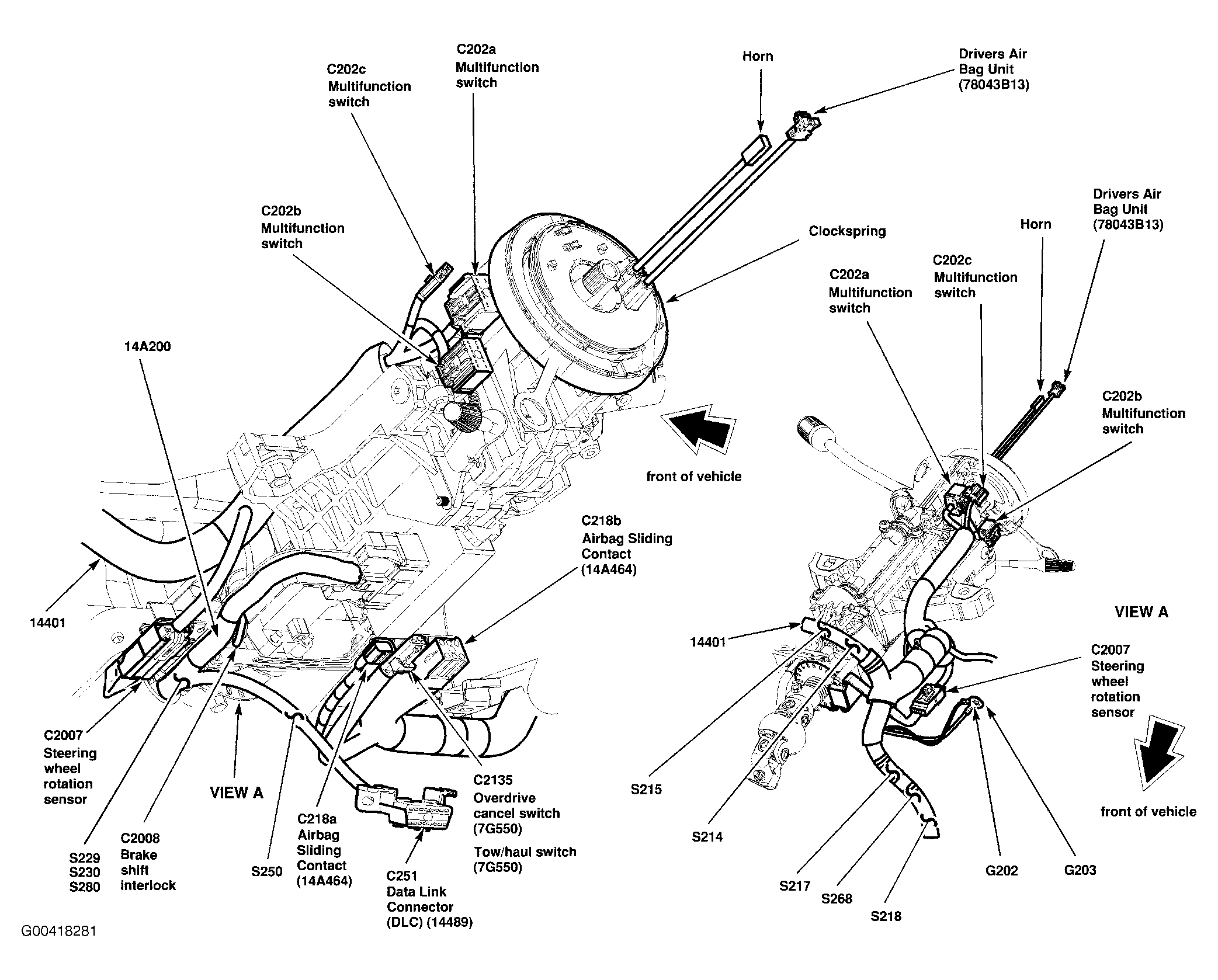

Fig 24: Steering Column

G00418281

Courtesy of FORD MOTOR CO.

Fig 25: Right "A" Pillar

G00418282

Courtesy of FORD MOTOR CO.

Fig 26: Left "B" Pillar

G00365094

Courtesy of FORD MOTOR CO.

Fig 27: Left Front Floor & Kick Panel

G00365095

Courtesy of FORD MOTOR CO.

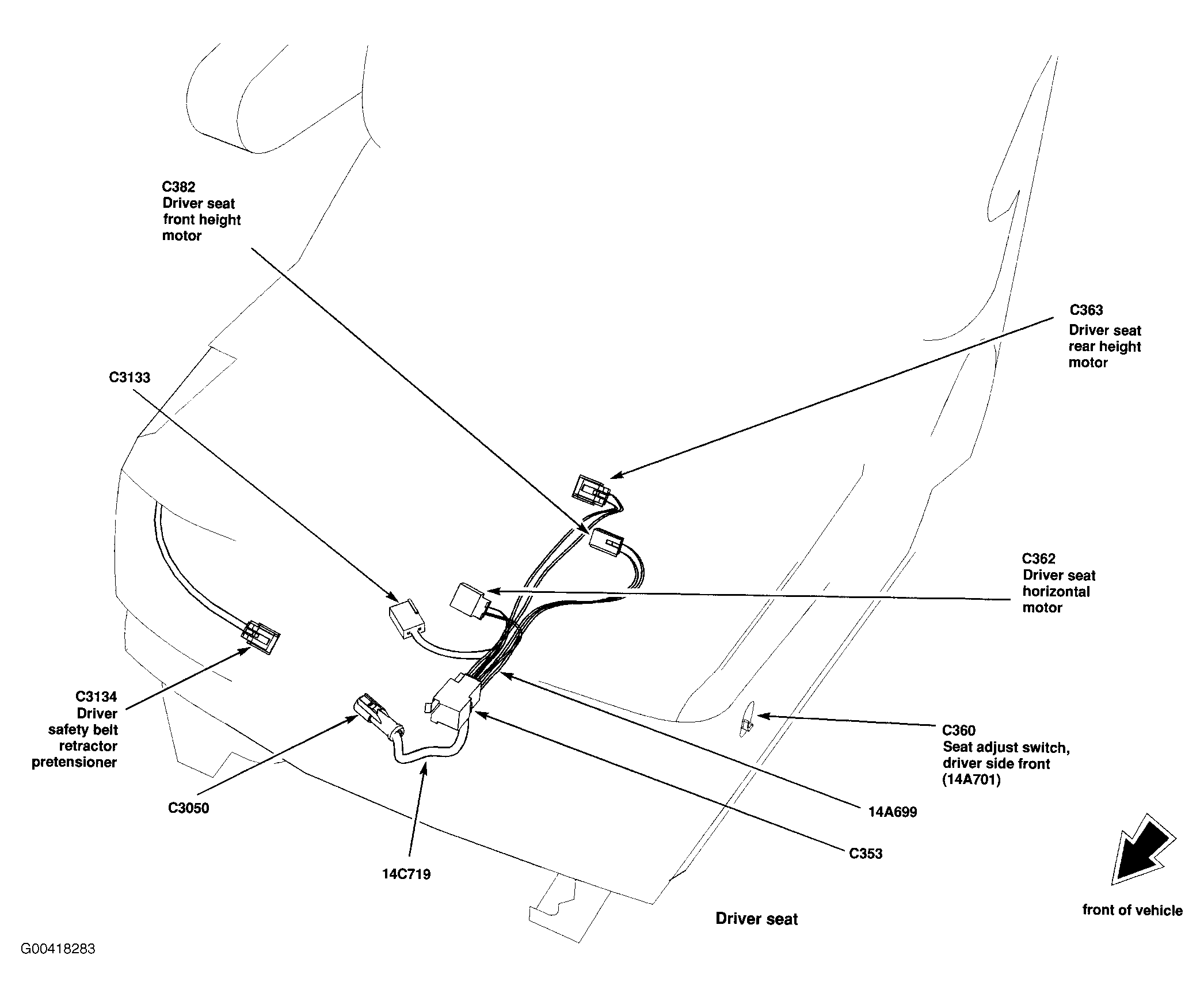

Fig 28: Driver's Seat

G00418283

Courtesy of FORD MOTOR CO.

Fig 29: Left Front Door

G00365097

Courtesy of FORD MOTOR CO.

Fig 30: Right Front Door

G00365098

Courtesy of FORD MOTOR CO.

Fig 31: Hinged Side Door

G00365099

Courtesy of FORD MOTOR CO.

Fig 32: Sliding Door

G00365100

Courtesy of FORD MOTOR CO.

Fig 33: Rear Doors

G00365101

Courtesy of FORD MOTOR CO.

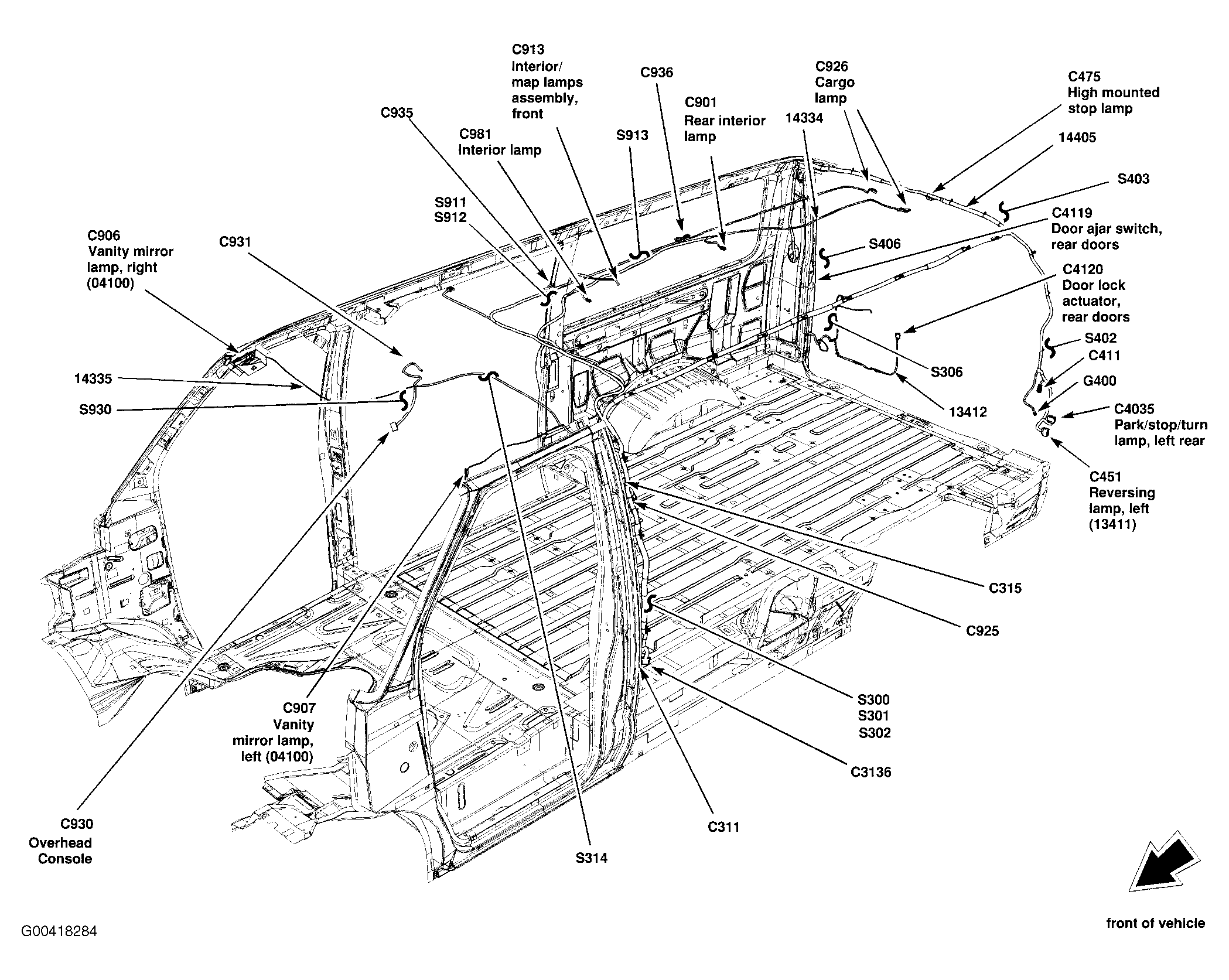

Fig 34: Left Front Roof

G00418284

Courtesy of FORD MOTOR CO.

Fig 35: Right Rear Of Vehicle

G00365103

Courtesy of FORD MOTOR CO.

Fig 36: Front HVAC

G00365104

Courtesy of FORD MOTOR CO.

Fig 37: Rear HVAC

G00365105

Courtesy of FORD MOTOR CO.

Fig 38: Chassis (Gas)

G00418285

Courtesy of FORD MOTOR CO.

Fig 39: Chassis (Diesel)

G00418286

Courtesy of FORD MOTOR CO.

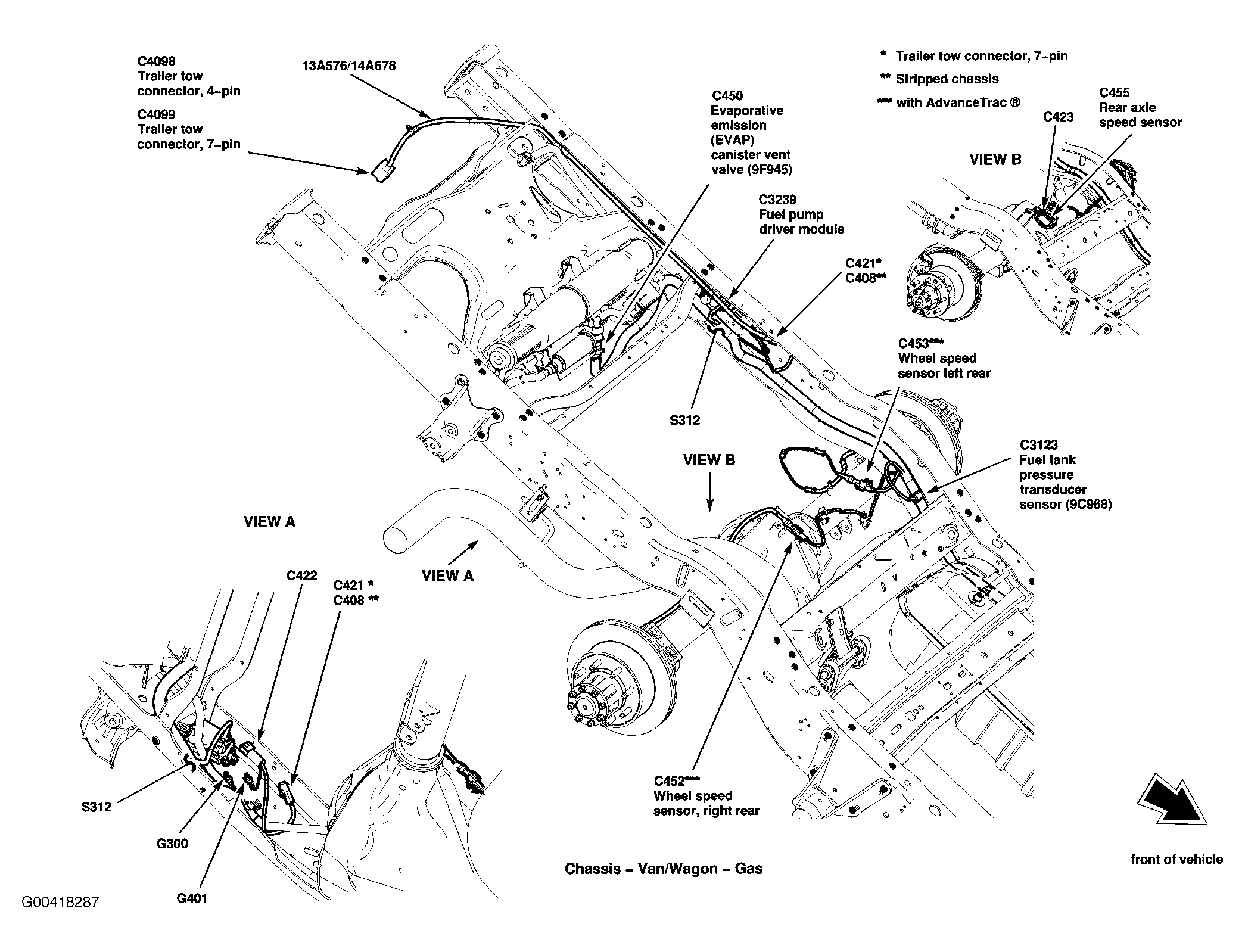

Fig 40: Rear Underside Of Chassis

G00418287

Courtesy of FORD MOTOR CO.

Fig 41: Right Side Frame Rail

G00365109

Courtesy of FORD MOTOR CO.

Fig 42: Battery Junction Box (BJB)

G00365110

Courtesy of FORD MOTOR CO.

Fig 43: Auxiliary Relay Box 1

G00365111

Courtesy of FORD MOTOR CO.

Fig 44: Auxiliary Relay Box 2

G00365112

Courtesy of FORD MOTOR CO.

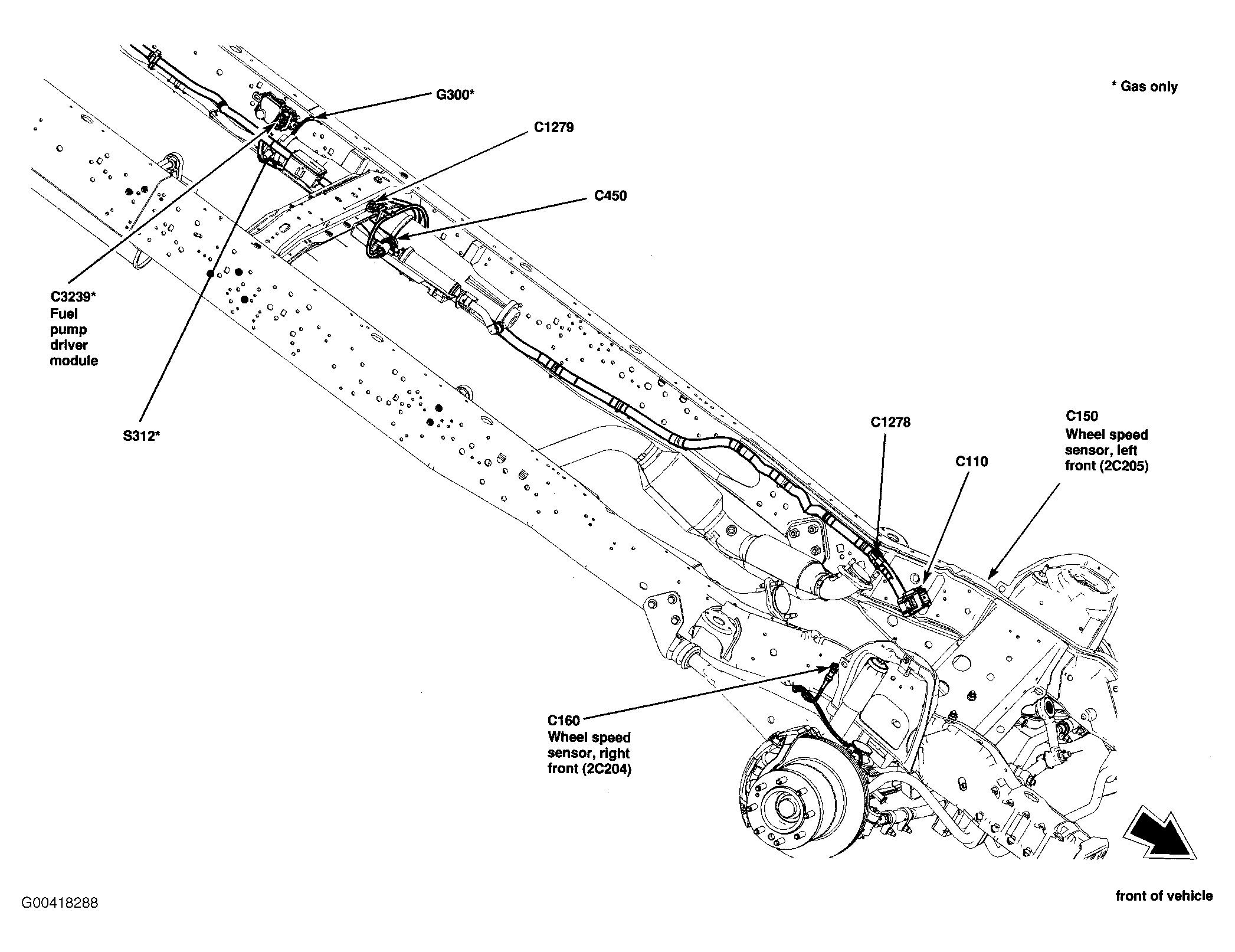

Fig 45: Front Of Chassis

G00418288

Courtesy of FORD MOTOR CO.

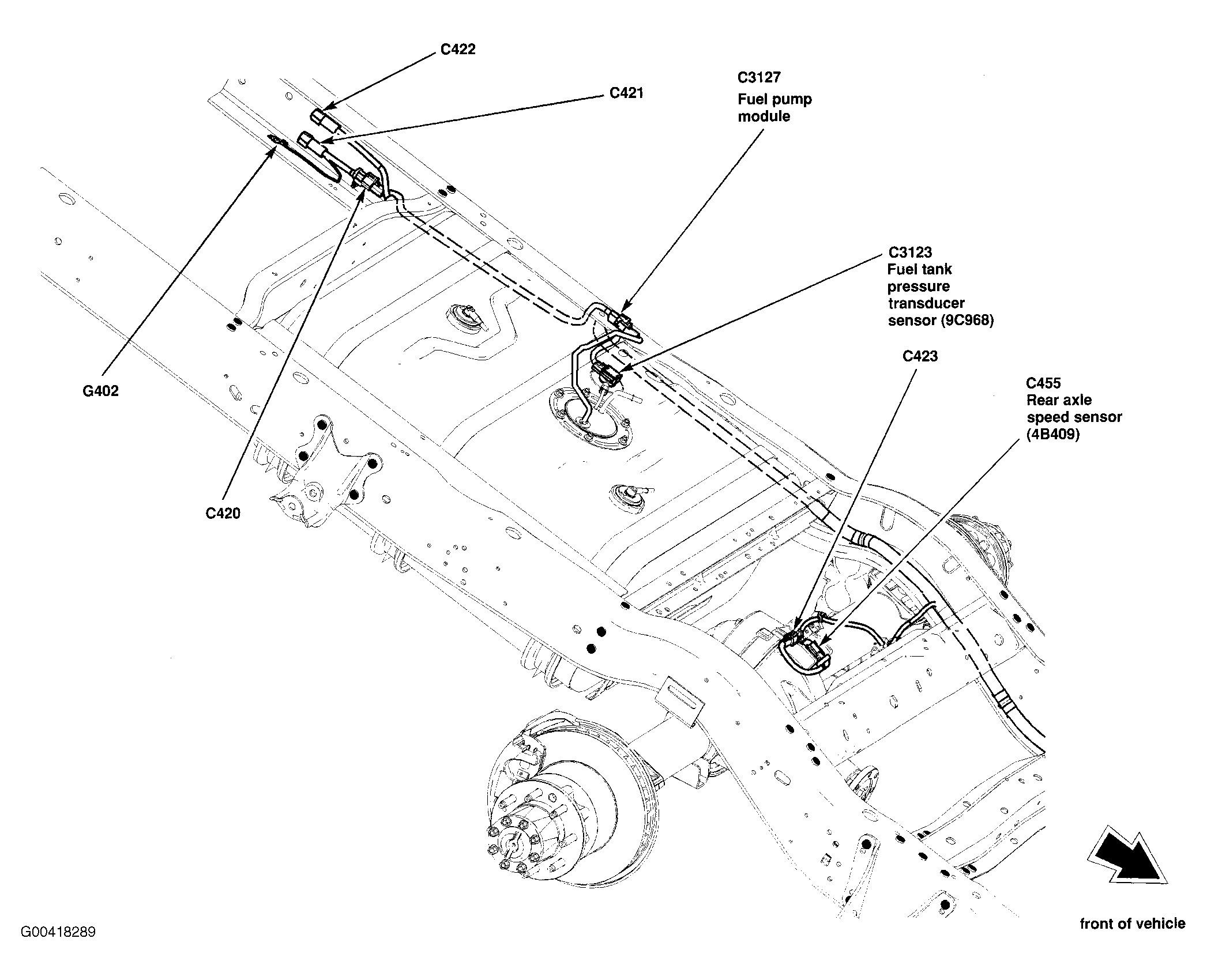

Fig 46: Rear Of Chassis

G00418289

Courtesy of FORD MOTOR CO.

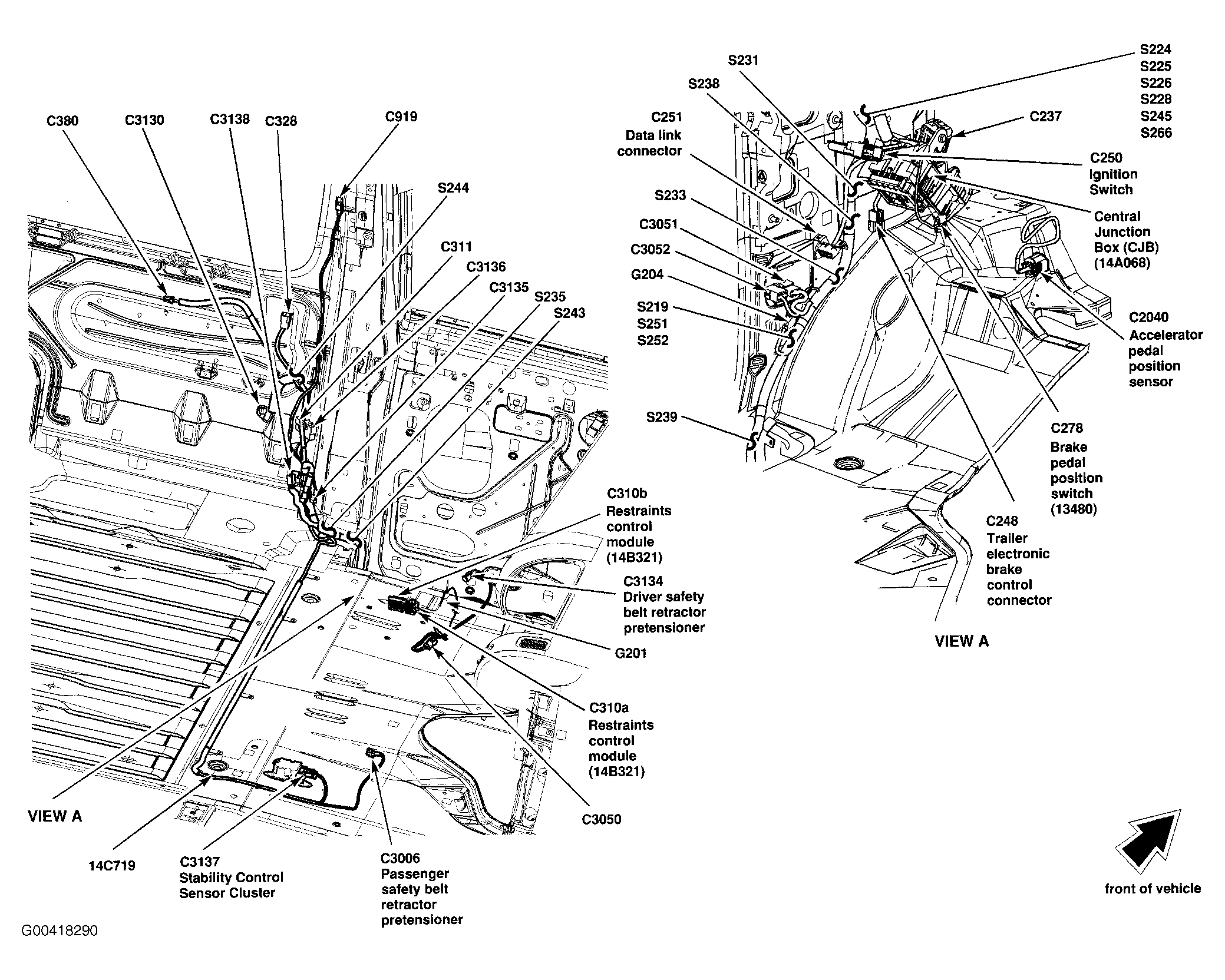

Fig 47: Floor Pan

G00418290

Courtesy of FORD MOTOR CO.

Fig 48: Engine Compartment (Gas)

G00441504

Courtesy of FORD MOTOR CO.

Fig 49: Engine Compartment (Stripped Chassis)

G00441507

Courtesy of FORD MOTOR CO.

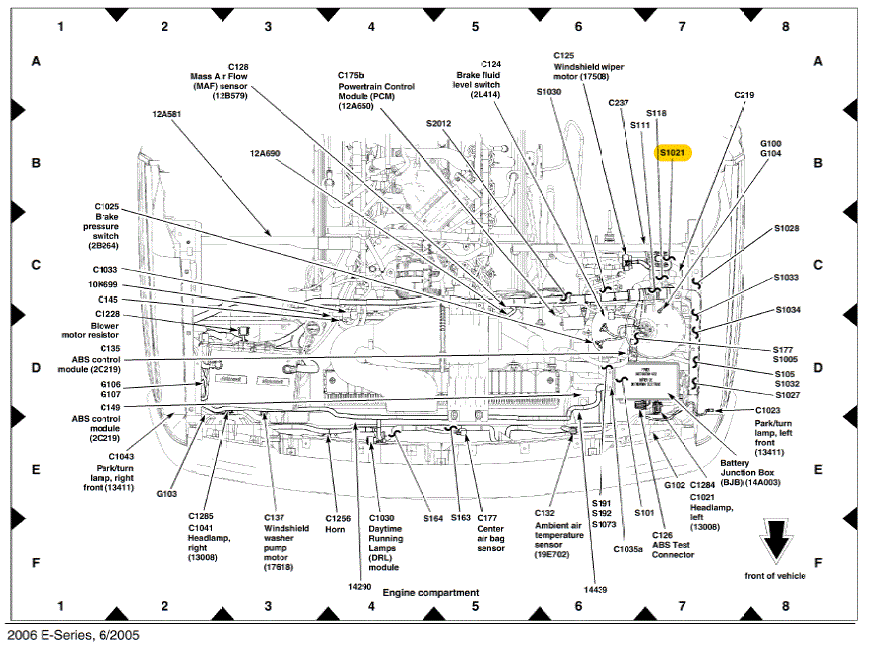

Fig 50: Engine Compartment

G00593733

Courtesy of FORD MOTOR CO.
