Engine Ignition Components - Exploded View

Engine Ignition - RH

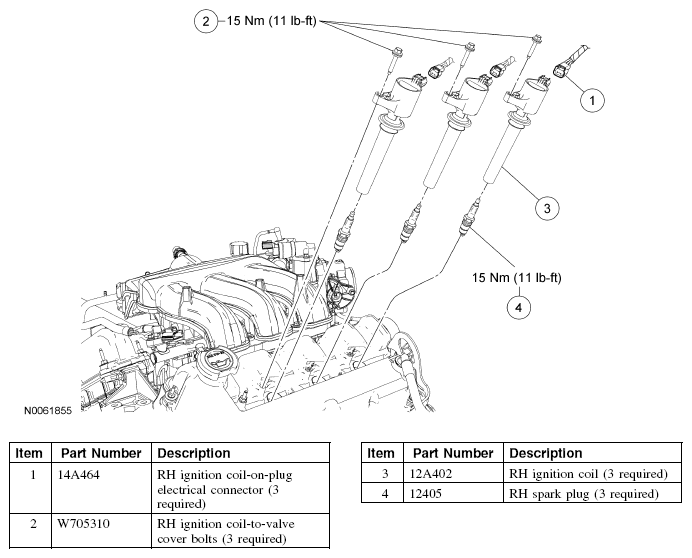

Fig 1: Engine Ignition Components With Torque Specifications - Exploded View (Engine Ignition - RH)
G04619658Courtesy of FORD MOTOR CO.

Engine Ignition - LH

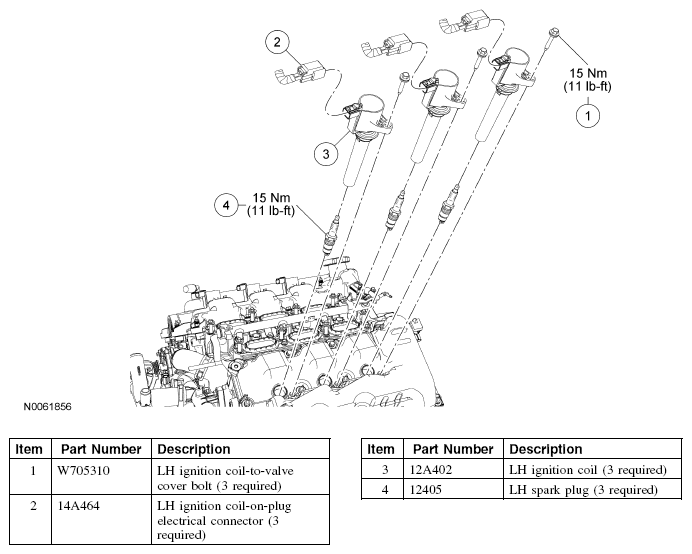

Fig 2: Engine Ignition Components With Torque Specifications - Exploded View (Engine Ignition - LH)
G04619659Courtesy of FORD MOTOR CO.
