Safety Belt Retractor - Front: Notes

SPECIAL TOOL(S) SPECIFICATIONS

Torx Bit, Safety Belt Bolt 501-010 (T77L-2100-A)

NOTE: Passenger side safety belt retractor shown, driver side similar.

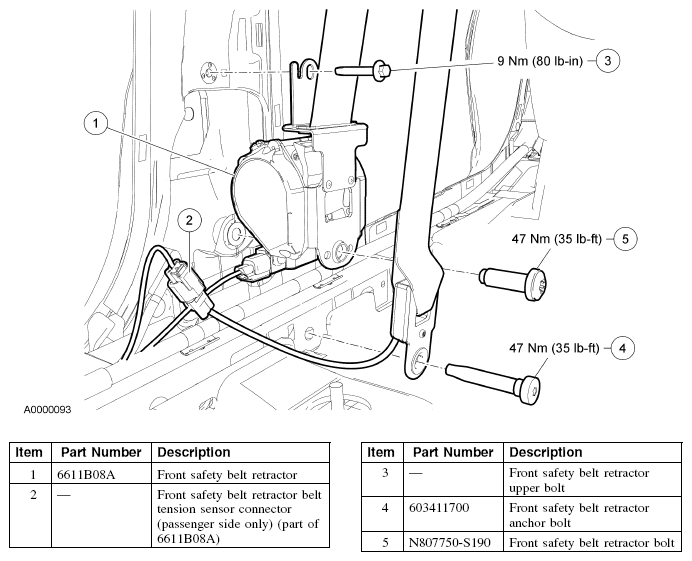

Fig 1: Safety Belt Retractor -- Front With Torque Specifications

Courtesy of FORD MOTOR CO.
