Powertrain Control Module (PCM): Notes

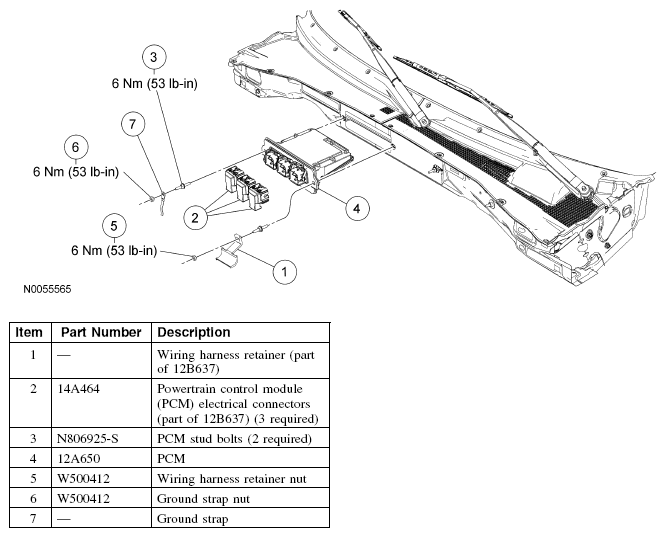

Fig 1: Powertrain Control Module (PCM) With Torque Specification
G04619740Courtesy of FORD MOTOR CO.
