Engine Ignition - 2.3L
›
Removal And Installation
›
Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View

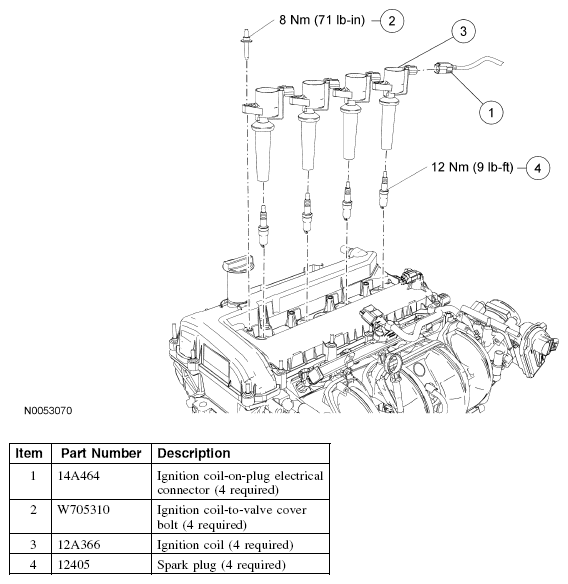

Fig 1: Engine Ignition Components - Exploded View (With Torque Specifications & Part Numbers)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
