Restraints Control Module (RCM): Removal

WARNING: This page is about a different car, the 2005 Lincoln Navigator and 2005 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not handle, move or change the original horizontal mounting position of the RESTRAINTS CONTROL MODULE (RCM)  while the RCM is connected and the ignition switch is ON. Failure to follow these instructions may result in the inadvertent deployment of the safety canopy and risk of personal injury.
WARNING: The RESTRAINTS CONTROL MODULE (RCM)  orientation is critical for proper air bag supplemental restraint system (SRS) operation. If a vehicle equipped with an SRS system has been involved in a collision in which the center tunnel area has been damaged, inspect the mounting and bracket for deformation. If damaged, the RCM must be replaced whether or not the air bags have deployed. In addition, make sure the area of the RCM mounting is restored to its original condition.
WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: To reduce the risk of personal injury, do not use any memory saver devices.
CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage can result.
NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE: When installing a new restraints control module (RCM), always make sure the correct RCM is being installed. If an incorrect RCM is installed, erroneous DTCs will result.
NOTE: Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.

    All vehicles

  1. Depower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .

    2. Vehicles with a center console

  2. Remove the center console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .

    3. Vehicles with 60/40 front bench seat

  3. Remove the 60 percent portion of the front bench seat. For additional information, refer to SEATING .
  4. Remove the nuts and the Restraints Control Module (RCM) top bracket.
    Fig 1: Removing Nuts And Restraints Control Module Top Bracket
    G03933061Courtesy of FORD MOTOR CO.
    5. WARNING: Do not handle, move or change the original horizontal mounting position of the RESTRAINTS CONTROL MODULE (RCM)  while the RCM is connected and the ignition switch is ON. Failure to follow these instructions may result in the inadvertent deployment of the safety canopy and risk of personal injury.

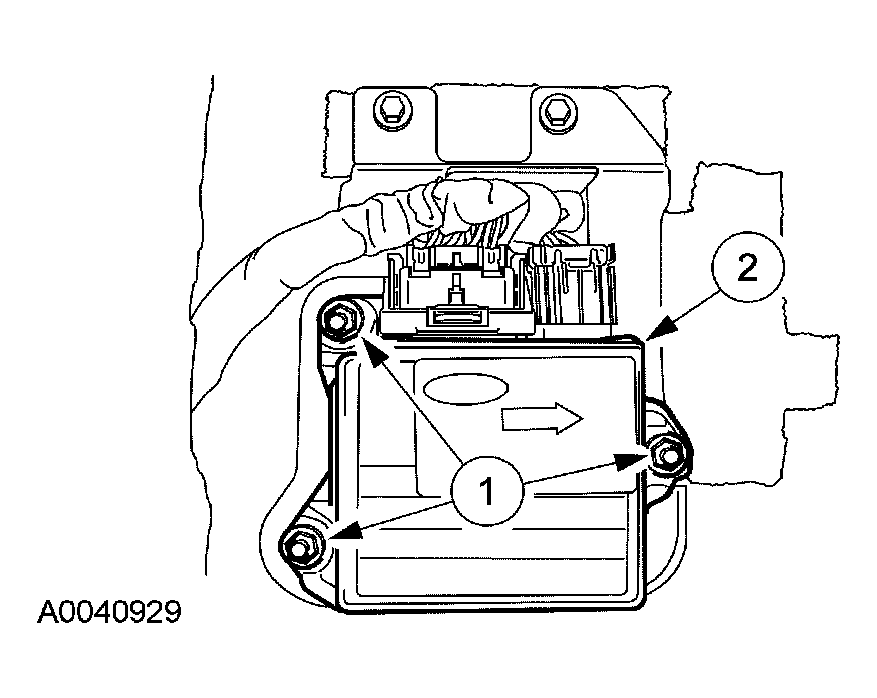

    Fig 2: Separating RCM From Bracket
    G03933062Courtesy of FORD MOTOR CO.
  5. Separate the RCM from the bracket.
    1. Remove the nuts.
    2. Separate the RCM from the bracket.

    6. All vehicles

  6. Disconnect the small Restraints Control Module (RCM) electrical connector.
    1. Push down to release the retaining tab.
    2. While releasing the retaining tab, pull out and disconnect the small RCM electrical connector.

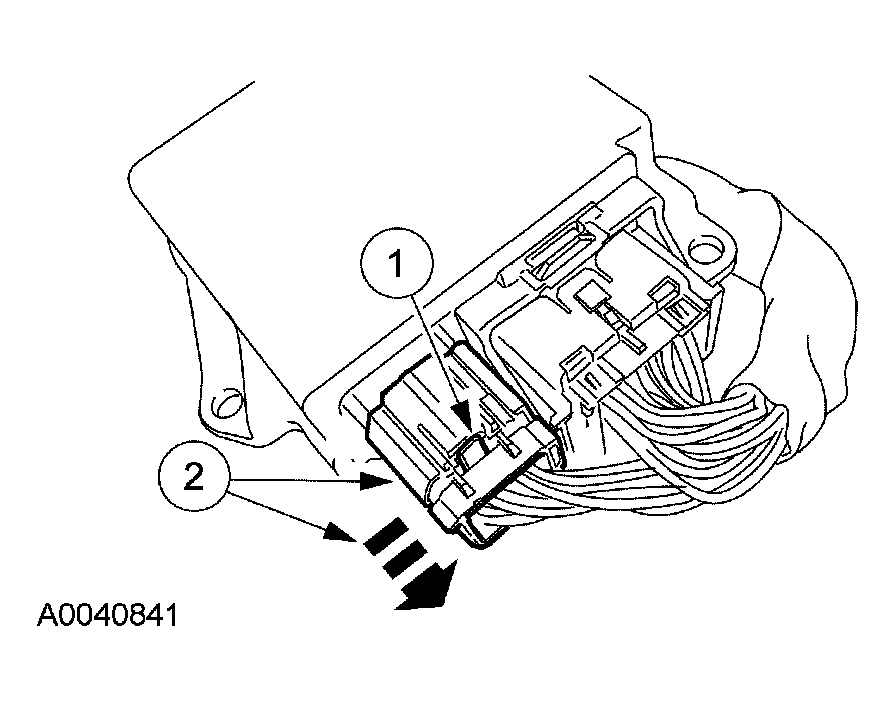

    Fig 3: Disconnecting Small Restraints Control Module (RCM) Electrical Connector
    G03933063Courtesy of FORD MOTOR CO.
  7. Disconnect the large RCM electrical connector.
    1. Pinch the thumb tab and pivot the connector position assurance lever away from the RCM, disengaging the lever.
    2. Pull out and disconnect the large RCM electrical connector.

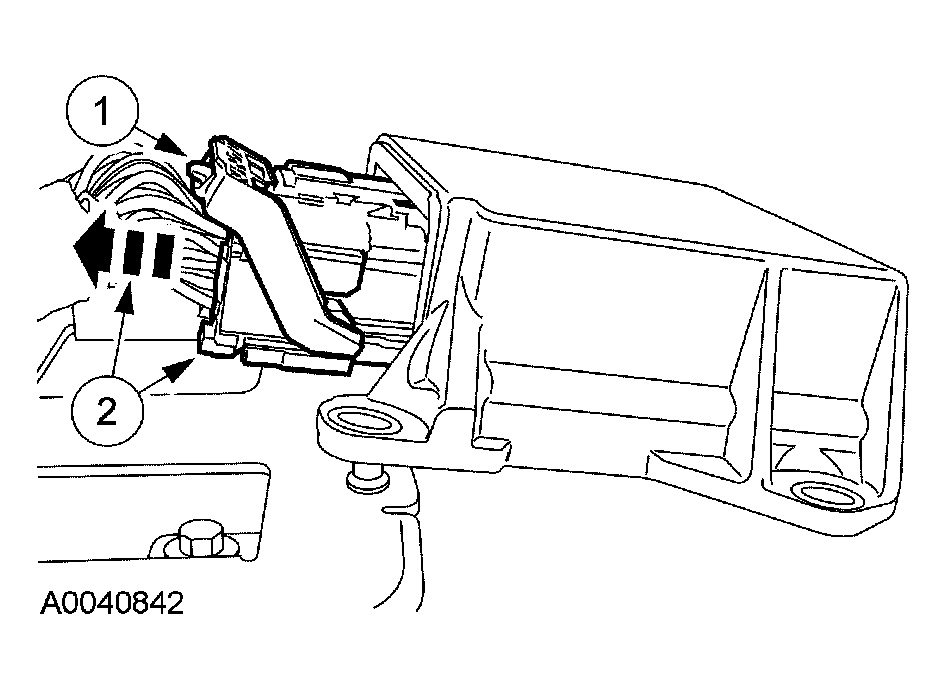

    Fig 4: Disconnecting Large RCM Electrical Connector
    G03933064Courtesy of FORD MOTOR CO.

    8. Vehicles with 60/40 front bench seat

  8. Remove the RCM.

    9. Vehicles with a center console

  9. Remove the RCM.
    1. Remove the RCM bracket bolts.
    2. Remove the RCM with bracket.

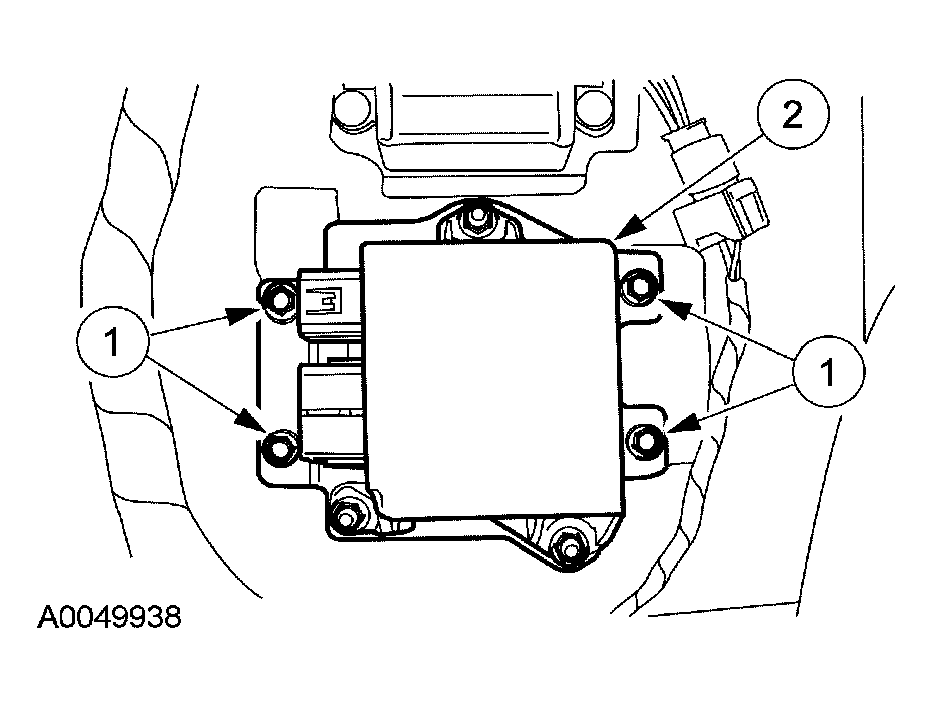

    Fig 5: Removing RCM
    G03933065Courtesy of FORD MOTOR CO.
