Front Auxiliary Climate Control Assembly

WARNING: This page is about a different car, the 2005 Lincoln Navigator and 2005 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

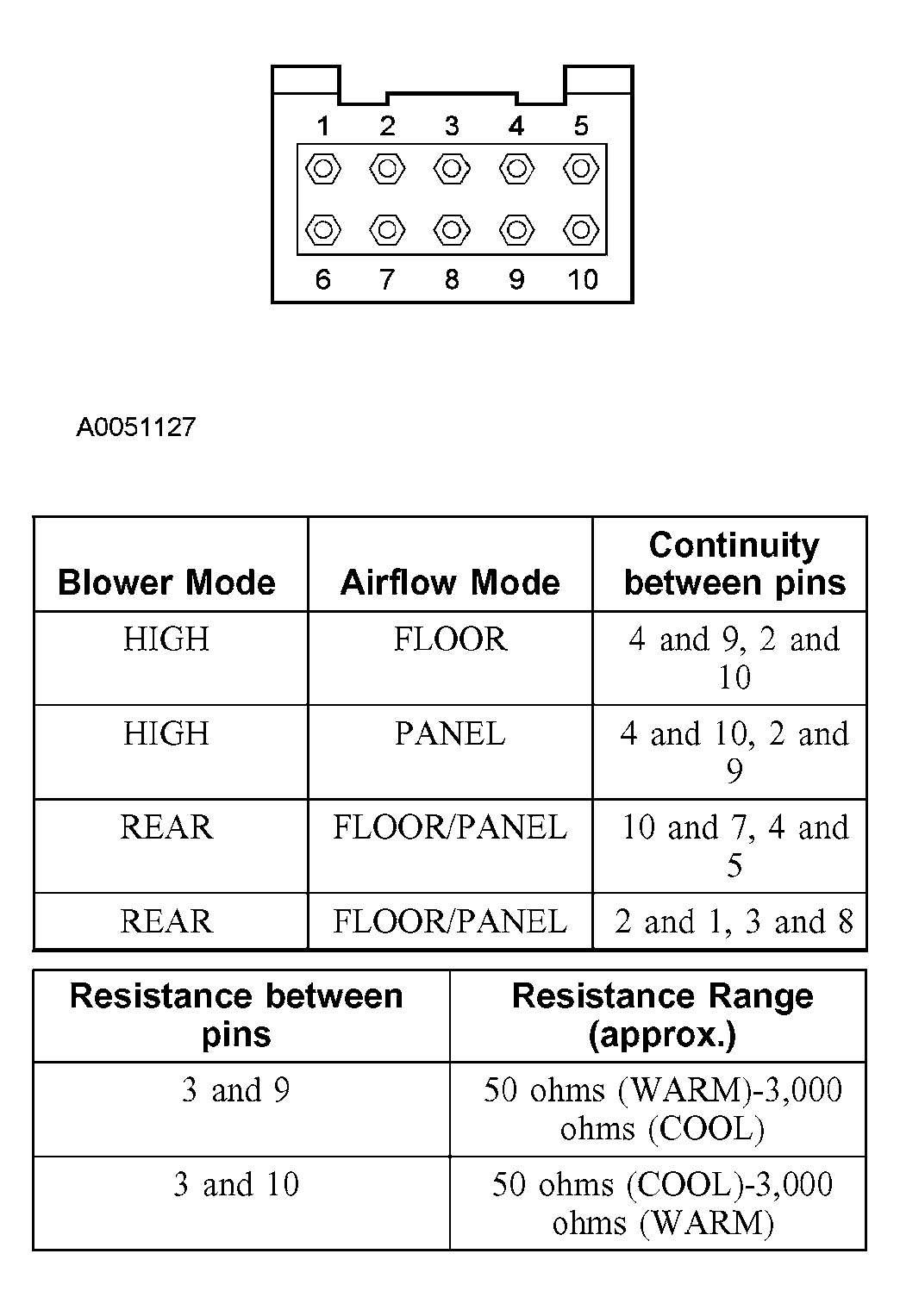

Fig 1: Identifying Front Auxiliary Climate Control Assembly Pins
G03961665Courtesy of FORD MOTOR CO.
