Auxiliary Relay Box 1

NOTE: For component location, see ELECTRICAL COMPONENT LOCATOR article.

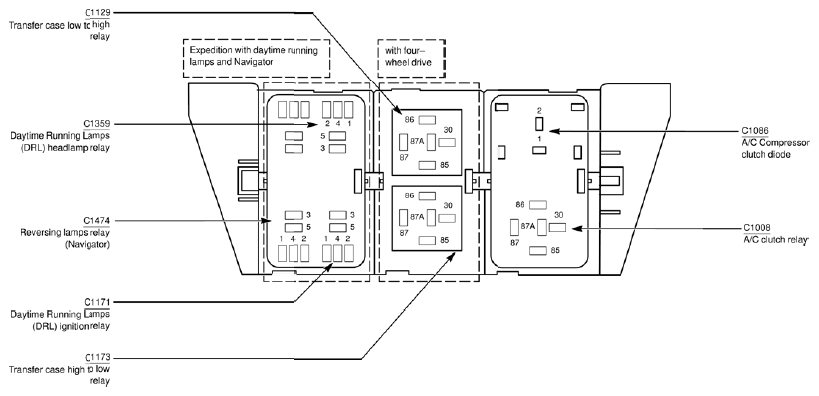

Fig 1: Auxiliary Relay Box 1 Components

Courtesy of FORD MOTOR CO.

AUXILIARY RELAY BOX 1 RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
C1173	Transfer case high to low relay
C1171	Daytime Running Lamps (DRL) ignition relay
C1474	Reversing lamps relay (Navigator)
C1359	Daytime Running Lamps (DRL) headlamp relay
C1129	Transfer case low to high relay
C1008	A/C clutch relay
