Instrument Panel - Exploded View

Expedition

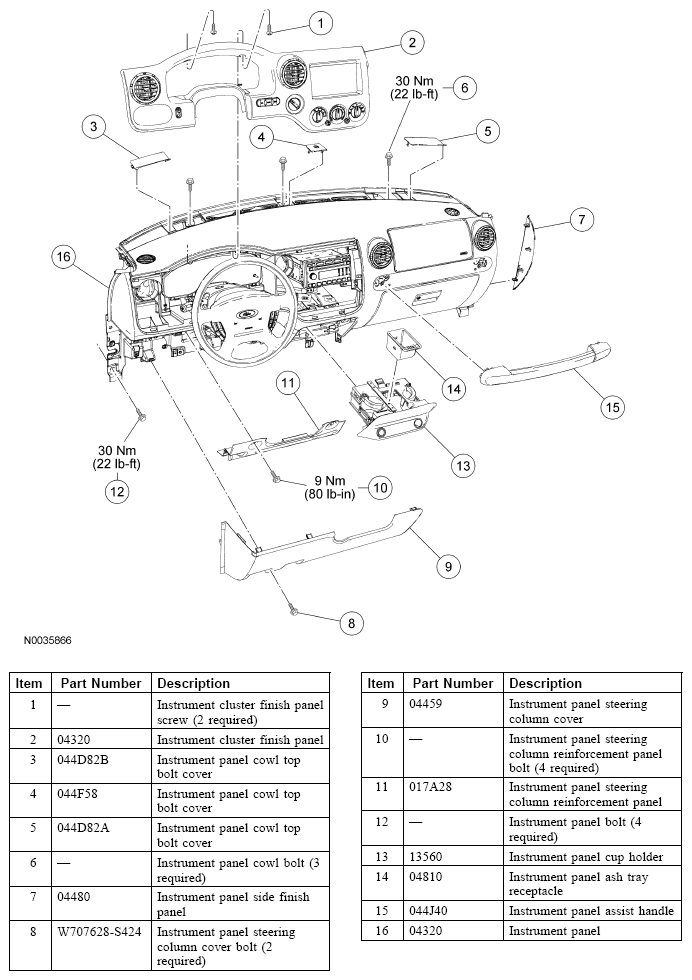

Fig 1: Exploded View Of Instrument Panel Components With Torque Specifications - (Expedition)
G04631010Courtesy of FORD MOTOR CO.

Navigator

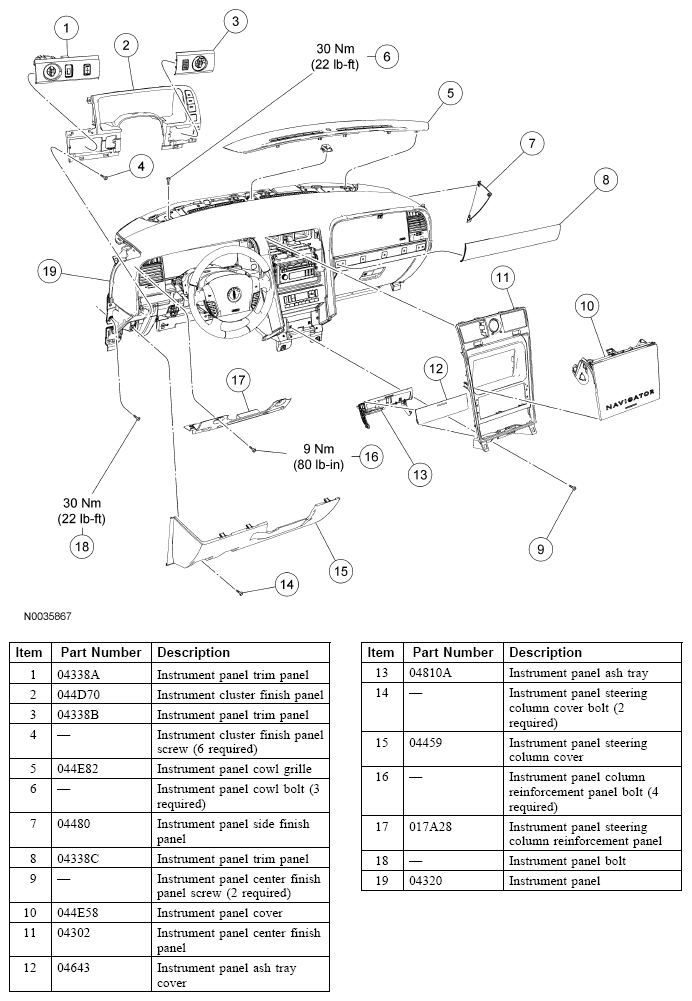

Fig 2: Exploded View Of Instrument Panel Components With Torque Specifications - (Navigator)
G04631011Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure.
