Starter Motor: Notes

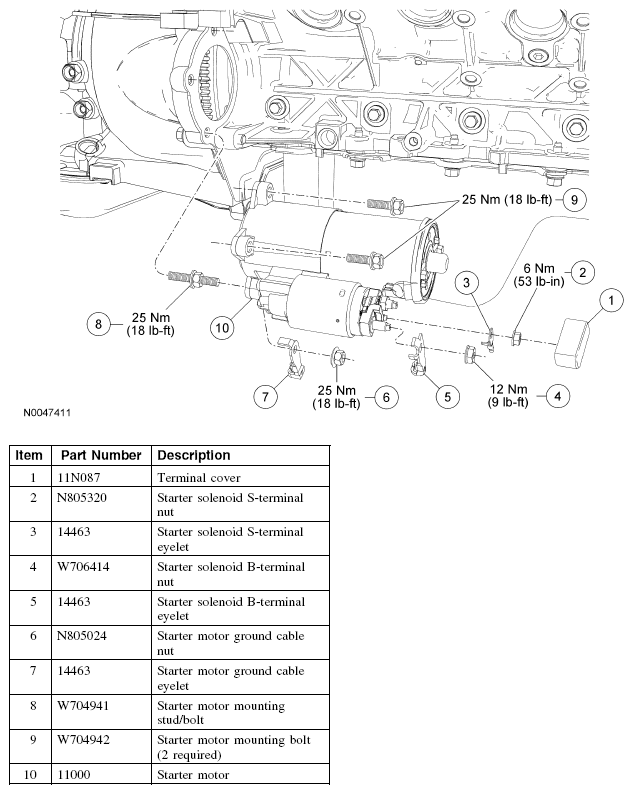

Fig 1: Exploded View Of Starter Motor Components With Torque Specifications
G04627629Courtesy of FORD MOTOR CO.
