Steering Column: Disassembly

WARNING: This page is about a different car, the 2005 Lincoln Navigator and 2005 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For shift interlock service information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .

WARNING: To avoid the risk of serious personal injury, follow all warnings, cautions, notes and instructions in the steering column removal procedure.

Remove the steering column. For additional information, refer to STEERING COLUMN .

NOTE: To ease the removal of the spring, make sure that the column tilt assembly is in the upward position.

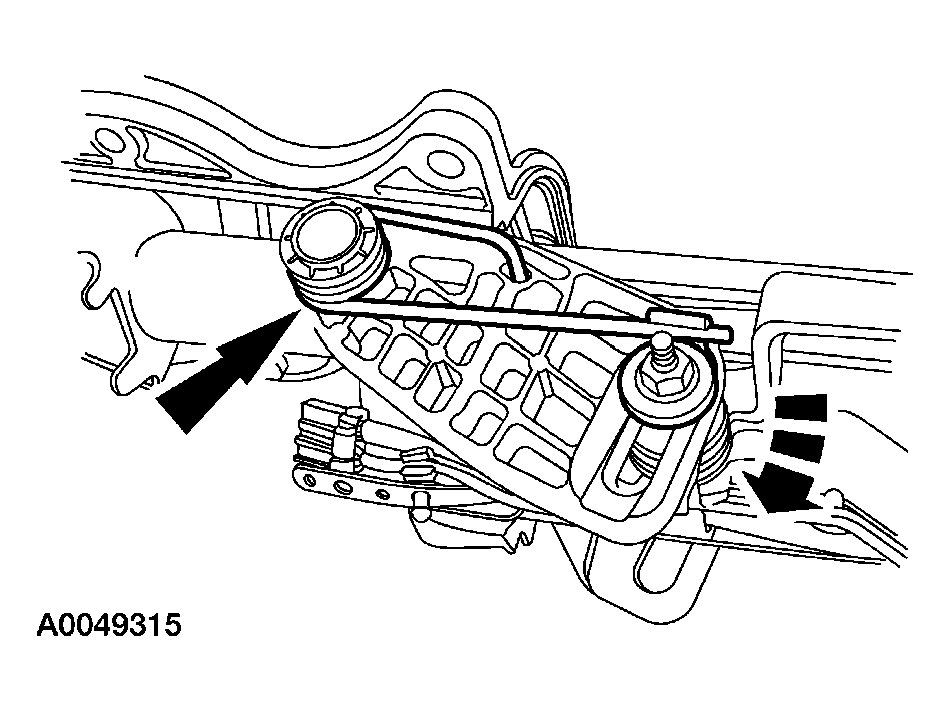

Fig 1: Releasing Spring Tension

Courtesy of FORD MOTOR CO.

Pull downward on the spring and release the spring tension, and route the spring above the spring hanger.
Cut the spring retainer and remove the spring.

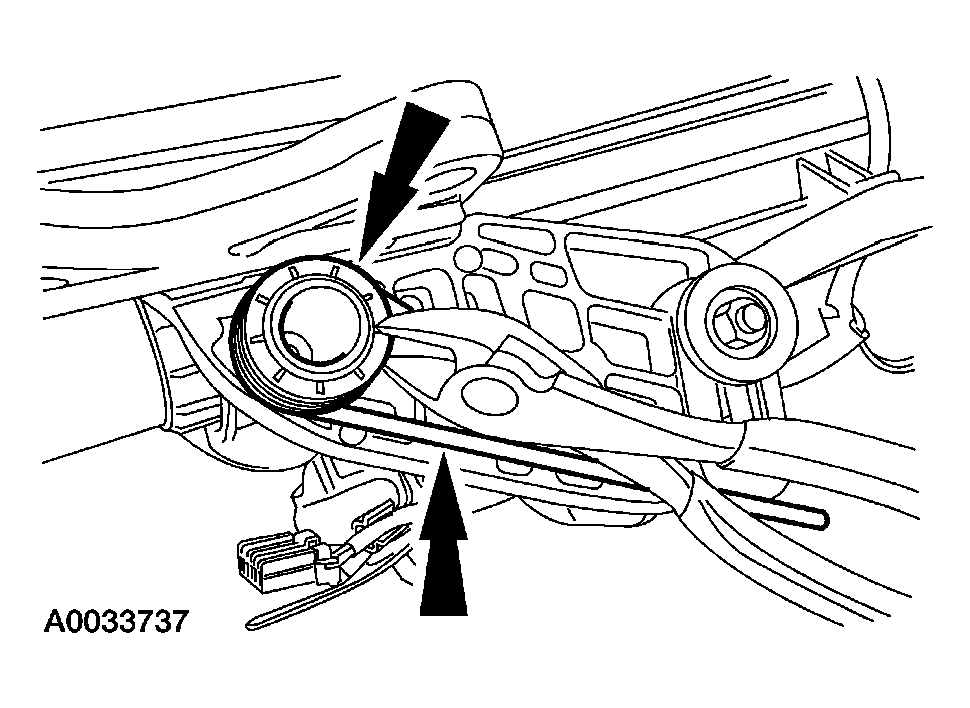

Fig 2: Cutting Spring Retainer
Courtesy of FORD MOTOR CO.
Remove the nut.

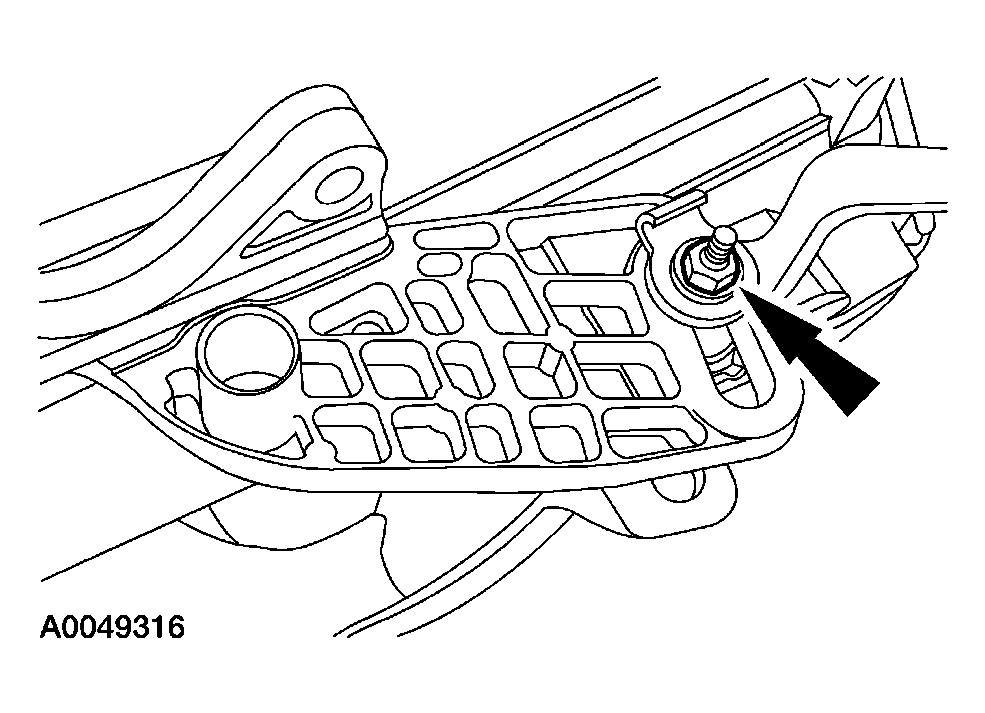

Fig 3: Removing Spring Hanger Nut
Courtesy of FORD MOTOR CO.
Remove the spring hanger, sleeve washer and spring.

Fig 4: Removing Spring Hanger
Courtesy of FORD MOTOR CO.
Remove the bolt and sleeve washer, and pivot the steering column mounting bracket upward.

Fig 5: Removing Sleeve Washer And Pivot Steering Column Mounting Bracket Upward
Courtesy of FORD MOTOR CO.
Remove the washer.

Fig 6: Removing Washer
Courtesy of FORD MOTOR CO.
Remove the bearing.

Fig 7: Removing Bearing
Courtesy of FORD MOTOR CO.
Remove the tilt lever.

Fig 8: Removing Tilt Lever
Courtesy of FORD MOTOR CO.

CAUTION: Do not use a screwdriver to separate the clamp retainer or damage can result.

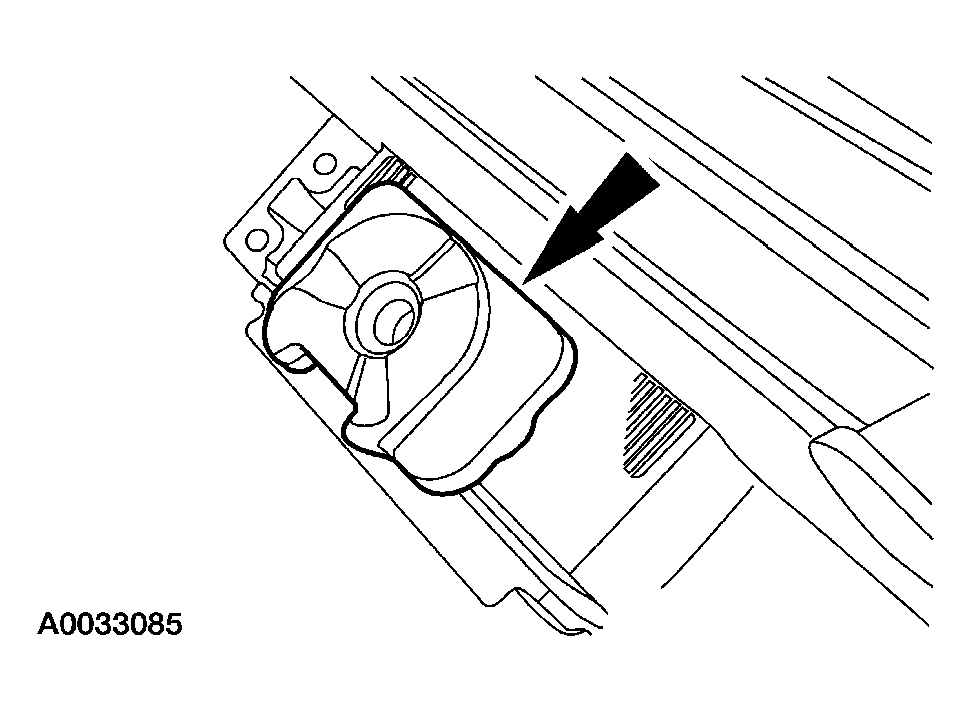

Fig 9: Removing Steering Column Clamp Retainer

Courtesy of FORD MOTOR CO.

Turn the column over and use a suitable punch to remove the steering column clamp retainer.
