Vehicle Security Module: Installation
WARNING: This page is about a different car, the 2005 Lincoln Navigator and 2005 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

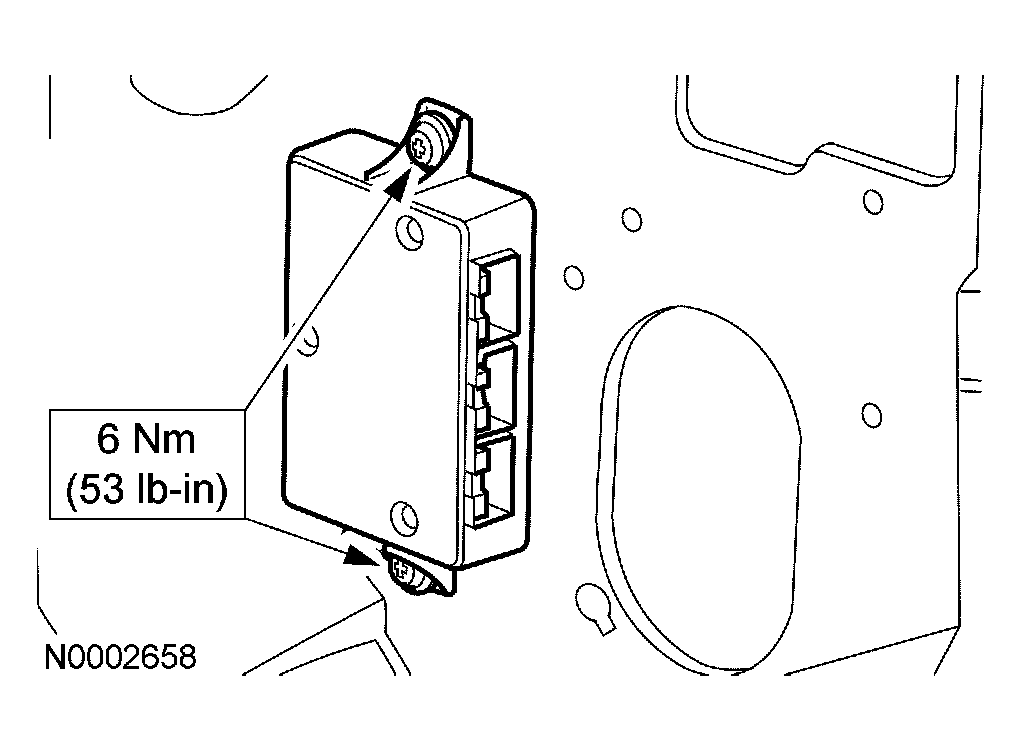

- Position the vehicle security module and install the 2 screws.
- Connect the 3 electrical connectors.
- Position the RH A-pillar lower trim panel and install the pin-type retainer.
- Install the glove compartment. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
- Connect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Download the vehicle security module configuration information from the diagnostic tool to the vehicle security module. For additional information, refer to MODULE CONFIGURATION .
- Train the tire pressure sensors. For additional information, refer to WHEELS & TIRES .
- Clear the DTCs.
- Carry out the vehicle security module on-demand self-test.
NOTE:
When successful, this step provides the calibration necessary for vehicle security module operation and clears DTC B2477. The clearing of the DTC indicates the calibration data has been successfully downloaded to the vehicle security module.
NOTE:
When successful, this step clears DTCs B2868, B2869, B2870 and B2871. The clearing of these DTCs indicates the vehicle security module has recognized the tire pressure sensors during the training procedure.
NOTE:
This step is required to clear DTC C2780, cause the vehicle security module to exit the manufacturing mode, and to be sure there are no other concerns with the newly programmed vehicle security module.
