Vehicle Security Module: Removal
WARNING: This page is about a different car, the 2005 Lincoln Navigator and 2005 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
The steps included in the vehicle security module removal and installation procedure are critical to restoring the vehicle security and tire pressure monitoring systems to normal operation. A new vehicle security module is delivered in manufacturing mode with 6 pre-set diagnostic trouble codes (DTCs) related to the tire pressure monitoring system (TPMS). The presence of these DTCs requires the installation procedures be followed in order to clear the DTCs and enable normal vehicle security module operations.
- Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Remove the pin-type retainer and the RH A-pillar lower trim panel.
- Remove the glove compartment. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .

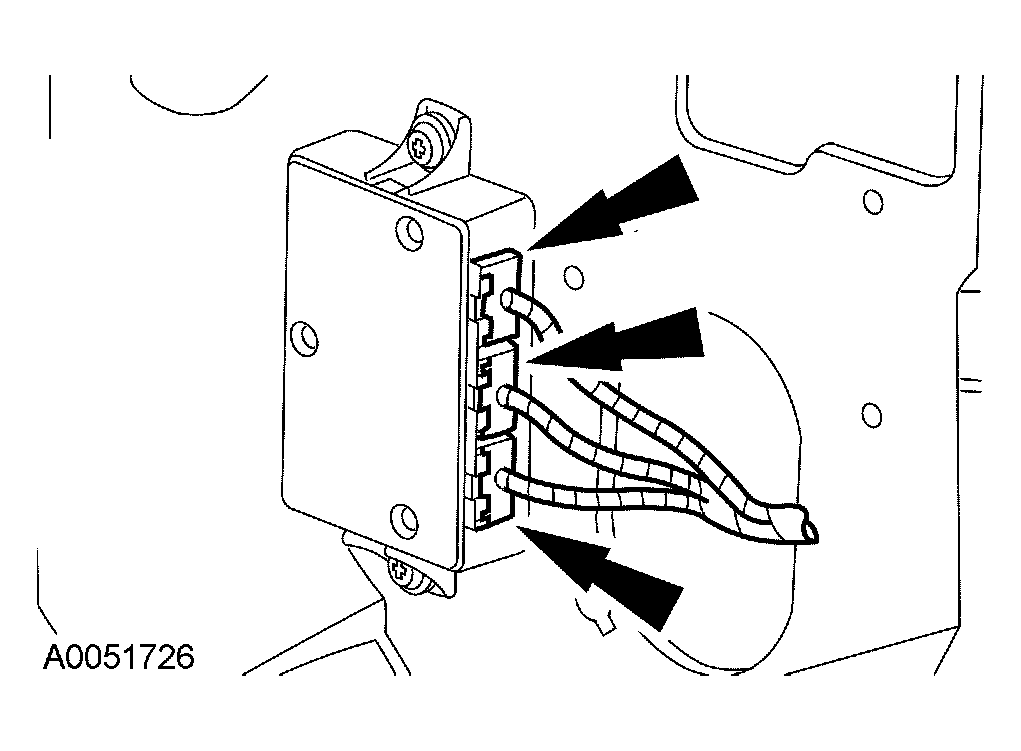

- Disconnect the 3 electrical connectors.
- Remove the 2 screws and the vehicle security module.
NOTE:
Prior to the removal of the vehicle security module, it is necessary to upload the module configuration information to the diagnostic tool. This information must be downloaded to the new vehicle security module after installation. For additional information, refer to MODULE CONFIGURATION
.
